Inherited the functionality of ground station SatPhyRxCarriers and extended it with CRDSA functionality. More...

#include "satellite-phy-rx-carrier-per-frame.h"

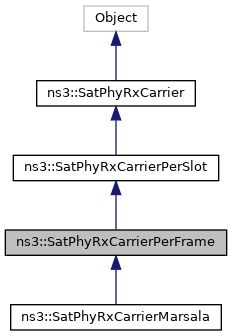

Inheritance diagram for ns3::SatPhyRxCarrierPerFrame:

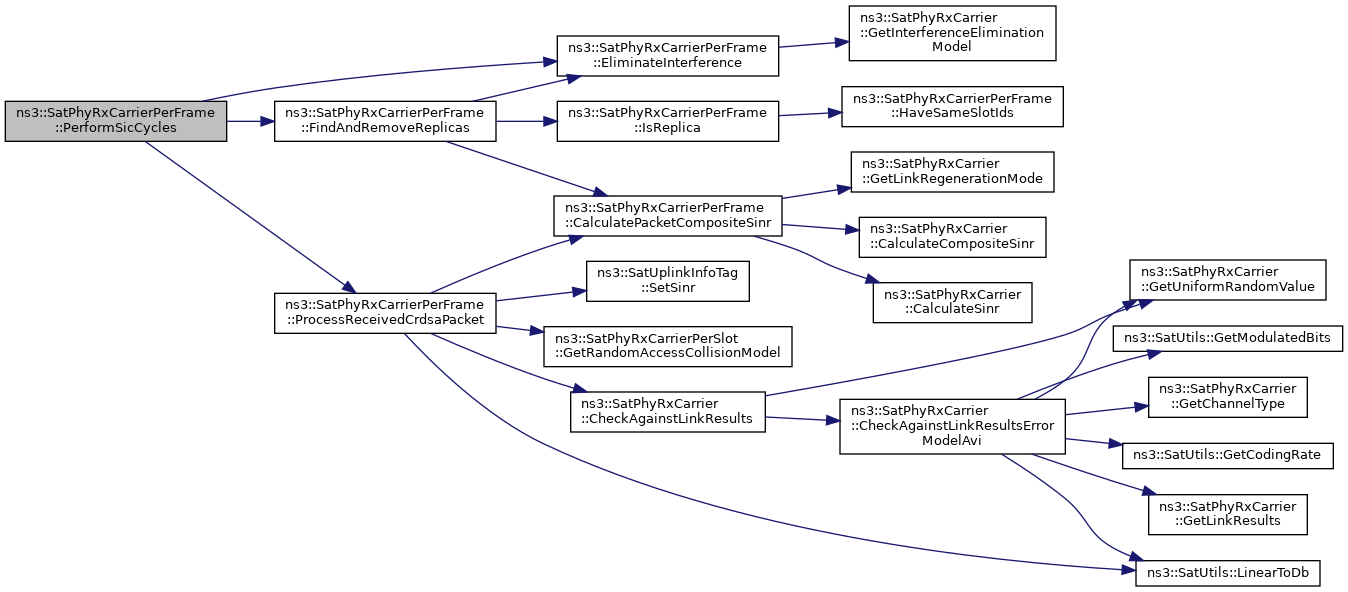

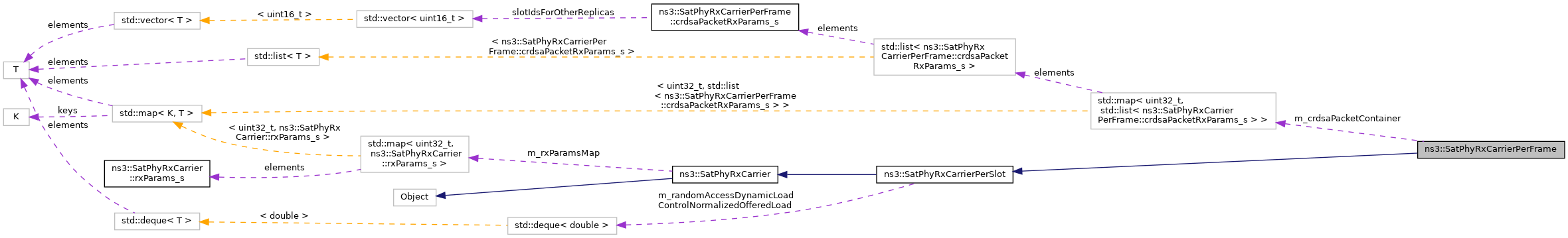

Collaboration diagram for ns3::SatPhyRxCarrierPerFrame:

Classes
struct	crdsaPacketRxParams_s
	Struct for storing the CRDSA packet specific Rx parameters. More...

Public Member Functions
	SatPhyRxCarrierPerFrame (uint32_t carrierId, Ptr< SatPhyRxCarrierConf > carrierConf, Ptr< SatWaveformConf > waveformConf, bool randomAccessEnabled)
	Constructor. More...

virtual	~SatPhyRxCarrierPerFrame ()
	Destructor. More...

void	BeginEndScheduling ()
	Function for initializing the frame end scheduling. More...

virtual CarrierType	GetCarrierType ()
	Method for querying the type of the carrier. More...

Public Member Functions inherited from ns3::SatPhyRxCarrierPerSlot
	SatPhyRxCarrierPerSlot (uint32_t carrierId, Ptr< SatPhyRxCarrierConf > carrierConf, Ptr< SatWaveformConf > waveformConf, bool randomAccessEnabled)
	Constructor. More...

virtual	~SatPhyRxCarrierPerSlot ()
	Destructor. More...

uint8_t	GetRandomAccessAllocationChannelId () const
	Function for getting the random access allocation channel ID. More...

void	SetRandomAccessAllocationChannelId (uint8_t randomAccessAllocationChannelId)
	Function for setting the random access allocation channel ID. More...

Public Member Functions inherited from ns3::SatPhyRxCarrier
	SatPhyRxCarrier (uint32_t carrierId, Ptr< SatPhyRxCarrierConf > carrierConf, Ptr< SatWaveformConf > waveformConf, bool isRandomAccessEnabled)
	Constructor. More...

virtual	~SatPhyRxCarrier ()
	Destructor. More...

uint32_t	GetBeamId ()
	Get ID the ID of the beam this carrier is attached to. More...

double	GetRxTemperatureK ()
	Method for querying the temperature of the carrier. More...

uint32_t	GetSatId ()
	Get ID the ID of the satellite this carrier is attached to. More...

void	SetAverageNormalizedOfferedLoadCallback (SatPhyRx::AverageNormalizedOfferedLoadCallback callback)
	Function for setting the AverageNormalizedOfferedLoadCallback callback. More...

void	SetBeamId (uint32_t beamId)
	Function for setting the beam id for all the transmissions from this SatPhyTx. More...

void	SetCnoCb (SatPhyRx::CnoCallback cb)
	Function for settign the C/NO callback. More...

void	SetNodeInfo (const Ptr< SatNodeInfo > nodeInfo)
	Function for setting the node info class. More...

void	SetPhy (Ptr< SatPhy > phy)
	Function for setting the SatPhy module. More...

void	SetReceiveCb (SatPhyRx::ReceiveCallback cb)
	Function for setting the receive callback. More...

void	SetSatId (uint32_t satId)
	Function for setting the satellite id for all the transmissions from this SatPhyTx. More...

virtual bool	StartRx (Ptr< SatSignalParameters > rxParams)
	Function for starting packet reception from the SatChannel. More...

Static Public Member Functions
static bool	CompareCrdsaPacketId (SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s obj1, SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s obj2)
	Function for comparing the CRDSA unique packet IDs. More...

static TypeId	GetTypeId (void)
	Get the TypeId of the class. More...

Static Public Member Functions inherited from ns3::SatPhyRxCarrierPerSlot
static TypeId	GetTypeId (void)
	Get the TypeId of the class. More...

Static Public Member Functions inherited from ns3::SatPhyRxCarrier
static TypeId	GetTypeId (void)
	Function for gettign the NS-3 type ID. More...

Protected Member Functions
double	CalculatePacketCompositeSinr (crdsaPacketRxParams_s &packet)
	Function for computing the composite SINR of the given packet. More...

virtual void	DoDispose ()
	Dispose implementation. More...

void	EliminateInterference (std::map< uint32_t, std::list< SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s >>::iterator iter, SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s processedPacket)
	Function for eliminating the interference to other packets in the slot from the correctly received packet. More...

void	FindAndRemoveReplicas (SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s packet)
	Function for finding and removing the replicas of the CRDSA packet. More...

std::map< uint32_t, std::list< SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s > > &	GetCrdsaPacketContainer ()

bool	IsReplica (const SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s &packet, const SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s &otherPacket) const
	Function for identifying whether the packet is a replica of another packet. More...

virtual void	PerformSicCycles (std::vector< SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s > &combinedPacketsForFrame)
	Function for receiving decodable packets and removing their interference from the other packets in the slots they’re in; perform as many cycles as needed to try to decode each packet. More...

virtual void	ReceiveSlot (SatPhyRxCarrier::rxParams_s packetRxParams, const uint32_t nPackets)
	Receive a slot. More...

Protected Member Functions inherited from ns3::SatPhyRxCarrierPerSlot
double	CalculateAverageNormalizedOfferedRandomAccessLoad ()
	Function for calculating the average normalized offered random access load. More...

virtual Ptr< SatInterference::InterferenceChangeEvent >	CreateInterference (Ptr< SatSignalParameters > rxParams, Address rxAddress)
	Create an interference event based on Rx parameters and address. More...

virtual void	EndRxData (uint32_t key)
	Function for ending the packet reception from the SatChannel. More...

SatPhyRxCarrierConf::RandomAccessCollisionModel	GetRandomAccessCollisionModel () const
	Get the random access collision model of the carrier. More...

bool	IsRandomAccessDynamicLoadControlEnabled () const
	Check if random access dynamic load control is enabled. More...

void	SaveMeasuredRandomAccessLoad (double measuredRandomAccessLoad)
	Function for saving the measured random access load. More...

Protected Member Functions inherited from ns3::SatPhyRxCarrier
double	CalculateCompositeSinr (double sinr1, double sinr2)
	Function for calculating the composite SINR. More...

double	CalculateSinr (double rxPowerW, double ifPowerW, double rxNoisePowerW, double rxAciIfPowerW, double rxExtNoisePowerW, double otherInterference)
	Function for calculating the SINR. More...

double	CalculateSinr (double sinr, double otherInterference)
	Calculate final SINR with PHY specific parameters and given calculated SINR. More...

void	ChangeState (State newState)
	Function for changing the receiver state. More...

bool	CheckAgainstLinkResults (double cSinr, Ptr< SatSignalParameters > rxParams)
	Function for checking the SINR against the link results. More...

void	CheckRxStateSanity ()
	Function for checking the Rx state sanity. More...

void	DecreaseNumOfRxState (SatEnums::PacketType_t packetType)
	Function for decreasing the number of ongoing transmissions. More...

void	DoCompositeSinrOutputTrace (double cSinr)
	Function for composite SINR output tracing. More...

virtual void	DoCreateInterferenceEliminationModel (Ptr< SatPhyRxCarrierConf > carrierConf, uint32_t carrierId, Ptr< SatWaveformConf > waveformConf)
	Create an interference cancelation model for this carrier. More...

virtual void	DoCreateInterferenceModel (Ptr< SatPhyRxCarrierConf > carrierConf, uint32_t carrierId, double rxBandwidthHz)
	Create an interference model for this carrier. More...

uint32_t	GetCarrierId () const
	Get the ID of the carrier. More...

Ptr< SatChannelEstimationErrorContainer >	GetChannelEstimationErrorContainer ()
	Get a pointer to the channel estimation error container of the carrier. More...

virtual SatEnums::ChannelType_t	GetChannelType ()
	Get the channel type. More...

virtual const bool	GetDefaultReceiveMode ()
	Get the default receive mode for the carrier. More...

Ptr< SatInterferenceElimination >	GetInterferenceEliminationModel ()
	Get pointer to the current interference elimination model. More...

Ptr< SatInterference >	GetInterferenceModel ()
	Get pointer to the current interference model. More...

virtual SatEnums::RegenerationMode_t	GetLinkRegenerationMode ()
	Get the link regeneration mode. More...

Ptr< SatLinkResults >	GetLinkResults ()
	Get pointer to the link results given by the carrier creation configuration. More...

Ptr< SatNodeInfo >	GetNodeInfo ()
	Get the satellite node info. More...

Mac48Address	GetOwnAddress ()
	Get the MAC address of the carrier. More...

std::pair< bool, SatPhyRxCarrier::rxParams_s >	GetReceiveParams (Ptr< SatSignalParameters > rxParams)
	Rx parameter storage methods. More...

State	GetState ()
	Get the state of the carrier. More...

rxParams_s	GetStoredRxParams (uint32_t key)
	Get stored rxParams under a key. More...

double	GetUniformRandomValue (double min, double max)
	A helper method for getting values form a uniform random variable in child classes. More...

Ptr< SatWaveformConf >	GetWaveformConf ()
	Get pointer to the waveform configuration. More...

double	GetWorstSinr (double sinr1, double sinr2)
	Function for calculating the worst sinr between uplink and downlink. More...

void	IncreaseNumOfRxState (SatEnums::PacketType_t packetType)
	Function for increasing the number of ongoing transmissions. More...

bool	IsCompositeSinrOutputTraceEnabled () const
	Check if composite SINR output trace is enabled. More...

bool	IsReceivingDedicatedAccess ()
	Check if the carrier is receiving a dedicated access packet. More...

void	RemoveStoredRxParams (uint32_t key)
	Remove stored rxParams under a key. More...

void	SetChannelType (SatEnums::ChannelType_t channelType)
	Set the channel type for the carrier. More...

void	SetLinkRegenerationMode (SatEnums::RegenerationMode_t linkRegenerationMode)
	Set the link regeneration mode. More...

void	StoreRxParams (uint32_t key, rxParams_s rxParams)
	Store rxParams under a key. More...

Private Member Functions
void	AddCrdsaPacket (SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s crdsaPacketParams)
	Function for storing the received CRDSA packets. More...

double	CalculateNormalizedOfferedRandomAccessLoad ()
	Function for calculating the normalized offered random access load. More...

void	DoFrameEnd ()
	Function for processing the frame interval operations. More...

bool	HaveSameSlotIds (const SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s &packet, const SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s &otherPacket) const
	Function for checking do the packets have identical slots. More...

void	MeasureRandomAccessLoad ()
	Function for measuring the random access load. More...

std::vector< SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s >	ProcessFrame ()
	Function for processing the CRDSA frame. More...

SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s	ProcessReceivedCrdsaPacket (SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s packet, uint32_t numOfPacketsForThisSlot)
	Process received CRDSA packet. More...

void	UpdateRandomAccessLoad ()
	Update the random access load for CRDSA. More...

Private Attributes
std::map< uint32_t, std::list< SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s > >	m_crdsaPacketContainer
	CRDSA packet container. More...

TracedCallback< uint32_t, const Address &, bool >	m_crdsaReplicaRxTrace
	`CrdsaReplicaRx` trace source. More...

TracedCallback< uint32_t, const Address &, bool >	m_crdsaUniquePayloadRxTrace
	`CrdsaUniquePayloadRx` trace source. More...

bool	m_frameEndSchedulingInitialized
	Has the frame end scheduling been initialized. More...

Additional Inherited Members
Public Types inherited from ns3::SatPhyRxCarrier
enum	CarrierType { BASE , DEDICATED_ACCESS , RA_SLOTTED_ALOHA , RA_CRDSA , RA_ESSA }
	Possible carrier types. More...

typedef void(*	LinkBudgetTraceCallback) (Ptr< SatSignalParameters > rxParams, Mac48Address receiverAddress, Mac48Address destinationAddress, double interference, double sinr)
	Callback signature for `LinkBudgetTrace` trace source. More...

typedef void(*	LinkSinrTraceCallback) (double sinr, const Address &utAddress)
	Callback signature for `LinkSinrTrace` trace source. More...

typedef void(*	PhyRxCollisionCallback) (uint32_t nPackets, const Address &utAddress, bool isCollided)
	Common callback signature for trace sources related to packets reception by PHY and its collision. More...

typedef void(*	PhyRxErrorCallback) (uint32_t nPackets, const Address &utAddress, bool isError)
	Common callback signature for trace sources related to packets reception by PHY and its error. More...

typedef void(*	RxPowerTraceCallback) (double rxPower, const Address &utAddress)
	Callback signature for `RxPowerTrace` trace source. More...

enum	State { IDLE , RX }
	Enum for PHY states. More...

Protected Attributes inherited from ns3::SatPhyRxCarrierPerSlot
uint32_t	m_randomAccessBitsInFrame
	The number of random access bits in current frame. More...

TracedCallback< uint32_t, const Address &, bool >	m_slottedAlohaRxCollisionTrace
	`SlottedAlohaRxCollision` trace source. More...

TracedCallback< uint32_t, const Address &, bool >	m_slottedAlohaRxErrorTrace
	`SlottedAlohaRxError` trace source. More...

Protected Attributes inherited from ns3::SatPhyRxCarrier
SatPhyRxCarrierConf::AdditionalInterferenceCallback	m_additionalInterferenceCallback
	Callback to get additional interference. More...

SatPhy::AverageNormalizedOfferedLoadCallback	m_avgNormalizedOfferedLoadCallback
	Average normalized offered load callback. More...

SatPhy::CnoCallback	m_cnoCallback
	The upper layer C/N0 receive callback. More...

TracedCallback< uint32_t, const Address & >	m_daRxCarrierIdTrace

TracedCallback< uint32_t, const Address &, bool >	m_daRxTrace
	`DaRx` trace source. More...

TracedCallback< Ptr< SatSignalParameters >, Mac48Address, Mac48Address, double, double >	m_linkBudgetTrace
	The trace source on packet receptiong. More...

SatEnums::RegenerationMode_t	m_linkRegenerationMode
	Link regeneration mode. More...

TracedCallback< double, const Address & >	m_linkSinrTrace
	A callback for link specific SINR in dB. More...

const bool	m_randomAccessEnabled
	Is random access enabled for this carrier. More...

double	m_rxAciIfPowerW
	RX Adjacent channel interference. More...

double	m_rxBandwidthHz
	RX Bandwidth in Hz. More...

SatPhyRx::ReceiveCallback	m_rxCallback
	The upper layer package receive callback. More...

double	m_rxExtNoisePowerW
	External noise power system RX noise. More...

double	m_rxNoisePowerW
	RX noise. More...

TracedCallback< double, const Address & >	m_rxPowerTrace
	A callback for received signal power in dBW. More...

double	m_rxTemperatureK
	RX noise temperature in K. More...

TracedCallback< double, const Address & >	m_sinrTrace
	A callback for transmission composite SINR at UT (BBFrame) or GW (time slot). More...

Detailed Description

Inherited the functionality of ground station SatPhyRxCarriers and extended it with CRDSA functionality.

Definition at line 56 of file satellite-phy-rx-carrier-per-frame.h.

Constructor & Destructor Documentation

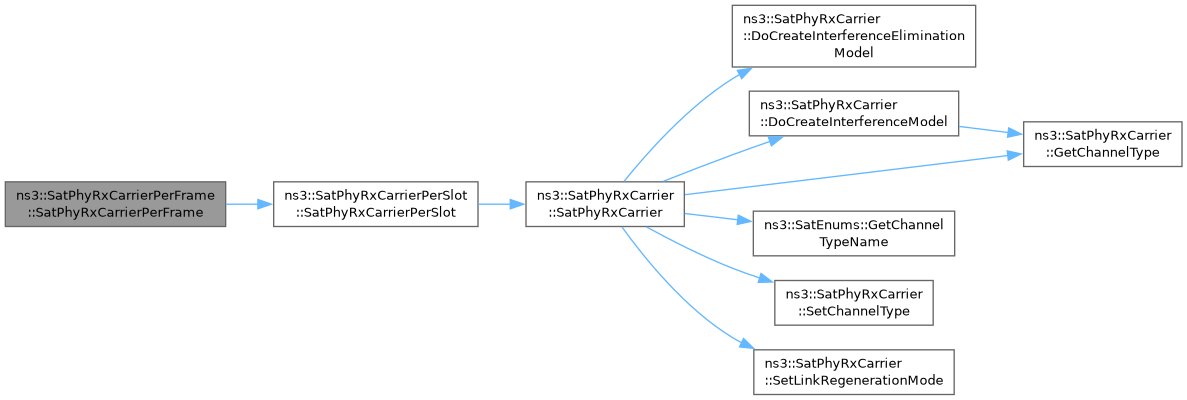

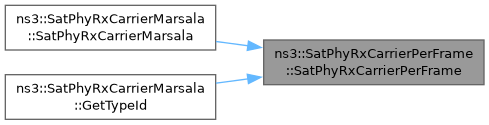

◆ SatPhyRxCarrierPerFrame()

ns3::SatPhyRxCarrierPerFrame::SatPhyRxCarrierPerFrame	(	uint32_t	carrierId,
		Ptr< SatPhyRxCarrierConf >	carrierConf,
		Ptr< SatWaveformConf >	waveformConf,
		bool	randomAccessEnabled
	)

Constructor.

Parameters

carrierId	ID of the carrier
carrierConf	Carrier configuration
waveformConf	Waveform configuration
randomAccessEnabled	Is this a RA carrier

Definition at line 47 of file satellite-phy-rx-carrier-per-frame.cc.

References ns3::SatPhyRxCarrier::m_randomAccessEnabled.

◆ ~SatPhyRxCarrierPerFrame()

ns3::SatPhyRxCarrierPerFrame::~SatPhyRxCarrierPerFrame ( )

virtual

Destructor.

Definition at line 91 of file satellite-phy-rx-carrier-per-frame.cc.

Member Function Documentation

◆ AddCrdsaPacket()

void ns3::SatPhyRxCarrierPerFrame::AddCrdsaPacket ( SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s crdsaPacketParams )

private

Function for storing the received CRDSA packets.

Parameters

Rx	parameters of the packet

check the first packet for tag

the first slot ID is this replicas own slot ID

rest of the slot IDs are for the replicas

tags are not needed after this

Definition at line 344 of file satellite-phy-rx-carrier-per-frame.cc.

References ns3::SatCrdsaReplicaTag::GetSlotIds(), m_crdsaPacketContainer, ns3::SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s::ownSlotId, ns3::SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s::rxParams, and ns3::SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s::slotIdsForOtherReplicas.

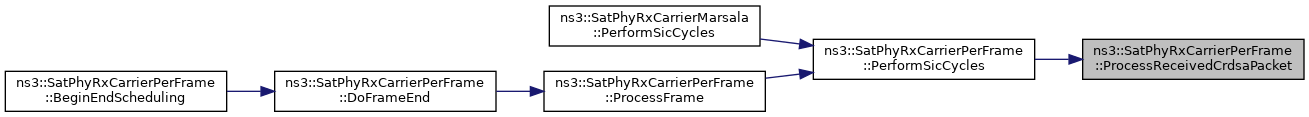

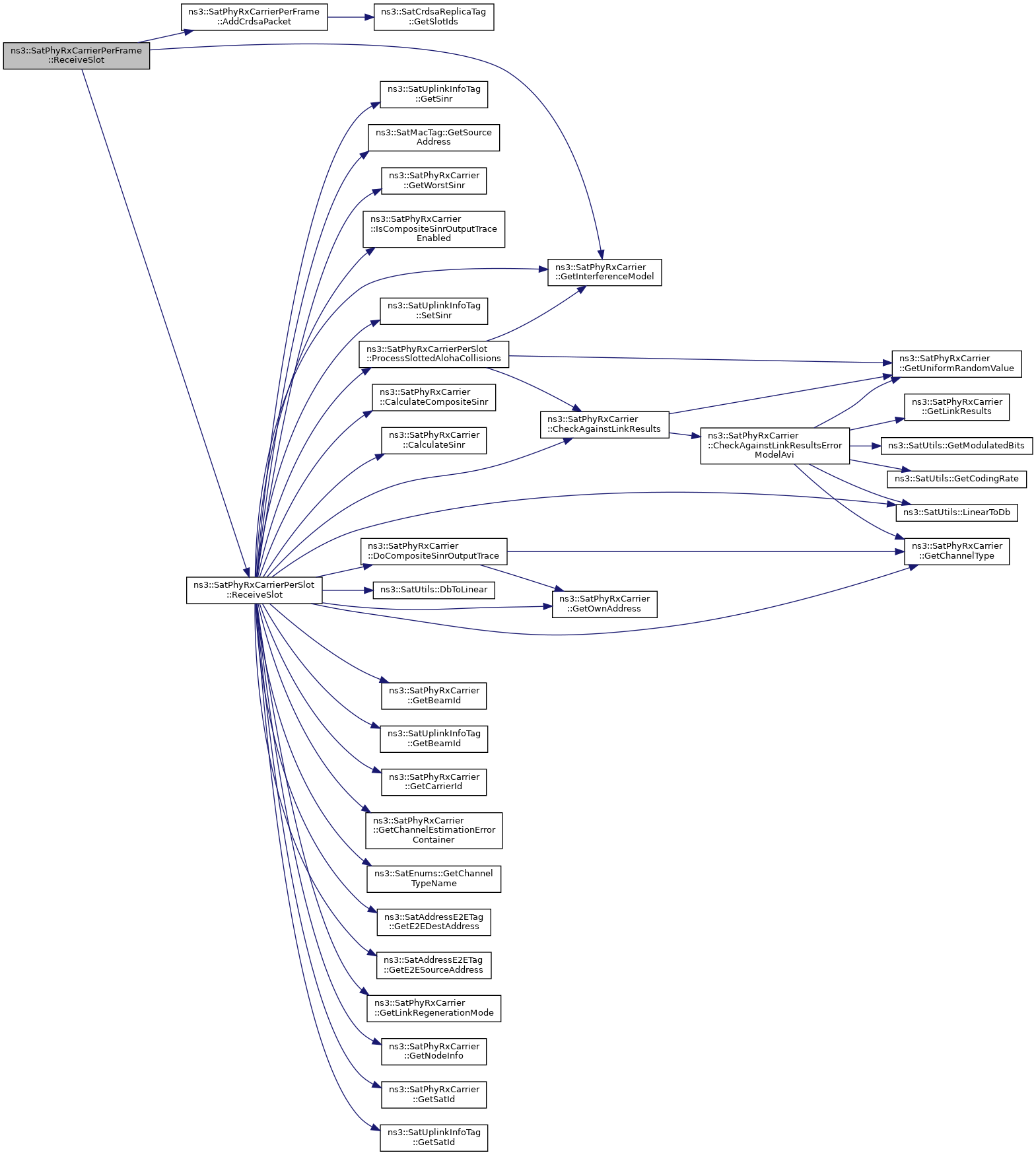

Referenced by ReceiveSlot().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BeginEndScheduling()

void ns3::SatPhyRxCarrierPerFrame::BeginEndScheduling ( void )

virtual

Function for initializing the frame end scheduling.

Reimplemented from ns3::SatPhyRxCarrierPerSlot.

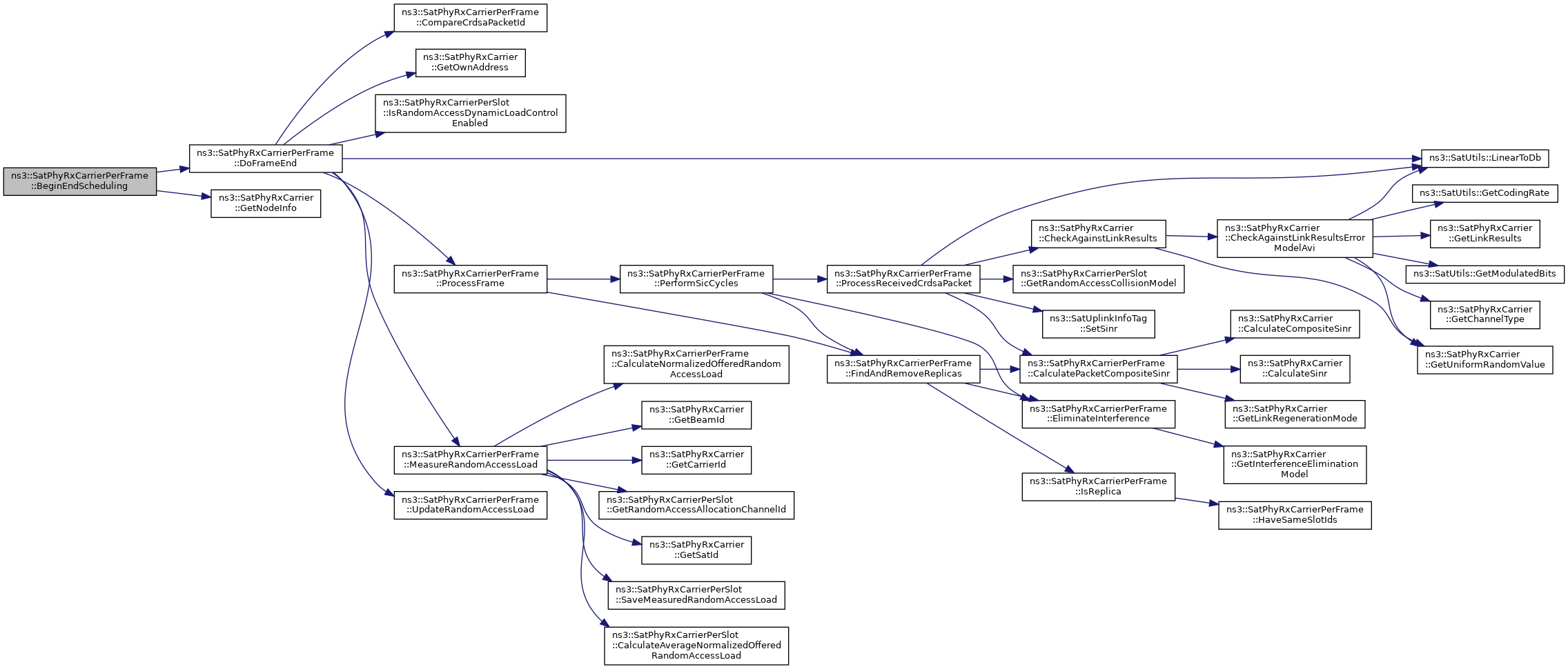

Definition at line 62 of file satellite-phy-rx-carrier-per-frame.cc.

References DoFrameEnd(), ns3::SatPhyRxCarrier::GetNodeInfo(), m_frameEndSchedulingInitialized, and ns3::SatConstVariables::SUPERFRAME_SEQUENCE.

Here is the call graph for this function:

◆ CalculateNormalizedOfferedRandomAccessLoad()

double ns3::SatPhyRxCarrierPerFrame::CalculateNormalizedOfferedRandomAccessLoad ( )

private

Function for calculating the normalized offered random access load.

Returns: Normalized offered load

reset the counter

Definition at line 322 of file satellite-phy-rx-carrier-per-frame.cc.

References ns3::SatPhyRxCarrierPerSlot::m_randomAccessBitsInFrame, ns3::SatPhyRxCarrier::m_rxBandwidthHz, and ns3::SatConstVariables::SUPERFRAME_SEQUENCE.

Referenced by MeasureRandomAccessLoad().

Here is the caller graph for this function:

◆ CalculatePacketCompositeSinr()

double ns3::SatPhyRxCarrierPerFrame::CalculatePacketCompositeSinr ( SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s & packet )

protected

Function for computing the composite SINR of the given packet.

Parameters

packet The packet whose composite SINR should be updated

Returns: SINR for the given packet

Definition at line 657 of file satellite-phy-rx-carrier-per-frame.cc.

References ns3::SatPhyRxCarrier::CalculateCompositeSinr(), ns3::SatPhyRxCarrier::CalculateSinr(), ns3::SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s::cSinr, ns3::SatPhyRxCarrier::GetLinkRegenerationMode(), ns3::SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s::ifPower, ns3::SatPhyRxCarrier::m_additionalInterferenceCallback, ns3::SatPhyRxCarrier::m_rxAciIfPowerW, ns3::SatPhyRxCarrier::m_rxExtNoisePowerW, ns3::SatPhyRxCarrier::m_rxNoisePowerW, ns3::SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s::rxParams, and ns3::SatEnums::TRANSPARENT.

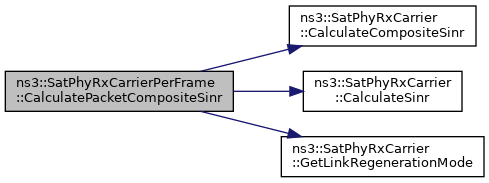

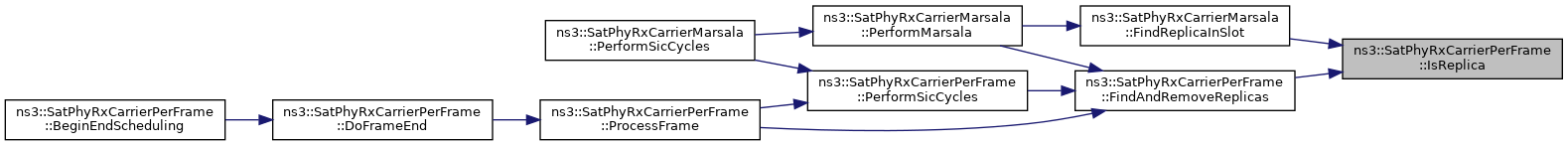

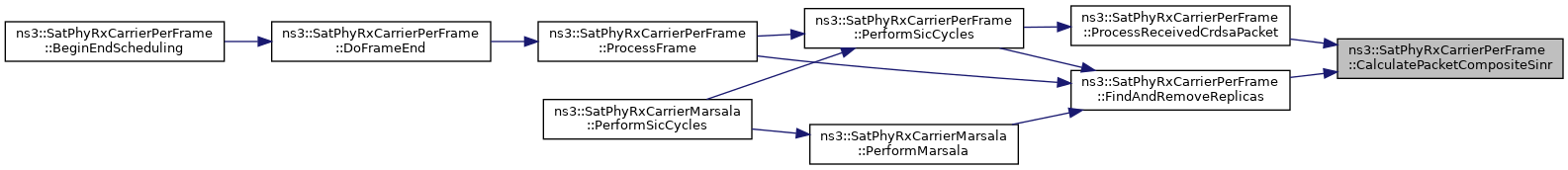

Referenced by FindAndRemoveReplicas(), and ProcessReceivedCrdsaPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CompareCrdsaPacketId()

bool ns3::SatPhyRxCarrierPerFrame::CompareCrdsaPacketId	(	SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s	obj1,
		SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s	obj2
	)

static

Function for comparing the CRDSA unique packet IDs.

Parameters

obj1	Comparison object 1
obj2	Comparison object 2

Returns: Comparison result

Definition at line 893 of file satellite-phy-rx-carrier-per-frame.cc.

References ns3::SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s::rxParams.

Referenced by DoFrameEnd().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::SatPhyRxCarrierPerFrame::DoDispose ( void )

protectedvirtual

Dispose implementation.

Reimplemented from ns3::SatPhyRxCarrierPerSlot.

Definition at line 117 of file satellite-phy-rx-carrier-per-frame.cc.

References ns3::SatPhyRxCarrierPerSlot::DoDispose(), and m_crdsaPacketContainer.

Here is the call graph for this function:

◆ DoFrameEnd()

void ns3::SatPhyRxCarrierPerFrame::DoFrameEnd ( )

private

Function for processing the frame interval operations.

sort the results based on CRDSA packet IDs to make sure the packets are processed in correct order

uses composite sinr

CRDSA trace

send packet upwards

Definition at line 173 of file satellite-phy-rx-carrier-per-frame.cc.

References CompareCrdsaPacketId(), ns3::SatPhyRxCarrier::GetOwnAddress(), ns3::SatPhyRxCarrierPerSlot::IsRandomAccessDynamicLoadControlEnabled(), ns3::SatUtils::LinearToDb(), m_crdsaPacketContainer, m_crdsaUniquePayloadRxTrace, ns3::SatPhyRxCarrier::m_linkBudgetTrace, ns3::SatPhyRxCarrier::m_rxCallback, ns3::SatPhyRxCarrier::m_sinrTrace, MeasureRandomAccessLoad(), ProcessFrame(), ns3::SatConstVariables::SUPERFRAME_SEQUENCE, and UpdateRandomAccessLoad().

Referenced by BeginEndScheduling().

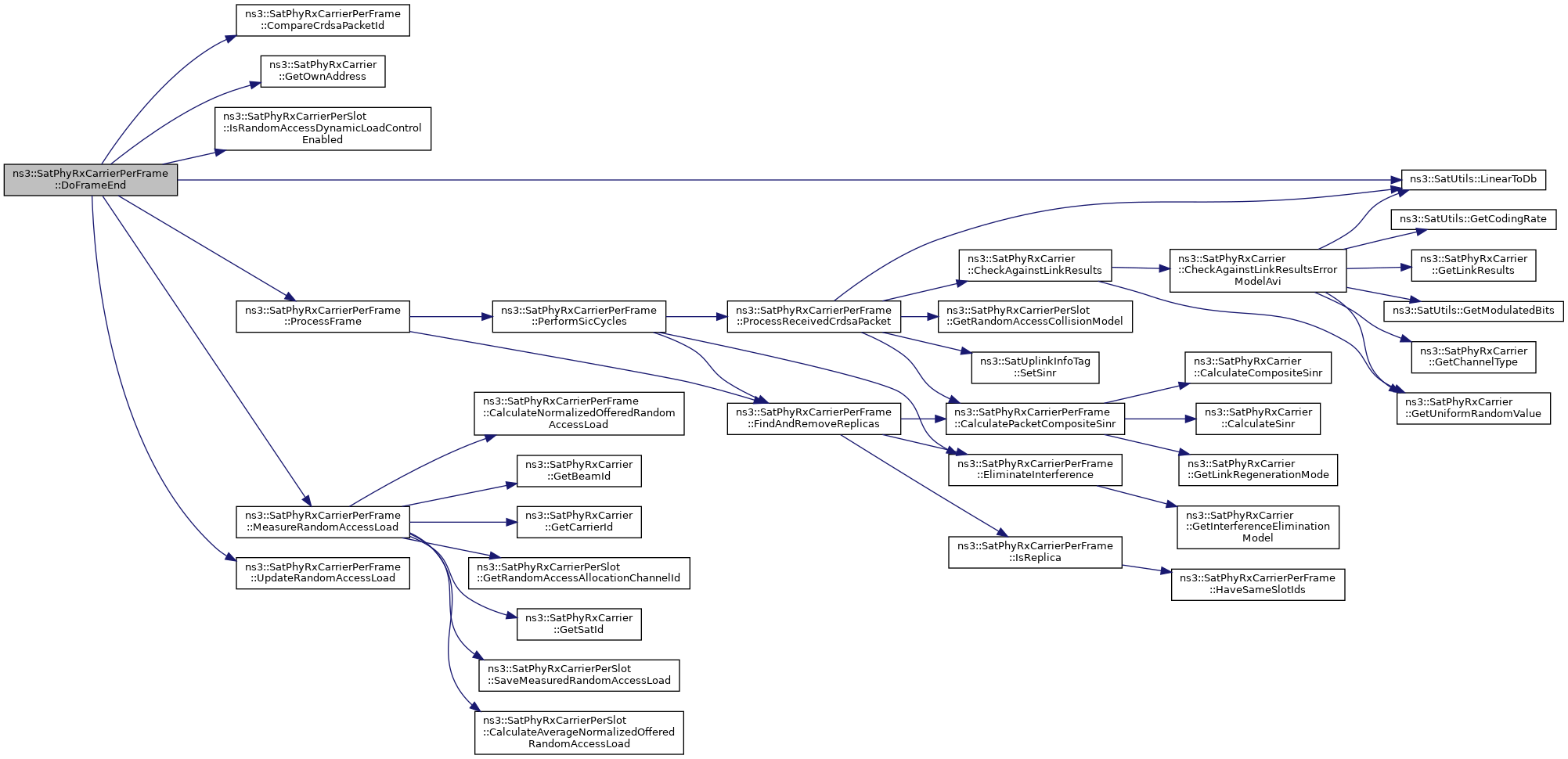

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EliminateInterference()

void ns3::SatPhyRxCarrierPerFrame::EliminateInterference	(	std::map< uint32_t, std::list< SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s >>::iterator	iter,
		SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s	processedPacket
	)

protected

Function for eliminating the interference to other packets in the slot from the correctly received packet.

Parameters

iter	Packets in the slot
processedPacket	Correctly received processed packet

release packets in this slot for re-processing

Reduce interference power for the colliding packets. Note, that the interference is eliminated only from the user link interference power at the satellite! The intra-beam interference is not handled in the return feeder link so that the intra-beam interference is not taken into account twice! TODO A more novel way to eliminate partially overlapping interference should be considered! In addition, as the interference values are extremely small, the use of long double (instead of double) should be considered to improve the accuracy.

Definition at line 752 of file satellite-phy-rx-carrier-per-frame.cc.

References ns3::SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s::cSinr, ns3::SatPhyRxCarrier::GetInterferenceEliminationModel(), m_crdsaPacketContainer, ns3::SatPhyRxCarrier::m_linkRegenerationMode, ns3::SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s::rxParams, and ns3::SatEnums::TRANSPARENT.

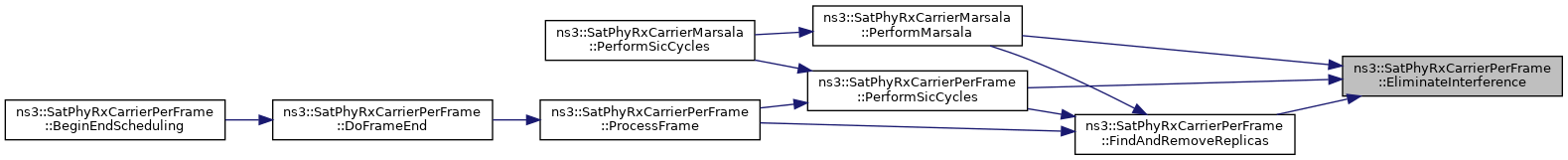

Referenced by FindAndRemoveReplicas(), ns3::SatPhyRxCarrierMarsala::PerformMarsala(), and PerformSicCycles().

Here is the call graph for this function:

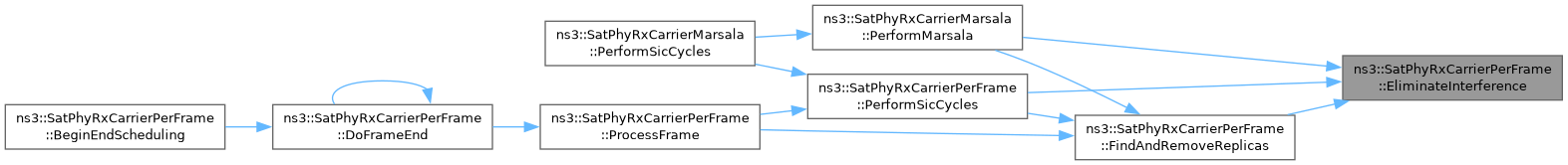

Here is the caller graph for this function:

◆ FindAndRemoveReplicas()

void ns3::SatPhyRxCarrierPerFrame::FindAndRemoveReplicas ( SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s packet )

protected

Function for finding and removing the replicas of the CRDSA packet.

Parameters

packet CRDSA packet

get the vector of packets for processing

check for the same UT & same slots

replica found for removal

Definition at line 694 of file satellite-phy-rx-carrier-per-frame.cc.

References CalculatePacketCompositeSinr(), EliminateInterference(), IsReplica(), m_crdsaPacketContainer, ns3::SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s::phyError, and ns3::SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s::slotIdsForOtherReplicas.

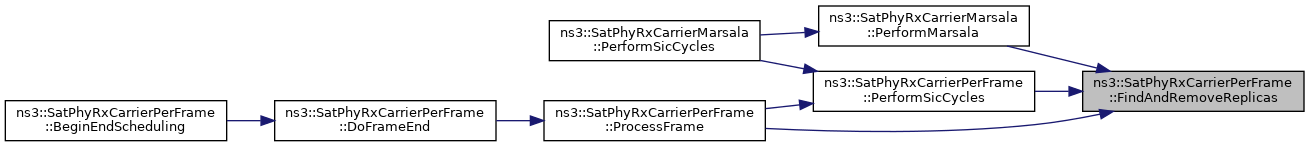

Referenced by ns3::SatPhyRxCarrierMarsala::PerformMarsala(), PerformSicCycles(), and ProcessFrame().

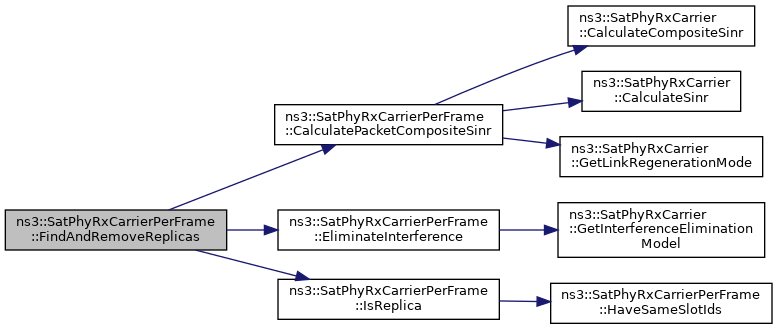

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCarrierType()

virtual CarrierType ns3::SatPhyRxCarrierPerFrame::GetCarrierType ( )

inlinevirtual

Method for querying the type of the carrier.

Reimplemented from ns3::SatPhyRxCarrierPerSlot.

Definition at line 116 of file satellite-phy-rx-carrier-per-frame.h.

◆ GetCrdsaPacketContainer()

std::map<uint32_t, std::list<SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s> >& ns3::SatPhyRxCarrierPerFrame::GetCrdsaPacketContainer ( )

inlineprotected

Definition at line 175 of file satellite-phy-rx-carrier-per-frame.h.

References m_crdsaPacketContainer.

Referenced by ns3::SatPhyRxCarrierMarsala::PerformMarsala().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatPhyRxCarrierPerFrame::GetTypeId ( void )

static

Get the TypeId of the class.

Returns: TypeId

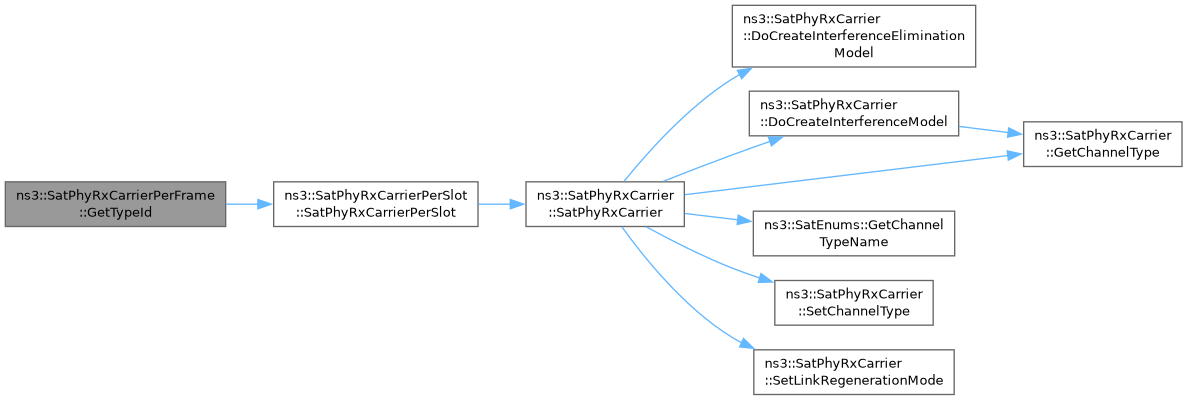

Definition at line 97 of file satellite-phy-rx-carrier-per-frame.cc.

References m_crdsaReplicaRxTrace, and m_crdsaUniquePayloadRxTrace.

◆ HaveSameSlotIds()

bool ns3::SatPhyRxCarrierPerFrame::HaveSameSlotIds	(	const SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s &	packet,
		const SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s &	otherPacket
	)		const

private

Function for checking do the packets have identical slots.

Parameters

packet	A packet
otherPacket	A packet that we want to check if it has identical slots

Returns: Have the packets identical slots

sanity check

form sets

compare sets

sanity check

Definition at line 831 of file satellite-phy-rx-carrier-per-frame.cc.

References ns3::SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s::ownSlotId, and ns3::SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s::slotIdsForOtherReplicas.

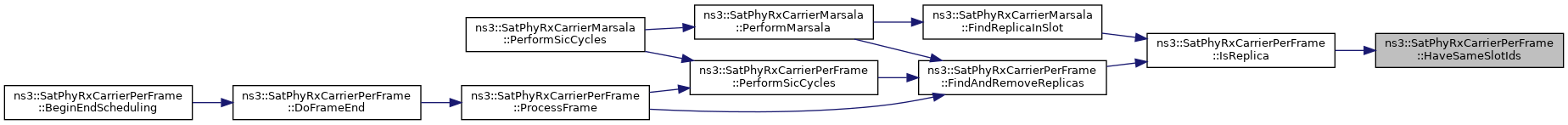

Referenced by IsReplica().

Here is the caller graph for this function:

◆ IsReplica()

bool ns3::SatPhyRxCarrierPerFrame::IsReplica	(	const SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s &	packet,
		const SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s &	otherPacket
	)		const

protected

Function for identifying whether the packet is a replica of another packet.

Parameters

packet	A packet
otherPacket	A packet that we want to check if it is a duplicate

Returns: Is the packet a replica

Definition at line 807 of file satellite-phy-rx-carrier-per-frame.cc.

References HaveSameSlotIds(), and ns3::SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s::sourceAddress.

Referenced by FindAndRemoveReplicas(), and ns3::SatPhyRxCarrierMarsala::FindReplicaInSlot().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MeasureRandomAccessLoad()

void ns3::SatPhyRxCarrierPerFrame::MeasureRandomAccessLoad ( )

private

Function for measuring the random access load.

calculate the load for this frame

save the load for this frame

calculate the average load over the measurement window

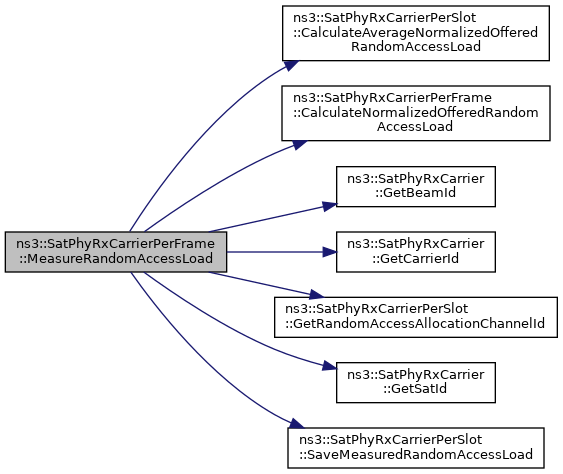

Definition at line 299 of file satellite-phy-rx-carrier-per-frame.cc.

References ns3::SatPhyRxCarrierPerSlot::CalculateAverageNormalizedOfferedRandomAccessLoad(), CalculateNormalizedOfferedRandomAccessLoad(), ns3::SatPhyRxCarrier::GetBeamId(), ns3::SatPhyRxCarrier::GetCarrierId(), ns3::SatPhyRxCarrierPerSlot::GetRandomAccessAllocationChannelId(), ns3::SatPhyRxCarrier::GetSatId(), ns3::SatPhyRxCarrier::m_avgNormalizedOfferedLoadCallback, and ns3::SatPhyRxCarrierPerSlot::SaveMeasuredRandomAccessLoad().

Referenced by DoFrameEnd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PerformSicCycles()

void ns3::SatPhyRxCarrierPerFrame::PerformSicCycles ( std::vector< SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s > & combinedPacketsForFrame )

protectedvirtual

Function for receiving decodable packets and removing their interference from the other packets in the slots they’re in; perform as many cycles as needed to try to decode each packet.

Parameters

combinedPacketsForFrame container to store packets as they are decoded and removed from the frame

reset the flag

go through the packets

process the received packet

packet successfully received

save packet for processing outside the loop

remove the successfully received packet from the container

eliminate the interference caused by this packet to other packets in this slot

break the cycle

successfully received packet found

find and remove replicas of the received packet

save the the received packet

Reimplemented in ns3::SatPhyRxCarrierMarsala.

Definition at line 486 of file satellite-phy-rx-carrier-per-frame.cc.

References EliminateInterference(), FindAndRemoveReplicas(), m_crdsaPacketContainer, and ProcessReceivedCrdsaPacket().

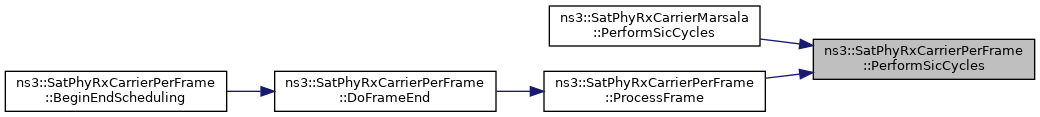

Referenced by ns3::SatPhyRxCarrierMarsala::PerformSicCycles(), and ProcessFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessFrame()

std::vector< SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s > ns3::SatPhyRxCarrierPerFrame::ProcessFrame ( )

private

Function for processing the CRDSA frame.

Returns: Processed packets

go through the packets

find and remove replicas of the received packet

save the the received packet

remove the packet from the container

remove the empty slot container

Definition at line 419 of file satellite-phy-rx-carrier-per-frame.cc.

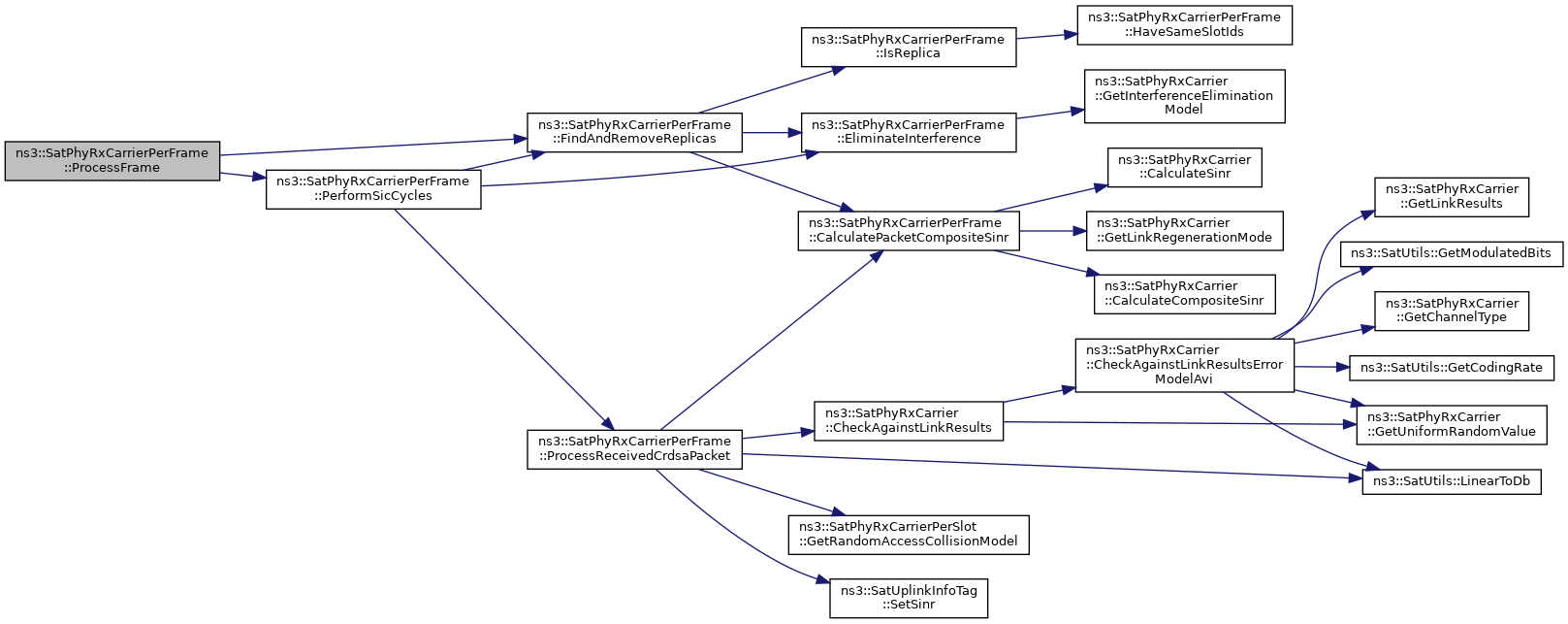

References FindAndRemoveReplicas(), m_crdsaPacketContainer, and PerformSicCycles().

Referenced by DoFrameEnd().

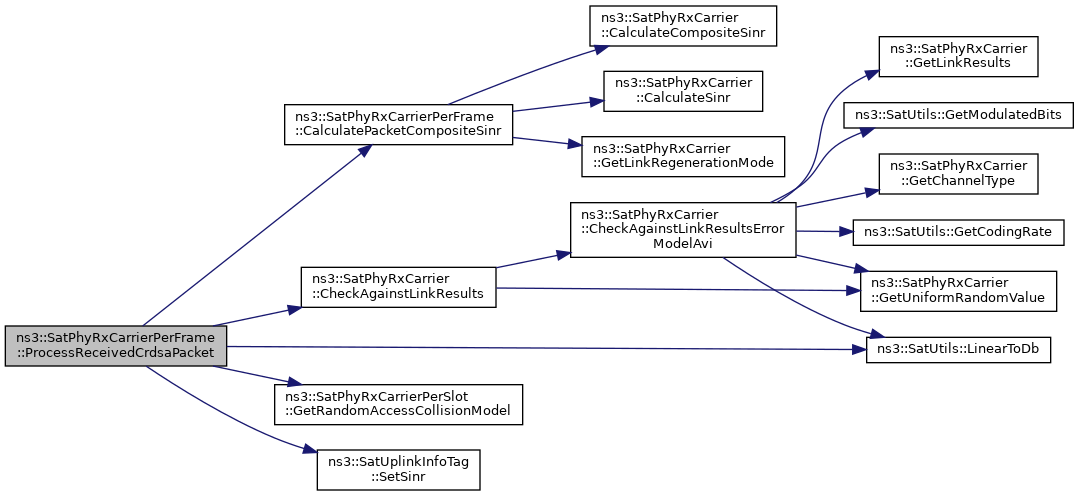

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessReceivedCrdsaPacket()

SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s ns3::SatPhyRxCarrierPerFrame::ProcessReceivedCrdsaPacket	(	SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s	packet,
		uint32_t	numOfPacketsForThisSlot
	)
