SatChannelEstimationErrorContainer is responsible of adding a channel estimation error on top of raw measured SINR. More...
#include "satellite-channel-estimation-error-container.h"

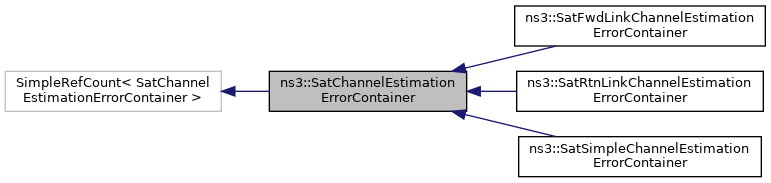

Inheritance diagram for ns3::SatChannelEstimationErrorContainer:
Collaboration diagram for ns3::SatChannelEstimationErrorContainer:
Public Member Functions | |
| SatChannelEstimationErrorContainer () | |
| Default constructor. More... | |
| virtual | ~SatChannelEstimationErrorContainer () |
| Destructor for SatChannelEstimationErrorContainer. More... | |
| double | AddError (double sinrInDb, uint32_t wfId=0) const |
| Add channel estimation error to SINR. More... | |
Protected Member Functions | |
| virtual double | DoAddError (double sinrInDb, uint32_t wfId) const =0 |
| Pure virtual method for the implementation in derived classes. More... | |
Detailed Description
SatChannelEstimationErrorContainer is responsible of adding a channel estimation error on top of raw measured SINR.
Channel estimation error functions in logarithmic (dB) domain. Abstract base class SatChannelEstimationErrorContainer defines the interface method, but the actual implementation is in inherited classes:
- SatSimpleChannelEstimatinoErrorContainer - returns always SINR without errors
- SatFwdLinkChannelEstimationErrorContainer - uses FWD channel estimation error tables
- SatRtnLinkChannelEstimationErrorContainer - uses RTN channel estimation error tables
Definition at line 45 of file satellite-channel-estimation-error-container.h.
Constructor & Destructor Documentation
◆ SatChannelEstimationErrorContainer()
| ns3::SatChannelEstimationErrorContainer::SatChannelEstimationErrorContainer | ( | ) |
Default constructor.
SatChannelEstimationErrorContainer.
Definition at line 40 of file satellite-channel-estimation-error-container.cc.
◆ ~SatChannelEstimationErrorContainer()
|
virtual |
Destructor for SatChannelEstimationErrorContainer.
Definition at line 45 of file satellite-channel-estimation-error-container.cc.
Member Function Documentation
◆ AddError()
| double ns3::SatChannelEstimationErrorContainer::AddError | ( | double | sinrInDb, |
| uint32_t | wfId = 0 |
||
| ) | const |
Add channel estimation error to SINR.
Base class does not actually do anything, but returns only the sinrInDb as sinrOutDb.
- Parameters
-
sinrInDb Measured SINR in dB wfId Waveform id
- Returns
- SINR including channel estimation error in dB
Definition at line 50 of file satellite-channel-estimation-error-container.cc.
References DoAddError().
Here is the call graph for this function:
◆ DoAddError()
|
protectedpure virtual |
Pure virtual method for the implementation in derived classes.
- Parameters
-
sinrInDb Measured SINR in dB wfId Waveform id
- Returns
- SINR including channel estimation error in dB
Implemented in ns3::SatRtnLinkChannelEstimationErrorContainer, ns3::SatFwdLinkChannelEstimationErrorContainer, and ns3::SatSimpleChannelEstimationErrorContainer.
Referenced by AddError().
Here is the caller graph for this function:
The documentation for this class was generated from the following files:
- /builds/sns3/satellite/satellite/model/satellite-channel-estimation-error-container.h
- /builds/sns3/satellite/satellite/model/satellite-channel-estimation-error-container.cc
