Abstract class defining interface for interference calculations objects. More...

#include "satellite-interference.h"

Inheritance diagram for ns3::SatInterference:

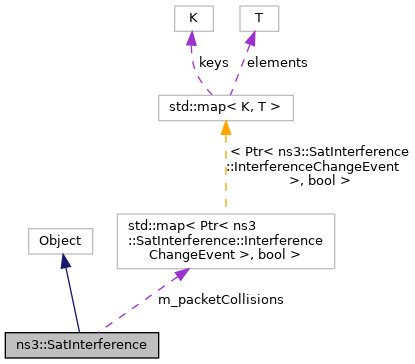

Collaboration diagram for ns3::SatInterference:

Classes
class	InterferenceChangeEvent
	Event for identifying interference change events (receiving) More...

Public Member Functions
	SatInterference ()
	Constructor for Satellite interference base class. More...

	~SatInterference ()
	Destructor for Satellite interference base class. More...

Ptr< SatInterference::InterferenceChangeEvent >	Add (Time rxDuration, double rxPower, Address rxAddress)
	Adds interference power to interference object. More...

std::vector< std::pair< double, double > >	Calculate (Ptr< SatInterference::InterferenceChangeEvent > event)
	Calculates interference power for the given reference. More...

TypeId	GetInstanceTypeId (void) const
	Derived from Object. More...

virtual bool	HasCollision (Ptr< SatInterference::InterferenceChangeEvent > event)
	Checks whether the packet has collided. More...

virtual void	NotifyRxEnd (Ptr< SatInterference::InterferenceChangeEvent > event)
	Notifies that RX is ended by a receiver. More...

virtual void	NotifyRxStart (Ptr< SatInterference::InterferenceChangeEvent > event)
	Notifies that RX is started by a receiver. More...

void	Reset (void)
	Resets current interference. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Derived from Object. More...

Private Member Functions
	SatInterference (const SatInterference &o)

virtual Ptr< SatInterference::InterferenceChangeEvent >	DoAdd (Time rxDuration, double rxPower, Address rxAddress)=0
	Adds interference power to interference object. More...

virtual std::vector< std::pair< double, double > >	DoCalculate (Ptr< SatInterference::InterferenceChangeEvent > event)=0
	Calculates interference power for the given reference Sets final power at end time to finalPower. More...

virtual void	DoNotifyRxEnd (Ptr< SatInterference::InterferenceChangeEvent > event)=0
	Notifies that RX is ended by a receiver. More...

virtual void	DoNotifyRxStart (Ptr< SatInterference::InterferenceChangeEvent > event)=0
	Notifies that RX is started by a receiver. More...

virtual void	DoReset (void)=0
	Resets current interference. More...

SatInterference &	operator= (const SatInterference &o)

Private Attributes
uint32_t	m_currentlyReceiving

std::map< Ptr< SatInterference::InterferenceChangeEvent >, bool >	m_packetCollisions

Detailed Description

Abstract class defining interface for interference calculations objects.

Definition at line 41 of file satellite-interference.h.

Constructor & Destructor Documentation

◆ SatInterference() [1/2]

ns3::SatInterference::SatInterference ( )

Constructor for Satellite interference base class.

Definition at line 119 of file satellite-interference.cc.

◆ ~SatInterference()

ns3::SatInterference::~SatInterference ( )

Destructor for Satellite interference base class.

Definition at line 124 of file satellite-interference.cc.

◆ SatInterference() [2/2]

ns3::SatInterference::SatInterference ( const SatInterference & o )

private

Member Function Documentation

◆ Add()

Ptr< SatInterference::InterferenceChangeEvent > ns3::SatInterference::Add	(	Time	rxDuration,
		double	rxPower,
		Address	rxAddress
	)

Adds interference power to interference object.

Behavior depends on class actually implementing interference.

Parameters

rxDuration	Duration of the receiving.
rxPower	Receiving power.
rxAddress	MAC address.

Returns: the pointer to interference event as a reference of the addition

Definition at line 129 of file satellite-interference.cc.

References DoAdd().

Here is the call graph for this function:

◆ Calculate()

std::vector< std::pair< double, double > > ns3::SatInterference::Calculate ( Ptr< SatInterference::InterferenceChangeEvent > event )

Calculates interference power for the given reference.

Parameters

event Reference event which for interference is calculated.

Returns: Calculated power value at end of receiving

Definition at line 137 of file satellite-interference.cc.

References DoCalculate(), m_currentlyReceiving, and m_packetCollisions.

Here is the call graph for this function:

◆ DoAdd()

virtual Ptr<SatInterference::InterferenceChangeEvent> ns3::SatInterference::DoAdd	(	Time	rxDuration,
		double	rxPower,
		Address	rxAddress
	)

privatepure virtual

Adds interference power to interference object.

Parameters

rxDuration	Duration of the receiving.
rxPower	Receiving power.
rxAddress	MAC address.

Returns: the pointer to interference event as a reference of the addition

Concrete subclasses of this base class must implement this method.

Implemented in ns3::SatTracedInterference, ns3::SatPerPacketInterference, and ns3::SatConstantInterference.

Referenced by Add().

Here is the caller graph for this function:

◆ DoCalculate()

virtual std::vector<std::pair<double, double> > ns3::SatInterference::DoCalculate ( Ptr< SatInterference::InterferenceChangeEvent > event )

privatepure virtual

Calculates interference power for the given reference Sets final power at end time to finalPower.

Parameters

event Reference event which for interference is calculated.

Returns: Final power value at end of receiving

Concrete subclasses of this base class must implement this method.

Implemented in ns3::SatTracedInterference, ns3::SatPerPacketInterference, ns3::SatPerFragmentInterference, and ns3::SatConstantInterference.

Referenced by Calculate().

Here is the caller graph for this function:

◆ DoNotifyRxEnd()

virtual void ns3::SatInterference::DoNotifyRxEnd ( Ptr< SatInterference::InterferenceChangeEvent > event )

privatepure virtual

Notifies that RX is ended by a receiver.

Concrete subclasses of this base class must implement this method.

Parameters

event Interference reference event of receiver

Implemented in ns3::SatTracedInterference, ns3::SatPerPacketInterference, and ns3::SatConstantInterference.

Referenced by NotifyRxEnd().

Here is the caller graph for this function:

◆ DoNotifyRxStart()

virtual void ns3::SatInterference::DoNotifyRxStart ( Ptr< SatInterference::InterferenceChangeEvent > event )

privatepure virtual

Notifies that RX is started by a receiver.

Concrete subclasses of this base class must implement this method.

Parameters

event Interference reference event of receiver

Implemented in ns3::SatTracedInterference, ns3::SatPerPacketInterference, and ns3::SatConstantInterference.

Referenced by NotifyRxStart().

Here is the caller graph for this function:

◆ DoReset()

virtual void ns3::SatInterference::DoReset ( void )

privatepure virtual

Resets current interference.

Concrete subclasses of this base class must implement this method.

Implemented in ns3::SatTracedInterference, ns3::SatPerPacketInterference, and ns3::SatConstantInterference.

Referenced by Reset().

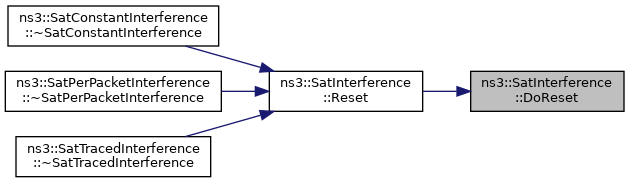

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SatInterference::GetInstanceTypeId ( void ) const

Derived from Object.

Definition at line 114 of file satellite-interference.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::SatInterference::GetTypeId ( void )

static

Derived from Object.

Definition at line 106 of file satellite-interference.cc.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

◆ HasCollision()

bool ns3::SatInterference::HasCollision ( Ptr< SatInterference::InterferenceChangeEvent > event )

virtual

Checks whether the packet has collided.

Used by random access

Parameters

event Interference reference event of receiver

Returns: has the packet collided

Definition at line 208 of file satellite-interference.cc.

References m_packetCollisions.

◆ NotifyRxEnd()

void ns3::SatInterference::NotifyRxEnd ( Ptr< SatInterference::InterferenceChangeEvent > event )

virtual

Notifies that RX is ended by a receiver.

Parameters

event Interference reference event of receiver

Definition at line 193 of file satellite-interference.cc.

References DoNotifyRxEnd(), m_currentlyReceiving, and m_packetCollisions.

Here is the call graph for this function:

◆ NotifyRxStart()

void ns3::SatInterference::NotifyRxStart ( Ptr< SatInterference::InterferenceChangeEvent > event )

virtual

Notifies that RX is started by a receiver.

Parameters

event Interference reference event of receiver

Definition at line 175 of file satellite-interference.cc.

References DoNotifyRxStart(), m_currentlyReceiving, and m_packetCollisions.

Here is the call graph for this function:

◆ operator=()

SatInterference& ns3::SatInterference::operator= ( const SatInterference & o )

private

◆ Reset()

void ns3::SatInterference::Reset ( void )

Resets current interference.

Definition at line 164 of file satellite-interference.cc.

References DoReset(), m_currentlyReceiving, and m_packetCollisions.

Referenced by ns3::SatConstantInterference::~SatConstantInterference(), ns3::SatPerPacketInterference::~SatPerPacketInterference(), and ns3::SatTracedInterference::~SatTracedInterference().

Here is the call graph for this function:

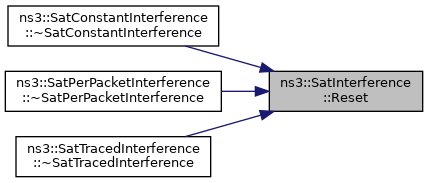

Here is the caller graph for this function:

Member Data Documentation

◆ m_currentlyReceiving

uint32_t ns3::SatInterference::m_currentlyReceiving

private

Definition at line 236 of file satellite-interference.h.

Referenced by Calculate(), NotifyRxEnd(), NotifyRxStart(), and Reset().

◆ m_packetCollisions

std::map<Ptr<SatInterference::InterferenceChangeEvent>, bool> ns3::SatInterference::m_packetCollisions

private

Definition at line 231 of file satellite-interference.h.

Referenced by Calculate(), HasCollision(), NotifyRxEnd(), NotifyRxStart(), and Reset().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-interference.h
/builds/sns3/satellite/satellite/model/satellite-interference.cc
