Abstract class defining interface for interference elimination calculation objects. More...
#include "satellite-interference-elimination.h"

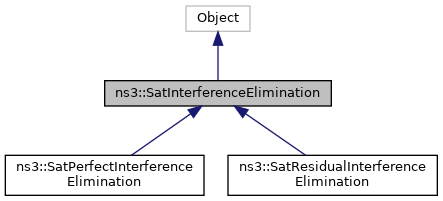

Inheritance diagram for ns3::SatInterferenceElimination:
Collaboration diagram for ns3::SatInterferenceElimination:
Public Member Functions | |
| SatInterferenceElimination () | |
| Constructor for Satellite interference elimination base class. More... | |
| virtual | ~SatInterferenceElimination () |
| Destructor for Satellite interference elimination base class. More... | |
| virtual void | EliminateInterferences (Ptr< SatSignalParameters > packetInterferedWith, Ptr< SatSignalParameters > processedPacket, double EsNo, bool isRegenerative)=0 |
| Calculate residual power of interference for the given packets. More... | |
| virtual void | EliminateInterferences (Ptr< SatSignalParameters > packetInterferedWith, Ptr< SatSignalParameters > processedPacket, double EsNo, bool isRegenerative, double startTime, double endTime)=0 |
| Calculate residual power of interference for the given packets. More... | |
| TypeId | GetInstanceTypeId (void) const |
| Derived from Object. More... | |
| virtual double | GetResidualPower (Ptr< SatSignalParameters > processedPacket, double EsNo)=0 |
| Calculate the residual power of interference for a given packet. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| Derived from Object. More... | |
Detailed Description
Abstract class defining interface for interference elimination calculation objects.
Definition at line 35 of file satellite-interference-elimination.h.
Constructor & Destructor Documentation
◆ SatInterferenceElimination()
| ns3::SatInterferenceElimination::SatInterferenceElimination | ( | ) |
Constructor for Satellite interference elimination base class.
Definition at line 51 of file satellite-interference-elimination.cc.
◆ ~SatInterferenceElimination()
|
virtual |
Destructor for Satellite interference elimination base class.
Definition at line 55 of file satellite-interference-elimination.cc.
Member Function Documentation
◆ EliminateInterferences() [1/2]
|
pure virtual |
Calculate residual power of interference for the given packets.
- Parameters
-
packetInterferedWith Parameters of the packet whose interference level should be lowered processedPacket Parameters of the packet we want to remove interference from isRegenerative Tell if we are in regenerative configuration. Depending on this value, the computations are made on the GW or on the satellite
Implemented in ns3::SatResidualInterferenceElimination, and ns3::SatPerfectInterferenceElimination.
◆ EliminateInterferences() [2/2]
|
pure virtual |
Calculate residual power of interference for the given packets.
- Parameters
-
packetInterferedWith Parameters of the packet whose interference level should be lowered processedPacket Parameters of the packet we want to remove interference from isRegenerative Tell if we are in regenerative configuration. Depending on this value, the computations are made on the GW or on the satellite startTime Normalized start time of the interference, with respect to packetInterferedWith startTime Normalized end time of the interference, with respect to packetInterferedWith
Implemented in ns3::SatResidualInterferenceElimination, and ns3::SatPerfectInterferenceElimination.
◆ GetInstanceTypeId()
| TypeId ns3::SatInterferenceElimination::GetInstanceTypeId | ( | void | ) | const |
Derived from Object.
Definition at line 46 of file satellite-interference-elimination.cc.
References GetTypeId().
Here is the call graph for this function:
◆ GetResidualPower()
|
pure virtual |
Calculate the residual power of interference for a given packet.
Implemented in ns3::SatResidualInterferenceElimination, and ns3::SatPerfectInterferenceElimination.
◆ GetTypeId()
|
static |
Derived from Object.
Definition at line 38 of file satellite-interference-elimination.cc.
Referenced by GetInstanceTypeId().

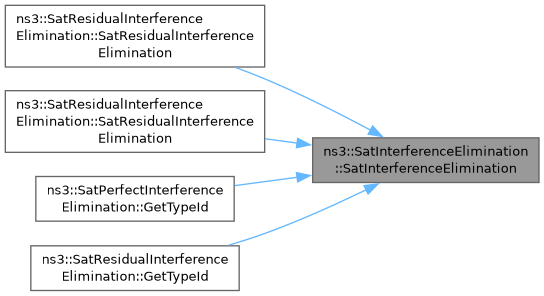

Here is the caller graph for this function:
The documentation for this class was generated from the following files:
- /builds/sns3/satellite/satellite/model/satellite-interference-elimination.h
- /builds/sns3/satellite/satellite/model/satellite-interference-elimination.cc
