Inherited the base functionality of SatPhyRxCarriers for ground station nodes. More...

#include "satellite-phy-rx-carrier-per-slot.h"

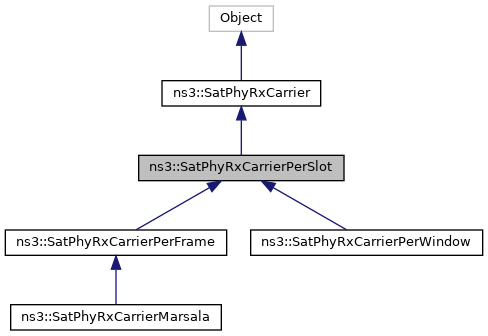

Inheritance diagram for ns3::SatPhyRxCarrierPerSlot:

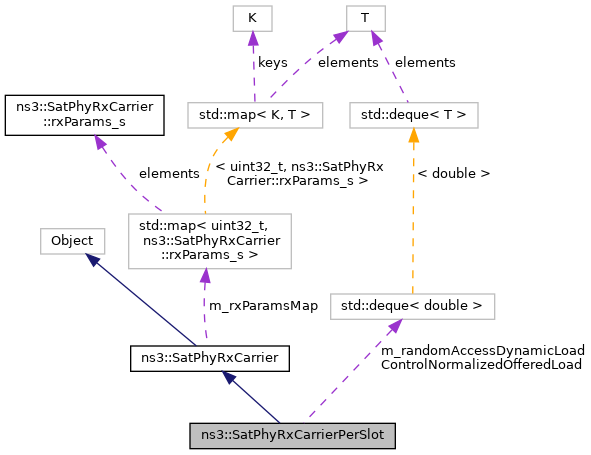

Collaboration diagram for ns3::SatPhyRxCarrierPerSlot:

Public Member Functions
	SatPhyRxCarrierPerSlot (uint32_t carrierId, Ptr< SatPhyRxCarrierConf > carrierConf, Ptr< SatWaveformConf > waveformConf, bool randomAccessEnabled)
	Constructor. More...

virtual	~SatPhyRxCarrierPerSlot ()
	Destructor. More...

virtual void	BeginEndScheduling ()
	Function for initializing the frame/window end scheduling. More...

virtual CarrierType	GetCarrierType ()
	Method for querying the type of the carrier. More...

uint8_t	GetRandomAccessAllocationChannelId () const
	Function for getting the random access allocation channel ID. More...

void	SetRandomAccessAllocationChannelId (uint8_t randomAccessAllocationChannelId)
	Function for setting the random access allocation channel ID. More...

Public Member Functions inherited from ns3::SatPhyRxCarrier
	SatPhyRxCarrier (uint32_t carrierId, Ptr< SatPhyRxCarrierConf > carrierConf, Ptr< SatWaveformConf > waveformConf, bool isRandomAccessEnabled)
	Constructor. More...

virtual	~SatPhyRxCarrier ()
	Destructor. More...

uint32_t	GetBeamId ()
	Get ID the ID of the beam this carrier is attached to. More...

double	GetRxTemperatureK ()
	Method for querying the temperature of the carrier. More...

uint32_t	GetSatId ()
	Get ID the ID of the satellite this carrier is attached to. More...

void	SetAverageNormalizedOfferedLoadCallback (SatPhyRx::AverageNormalizedOfferedLoadCallback callback)
	Function for setting the AverageNormalizedOfferedLoadCallback callback. More...

void	SetBeamId (uint32_t beamId)
	Function for setting the beam id for all the transmissions from this SatPhyTx. More...

void	SetCnoCb (SatPhyRx::CnoCallback cb)
	Function for settign the C/NO callback. More...

void	SetNodeInfo (const Ptr< SatNodeInfo > nodeInfo)
	Function for setting the node info class. More...

void	SetPhy (Ptr< SatPhy > phy)
	Function for setting the SatPhy module. More...

void	SetReceiveCb (SatPhyRx::ReceiveCallback cb)
	Function for setting the receive callback. More...

void	SetSatId (uint32_t satId)
	Function for setting the satellite id for all the transmissions from this SatPhyTx. More...

virtual bool	StartRx (Ptr< SatSignalParameters > rxParams)
	Function for starting packet reception from the SatChannel. More...

Static Public Member Functions

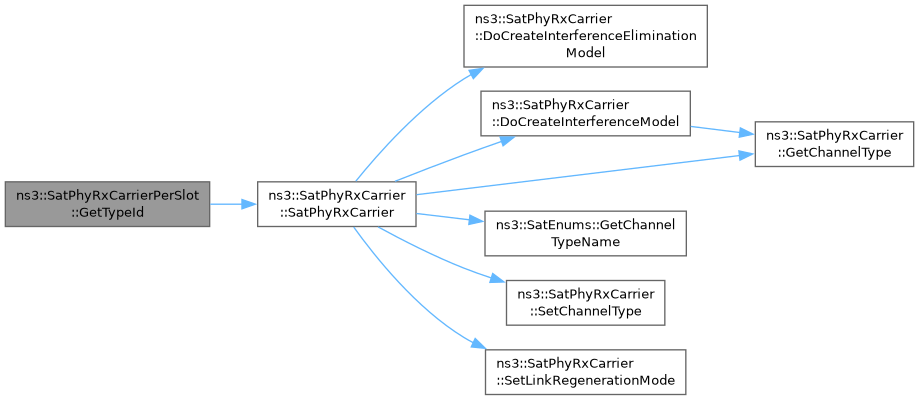

static TypeId	GetTypeId (void)
	Get the TypeId of the class. More...

Static Public Member Functions inherited from ns3::SatPhyRxCarrier
static TypeId	GetTypeId (void)
	Function for gettign the NS-3 type ID. More...

Protected Member Functions

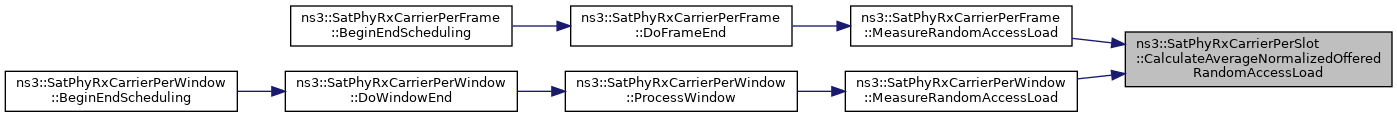

double	CalculateAverageNormalizedOfferedRandomAccessLoad ()
	Function for calculating the average normalized offered random access load. More...

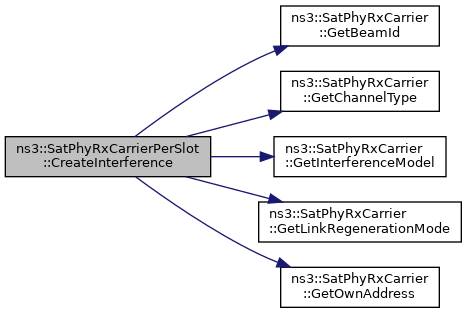

virtual Ptr< SatInterference::InterferenceChangeEvent >	CreateInterference (Ptr< SatSignalParameters > rxParams, Address rxAddress)
	Create an interference event based on Rx parameters and address. More...

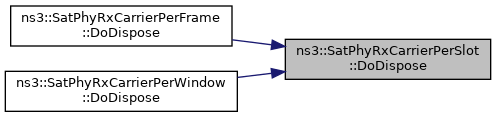

virtual void	DoDispose ()
	Dispose implementation. More...

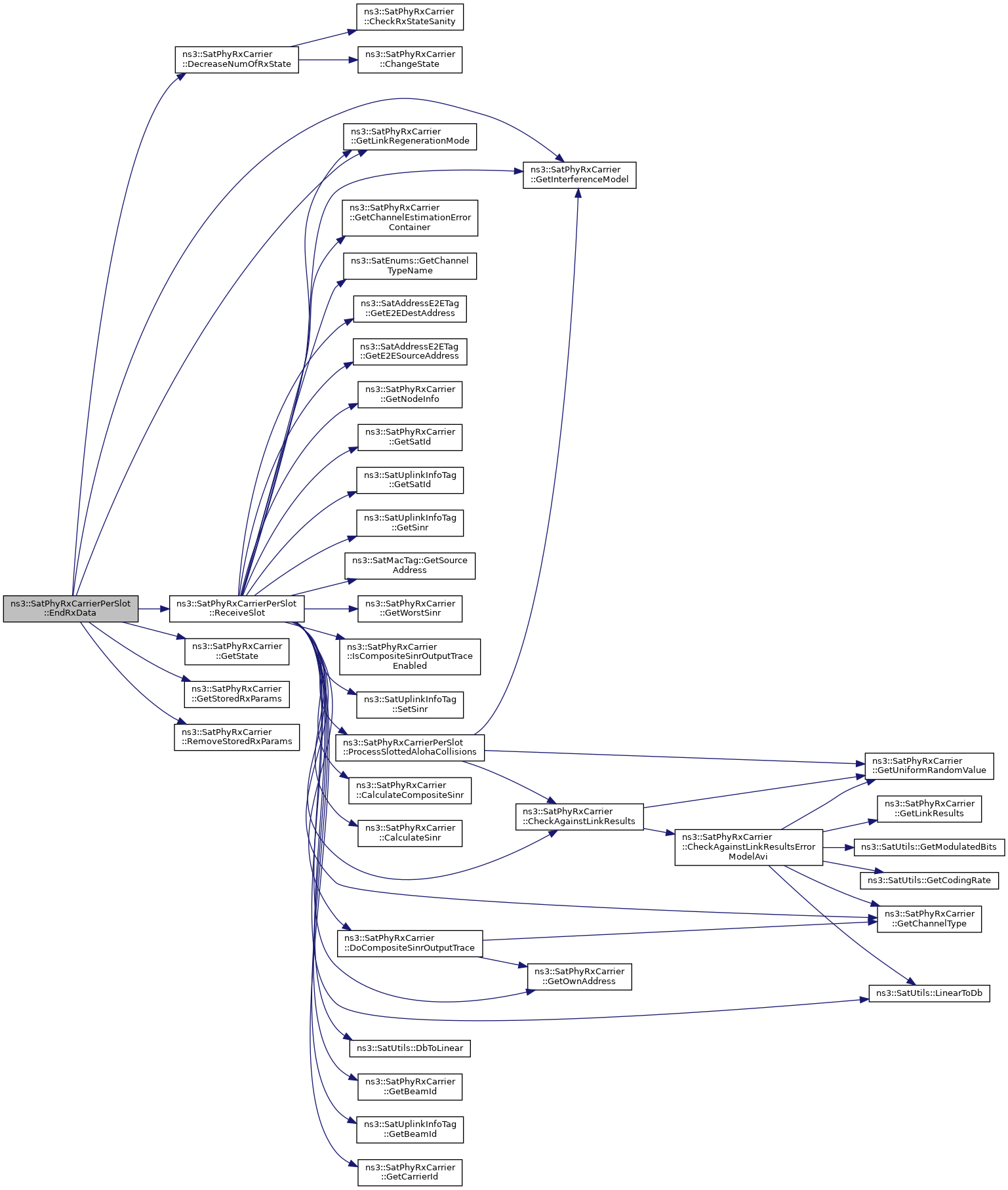

virtual void	EndRxData (uint32_t key)
	Function for ending the packet reception from the SatChannel. More...

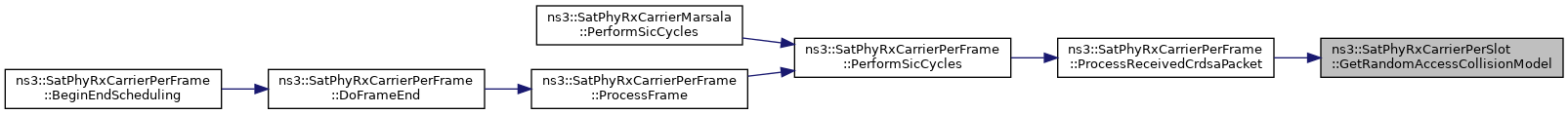

SatPhyRxCarrierConf::RandomAccessCollisionModel	GetRandomAccessCollisionModel () const
	Get the random access collision model of the carrier. More...

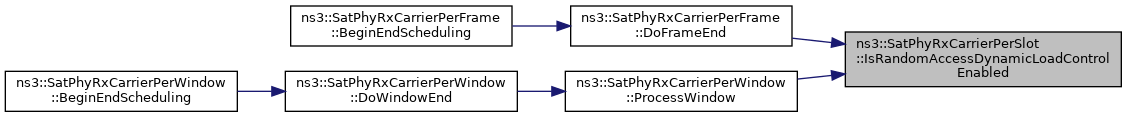

bool	IsRandomAccessDynamicLoadControlEnabled () const
	Check if random access dynamic load control is enabled. More...

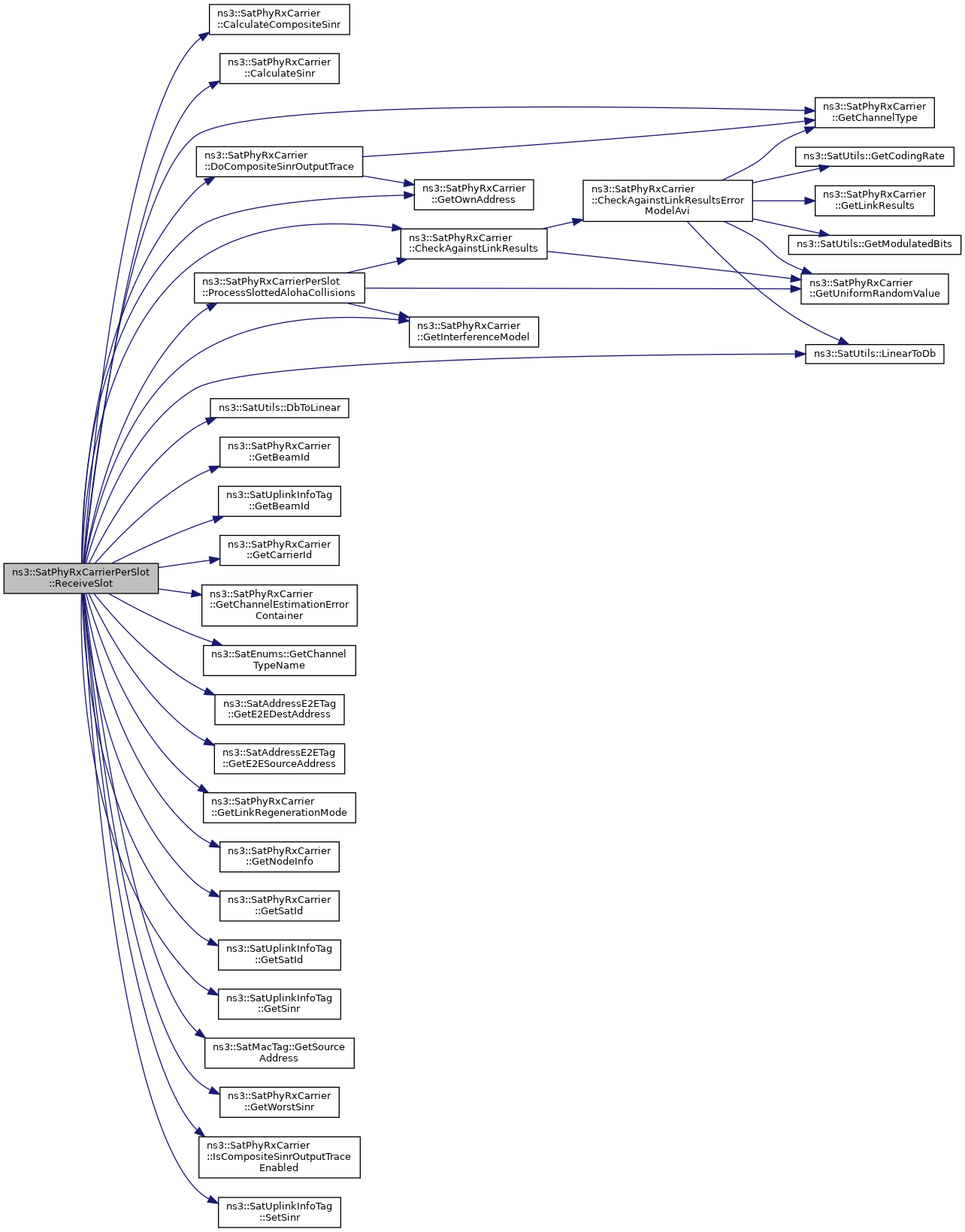

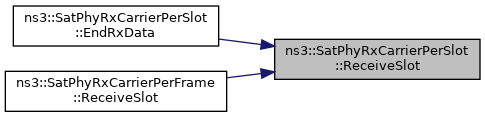

virtual void	ReceiveSlot (SatPhyRxCarrier::rxParams_s packetRxParams, const uint32_t nPackets)
	Receive a slot. More...

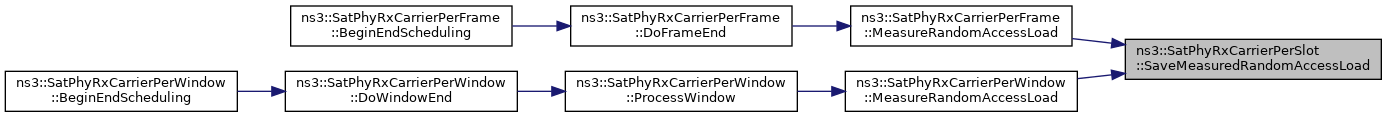

void	SaveMeasuredRandomAccessLoad (double measuredRandomAccessLoad)
	Function for saving the measured random access load. More...

Protected Member Functions inherited from ns3::SatPhyRxCarrier
double	CalculateCompositeSinr (double sinr1, double sinr2)
	Function for calculating the composite SINR. More...

double	CalculateSinr (double rxPowerW, double ifPowerW, double rxNoisePowerW, double rxAciIfPowerW, double rxExtNoisePowerW, double otherInterference)
	Function for calculating the SINR. More...

double	CalculateSinr (double sinr, double otherInterference)
	Calculate final SINR with PHY specific parameters and given calculated SINR. More...

void	ChangeState (State newState)
	Function for changing the receiver state. More...

bool	CheckAgainstLinkResults (double cSinr, Ptr< SatSignalParameters > rxParams)
	Function for checking the SINR against the link results. More...

void	CheckRxStateSanity ()
	Function for checking the Rx state sanity. More...

void	DecreaseNumOfRxState (SatEnums::PacketType_t packetType)
	Function for decreasing the number of ongoing transmissions. More...

void	DoCompositeSinrOutputTrace (double cSinr)
	Function for composite SINR output tracing. More...

virtual void	DoCreateInterferenceEliminationModel (Ptr< SatPhyRxCarrierConf > carrierConf, uint32_t carrierId, Ptr< SatWaveformConf > waveformConf)
	Create an interference cancelation model for this carrier. More...

virtual void	DoCreateInterferenceModel (Ptr< SatPhyRxCarrierConf > carrierConf, uint32_t carrierId, double rxBandwidthHz)
	Create an interference model for this carrier. More...

uint32_t	GetCarrierId () const
	Get the ID of the carrier. More...

Ptr< SatChannelEstimationErrorContainer >	GetChannelEstimationErrorContainer ()
	Get a pointer to the channel estimation error container of the carrier. More...

virtual SatEnums::ChannelType_t	GetChannelType ()
	Get the channel type. More...

virtual const bool	GetDefaultReceiveMode ()
	Get the default receive mode for the carrier. More...

Ptr< SatInterferenceElimination >	GetInterferenceEliminationModel ()
	Get pointer to the current interference elimination model. More...

Ptr< SatInterference >	GetInterferenceModel ()
	Get pointer to the current interference model. More...

virtual SatEnums::RegenerationMode_t	GetLinkRegenerationMode ()
	Get the link regeneration mode. More...

Ptr< SatLinkResults >	GetLinkResults ()
	Get pointer to the link results given by the carrier creation configuration. More...

Ptr< SatNodeInfo >	GetNodeInfo ()
	Get the satellite node info. More...

Mac48Address	GetOwnAddress ()
	Get the MAC address of the carrier. More...

std::pair< bool, SatPhyRxCarrier::rxParams_s >	GetReceiveParams (Ptr< SatSignalParameters > rxParams)
	Rx parameter storage methods. More...

State	GetState ()
	Get the state of the carrier. More...

rxParams_s	GetStoredRxParams (uint32_t key)
	Get stored rxParams under a key. More...

double	GetUniformRandomValue (double min, double max)
	A helper method for getting values form a uniform random variable in child classes. More...

Ptr< SatWaveformConf >	GetWaveformConf ()
	Get pointer to the waveform configuration. More...

double	GetWorstSinr (double sinr1, double sinr2)
	Function for calculating the worst sinr between uplink and downlink. More...

void	IncreaseNumOfRxState (SatEnums::PacketType_t packetType)
	Function for increasing the number of ongoing transmissions. More...

bool	IsCompositeSinrOutputTraceEnabled () const
	Check if composite SINR output trace is enabled. More...

bool	IsReceivingDedicatedAccess ()
	Check if the carrier is receiving a dedicated access packet. More...

void	RemoveStoredRxParams (uint32_t key)
	Remove stored rxParams under a key. More...

void	SetChannelType (SatEnums::ChannelType_t channelType)
	Set the channel type for the carrier. More...

void	SetLinkRegenerationMode (SatEnums::RegenerationMode_t linkRegenerationMode)
	Set the link regeneration mode. More...

void	StoreRxParams (uint32_t key, rxParams_s rxParams)
	Store rxParams under a key. More...

Protected Attributes
uint32_t	m_randomAccessBitsInFrame
	The number of random access bits in current frame. More...

TracedCallback< uint32_t, const Address &, bool >	m_slottedAlohaRxCollisionTrace
	`SlottedAlohaRxCollision` trace source. More...

TracedCallback< uint32_t, const Address &, bool >	m_slottedAlohaRxErrorTrace
	`SlottedAlohaRxError` trace source. More...

Protected Attributes inherited from ns3::SatPhyRxCarrier
SatPhyRxCarrierConf::AdditionalInterferenceCallback	m_additionalInterferenceCallback
	Callback to get additional interference. More...

SatPhy::AverageNormalizedOfferedLoadCallback	m_avgNormalizedOfferedLoadCallback
	Average normalized offered load callback. More...

SatPhy::CnoCallback	m_cnoCallback
	The upper layer C/N0 receive callback. More...

TracedCallback< uint32_t, const Address & >	m_daRxCarrierIdTrace

TracedCallback< uint32_t, const Address &, bool >	m_daRxTrace
	`DaRx` trace source. More...

TracedCallback< Ptr< SatSignalParameters >, Mac48Address, Mac48Address, double, double >	m_linkBudgetTrace
	The trace source on packet receptiong. More...

SatEnums::RegenerationMode_t	m_linkRegenerationMode
	Link regeneration mode. More...

TracedCallback< double, const Address & >	m_linkSinrTrace
	A callback for link specific SINR in dB. More...

const bool	m_randomAccessEnabled
	Is random access enabled for this carrier. More...

double	m_rxAciIfPowerW
	RX Adjacent channel interference. More...

double	m_rxBandwidthHz
	RX Bandwidth in Hz. More...

SatPhyRx::ReceiveCallback	m_rxCallback
	The upper layer package receive callback. More...

double	m_rxExtNoisePowerW
	External noise power system RX noise. More...

double	m_rxNoisePowerW
	RX noise. More...

TracedCallback< double, const Address & >	m_rxPowerTrace
	A callback for received signal power in dBW. More...

double	m_rxTemperatureK
	RX noise temperature in K. More...

TracedCallback< double, const Address & >	m_sinrTrace
	A callback for transmission composite SINR at UT (BBFrame) or GW (time slot). More...

Private Member Functions

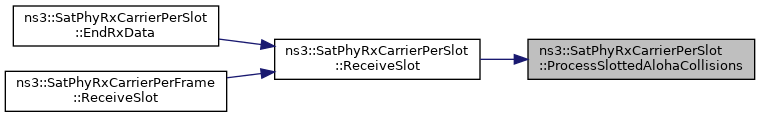

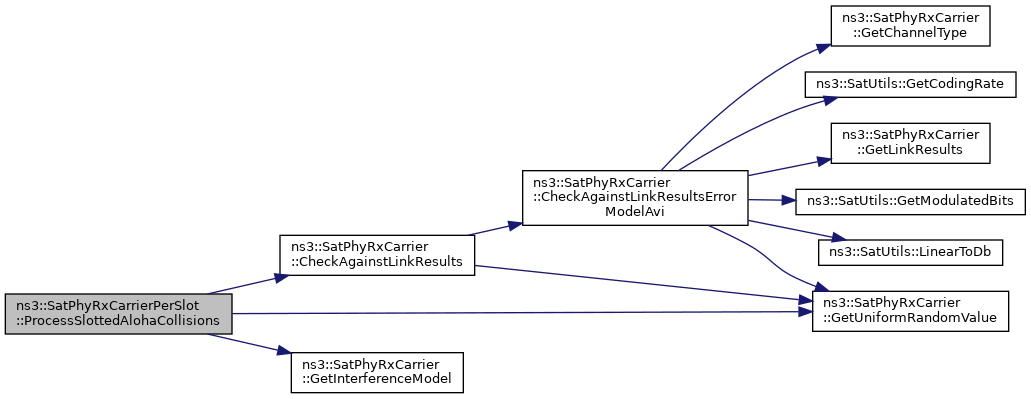

bool	ProcessSlottedAlohaCollisions (double cSinr, Ptr< SatSignalParameters > rxParams, Ptr< SatInterference::InterferenceChangeEvent > interferenceEvent)
	Function for processing the Slotted ALOHA collisions. More...

Private Attributes
bool	m_disableErrorHighTransmissionTime

bool	m_enableRandomAccessDynamicLoadControl

uint8_t	m_randomAccessAllocationChannelId
	PRIVATE MEMBER VARIABLES. More...

uint32_t	m_randomAccessAverageNormalizedOfferedLoadMeasurementWindowSize

SatPhyRxCarrierConf::RandomAccessCollisionModel	m_randomAccessCollisionModel

double	m_randomAccessConstantErrorRate

std::deque< double >	m_randomAccessDynamicLoadControlNormalizedOfferedLoad

Additional Inherited Members
Public Types inherited from ns3::SatPhyRxCarrier
enum	CarrierType { BASE , DEDICATED_ACCESS , RA_SLOTTED_ALOHA , RA_CRDSA , RA_ESSA }
	Possible carrier types. More...

typedef void(*	LinkBudgetTraceCallback) (Ptr< SatSignalParameters > rxParams, Mac48Address receiverAddress, Mac48Address destinationAddress, double interference, double sinr)
	Callback signature for `LinkBudgetTrace` trace source. More...

typedef void(*	LinkSinrTraceCallback) (double sinr, const Address &utAddress)
	Callback signature for `LinkSinrTrace` trace source. More...

typedef void(*	PhyRxCollisionCallback) (uint32_t nPackets, const Address &utAddress, bool isCollided)
	Common callback signature for trace sources related to packets reception by PHY and its collision. More...

typedef void(*	PhyRxErrorCallback) (uint32_t nPackets, const Address &utAddress, bool isError)
	Common callback signature for trace sources related to packets reception by PHY and its error. More...

typedef void(*	RxPowerTraceCallback) (double rxPower, const Address &utAddress)
	Callback signature for `RxPowerTrace` trace source. More...

enum	State { IDLE , RX }
	Enum for PHY states. More...

Detailed Description

Inherited the base functionality of SatPhyRxCarriers for ground station nodes.

Definition at line 48 of file satellite-phy-rx-carrier-per-slot.h.

Constructor & Destructor Documentation

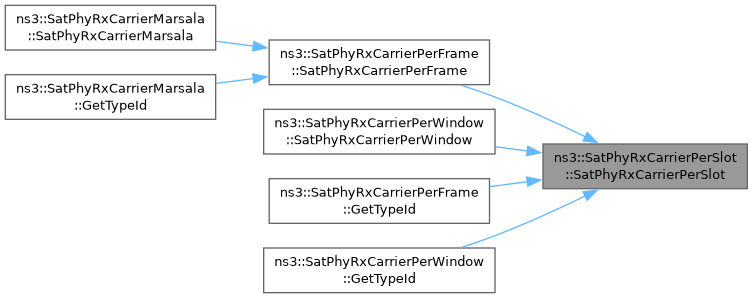

◆ SatPhyRxCarrierPerSlot()

ns3::SatPhyRxCarrierPerSlot::SatPhyRxCarrierPerSlot	(	uint32_t	carrierId,
		Ptr< SatPhyRxCarrierConf >	carrierConf,
		Ptr< SatWaveformConf >	waveformConf,
		bool	randomAccessEnabled
	)

Constructor.

Parameters

carrierId	ID of the carrier
carrierConf	Carrier configuration
waveformConf	Waveform configuration
randomAccessEnabled	Is this a RA carrier

Definition at line 44 of file satellite-phy-rx-carrier-per-slot.cc.

References m_enableRandomAccessDynamicLoadControl, m_randomAccessAverageNormalizedOfferedLoadMeasurementWindowSize, m_randomAccessCollisionModel, and m_randomAccessConstantErrorRate.

◆ ~SatPhyRxCarrierPerSlot()

ns3::SatPhyRxCarrierPerSlot::~SatPhyRxCarrierPerSlot ( )

virtual

Destructor.

Definition at line 74 of file satellite-phy-rx-carrier-per-slot.cc.

Member Function Documentation

◆ BeginEndScheduling()

void ns3::SatPhyRxCarrierPerSlot::BeginEndScheduling ( void )

virtual

Function for initializing the frame/window end scheduling.

Reimplemented from ns3::SatPhyRxCarrier.

Reimplemented in ns3::SatPhyRxCarrierPerWindow, and ns3::SatPhyRxCarrierPerFrame.

Definition at line 80 of file satellite-phy-rx-carrier-per-slot.cc.

◆ CalculateAverageNormalizedOfferedRandomAccessLoad()

double ns3::SatPhyRxCarrierPerSlot::CalculateAverageNormalizedOfferedRandomAccessLoad ( )

protected

Function for calculating the average normalized offered random access load.

Returns: Average normalized offered load

Definition at line 542 of file satellite-phy-rx-carrier-per-slot.cc.

References m_randomAccessDynamicLoadControlNormalizedOfferedLoad.

Referenced by ns3::SatPhyRxCarrierPerFrame::MeasureRandomAccessLoad(), and ns3::SatPhyRxCarrierPerWindow::MeasureRandomAccessLoad().

Here is the caller graph for this function:

◆ CreateInterference()

Ptr< SatInterference::InterferenceChangeEvent > ns3::SatPhyRxCarrierPerSlot::CreateInterference	(	Ptr< SatSignalParameters >	rxParams,
		Address	rxAddress
	)

protectedvirtual

Create an interference event based on Rx parameters and address.

Returns: Pointer to the interference event.

Implements ns3::SatPhyRxCarrier.

Definition at line 120 of file satellite-phy-rx-carrier-per-slot.cc.

References ns3::SatEnums::FORWARD_USER_CH, ns3::SatPhyRxCarrier::GetBeamId(), ns3::SatPhyRxCarrier::GetChannelType(), ns3::SatPhyRxCarrier::GetInterferenceModel(), ns3::SatPhyRxCarrier::GetLinkRegenerationMode(), ns3::SatPhyRxCarrier::GetOwnAddress(), m_disableErrorHighTransmissionTime, ns3::SatEnums::RETURN_FEEDER_CH, and ns3::SatEnums::TRANSPARENT.

Here is the call graph for this function:

◆ DoDispose()

void ns3::SatPhyRxCarrierPerSlot::DoDispose ( void )

protectedvirtual

Dispose implementation.

Reimplemented from ns3::SatPhyRxCarrier.

Reimplemented in ns3::SatPhyRxCarrierPerWindow, and ns3::SatPhyRxCarrierPerFrame.

Definition at line 111 of file satellite-phy-rx-carrier-per-slot.cc.

References ns3::SatPhyRxCarrier::DoDispose(), and m_randomAccessDynamicLoadControlNormalizedOfferedLoad.

Referenced by ns3::SatPhyRxCarrierPerFrame::DoDispose(), and ns3::SatPhyRxCarrierPerWindow::DoDispose().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EndRxData()

void ns3::SatPhyRxCarrierPerSlot::EndRxData ( uint32_t key )

protectedvirtual

Function for ending the packet reception from the SatChannel.

Parameters

key	Key for Rx params map

erase the used Rx params

Implements ns3::SatPhyRxCarrier.

Definition at line 190 of file satellite-phy-rx-carrier-per-slot.cc.

References ns3::SatPhyRxCarrier::DecreaseNumOfRxState(), ns3::SatPhyRxCarrier::GetInterferenceModel(), ns3::SatPhyRxCarrier::GetLinkRegenerationMode(), ns3::SatPhyRxCarrier::GetState(), ns3::SatPhyRxCarrier::GetStoredRxParams(), ns3::SatPhyRxCarrier::rxParams_s::interferenceEvent, ReceiveSlot(), ns3::SatPhyRxCarrier::RemoveStoredRxParams(), ns3::SatPhyRxCarrier::RX, ns3::SatPhyRxCarrier::rxParams_s::rxParams, and ns3::SatEnums::TRANSPARENT.

Here is the call graph for this function:

◆ GetCarrierType()

virtual CarrierType ns3::SatPhyRxCarrierPerSlot::GetCarrierType ( )

inlinevirtual

Method for querying the type of the carrier.

Reimplemented from ns3::SatPhyRxCarrier.

Reimplemented in ns3::SatPhyRxCarrierPerWindow, and ns3::SatPhyRxCarrierPerFrame.

Definition at line 100 of file satellite-phy-rx-carrier-per-slot.h.

References ns3::SatPhyRxCarrier::m_randomAccessEnabled.

◆ GetRandomAccessAllocationChannelId()

uint8_t ns3::SatPhyRxCarrierPerSlot::GetRandomAccessAllocationChannelId ( ) const

inline

Function for getting the random access allocation channel ID.

Returns: randomAccessAllocationChannelId

Definition at line 92 of file satellite-phy-rx-carrier-per-slot.h.

References m_randomAccessAllocationChannelId.

Referenced by ns3::SatPhyRxCarrierPerFrame::MeasureRandomAccessLoad(), and ns3::SatPhyRxCarrierPerWindow::MeasureRandomAccessLoad().

Here is the caller graph for this function:

◆ GetRandomAccessCollisionModel()

SatPhyRxCarrierConf::RandomAccessCollisionModel ns3::SatPhyRxCarrierPerSlot::GetRandomAccessCollisionModel ( ) const

inlineprotected

Get the random access collision model of the carrier.

Definition at line 126 of file satellite-phy-rx-carrier-per-slot.h.

References m_randomAccessCollisionModel.

Referenced by ns3::SatPhyRxCarrierPerFrame::ProcessReceivedCrdsaPacket().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatPhyRxCarrierPerSlot::GetTypeId ( void )

static

Get the TypeId of the class.

Returns: TypeId

Definition at line 85 of file satellite-phy-rx-carrier-per-slot.cc.

References m_disableErrorHighTransmissionTime, m_slottedAlohaRxCollisionTrace, and m_slottedAlohaRxErrorTrace.

◆ IsRandomAccessDynamicLoadControlEnabled()

bool ns3::SatPhyRxCarrierPerSlot::IsRandomAccessDynamicLoadControlEnabled ( ) const

inlineprotected

Check if random access dynamic load control is enabled.

Definition at line 134 of file satellite-phy-rx-carrier-per-slot.h.

References m_enableRandomAccessDynamicLoadControl.

Referenced by ns3::SatPhyRxCarrierPerFrame::DoFrameEnd(), and ns3::SatPhyRxCarrierPerWindow::ProcessWindow().

Here is the caller graph for this function:

◆ ProcessSlottedAlohaCollisions()

bool ns3::SatPhyRxCarrierPerSlot::ProcessSlottedAlohaCollisions	(	double	cSinr,
		Ptr< SatSignalParameters >	rxParams,
		Ptr< SatInterference::InterferenceChangeEvent >	interferenceEvent
	)

private

Function for processing the Slotted ALOHA collisions.

Parameters

cSinr	Composite SINR
rxParams	Rx parameters of the packet
interferenceEvent	Interference event details

Returns: PHY error

check whether the packet has collided. This mode is intended to be used with constant interference and traced interference

check cSinr against link results

Definition at line 223 of file satellite-phy-rx-carrier-per-slot.cc.

References ns3::SatPhyRxCarrier::CheckAgainstLinkResults(), ns3::SatPhyRxCarrier::GetInterferenceModel(), ns3::SatPhyRxCarrier::GetUniformRandomValue(), m_randomAccessCollisionModel, m_randomAccessConstantErrorRate, ns3::SatPhyRxCarrierConf::RA_COLLISION_ALWAYS_DROP_ALL_COLLIDING_PACKETS, ns3::SatPhyRxCarrierConf::RA_COLLISION_CHECK_AGAINST_SINR, and ns3::SatPhyRxCarrierConf::RA_CONSTANT_COLLISION_PROBABILITY.

Referenced by ReceiveSlot().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReceiveSlot()

void ns3::SatPhyRxCarrierPerSlot::ReceiveSlot	(	SatPhyRxCarrier::rxParams_s	packetRxParams,
		const uint32_t	nPackets
	)

protectedvirtual

Receive a slot.

Overridable by child classes.

calculates sinr for 2nd link

PHY transmission decoded successfully. Note, that at transparent satellite, all the transmissions are not decoded.

calculate composite SINR if transparent. Otherwise take only current sinr.

Channel estimation error is added to the cno measurement, which is utilized e.g. for ACM.

composite sinr output trace

check for slotted aloha packet collisions

check against link results

uses composite sinr

send packet upwards

Reimplemented in ns3::SatPhyRxCarrierPerWindow, and ns3::SatPhyRxCarrierPerFrame.

Definition at line 265 of file satellite-phy-rx-carrier-per-slot.cc.

Referenced by EndRxData(), and ns3::SatPhyRxCarrierPerFrame::ReceiveSlot().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SaveMeasuredRandomAccessLoad()

void ns3::SatPhyRxCarrierPerSlot::SaveMeasuredRandomAccessLoad ( double measuredRandomAccessLoad )

protected

Function for saving the measured random access load.

Parameters

measuredRandomAccessLoad Measured random access load

Definition at line 528 of file satellite-phy-rx-carrier-per-slot.cc.

References m_randomAccessAverageNormalizedOfferedLoadMeasurementWindowSize, and m_randomAccessDynamicLoadControlNormalizedOfferedLoad.

Referenced by ns3::SatPhyRxCarrierPerFrame::MeasureRandomAccessLoad(), and ns3::SatPhyRxCarrierPerWindow::MeasureRandomAccessLoad().

Here is the caller graph for this function:

◆ SetRandomAccessAllocationChannelId()

void ns3::SatPhyRxCarrierPerSlot::SetRandomAccessAllocationChannelId ( uint8_t randomAccessAllocationChannelId )

inline

Function for setting the random access allocation channel ID.

Parameters

randomAccessAllocationChannelId

Definition at line 83 of file satellite-phy-rx-carrier-per-slot.h.

References m_randomAccessAllocationChannelId.

Member Data Documentation

◆ m_disableErrorHighTransmissionTime

bool ns3::SatPhyRxCarrierPerSlot::m_disableErrorHighTransmissionTime

private

Definition at line 220 of file satellite-phy-rx-carrier-per-slot.h.

Referenced by CreateInterference(), and GetTypeId().

◆ m_enableRandomAccessDynamicLoadControl

bool ns3::SatPhyRxCarrierPerSlot::m_enableRandomAccessDynamicLoadControl

private

Definition at line 215 of file satellite-phy-rx-carrier-per-slot.h.

Referenced by SatPhyRxCarrierPerSlot(), and IsRandomAccessDynamicLoadControlEnabled().

◆ m_randomAccessAllocationChannelId

uint8_t ns3::SatPhyRxCarrierPerSlot::m_randomAccessAllocationChannelId

private

PRIVATE MEMBER VARIABLES.

Definition at line 206 of file satellite-phy-rx-carrier-per-slot.h.

Referenced by GetRandomAccessAllocationChannelId(), and SetRandomAccessAllocationChannelId().

◆ m_randomAccessAverageNormalizedOfferedLoadMeasurementWindowSize

uint32_t ns3::SatPhyRxCarrierPerSlot::m_randomAccessAverageNormalizedOfferedLoadMeasurementWindowSize

private

Definition at line 212 of file satellite-phy-rx-carrier-per-slot.h.

Referenced by SatPhyRxCarrierPerSlot(), and SaveMeasuredRandomAccessLoad().

◆ m_randomAccessBitsInFrame

uint32_t ns3::SatPhyRxCarrierPerSlot::m_randomAccessBitsInFrame

protected

The number of random access bits in current frame.

Protected so that child classes are able to alter this.

Definition at line 164 of file satellite-phy-rx-carrier-per-slot.h.

Referenced by ns3::SatPhyRxCarrierPerFrame::CalculateNormalizedOfferedRandomAccessLoad(), ReceiveSlot(), and ns3::SatPhyRxCarrierPerFrame::UpdateRandomAccessLoad().

◆ m_randomAccessCollisionModel

SatPhyRxCarrierConf::RandomAccessCollisionModel ns3::SatPhyRxCarrierPerSlot::m_randomAccessCollisionModel

private

Definition at line 208 of file satellite-phy-rx-carrier-per-slot.h.

Referenced by SatPhyRxCarrierPerSlot(), GetRandomAccessCollisionModel(), and ProcessSlottedAlohaCollisions().

◆ m_randomAccessConstantErrorRate

double ns3::SatPhyRxCarrierPerSlot::m_randomAccessConstantErrorRate

private

Definition at line 209 of file satellite-phy-rx-carrier-per-slot.h.

Referenced by SatPhyRxCarrierPerSlot(), and ProcessSlottedAlohaCollisions().

◆ m_randomAccessDynamicLoadControlNormalizedOfferedLoad

std::deque<double> ns3::SatPhyRxCarrierPerSlot::m_randomAccessDynamicLoadControlNormalizedOfferedLoad

private

Definition at line 217 of file satellite-phy-rx-carrier-per-slot.h.

Referenced by CalculateAverageNormalizedOfferedRandomAccessLoad(), DoDispose(), and SaveMeasuredRandomAccessLoad().

◆ m_slottedAlohaRxCollisionTrace

TracedCallback<uint32_t, const Address&, bool> ns3::SatPhyRxCarrierPerSlot::m_slottedAlohaRxCollisionTrace

protected

SlottedAlohaRxCollision trace source.

Fired when a packet burst is received through Random Access Slotted ALOHA.

Contains the following information:

number of upper layer packets in the received packet burst;
the MAC48 address of the sender; and
whether a collision has occurred.

Definition at line 177 of file satellite-phy-rx-carrier-per-slot.h.

Referenced by GetTypeId(), and ReceiveSlot().

◆ m_slottedAlohaRxErrorTrace

TracedCallback<uint32_t, const Address&, bool> ns3::SatPhyRxCarrierPerSlot::m_slottedAlohaRxErrorTrace

protected

SlottedAlohaRxError trace source.

Fired when a packet burst is received through Random Access Slotted ALOHA.

Contains the following information:

number of upper layer packets in the received packet burst;
the MAC48 address of the sender; and
whether a PHY error has occurred.

Definition at line 189 of file satellite-phy-rx-carrier-per-slot.h.

Referenced by GetTypeId(), and ReceiveSlot().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-phy-rx-carrier-per-slot.h
/builds/sns3/satellite/satellite/model/satellite-phy-rx-carrier-per-slot.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SatPhyRxCarrierPerSlot()

◆ ~SatPhyRxCarrierPerSlot()

Member Function Documentation

◆ BeginEndScheduling()

◆ CalculateAverageNormalizedOfferedRandomAccessLoad()

◆ CreateInterference()

◆ DoDispose()

◆ EndRxData()

◆ GetCarrierType()

◆ GetRandomAccessAllocationChannelId()

◆ GetRandomAccessCollisionModel()

◆ GetTypeId()

◆ IsRandomAccessDynamicLoadControlEnabled()

◆ ProcessSlottedAlohaCollisions()

◆ ReceiveSlot()

◆ SaveMeasuredRandomAccessLoad()

◆ SetRandomAccessAllocationChannelId()

Member Data Documentation

◆ m_disableErrorHighTransmissionTime

◆ m_enableRandomAccessDynamicLoadControl

◆ m_randomAccessAllocationChannelId

◆ m_randomAccessAverageNormalizedOfferedLoadMeasurementWindowSize

◆ m_randomAccessBitsInFrame

◆ m_randomAccessCollisionModel

◆ m_randomAccessConstantErrorRate

◆ m_randomAccessDynamicLoadControlNormalizedOfferedLoad

◆ m_slottedAlohaRxCollisionTrace

◆ m_slottedAlohaRxErrorTrace
