The SatPhyRx models the physical layer receiver of satellite system. More...

#include "satellite-phy-rx.h"

Inheritance diagram for ns3::SatPhyRx:

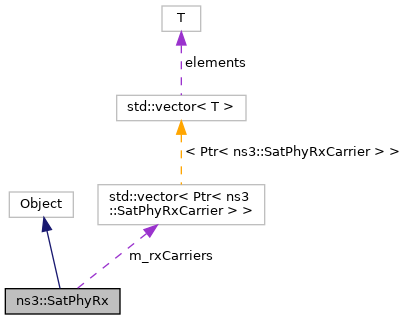

Collaboration diagram for ns3::SatPhyRx:

Public Types
typedef Callback< void, uint32_t, uint32_t, uint32_t, uint8_t, double >	AverageNormalizedOfferedLoadCallback

typedef Callback< void, uint32_t, uint32_t, Address, Address, double, bool >	CnoCallback

typedef Callback< void, Ptr< SatSignalParameters >, bool >	ReceiveCallback

Public Member Functions
	SatPhyRx ()
	Default constructor. More...

virtual	~SatPhyRx ()
	Destructor for SatPhyRx. More...

void	BeginEndScheduling ()
	Begin frame/window end scheduling for processes utilizing frame length as interval. More...

void	ConfigurePhyRxCarriers (Ptr< SatPhyRxCarrierConf > carrierConf, Ptr< SatSuperframeConf > superFrameConf)

virtual void	DoDispose ()
	Dispose of this class instance. More...

Mac48Address	GetAddress () const
	Get MAC address of this PHY/MAC. More...

double	GetAntennaGain (Ptr< MobilityModel > mobility)
	Get antenna gain based on position or in case that antenna pattern is not configured, maximum configured gain is return. More...

uint32_t	GetBeamId () const
	Get beam id of this receiver. More...

Ptr< NetDevice >	GetDevice ()

double	GetFadingValue (Address macAddress, SatEnums::ChannelType_t channelType)
	Get fading value. More...

double	GetLosses ()
	Get configures RX losses, currently only antenna loss used. More...

Ptr< MobilityModel >	GetMobility ()

double	GetRxTemperatureK (Ptr< SatSignalParameters > rxParams)
	Method for querying the temperature of the chosen carrier. More...

uint32_t	GetSatId () const
	Get satellite id of this receiver. More...

void	SetAntennaGainPattern (Ptr< SatAntennaGainPattern > agp, Ptr< SatMobilityModel > mobility)

void	SetAntennaLoss_Db (double loss_Db)
	Set the Antenna loss in Db. More...

void	SetAverageNormalizedOfferedLoadCallback (SatPhyRx::AverageNormalizedOfferedLoadCallback cb)
	Set average normalized offered load callback. More...

void	SetBeamId (uint32_t beamId)
	Set the beam id for all the transmissions from this SatPhyTx. More...

void	SetCnoCallback (SatPhyRx::CnoCallback cb)
	Set C/N0 receiver. More...

void	SetDefaultFadingValue (double fadingValue)
	Function for setting the default fading value. More...

void	SetDevice (Ptr< NetDevice > d)

void	SetFadingContainer (Ptr< SatBaseFading > fadingContainer)
	Set fading container. More...

void	SetMaxAntennaGain_Db (double gain_Db)
	Set the maximum Antenna gain in Db. More...

void	SetMobility (Ptr< MobilityModel > m)

void	SetNodeInfo (const Ptr< SatNodeInfo > nodeInfo)
	Set the node info class. More...

void	SetReceiveCallback (SatPhyRx::ReceiveCallback cb)
	Set the upper layer receive callback. More...

void	SetSatId (uint32_t satId)
	Set the satellite id for all the transmissions from this SatPhyTx. More...

virtual void	StartRx (Ptr< SatSignalParameters > rxParams)
	Start packet reception from the SatChannel. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	inherited from Object More...

Private Attributes
Ptr< SatAntennaGainPattern >	m_antennaGainPattern

double	m_antennaLoss
	Configured antenna loss in linear. More...

uint32_t	m_beamId

double	m_defaultFadingValue
	Default fading value. More...

Ptr< NetDevice >	m_device

Ptr< SatBaseFading >	m_fadingContainer
	Fading container for fading model. More...

Mac48Address	m_macAddress

double	m_maxAntennaGain
	Configured maximum antenna gain in linear. More...

Ptr< MobilityModel >	m_mobility

std::vector< Ptr< SatPhyRxCarrier > >	m_rxCarriers

uint32_t	m_satId

Ptr< SatMobilityModel >	m_satMobility

Detailed Description

The SatPhyRx models the physical layer receiver of satellite system.

Definition at line 56 of file satellite-phy-rx.h.

Member Typedef Documentation

◆ AverageNormalizedOfferedLoadCallback

typedef Callback<void, uint32_t, uint32_t, uint32_t, uint8_t, double> ns3::SatPhyRx::AverageNormalizedOfferedLoadCallback

Parameters

satellite	Id
beam	Id
carrier	Id
allocation	channel Id
average	normalized offered load

Definition at line 202 of file satellite-phy-rx.h.

◆ CnoCallback

typedef Callback<void, uint32_t, uint32_t, Address, Address, double, bool> ns3::SatPhyRx::CnoCallback

Parameters

satellite	Id
beam	Id
Id	(address) of the source (sender)
Id	(address) of the destination (receiver)
C/N0	value
If	true, cno corresponds to link SAT to GW; if false, cno corresponds to link UT to GW

Definition at line 192 of file satellite-phy-rx.h.

◆ ReceiveCallback

typedef Callback<void, Ptr<SatSignalParameters>, bool> ns3::SatPhyRx::ReceiveCallback

Parameters

SatSignalParameters	containing e.g. the received packet
boolean	indicating whether there was a PHY error

Definition at line 182 of file satellite-phy-rx.h.

Constructor & Destructor Documentation

◆ SatPhyRx()

ns3::SatPhyRx::SatPhyRx ( )

Default constructor.

Definition at line 52 of file satellite-phy-rx.cc.

◆ ~SatPhyRx()

ns3::SatPhyRx::~SatPhyRx ( )

virtual

Destructor for SatPhyRx.

Definition at line 61 of file satellite-phy-rx.cc.

Member Function Documentation

◆ BeginEndScheduling()

void ns3::SatPhyRx::BeginEndScheduling ( void )

Begin frame/window end scheduling for processes utilizing frame length as interval.

Definition at line 210 of file satellite-phy-rx.cc.

References m_rxCarriers.

◆ ConfigurePhyRxCarriers()

void ns3::SatPhyRx::ConfigurePhyRxCarriers	(	Ptr< SatPhyRxCarrierConf >	carrierConf,
		Ptr< SatSuperframeConf >	superFrameConf
	)

Parameters

carrierConf	Carrier configuration class
superFrameConf	Superframe configuration

Definition at line 291 of file satellite-phy-rx.cc.

References ns3::SatEnums::FORWARD_FEEDER_CH, ns3::SatEnums::FORWARD_USER_CH, m_rxCarriers, ns3::SatEnums::RA_MODEL_CRDSA, ns3::SatEnums::RA_MODEL_ESSA, ns3::SatEnums::RA_MODEL_MARSALA, ns3::SatEnums::RA_MODEL_RCS2_SPECIFICATION, ns3::SatEnums::RA_MODEL_SLOTTED_ALOHA, ns3::SatEnums::REGENERATION_LINK, ns3::SatEnums::REGENERATION_NETWORK, ns3::SatEnums::REGENERATION_PHY, ns3::SatEnums::RETURN_FEEDER_CH, ns3::SatEnums::RETURN_USER_CH, ns3::SatEnums::TRANSPARENT, and ns3::SatEnums::UNKNOWN_CH.

◆ DoDispose()

void ns3::SatPhyRx::DoDispose ( void )

virtual

Dispose of this class instance.

Definition at line 67 of file satellite-phy-rx.cc.

References m_device, m_fadingContainer, m_mobility, and m_rxCarriers.

◆ GetAddress()

Mac48Address ns3::SatPhyRx::GetAddress ( void ) const

Get MAC address of this PHY/MAC.

Returns: Mac48Address MAC address of this PHY

Definition at line 187 of file satellite-phy-rx.cc.

References m_macAddress.

◆ GetAntennaGain()

double ns3::SatPhyRx::GetAntennaGain ( Ptr< MobilityModel > mobility )

Get antenna gain based on position or in case that antenna pattern is not configured, maximum configured gain is return.

Parameters

mobility Mobility used to get gain from antenna pattern

Returns: antenna gain

If antenna gain pattern is not set, we use the set maximum antenna gain.

Definition at line 117 of file satellite-phy-rx.cc.

References m_antennaGainPattern, m_maxAntennaGain, and m_satMobility.

◆ GetBeamId()

uint32_t ns3::SatPhyRx::GetBeamId ( void ) const

Get beam id of this receiver.

Returns: uint32_t beam id

Definition at line 502 of file satellite-phy-rx.cc.

References m_beamId.

◆ GetDevice()

Ptr< NetDevice > ns3::SatPhyRx::GetDevice ( void )

Definition at line 91 of file satellite-phy-rx.cc.

References m_device.

◆ GetFadingValue()

double ns3::SatPhyRx::GetFadingValue	(	Address	macAddress,
		SatEnums::ChannelType_t	channelType
	)

Get fading value.

Parameters

macAddress	MAC address
channelType	channel type

Returns

Definition at line 147 of file satellite-phy-rx.cc.

References m_defaultFadingValue, and m_fadingContainer.

◆ GetLosses()

double ns3::SatPhyRx::GetLosses ( )

Get configures RX losses, currently only antenna loss used.

Returns: Antenna loss in linear

Definition at line 179 of file satellite-phy-rx.cc.

References m_antennaLoss.

◆ GetMobility()

Ptr< MobilityModel > ns3::SatPhyRx::GetMobility ( )

Definition at line 265 of file satellite-phy-rx.cc.

References m_mobility.

◆ GetRxTemperatureK()

double ns3::SatPhyRx::GetRxTemperatureK ( Ptr< SatSignalParameters > rxParams )

Method for querying the temperature of the chosen carrier.

Parameters

rxParams The needed parameters for the received signal

Definition at line 510 of file satellite-phy-rx.cc.

References m_rxCarriers.

◆ GetSatId()

uint32_t ns3::SatPhyRx::GetSatId ( ) const

Get satellite id of this receiver.

Returns: uint32_t satellite id

Definition at line 477 of file satellite-phy-rx.cc.

References m_satId.

◆ GetTypeId()

TypeId ns3::SatPhyRx::GetTypeId ( void )

static

inherited from Object

Definition at line 78 of file satellite-phy-rx.cc.

References m_rxCarriers.

◆ SetAntennaGainPattern()

void ns3::SatPhyRx::SetAntennaGainPattern	(	Ptr< SatAntennaGainPattern >	agp,
		Ptr< SatMobilityModel >	mobility
	)

Definition at line 281 of file satellite-phy-rx.cc.

References m_antennaGainPattern, and m_satMobility.

◆ SetAntennaLoss_Db()

void ns3::SatPhyRx::SetAntennaLoss_Db ( double loss_Db )

Set the Antenna loss in Db.

Parameters

loss_Db antenna loss in Dbs

Definition at line 171 of file satellite-phy-rx.cc.

References ns3::SatUtils::DbToLinear(), and m_antennaLoss.

Here is the call graph for this function:

◆ SetAverageNormalizedOfferedLoadCallback()

void ns3::SatPhyRx::SetAverageNormalizedOfferedLoadCallback ( SatPhyRx::AverageNormalizedOfferedLoadCallback cb )

Set average normalized offered load callback.

Parameters

cb

Definition at line 251 of file satellite-phy-rx.cc.

References m_rxCarriers.

◆ SetBeamId()

void ns3::SatPhyRx::SetBeamId ( uint32_t beamId )

Set the beam id for all the transmissions from this SatPhyTx.

Parameters

beamId the Beam Identifier

Definition at line 485 of file satellite-phy-rx.cc.

References m_beamId, and m_rxCarriers.

◆ SetCnoCallback()

void ns3::SatPhyRx::SetCnoCallback ( SatPhyRx::CnoCallback cb )

Set C/N0 receiver.

Parameters

cb	receive callback funtion pointer

Definition at line 237 of file satellite-phy-rx.cc.

References m_rxCarriers.

◆ SetDefaultFadingValue()

void ns3::SatPhyRx::SetDefaultFadingValue ( double fadingValue )

Function for setting the default fading value.

Parameters

fadingValue default fading value

Definition at line 140 of file satellite-phy-rx.cc.

References m_defaultFadingValue.

◆ SetDevice()

void ns3::SatPhyRx::SetDevice ( Ptr< NetDevice > d )

Definition at line 100 of file satellite-phy-rx.cc.

References m_device.

◆ SetFadingContainer()

void ns3::SatPhyRx::SetFadingContainer ( Ptr< SatBaseFading > fadingContainer )

Set fading container.

Parameters

fadingContainer fading container

Definition at line 162 of file satellite-phy-rx.cc.

References m_fadingContainer.

◆ SetMaxAntennaGain_Db()

void ns3::SatPhyRx::SetMaxAntennaGain_Db ( double gain_Db )

Set the maximum Antenna gain in Db.

Parameters

gain_Db maximum antenna gain in Dbs

Definition at line 109 of file satellite-phy-rx.cc.

References ns3::SatUtils::DbWToW(), and m_maxAntennaGain.

Here is the call graph for this function:

◆ SetMobility()

void ns3::SatPhyRx::SetMobility ( Ptr< MobilityModel > m )

Definition at line 274 of file satellite-phy-rx.cc.

References m_mobility.

◆ SetNodeInfo()

void ns3::SatPhyRx::SetNodeInfo ( const Ptr< SatNodeInfo > nodeInfo )

Set the node info class.

Parameters

nodeInfo Node information related to this SatPhyRx

Definition at line 195 of file satellite-phy-rx.cc.

References m_macAddress, and m_rxCarriers.

◆ SetReceiveCallback()

void ns3::SatPhyRx::SetReceiveCallback ( SatPhyRx::ReceiveCallback cb )

Set the upper layer receive callback.

Parameters

cb	receive callback funtion pointer

Definition at line 223 of file satellite-phy-rx.cc.

References m_rxCarriers.

◆ SetSatId()

void ns3::SatPhyRx::SetSatId ( uint32_t satId )

Set the satellite id for all the transmissions from this SatPhyTx.

Parameters

satId the satellite Identifier

Definition at line 460 of file satellite-phy-rx.cc.

References m_rxCarriers, and m_satId.

◆ StartRx()

void ns3::SatPhyRx::StartRx ( Ptr< SatSignalParameters > rxParams )

virtual

Start packet reception from the SatChannel.

Parameters

rxParams The needed parameters for the received signal

Reimplemented in ns3::SatLoraPhyRx.

Definition at line 525 of file satellite-phy-rx.cc.

References m_rxCarriers.

Referenced by ns3::SatLoraPhyRx::StartRx().

Here is the caller graph for this function:

Member Data Documentation

◆ m_antennaGainPattern

Ptr<SatAntennaGainPattern> ns3::SatPhyRx::m_antennaGainPattern

private

Definition at line 256 of file satellite-phy-rx.h.

Referenced by GetAntennaGain(), and SetAntennaGainPattern().

◆ m_antennaLoss

double ns3::SatPhyRx::m_antennaLoss

private

Configured antenna loss in linear.

Definition at line 271 of file satellite-phy-rx.h.

Referenced by GetLosses(), and SetAntennaLoss_Db().

◆ m_beamId

uint32_t ns3::SatPhyRx::m_beamId

private

Definition at line 250 of file satellite-phy-rx.h.

Referenced by GetBeamId(), and SetBeamId().

◆ m_defaultFadingValue

double ns3::SatPhyRx::m_defaultFadingValue

private

Default fading value.

Definition at line 284 of file satellite-phy-rx.h.

Referenced by GetFadingValue(), and SetDefaultFadingValue().

◆ m_device

Ptr<NetDevice> ns3::SatPhyRx::m_device

private

Definition at line 247 of file satellite-phy-rx.h.

Referenced by DoDispose(), GetDevice(), and SetDevice().

◆ m_fadingContainer

Ptr<SatBaseFading> ns3::SatPhyRx::m_fadingContainer

private

Fading container for fading model.

Definition at line 279 of file satellite-phy-rx.h.

Referenced by DoDispose(), GetFadingValue(), and SetFadingContainer().

◆ m_macAddress

Mac48Address ns3::SatPhyRx::m_macAddress

private

Definition at line 251 of file satellite-phy-rx.h.

Referenced by GetAddress(), and SetNodeInfo().

◆ m_maxAntennaGain

double ns3::SatPhyRx::m_maxAntennaGain

private

Configured maximum antenna gain in linear.

Definition at line 266 of file satellite-phy-rx.h.

Referenced by GetAntennaGain(), and SetMaxAntennaGain_Db().

◆ m_mobility

Ptr<MobilityModel> ns3::SatPhyRx::m_mobility

private

Definition at line 246 of file satellite-phy-rx.h.

Referenced by DoDispose(), GetMobility(), and SetMobility().

◆ m_rxCarriers

std::vector<Ptr<SatPhyRxCarrier> > ns3::SatPhyRx::m_rxCarriers

private

Definition at line 274 of file satellite-phy-rx.h.

Referenced by BeginEndScheduling(), ConfigurePhyRxCarriers(), DoDispose(), GetRxTemperatureK(), GetTypeId(), SetAverageNormalizedOfferedLoadCallback(), SetBeamId(), SetCnoCallback(), SetNodeInfo(), SetReceiveCallback(), SetSatId(), and StartRx().

◆ m_satId

uint32_t ns3::SatPhyRx::m_satId

private

Definition at line 249 of file satellite-phy-rx.h.

Referenced by GetSatId(), and SetSatId().

◆ m_satMobility

Ptr<SatMobilityModel> ns3::SatPhyRx::m_satMobility

private

Definition at line 261 of file satellite-phy-rx.h.

Referenced by GetAntennaGain(), and SetAntennaGainPattern().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-phy-rx.h
/builds/sns3/satellite/satellite/model/satellite-phy-rx.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ AverageNormalizedOfferedLoadCallback

◆ CnoCallback

◆ ReceiveCallback

Constructor & Destructor Documentation

◆ SatPhyRx()

◆ ~SatPhyRx()

Member Function Documentation

◆ BeginEndScheduling()

◆ ConfigurePhyRxCarriers()

◆ DoDispose()

◆ GetAddress()

◆ GetAntennaGain()

◆ GetBeamId()

◆ GetDevice()

◆ GetFadingValue()

◆ GetLosses()

◆ GetMobility()

◆ GetRxTemperatureK()

◆ GetSatId()

◆ GetTypeId()

◆ SetAntennaGainPattern()

◆ SetAntennaLoss_Db()

◆ SetAverageNormalizedOfferedLoadCallback()

◆ SetBeamId()

◆ SetCnoCallback()

◆ SetDefaultFadingValue()

◆ SetDevice()

◆ SetFadingContainer()

◆ SetMaxAntennaGain_Db()

◆ SetMobility()

◆ SetNodeInfo()

◆ SetReceiveCallback()

◆ SetSatId()

◆ StartRx()

Member Data Documentation

◆ m_antennaGainPattern

◆ m_antennaLoss

◆ m_beamId

◆ m_defaultFadingValue

◆ m_device

◆ m_fadingContainer

◆ m_macAddress

◆ m_maxAntennaGain

◆ m_mobility

◆ m_rxCarriers

◆ m_satId

◆ m_satMobility
