Base class for all SatPhyRxCarriers. More...

#include "satellite-phy-rx-carrier.h"

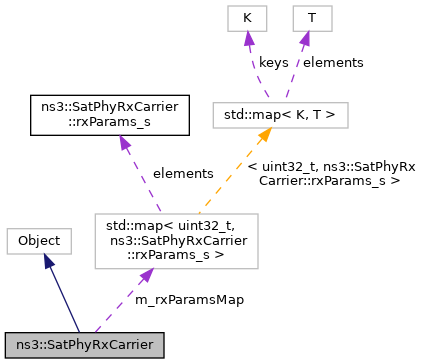

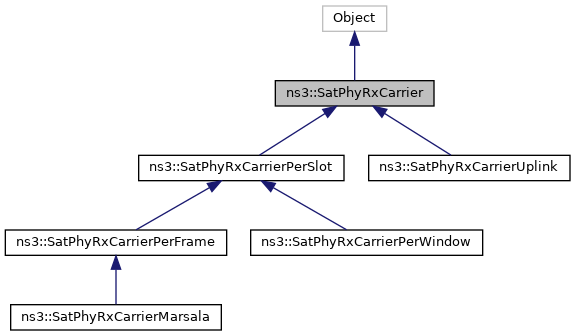

Inheritance diagram for ns3::SatPhyRxCarrier:

Collaboration diagram for ns3::SatPhyRxCarrier:

Classes
struct	rxParams_s
	Struct for storing the packet specific Rx parameters. More...

Public Types
enum	CarrierType { BASE , DEDICATED_ACCESS , RA_SLOTTED_ALOHA , RA_CRDSA , RA_ESSA }
	Possible carrier types. More...

typedef void(*	LinkBudgetTraceCallback) (Ptr< SatSignalParameters > rxParams, Mac48Address receiverAddress, Mac48Address destinationAddress, double interference, double sinr)
	Callback signature for `LinkBudgetTrace` trace source. More...

typedef void(*	LinkSinrTraceCallback) (double sinr, const Address &utAddress)
	Callback signature for `LinkSinrTrace` trace source. More...

typedef void(*	PhyRxCollisionCallback) (uint32_t nPackets, const Address &utAddress, bool isCollided)
	Common callback signature for trace sources related to packets reception by PHY and its collision. More...

typedef void(*	PhyRxErrorCallback) (uint32_t nPackets, const Address &utAddress, bool isError)
	Common callback signature for trace sources related to packets reception by PHY and its error. More...

typedef void(*	RxPowerTraceCallback) (double rxPower, const Address &utAddress)
	Callback signature for `RxPowerTrace` trace source. More...

enum	State { IDLE , RX }
	Enum for PHY states. More...

Public Member Functions
	SatPhyRxCarrier (uint32_t carrierId, Ptr< SatPhyRxCarrierConf > carrierConf, Ptr< SatWaveformConf > waveformConf, bool isRandomAccessEnabled)
	Constructor. More...

virtual	~SatPhyRxCarrier ()
	Destructor. More...

virtual void	BeginEndScheduling ()
	Function for initializing the frame/window end scheduling. More...

uint32_t	GetBeamId ()
	Get ID the ID of the beam this carrier is attached to. More...

virtual CarrierType	GetCarrierType ()
	Method for querying the type of the carrier. More...

double	GetRxTemperatureK ()
	Method for querying the temperature of the carrier. More...

uint32_t	GetSatId ()
	Get ID the ID of the satellite this carrier is attached to. More...

void	SetAverageNormalizedOfferedLoadCallback (SatPhyRx::AverageNormalizedOfferedLoadCallback callback)
	Function for setting the AverageNormalizedOfferedLoadCallback callback. More...

void	SetBeamId (uint32_t beamId)
	Function for setting the beam id for all the transmissions from this SatPhyTx. More...

void	SetCnoCb (SatPhyRx::CnoCallback cb)
	Function for settign the C/NO callback. More...

void	SetNodeInfo (const Ptr< SatNodeInfo > nodeInfo)
	Function for setting the node info class. More...

void	SetPhy (Ptr< SatPhy > phy)
	Function for setting the SatPhy module. More...

void	SetReceiveCb (SatPhyRx::ReceiveCallback cb)
	Function for setting the receive callback. More...

void	SetSatId (uint32_t satId)
	Function for setting the satellite id for all the transmissions from this SatPhyTx. More...

virtual bool	StartRx (Ptr< SatSignalParameters > rxParams)
	Function for starting packet reception from the SatChannel. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Function for gettign the NS-3 type ID. More...

Protected Member Functions
double	CalculateCompositeSinr (double sinr1, double sinr2)
	Function for calculating the composite SINR. More...

double	CalculateSinr (double rxPowerW, double ifPowerW, double rxNoisePowerW, double rxAciIfPowerW, double rxExtNoisePowerW, double otherInterference)
	Function for calculating the SINR. More...

double	CalculateSinr (double sinr, double otherInterference)
	Calculate final SINR with PHY specific parameters and given calculated SINR. More...

void	ChangeState (State newState)
	Function for changing the receiver state. More...

bool	CheckAgainstLinkResults (double cSinr, Ptr< SatSignalParameters > rxParams)
	Function for checking the SINR against the link results. More...

void	CheckRxStateSanity ()
	Function for checking the Rx state sanity. More...

virtual Ptr< SatInterference::InterferenceChangeEvent >	CreateInterference (Ptr< SatSignalParameters > rxParams, Address rxAddress)=0
	Create an interference event based on Rx parameters and address. More...

void	DecreaseNumOfRxState (SatEnums::PacketType_t packetType)
	Function for decreasing the number of ongoing transmissions. More...

void	DoCompositeSinrOutputTrace (double cSinr)
	Function for composite SINR output tracing. More...

virtual void	DoCreateInterferenceEliminationModel (Ptr< SatPhyRxCarrierConf > carrierConf, uint32_t carrierId, Ptr< SatWaveformConf > waveformConf)
	Create an interference cancelation model for this carrier. More...

virtual void	DoCreateInterferenceModel (Ptr< SatPhyRxCarrierConf > carrierConf, uint32_t carrierId, double rxBandwidthHz)
	Create an interference model for this carrier. More...

virtual void	DoDispose ()
	Dispose. More...

virtual void	EndRxData (uint32_t key)=0
	Function for ending the packet reception from the SatChannel. More...

uint32_t	GetCarrierId () const
	Get the ID of the carrier. More...

Ptr< SatChannelEstimationErrorContainer >	GetChannelEstimationErrorContainer ()
	Get a pointer to the channel estimation error container of the carrier. More...

virtual SatEnums::ChannelType_t	GetChannelType ()
	Get the channel type. More...

virtual const bool	GetDefaultReceiveMode ()
	Get the default receive mode for the carrier. More...

Ptr< SatInterferenceElimination >	GetInterferenceEliminationModel ()
	Get pointer to the current interference elimination model. More...

Ptr< SatInterference >	GetInterferenceModel ()
	Get pointer to the current interference model. More...

virtual SatEnums::RegenerationMode_t	GetLinkRegenerationMode ()
	Get the link regeneration mode. More...

Ptr< SatLinkResults >	GetLinkResults ()
	Get pointer to the link results given by the carrier creation configuration. More...

Ptr< SatNodeInfo >	GetNodeInfo ()
	Get the satellite node info. More...

Mac48Address	GetOwnAddress ()
	Get the MAC address of the carrier. More...

std::pair< bool, SatPhyRxCarrier::rxParams_s >	GetReceiveParams (Ptr< SatSignalParameters > rxParams)
	Rx parameter storage methods. More...

State	GetState ()
	Get the state of the carrier. More...

rxParams_s	GetStoredRxParams (uint32_t key)
	Get stored rxParams under a key. More...

double	GetUniformRandomValue (double min, double max)
	A helper method for getting values form a uniform random variable in child classes. More...

Ptr< SatWaveformConf >	GetWaveformConf ()
	Get pointer to the waveform configuration. More...

double	GetWorstSinr (double sinr1, double sinr2)
	Function for calculating the worst sinr between uplink and downlink. More...

void	IncreaseNumOfRxState (SatEnums::PacketType_t packetType)
	Function for increasing the number of ongoing transmissions. More...

bool	IsCompositeSinrOutputTraceEnabled () const
	Check if composite SINR output trace is enabled. More...

bool	IsReceivingDedicatedAccess ()
	Check if the carrier is receiving a dedicated access packet. More...

void	RemoveStoredRxParams (uint32_t key)
	Remove stored rxParams under a key. More...

void	SetChannelType (SatEnums::ChannelType_t channelType)
	Set the channel type for the carrier. More...

void	SetLinkRegenerationMode (SatEnums::RegenerationMode_t linkRegenerationMode)
	Set the link regeneration mode. More...

void	StoreRxParams (uint32_t key, rxParams_s rxParams)
	Store rxParams under a key. More...

Protected Attributes
SatPhyRxCarrierConf::AdditionalInterferenceCallback	m_additionalInterferenceCallback
	Callback to get additional interference. More...

SatPhy::AverageNormalizedOfferedLoadCallback	m_avgNormalizedOfferedLoadCallback
	Average normalized offered load callback. More...

SatPhy::CnoCallback	m_cnoCallback
	The upper layer C/N0 receive callback. More...

TracedCallback< uint32_t, const Address & >	m_daRxCarrierIdTrace

TracedCallback< uint32_t, const Address &, bool >	m_daRxTrace
	`DaRx` trace source. More...

TracedCallback< Ptr< SatSignalParameters >, Mac48Address, Mac48Address, double, double >	m_linkBudgetTrace
	The trace source on packet receptiong. More...

SatEnums::RegenerationMode_t	m_linkRegenerationMode
	Link regeneration mode. More...

TracedCallback< double, const Address & >	m_linkSinrTrace
	A callback for link specific SINR in dB. More...

const bool	m_randomAccessEnabled
	Is random access enabled for this carrier. More...

double	m_rxAciIfPowerW
	RX Adjacent channel interference. More...

double	m_rxBandwidthHz
	RX Bandwidth in Hz. More...

SatPhyRx::ReceiveCallback	m_rxCallback
	The upper layer package receive callback. More...

double	m_rxExtNoisePowerW
	External noise power system RX noise. More...

double	m_rxNoisePowerW
	RX noise. More...

TracedCallback< double, const Address & >	m_rxPowerTrace
	A callback for received signal power in dBW. More...

double	m_rxTemperatureK
	RX noise temperature in K. More...

TracedCallback< double, const Address & >	m_sinrTrace
	A callback for transmission composite SINR at UT (BBFrame) or GW (time slot). More...

Private Member Functions
bool	CheckAgainstLinkResultsErrorModelAvi (double cSinr, Ptr< SatSignalParameters > rxParams)
	Function for checking the SINR against the link results. More...

Private Attributes
uint32_t	m_beamId

uint32_t	m_carrierId

Ptr< SatChannelEstimationErrorContainer >	m_channelEstimationError
	Channel estimation error container. More...

SatEnums::ChannelType_t	m_channelType

double	m_constantErrorRate

bool	m_enableCompositeSinrOutputTrace

SatPhyRxCarrierConf::ErrorModel	m_errorModel

Ptr< SatLinkResults >	m_linkResults

Ptr< SatNodeInfo >	m_nodeInfo

uint32_t	m_numOfOngoingRx
	Contains information about how many ongoing Rx events there are. More...

Mac48Address	m_ownAddress

bool	m_receivingDedicatedAccess

uint32_t	m_rxPacketCounter
	Running counter for received packets. More...

std::map< uint32_t, rxParams_s >	m_rxParamsMap

uint32_t	m_satId

Ptr< SatInterference >	m_satInterference

Ptr< SatInterferenceElimination >	m_satInterferenceElimination

State	m_state

Ptr< UniformRandomVariable >	m_uniformVariable

Ptr< SatWaveformConf >	m_waveformConf

Detailed Description

Base class for all SatPhyRxCarriers.

Definition at line 60 of file satellite-phy-rx-carrier.h.

Member Typedef Documentation

◆ LinkBudgetTraceCallback

typedef void(* ns3::SatPhyRxCarrier::LinkBudgetTraceCallback) (Ptr< SatSignalParameters > rxParams, Mac48Address receiverAddress, Mac48Address destinationAddress, double interference, double sinr)

Callback signature for LinkBudgetTrace trace source.

Parameters

rxParams	RX signalling parameters
receiverAddress	receiver address
destinationAddress	packet destination address
interference	interference power (in W)
sinr	composite SINR (in linear unit)

Definition at line 84 of file satellite-phy-rx-carrier.h.

◆ LinkSinrTraceCallback

typedef void(* ns3::SatPhyRxCarrier::LinkSinrTraceCallback) (double sinr, const Address &utAddress)

Callback signature for LinkSinrTrace trace source.

Parameters

sinr	link-specific SINR (in dB)
utAddress	the MAC48 address of the corresponding UT.

Definition at line 102 of file satellite-phy-rx-carrier.h.

◆ PhyRxCollisionCallback

typedef void(* ns3::SatPhyRxCarrier::PhyRxCollisionCallback) (uint32_t nPackets, const Address &utAddress, bool isCollided)

Common callback signature for trace sources related to packets reception by PHY and its collision.

Parameters

nPackets	number of packets in the received packet burst.
utAddress	the MAC48 address of the corresponding UT.
isCollided	whether a collision has occurred.

Definition at line 120 of file satellite-phy-rx-carrier.h.

◆ PhyRxErrorCallback

typedef void(* ns3::SatPhyRxCarrier::PhyRxErrorCallback) (uint32_t nPackets, const Address &utAddress, bool isError)

Common callback signature for trace sources related to packets reception by PHY and its error.

Parameters

nPackets	number of upper layer packets in the received packet burst.
utAddress	the MAC48 address of the corresponding UT.
isError	whether a PHY error has occurred.

Definition at line 111 of file satellite-phy-rx-carrier.h.

◆ RxPowerTraceCallback

typedef void(* ns3::SatPhyRxCarrier::RxPowerTraceCallback) (double rxPower, const Address &utAddress)

Callback signature for RxPowerTrace trace source.

Parameters

rxPower	received signal power (in dbW)
utAddress	the MAC48 address of the corresponding UT.

Definition at line 95 of file satellite-phy-rx-carrier.h.

Member Enumeration Documentation

◆ CarrierType

enum ns3::SatPhyRxCarrier::CarrierType

Possible carrier types.

Enumerator
BASE
DEDICATED_ACCESS
RA_SLOTTED_ALOHA
RA_CRDSA
RA_ESSA

Definition at line 153 of file satellite-phy-rx-carrier.h.

◆ State

enum ns3::SatPhyRxCarrier::State

Enum for PHY states.

Enumerator
IDLE
RX

Definition at line 144 of file satellite-phy-rx-carrier.h.

Constructor & Destructor Documentation

◆ SatPhyRxCarrier()

ns3::SatPhyRxCarrier::SatPhyRxCarrier	(	uint32_t	carrierId,
		Ptr< SatPhyRxCarrierConf >	carrierConf,
		Ptr< SatWaveformConf >	waveformConf,
		bool	isRandomAccessEnabled
	)

Constructor.

Parameters

carrierId
carrierConf
waveformConf
isRandomAccessEnabled

Uniform random variable used for checking whether a packet was received successfully or not

Definition at line 59 of file satellite-phy-rx-carrier.cc.

References ns3::SatConstVariables::BOLTZMANN_CONSTANT, DoCreateInterferenceEliminationModel(), DoCreateInterferenceModel(), ns3::SatEnums::EFFECTIVE_BANDWIDTH, ns3::SatPhyRxCarrierConf::EM_AVI, GetChannelType(), ns3::SatEnums::GetChannelTypeName(), m_additionalInterferenceCallback, m_carrierId, m_channelEstimationError, m_constantErrorRate, m_errorModel, m_linkResults, m_rxAciIfPowerW, m_rxBandwidthHz, m_rxExtNoisePowerW, m_rxNoisePowerW, m_rxTemperatureK, m_uniformVariable, SetChannelType(), and SetLinkRegenerationMode().

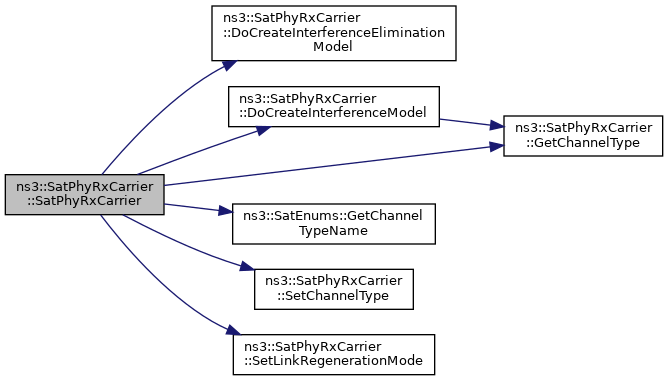

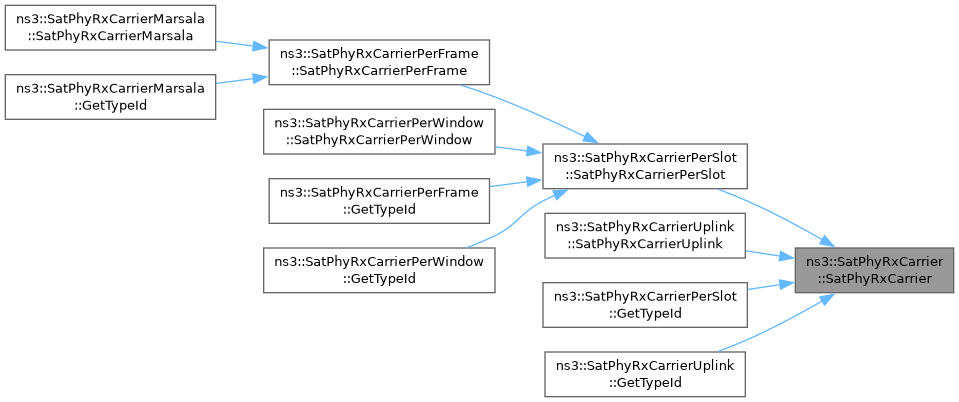

Here is the call graph for this function:

◆ ~SatPhyRxCarrier()

ns3::SatPhyRxCarrier::~SatPhyRxCarrier ( )

virtual

Destructor.

Definition at line 203 of file satellite-phy-rx-carrier.cc.

Member Function Documentation

◆ BeginEndScheduling()

void ns3::SatPhyRxCarrier::BeginEndScheduling ( void )

virtual

Function for initializing the frame/window end scheduling.

Reimplemented in ns3::SatPhyRxCarrierPerWindow, ns3::SatPhyRxCarrierPerSlot, and ns3::SatPhyRxCarrierPerFrame.

Definition at line 209 of file satellite-phy-rx-carrier.cc.

◆ CalculateCompositeSinr()

double ns3::SatPhyRxCarrier::CalculateCompositeSinr	(	double	sinr1,
		double	sinr2
	)

protected

Function for calculating the composite SINR.

Parameters

sinr1	SINR 1
sinr2	SINR 2

Returns: Composite SINR

Definition at line 676 of file satellite-phy-rx-carrier.cc.

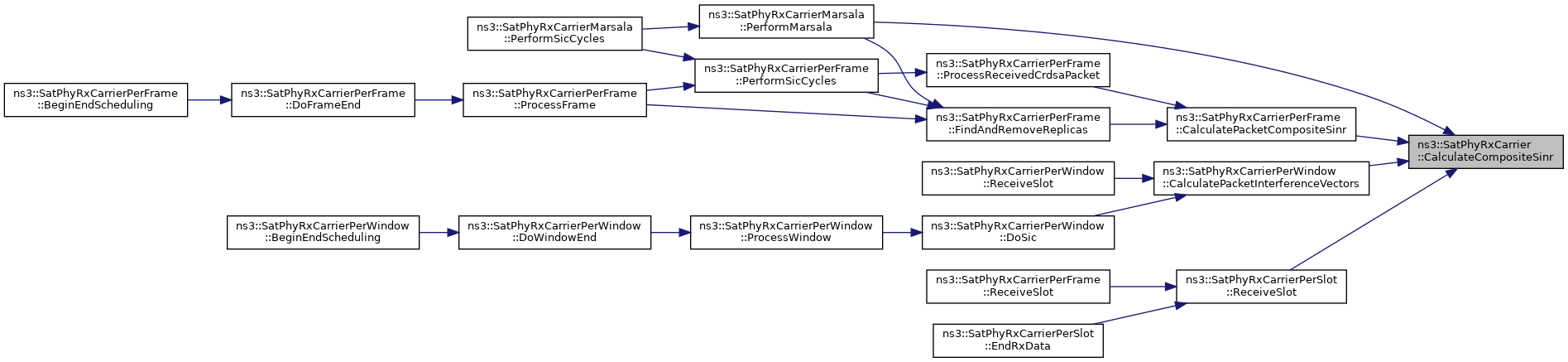

Referenced by ns3::SatPhyRxCarrierPerFrame::CalculatePacketCompositeSinr(), ns3::SatPhyRxCarrierPerWindow::CalculatePacketInterferenceVectors(), ns3::SatPhyRxCarrierMarsala::PerformMarsala(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

Here is the caller graph for this function:

◆ CalculateSinr() [1/2]

double ns3::SatPhyRxCarrier::CalculateSinr	(	double	rxPowerW,
		double	ifPowerW,
		double	rxNoisePowerW,
		double	rxAciIfPowerW,
		double	rxExtNoisePowerW,
		double	otherInterference
	)

protected

Function for calculating the SINR.

Parameters

rxPowerW	Rx power in Watts
ifPowerW	Interference power in Watts
rxNoisePowerW	Rx noise power in Watts
rxAciIfPowerW	Rx ACI power in Watts
rxExtNoisePowerW	Rx external noise power in Watts
otherInterference	Additional interference to compute final SINR

Returns: Calculated SINR

Definition at line 629 of file satellite-phy-rx-carrier.cc.

Referenced by ns3::SatPhyRxCarrierPerFrame::CalculatePacketCompositeSinr(), ns3::SatPhyRxCarrierPerWindow::CalculatePacketInterferenceVectors(), ns3::SatPhyRxCarrierUplink::EndRxData(), ns3::SatPhyRxCarrierMarsala::PerformMarsala(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

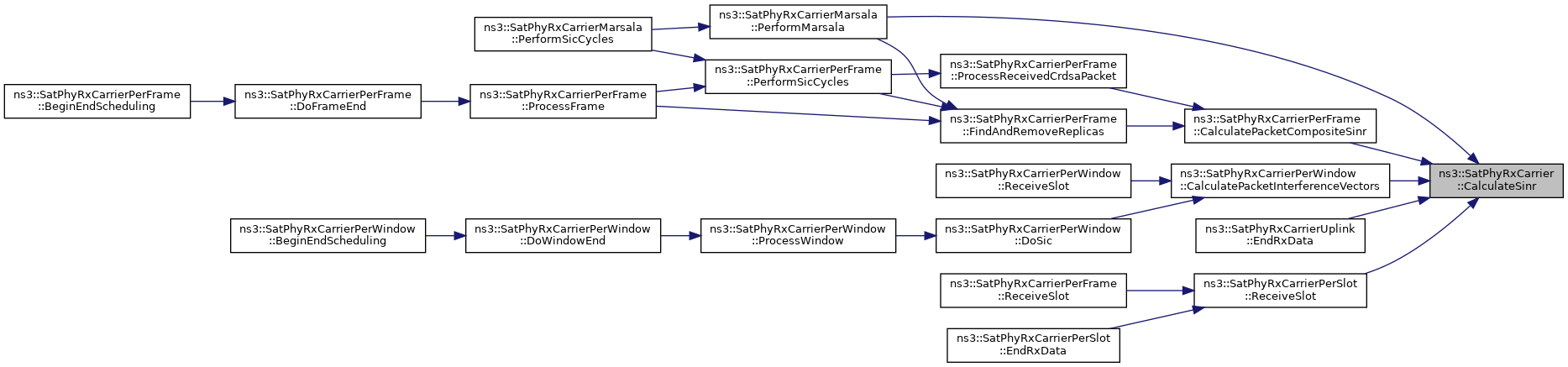

Here is the caller graph for this function:

◆ CalculateSinr() [2/2]

double ns3::SatPhyRxCarrier::CalculateSinr	(	double	sinr,
		double	otherInterference
	)

protected

Calculate final SINR with PHY specific parameters and given calculated SINR.

Additional interference value is added.

Parameters

sinr	Calculated SINR
otherInterference	Interference to add to the sinr

Returns: Final SINR

Definition at line 656 of file satellite-phy-rx-carrier.cc.

◆ ChangeState()

void ns3::SatPhyRxCarrier::ChangeState ( State newState )

protected

Function for changing the receiver state.

Parameters

newState New state

Definition at line 300 of file satellite-phy-rx-carrier.cc.

References m_state.

Referenced by DecreaseNumOfRxState(), and IncreaseNumOfRxState().

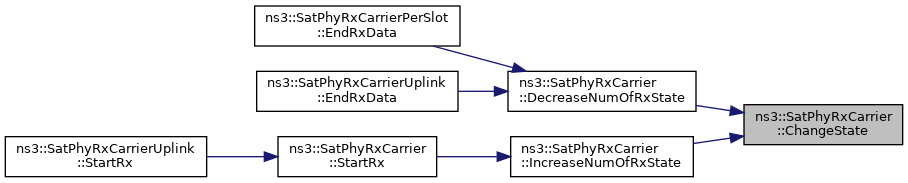

Here is the caller graph for this function:

◆ CheckAgainstLinkResults()

bool ns3::SatPhyRxCarrier::CheckAgainstLinkResults	(	double	cSinr,
		Ptr< SatSignalParameters >	rxParams
	)

protected

Function for checking the SINR against the link results.

Parameters

cSinr	composite SINR
rxParams	Rx parameters

Returns: result of the check

Initialize with no errors

No errors i.e. error = false;

Definition at line 484 of file satellite-phy-rx-carrier.cc.

References CheckAgainstLinkResultsErrorModelAvi(), ns3::SatPhyRxCarrierConf::EM_AVI, ns3::SatPhyRxCarrierConf::EM_CONSTANT, ns3::SatPhyRxCarrierConf::EM_NONE, GetUniformRandomValue(), m_constantErrorRate, and m_errorModel.

Referenced by ns3::SatPhyRxCarrierMarsala::PerformMarsala(), ns3::SatPhyRxCarrierPerFrame::ProcessReceivedCrdsaPacket(), ns3::SatPhyRxCarrierPerSlot::ProcessSlottedAlohaCollisions(), ns3::SatPhyRxCarrierPerWindow::ProcessWindow(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

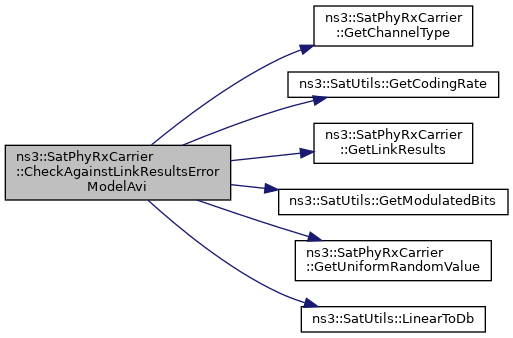

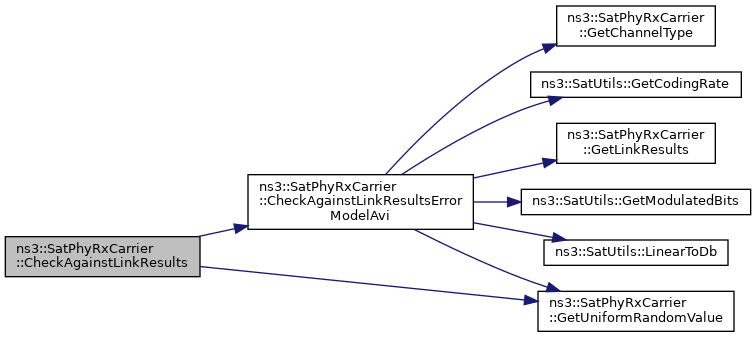

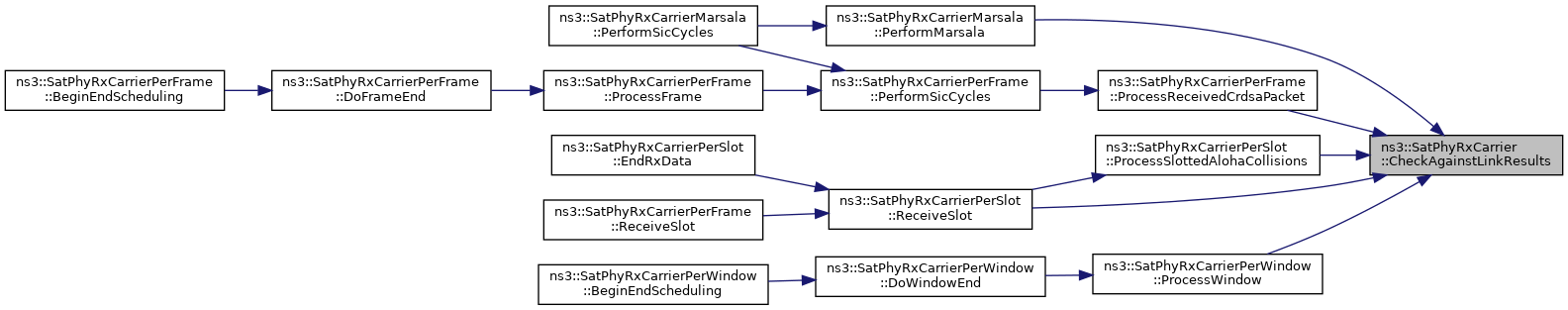

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckAgainstLinkResultsErrorModelAvi()

bool ns3::SatPhyRxCarrier::CheckAgainstLinkResultsErrorModelAvi	(	double	cSinr,
		Ptr< SatSignalParameters >	rxParams
	)

private

Function for checking the SINR against the link results.

Parameters

cSinr	composite SINR
rxParams	Rx parameters

Returns: result of the check

In forward link the link results are in Es/No format, thus here we need to convert the SINR into Es/No:

C/No = C/N * fs Es/No = C/N * B/fs = (C/No / fs) * B/fs Es/No = (C*Ts)/No = C/No * (1/fs) = C/N

where C/No = carrier to noise density C/N = signal to noise ratio (= SINR in the simulator) Es/No = energy per symbol per noise density B = channel bandwidth in Hz fs = symbol rate in baud

In return link the link results are in Eb/No format, thus here we need to convert the SINR into Eb/No: Eb/No = C/N * B/fb = (C/No / fs) * B/fb Eb/No = (Es/log2M)/No = (Es/No)*(1/log2M) = C/N * (1/log2M) = C/No * (1/fs) * (1/log2M)

where C/No = carrier to noise density C/N = signal to noise ratio (= SINR in the simulator) Es/No = energy per symbol per noise density Eb/No = energy per bit per noise density B = channel bandwidth in Hz fs = symbol rate in baud fb = channel bitrate (after FEC) in bps (i.e. burst payloadInBits / burstDurationInSec)

Definition at line 518 of file satellite-phy-rx-carrier.cc.

References ns3::SatEnums::FORWARD_FEEDER_CH, ns3::SatEnums::FORWARD_USER_CH, GetChannelType(), ns3::SatUtils::GetCodingRate(), GetLinkResults(), ns3::SatUtils::GetModulatedBits(), GetUniformRandomValue(), ns3::SatUtils::LinearToDb(), m_linkRegenerationMode, ns3::SatEnums::REGENERATION_LINK, ns3::SatEnums::REGENERATION_NETWORK, ns3::SatEnums::RETURN_FEEDER_CH, ns3::SatEnums::RETURN_USER_CH, and ns3::SatEnums::UNKNOWN_CH.

Referenced by CheckAgainstLinkResults().

Here is the call graph for this function:

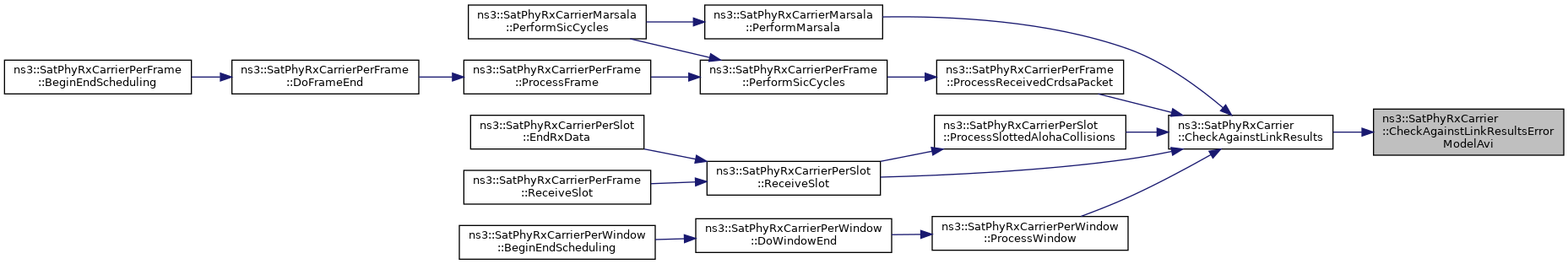

Here is the caller graph for this function:

◆ CheckRxStateSanity()

void ns3::SatPhyRxCarrier::CheckRxStateSanity ( )

protected

Function for checking the Rx state sanity.

Definition at line 751 of file satellite-phy-rx-carrier.cc.

References IDLE, m_numOfOngoingRx, m_state, and RX.

Referenced by DecreaseNumOfRxState(), and IncreaseNumOfRxState().

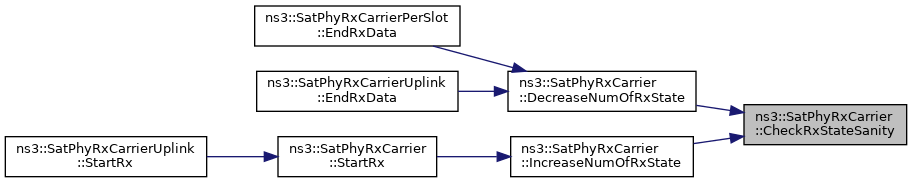

Here is the caller graph for this function:

◆ CreateInterference()

virtual Ptr<SatInterference::InterferenceChangeEvent> ns3::SatPhyRxCarrier::CreateInterference	(	Ptr< SatSignalParameters >	rxParams,
		Address	rxAddress
	)

protectedpure virtual

Create an interference event based on Rx parameters and address.

Implemented by child classes.

Returns: Pointer to the interference event.

Implemented in ns3::SatPhyRxCarrierUplink, and ns3::SatPhyRxCarrierPerSlot.

Referenced by StartRx().

Here is the caller graph for this function:

◆ DecreaseNumOfRxState()

void ns3::SatPhyRxCarrier::DecreaseNumOfRxState ( SatEnums::PacketType_t packetType )

protected

Function for decreasing the number of ongoing transmissions.

Parameters

packetType Packet type of the ongoing transmission

Definition at line 728 of file satellite-phy-rx-carrier.cc.

References ChangeState(), CheckRxStateSanity(), IDLE, m_numOfOngoingRx, m_receivingDedicatedAccess, and ns3::SatEnums::PACKET_TYPE_DEDICATED_ACCESS.

Referenced by ns3::SatPhyRxCarrierPerSlot::EndRxData(), and ns3::SatPhyRxCarrierUplink::EndRxData().

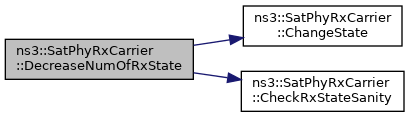

Here is the call graph for this function:

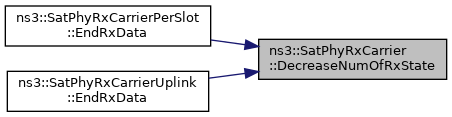

Here is the caller graph for this function:

◆ DoCompositeSinrOutputTrace()

void ns3::SatPhyRxCarrier::DoCompositeSinrOutputTrace ( double cSinr )

protected

Function for composite SINR output tracing.

Parameters

cSinr composite SINR

Definition at line 470 of file satellite-phy-rx-carrier.cc.

References GetChannelType(), and GetOwnAddress().

Referenced by ns3::SatPhyRxCarrierPerWindow::CalculatePacketInterferenceVectors(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

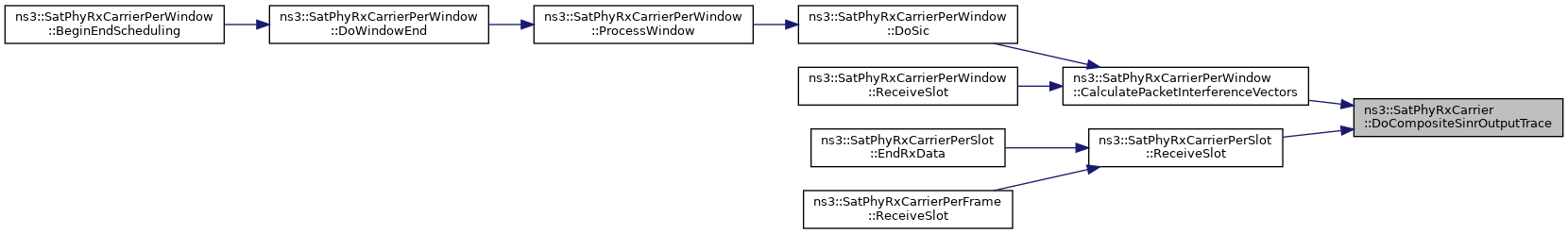

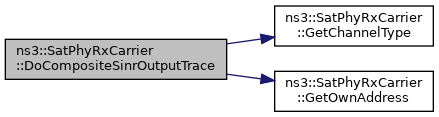

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoCreateInterferenceEliminationModel()

void ns3::SatPhyRxCarrier::DoCreateInterferenceEliminationModel	(	Ptr< SatPhyRxCarrierConf >	carrierConf,
		uint32_t	carrierId,
		Ptr< SatWaveformConf >	waveformConf
	)

protectedvirtual

Create an interference cancelation model for this carrier.

Parameters

carrierConf
carrierId
frameConf

Definition at line 177 of file satellite-phy-rx-carrier.cc.

References m_randomAccessEnabled, m_satInterferenceElimination, ns3::SatPhyRxCarrierConf::SIC_PERFECT, and ns3::SatPhyRxCarrierConf::SIC_RESIDUAL.

Referenced by SatPhyRxCarrier().

Here is the caller graph for this function:

◆ DoCreateInterferenceModel()

void ns3::SatPhyRxCarrier::DoCreateInterferenceModel	(	Ptr< SatPhyRxCarrierConf >	carrierConf,
		uint32_t	carrierId,
		double	rxBandwidthHz
	)

protectedvirtual

Create an interference model for this carrier.

Parameters

carrierConf
carrierId
rxBandwidthHz
randomAccessEnabled

Definition at line 127 of file satellite-phy-rx-carrier.cc.

References GetChannelType(), ns3::SatPhyRxCarrierConf::IF_CONSTANT, ns3::SatPhyRxCarrierConf::IF_PER_FRAGMENT, ns3::SatPhyRxCarrierConf::IF_PER_PACKET, ns3::SatPhyRxCarrierConf::IF_TRACE, m_randomAccessEnabled, and m_satInterference.

Referenced by SatPhyRxCarrier().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::SatPhyRxCarrier::DoDispose ( void )

protectedvirtual

Dispose.

Reimplemented in ns3::SatPhyRxCarrierPerWindow, ns3::SatPhyRxCarrierPerSlot, and ns3::SatPhyRxCarrierPerFrame.

Definition at line 252 of file satellite-phy-rx-carrier.cc.

References m_additionalInterferenceCallback, m_avgNormalizedOfferedLoadCallback, m_cnoCallback, m_rxCallback, m_satInterference, m_satInterferenceElimination, and m_uniformVariable.

Referenced by ns3::SatPhyRxCarrierPerSlot::DoDispose().

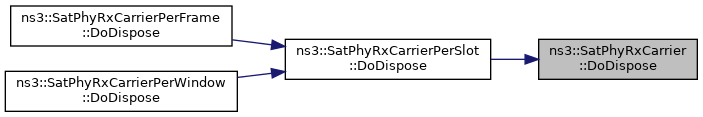

Here is the caller graph for this function:

◆ EndRxData()

virtual void ns3::SatPhyRxCarrier::EndRxData ( uint32_t key )

protectedpure virtual

Function for ending the packet reception from the SatChannel.

Parameters

key	Key for Rx params map

Implemented in ns3::SatPhyRxCarrierUplink, and ns3::SatPhyRxCarrierPerSlot.

Referenced by StartRx().

Here is the caller graph for this function:

◆ GetBeamId()

uint32_t ns3::SatPhyRxCarrier::GetBeamId ( void )

inline

Get ID the ID of the beam this carrier is attached to.

Returns: Beam ID

Definition at line 205 of file satellite-phy-rx-carrier.h.

References m_beamId.

Referenced by ns3::SatPhyRxCarrierPerSlot::CreateInterference(), ns3::SatPhyRxCarrierPerFrame::MeasureRandomAccessLoad(), ns3::SatPhyRxCarrierPerWindow::MeasureRandomAccessLoad(), ns3::SatPhyRxCarrierPerSlot::ReceiveSlot(), and StartRx().

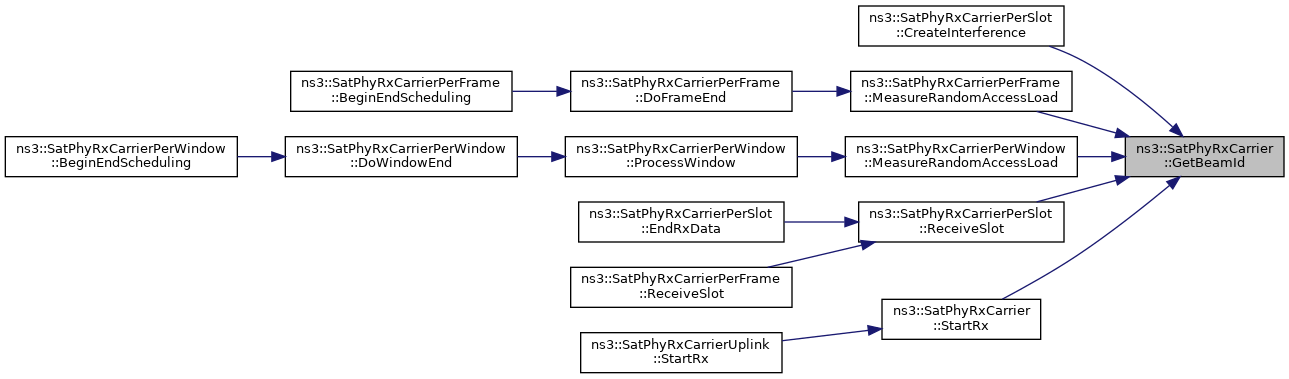

Here is the caller graph for this function:

◆ GetCarrierId()

uint32_t ns3::SatPhyRxCarrier::GetCarrierId ( ) const

inlineprotected

Get the ID of the carrier.

Returns: Carrier ID

Definition at line 529 of file satellite-phy-rx-carrier.h.

References m_carrierId.

Referenced by ns3::SatPhyRxCarrierPerFrame::MeasureRandomAccessLoad(), ns3::SatPhyRxCarrierPerWindow::MeasureRandomAccessLoad(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

Here is the caller graph for this function:

◆ GetCarrierType()

virtual CarrierType ns3::SatPhyRxCarrier::GetCarrierType ( )

inlinevirtual

Method for querying the type of the carrier.

Reimplemented in ns3::SatPhyRxCarrierUplink, ns3::SatPhyRxCarrierPerWindow, ns3::SatPhyRxCarrierPerSlot, and ns3::SatPhyRxCarrierPerFrame.

Definition at line 226 of file satellite-phy-rx-carrier.h.

References BASE.

◆ GetChannelEstimationErrorContainer()

Ptr<SatChannelEstimationErrorContainer> ns3::SatPhyRxCarrier::GetChannelEstimationErrorContainer ( )

inlineprotected

Get a pointer to the channel estimation error container of the carrier.

Returns: channel estimation error containe pointer

Definition at line 557 of file satellite-phy-rx-carrier.h.

References m_channelEstimationError.

Referenced by ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

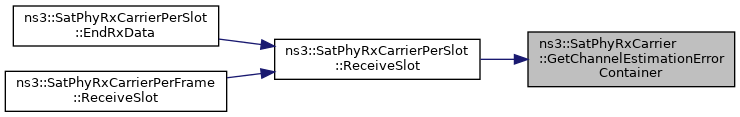

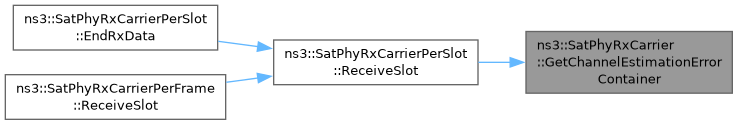

Here is the caller graph for this function:

◆ GetChannelType()

virtual SatEnums::ChannelType_t ns3::SatPhyRxCarrier::GetChannelType ( )

inlineprotectedvirtual

Get the channel type.

Base class has undefined channel type, while child classes have can have other channel types.

Returns: Channel type

Definition at line 394 of file satellite-phy-rx-carrier.h.

References m_channelType.

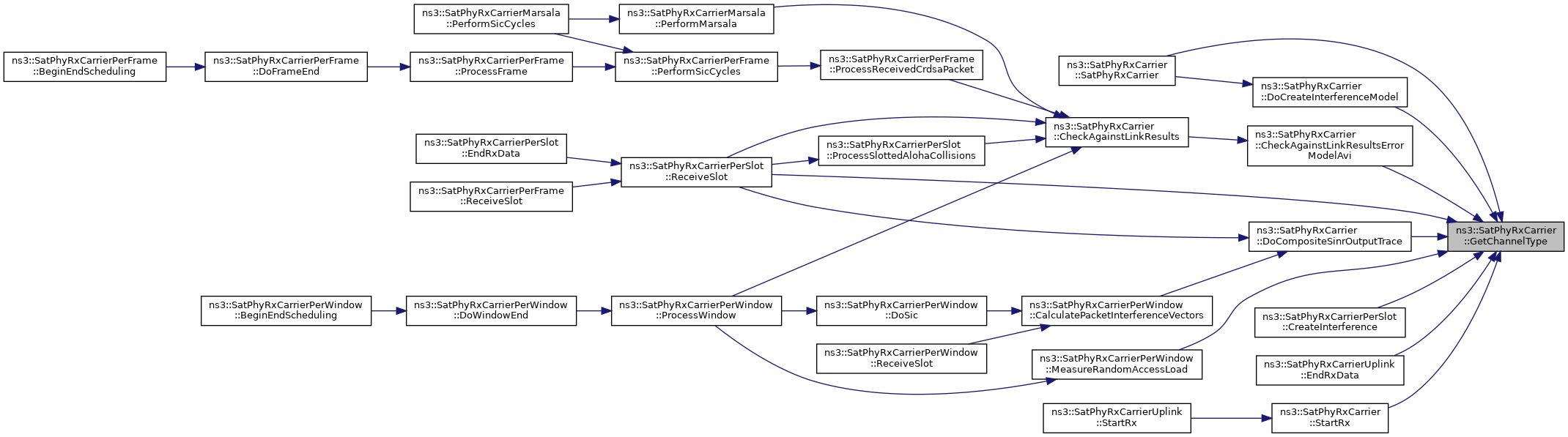

Referenced by SatPhyRxCarrier(), CheckAgainstLinkResultsErrorModelAvi(), ns3::SatPhyRxCarrierPerSlot::CreateInterference(), DoCompositeSinrOutputTrace(), DoCreateInterferenceModel(), ns3::SatPhyRxCarrierUplink::EndRxData(), ns3::SatPhyRxCarrierPerWindow::MeasureRandomAccessLoad(), ns3::SatPhyRxCarrierPerSlot::ReceiveSlot(), and StartRx().

Here is the caller graph for this function:

◆ GetDefaultReceiveMode()

virtual const bool ns3::SatPhyRxCarrier::GetDefaultReceiveMode ( )

inlineprotectedvirtual

Get the default receive mode for the carrier.

In satellite nodes, this will be overrided to always receive packets.

Returns: True or false, false by default in base class

Reimplemented in ns3::SatPhyRxCarrierUplink.

Definition at line 271 of file satellite-phy-rx-carrier.h.

Referenced by GetReceiveParams().

Here is the caller graph for this function:

◆ GetInterferenceEliminationModel()

Ptr<SatInterferenceElimination> ns3::SatPhyRxCarrier::GetInterferenceEliminationModel ( )

inlineprotected

Get pointer to the current interference elimination model.

Returns: interference elimination model

Definition at line 298 of file satellite-phy-rx-carrier.h.

References m_satInterferenceElimination.

Referenced by ns3::SatPhyRxCarrierPerWindow::DoSic(), ns3::SatPhyRxCarrierPerFrame::EliminateInterference(), and ns3::SatPhyRxCarrierPerWindow::EliminatePreviousInterferences().

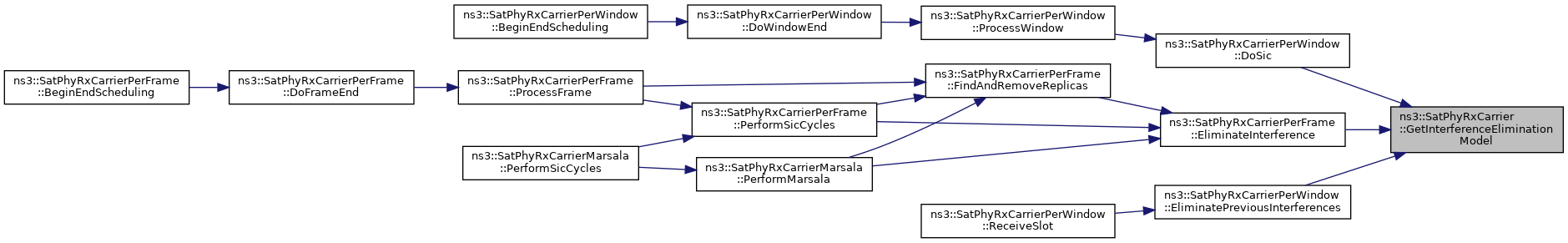

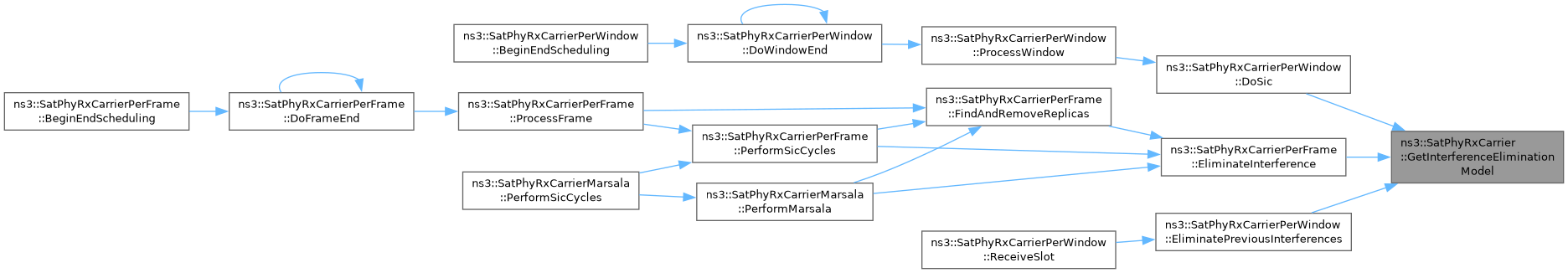

Here is the caller graph for this function:

◆ GetInterferenceModel()

Ptr<SatInterference> ns3::SatPhyRxCarrier::GetInterferenceModel ( )

inlineprotected

Get pointer to the current interference model.

Returns: interference model

Definition at line 289 of file satellite-phy-rx-carrier.h.

References m_satInterference.

Referenced by ns3::SatPhyRxCarrierPerSlot::CreateInterference(), ns3::SatPhyRxCarrierUplink::CreateInterference(), ns3::SatPhyRxCarrierPerSlot::EndRxData(), ns3::SatPhyRxCarrierUplink::EndRxData(), ns3::SatPhyRxCarrierPerSlot::ProcessSlottedAlohaCollisions(), ns3::SatPhyRxCarrierPerFrame::ReceiveSlot(), ns3::SatPhyRxCarrierPerSlot::ReceiveSlot(), and StartRx().

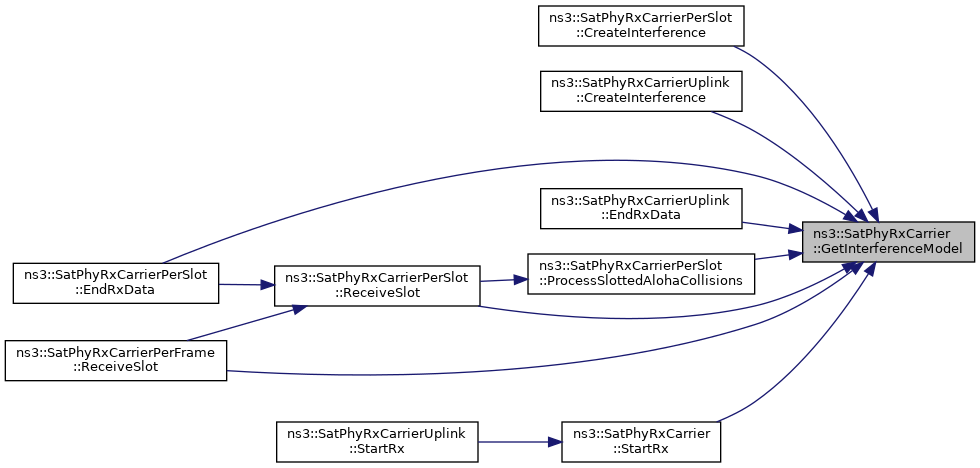

Here is the caller graph for this function:

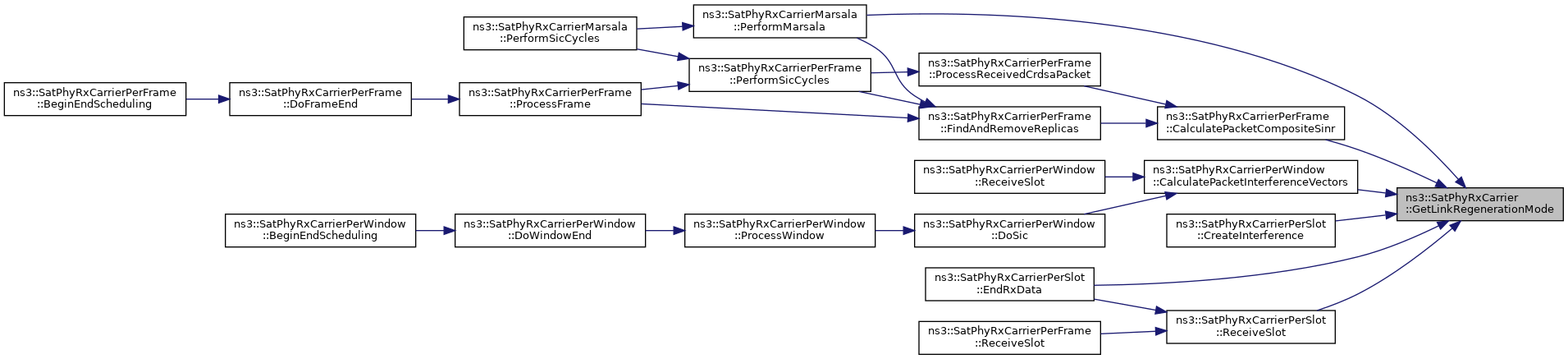

◆ GetLinkRegenerationMode()

virtual SatEnums::RegenerationMode_t ns3::SatPhyRxCarrier::GetLinkRegenerationMode ( )

inlineprotectedvirtual

Get the link regeneration mode.

Returns: Link regeneration mode

Definition at line 412 of file satellite-phy-rx-carrier.h.

References m_linkRegenerationMode.

Referenced by ns3::SatPhyRxCarrierPerFrame::CalculatePacketCompositeSinr(), ns3::SatPhyRxCarrierPerWindow::CalculatePacketInterferenceVectors(), ns3::SatPhyRxCarrierPerSlot::CreateInterference(), ns3::SatPhyRxCarrierPerSlot::EndRxData(), ns3::SatPhyRxCarrierMarsala::PerformMarsala(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

Here is the caller graph for this function:

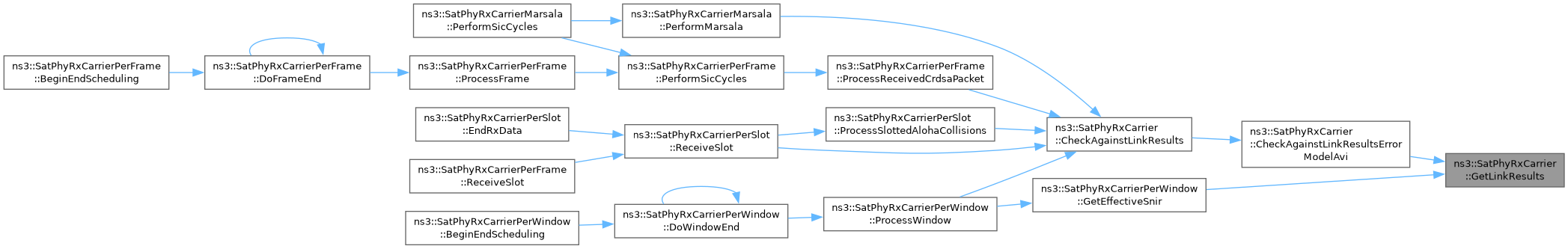

◆ GetLinkResults()

Ptr<SatLinkResults> ns3::SatPhyRxCarrier::GetLinkResults ( )

inlineprotected

Get pointer to the link results given by the carrier creation configuration.

Returns: Link results

Definition at line 539 of file satellite-phy-rx-carrier.h.

References m_linkResults.

Referenced by CheckAgainstLinkResultsErrorModelAvi(), and ns3::SatPhyRxCarrierPerWindow::GetEffectiveSnir().

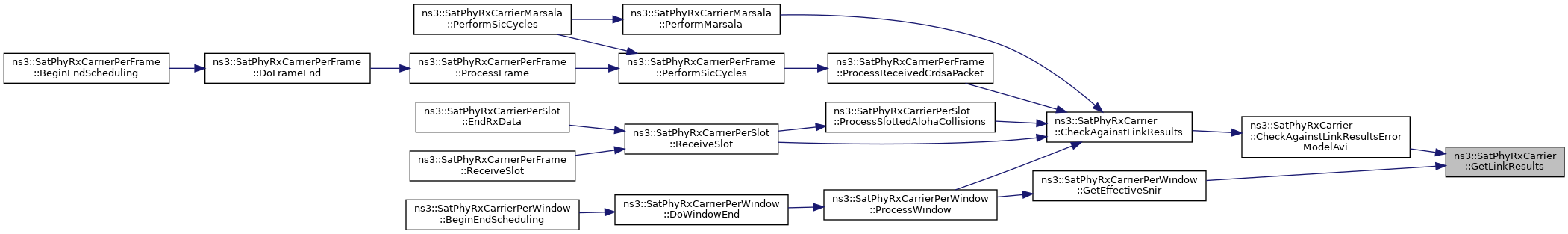

Here is the caller graph for this function:

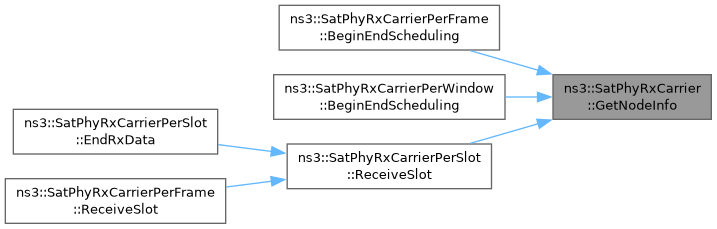

◆ GetNodeInfo()

Ptr<SatNodeInfo> ns3::SatPhyRxCarrier::GetNodeInfo ( )

inlineprotected

Get the satellite node info.

Returns: SatNodeInfo pointer

Definition at line 357 of file satellite-phy-rx-carrier.h.

References m_nodeInfo.

Referenced by ns3::SatPhyRxCarrierPerFrame::BeginEndScheduling(), ns3::SatPhyRxCarrierPerWindow::BeginEndScheduling(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

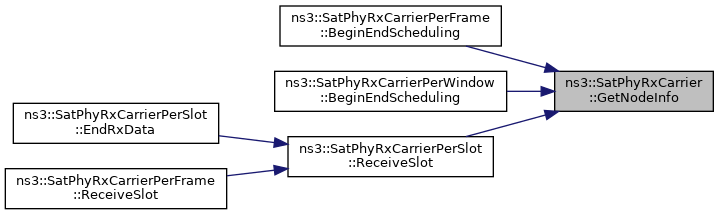

Here is the caller graph for this function:

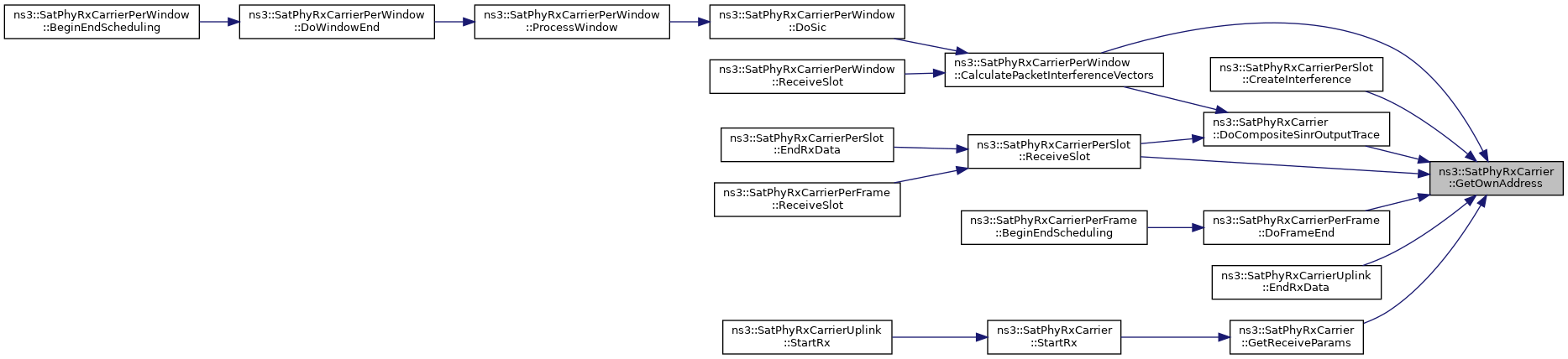

◆ GetOwnAddress()

Mac48Address ns3::SatPhyRxCarrier::GetOwnAddress ( )

inlineprotected

Get the MAC address of the carrier.

Returns: MAC address

Definition at line 348 of file satellite-phy-rx-carrier.h.

References m_ownAddress.

Referenced by ns3::SatPhyRxCarrierPerWindow::CalculatePacketInterferenceVectors(), ns3::SatPhyRxCarrierPerSlot::CreateInterference(), DoCompositeSinrOutputTrace(), ns3::SatPhyRxCarrierPerFrame::DoFrameEnd(), ns3::SatPhyRxCarrierUplink::EndRxData(), GetReceiveParams(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

Here is the caller graph for this function:

◆ GetReceiveParams()

std::pair< bool, SatPhyRxCarrier::rxParams_s > ns3::SatPhyRxCarrier::GetReceiveParams ( Ptr< SatSignalParameters > rxParams )

protected

Rx parameter storage methods.

Get receive parameters from signal parameters.

Parameters

rxParams SatSignalParameters

Returns: A pair of boolean and rxParams_s struct. Boolean tells if we are about to receive a packet and struct contains all receiveing info.

Definition at line 308 of file satellite-phy-rx-carrier.cc.

References ns3::SatPhyRxCarrier::rxParams_s::destAddress, ns3::SatPhyRxCarrier::rxParams_s::finalDestAddress, ns3::SatPhyRxCarrier::rxParams_s::finalSourceAddress, ns3::SatEnums::FORWARD_FEEDER_CH, GetDefaultReceiveMode(), ns3::SatMacTag::GetDestAddress(), ns3::SatAddressE2ETag::GetE2EDestAddress(), ns3::SatAddressE2ETag::GetE2ESourceAddress(), GetOwnAddress(), ns3::SatMacTag::GetSourceAddress(), m_linkRegenerationMode, ns3::SatEnums::REGENERATION_PHY, ns3::SatEnums::RETURN_USER_CH, ns3::SatPhyRxCarrier::rxParams_s::rxParams, and ns3::SatPhyRxCarrier::rxParams_s::sourceAddress.

Referenced by StartRx().

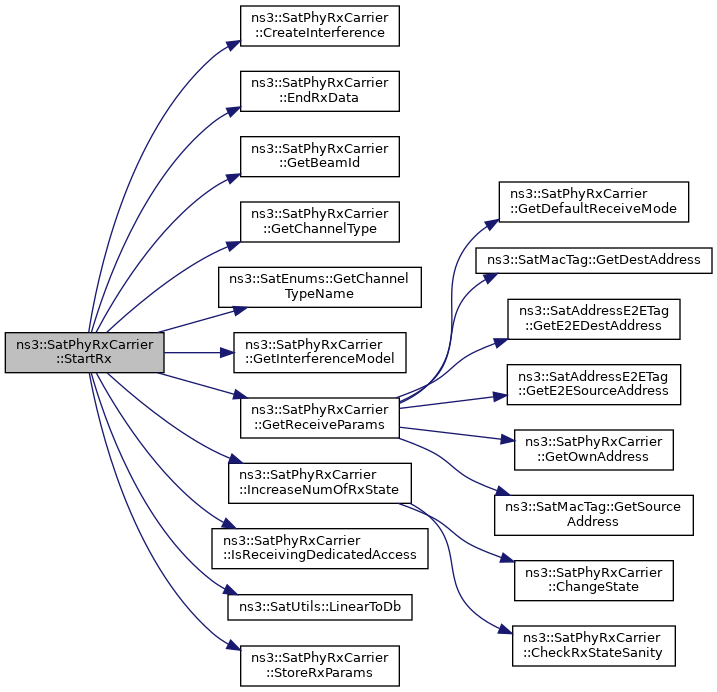

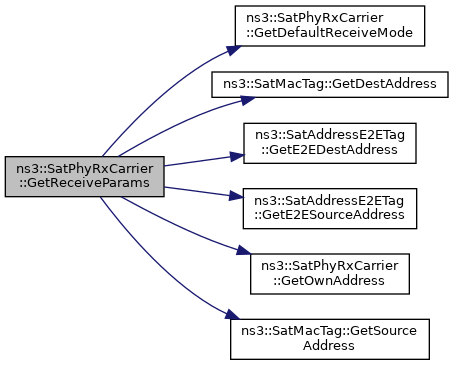

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetRxTemperatureK()

double ns3::SatPhyRxCarrier::GetRxTemperatureK ( )

inline

Method for querying the temperature of the carrier.

Definition at line 260 of file satellite-phy-rx-carrier.h.

References m_rxTemperatureK.

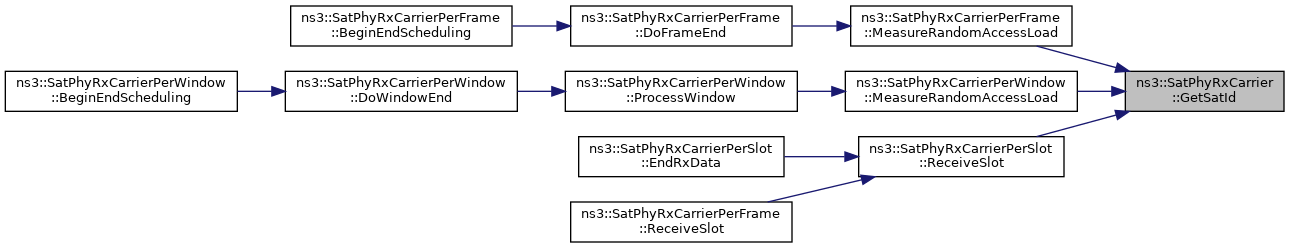

◆ GetSatId()

uint32_t ns3::SatPhyRxCarrier::GetSatId ( )

inline

Get ID the ID of the satellite this carrier is attached to.

Returns: Satellite ID

Definition at line 187 of file satellite-phy-rx-carrier.h.

References m_satId.

Referenced by ns3::SatPhyRxCarrierPerFrame::MeasureRandomAccessLoad(), ns3::SatPhyRxCarrierPerWindow::MeasureRandomAccessLoad(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

Here is the caller graph for this function:

◆ GetState()

State ns3::SatPhyRxCarrier::GetState ( )

inlineprotected

Get the state of the carrier.

Returns: State of the carrier.

Definition at line 436 of file satellite-phy-rx-carrier.h.

References m_state.

Referenced by ns3::SatPhyRxCarrierPerSlot::EndRxData(), and ns3::SatPhyRxCarrierUplink::EndRxData().

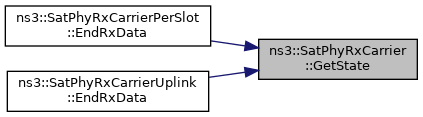

Here is the caller graph for this function:

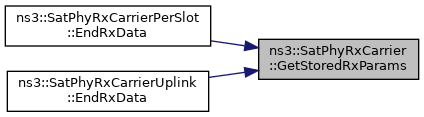

◆ GetStoredRxParams()

rxParams_s ns3::SatPhyRxCarrier::GetStoredRxParams ( uint32_t key )

inlineprotected

Get stored rxParams under a key.

Definition at line 327 of file satellite-phy-rx-carrier.h.

References m_rxParamsMap.

Referenced by ns3::SatPhyRxCarrierPerSlot::EndRxData(), and ns3::SatPhyRxCarrierUplink::EndRxData().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatPhyRxCarrier::GetTypeId ( void )

static

Function for gettign the NS-3 type ID.

Returns

Definition at line 214 of file satellite-phy-rx-carrier.cc.

References m_daRxCarrierIdTrace, m_daRxTrace, m_enableCompositeSinrOutputTrace, m_linkBudgetTrace, m_linkSinrTrace, m_rxPowerTrace, and m_sinrTrace.

◆ GetUniformRandomValue()

double ns3::SatPhyRxCarrier::GetUniformRandomValue	(	double	min,
		double	max
	)

inlineprotected

A helper method for getting values form a uniform random variable in child classes.

Parameters

min	Minimum value
max	Maximum value

Returns: Double between min and max

Definition at line 576 of file satellite-phy-rx-carrier.h.

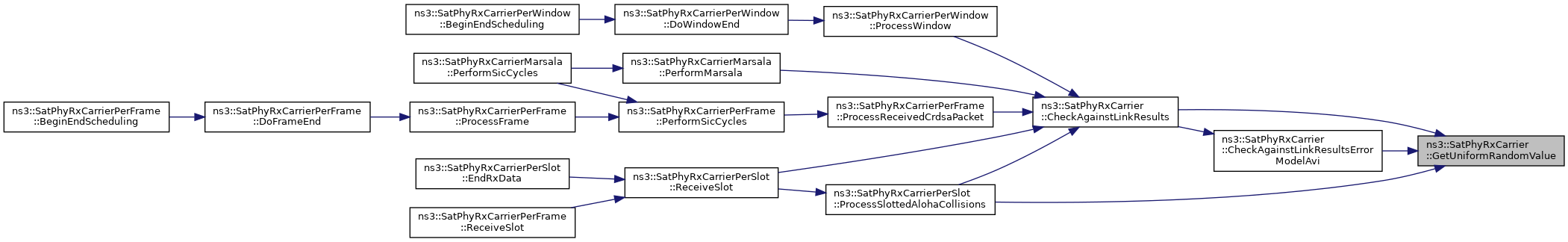

References m_uniformVariable.

Referenced by CheckAgainstLinkResults(), CheckAgainstLinkResultsErrorModelAvi(), and ns3::SatPhyRxCarrierPerSlot::ProcessSlottedAlohaCollisions().

Here is the caller graph for this function:

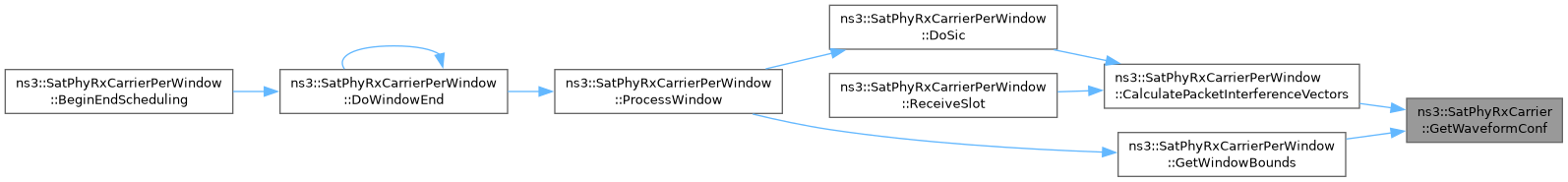

◆ GetWaveformConf()

Ptr<SatWaveformConf> ns3::SatPhyRxCarrier::GetWaveformConf ( )

inlineprotected

Get pointer to the waveform configuration.

Returns: Waveform Configuration

Definition at line 548 of file satellite-phy-rx-carrier.h.

References m_waveformConf.

Referenced by ns3::SatPhyRxCarrierPerWindow::CalculatePacketInterferenceVectors(), and ns3::SatPhyRxCarrierPerWindow::GetWindowBounds().

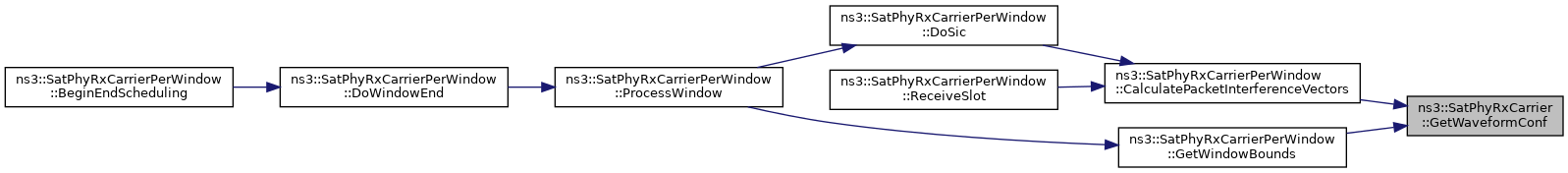

Here is the caller graph for this function:

◆ GetWorstSinr()

double ns3::SatPhyRxCarrier::GetWorstSinr	(	double	sinr1,
		double	sinr2
	)

protected

Function for calculating the worst sinr between uplink and downlink.

Parameters

sinr1	SINR 1
sinr2	SINR 2

Returns: Worst SINR

Definition at line 694 of file satellite-phy-rx-carrier.cc.

Referenced by ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

Here is the caller graph for this function:

◆ IncreaseNumOfRxState()

void ns3::SatPhyRxCarrier::IncreaseNumOfRxState ( SatEnums::PacketType_t packetType )

protected

Function for increasing the number of ongoing transmissions.

Parameters

packetType Packet type of the ongoing transmission

Definition at line 712 of file satellite-phy-rx-carrier.cc.

References ChangeState(), CheckRxStateSanity(), m_numOfOngoingRx, m_receivingDedicatedAccess, ns3::SatEnums::PACKET_TYPE_DEDICATED_ACCESS, and RX.

Referenced by StartRx().

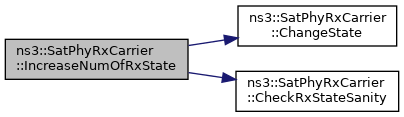

Here is the call graph for this function:

Here is the caller graph for this function:

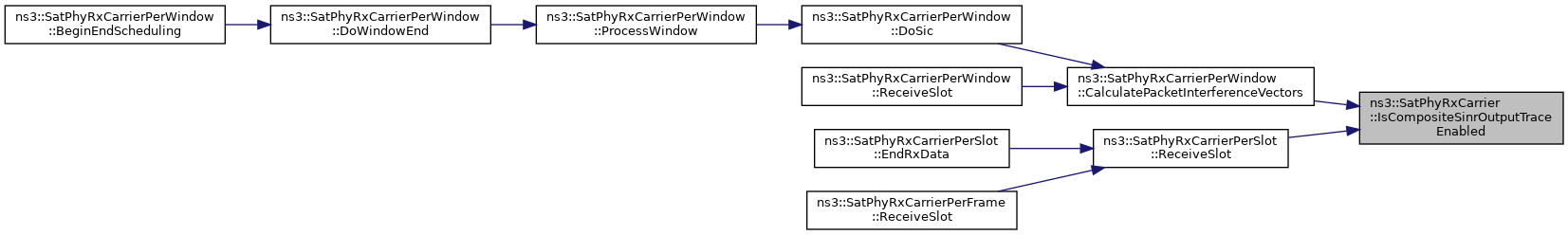

◆ IsCompositeSinrOutputTraceEnabled()

bool ns3::SatPhyRxCarrier::IsCompositeSinrOutputTraceEnabled ( ) const

inlineprotected

Check if composite SINR output trace is enabled.

Definition at line 565 of file satellite-phy-rx-carrier.h.

References m_enableCompositeSinrOutputTrace.

Referenced by ns3::SatPhyRxCarrierPerWindow::CalculatePacketInterferenceVectors(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

Here is the caller graph for this function:

◆ IsReceivingDedicatedAccess()

bool ns3::SatPhyRxCarrier::IsReceivingDedicatedAccess ( )

inlineprotected

Check if the carrier is receiving a dedicated access packet.

Returns: true or false

Definition at line 280 of file satellite-phy-rx-carrier.h.

References m_receivingDedicatedAccess.

Referenced by StartRx().

Here is the caller graph for this function:

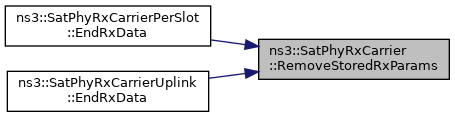

◆ RemoveStoredRxParams()

void ns3::SatPhyRxCarrier::RemoveStoredRxParams ( uint32_t key )

inlineprotected

Remove stored rxParams under a key.

Definition at line 339 of file satellite-phy-rx-carrier.h.

References m_rxParamsMap.

Referenced by ns3::SatPhyRxCarrierPerSlot::EndRxData(), and ns3::SatPhyRxCarrierUplink::EndRxData().

Here is the caller graph for this function:

◆ SetAverageNormalizedOfferedLoadCallback()

void ns3::SatPhyRxCarrier::SetAverageNormalizedOfferedLoadCallback ( SatPhyRx::AverageNormalizedOfferedLoadCallback callback )

Function for setting the AverageNormalizedOfferedLoadCallback callback.

Parameters

callback callback

Definition at line 767 of file satellite-phy-rx-carrier.cc.

References m_avgNormalizedOfferedLoadCallback.

◆ SetBeamId()

void ns3::SatPhyRxCarrier::SetBeamId ( uint32_t beamId )

inline

Function for setting the beam id for all the transmissions from this SatPhyTx.

Parameters

beamId the Beam Identifier

Definition at line 196 of file satellite-phy-rx-carrier.h.

References m_beamId.

◆ SetChannelType()

void ns3::SatPhyRxCarrier::SetChannelType ( SatEnums::ChannelType_t channelType )

inlineprotected

Set the channel type for the carrier.

Parameters

channelType Channel type.

Definition at line 403 of file satellite-phy-rx-carrier.h.

References m_channelType.

Referenced by SatPhyRxCarrier().

Here is the caller graph for this function:

◆ SetCnoCb()

void ns3::SatPhyRxCarrier::SetCnoCb ( SatPhyRx::CnoCallback cb )

Function for settign the C/NO callback.

Parameters

cb callback

Definition at line 293 of file satellite-phy-rx-carrier.cc.

References m_cnoCallback.

◆ SetLinkRegenerationMode()

void ns3::SatPhyRxCarrier::SetLinkRegenerationMode ( SatEnums::RegenerationMode_t linkRegenerationMode )

inlineprotected

Set the link regeneration mode.

Parameters

linkRegenerationMode Link regeneration mode

Definition at line 421 of file satellite-phy-rx-carrier.h.

References m_linkRegenerationMode.

Referenced by SatPhyRxCarrier().

Here is the caller graph for this function:

◆ SetNodeInfo()

void ns3::SatPhyRxCarrier::SetNodeInfo ( const Ptr< SatNodeInfo > nodeInfo )

Function for setting the node info class.

Parameters

nodeInfo Node information related to this SatPhyRxCarrier

Definition at line 620 of file satellite-phy-rx-carrier.cc.

References m_nodeInfo, and m_ownAddress.

◆ SetPhy()

void ns3::SatPhyRxCarrier::SetPhy ( Ptr< SatPhy > phy )

Function for setting the SatPhy module.

Parameters

phy	PHY module

◆ SetReceiveCb()

void ns3::SatPhyRxCarrier::SetReceiveCb ( SatPhyRx::ReceiveCallback cb )

Function for setting the receive callback.

Parameters

cb callback

Definition at line 286 of file satellite-phy-rx-carrier.cc.

References m_rxCallback.

◆ SetSatId()

void ns3::SatPhyRxCarrier::SetSatId ( uint32_t satId )

inline

Function for setting the satellite id for all the transmissions from this SatPhyTx.

Parameters

beamId the satellite Identifier

Definition at line 178 of file satellite-phy-rx-carrier.h.

References m_satId.

◆ StartRx()

bool ns3::SatPhyRxCarrier::StartRx ( Ptr< SatSignalParameters > rxParams )

virtual

Function for starting packet reception from the SatChannel.

Parameters

rxParams The needed parameters for the received signal

Returns: true if packet is destinated to this beam

Reimplemented in ns3::SatPhyRxCarrierUplink.

Definition at line 375 of file satellite-phy-rx-carrier.cc.

References CreateInterference(), EndRxData(), ns3::SatPhyRxCarrier::rxParams_s::finalDestAddress, ns3::SatPhyRxCarrier::rxParams_s::finalSourceAddress, ns3::SatEnums::FORWARD_FEEDER_CH, ns3::SatEnums::FORWARD_USER_CH, GetBeamId(), GetChannelType(), ns3::SatEnums::GetChannelTypeName(), GetInterferenceModel(), GetReceiveParams(), IDLE, IncreaseNumOfRxState(), ns3::SatPhyRxCarrier::rxParams_s::interferenceEvent, IsReceivingDedicatedAccess(), ns3::SatUtils::LinearToDb(), m_carrierId, m_linkRegenerationMode, m_nodeInfo, m_rxPacketCounter, m_rxPowerTrace, m_state, ns3::SatEnums::PACKET_TYPE_DEDICATED_ACCESS, ns3::SatEnums::REGENERATION_LINK, ns3::SatEnums::REGENERATION_NETWORK, ns3::SatEnums::RETURN_FEEDER_CH, ns3::SatEnums::RETURN_USER_CH, RX, ns3::SatPhyRxCarrier::rxParams_s::sourceAddress, and StoreRxParams().

Referenced by ns3::SatPhyRxCarrierUplink::StartRx().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StoreRxParams()

void ns3::SatPhyRxCarrier::StoreRxParams	(	uint32_t	key,
		rxParams_s	rxParams
	)

inlineprotected

Store rxParams under a key.

Definition at line 333 of file satellite-phy-rx-carrier.h.

References m_rxParamsMap.

Referenced by StartRx().

Here is the caller graph for this function:

Member Data Documentation

◆ m_additionalInterferenceCallback

SatPhyRxCarrierConf::AdditionalInterferenceCallback ns3::SatPhyRxCarrier::m_additionalInterferenceCallback

protected

Callback to get additional interference.

Definition at line 666 of file satellite-phy-rx-carrier.h.

Referenced by SatPhyRxCarrier(), ns3::SatPhyRxCarrierPerFrame::CalculatePacketCompositeSinr(), ns3::SatPhyRxCarrierPerWindow::CalculatePacketInterferenceVectors(), DoDispose(), ns3::SatPhyRxCarrierUplink::EndRxData(), ns3::SatPhyRxCarrierMarsala::PerformMarsala(), ns3::SatPhyRxCarrierPerFrame::ProcessReceivedCrdsaPacket(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

◆ m_avgNormalizedOfferedLoadCallback

SatPhy::AverageNormalizedOfferedLoadCallback ns3::SatPhyRxCarrier::m_avgNormalizedOfferedLoadCallback

protected

Average normalized offered load callback.

Definition at line 681 of file satellite-phy-rx-carrier.h.

Referenced by DoDispose(), ns3::SatPhyRxCarrierPerFrame::MeasureRandomAccessLoad(), ns3::SatPhyRxCarrierPerWindow::MeasureRandomAccessLoad(), and SetAverageNormalizedOfferedLoadCallback().

◆ m_beamId

uint32_t ns3::SatPhyRxCarrier::m_beamId

private

Definition at line 694 of file satellite-phy-rx-carrier.h.

Referenced by GetBeamId(), and SetBeamId().

◆ m_carrierId

uint32_t ns3::SatPhyRxCarrier::m_carrierId

private

Definition at line 695 of file satellite-phy-rx-carrier.h.

Referenced by SatPhyRxCarrier(), GetCarrierId(), and StartRx().

◆ m_channelEstimationError

Ptr<SatChannelEstimationErrorContainer> ns3::SatPhyRxCarrier::m_channelEstimationError

private

Channel estimation error container.

Definition at line 724 of file satellite-phy-rx-carrier.h.

Referenced by SatPhyRxCarrier(), and GetChannelEstimationErrorContainer().

◆ m_channelType

SatEnums::ChannelType_t ns3::SatPhyRxCarrier::m_channelType

private

Definition at line 714 of file satellite-phy-rx-carrier.h.

Referenced by GetChannelType(), and SetChannelType().

◆ m_cnoCallback

SatPhy::CnoCallback ns3::SatPhyRxCarrier::m_cnoCallback

protected

The upper layer C/N0 receive callback.

Definition at line 676 of file satellite-phy-rx-carrier.h.

Referenced by DoDispose(), ns3::SatPhyRxCarrierPerSlot::ReceiveSlot(), and SetCnoCb().

◆ m_constantErrorRate

double ns3::SatPhyRxCarrier::m_constantErrorRate

private

Definition at line 719 of file satellite-phy-rx-carrier.h.

Referenced by SatPhyRxCarrier(), and CheckAgainstLinkResults().

◆ m_daRxCarrierIdTrace

TracedCallback<uint32_t, const Address&> ns3::SatPhyRxCarrier::m_daRxCarrierIdTrace

protected

Definition at line 661 of file satellite-phy-rx-carrier.h.

Referenced by GetTypeId(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

◆ m_daRxTrace

TracedCallback<uint32_t, const Address&, bool> ns3::SatPhyRxCarrier::m_daRxTrace

protected

DaRx trace source.

Fired when a packet burst is received through Dedicated Channel.

Contains the following information:

number of upper layer packets in the received packet burst;
the MAC48 address of the sender; and
whether a PHY error has occurred.

Definition at line 659 of file satellite-phy-rx-carrier.h.

Referenced by ns3::SatPhyRxCarrierPerWindow::CleanOldPackets(), GetTypeId(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

◆ m_enableCompositeSinrOutputTrace

bool ns3::SatPhyRxCarrier::m_enableCompositeSinrOutputTrace

private

Definition at line 699 of file satellite-phy-rx-carrier.h.

Referenced by GetTypeId(), and IsCompositeSinrOutputTraceEnabled().

◆ m_errorModel

SatPhyRxCarrierConf::ErrorModel ns3::SatPhyRxCarrier::m_errorModel

private

Definition at line 718 of file satellite-phy-rx-carrier.h.

Referenced by SatPhyRxCarrier(), and CheckAgainstLinkResults().

◆ m_linkBudgetTrace

TracedCallback<Ptr<SatSignalParameters>, Mac48Address, Mac48Address, double, double > ns3::SatPhyRxCarrier::m_linkBudgetTrace

protected

The trace source on packet receptiong.

See also: class CallBackTraceSource

Definition at line 624 of file satellite-phy-rx-carrier.h.

Referenced by ns3::SatPhyRxCarrierPerWindow::CalculatePacketInterferenceVectors(), ns3::SatPhyRxCarrierPerFrame::DoFrameEnd(), ns3::SatPhyRxCarrierUplink::EndRxData(), GetTypeId(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

◆ m_linkRegenerationMode

SatEnums::RegenerationMode_t ns3::SatPhyRxCarrier::m_linkRegenerationMode

protected

Link regeneration mode.

Definition at line 610 of file satellite-phy-rx-carrier.h.

Referenced by CheckAgainstLinkResultsErrorModelAvi(), ns3::SatPhyRxCarrierPerWindow::DoSic(), ns3::SatPhyRxCarrierPerFrame::EliminateInterference(), ns3::SatPhyRxCarrierPerWindow::EliminatePreviousInterferences(), GetLinkRegenerationMode(), GetReceiveParams(), SetLinkRegenerationMode(), and StartRx().

◆ m_linkResults

Ptr<SatLinkResults> ns3::SatPhyRxCarrier::m_linkResults

private

Definition at line 715 of file satellite-phy-rx-carrier.h.

Referenced by SatPhyRxCarrier(), and GetLinkResults().

◆ m_linkSinrTrace

TracedCallback<double, const Address&> ns3::SatPhyRxCarrier::m_linkSinrTrace

protected

A callback for link specific SINR in dB.

Definition at line 645 of file satellite-phy-rx-carrier.h.

Referenced by ns3::SatPhyRxCarrierPerWindow::CalculatePacketInterferenceVectors(), ns3::SatPhyRxCarrierUplink::EndRxData(), GetTypeId(), ns3::SatPhyRxCarrierMarsala::PerformMarsala(), ns3::SatPhyRxCarrierPerFrame::ProcessReceivedCrdsaPacket(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

◆ m_nodeInfo

Ptr<SatNodeInfo> ns3::SatPhyRxCarrier::m_nodeInfo

private

Definition at line 713 of file satellite-phy-rx-carrier.h.

Referenced by GetNodeInfo(), SetNodeInfo(), and StartRx().

◆ m_numOfOngoingRx

uint32_t ns3::SatPhyRxCarrier::m_numOfOngoingRx

private

Contains information about how many ongoing Rx events there are.

Definition at line 704 of file satellite-phy-rx-carrier.h.

Referenced by CheckRxStateSanity(), DecreaseNumOfRxState(), and IncreaseNumOfRxState().

◆ m_ownAddress

Mac48Address ns3::SatPhyRxCarrier::m_ownAddress

private

Definition at line 712 of file satellite-phy-rx-carrier.h.

Referenced by GetOwnAddress(), and SetNodeInfo().

◆ m_randomAccessEnabled

const bool ns3::SatPhyRxCarrier::m_randomAccessEnabled

protected

Is random access enabled for this carrier.

Definition at line 458 of file satellite-phy-rx-carrier.h.

Referenced by ns3::SatPhyRxCarrierPerFrame::SatPhyRxCarrierPerFrame(), ns3::SatPhyRxCarrierPerWindow::SatPhyRxCarrierPerWindow(), DoCreateInterferenceEliminationModel(), DoCreateInterferenceModel(), and ns3::SatPhyRxCarrierPerSlot::GetCarrierType().

◆ m_receivingDedicatedAccess

bool ns3::SatPhyRxCarrier::m_receivingDedicatedAccess

private

Definition at line 696 of file satellite-phy-rx-carrier.h.

Referenced by DecreaseNumOfRxState(), IncreaseNumOfRxState(), and IsReceivingDedicatedAccess().

◆ m_rxAciIfPowerW

double ns3::SatPhyRxCarrier::m_rxAciIfPowerW

protected

RX Adjacent channel interference.

Definition at line 605 of file satellite-phy-rx-carrier.h.

Referenced by SatPhyRxCarrier(), ns3::SatPhyRxCarrierPerFrame::CalculatePacketCompositeSinr(), ns3::SatPhyRxCarrierPerWindow::CalculatePacketInterferenceVectors(), ns3::SatPhyRxCarrierUplink::EndRxData(), ns3::SatPhyRxCarrierMarsala::PerformMarsala(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

◆ m_rxBandwidthHz

double ns3::SatPhyRxCarrier::m_rxBandwidthHz

protected

RX Bandwidth in Hz.

Definition at line 590 of file satellite-phy-rx-carrier.h.

Referenced by SatPhyRxCarrier(), ns3::SatPhyRxCarrierPerFrame::CalculateNormalizedOfferedRandomAccessLoad(), ns3::SatPhyRxCarrierPerWindow::CalculateNormalizedOfferedRandomAccessLoad(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

◆ m_rxCallback

SatPhyRx::ReceiveCallback ns3::SatPhyRxCarrier::m_rxCallback

protected

The upper layer package receive callback.

Definition at line 671 of file satellite-phy-rx-carrier.h.

Referenced by DoDispose(), ns3::SatPhyRxCarrierPerFrame::DoFrameEnd(), ns3::SatPhyRxCarrierPerWindow::ProcessWindow(), ns3::SatPhyRxCarrierPerSlot::ReceiveSlot(), SetReceiveCb(), and ns3::SatPhyRxCarrierUplink::StartRx().

◆ m_rxExtNoisePowerW

double ns3::SatPhyRxCarrier::m_rxExtNoisePowerW

protected

External noise power system RX noise.

Definition at line 595 of file satellite-phy-rx-carrier.h.

Referenced by SatPhyRxCarrier(), ns3::SatPhyRxCarrierPerFrame::CalculatePacketCompositeSinr(), ns3::SatPhyRxCarrierPerWindow::CalculatePacketInterferenceVectors(), ns3::SatPhyRxCarrierUplink::EndRxData(), ns3::SatPhyRxCarrierMarsala::PerformMarsala(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

◆ m_rxNoisePowerW

double ns3::SatPhyRxCarrier::m_rxNoisePowerW

protected

RX noise.

Definition at line 600 of file satellite-phy-rx-carrier.h.

Referenced by SatPhyRxCarrier(), ns3::SatPhyRxCarrierPerFrame::CalculatePacketCompositeSinr(), ns3::SatPhyRxCarrierPerWindow::CalculatePacketInterferenceVectors(), ns3::SatPhyRxCarrierUplink::EndRxData(), ns3::SatPhyRxCarrierMarsala::PerformMarsala(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

◆ m_rxPacketCounter

uint32_t ns3::SatPhyRxCarrier::m_rxPacketCounter

private

Running counter for received packets.

Definition at line 709 of file satellite-phy-rx-carrier.h.

Referenced by StartRx().

◆ m_rxParamsMap

std::map<uint32_t, rxParams_s> ns3::SatPhyRxCarrier::m_rxParamsMap

private

Definition at line 711 of file satellite-phy-rx-carrier.h.

Referenced by GetStoredRxParams(), RemoveStoredRxParams(), and StoreRxParams().

◆ m_rxPowerTrace

TracedCallback<double, const Address&> ns3::SatPhyRxCarrier::m_rxPowerTrace

protected

A callback for received signal power in dBW.

Definition at line 630 of file satellite-phy-rx-carrier.h.

Referenced by GetTypeId(), and StartRx().

◆ m_rxTemperatureK

double ns3::SatPhyRxCarrier::m_rxTemperatureK

protected

RX noise temperature in K.

Definition at line 585 of file satellite-phy-rx-carrier.h.

Referenced by SatPhyRxCarrier(), and GetRxTemperatureK().

◆ m_satId

uint32_t ns3::SatPhyRxCarrier::m_satId

private

Definition at line 693 of file satellite-phy-rx-carrier.h.

Referenced by GetSatId(), and SetSatId().

◆ m_satInterference

Ptr<SatInterference> ns3::SatPhyRxCarrier::m_satInterference

private

Definition at line 697 of file satellite-phy-rx-carrier.h.

Referenced by DoCreateInterferenceModel(), DoDispose(), and GetInterferenceModel().

◆ m_satInterferenceElimination

Ptr<SatInterferenceElimination> ns3::SatPhyRxCarrier::m_satInterferenceElimination

private

Definition at line 698 of file satellite-phy-rx-carrier.h.

Referenced by DoCreateInterferenceEliminationModel(), DoDispose(), and GetInterferenceEliminationModel().

◆ m_sinrTrace

TracedCallback<double, const Address&> ns3::SatPhyRxCarrier::m_sinrTrace

protected

A callback for transmission composite SINR at UT (BBFrame) or GW (time slot).

The first argument is the SINR in dB. The second argument is the address of the node where the signal originates from.

Definition at line 639 of file satellite-phy-rx-carrier.h.

Referenced by ns3::SatPhyRxCarrierPerFrame::DoFrameEnd(), GetTypeId(), ns3::SatPhyRxCarrierPerWindow::ProcessWindow(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

◆ m_state

State ns3::SatPhyRxCarrier::m_state

private

Definition at line 692 of file satellite-phy-rx-carrier.h.

Referenced by ChangeState(), CheckRxStateSanity(), GetState(), and StartRx().

◆ m_uniformVariable

Ptr<UniformRandomVariable> ns3::SatPhyRxCarrier::m_uniformVariable

private

Definition at line 717 of file satellite-phy-rx-carrier.h.

Referenced by SatPhyRxCarrier(), DoDispose(), and GetUniformRandomValue().

◆ m_waveformConf

Ptr<SatWaveformConf> ns3::SatPhyRxCarrier::m_waveformConf

private

Definition at line 716 of file satellite-phy-rx-carrier.h.

Referenced by GetWaveformConf().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-phy-rx-carrier.h
/builds/sns3/satellite/satellite/model/satellite-phy-rx-carrier.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ LinkBudgetTraceCallback

◆ LinkSinrTraceCallback

◆ PhyRxCollisionCallback

◆ PhyRxErrorCallback

◆ RxPowerTraceCallback

Member Enumeration Documentation

◆ CarrierType

◆ State

Constructor & Destructor Documentation

◆ SatPhyRxCarrier()

◆ ~SatPhyRxCarrier()

Member Function Documentation

◆ BeginEndScheduling()

◆ CalculateCompositeSinr()

◆ CalculateSinr() [1/2]

◆ CalculateSinr() [2/2]

◆ ChangeState()

◆ CheckAgainstLinkResults()

◆ CheckAgainstLinkResultsErrorModelAvi()

◆ CheckRxStateSanity()

◆ CreateInterference()

◆ DecreaseNumOfRxState()

◆ DoCompositeSinrOutputTrace()

◆ DoCreateInterferenceEliminationModel()

◆ DoCreateInterferenceModel()

◆ DoDispose()

◆ EndRxData()

◆ GetBeamId()

◆ GetCarrierId()

◆ GetCarrierType()

◆ GetChannelEstimationErrorContainer()

◆ GetChannelType()

◆ GetDefaultReceiveMode()

◆ GetInterferenceEliminationModel()

◆ GetInterferenceModel()

◆ GetLinkRegenerationMode()

◆ GetLinkResults()

◆ GetNodeInfo()

◆ GetOwnAddress()

◆ GetReceiveParams()

◆ GetRxTemperatureK()

◆ GetSatId()

◆ GetState()

◆ GetStoredRxParams()

◆ GetTypeId()

◆ GetUniformRandomValue()

◆ GetWaveformConf()

◆ GetWorstSinr()

◆ IncreaseNumOfRxState()

◆ IsCompositeSinrOutputTraceEnabled()

◆ IsReceivingDedicatedAccess()

◆ RemoveStoredRxParams()

◆ SetAverageNormalizedOfferedLoadCallback()

◆ SetBeamId()

◆ SetChannelType()

◆ SetCnoCb()

◆ SetLinkRegenerationMode()

◆ SetNodeInfo()

◆ SetPhy()

◆ SetReceiveCb()

◆ SetSatId()

◆ StartRx()

◆ StoreRxParams()

Member Data Documentation

◆ m_additionalInterferenceCallback

◆ m_avgNormalizedOfferedLoadCallback

◆ m_beamId

◆ m_carrierId

◆ m_channelEstimationError

◆ m_channelType
