#include "satellite-phy-rx-carrier-marsala.h"

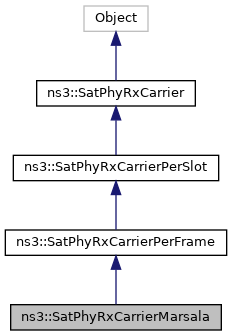

Inheritance diagram for ns3::SatPhyRxCarrierMarsala:

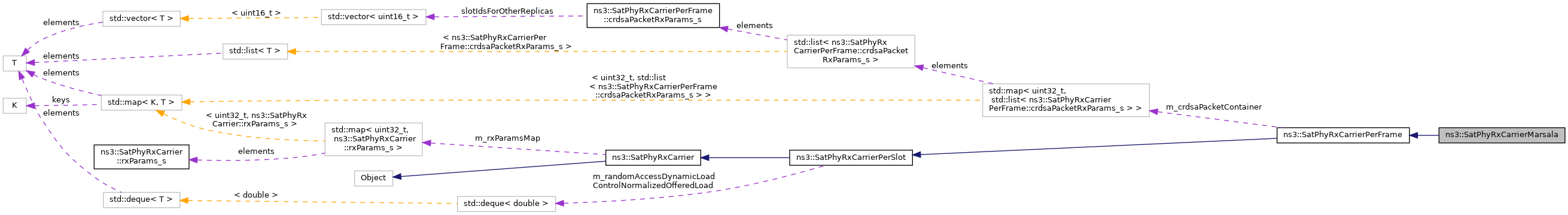

Collaboration diagram for ns3::SatPhyRxCarrierMarsala:

Public Member Functions

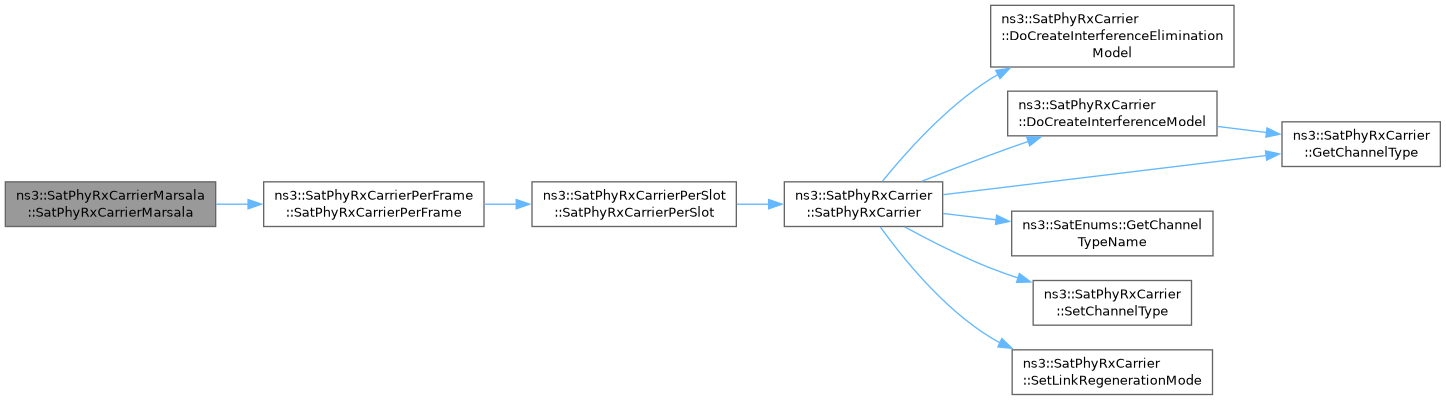

	SatPhyRxCarrierMarsala (uint32_t carrierId, Ptr< SatPhyRxCarrierConf > carrierConf, Ptr< SatWaveformConf > waveformConf, bool randomAccessEnabled)
	Constructor. More...

	~SatPhyRxCarrierMarsala ()
	Destructor. More...

Public Member Functions inherited from ns3::SatPhyRxCarrierPerFrame
	SatPhyRxCarrierPerFrame (uint32_t carrierId, Ptr< SatPhyRxCarrierConf > carrierConf, Ptr< SatWaveformConf > waveformConf, bool randomAccessEnabled)
	Constructor. More...

virtual	~SatPhyRxCarrierPerFrame ()
	Destructor. More...

void	BeginEndScheduling ()
	Function for initializing the frame end scheduling. More...

virtual CarrierType	GetCarrierType ()
	Method for querying the type of the carrier. More...

Public Member Functions inherited from ns3::SatPhyRxCarrierPerSlot
	SatPhyRxCarrierPerSlot (uint32_t carrierId, Ptr< SatPhyRxCarrierConf > carrierConf, Ptr< SatWaveformConf > waveformConf, bool randomAccessEnabled)
	Constructor. More...

virtual	~SatPhyRxCarrierPerSlot ()
	Destructor. More...

uint8_t	GetRandomAccessAllocationChannelId () const
	Function for getting the random access allocation channel ID. More...

void	SetRandomAccessAllocationChannelId (uint8_t randomAccessAllocationChannelId)
	Function for setting the random access allocation channel ID. More...

Public Member Functions inherited from ns3::SatPhyRxCarrier
	SatPhyRxCarrier (uint32_t carrierId, Ptr< SatPhyRxCarrierConf > carrierConf, Ptr< SatWaveformConf > waveformConf, bool isRandomAccessEnabled)
	Constructor. More...

virtual	~SatPhyRxCarrier ()
	Destructor. More...

uint32_t	GetBeamId ()
	Get ID the ID of the beam this carrier is attached to. More...

double	GetRxTemperatureK ()
	Method for querying the temperature of the carrier. More...

uint32_t	GetSatId ()
	Get ID the ID of the satellite this carrier is attached to. More...

void	SetAverageNormalizedOfferedLoadCallback (SatPhyRx::AverageNormalizedOfferedLoadCallback callback)
	Function for setting the AverageNormalizedOfferedLoadCallback callback. More...

void	SetBeamId (uint32_t beamId)
	Function for setting the beam id for all the transmissions from this SatPhyTx. More...

void	SetCnoCb (SatPhyRx::CnoCallback cb)
	Function for settign the C/NO callback. More...

void	SetNodeInfo (const Ptr< SatNodeInfo > nodeInfo)
	Function for setting the node info class. More...

void	SetPhy (Ptr< SatPhy > phy)
	Function for setting the SatPhy module. More...

void	SetReceiveCb (SatPhyRx::ReceiveCallback cb)
	Function for setting the receive callback. More...

void	SetSatId (uint32_t satId)
	Function for setting the satellite id for all the transmissions from this SatPhyTx. More...

virtual bool	StartRx (Ptr< SatSignalParameters > rxParams)
	Function for starting packet reception from the SatChannel. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the TypeId of the class. More...

Static Public Member Functions inherited from ns3::SatPhyRxCarrierPerFrame
static bool	CompareCrdsaPacketId (SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s obj1, SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s obj2)
	Function for comparing the CRDSA unique packet IDs. More...

static TypeId	GetTypeId (void)
	Get the TypeId of the class. More...

Static Public Member Functions inherited from ns3::SatPhyRxCarrierPerSlot
static TypeId	GetTypeId (void)
	Get the TypeId of the class. More...

Static Public Member Functions inherited from ns3::SatPhyRxCarrier
static TypeId	GetTypeId (void)
	Function for gettign the NS-3 type ID. More...

Protected Member Functions

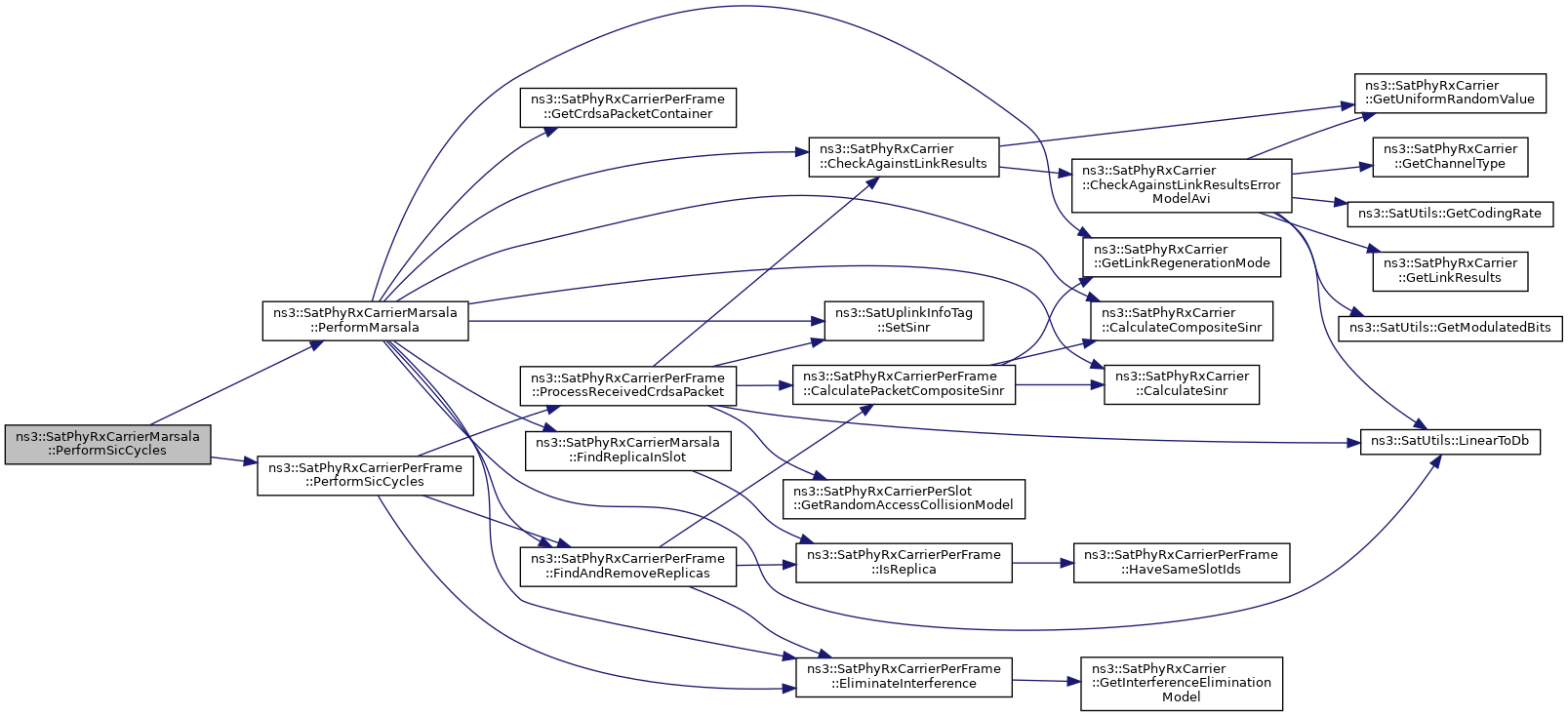

void	PerformSicCycles (std::vector< SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s > &combinedPacketsForFrame)
	Function for receiving decodable packets and removing their interference from the other packets in the slots they’re in; perform as many cycles as needed to try to decode each packet. More...

Protected Member Functions inherited from ns3::SatPhyRxCarrierPerFrame
double	CalculatePacketCompositeSinr (crdsaPacketRxParams_s &packet)
	Function for computing the composite SINR of the given packet. More...

virtual void	DoDispose ()
	Dispose implementation. More...

void	EliminateInterference (std::map< uint32_t, std::list< SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s >>::iterator iter, SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s processedPacket)
	Function for eliminating the interference to other packets in the slot from the correctly received packet. More...

void	FindAndRemoveReplicas (SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s packet)
	Function for finding and removing the replicas of the CRDSA packet. More...

std::map< uint32_t, std::list< SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s > > &	GetCrdsaPacketContainer ()

bool	IsReplica (const SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s &packet, const SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s &otherPacket) const
	Function for identifying whether the packet is a replica of another packet. More...

virtual void	ReceiveSlot (SatPhyRxCarrier::rxParams_s packetRxParams, const uint32_t nPackets)
	Receive a slot. More...

Protected Member Functions inherited from ns3::SatPhyRxCarrierPerSlot
double	CalculateAverageNormalizedOfferedRandomAccessLoad ()
	Function for calculating the average normalized offered random access load. More...

virtual Ptr< SatInterference::InterferenceChangeEvent >	CreateInterference (Ptr< SatSignalParameters > rxParams, Address rxAddress)
	Create an interference event based on Rx parameters and address. More...

virtual void	EndRxData (uint32_t key)
	Function for ending the packet reception from the SatChannel. More...

SatPhyRxCarrierConf::RandomAccessCollisionModel	GetRandomAccessCollisionModel () const
	Get the random access collision model of the carrier. More...

bool	IsRandomAccessDynamicLoadControlEnabled () const
	Check if random access dynamic load control is enabled. More...

void	SaveMeasuredRandomAccessLoad (double measuredRandomAccessLoad)
	Function for saving the measured random access load. More...

Protected Member Functions inherited from ns3::SatPhyRxCarrier
double	CalculateCompositeSinr (double sinr1, double sinr2)
	Function for calculating the composite SINR. More...

double	CalculateSinr (double rxPowerW, double ifPowerW, double rxNoisePowerW, double rxAciIfPowerW, double rxExtNoisePowerW, double otherInterference)
	Function for calculating the SINR. More...

double	CalculateSinr (double sinr, double otherInterference)
	Calculate final SINR with PHY specific parameters and given calculated SINR. More...

void	ChangeState (State newState)
	Function for changing the receiver state. More...

bool	CheckAgainstLinkResults (double cSinr, Ptr< SatSignalParameters > rxParams)
	Function for checking the SINR against the link results. More...

void	CheckRxStateSanity ()
	Function for checking the Rx state sanity. More...

void	DecreaseNumOfRxState (SatEnums::PacketType_t packetType)
	Function for decreasing the number of ongoing transmissions. More...

void	DoCompositeSinrOutputTrace (double cSinr)
	Function for composite SINR output tracing. More...

virtual void	DoCreateInterferenceEliminationModel (Ptr< SatPhyRxCarrierConf > carrierConf, uint32_t carrierId, Ptr< SatWaveformConf > waveformConf)
	Create an interference cancelation model for this carrier. More...

virtual void	DoCreateInterferenceModel (Ptr< SatPhyRxCarrierConf > carrierConf, uint32_t carrierId, double rxBandwidthHz)
	Create an interference model for this carrier. More...

uint32_t	GetCarrierId () const
	Get the ID of the carrier. More...

Ptr< SatChannelEstimationErrorContainer >	GetChannelEstimationErrorContainer ()
	Get a pointer to the channel estimation error container of the carrier. More...

virtual SatEnums::ChannelType_t	GetChannelType ()
	Get the channel type. More...

virtual const bool	GetDefaultReceiveMode ()
	Get the default receive mode for the carrier. More...

Ptr< SatInterferenceElimination >	GetInterferenceEliminationModel ()
	Get pointer to the current interference elimination model. More...

Ptr< SatInterference >	GetInterferenceModel ()
	Get pointer to the current interference model. More...

virtual SatEnums::RegenerationMode_t	GetLinkRegenerationMode ()
	Get the link regeneration mode. More...

Ptr< SatLinkResults >	GetLinkResults ()
	Get pointer to the link results given by the carrier creation configuration. More...

Ptr< SatNodeInfo >	GetNodeInfo ()
	Get the satellite node info. More...

Mac48Address	GetOwnAddress ()
	Get the MAC address of the carrier. More...

std::pair< bool, SatPhyRxCarrier::rxParams_s >	GetReceiveParams (Ptr< SatSignalParameters > rxParams)
	Rx parameter storage methods. More...

State	GetState ()
	Get the state of the carrier. More...

rxParams_s	GetStoredRxParams (uint32_t key)
	Get stored rxParams under a key. More...

double	GetUniformRandomValue (double min, double max)
	A helper method for getting values form a uniform random variable in child classes. More...

Ptr< SatWaveformConf >	GetWaveformConf ()
	Get pointer to the waveform configuration. More...

double	GetWorstSinr (double sinr1, double sinr2)
	Function for calculating the worst sinr between uplink and downlink. More...

void	IncreaseNumOfRxState (SatEnums::PacketType_t packetType)
	Function for increasing the number of ongoing transmissions. More...

bool	IsCompositeSinrOutputTraceEnabled () const
	Check if composite SINR output trace is enabled. More...

bool	IsReceivingDedicatedAccess ()
	Check if the carrier is receiving a dedicated access packet. More...

void	RemoveStoredRxParams (uint32_t key)
	Remove stored rxParams under a key. More...

void	SetChannelType (SatEnums::ChannelType_t channelType)
	Set the channel type for the carrier. More...

void	SetLinkRegenerationMode (SatEnums::RegenerationMode_t linkRegenerationMode)
	Set the link regeneration mode. More...

void	StoreRxParams (uint32_t key, rxParams_s rxParams)
	Store rxParams under a key. More...

Private Member Functions
SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s	FindReplicaInSlot (const std::list< SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s > &slotContent, const SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s &packet) const
	Function for verifying if a replica of a given packet is found in the given slot. More...

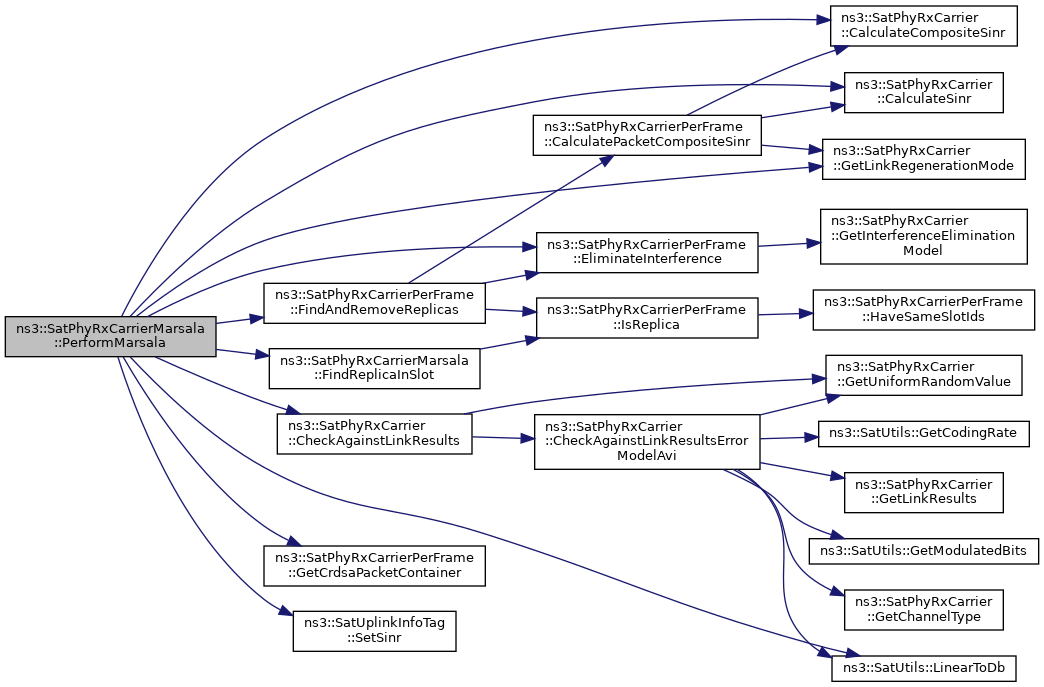

bool	PerformMarsala (std::vector< SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s > &combinedPacketsForFrame)
	Function for performing MARSALA corelation on remaining packets in the frame. More...

Private Attributes
TracedCallback< uint32_t, const Address &, bool >	m_marsalaCorrelationRxTrace
	`MarsalaCorrelationRx` trace source. More...

Additional Inherited Members
Public Types inherited from ns3::SatPhyRxCarrier
enum	CarrierType { BASE , DEDICATED_ACCESS , RA_SLOTTED_ALOHA , RA_CRDSA , RA_ESSA }
	Possible carrier types. More...

typedef void(*	LinkBudgetTraceCallback) (Ptr< SatSignalParameters > rxParams, Mac48Address receiverAddress, Mac48Address destinationAddress, double interference, double sinr)
	Callback signature for `LinkBudgetTrace` trace source. More...

typedef void(*	LinkSinrTraceCallback) (double sinr, const Address &utAddress)
	Callback signature for `LinkSinrTrace` trace source. More...

typedef void(*	PhyRxCollisionCallback) (uint32_t nPackets, const Address &utAddress, bool isCollided)
	Common callback signature for trace sources related to packets reception by PHY and its collision. More...

typedef void(*	PhyRxErrorCallback) (uint32_t nPackets, const Address &utAddress, bool isError)
	Common callback signature for trace sources related to packets reception by PHY and its error. More...

typedef void(*	RxPowerTraceCallback) (double rxPower, const Address &utAddress)
	Callback signature for `RxPowerTrace` trace source. More...

enum	State { IDLE , RX }
	Enum for PHY states. More...

Protected Attributes inherited from ns3::SatPhyRxCarrierPerSlot
uint32_t	m_randomAccessBitsInFrame
	The number of random access bits in current frame. More...

TracedCallback< uint32_t, const Address &, bool >	m_slottedAlohaRxCollisionTrace
	`SlottedAlohaRxCollision` trace source. More...

TracedCallback< uint32_t, const Address &, bool >	m_slottedAlohaRxErrorTrace
	`SlottedAlohaRxError` trace source. More...

Protected Attributes inherited from ns3::SatPhyRxCarrier
SatPhyRxCarrierConf::AdditionalInterferenceCallback	m_additionalInterferenceCallback
	Callback to get additional interference. More...

SatPhy::AverageNormalizedOfferedLoadCallback	m_avgNormalizedOfferedLoadCallback
	Average normalized offered load callback. More...

SatPhy::CnoCallback	m_cnoCallback
	The upper layer C/N0 receive callback. More...

TracedCallback< uint32_t, const Address & >	m_daRxCarrierIdTrace

TracedCallback< uint32_t, const Address &, bool >	m_daRxTrace
	`DaRx` trace source. More...

TracedCallback< Ptr< SatSignalParameters >, Mac48Address, Mac48Address, double, double >	m_linkBudgetTrace
	The trace source on packet receptiong. More...

SatEnums::RegenerationMode_t	m_linkRegenerationMode
	Link regeneration mode. More...

TracedCallback< double, const Address & >	m_linkSinrTrace
	A callback for link specific SINR in dB. More...

const bool	m_randomAccessEnabled
	Is random access enabled for this carrier. More...

double	m_rxAciIfPowerW
	RX Adjacent channel interference. More...

double	m_rxBandwidthHz
	RX Bandwidth in Hz. More...

SatPhyRx::ReceiveCallback	m_rxCallback
	The upper layer package receive callback. More...

double	m_rxExtNoisePowerW
	External noise power system RX noise. More...

double	m_rxNoisePowerW
	RX noise. More...

TracedCallback< double, const Address & >	m_rxPowerTrace
	A callback for received signal power in dBW. More...

double	m_rxTemperatureK
	RX noise temperature in K. More...

TracedCallback< double, const Address & >	m_sinrTrace
	A callback for transmission composite SINR at UT (BBFrame) or GW (time slot). More...

Detailed Description

Bite.

Definition at line 37 of file satellite-phy-rx-carrier-marsala.h.

Constructor & Destructor Documentation

◆ SatPhyRxCarrierMarsala()

ns3::SatPhyRxCarrierMarsala::SatPhyRxCarrierMarsala	(	uint32_t	carrierId,
		Ptr< SatPhyRxCarrierConf >	carrierConf,
		Ptr< SatWaveformConf >	waveformConf,
		bool	randomAccessEnabled
	)

Constructor.

Parameters

carrierId	ID of the carrier
carrierConf	Carrier configuration
waveformConf	Waveform configuration
randomAccessEnabled	Is this a RA carrier

Definition at line 40 of file satellite-phy-rx-carrier-marsala.cc.

◆ ~SatPhyRxCarrierMarsala()

ns3::SatPhyRxCarrierMarsala::~SatPhyRxCarrierMarsala ( )

Destructor.

Definition at line 49 of file satellite-phy-rx-carrier-marsala.cc.

Member Function Documentation

◆ FindReplicaInSlot()

SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s ns3::SatPhyRxCarrierMarsala::FindReplicaInSlot	(	const std::list< SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s > &	slotContent,
		const SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s &	packet
	)		const

private

Function for verifying if a replica of a given packet is found in the given slot.

Parameters

slotContent	The slot in which to search for replica
packet	The packet whose replica should be searched for

Returns: Whether or not a replica of the packet has been found in the slot

Definition at line 84 of file satellite-phy-rx-carrier-marsala.cc.

References ns3::SatPhyRxCarrierPerFrame::IsReplica().

Referenced by PerformMarsala().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatPhyRxCarrierMarsala::GetTypeId ( void )

static

Get the TypeId of the class.

Returns: TypeId

Definition at line 55 of file satellite-phy-rx-carrier-marsala.cc.

References m_marsalaCorrelationRxTrace.

◆ PerformMarsala()

bool ns3::SatPhyRxCarrierMarsala::PerformMarsala ( std::vector< SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s > & combinedPacketsForFrame )

private

Function for performing MARSALA corelation on remaining packets in the frame.

Parameters

combinedPacketsForFrame container to store packets as they are decoded and removed from the frame

Returns: Whether or not a packet was decoded

calculate composite SINR if transparent. Otherwise take only current sinr.

Definition at line 113 of file satellite-phy-rx-carrier-marsala.cc.

Referenced by PerformSicCycles().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PerformSicCycles()

void ns3::SatPhyRxCarrierMarsala::PerformSicCycles ( std::vector< SatPhyRxCarrierPerFrame::crdsaPacketRxParams_s > & combinedPacketsForFrame )

protectedvirtual

Function for receiving decodable packets and removing their interference from the other packets in the slots they’re in; perform as many cycles as needed to try to decode each packet.

Parameters

combinedPacketsForFrame container to store packets as they are decoded and removed from the frame

Reimplemented from ns3::SatPhyRxCarrierPerFrame.

Definition at line 69 of file satellite-phy-rx-carrier-marsala.cc.

References PerformMarsala(), and ns3::SatPhyRxCarrierPerFrame::PerformSicCycles().

Here is the call graph for this function:
