The SatellitePhyTx models the physical layer transmitter of satellite system. More...

#include "satellite-phy-tx.h"

Inheritance diagram for ns3::SatPhyTx:

Collaboration diagram for ns3::SatPhyTx:

Public Types
enum	SatPhyTxMode_t { NORMAL , TRANSPARENT }

enum	State { IDLE , TX , RECONFIGURING }
	PHY states. More...

Public Member Functions
	SatPhyTx ()
	Default constructor. More...

virtual	~SatPhyTx ()
	Destructor for SatPhyTx. More...

bool	CanTransmit (void) const
	Tell whether or not this channel can transmit data. More...

void	ClearChannel ()

virtual void	DoDispose ()
	Dispose of this class instance. More...

double	GetAntennaGain (Ptr< MobilityModel > mobility)
	Get antenna gain based on position or in case that antenna pattern is not configured, maximum configured gain is return. More...

Ptr< SatChannel >	GetChannel ()

double	GetFadingValue (Address macAddress, SatEnums::ChannelType_t channelType)
	Get fading value. More...

Ptr< MobilityModel >	GetMobility ()

bool	IsTransmitting (void) const
	Tell whether or not this channel is transmitting data. More...

void	SetAntennaGainPattern (Ptr< SatAntennaGainPattern > agp, Ptr< SatMobilityModel > mobility)

void	SetBeamId (uint32_t beamId)
	Set the beam id for all the transmissions from this SatPhyTx. More...

void	SetChannel (Ptr< SatChannel > c)

void	SetDefaultFadingValue (double fadingValue)
	Function for setting the default fading value. More...

void	SetFadingContainer (Ptr< SatBaseFading > fadingContainer)
	Set fading container. More...

void	SetMaxAntennaGain_Db (double gain_db)
	Set the maximum Antenna gain in Db. More...

void	SetMobility (Ptr< MobilityModel > m)

void	SetSatId (uint32_t satId)
	Set the satellite id for all the transmissions from this SatPhyTx. More...

virtual void	StartTx (Ptr< SatSignalParameters > txParams)
	Start packet transmission to the channel. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	inherited from Object More...

Protected Member Functions
virtual void	EndTx ()

Private Member Functions
void	ChangeState (State newState)

Private Attributes
Ptr< SatAntennaGainPattern >	m_antennaGainPattern

uint32_t	m_beamId

Ptr< SatChannel >	m_channel

double	m_defaultFadingValue
	Default fading value. More...

Ptr< SatBaseFading >	m_fadingContainer
	Fading container for fading model. More...

double	m_maxAntennaGain
	Configured maximum antenna gain in linear. More...

Ptr< MobilityModel >	m_mobility

uint32_t	m_satId

Ptr< SatMobilityModel >	m_satMobility

State	m_state

SatPhyTxMode_t	m_txMode

Detailed Description

The SatellitePhyTx models the physical layer transmitter of satellite system.

Definition at line 50 of file satellite-phy-tx.h.

Member Enumeration Documentation

◆ SatPhyTxMode_t

enum ns3::SatPhyTx::SatPhyTxMode_t

Enumerator
NORMAL
TRANSPARENT

Definition at line 53 of file satellite-phy-tx.h.

◆ State

enum ns3::SatPhyTx::State

PHY states.

Enumerator
IDLE
TX
RECONFIGURING

Definition at line 72 of file satellite-phy-tx.h.

Constructor & Destructor Documentation

◆ SatPhyTx()

ns3::SatPhyTx::SatPhyTx ( )

Default constructor.

Definition at line 47 of file satellite-phy-tx.cc.

◆ ~SatPhyTx()

ns3::SatPhyTx::~SatPhyTx ( )

virtual

Destructor for SatPhyTx.

Definition at line 57 of file satellite-phy-tx.cc.

Member Function Documentation

◆ CanTransmit()

bool ns3::SatPhyTx::CanTransmit ( void ) const

Tell whether or not this channel can transmit data.

Definition at line 320 of file satellite-phy-tx.cc.

References m_state, and RECONFIGURING.

◆ ChangeState()

void ns3::SatPhyTx::ChangeState ( State newState )

private

Definition at line 230 of file satellite-phy-tx.cc.

References m_state.

Referenced by ClearChannel(), EndTx(), SetChannel(), and StartTx().

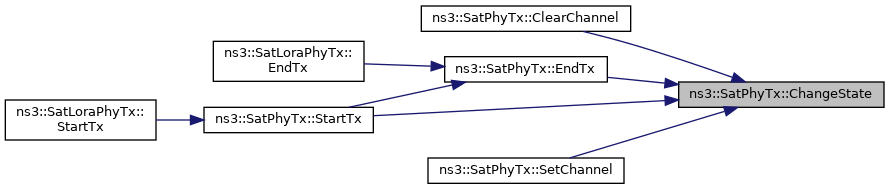

Here is the caller graph for this function:

◆ ClearChannel()

void ns3::SatPhyTx::ClearChannel ( )

Definition at line 211 of file satellite-phy-tx.cc.

References ChangeState(), m_channel, and RECONFIGURING.

Here is the call graph for this function:

◆ DoDispose()

void ns3::SatPhyTx::DoDispose ( void )

virtual

Dispose of this class instance.

Definition at line 63 of file satellite-phy-tx.cc.

References m_channel, m_fadingContainer, and m_mobility.

◆ EndTx()

void ns3::SatPhyTx::EndTx ( )

protectedvirtual

Reimplemented in ns3::SatLoraPhyTx.

Definition at line 284 of file satellite-phy-tx.cc.

References ChangeState(), IDLE, m_state, and TX.

Referenced by ns3::SatLoraPhyTx::EndTx(), and StartTx().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAntennaGain()

double ns3::SatPhyTx::GetAntennaGain ( Ptr< MobilityModel > mobility )

Get antenna gain based on position or in case that antenna pattern is not configured, maximum configured gain is return.

Parameters

mobility Mobility used to get gain from antenna pattern

Returns: antenna gain

If antenna gain pattern is not set, we use the set maximum antenna gain.

Definition at line 118 of file satellite-phy-tx.cc.

References m_antennaGainPattern, m_maxAntennaGain, and m_satMobility.

◆ GetChannel()

Ptr< SatChannel > ns3::SatPhyTx::GetChannel ( void )

Definition at line 221 of file satellite-phy-tx.cc.

References m_channel.

◆ GetFadingValue()

double ns3::SatPhyTx::GetFadingValue	(	Address	macAddress,
		SatEnums::ChannelType_t	channelType
	)

Get fading value.

Parameters

macAddress	MAC address
channelType	channel type

Returns

Definition at line 149 of file satellite-phy-tx.cc.

References m_defaultFadingValue, and m_fadingContainer.

◆ GetMobility()

Ptr< MobilityModel > ns3::SatPhyTx::GetMobility ( )

Definition at line 173 of file satellite-phy-tx.cc.

References m_mobility.

◆ GetTypeId()

TypeId ns3::SatPhyTx::GetTypeId ( void )

static

inherited from Object

Definition at line 94 of file satellite-phy-tx.cc.

References m_txMode, NORMAL, and TRANSPARENT.

◆ IsTransmitting()

bool ns3::SatPhyTx::IsTransmitting ( void ) const

Tell whether or not this channel is transmitting data.

Definition at line 312 of file satellite-phy-tx.cc.

References m_state, and TX.

Referenced by ns3::SatLoraPhyTx::IsTransmitting().

Here is the caller graph for this function:

◆ SetAntennaGainPattern()

void ns3::SatPhyTx::SetAntennaGainPattern	(	Ptr< SatAntennaGainPattern >	agp,
		Ptr< SatMobilityModel >	mobility
	)

Definition at line 191 of file satellite-phy-tx.cc.

References m_antennaGainPattern, and m_satMobility.

◆ SetBeamId()

void ns3::SatPhyTx::SetBeamId ( uint32_t beamId )

Set the beam id for all the transmissions from this SatPhyTx.

Parameters

beamId the Beam Identifier

Definition at line 305 of file satellite-phy-tx.cc.

References m_beamId.

◆ SetChannel()

void ns3::SatPhyTx::SetChannel ( Ptr< SatChannel > c )

Definition at line 201 of file satellite-phy-tx.cc.

References ChangeState(), IDLE, and m_channel.

Here is the call graph for this function:

◆ SetDefaultFadingValue()

void ns3::SatPhyTx::SetDefaultFadingValue ( double fadingValue )

Function for setting the default fading value.

Parameters

fadingValue default fading value

Definition at line 141 of file satellite-phy-tx.cc.

References m_defaultFadingValue.

◆ SetFadingContainer()

void ns3::SatPhyTx::SetFadingContainer ( Ptr< SatBaseFading > fadingContainer )

Set fading container.

Parameters

fadingContainer fading container

Definition at line 164 of file satellite-phy-tx.cc.

References m_fadingContainer.

◆ SetMaxAntennaGain_Db()

void ns3::SatPhyTx::SetMaxAntennaGain_Db ( double gain_db )

Set the maximum Antenna gain in Db.

Parameters

gain_db maximum antenna gain in Dbs

Definition at line 110 of file satellite-phy-tx.cc.

References ns3::SatUtils::DbToLinear(), and m_maxAntennaGain.

Here is the call graph for this function:

◆ SetMobility()

void ns3::SatPhyTx::SetMobility ( Ptr< MobilityModel > m )

Definition at line 182 of file satellite-phy-tx.cc.

References m_mobility.

◆ SetSatId()

void ns3::SatPhyTx::SetSatId ( uint32_t satId )

Set the satellite id for all the transmissions from this SatPhyTx.

Parameters

satId the satellite Identifier

Definition at line 298 of file satellite-phy-tx.cc.

References m_satId.

◆ StartTx()

void ns3::SatPhyTx::StartTx ( Ptr< SatSignalParameters > txParams )

virtual

Start packet transmission to the channel.

Parameters

txParams Transmission parameters for a packet

The SatPhyTx is mapped to a spot-beam, which means that there may be several carriers handled by the same SatPhyTx. This is why the SatPhyTx state machine needs to be overtaken, thus the SatPhyTx is allowed to send several overlapping packets; in different carriers though. TODO: The SatPhyTx state machine may need some (code quality) improvements. E.g. different inherited implementations may be done for satellite and terrestrial domain nodes.

Reimplemented in ns3::SatLoraPhyTx.

Definition at line 238 of file satellite-phy-tx.cc.

References ChangeState(), EndTx(), IDLE, m_channel, m_state, m_txMode, RECONFIGURING, TRANSPARENT, and TX.

Referenced by ns3::SatLoraPhyTx::StartTx().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_antennaGainPattern

Ptr<SatAntennaGainPattern> ns3::SatPhyTx::m_antennaGainPattern

private

Definition at line 178 of file satellite-phy-tx.h.

Referenced by GetAntennaGain(), and SetAntennaGainPattern().

◆ m_beamId

uint32_t ns3::SatPhyTx::m_beamId

private

Definition at line 192 of file satellite-phy-tx.h.

Referenced by SetBeamId().

◆ m_channel

Ptr<SatChannel> ns3::SatPhyTx::m_channel

private

Definition at line 173 of file satellite-phy-tx.h.

Referenced by ClearChannel(), DoDispose(), GetChannel(), SetChannel(), and StartTx().

◆ m_defaultFadingValue

double ns3::SatPhyTx::m_defaultFadingValue

private

Default fading value.

Definition at line 203 of file satellite-phy-tx.h.

Referenced by GetFadingValue(), and SetDefaultFadingValue().

◆ m_fadingContainer

Ptr<SatBaseFading> ns3::SatPhyTx::m_fadingContainer

private

Fading container for fading model.

Definition at line 198 of file satellite-phy-tx.h.

Referenced by DoDispose(), GetFadingValue(), and SetFadingContainer().

◆ m_maxAntennaGain

double ns3::SatPhyTx::m_maxAntennaGain

private

Configured maximum antenna gain in linear.

Definition at line 188 of file satellite-phy-tx.h.

Referenced by GetAntennaGain(), and SetMaxAntennaGain_Db().

◆ m_mobility

Ptr<MobilityModel> ns3::SatPhyTx::m_mobility

private

Definition at line 172 of file satellite-phy-tx.h.

Referenced by DoDispose(), GetMobility(), and SetMobility().

◆ m_satId

uint32_t ns3::SatPhyTx::m_satId

private

Definition at line 191 of file satellite-phy-tx.h.

Referenced by SetSatId().

◆ m_satMobility

Ptr<SatMobilityModel> ns3::SatPhyTx::m_satMobility

private

Definition at line 183 of file satellite-phy-tx.h.

Referenced by GetAntennaGain(), and SetAntennaGainPattern().

◆ m_state

State ns3::SatPhyTx::m_state

private

Definition at line 190 of file satellite-phy-tx.h.

Referenced by CanTransmit(), ChangeState(), EndTx(), IsTransmitting(), and StartTx().

◆ m_txMode

SatPhyTxMode_t ns3::SatPhyTx::m_txMode

private

Definition at line 193 of file satellite-phy-tx.h.

Referenced by GetTypeId(), and StartTx().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-phy-tx.h
/builds/sns3/satellite/satellite/model/satellite-phy-tx.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ SatPhyTxMode_t

◆ State

Constructor & Destructor Documentation

◆ SatPhyTx()

◆ ~SatPhyTx()

Member Function Documentation

◆ CanTransmit()

◆ ChangeState()

◆ ClearChannel()

◆ DoDispose()

◆ EndTx()

◆ GetAntennaGain()

◆ GetChannel()

◆ GetFadingValue()

◆ GetMobility()

◆ GetTypeId()

◆ IsTransmitting()

◆ SetAntennaGainPattern()

◆ SetBeamId()

◆ SetChannel()

◆ SetDefaultFadingValue()

◆ SetFadingContainer()

◆ SetMaxAntennaGain_Db()

◆ SetMobility()

◆ SetSatId()

◆ StartTx()

Member Data Documentation

◆ m_antennaGainPattern

◆ m_beamId

◆ m_channel

◆ m_defaultFadingValue

◆ m_fadingContainer

◆ m_maxAntennaGain

◆ m_mobility

◆ m_satId

◆ m_satMobility

◆ m_state

◆ m_txMode
