Class to store topology of the whole system. More...

#include "satellite-topology.h"

Inheritance diagram for ns3::SatTopology:

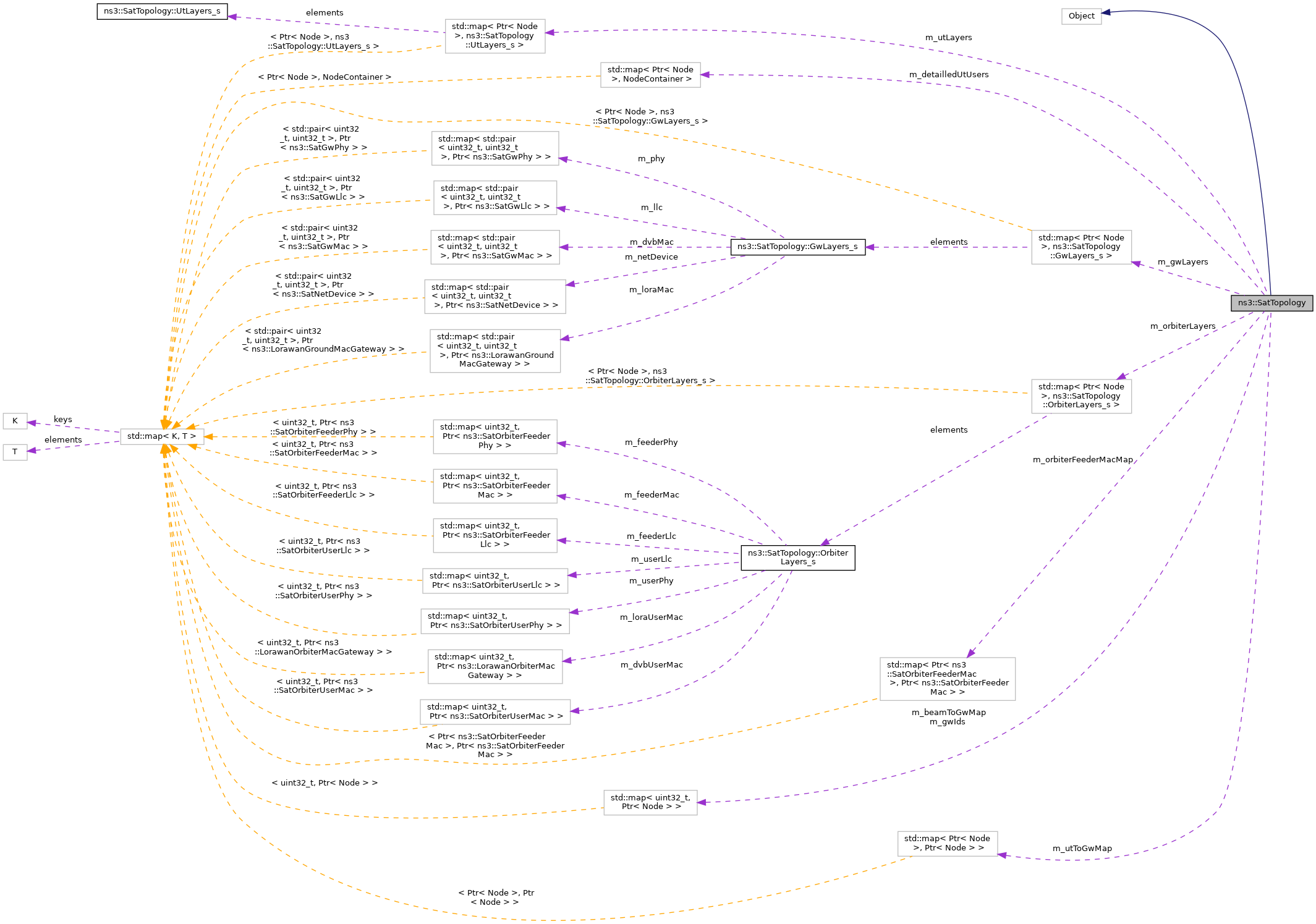

Collaboration diagram for ns3::SatTopology:

Classes
struct	GwLayers_s

struct	OrbiterLayers_s

struct	UtLayers_s

Public Member Functions
	SatTopology ()
	Constructor. More...

	~SatTopology ()
	Destructor. More...

void	AddGwLayersDvb (Ptr< Node > gw, uint32_t gwSatId, uint32_t gwBeamId, uint32_t utSatId, uint32_t utBeamId, Ptr< SatNetDevice > netDevice, Ptr< SatGwLlc > llc, Ptr< SatGwMac > mac, Ptr< SatGwPhy > phy)
	Add DVB GW layers for given node, associated to chosen satellite and beam. More...

void	AddGwLayersLora (Ptr< Node > gw, uint32_t gwSatId, uint32_t gwBeamId, uint32_t utSatId, uint32_t utBeamId, Ptr< SatNetDevice > netDevice, Ptr< LorawanGroundMacGateway > mac, Ptr< SatGwPhy > phy)
	Add LORA GW layers for given node, associated to chosen satellite and beam. More...

void	AddGwNode (uint32_t gwId, Ptr< Node > gw)
	Add a GW node to the topology. More...

void	AddGwUserNode (Ptr< Node > gwUser)
	Add a GW user node to the topology. More...

void	AddOrbiterFeederLayers (Ptr< Node > orbiter, uint32_t satId, uint32_t utBeamId, Ptr< SatOrbiterNetDevice > netDevice, Ptr< SatOrbiterFeederLlc > llc, Ptr< SatOrbiterFeederMac > mac, Ptr< SatOrbiterFeederPhy > phy)
	Add orbiter feeder layers for given satellite and beam ID. More...

void	AddOrbiterFeederMacPair (Ptr< SatOrbiterFeederMac > mac, Ptr< SatOrbiterFeederMac > usedMac)
	Create an association between a feeder MAC layer, and the entity really used. More...

void	AddOrbiterNode (Ptr< Node > orbiter)
	Add an orbiter node to the topology. More...

void	AddOrbiterUserLayersDvb (Ptr< Node > orbiter, uint32_t satId, uint32_t beamId, Ptr< SatOrbiterNetDevice > netDevice, Ptr< SatOrbiterUserLlc > llc, Ptr< SatOrbiterUserMac > mac, Ptr< SatOrbiterUserPhy > phy)
	Add DVB orbiter user layers for given satellite and beam ID. More...

void	AddOrbiterUserLayersLora (Ptr< Node > orbiter, uint32_t satId, uint32_t beamId, Ptr< SatOrbiterNetDevice > netDevice, Ptr< LorawanOrbiterMacGateway > mac, Ptr< SatOrbiterUserPhy > phy)
	Add LORA orbiter user layers for given satellite and beam ID. More...

void	AddUtLayersDvb (Ptr< Node > ut, uint32_t satId, uint32_t beamId, uint32_t groupId, Ptr< SatNetDevice > netDevice, Ptr< SatUtLlc > llc, Ptr< SatUtMac > mac, Ptr< SatUtPhy > phy)
	Add DVB UT layers for given node, associated to chosen satellite and beam. More...

void	AddUtLayersLora (Ptr< Node > ut, uint32_t satId, uint32_t beamId, uint32_t groupId, Ptr< SatNetDevice > netDevice, Ptr< LorawanMacEndDevice > mac, Ptr< SatUtPhy > phy)
	Add LORA UT layers for given node, associated to chosen satellite and beam. More...

void	AddUtNode (Ptr< Node > ut)
	Add a UT node to the topology. More...

void	AddUtUserNode (Ptr< Node > utUser, Ptr< Node > ut)
	Add a UT user node to the topology. More...

void	ConnectGwToBeam (uint32_t beamId, Ptr< Node > gw)
	Connect a GW to a Beam. More...

void	ConnectGwToUt (Ptr< Node > ut, Ptr< Node > gw)
	Connect a GW to a UT. More...

void	DisconnectGwFromUt (Ptr< Node > ut)
	Disconnect a GW from a UT. More...

void	DoDispose ()
	Do needed dispose actions. More...

void	EnableMapPrint (bool enableMapPrint)
	Function for enabling the map prints. More...

uint32_t	GetClosestSat (GeoCoordinate position)
	Get closest satellite to a ground station. More...

Ptr< SatGwMac >	GetDvbGwMac (Ptr< Node > gw, uint32_t utSatId, uint32_t utBeamId) const
	Get SatGwMac instance of a DVB GW. More...

Ptr< SatOrbiterUserMac >	GetDvbOrbiterUserMac (Ptr< Node > orbiter, uint32_t beamId) const
	Get SatOrbiterUserMac instance of a DVB orbiter serving wanted beam ID. More...

Ptr< SatUtMac >	GetDvbUtMac (Ptr< Node > ut) const
	Get SatUtMac instance of a DVB UT. More...

SatEnums::RegenerationMode_t	GetForwardLinkRegenerationMode ()
	Get forward link regeneration mode. More...

Mac48Address	GetGwAddressInUt (uint32_t utId)
	Set the value of GW address for a UT. More...

uint32_t	GetGwBeamId (Ptr< Node > gw) const
	Get ID of beam linked to a GW. More...

Ptr< Node >	GetGwFromBeam (uint32_t beamId) const
	Get GW connected to a given beam ID. More...

Ptr< Node >	GetGwFromUt (Ptr< Node > ut) const
	Get GW connected to a given UT. More...

Ptr< SatGwLlc >	GetGwLlc (Ptr< Node > gw, uint32_t utSatId, uint32_t utBeamId) const
	Get SatGwLlc instance of a GW. More...

Ptr< SatNetDevice >	GetGwNetDevice (Ptr< Node > gw, uint32_t utSatId, uint32_t utBeamId) const
	Get SatNetDevice instance of a GW. More...

Ptr< Node >	GetGwNode (uint32_t nodeId) const
	Get the wanted GW node. More...

NodeContainer	GetGwNodes () const
	Get the list of GW nodes. More...

Ptr< SatGwPhy >	GetGwPhy (Ptr< Node > gw, uint32_t utSatId, uint32_t utBeamId) const
	Get SatGwPhy instance of a GW. More...

uint32_t	GetGwSatId (Ptr< Node > gw) const
	Get ID of satellite linked to a GW. More...

Ptr< Node >	GetGwUserNode (uint32_t nodeId) const
	Get the wanted GW user node. More...

NodeContainer	GetGwUserNodes () const
	Get the list of GW user nodes. More...

Ptr< LorawanGroundMacGateway >	GetLoraGwMac (Ptr< Node > gw, uint32_t utSatId, uint32_t utBeamId) const
	Get SatGwMac instance of a LORA GW. More...

Ptr< LorawanOrbiterMacGateway >	GetLoraOrbiterUserMac (Ptr< Node > orbiter, uint32_t beamId) const
	Get LorawanOrbiterMacGateway instance of a LORA orbiter serving wanted beam ID. More...

Ptr< LorawanMacEndDevice >	GetLoraUtMac (Ptr< Node > ut) const
	Get SatUtMac instance of a LORA UT. More...

uint32_t	GetNGwNodes () const
	Get the number of GW nodes. More...

uint32_t	GetNGwUserNodes () const
	Get the number of GW user nodes. More...

Ptr< Node >	GetNodeFromId (uint32_t nodeId) const
	Get the wanted node from its node ID. More...

uint32_t	GetNOrbiterNodes () const
	Get the number of orbiter nodes. More...

uint32_t	GetNUtNodes () const
	Get the number of UT nodes. More...

uint32_t	GetNUtUserNodes () const
	Get the number of UT user nodes. More...

Ptr< SatOrbiterFeederLlc >	GetOrbiterFeederLlc (Ptr< Node > orbiter, uint32_t utBeamId) const
	Get SatOrbiterFeederLlc instance of an orbiter serving wanted beam ID. More...

Ptr< SatOrbiterFeederMac >	GetOrbiterFeederMac (Ptr< Node > orbiter, uint32_t utBeamId) const
	Get SatOrbiterFeederMac instance of an orbiter serving wanted beam ID. More...

Ptr< SatOrbiterFeederMac >	GetOrbiterFeederMacUsed (Ptr< SatOrbiterFeederMac > mac) const
	Get feeder MAC really used to connect to a GW. More...

Ptr< SatOrbiterFeederPhy >	GetOrbiterFeederPhy (Ptr< Node > orbiter, uint32_t utBeamId) const
	Get SatOrbiterFeederPhy instance of an orbiter serving wanted beam ID. More...

Ptr< SatOrbiterNetDevice >	GetOrbiterNetDevice (Ptr< Node > orbiter) const
	Get SatOrbiterNetDevice instance of an orbiter. More...

Ptr< Node >	GetOrbiterNode (uint32_t nodeId) const
	Get the wanted orbiter node. More...

NodeContainer	GetOrbiterNodes () const
	Get the list of orbiter nodes. More...

uint32_t	GetOrbiterSatId (Ptr< Node > orbiter) const
	Get ID of a given orbiter. More...

Ptr< SatOrbiterUserLlc >	GetOrbiterUserLlc (Ptr< Node > orbiter, uint32_t beamId) const
	Get SatOrbiterUserLlc instance of an orbiter serving wanted beam ID. More...

Ptr< SatOrbiterUserPhy >	GetOrbiterUserPhy (Ptr< Node > orbiter, uint32_t beamId) const
	Get SatOrbiterUserPhy instance of an orbiter serving wanted beam ID. More...

SatEnums::RegenerationMode_t	GetReturnLinkRegenerationMode ()
	Get return link regeneration mode. More...

SatEnums::Standard_t	GetStandard ()
	Get standard used (DVB or LORA) More...

uint32_t	GetUtBeamId (Ptr< Node > ut) const
	Get ID of beam linked to a UT. More...

uint32_t	GetUtGroupId (Ptr< Node > ut) const
	Get ID of group linked to a UT. More...

Ptr< SatUtLlc >	GetUtLlc (Ptr< Node > ut) const
	Get SatUtLlc instance of a UT. More...

Ptr< SatNetDevice >	GetUtNetDevice (Ptr< Node > ut) const
	Get SatNetDevice instance of a UT. More...

Ptr< Node >	GetUtNode (Ptr< Node > utUser) const
	Get UT node linked to some UT user. More...

Ptr< Node >	GetUtNode (uint32_t nodeId) const
	Get the wanted UT node. More...

NodeContainer	GetUtNodes () const
	Get the list of UT nodes. More...

Ptr< SatUtPhy >	GetUtPhy (Ptr< Node > ut) const
	Get SatUtPhy instance of a UT. More...

uint32_t	GetUtSatId (Ptr< Node > ut) const
	Get ID of satellite linked to a UT. More...

Ptr< Node >	GetUtUserNode (uint32_t nodeId) const
	Get the wanted UT user node. More...

NodeContainer	GetUtUserNodes () const
	Get the list of UT user nodes. More...

NodeContainer	GetUtUserNodes (NodeContainer uts) const
	Get the list of UT user nodes connected to UTs. More...

NodeContainer	GetUtUserNodes (Ptr< Node > ut) const
	Get the list of UT user nodes connected to on UT. More...

void	PrintTopology (std::ostream &os) const
	Print all the satellite topology. More...

void	Reset ()
	Function for resetting the variables. More...

void	SetForwardLinkRegenerationMode (SatEnums::RegenerationMode_t forwardLinkRegenerationMode)
	Set forward link regeneration mode. More...

void	SetReturnLinkRegenerationMode (SatEnums::RegenerationMode_t returnLinkRegenerationMode)
	Set return link regeneration mode. More...

void	SetStandard (SatEnums::Standard_t standard)
	Set standard used (DVB or LORA) More...

void	UpdateGwConnectedToUt (Ptr< Node > ut, Ptr< Node > gw)
	Connect a new GW to a UT. More...

void	UpdateGwSatAndBeam (Ptr< Node > gw, uint32_t satId, uint32_t beamId)
	Update satellite and beam associated to a GW. More...

void	UpdateUtGroup (Ptr< Node > ut, uint32_t groupId)
	Update satellite and beam associated to a UT. More...

void	UpdateUtSatAndBeam (Ptr< Node > ut, uint32_t satId, uint32_t beamId)
	Update satellite and beam associated to a UT. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	NS-3 type id function. More...

Private Attributes
std::map< uint32_t, Ptr< Node > >	m_beamToGwMap

std::map< Ptr< Node >, NodeContainer >	m_detailledUtUsers

bool	m_enableMapPrint

SatEnums::RegenerationMode_t	m_forwardLinkRegenerationMode

std::map< uint32_t, Ptr< Node > >	m_gwIds

std::map< Ptr< Node >, GwLayers_s >	m_gwLayers

NodeContainer	m_gws

NodeContainer	m_gwUsers

std::map< Ptr< SatOrbiterFeederMac >, Ptr< SatOrbiterFeederMac > >	m_orbiterFeederMacMap

std::map< Ptr< Node >, OrbiterLayers_s >	m_orbiterLayers

NodeContainer	m_orbiters

SatEnums::RegenerationMode_t	m_returnLinkRegenerationMode

SatEnums::Standard_t	m_standard

std::map< Ptr< Node >, UtLayers_s >	m_utLayers

NodeContainer	m_uts

std::map< Ptr< Node >, Ptr< Node > >	m_utToGwMap

NodeContainer	m_utUsers

Detailed Description

Class to store topology of the whole system.

It has the information of all the nodes of the scenario, and all the links between them.

Definition at line 60 of file satellite-topology.h.

Constructor & Destructor Documentation

◆ SatTopology()

ns3::SatTopology::SatTopology ( )

Constructor.

Definition at line 47 of file satellite-topology.cc.

◆ ~SatTopology()

ns3::SatTopology::~SatTopology ( )

Destructor.

Definition at line 53 of file satellite-topology.cc.

References Reset().

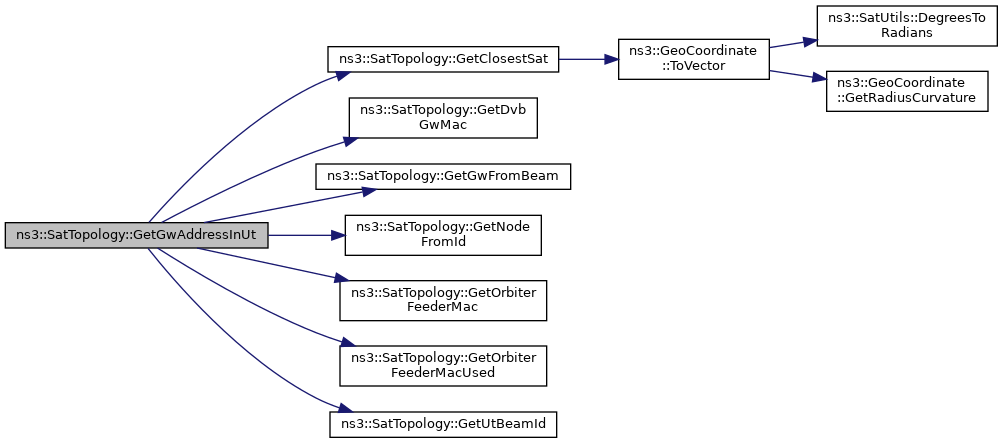

Here is the call graph for this function:

Member Function Documentation

◆ AddGwLayersDvb()

void ns3::SatTopology::AddGwLayersDvb	(	Ptr< Node >	gw,
		uint32_t	gwSatId,
		uint32_t	gwBeamId,
		uint32_t	utSatId,
		uint32_t	utBeamId,
		Ptr< SatNetDevice >	netDevice,
		Ptr< SatGwLlc >	llc,
		Ptr< SatGwMac >	mac,
		Ptr< SatGwPhy >	phy
	)

Add DVB GW layers for given node, associated to chosen satellite and beam.

Parameters

gw	GW node to consider
gwSatId	ID of satellite linked to this stack
gwBeamId	ID of beam linked to this stack
utSatId	ID of satellite serving UTs for this stack
utBeamId	ID of beam serving UTs for this stack
netDevice	SatNetDevice for pair UT satellite/UT beam
llc	LLC layer for pair UT satellite/UT beam
mac	MAC layer for pair UT satellite/UT beam
phy	PHY layer for pair UT satellite/UT beam

Definition at line 542 of file satellite-topology.cc.

References ns3::SatTopology::GwLayers_s::m_beamId, ns3::SatTopology::GwLayers_s::m_dvbMac, m_gwLayers, ns3::SatTopology::GwLayers_s::m_llc, ns3::SatTopology::GwLayers_s::m_netDevice, ns3::SatTopology::GwLayers_s::m_phy, and ns3::SatTopology::GwLayers_s::m_satId.

◆ AddGwLayersLora()

void ns3::SatTopology::AddGwLayersLora	(	Ptr< Node >	gw,
		uint32_t	gwSatId,
		uint32_t	gwBeamId,
		uint32_t	utSatId,
		uint32_t	utBeamId,
		Ptr< SatNetDevice >	netDevice,
		Ptr< LorawanGroundMacGateway >	mac,
		Ptr< SatGwPhy >	phy
	)

Add LORA GW layers for given node, associated to chosen satellite and beam.

Parameters

gw	GW node to consider
gwSatId	ID of satellite linked to this stack
gwBeamId	ID of beam linked to this stack
utSatId	ID of satellite serving UTs for this stack
utBeamId	ID of beam serving UTs for this stack
netDevice	SatNetDevice for pair UT satellite/UT beam
llc	LLC layer for pair UT satellite/UT beam
mac	MAC layer for pair UT satellite/UT beam
phy	PHY layer for pair UT satellite/UT beam

Definition at line 592 of file satellite-topology.cc.

References ns3::SatTopology::GwLayers_s::m_beamId, m_gwLayers, ns3::SatTopology::GwLayers_s::m_loraMac, ns3::SatTopology::GwLayers_s::m_netDevice, ns3::SatTopology::GwLayers_s::m_phy, and ns3::SatTopology::GwLayers_s::m_satId.

◆ AddGwNode()

void ns3::SatTopology::AddGwNode	(	uint32_t	gwId,
		Ptr< Node >	gw
	)

Add a GW node to the topology.

Parameters

gwId	ID of the GW
gw	The GW node to add

Definition at line 138 of file satellite-topology.cc.

References m_gwIds, and m_gws.

◆ AddGwUserNode()

void ns3::SatTopology::AddGwUserNode ( Ptr< Node > gwUser )

Add a GW user node to the topology.

Parameters

gwUser The GW user node to add

Definition at line 168 of file satellite-topology.cc.

References m_gwUsers.

◆ AddOrbiterFeederLayers()

void ns3::SatTopology::AddOrbiterFeederLayers	(	Ptr< Node >	orbiter,
		uint32_t	satId,
		uint32_t	utBeamId,
		Ptr< SatOrbiterNetDevice >	netDevice,
		Ptr< SatOrbiterFeederLlc >	llc,
		Ptr< SatOrbiterFeederMac >	mac,
		Ptr< SatOrbiterFeederPhy >	phy
	)

Add orbiter feeder layers for given satellite and beam ID.

Parameters

orbiter	UT node to consider
satId	ID of satellite linked to this stack
utSatId	ID of UT satellite linked to this stack
utBeamId	ID of UT beam linked to this stack
netDevice	SatNetDevice of this node
mac	LLC layer of this node
mac	MAC layer of this node
phy	PHY layer of this node

Definition at line 902 of file satellite-topology.cc.

References ns3::SatTopology::OrbiterLayers_s::m_feederLlc, ns3::SatTopology::OrbiterLayers_s::m_feederMac, ns3::SatTopology::OrbiterLayers_s::m_feederPhy, ns3::SatTopology::OrbiterLayers_s::m_netDevice, m_orbiterLayers, and ns3::SatTopology::OrbiterLayers_s::m_satId.

◆ AddOrbiterFeederMacPair()

void ns3::SatTopology::AddOrbiterFeederMacPair	(	Ptr< SatOrbiterFeederMac >	mac,
		Ptr< SatOrbiterFeederMac >	usedMac
	)

Create an association between a feeder MAC layer, and the entity really used.

Parameters

mac	The Feeder MAC to pair
usedMac	The Feeder MAC that is really linked to a GW

Definition at line 272 of file satellite-topology.cc.

References m_orbiterFeederMacMap.

◆ AddOrbiterNode()

void ns3::SatTopology::AddOrbiterNode ( Ptr< Node > orbiter )

Add an orbiter node to the topology.

Parameters

orbiter The orbiter node to add

Definition at line 160 of file satellite-topology.cc.

References m_orbiters.

◆ AddOrbiterUserLayersDvb()

void ns3::SatTopology::AddOrbiterUserLayersDvb	(	Ptr< Node >	orbiter,
		uint32_t	satId,
		uint32_t	beamId,
		Ptr< SatOrbiterNetDevice >	netDevice,
		Ptr< SatOrbiterUserLlc >	llc,
		Ptr< SatOrbiterUserMac >	mac,
		Ptr< SatOrbiterUserPhy >	phy
	)

Add DVB orbiter user layers for given satellite and beam ID.

Parameters

orbiter	UT node to consider
satId	ID of satellite linked to this stack
beamId	ID of beam linked to this stack
netDevice	SatNetDevice of this node
mac	LLC layer of this node
mac	MAC layer of this node
phy	PHY layer of this node

Definition at line 944 of file satellite-topology.cc.

References ns3::SatTopology::OrbiterLayers_s::m_dvbUserMac, ns3::SatTopology::OrbiterLayers_s::m_netDevice, m_orbiterLayers, ns3::SatTopology::OrbiterLayers_s::m_satId, ns3::SatTopology::OrbiterLayers_s::m_userLlc, and ns3::SatTopology::OrbiterLayers_s::m_userPhy.

◆ AddOrbiterUserLayersLora()

void ns3::SatTopology::AddOrbiterUserLayersLora	(	Ptr< Node >	orbiter,
		uint32_t	satId,
		uint32_t	beamId,
		Ptr< SatOrbiterNetDevice >	netDevice,
		Ptr< LorawanOrbiterMacGateway >	mac,
		Ptr< SatOrbiterUserPhy >	phy
	)

Add LORA orbiter user layers for given satellite and beam ID.

Parameters

orbiter	UT node to consider
satId	ID of satellite linked to this stack
beamId	ID of beam linked to this stack
netDevice	SatNetDevice of this node
mac	LLC layer of this node
mac	MAC layer of this node
phy	PHY layer of this node

Definition at line 986 of file satellite-topology.cc.

References ns3::SatTopology::OrbiterLayers_s::m_loraUserMac, ns3::SatTopology::OrbiterLayers_s::m_netDevice, m_orbiterLayers, ns3::SatTopology::OrbiterLayers_s::m_satId, and ns3::SatTopology::OrbiterLayers_s::m_userPhy.

◆ AddUtLayersDvb()

void ns3::SatTopology::AddUtLayersDvb	(	Ptr< Node >	ut,
		uint32_t	satId,
		uint32_t	beamId,
		uint32_t	groupId,
		Ptr< SatNetDevice >	netDevice,
		Ptr< SatUtLlc >	llc,
		Ptr< SatUtMac >	mac,
		Ptr< SatUtPhy >	phy
	)

Add DVB UT layers for given node, associated to chosen satellite and beam.

Parameters

ut	UT node to consider
satId	ID of satellite linked to this stack
beamId	ID of beam linked to this stack
groupId	ID of group linked to this stack
netDevice	SatNetDevice of this node
llc	LLC layer of this node
mac	MAC layer of this node
phy	PHY layer of this node

Definition at line 751 of file satellite-topology.cc.

References ns3::SatTopology::UtLayers_s::m_beamId, ns3::SatTopology::UtLayers_s::m_dvbMac, ns3::SatTopology::UtLayers_s::m_groupId, ns3::SatTopology::UtLayers_s::m_llc, ns3::SatTopology::UtLayers_s::m_netDevice, ns3::SatTopology::UtLayers_s::m_phy, ns3::SatTopology::UtLayers_s::m_satId, and m_utLayers.

◆ AddUtLayersLora()

void ns3::SatTopology::AddUtLayersLora	(	Ptr< Node >	ut,
		uint32_t	satId,
		uint32_t	beamId,
		uint32_t	groupId,
		Ptr< SatNetDevice >	netDevice,
		Ptr< LorawanMacEndDevice >	mac,
		Ptr< SatUtPhy >	phy
	)

Add LORA UT layers for given node, associated to chosen satellite and beam.

Parameters

ut	UT node to consider
satId	ID of satellite linked to this stack
beamId	ID of beam linked to this stack
groupId	ID of group linked to this stack
netDevice	SatNetDevice of this node
llc	LLC layer of this node
mac	MAC layer of this node
phy	PHY layer of this node

Definition at line 777 of file satellite-topology.cc.

References ns3::SatTopology::UtLayers_s::m_beamId, ns3::SatTopology::UtLayers_s::m_groupId, ns3::SatTopology::UtLayers_s::m_loraMac, ns3::SatTopology::UtLayers_s::m_netDevice, ns3::SatTopology::UtLayers_s::m_phy, ns3::SatTopology::UtLayers_s::m_satId, and m_utLayers.

◆ AddUtNode()

void ns3::SatTopology::AddUtNode ( Ptr< Node > ut )

Add a UT node to the topology.

Parameters

ut	The UT node to add

Definition at line 152 of file satellite-topology.cc.

References m_uts.

◆ AddUtUserNode()

void ns3::SatTopology::AddUtUserNode	(	Ptr< Node >	utUser,
		Ptr< Node >	ut
	)

Add a UT user node to the topology.

Parameters

utUser	The UT user node to add
ut	Associated UT node

Definition at line 176 of file satellite-topology.cc.

References m_detailledUtUsers, and m_utUsers.

◆ ConnectGwToBeam()

void ns3::SatTopology::ConnectGwToBeam	(	uint32_t	beamId,
		Ptr< Node >	gw
	)

Connect a GW to a Beam.

Beam must not have an associated GW yet

Parameters

beamId	The beam ID to consider
gw	The GW connected to this beam

Definition at line 245 of file satellite-topology.cc.

References m_beamToGwMap.

◆ ConnectGwToUt()

void ns3::SatTopology::ConnectGwToUt	(	Ptr< Node >	ut,
		Ptr< Node >	gw
	)

Connect a GW to a UT.

UT must not have an associated GW yet

Parameters

ut	The UT to consider
gw	The GW connected to this UT

Definition at line 189 of file satellite-topology.cc.

References m_utToGwMap.

◆ DisconnectGwFromUt()

void ns3::SatTopology::DisconnectGwFromUt ( Ptr< Node > ut )

Disconnect a GW from a UT.

UT must already have an associated GW

Parameters

ut	The UT to consider

Definition at line 216 of file satellite-topology.cc.

References m_utToGwMap.

◆ DoDispose()

void ns3::SatTopology::DoDispose ( void )

Do needed dispose actions.

Definition at line 61 of file satellite-topology.cc.

References Reset().

Here is the call graph for this function:

◆ EnableMapPrint()

void ns3::SatTopology::EnableMapPrint ( bool enableMapPrint )

inline

Function for enabling the map prints.

Definition at line 839 of file satellite-topology.h.

References m_enableMapPrint.

◆ GetClosestSat()

uint32_t ns3::SatTopology::GetClosestSat ( GeoCoordinate position )

Get closest satellite to a ground station.

Parameters

position The position of the ground station

Returns: The ID of the closest satellite

Definition at line 1321 of file satellite-topology.cc.

References m_orbiters, and ns3::GeoCoordinate::ToVector().

Referenced by GetGwAddressInUt().

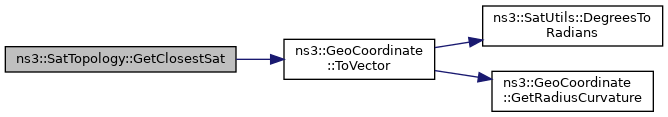

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDvbGwMac()

Ptr< SatGwMac > ns3::SatTopology::GetDvbGwMac	(	Ptr< Node >	gw,
		uint32_t	utSatId,
		uint32_t	utBeamId
	)		const

Get SatGwMac instance of a DVB GW.

Parameters

gw	GW node to consider
utSatId	ID of satellite serving the UTs
utBeamId	ID of beam serving the UTs

Returns: SatGwMac instance of a GW

Definition at line 702 of file satellite-topology.cc.

References ns3::SatTopology::GwLayers_s::m_dvbMac, and m_gwLayers.

Referenced by GetGwAddressInUt().

Here is the caller graph for this function:

◆ GetDvbOrbiterUserMac()

Ptr< SatOrbiterUserMac > ns3::SatTopology::GetDvbOrbiterUserMac	(	Ptr< Node >	orbiter,
		uint32_t	beamId
	)		const

Get SatOrbiterUserMac instance of a DVB orbiter serving wanted beam ID.

Parameters

orbiter	Orbiter node to consider
beamId	Beam ID served by this user MAC layer

Returns: SatOrbiterUserMac instance of an orbiter

Definition at line 1092 of file satellite-topology.cc.

References ns3::SatTopology::OrbiterLayers_s::m_dvbUserMac, and m_orbiterLayers.

◆ GetDvbUtMac()

Ptr< SatUtMac > ns3::SatTopology::GetDvbUtMac ( Ptr< Node > ut ) const

Get SatUtMac instance of a DVB UT.

Parameters

ut	UT node to consider

Returns: SatUtMac instance of a UT

Definition at line 872 of file satellite-topology.cc.

References m_utLayers.

◆ GetForwardLinkRegenerationMode()

SatEnums::RegenerationMode_t ns3::SatTopology::GetForwardLinkRegenerationMode ( )

Get forward link regeneration mode.

Returns: Forward link regeneration mode

Definition at line 114 of file satellite-topology.cc.

References m_forwardLinkRegenerationMode.

◆ GetGwAddressInUt()

Mac48Address ns3::SatTopology::GetGwAddressInUt ( uint32_t utId )

Set the value of GW address for a UT.

This method is called when using constellations, and can be called via callbacks after handovers

Parameters

utId	ID of UT to

Returns: MAC address of GW

Definition at line 301 of file satellite-topology.cc.

References GetClosestSat(), GetDvbGwMac(), GetGwFromBeam(), GetNodeFromId(), GetOrbiterFeederMac(), GetOrbiterFeederMacUsed(), GetUtBeamId(), and m_orbiters.

Here is the call graph for this function:

◆ GetGwBeamId()

uint32_t ns3::SatTopology::GetGwBeamId ( Ptr< Node > gw ) const

Get ID of beam linked to a GW.

Parameters

gw	GW node to consider

Returns: ID of beam linked to this node

Definition at line 659 of file satellite-topology.cc.

References m_gwLayers.

◆ GetGwFromBeam()

Ptr< Node > ns3::SatTopology::GetGwFromBeam ( uint32_t beamId ) const

Get GW connected to a given beam ID.

Beam must already have an associated GW

Parameters

beamId The beam ID to consider

Returns: The associated GW

Definition at line 259 of file satellite-topology.cc.

References m_beamToGwMap.

Referenced by GetGwAddressInUt().

Here is the caller graph for this function:

◆ GetGwFromUt()

Ptr< Node > ns3::SatTopology::GetGwFromUt ( Ptr< Node > ut ) const

Get GW connected to a given UT.

UT must already have an associated GW

Parameters

ut	The UT to consider

Returns: The associated GW

Definition at line 232 of file satellite-topology.cc.

References m_utToGwMap.

◆ GetGwLlc()

Ptr< SatGwLlc > ns3::SatTopology::GetGwLlc	(	Ptr< Node >	gw,
		uint32_t	utSatId,
		uint32_t	utBeamId
	)		const

Get SatGwLlc instance of a GW.

Parameters

gw	GW node to consider
utSatId	ID of satellite serving the UTs
utBeamId	ID of beam serving the UTs

Returns: SatGwLlc instance of a GW

Definition at line 686 of file satellite-topology.cc.

References m_gwLayers, and ns3::SatTopology::GwLayers_s::m_llc.

◆ GetGwNetDevice()

Ptr< SatNetDevice > ns3::SatTopology::GetGwNetDevice	(	Ptr< Node >	gw,
		uint32_t	utSatId,
		uint32_t	utBeamId
	)		const

Get SatNetDevice instance of a GW.

Parameters

gw	GW node to consider
utSatId	ID of satellite serving the UTs
utBeamId	ID of beam serving the UTs

Returns: SatNetDevice instance of a GW

Definition at line 669 of file satellite-topology.cc.

References m_gwLayers, and ns3::SatTopology::GwLayers_s::m_netDevice.

◆ GetGwNode()

Ptr< Node > ns3::SatTopology::GetGwNode ( uint32_t nodeId ) const

Get the wanted GW node.

Parameters

nodeId ID of the node needed (index in vector)

Returns: The GW node

Definition at line 451 of file satellite-topology.cc.

References m_gws.

◆ GetGwNodes()

NodeContainer ns3::SatTopology::GetGwNodes ( ) const

Get the list of GW nodes.

Returns: The list of GW nodes

Definition at line 324 of file satellite-topology.cc.

References m_gws.

◆ GetGwPhy()

Ptr< SatGwPhy > ns3::SatTopology::GetGwPhy	(	Ptr< Node >	gw,
		uint32_t	utSatId,
		uint32_t	utBeamId
	)		const

Get SatGwPhy instance of a GW.

Parameters

gw	GW node to consider
utSatId	ID of satellite serving the UTs
utBeamId	ID of beam serving the UTs

Returns: SatGwPhy instance of a GW

Definition at line 735 of file satellite-topology.cc.

References m_gwLayers, and ns3::SatTopology::GwLayers_s::m_phy.

◆ GetGwSatId()

uint32_t ns3::SatTopology::GetGwSatId ( Ptr< Node > gw ) const

Get ID of satellite linked to a GW.

Parameters

gw	GW node to consider

Returns: ID of satellite linked to this node

Definition at line 649 of file satellite-topology.cc.

References m_gwLayers.

◆ GetGwUserNode()

Ptr< Node > ns3::SatTopology::GetGwUserNode ( uint32_t nodeId ) const

Get the wanted GW user node.

Parameters

nodeId ID of the node needed

Returns: The GW user node

Definition at line 475 of file satellite-topology.cc.

References m_gwUsers.

◆ GetGwUserNodes()

NodeContainer ns3::SatTopology::GetGwUserNodes ( ) const

Get the list of GW user nodes.

Returns: The list of GW user nodes

Definition at line 348 of file satellite-topology.cc.

References m_gwUsers.

◆ GetLoraGwMac()

Ptr< LorawanGroundMacGateway > ns3::SatTopology::GetLoraGwMac	(	Ptr< Node >	gw,
		uint32_t	utSatId,
		uint32_t	utBeamId
	)		const

Get SatGwMac instance of a LORA GW.

Parameters

gw	GW node to consider
utSatId	ID of satellite serving the UTs
utBeamId	ID of beam serving the UTs

Returns: LorawanGroundMacGateway instance of a GW

Definition at line 718 of file satellite-topology.cc.

References m_gwLayers, and ns3::SatTopology::GwLayers_s::m_loraMac.

◆ GetLoraOrbiterUserMac()

Ptr< LorawanOrbiterMacGateway > ns3::SatTopology::GetLoraOrbiterUserMac	(	Ptr< Node >	orbiter,
		uint32_t	beamId
	)		const

Get LorawanOrbiterMacGateway instance of a LORA orbiter serving wanted beam ID.

Parameters

orbiter	Orbiter node to consider
beamId	Beam ID served by this user MAC layer

Returns: LorawanOrbiterMacGateway instance of an orbiter

Definition at line 1107 of file satellite-topology.cc.

References ns3::SatTopology::OrbiterLayers_s::m_loraUserMac, and m_orbiterLayers.

◆ GetLoraUtMac()

Ptr< LorawanMacEndDevice > ns3::SatTopology::GetLoraUtMac ( Ptr< Node > ut ) const

Get SatUtMac instance of a LORA UT.

Parameters

ut	UT node to consider

Returns: LorawanMacEndDevice instance of a UT

Definition at line 882 of file satellite-topology.cc.

References m_utLayers.

◆ GetNGwNodes()

uint32_t ns3::SatTopology::GetNGwNodes ( ) const

Get the number of GW nodes.

Returns: The number of GW nodes

Definition at line 411 of file satellite-topology.cc.

References m_gws.

◆ GetNGwUserNodes()

uint32_t ns3::SatTopology::GetNGwUserNodes ( ) const

Get the number of GW user nodes.

Returns: The number of GW user nodes

Definition at line 435 of file satellite-topology.cc.

References m_gwUsers.

◆ GetNodeFromId()

Ptr< Node > ns3::SatTopology::GetNodeFromId ( uint32_t nodeId ) const

Get the wanted node from its node ID.

Parameters

nodeId ID of the node needed

Returns: The node

Definition at line 491 of file satellite-topology.cc.

References m_gws, m_gwUsers, m_orbiters, m_uts, and m_utUsers.

Referenced by GetGwAddressInUt().

Here is the caller graph for this function:

◆ GetNOrbiterNodes()

uint32_t ns3::SatTopology::GetNOrbiterNodes ( ) const

Get the number of orbiter nodes.

Returns: The number of orbiter nodes

Definition at line 427 of file satellite-topology.cc.

References m_orbiters.

◆ GetNUtNodes()

uint32_t ns3::SatTopology::GetNUtNodes ( ) const

Get the number of UT nodes.

Returns: The number of UT nodes

Definition at line 419 of file satellite-topology.cc.

References m_uts.

◆ GetNUtUserNodes()

uint32_t ns3::SatTopology::GetNUtUserNodes ( ) const

Get the number of UT user nodes.

Returns: The number of UT user nodes

Definition at line 443 of file satellite-topology.cc.

References m_utUsers.

◆ GetOrbiterFeederLlc()

Ptr< SatOrbiterFeederLlc > ns3::SatTopology::GetOrbiterFeederLlc	(	Ptr< Node >	orbiter,
		uint32_t	utBeamId
	)		const

Get SatOrbiterFeederLlc instance of an orbiter serving wanted beam ID.

Parameters

orbiter	Orbiter node to consider
utBeamId	UT Beam ID served by this feeder LLC layer

Returns: SatOrbiterFeederLlc instance of an orbiter

Definition at line 1046 of file satellite-topology.cc.

References ns3::SatTopology::OrbiterLayers_s::m_feederLlc, and m_orbiterLayers.

◆ GetOrbiterFeederMac()

Ptr< SatOrbiterFeederMac > ns3::SatTopology::GetOrbiterFeederMac	(	Ptr< Node >	orbiter,
		uint32_t	utBeamId
	)		const

Get SatOrbiterFeederMac instance of an orbiter serving wanted beam ID.

Parameters

orbiter	Orbiter node to consider
utBeamId	UT Beam ID served by this feeder MAC layer

Returns: SatOrbiterFeederMac instance of an orbiter

Definition at line 1076 of file satellite-topology.cc.

References ns3::SatTopology::OrbiterLayers_s::m_feederMac, and m_orbiterLayers.

Referenced by GetGwAddressInUt().

Here is the caller graph for this function:

◆ GetOrbiterFeederMacUsed()

Ptr< SatOrbiterFeederMac > ns3::SatTopology::GetOrbiterFeederMacUsed ( Ptr< SatOrbiterFeederMac > mac ) const

Get feeder MAC really used to connect to a GW.

Parameters

mac	The Feeder MAC wanted

Returns: The Feeder MAC that is really linked to a GW

Definition at line 286 of file satellite-topology.cc.

References m_orbiterFeederMacMap.

Referenced by GetGwAddressInUt().

Here is the caller graph for this function:

◆ GetOrbiterFeederPhy()

Ptr< SatOrbiterFeederPhy > ns3::SatTopology::GetOrbiterFeederPhy	(	Ptr< Node >	orbiter,
		uint32_t	utBeamId
	)		const

Get SatOrbiterFeederPhy instance of an orbiter serving wanted beam ID.

Parameters

orbiter	Orbiter node to consider
utBeamId	UT Beam ID served by this feeder PHY layer

Returns: SatOrbiterFeederPhy instance of an orbiter

Definition at line 1122 of file satellite-topology.cc.

References ns3::SatTopology::OrbiterLayers_s::m_feederPhy, and m_orbiterLayers.

◆ GetOrbiterNetDevice()

Ptr< SatOrbiterNetDevice > ns3::SatTopology::GetOrbiterNetDevice ( Ptr< Node > orbiter ) const

Get SatOrbiterNetDevice instance of an orbiter.

Parameters

orbiter Orbiter node to consider

Returns: SatOrbiterNetDevice instance of an orbiter

Definition at line 1035 of file satellite-topology.cc.

References m_orbiterLayers.

◆ GetOrbiterNode()

Ptr< Node > ns3::SatTopology::GetOrbiterNode ( uint32_t nodeId ) const

Get the wanted orbiter node.

Parameters

nodeId ID of the node needed

Returns: The orbiter node

Definition at line 467 of file satellite-topology.cc.

References m_orbiters.

◆ GetOrbiterNodes()

NodeContainer ns3::SatTopology::GetOrbiterNodes ( ) const

Get the list of orbiter nodes.

Returns: The list of orbiter nodes

Definition at line 340 of file satellite-topology.cc.

References m_orbiters.

◆ GetOrbiterSatId()

uint32_t ns3::SatTopology::GetOrbiterSatId ( Ptr< Node > orbiter ) const

Get ID of a given orbiter.

Parameters

orbiter Orbiter node to consider

Returns: ID of orbiter linked to this node

Definition at line 1024 of file satellite-topology.cc.

References m_orbiterLayers.

◆ GetOrbiterUserLlc()

Ptr< SatOrbiterUserLlc > ns3::SatTopology::GetOrbiterUserLlc	(	Ptr< Node >	orbiter,
		uint32_t	beamId
	)		const

Get SatOrbiterUserLlc instance of an orbiter serving wanted beam ID.

Parameters

orbiter	Orbiter node to consider
beamId	Beam ID served by this user LLC layer

Returns: SatOrbiterUserLlc instance of an orbiter

Definition at line 1061 of file satellite-topology.cc.

References m_orbiterLayers, and ns3::SatTopology::OrbiterLayers_s::m_userLlc.

◆ GetOrbiterUserPhy()

Ptr< SatOrbiterUserPhy > ns3::SatTopology::GetOrbiterUserPhy	(	Ptr< Node >	orbiter,
		uint32_t	beamId
	)		const

Get SatOrbiterUserPhy instance of an orbiter serving wanted beam ID.

Parameters

orbiter	Orbiter node to consider
beamId	Beam ID served by this user physical layer

Returns: SatOrbiterUserPhy instance of an orbiter

Definition at line 1137 of file satellite-topology.cc.

References m_orbiterLayers, and ns3::SatTopology::OrbiterLayers_s::m_userPhy.

◆ GetReturnLinkRegenerationMode()

SatEnums::RegenerationMode_t ns3::SatTopology::GetReturnLinkRegenerationMode ( )

Get return link regeneration mode.

Returns: Return link regeneration mode

Definition at line 130 of file satellite-topology.cc.

References m_returnLinkRegenerationMode.

◆ GetStandard()

SatEnums::Standard_t ns3::SatTopology::GetStandard ( )

Get standard used (DVB or LORA)

Returns: Standard to use

Definition at line 97 of file satellite-topology.cc.

References m_standard.

◆ GetTypeId()

TypeId ns3::SatTopology::GetTypeId ( void )

static

NS-3 type id function.

Returns: type id

Definition at line 40 of file satellite-topology.cc.

◆ GetUtBeamId()

uint32_t ns3::SatTopology::GetUtBeamId ( Ptr< Node > ut ) const

Get ID of beam linked to a UT.

Parameters

ut	UT node to consider

Returns: ID of beam linked to this node

Definition at line 832 of file satellite-topology.cc.

References m_utLayers.

Referenced by GetGwAddressInUt().

Here is the caller graph for this function:

◆ GetUtGroupId()

uint32_t ns3::SatTopology::GetUtGroupId ( Ptr< Node > ut ) const

Get ID of group linked to a UT.

Parameters

ut	UT node to consider

Returns: ID of group linked to this node

Definition at line 842 of file satellite-topology.cc.

References m_utLayers.

◆ GetUtLlc()

Ptr< SatUtLlc > ns3::SatTopology::GetUtLlc ( Ptr< Node > ut ) const

Get SatUtLlc instance of a UT.

Parameters

ut	UT node to consider

Returns: SatUtLlc instance of a UT

Definition at line 862 of file satellite-topology.cc.

References m_utLayers.

◆ GetUtNetDevice()

Ptr< SatNetDevice > ns3::SatTopology::GetUtNetDevice ( Ptr< Node > ut ) const

Get SatNetDevice instance of a UT.

Parameters

ut	UT node to consider

Returns: SatNetDevice instance of a UT

Definition at line 852 of file satellite-topology.cc.

References m_utLayers.

◆ GetUtNode() [1/2]

Ptr< Node > ns3::SatTopology::GetUtNode ( Ptr< Node > utUser ) const

Get UT node linked to some UT user.

Parameters

utUser Pointer to the UT user node

Returns: a pointer to the UT node which serves the specified UT user node, or nullptr if the UT user node is invalid

Definition at line 392 of file satellite-topology.cc.

References m_detailledUtUsers.

◆ GetUtNode() [2/2]

Ptr< Node > ns3::SatTopology::GetUtNode ( uint32_t nodeId ) const

Get the wanted UT node.

Parameters

nodeId ID of the node needed

Returns: The UT node

Definition at line 459 of file satellite-topology.cc.

References m_uts.

◆ GetUtNodes()

NodeContainer ns3::SatTopology::GetUtNodes ( ) const

Get the list of UT nodes.

Returns: The list of UT nodes

Definition at line 332 of file satellite-topology.cc.

References m_uts.

◆ GetUtPhy()

Ptr< SatUtPhy > ns3::SatTopology::GetUtPhy ( Ptr< Node > ut ) const

Get SatUtPhy instance of a UT.

Parameters

ut	UT node to consider

Returns: SatUtPhy instance of a UT

Definition at line 892 of file satellite-topology.cc.

References m_utLayers.

◆ GetUtSatId()

uint32_t ns3::SatTopology::GetUtSatId ( Ptr< Node > ut ) const

Get ID of satellite linked to a UT.

Parameters

ut	UT node to consider

Returns: ID of satellite linked to this node

Definition at line 822 of file satellite-topology.cc.

References m_utLayers.

◆ GetUtUserNode()

Ptr< Node > ns3::SatTopology::GetUtUserNode ( uint32_t nodeId ) const

Get the wanted UT user node.

Parameters

nodeId ID of the node needed

Returns: The UT user node

Definition at line 483 of file satellite-topology.cc.

References m_utUsers.

◆ GetUtUserNodes() [1/3]

NodeContainer ns3::SatTopology::GetUtUserNodes ( ) const

Get the list of UT user nodes.

Returns: The list of UT user nodes

Definition at line 356 of file satellite-topology.cc.

References m_utUsers.

Referenced by GetUtUserNodes().

Here is the caller graph for this function:

◆ GetUtUserNodes() [2/3]

NodeContainer ns3::SatTopology::GetUtUserNodes ( NodeContainer uts ) const

Get the list of UT user nodes connected to UTs.

Parameters

uts	List of UT nodes

Returns: The list of UT user nodes

Definition at line 364 of file satellite-topology.cc.

References GetUtUserNodes().

Here is the call graph for this function:

◆ GetUtUserNodes() [3/3]

NodeContainer ns3::SatTopology::GetUtUserNodes ( Ptr< Node > ut ) const

Get the list of UT user nodes connected to on UT.

Parameters

ut UT node

Returns: The list of UT user nodes

Definition at line 377 of file satellite-topology.cc.

References m_detailledUtUsers.

◆ PrintTopology()

void ns3::SatTopology::PrintTopology ( std::ostream & os ) const

Print all the satellite topology.

Parameters

os	output stream in which the data should be printed

Definition at line 1152 of file satellite-topology.cc.

◆ Reset()

void ns3::SatTopology::Reset ( void )

Function for resetting the variables.

Definition at line 71 of file satellite-topology.cc.

References m_beamToGwMap, m_enableMapPrint, m_gwIds, m_gws, m_gwUsers, m_orbiterFeederMacMap, m_orbiters, m_uts, m_utToGwMap, and m_utUsers.

Referenced by ~SatTopology(), and DoDispose().

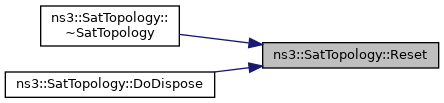

Here is the caller graph for this function:

◆ SetForwardLinkRegenerationMode()

void ns3::SatTopology::SetForwardLinkRegenerationMode ( SatEnums::RegenerationMode_t forwardLinkRegenerationMode )

Set forward link regeneration mode.

Parameters

forwardLinkRegenerationMode Forward link regeneration mode

Definition at line 105 of file satellite-topology.cc.

References m_forwardLinkRegenerationMode.

◆ SetReturnLinkRegenerationMode()

void ns3::SatTopology::SetReturnLinkRegenerationMode ( SatEnums::RegenerationMode_t returnLinkRegenerationMode )

Set return link regeneration mode.

Parameters

returnLinkRegenerationMode Return link regeneration mode

Definition at line 122 of file satellite-topology.cc.

References m_returnLinkRegenerationMode.

◆ SetStandard()

void ns3::SatTopology::SetStandard ( SatEnums::Standard_t standard )

Set standard used (DVB or LORA)

Parameters

standard Standard to use

Definition at line 89 of file satellite-topology.cc.

References m_standard.

◆ UpdateGwConnectedToUt()

void ns3::SatTopology::UpdateGwConnectedToUt	(	Ptr< Node >	ut,
		Ptr< Node >	gw
	)

Connect a new GW to a UT.

UT must already have an associated GW

Parameters

ut	The UT to consider
gw	The GW connected to this UT

Definition at line 203 of file satellite-topology.cc.

References m_utToGwMap.

◆ UpdateGwSatAndBeam()

void ns3::SatTopology::UpdateGwSatAndBeam	(	Ptr< Node >	gw,
		uint32_t	satId,
		uint32_t	beamId
	)

Update satellite and beam associated to a GW.

Parameters

gw	GW node to consider
satId	ID of satellite linked to this stack
beamId	ID of beam linked to this stack

Definition at line 638 of file satellite-topology.cc.

References m_gwLayers.

◆ UpdateUtGroup()

void ns3::SatTopology::UpdateUtGroup	(	Ptr< Node >	ut,
		uint32_t	groupId
	)

Update satellite and beam associated to a UT.

Parameters

ut	UT node to consider
groupId	ID of group linked to this stack

Definition at line 812 of file satellite-topology.cc.

References m_utLayers.

◆ UpdateUtSatAndBeam()

void ns3::SatTopology::UpdateUtSatAndBeam	(	Ptr< Node >	ut,
		uint32_t	satId,
		uint32_t	beamId
	)

Update satellite and beam associated to a UT.

Parameters

ut	UT node to consider
satId	ID of satellite linked to this stack
beamId	ID of beam linked to this stack

Definition at line 801 of file satellite-topology.cc.

References m_utLayers.

Member Data Documentation

◆ m_beamToGwMap

std::map<uint32_t, Ptr<Node> > ns3::SatTopology::m_beamToGwMap

private

Definition at line 876 of file satellite-topology.h.

Referenced by ConnectGwToBeam(), GetGwFromBeam(), and Reset().

◆ m_detailledUtUsers

std::map<Ptr<Node>, NodeContainer> ns3::SatTopology::m_detailledUtUsers

private

Definition at line 868 of file satellite-topology.h.

Referenced by AddUtUserNode(), GetUtNode(), and GetUtUserNodes().

◆ m_enableMapPrint

bool ns3::SatTopology::m_enableMapPrint

private

Definition at line 880 of file satellite-topology.h.

Referenced by EnableMapPrint(), and Reset().

◆ m_forwardLinkRegenerationMode

SatEnums::RegenerationMode_t ns3::SatTopology::m_forwardLinkRegenerationMode

private

Definition at line 859 of file satellite-topology.h.

Referenced by GetForwardLinkRegenerationMode(), PrintTopology(), and SetForwardLinkRegenerationMode().

◆ m_gwIds

std::map<uint32_t, Ptr<Node> > ns3::SatTopology::m_gwIds

private

Definition at line 862 of file satellite-topology.h.

Referenced by AddGwNode(), and Reset().

◆ m_gwLayers

std::map<Ptr<Node>, GwLayers_s> ns3::SatTopology::m_gwLayers

private

Definition at line 870 of file satellite-topology.h.

Referenced by AddGwLayersDvb(), AddGwLayersLora(), GetDvbGwMac(), GetGwBeamId(), GetGwLlc(), GetGwNetDevice(), GetGwPhy(), GetGwSatId(), GetLoraGwMac(), PrintTopology(), and UpdateGwSatAndBeam().

◆ m_gws

NodeContainer ns3::SatTopology::m_gws

private

Definition at line 863 of file satellite-topology.h.

Referenced by AddGwNode(), GetGwNode(), GetGwNodes(), GetNGwNodes(), GetNodeFromId(), PrintTopology(), and Reset().

◆ m_gwUsers

NodeContainer ns3::SatTopology::m_gwUsers

private

Definition at line 866 of file satellite-topology.h.

Referenced by AddGwUserNode(), GetGwUserNode(), GetGwUserNodes(), GetNGwUserNodes(), GetNodeFromId(), PrintTopology(), and Reset().

◆ m_orbiterFeederMacMap

std::map<Ptr<SatOrbiterFeederMac>, Ptr<SatOrbiterFeederMac> > ns3::SatTopology::m_orbiterFeederMacMap

private

Definition at line 878 of file satellite-topology.h.

Referenced by AddOrbiterFeederMacPair(), GetOrbiterFeederMacUsed(), and Reset().

◆ m_orbiterLayers

std::map<Ptr<Node>, OrbiterLayers_s> ns3::SatTopology::m_orbiterLayers

private

Definition at line 873 of file satellite-topology.h.

Referenced by AddOrbiterFeederLayers(), AddOrbiterUserLayersDvb(), AddOrbiterUserLayersLora(), GetDvbOrbiterUserMac(), GetLoraOrbiterUserMac(), GetOrbiterFeederLlc(), GetOrbiterFeederMac(), GetOrbiterFeederPhy(), GetOrbiterNetDevice(), GetOrbiterSatId(), GetOrbiterUserLlc(), GetOrbiterUserPhy(), and PrintTopology().

◆ m_orbiters

NodeContainer ns3::SatTopology::m_orbiters

private

Definition at line 865 of file satellite-topology.h.

Referenced by AddOrbiterNode(), GetClosestSat(), GetGwAddressInUt(), GetNodeFromId(), GetNOrbiterNodes(), GetOrbiterNode(), GetOrbiterNodes(), PrintTopology(), and Reset().

◆ m_returnLinkRegenerationMode

SatEnums::RegenerationMode_t ns3::SatTopology::m_returnLinkRegenerationMode

private

Definition at line 860 of file satellite-topology.h.

Referenced by GetReturnLinkRegenerationMode(), and SetReturnLinkRegenerationMode().

◆ m_standard

SatEnums::Standard_t ns3::SatTopology::m_standard

private

Definition at line 858 of file satellite-topology.h.

Referenced by GetStandard(), PrintTopology(), and SetStandard().

◆ m_utLayers

std::map<Ptr<Node>, UtLayers_s> ns3::SatTopology::m_utLayers

private

Definition at line 871 of file satellite-topology.h.

Referenced by AddUtLayersDvb(), AddUtLayersLora(), GetDvbUtMac(), GetLoraUtMac(), GetUtBeamId(), GetUtGroupId(), GetUtLlc(), GetUtNetDevice(), GetUtPhy(), GetUtSatId(), PrintTopology(), UpdateUtGroup(), and UpdateUtSatAndBeam().

◆ m_uts

NodeContainer ns3::SatTopology::m_uts

private

Definition at line 864 of file satellite-topology.h.

Referenced by AddUtNode(), GetNodeFromId(), GetNUtNodes(), GetUtNode(), GetUtNodes(), PrintTopology(), and Reset().

◆ m_utToGwMap

std::map<Ptr<Node>, Ptr<Node> > ns3::SatTopology::m_utToGwMap

private

Definition at line 875 of file satellite-topology.h.

Referenced by ConnectGwToUt(), DisconnectGwFromUt(), GetGwFromUt(), PrintTopology(), Reset(), and UpdateGwConnectedToUt().

◆ m_utUsers

NodeContainer ns3::SatTopology::m_utUsers

private

Definition at line 867 of file satellite-topology.h.

Referenced by AddUtUserNode(), GetNodeFromId(), GetNUtUserNodes(), GetUtUserNode(), GetUtUserNodes(), PrintTopology(), and Reset().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-topology.h
/builds/sns3/satellite/satellite/model/satellite-topology.cc

Classes

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SatTopology()

◆ ~SatTopology()

Member Function Documentation

◆ AddGwLayersDvb()

◆ AddGwLayersLora()

◆ AddGwNode()

◆ AddGwUserNode()

◆ AddOrbiterFeederLayers()

◆ AddOrbiterFeederMacPair()

◆ AddOrbiterNode()

◆ AddOrbiterUserLayersDvb()

◆ AddOrbiterUserLayersLora()

◆ AddUtLayersDvb()

◆ AddUtLayersLora()

◆ AddUtNode()

◆ AddUtUserNode()

◆ ConnectGwToBeam()

◆ ConnectGwToUt()

◆ DisconnectGwFromUt()

◆ DoDispose()

◆ EnableMapPrint()

◆ GetClosestSat()

◆ GetDvbGwMac()

◆ GetDvbOrbiterUserMac()

◆ GetDvbUtMac()

◆ GetForwardLinkRegenerationMode()

◆ GetGwAddressInUt()

◆ GetGwBeamId()

◆ GetGwFromBeam()

◆ GetGwFromUt()

◆ GetGwLlc()

◆ GetGwNetDevice()

◆ GetGwNode()

◆ GetGwNodes()

◆ GetGwPhy()

◆ GetGwSatId()

◆ GetGwUserNode()

◆ GetGwUserNodes()

◆ GetLoraGwMac()

◆ GetLoraOrbiterUserMac()

◆ GetLoraUtMac()

◆ GetNGwNodes()

◆ GetNGwUserNodes()

◆ GetNodeFromId()

◆ GetNOrbiterNodes()

◆ GetNUtNodes()

◆ GetNUtUserNodes()

◆ GetOrbiterFeederLlc()

◆ GetOrbiterFeederMac()

◆ GetOrbiterFeederMacUsed()

◆ GetOrbiterFeederPhy()

◆ GetOrbiterNetDevice()

◆ GetOrbiterNode()

◆ GetOrbiterNodes()

◆ GetOrbiterSatId()

◆ GetOrbiterUserLlc()

◆ GetOrbiterUserPhy()

◆ GetReturnLinkRegenerationMode()

◆ GetStandard()

◆ GetTypeId()

◆ GetUtBeamId()

◆ GetUtGroupId()

◆ GetUtLlc()

◆ GetUtNetDevice()

◆ GetUtNode() [1/2]

◆ GetUtNode() [2/2]

◆ GetUtNodes()

◆ GetUtPhy()

◆ GetUtSatId()

◆ GetUtUserNode()

◆ GetUtUserNodes() [1/3]

◆ GetUtUserNodes() [2/3]

◆ GetUtUserNodes() [3/3]

◆ PrintTopology()
