#include "lorawan-ground-mac-gateway.h"

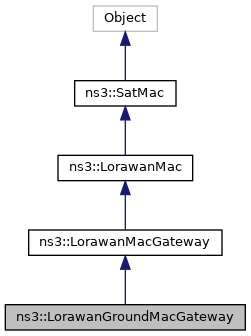

Inheritance diagram for ns3::LorawanGroundMacGateway:

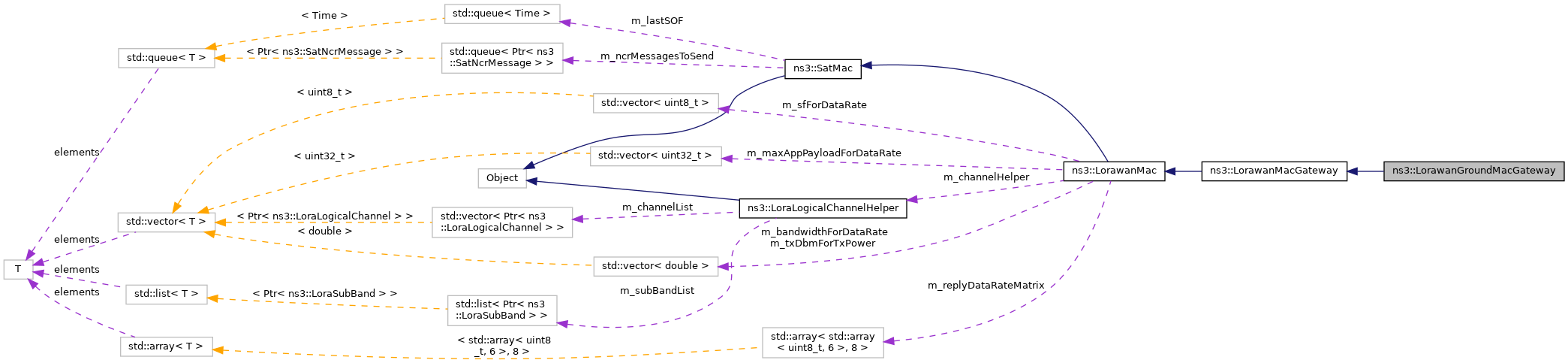

Collaboration diagram for ns3::LorawanGroundMacGateway:

Public Member Functions
	LorawanGroundMacGateway ()

	LorawanGroundMacGateway (uint32_t satId, uint32_t beamId)

virtual	~LorawanGroundMacGateway ()

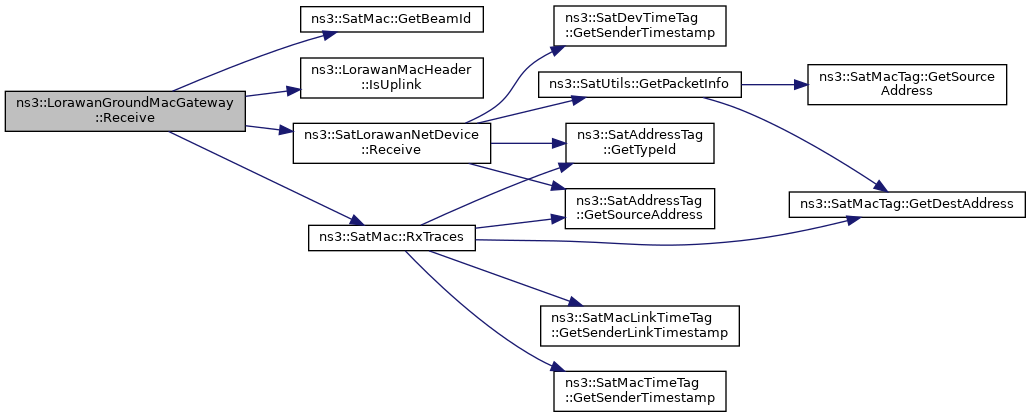

virtual void	Receive (SatPhy::PacketContainer_t packets, Ptr< SatSignalParameters >)
	Receive a packet from the lower layer. More...

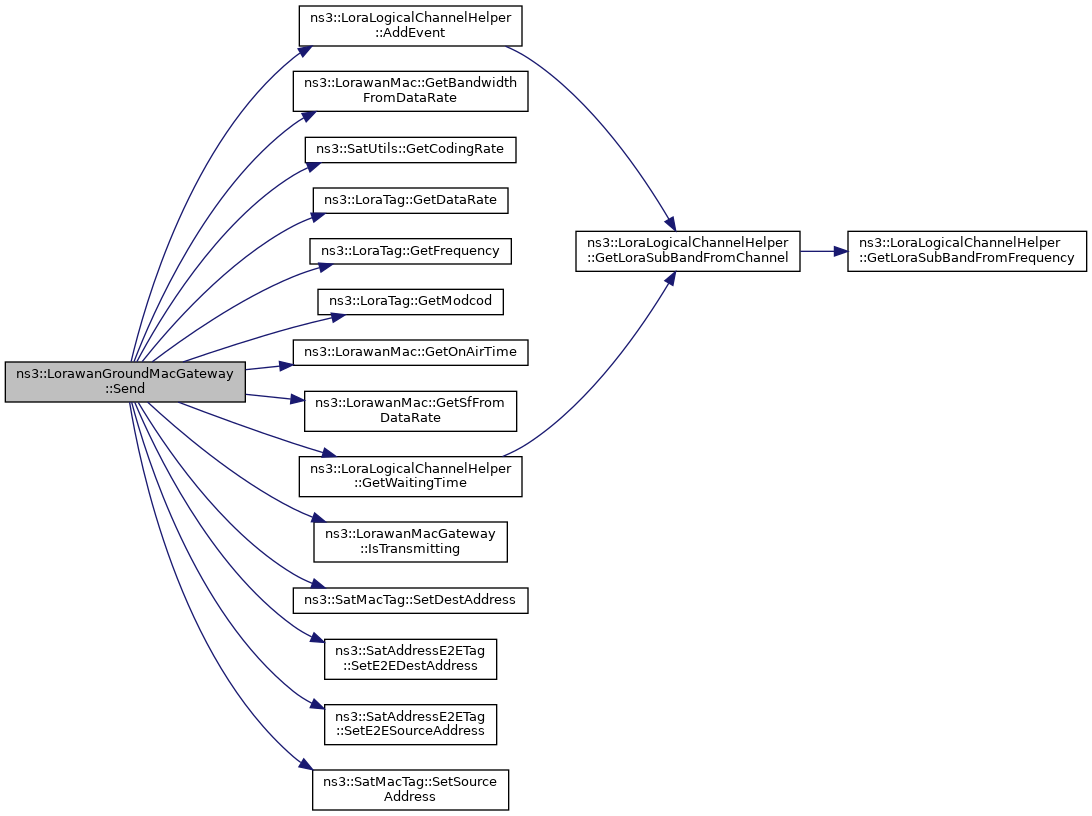

virtual void	Send (Ptr< Packet > packet)
	Send a packet. More...

Public Member Functions inherited from ns3::LorawanMacGateway
	LorawanMacGateway ()

	LorawanMacGateway (uint32_t satId, uint32_t beamId)

virtual	~LorawanMacGateway ()

virtual void	FailedReception (Ptr< const Packet > packet)
	Function called by lower layers to inform this layer that reception of a packet we were locked on failed. More...

Time	GetWaitingTime (double frequency)
	Return the next time at which we will be able to transmit. More...

bool	IsTransmitting (void)

virtual void	TxFinished ()
	Perform actions after sending a packet. More...

Public Member Functions inherited from ns3::LorawanMac
	LorawanMac ()

	LorawanMac (uint32_t satId, uint32_t beamId)

virtual	~LorawanMac ()

double	GetBandwidthFromDataRate (uint8_t dataRate)
	Get the BW corresponding to a data rate, based on this MAC's region. More...

double	GetDbmForTxPower (uint8_t txPower)
	Get the transmission power in dBm that corresponds, in this region, to the encoded 8-bit txPower. More...

Ptr< NetDevice >	GetDevice (void)
	Get the device this MAC layer is installed on. More...

LoraLogicalChannelHelper	GetLoraLogicalChannelHelper (void)
	Get the logical lora channel helper associated with this MAC. More...

int	GetNPreambleSymbols (void)
	Get the number of PHY preamble symbols this MAC is set to use. More...

Time	GetOnAirTime (Ptr< Packet > packet, LoraTxParameters txParams)
	Compute the time that a packet with certain characteristics will take to be transmitted. More...

Ptr< SatPhy >	GetPhy (void)
	Get the underlying PHY layer. More...

Ptr< SatLoraPhyTx >	GetPhyTx (void)
	Get the underlying PHY TX layer. More...

uint8_t	GetSfFromDataRate (uint8_t dataRate)
	Get the SF corresponding to a data rate, based on this MAC's region. More...

virtual void	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)
	Send a packet. More...

void	SetBandwidthForDataRate (std::vector< double > bandwidthForDataRate)
	Set the vector to use to check up correspondence between bandwidth and DataRate. More...

void	SetDevice (Ptr< NetDevice > device)
	Set the device this MAC layer is installed on. More...

void	SetLoraLogicalChannelHelper (LoraLogicalChannelHelper helper)
	Set the LoraLogicalChannelHelper this MAC instance will use. More...

void	SetMaxAppPayloadForDataRate (std::vector< uint32_t > maxAppPayloadForDataRate)
	Set the maximum App layer payload for a set DataRate. More...

void	SetNPreambleSymbols (int nPreambleSymbols)
	Set the number of PHY preamble symbols this MAC is set to use. More...

void	SetPhy (Ptr< SatPhy > phy)
	Set the underlying PHY layer. More...

void	SetPhyTx (Ptr< SatLoraPhyTx > phyTx)
	Set the underlying PHY TX layer. More...

void	setRegenerative (bool isRegenerative)
	Indicates if the satellite is regenerative on the link this layer is sending packets. More...

void	SetReplyDataRateMatrix (ReplyDataRateMatrix replyDataRateMatrix)
	Set the matrix to use when deciding with which DataRate to respond. More...

void	SetSfForDataRate (std::vector< uint8_t > sfForDataRate)
	Set the vector to use to check up correspondence between SF and DataRate. More...

void	SetTxDbmForTxPower (std::vector< double > txDbmForTxPower)
	Set the vector to use to check up which transmission power in Dbm corresponds to a certain TxPower value in this MAC's region. More...

Public Member Functions inherited from ns3::SatMac
	SatMac ()
	Construct a SatMac. More...

	SatMac (uint32_t satId, uint32_t beamId)
	Construct a SatMac. More...

	~SatMac ()
	Destroy a SatMac. More...

virtual void	Disable ()
	Disable the MAC layer, i.e. More...

virtual void	Enable ()
	Enable the MAC layer, i.e. More...

Address	GetAddress () const
	Get MAC address. More...

uint32_t	GetBeamId () const
	Get beam ID of the object. More...

uint32_t	GetSatId () const
	Get sat ID of the object. More...

virtual void	ReceiveQueueEvent (SatQueue::QueueEvent_t event, uint8_t flowIndex)
	Receive a queue event: More...

uint32_t	ReserveIdAndStoreCtrlMsgToContainer (Ptr< SatControlMessage > msg)
	Reserve id and store the control message. More...

uint32_t	SendCtrlMsgFromContainer (uint32_t sendId)
	Send the control message from the container. More...

void	SetBeamId (uint32_t beamId)
	Set beam ID of the object. More...

void	SetBeamSchedulerCallback (SatMac::BeamSchedulerCallback cb)
	Set the beam scheduler callback. More...

void	SetHandoverModule (Ptr< SatHandoverModule > handoverModule)
	Set the handover module. More...

void	SetLoraReceiveCallback (SatMac::LoraReceiveCallback cb)
	Method to set receive callback. More...

virtual void	SetNodeInfo (Ptr< SatNodeInfo > nodeInfo)
	Set the node info. More...

void	SetReadCtrlCallback (SatMac::ReadCtrlMsgCallback cb)
	Method to set read control message callback. More...

void	SetReceiveCallback (SatMac::ReceiveCallback cb)
	Method to set receive callback. More...

void	SetReserveCtrlCallback (SatMac::ReserveCtrlMsgCallback cb)
	Method to set reserve control message id callback. More...

void	SetRoutingUpdateCallback (SatMac::RoutingUpdateCallback cb)
	Method to set the routing update callback. More...

virtual void	SetSatelliteAddress (Address satelliteAddress)
	Set the satellite MAC address on the other side of this link (if regenerative satellite). More...

void	SetSatId (uint32_t satId)
	Set sat ID of the object. More...

void	SetSendCtrlCallback (SatMac::SendCtrlMsgCallback cb)
	Method to set send control message callback. More...

void	SetTransmitCallback (SatMac::TransmitCallback cb)
	Method to set transmit callback. More...

void	SetUpdateIslCallback (SatMac::UpdateIslCallback cb)
	Method to set update ISL callback. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::LorawanMacGateway
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::LorawanMac
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SatMac
static TypeId	GetTypeId (void)
	Derived from Object. More...

Additional Inherited Members
Public Types inherited from ns3::LorawanMac
typedef std::array< std::array< uint8_t, 6 >, 8 >	ReplyDataRateMatrix

Public Types inherited from ns3::SatMac
typedef Callback< Ptr< SatBeamScheduler >, uint32_t, uint32_t >	BeamSchedulerCallback
	Callback to get the SatBeamScheduler from the beam ID for handover. More...

typedef Callback< void, Ptr< const Packet > >	LoraReceiveCallback
	Callback to receive packet by upper layer. More...

typedef Callback< Ptr< SatControlMessage >, uint32_t >	ReadCtrlMsgCallback
	Callback to read control messages from container storing control messages. More...

typedef Callback< void, Ptr< Packet >, Mac48Address, Mac48Address >	ReceiveCallback
	Callback to receive packet by upper layer. More...

typedef Callback< uint32_t, Ptr< SatControlMessage > >	ReserveCtrlMsgCallback
	Callback to reserve an id and initially store the control message. More...

typedef Callback< void, Address, Address >	RoutingUpdateCallback
	Callback to update routing and ARP tables after handover. More...

typedef Callback< uint32_t, uint32_t >	SendCtrlMsgCallback
	Callback to send a control message and allocate a recv ID for it. More...

typedef Callback< void, SatPhy::PacketContainer_t, uint32_t, Time, SatSignalParameters::txInfo_s >	TransmitCallback
	Callback to send packet to lower layer. More...

typedef Callback< void >	UpdateIslCallback
	Callback to update ISL routes when handovers are performed. More...

Protected Member Functions inherited from ns3::SatMac
void	DoDispose (void)
	Dispose of SatMac. More...

void	RxTraces (SatPhy::PacketContainer_t packets)
	Invoke the `Rx` trace source for each received packet. More...

virtual void	SendPacket (SatPhy::PacketContainer_t packets, uint32_t carrierId, Time duration, SatSignalParameters::txInfo_s txInfo)
	Send packets to lower layer by using a callback. More...

void	SetTimeTag (SatPhy::PacketContainer_t packets)
	Set SatMacTimeTag of packets. More...

Protected Attributes inherited from ns3::LorawanMac
std::vector< double >	m_bandwidthForDataRate
	A vector holding the bandwidth each Data Rate corresponds to. More...

uint32_t	m_beamId
	ID of beam for UT. More...

TracedCallback< Ptr< const Packet > >	m_cannotSendBecauseDutyCycle
	The trace source that is fired when a packet cannot be sent because of duty cycle limitations. More...

LoraLogicalChannelHelper	m_channelHelper
	The LoraLogicalChannelHelper instance that is assigned to this MAC. More...

Ptr< NetDevice >	m_device
	The device this MAC layer is installed on. More...

bool	m_isRegenerative
	Indicates if satellite is regenerative on the link where this layer is sending packets. More...

std::vector< uint32_t >	m_maxAppPayloadForDataRate
	A vector holding the maximum app payload size that corresponds to a certain DataRate. More...

int	m_nPreambleSymbols
	The number of symbols to use in the PHY preamble. More...

Ptr< SatPhy >	m_phy
	The PHY instance that sits under this MAC layer. More...

TracedCallback< Ptr< const Packet > >	m_receivedPacket
	Trace source that is fired when a packet reaches the MAC layer. More...

ReplyDataRateMatrix	m_replyDataRateMatrix
	The matrix that decides the DR the GW will use in a reply based on the ED's sending DR and on the value of the RX1DROffset parameter. More...

TracedCallback< Ptr< const Packet > >	m_sentNewPacket
	Trace source that is fired when a new APP layer packet arrives at the MAC layer. More...

std::vector< uint8_t >	m_sfForDataRate
	A vector holding the SF each Data Rate corresponds to. More...

std::vector< double >	m_txDbmForTxPower
	A vector holding the power that corresponds to a certain TxPower value. More...

Protected Attributes inherited from ns3::SatMac
Time	m_beamEnabledTime
	Time of the last beam enable event. More...

uint32_t	m_beamId
	The ID of the beam where mac belongs. More...

SatMac::BeamSchedulerCallback	m_beamSchedulerCallback
	Callback to get the SatBeamScheduler linked to a beam ID. More...

TracedCallback< Time >	m_beamServiceTrace
	Traced callback for beam being disabled and including service time. More...

SatEnums::RegenerationMode_t	m_forwardLinkRegenerationMode
	Regeneration mode on forward link. More...

Ptr< SatHandoverModule >	m_handoverModule
	Module used to perform handovers. More...

bool	m_isRegenerative
	Indicate if satellite is regeneration (at least LINK level) for TX. More...

bool	m_isStatisticsTagsEnabled
	`EnableStatisticsTags` attribute. More...

Time	m_lastDelay
	Last delay measurement. More...

Time	m_lastLinkDelay
	Last delay measurement for link. More...

std::queue< Time >	m_lastSOF
	Store last 3 SOF date for Forward messages, to insert in NCR packets. More...

std::queue< Ptr< SatNcrMessage > >	m_ncrMessagesToSend
	List of NCR control messages created but not sent yet. More...

bool	m_ncrV2
	Use of version 2 of NCR dates. More...

Ptr< SatNodeInfo >	m_nodeInfo
	Node info containing node related information, such as node type, node id and MAC address (of the SatNetDevice) More...

TracedCallback< Time, SatEnums::SatPacketEvent_t, SatEnums::SatNodeType_t, uint32_t, Mac48Address, SatEnums::SatLogLevel_t, SatEnums::SatLinkDir_t, std::string >	m_packetTrace
	Trace callback used for packet tracing. More...

SatMac::ReadCtrlMsgCallback	m_readCtrlCallback
	The read control message callback. More...

SatMac::ReserveCtrlMsgCallback	m_reserveCtrlCallback
	The reserve control message id callback. More...

SatEnums::RegenerationMode_t	m_returnLinkRegenerationMode
	Regeneration mode on return link. More...

SatMac::RoutingUpdateCallback	m_routingUpdateCallback
	Callback to update routing and ARP tables after a beam handover. More...

SatMac::ReceiveCallback	m_rxCallback
	The upper layer package receive callback. More...

TracedCallback< const Time &, const Address & >	m_rxDelayTrace
	Traced callback for all received packets, including delay information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxJitterTrace
	Traced callback for all received packets, including jitter information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxLinkDelayTrace
	Traced callback for all received packets, including link delay information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxLinkJitterTrace
	Traced callback for all received packets, including link jitter information and the address of the senders. More...

SatMac::LoraReceiveCallback	m_rxLoraCallback
	The upper layer package receive callback. More...

TracedCallback< Ptr< const Packet >, const Address & >	m_rxTrace
	Traced callback for all received packets, including the address of the senders. More...

Address	m_satelliteAddress
	MAC address of satellite on other side of the link. More...

uint32_t	m_satId
	The ID of the sat where mac belongs. More...

SatMac::SendCtrlMsgCallback	m_sendCtrlCallback
	The send control message callback. More...

SatMac::TransmitCallback	m_txCallback
	The lower layer packet transmit callback. More...

bool	m_txEnabled
	Flag indicating whether the MAC is enabled, i.e. More...

SatMac::UpdateIslCallback	m_updateIslCallback
	The update ISL routes callback. More...
