The SatOrbiterFeederMac models the user link MAC layer of the satellite node. More...

#include "satellite-orbiter-feeder-mac.h"

Inheritance diagram for ns3::SatOrbiterFeederMac:

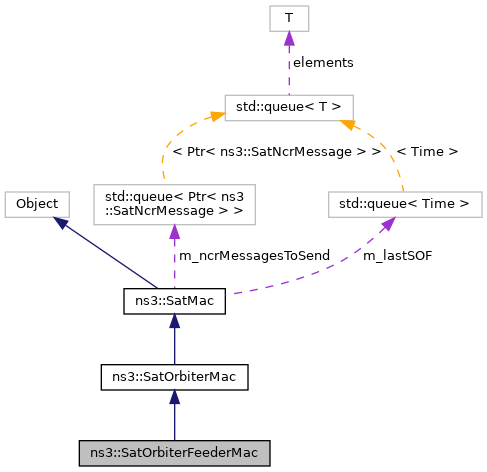

Collaboration diagram for ns3::SatOrbiterFeederMac:

Public Member Functions
	SatOrbiterFeederMac (uint32_t satId, uint32_t beamId)
	Construct a SatOrbiterFeederMac. More...

	SatOrbiterFeederMac (void)
	Default constructor. More...

virtual	~SatOrbiterFeederMac ()
	Destructor for SatOrbiterFeederMac. More...

virtual bool	AddPeer (Mac48Address address)
	Add a remote peer to this MAC. More...

virtual void	DoDispose (void)
	Dispose of this class instance. More...

virtual void	DoInitialize (void)

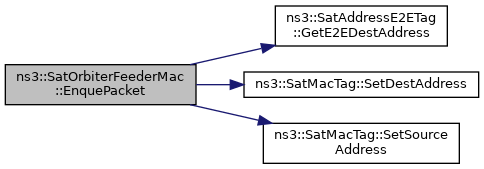

virtual void	EnquePacket (Ptr< Packet > packet)
	Add new packet to the LLC queue. More...

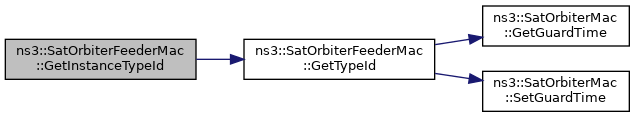

TypeId	GetInstanceTypeId (void) const

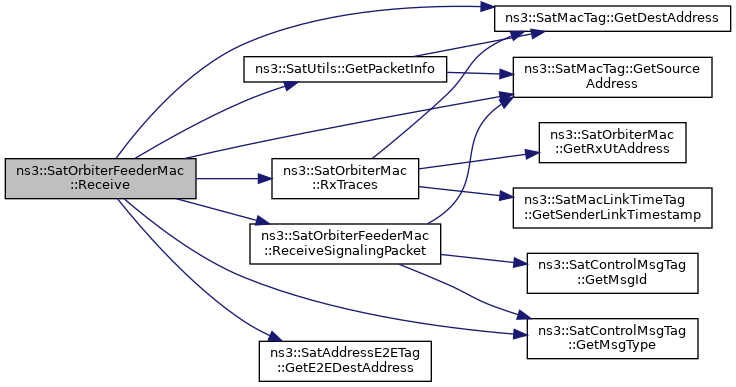

void	Receive (SatPhy::PacketContainer_t packets, Ptr< SatSignalParameters > rxParams)
	Receive packet from lower layer. More...

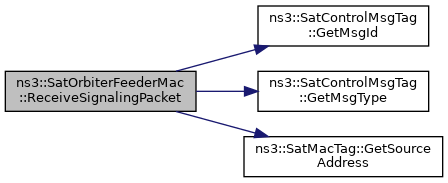

void	ReceiveSignalingPacket (Ptr< Packet > packet)

virtual bool	RemovePeer (Mac48Address address)
	Remove a remote peer from this MAC. More...

Public Member Functions inherited from ns3::SatOrbiterMac
	SatOrbiterMac (uint32_t satId, uint32_t beamId)
	Construct a SatOrbiterMac. More...

	SatOrbiterMac (void)
	Default constructor. More...

virtual	~SatOrbiterMac ()
	Destructor for SatOrbiterMac. More...

virtual Time	GetGuardTime () const

TypeId	GetInstanceTypeId (void) const

void	SetBeamSchedulerCallback (SatOrbiterMac::BeamSchedulerCallback cb)
	Set the beam scheduler callback. More...

void	SetFwdScheduler (Ptr< SatFwdLinkScheduler > fwdScheduler)
	Method to set link scheduler (forward or SCPC) More...

virtual void	SetGuardTime (Time guardTime)

void	SetLlc (Ptr< SatOrbiterLlc > llc)
	Set the orbiter LLC associated to this orbiter MAC layer. More...

void	SetReceiveNetDeviceCallback (SatOrbiterMac::ReceiveNetDeviceCallback cb)

void	SetTransmitCallback (SatOrbiterMac::TransmitCallback cb)

void	StartPeriodicTransmissions ()
	Starts periodical transmissions. More...

virtual void	StopPeriodicTransmissions ()
	Stop periodic transmission, until a pacquet in enqued. More...

Public Member Functions inherited from ns3::SatMac
	SatMac ()
	Construct a SatMac. More...

	SatMac (uint32_t satId, uint32_t beamId)
	Construct a SatMac. More...

	~SatMac ()
	Destroy a SatMac. More...

virtual void	Disable ()
	Disable the MAC layer, i.e. More...

virtual void	Enable ()
	Enable the MAC layer, i.e. More...

Address	GetAddress () const
	Get MAC address. More...

uint32_t	GetBeamId () const
	Get beam ID of the object. More...

uint32_t	GetSatId () const
	Get sat ID of the object. More...

virtual void	ReceiveQueueEvent (SatQueue::QueueEvent_t event, uint8_t flowIndex)
	Receive a queue event: More...

uint32_t	ReserveIdAndStoreCtrlMsgToContainer (Ptr< SatControlMessage > msg)
	Reserve id and store the control message. More...

uint32_t	SendCtrlMsgFromContainer (uint32_t sendId)
	Send the control message from the container. More...

void	SetBeamId (uint32_t beamId)
	Set beam ID of the object. More...

void	SetBeamSchedulerCallback (SatMac::BeamSchedulerCallback cb)
	Set the beam scheduler callback. More...

void	SetHandoverModule (Ptr< SatHandoverModule > handoverModule)
	Set the handover module. More...

void	SetLoraReceiveCallback (SatMac::LoraReceiveCallback cb)
	Method to set receive callback. More...

virtual void	SetNodeInfo (Ptr< SatNodeInfo > nodeInfo)
	Set the node info. More...

void	SetReadCtrlCallback (SatMac::ReadCtrlMsgCallback cb)
	Method to set read control message callback. More...

void	SetReceiveCallback (SatMac::ReceiveCallback cb)
	Method to set receive callback. More...

void	SetReserveCtrlCallback (SatMac::ReserveCtrlMsgCallback cb)
	Method to set reserve control message id callback. More...

void	SetRoutingUpdateCallback (SatMac::RoutingUpdateCallback cb)
	Method to set the routing update callback. More...

virtual void	SetSatelliteAddress (Address satelliteAddress)
	Set the satellite MAC address on the other side of this link (if regenerative satellite). More...

void	SetSatId (uint32_t satId)
	Set sat ID of the object. More...

void	SetSendCtrlCallback (SatMac::SendCtrlMsgCallback cb)
	Method to set send control message callback. More...

void	SetTransmitCallback (SatMac::TransmitCallback cb)
	Method to set transmit callback. More...

void	SetUpdateIslCallback (SatMac::UpdateIslCallback cb)
	Method to set update ISL callback. More...

Static Public Member Functions

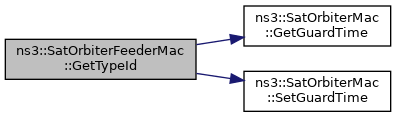

static TypeId	GetTypeId (void)
	inherited from Object More...

Static Public Member Functions inherited from ns3::SatOrbiterMac
static TypeId	GetTypeId (void)
	inherited from Object More...

Static Public Member Functions inherited from ns3::SatMac
static TypeId	GetTypeId (void)
	Derived from Object. More...

Private Member Functions
virtual Address	GetRxUtAddress (Ptr< Packet > packet)
	Get the UT address associated to this RX packet. More...

virtual SatEnums::SatLinkDir_t	GetSatLinkRxDir ()
	Get the link RX direction. More...

virtual SatEnums::SatLinkDir_t	GetSatLinkTxDir ()
	Get the link TX direction. More...

virtual bool	HasPeer ()
	Indicates if at least one device is connected in this beam. More...

Additional Inherited Members
Public Types inherited from ns3::SatOrbiterMac
typedef Callback< Ptr< SatBeamScheduler >, uint32_t, uint32_t >	BeamSchedulerCallback
	Callback to get the SatBeamScheduler from the beam ID for handover. More...

typedef Callback< void, SatPhy::PacketContainer_t, Ptr< SatSignalParameters > >	ReceiveNetDeviceCallback

typedef Callback< void, Ptr< SatSignalParameters > >	TransmitCallback

Public Types inherited from ns3::SatMac
typedef Callback< Ptr< SatBeamScheduler >, uint32_t, uint32_t >	BeamSchedulerCallback
	Callback to get the SatBeamScheduler from the beam ID for handover. More...

typedef Callback< void, Ptr< const Packet > >	LoraReceiveCallback
	Callback to receive packet by upper layer. More...

typedef Callback< Ptr< SatControlMessage >, uint32_t >	ReadCtrlMsgCallback
	Callback to read control messages from container storing control messages. More...

typedef Callback< void, Ptr< Packet >, Mac48Address, Mac48Address >	ReceiveCallback
	Callback to receive packet by upper layer. More...

typedef Callback< uint32_t, Ptr< SatControlMessage > >	ReserveCtrlMsgCallback
	Callback to reserve an id and initially store the control message. More...

typedef Callback< void, Address, Address >	RoutingUpdateCallback
	Callback to update routing and ARP tables after handover. More...

typedef Callback< uint32_t, uint32_t >	SendCtrlMsgCallback
	Callback to send a control message and allocate a recv ID for it. More...

typedef Callback< void, SatPhy::PacketContainer_t, uint32_t, Time, SatSignalParameters::txInfo_s >	TransmitCallback
	Callback to send packet to lower layer. More...

typedef Callback< void >	UpdateIslCallback
	Callback to update ISL routes when handovers are performed. More...

Protected Member Functions inherited from ns3::SatOrbiterMac
virtual void	RxTraces (SatPhy::PacketContainer_t packets)
	Invoke the `Rx` trace source for each received packet. More...

virtual void	SendPacket (SatPhy::PacketContainer_t packets, uint32_t carrierId, Time duration, SatSignalParameters::txInfo_s txInfo)
	Send packets to lower layer by using a callback. More...

void	StartTransmission (uint32_t carrierId)
	Start sending a Packet Down the Wire. More...

Protected Member Functions inherited from ns3::SatMac
void	DoDispose (void)
	Dispose of SatMac. More...

void	RxTraces (SatPhy::PacketContainer_t packets)
	Invoke the `Rx` trace source for each received packet. More...

void	SetTimeTag (SatPhy::PacketContainer_t packets)
	Set SatMacTimeTag of packets. More...

Protected Attributes inherited from ns3::SatOrbiterMac
TracedCallback< Ptr< SatBbFrame > >	m_bbFrameTxTrace
	Trace for transmitted BB frames. More...

uint32_t	m_beamId
	ID of beam for UT. More...

bool	m_disableSchedulingIfNoDeviceConnected
	If true, the periodic calls of StartTransmission are not called when no devices are connected to this MAC. More...

Ptr< SatFwdLinkScheduler >	m_fwdScheduler
	Scheduler for the forward link. More...

Time	m_guardTime
	Guard time for BB frames. More...

Ptr< SatOrbiterLlc >	m_llc
	LLC layer linked to this MAC. More...

bool	m_periodicTransmissionEnabled
	Indicated if periodic transmission is enabled. More...

ReceiveNetDeviceCallback	m_rxNetDeviceCallback

uint32_t	m_satId
	ID of sat for UT. More...

TransmitCallback	m_txCallback

Protected Attributes inherited from ns3::SatMac
Time	m_beamEnabledTime
	Time of the last beam enable event. More...

uint32_t	m_beamId
	The ID of the beam where mac belongs. More...

SatMac::BeamSchedulerCallback	m_beamSchedulerCallback
	Callback to get the SatBeamScheduler linked to a beam ID. More...

TracedCallback< Time >	m_beamServiceTrace
	Traced callback for beam being disabled and including service time. More...

SatEnums::RegenerationMode_t	m_forwardLinkRegenerationMode
	Regeneration mode on forward link. More...

Ptr< SatHandoverModule >	m_handoverModule
	Module used to perform handovers. More...

bool	m_isRegenerative
	Indicate if satellite is regeneration (at least LINK level) for TX. More...

bool	m_isStatisticsTagsEnabled
	`EnableStatisticsTags` attribute. More...

Time	m_lastDelay
	Last delay measurement. More...

Time	m_lastLinkDelay
	Last delay measurement for link. More...

std::queue< Time >	m_lastSOF
	Store last 3 SOF date for Forward messages, to insert in NCR packets. More...

std::queue< Ptr< SatNcrMessage > >	m_ncrMessagesToSend
	List of NCR control messages created but not sent yet. More...

bool	m_ncrV2
	Use of version 2 of NCR dates. More...

Ptr< SatNodeInfo >	m_nodeInfo
	Node info containing node related information, such as node type, node id and MAC address (of the SatNetDevice) More...

TracedCallback< Time, SatEnums::SatPacketEvent_t, SatEnums::SatNodeType_t, uint32_t, Mac48Address, SatEnums::SatLogLevel_t, SatEnums::SatLinkDir_t, std::string >	m_packetTrace
	Trace callback used for packet tracing. More...

SatMac::ReadCtrlMsgCallback	m_readCtrlCallback
	The read control message callback. More...

SatMac::ReserveCtrlMsgCallback	m_reserveCtrlCallback
	The reserve control message id callback. More...

SatEnums::RegenerationMode_t	m_returnLinkRegenerationMode
	Regeneration mode on return link. More...

SatMac::RoutingUpdateCallback	m_routingUpdateCallback
	Callback to update routing and ARP tables after a beam handover. More...

SatMac::ReceiveCallback	m_rxCallback
	The upper layer package receive callback. More...

TracedCallback< const Time &, const Address & >	m_rxDelayTrace
	Traced callback for all received packets, including delay information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxJitterTrace
	Traced callback for all received packets, including jitter information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxLinkDelayTrace
	Traced callback for all received packets, including link delay information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxLinkJitterTrace
	Traced callback for all received packets, including link jitter information and the address of the senders. More...

SatMac::LoraReceiveCallback	m_rxLoraCallback
	The upper layer package receive callback. More...

TracedCallback< Ptr< const Packet >, const Address & >	m_rxTrace
	Traced callback for all received packets, including the address of the senders. More...

Address	m_satelliteAddress
	MAC address of satellite on other side of the link. More...

uint32_t	m_satId
	The ID of the sat where mac belongs. More...

SatMac::SendCtrlMsgCallback	m_sendCtrlCallback
	The send control message callback. More...

SatMac::TransmitCallback	m_txCallback
	The lower layer packet transmit callback. More...

bool	m_txEnabled
	Flag indicating whether the MAC is enabled, i.e. More...

SatMac::UpdateIslCallback	m_updateIslCallback
	The update ISL routes callback. More...

Detailed Description

The SatOrbiterFeederMac models the user link MAC layer of the satellite node.

Definition at line 48 of file satellite-orbiter-feeder-mac.h.

Constructor & Destructor Documentation

◆ SatOrbiterFeederMac() [1/2]

ns3::SatOrbiterFeederMac::SatOrbiterFeederMac ( void )

Default constructor.

Definition at line 66 of file satellite-orbiter-feeder-mac.cc.

◆ SatOrbiterFeederMac() [2/2]

ns3::SatOrbiterFeederMac::SatOrbiterFeederMac	(	uint32_t	satId,
		uint32_t	beamId
	)

Construct a SatOrbiterFeederMac.

This is the constructor for the SatOrbiterFeederMac

Parameters

satId	ID of sat for UT
beamid	ID of beam for UT

Definition at line 72 of file satellite-orbiter-feeder-mac.cc.

◆ ~SatOrbiterFeederMac()

ns3::SatOrbiterFeederMac::~SatOrbiterFeederMac ( )

virtual

Destructor for SatOrbiterFeederMac.

Definition at line 78 of file satellite-orbiter-feeder-mac.cc.

Member Function Documentation

◆ AddPeer()

bool ns3::SatOrbiterFeederMac::AddPeer ( Mac48Address address )

virtual

Add a remote peer to this MAC.

Parameters

address The MAC address of the peer

Returns: True if the peer has been added, false otherwise

Implements ns3::SatOrbiterMac.

Definition at line 316 of file satellite-orbiter-feeder-mac.cc.

◆ DoDispose()

void ns3::SatOrbiterFeederMac::DoDispose ( void )

virtual

Dispose of this class instance.

Reimplemented from ns3::SatOrbiterMac.

Definition at line 84 of file satellite-orbiter-feeder-mac.cc.

◆ DoInitialize()

void ns3::SatOrbiterFeederMac::DoInitialize ( void )

virtual

Reimplemented from ns3::SatOrbiterMac.

Definition at line 91 of file satellite-orbiter-feeder-mac.cc.

◆ EnquePacket()

void ns3::SatOrbiterFeederMac::EnquePacket ( Ptr< Packet > packet )

virtual

Add new packet to the LLC queue.

Parameters

packet Packets to be sent.

Implements ns3::SatOrbiterMac.

Definition at line 98 of file satellite-orbiter-feeder-mac.cc.

References ns3::SatAddressE2ETag::GetE2EDestAddress(), ns3::SatOrbiterMac::m_llc, ns3::SatMac::m_nodeInfo, ns3::SatOrbiterMac::m_periodicTransmissionEnabled, ns3::SatMac::m_returnLinkRegenerationMode, ns3::SatEnums::REGENERATION_NETWORK, ns3::SatMacTag::SetDestAddress(), and ns3::SatMacTag::SetSourceAddress().

Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SatOrbiterFeederMac::GetInstanceTypeId ( void ) const

Definition at line 59 of file satellite-orbiter-feeder-mac.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetRxUtAddress()

Address ns3::SatOrbiterFeederMac::GetRxUtAddress ( Ptr< Packet > packet )

privatevirtual

Get the UT address associated to this RX packet.

In this class, this is the destination address

Parameters

packet The packet to consider

Returns: The address of associated UT

Implements ns3::SatOrbiterMac.

Definition at line 299 of file satellite-orbiter-feeder-mac.cc.

References ns3::SatAddressE2ETag::GetE2EDestAddress().

Here is the call graph for this function:

◆ GetSatLinkRxDir()

SatEnums::SatLinkDir_t ns3::SatOrbiterFeederMac::GetSatLinkRxDir ( )

privatevirtual

Get the link RX direction.

Must be implemented by child clases.

Returns: The link RX direction

Implements ns3::SatOrbiterMac.

Definition at line 293 of file satellite-orbiter-feeder-mac.cc.

References ns3::SatEnums::LD_FORWARD.

◆ GetSatLinkTxDir()

SatEnums::SatLinkDir_t ns3::SatOrbiterFeederMac::GetSatLinkTxDir ( )

privatevirtual

Get the link TX direction.

Must be implemented by child clases.

Returns: The link TX direction

Implements ns3::SatOrbiterMac.

Definition at line 287 of file satellite-orbiter-feeder-mac.cc.

References ns3::SatEnums::LD_RETURN.

◆ GetTypeId()

TypeId ns3::SatOrbiterFeederMac::GetTypeId ( void )

static

inherited from Object

Definition at line 44 of file satellite-orbiter-feeder-mac.cc.

References ns3::SatOrbiterMac::GetGuardTime(), and ns3::SatOrbiterMac::SetGuardTime().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HasPeer()

bool ns3::SatOrbiterFeederMac::HasPeer ( )

privatevirtual

Indicates if at least one device is connected in this beam.

Returns: True if at least a device is connected, false otherwise

Implements ns3::SatOrbiterMac.

Definition at line 332 of file satellite-orbiter-feeder-mac.cc.

◆ Receive()

void ns3::SatOrbiterFeederMac::Receive	(	SatPhy::PacketContainer_t	packets,
		Ptr< SatSignalParameters >	rxParams
	)

Receive packet from lower layer.

Parameters

packets Pointers to packets received.

Definition at line 138 of file satellite-orbiter-feeder-mac.cc.

References ns3::SatMacTag::GetDestAddress(), ns3::SatAddressE2ETag::GetE2EDestAddress(), ns3::SatControlMsgTag::GetMsgType(), ns3::SatUtils::GetPacketInfo(), ns3::SatMacTag::GetSourceAddress(), ns3::SatEnums::LD_FORWARD, ns3::SatEnums::LL_MAC, ns3::SatMac::m_forwardLinkRegenerationMode, ns3::SatMac::m_nodeInfo, ns3::SatMac::m_packetTrace, ns3::SatMac::m_rxCallback, ns3::SatOrbiterMac::m_rxNetDeviceCallback, ns3::SatEnums::PACKET_RECV, ReceiveSignalingPacket(), ns3::SatEnums::REGENERATION_LINK, ns3::SatEnums::REGENERATION_NETWORK, ns3::SatOrbiterMac::RxTraces(), and ns3::SatControlMsgTag::SAT_NON_CTRL_MSG.

Referenced by ns3::SatOrbiterHelper::AttachChannelsFeeder().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReceiveSignalingPacket()

void ns3::SatOrbiterFeederMac::ReceiveSignalingPacket ( Ptr< Packet > packet )

Definition at line 239 of file satellite-orbiter-feeder-mac.cc.

References ns3::SatControlMsgTag::GetMsgId(), ns3::SatControlMsgTag::GetMsgType(), ns3::SatMacTag::GetSourceAddress(), ns3::SatOrbiterMac::m_fwdScheduler, ns3::SatMac::m_readCtrlCallback, and ns3::SatControlMsgTag::SAT_CN0_REPORT.

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RemovePeer()

bool ns3::SatOrbiterFeederMac::RemovePeer ( Mac48Address address )

virtual

Remove a remote peer from this MAC.

Parameters

address The MAC address of the peer

Returns: True if the peer has been removed, false otherwise

Implements ns3::SatOrbiterMac.

Definition at line 324 of file satellite-orbiter-feeder-mac.cc.

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-orbiter-feeder-mac.h
/builds/sns3/satellite/satellite/model/satellite-orbiter-feeder-mac.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SatOrbiterFeederMac() [1/2]

◆ SatOrbiterFeederMac() [2/2]

◆ ~SatOrbiterFeederMac()

Member Function Documentation

◆ AddPeer()

◆ DoDispose()

◆ DoInitialize()

◆ EnquePacket()

◆ GetInstanceTypeId()

◆ GetRxUtAddress()

◆ GetSatLinkRxDir()

◆ GetSatLinkTxDir()

◆ GetTypeId()

◆ HasPeer()

◆ Receive()

◆ ReceiveSignalingPacket()

◆ RemovePeer()
