SatGwLlc holds the GW implementation of LLC layer. More...

#include "satellite-gw-llc.h"

Inheritance diagram for ns3::SatGwLlc:

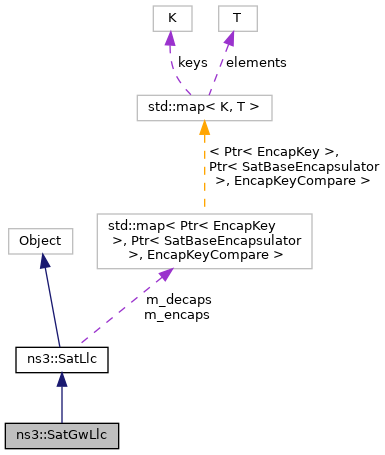

Collaboration diagram for ns3::SatGwLlc:

Public Member Functions
	SatGwLlc ()
	Construct a SatGwLlc, should not be used. More...

	SatGwLlc (SatEnums::RegenerationMode_t forwardLinkRegenerationMode, SatEnums::RegenerationMode_t returnLinkRegenerationMode)
	Construct a SatGwLlc. More...

virtual	~SatGwLlc ()
	Destroy a SatGwLlc. More...

virtual bool	Enque (Ptr< Packet > packet, Address dest, uint8_t flowId)
	Called from higher layer (SatNetDevice) to enque packet to LLC. More...

virtual uint32_t	GetNBytesInQueue (Mac48Address utAddress) const
	Get the number of (new) bytes at LLC queue for a certain UT. More...

virtual uint32_t	GetNPacketsInQueue (Mac48Address utAddress) const
	Get the number of (new) packets at LLC queues for a certain UT. More...

virtual void	GetSchedulingContexts (std::vector< Ptr< SatSchedulingObject >> &output) const
	Create and fill the scheduling objects based on LLC layer information. More...

virtual Ptr< Packet >	NotifyTxOpportunity (uint32_t bytes, Mac48Address utAddr, uint8_t flowId, uint32_t &bytesLeft, uint32_t &nextMinTxO)
	Called from lower layer (MAC) to inform a tx opportunity of certain amount of bytes. More...

Public Member Functions inherited from ns3::SatLlc
	SatLlc ()
	Construct a SatLlc, should not be used. More...

	SatLlc (SatEnums::RegenerationMode_t forwardLinkRegenerationMode, SatEnums::RegenerationMode_t returnLinkRegenerationMode)
	Construct a SatLlc. More...

virtual	~SatLlc ()
	Destroy a SatLlc. More...

void	AddDecap (Mac48Address source, Mac48Address dest, uint8_t flowId, Ptr< SatBaseEncapsulator > dec)
	Add an decapsulator entry for the LLC. More...

void	AddEncap (Mac48Address source, Mac48Address dest, uint8_t flowId, Ptr< SatBaseEncapsulator > enc)
	Add an encapsulator entry for the LLC. More...

virtual bool	BuffersEmpty () const
	Are buffers empty? More...

virtual bool	ControlBuffersEmpty () const
	Are buffers empty? More...

virtual uint32_t	GetNBytesInQueue () const
	Get the total number of (new) bytes in all encapsulators. More...

virtual uint32_t	GetNPacketsInQueue () const
	Get the total number of (new) packets in all encapsulators. More...

virtual void	Receive (Ptr< Packet > packet, Mac48Address source, Mac48Address dest)
	Receive user data packet from lower layer. More...

virtual void	ReceiveHigherLayerPdu (Ptr< Packet > packet, Mac48Address source, Mac48Address dest)
	Receive HL PDU from encapsulator/decapsulator entity. More...

void	SetAdditionalHeaderSize (uint32_t additionalHeaderSize)
	Set the additional header size. More...

void	SetCtrlMsgCallback (SatBaseEncapsulator::SendCtrlCallback cb)

virtual void	SetGwAddress (Mac48Address address)
	Set the GW address. More...

virtual void	SetNodeInfo (Ptr< SatNodeInfo > nodeInfo)
	Set the node info. More...

void	SetReadCtrlCallback (SatLlc::ReadCtrlMsgCallback cb)
	Method to set read control message callback. More...

void	SetReceiveCallback (SatLlc::ReceiveCallback cb)
	Set Receive callback to forward packet to upper layer. More...

virtual void	SetSatelliteAddress (Mac48Address address)
	Set the SAT address. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::SatLlc
static TypeId	GetTypeId (void)
	Derived from Object. More...

Protected Member Functions
virtual void	CreateDecap (Ptr< EncapKey > key)
	Virtual method to create a new decapsulator 'on-a-need-basis' dynamically. More...

virtual void	CreateEncap (Ptr< EncapKey > key)
	Virtual method to create a new encapsulator 'on-a-need-basis' dynamically. More...

void	DoDispose ()
	Dispose of this class instance. More...

virtual SatEnums::SatLinkDir_t	GetSatLinkRxDir ()
	Get the link RX direction. More...

virtual SatEnums::SatLinkDir_t	GetSatLinkTxDir ()
	Get the link TX direction. More...

Protected Member Functions inherited from ns3::SatLlc
virtual void	ReceiveAck (Ptr< SatArqAckMessage > ack, Mac48Address source, Mac48Address dest)
	Receive a control msg (ARQ ACK) from lower layer. More...

Additional Inherited Members
Public Types inherited from ns3::SatLlc
typedef std::map< Ptr< EncapKey >, Ptr< SatBaseEncapsulator >, EncapKeyCompare >	EncapContainer_t
	Key = Ptr<EncapKey> (source, dest, flowId) Value = Ptr<SatBaseEncapsulator> Compare class = EncapKeyCompare. More...

typedef Callback< Ptr< SatControlMessage >, uint32_t >	ReadCtrlMsgCallback
	Callback to read control messages from container storing control messages. More...

typedef Callback< void, Ptr< const Packet > >	ReceiveCallback
	Receive callback used for sending packet to netdevice layer. More...

Protected Attributes inherited from ns3::SatLlc
uint32_t	m_additionalHeaderSize
	Additional header size to add to encapsulation/decapsulation. More...

EncapContainer_t	m_decaps
	Map of decapsulator base pointers. More...

EncapContainer_t	m_encaps
	Map of encapsulator base pointers. More...

SatEnums::RegenerationMode_t	m_forwardLinkRegenerationMode
	Regeneration mode on forward link. More...

bool	m_fwdLinkArqEnabled
	Is FWD link ARQ enabled. More...

Mac48Address	m_gwAddress
	GW address. More...

Ptr< SatNodeInfo >	m_nodeInfo
	Node info containing node related information, such as node type, node id and MAC address (of the SatNetDevice) More...

TracedCallback< Time, SatEnums::SatPacketEvent_t, SatEnums::SatNodeType_t, uint32_t, Mac48Address, SatEnums::SatLogLevel_t, SatEnums::SatLinkDir_t, std::string >	m_packetTrace
	Trace callback used for packet tracing: More...

SatLlc::ReadCtrlMsgCallback	m_readCtrlCallback
	The read control message callback. More...

SatEnums::RegenerationMode_t	m_returnLinkRegenerationMode
	Regeneration mode on return link. More...

bool	m_rtnLinkArqEnabled
	Is RTN link ARQ enabled. More...

ReceiveCallback	m_rxCallback
	The upper layer package receive callback. More...

Mac48Address	m_satelliteAddress
	SAT address, used in case of network regeneration. More...

SatBaseEncapsulator::SendCtrlCallback	m_sendCtrlCallback
	Callback to send control messages. More...

Detailed Description

SatGwLlc holds the GW implementation of LLC layer.

SatGwLlc is inherited from SatLlc base class and implements the needed changes from the base class related to GW LLC packet transmissions and receptions.

Definition at line 37 of file satellite-gw-llc.h.

Constructor & Destructor Documentation

◆ SatGwLlc() [1/2]

ns3::SatGwLlc::SatGwLlc ( )

Construct a SatGwLlc, should not be used.

Definition at line 51 of file satellite-gw-llc.cc.

◆ SatGwLlc() [2/2]

ns3::SatGwLlc::SatGwLlc	(	SatEnums::RegenerationMode_t	forwardLinkRegenerationMode,
		SatEnums::RegenerationMode_t	returnLinkRegenerationMode
	)

Construct a SatGwLlc.

Parameters

forwardLinkRegenerationMode	Forward link regeneration model
returnLinkRegenerationMode	Return link regeneration model

Definition at line 57 of file satellite-gw-llc.cc.

◆ ~SatGwLlc()

ns3::SatGwLlc::~SatGwLlc ( )

virtual

Destroy a SatGwLlc.

This is the destructor for the SatGwLlc.

Definition at line 64 of file satellite-gw-llc.cc.

Member Function Documentation

◆ CreateDecap()

void ns3::SatGwLlc::CreateDecap ( Ptr< EncapKey > key )

protectedvirtual

Virtual method to create a new decapsulator 'on-a-need-basis' dynamically.

Parameters

key	Encapsulator key class

Implements ns3::SatLlc.

Definition at line 247 of file satellite-gw-llc.cc.

References ns3::SatLlc::m_additionalHeaderSize, ns3::SatLlc::m_decaps, ns3::SatLlc::m_rtnLinkArqEnabled, ns3::SatLlc::m_sendCtrlCallback, and ns3::SatLlc::ReceiveHigherLayerPdu().

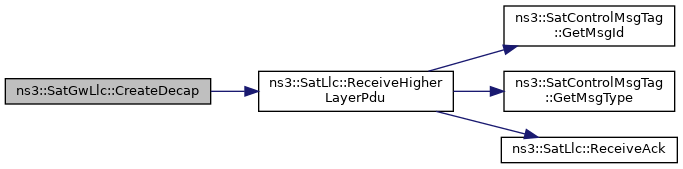

Here is the call graph for this function:

◆ CreateEncap()

void ns3::SatGwLlc::CreateEncap ( Ptr< EncapKey > key )

protectedvirtual

Virtual method to create a new encapsulator 'on-a-need-basis' dynamically.

Parameters

key	Encapsulator key class

Implements ns3::SatLlc.

Definition at line 193 of file satellite-gw-llc.cc.

References ns3::SatLlc::m_additionalHeaderSize, ns3::SatLlc::m_encaps, ns3::SatLlc::m_forwardLinkRegenerationMode, ns3::SatLlc::m_fwdLinkArqEnabled, and ns3::SatEnums::REGENERATION_NETWORK.

Referenced by Enque().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::SatGwLlc::DoDispose ( void )

protectedvirtual

Dispose of this class instance.

Reimplemented from ns3::SatLlc.

Definition at line 70 of file satellite-gw-llc.cc.

References ns3::SatLlc::DoDispose().

Here is the call graph for this function:

◆ Enque()

bool ns3::SatGwLlc::Enque	(	Ptr< Packet >	packet,
		Address	dest,
		uint8_t	flowId
	)

virtual

Called from higher layer (SatNetDevice) to enque packet to LLC.

Parameters

packet	packet sent from above down to SatMac
dest	Destination MAC address of the packet
flowId	Flow identifier

Returns: Boolean indicating whether the enque operation succeeded

Encapsulator not found, thus create a new one. This method is implemented in the inherited classes, which knows which type of encapsulator to create.

Reimplemented from ns3::SatLlc.

Definition at line 78 of file satellite-gw-llc.cc.

References CreateEncap(), ns3::SatUtils::GetPacketInfo(), GetSatLinkTxDir(), ns3::SatEnums::LL_LLC, ns3::SatLlc::m_encaps, ns3::SatLlc::m_forwardLinkRegenerationMode, ns3::SatLlc::m_nodeInfo, ns3::SatLlc::m_packetTrace, ns3::SatLlc::m_satelliteAddress, ns3::SatEnums::PACKET_ENQUE, ns3::SatEnums::REGENERATION_NETWORK, ns3::SatAddressE2ETag::SetE2EDestAddress(), and ns3::SatAddressE2ETag::SetE2ESourceAddress().

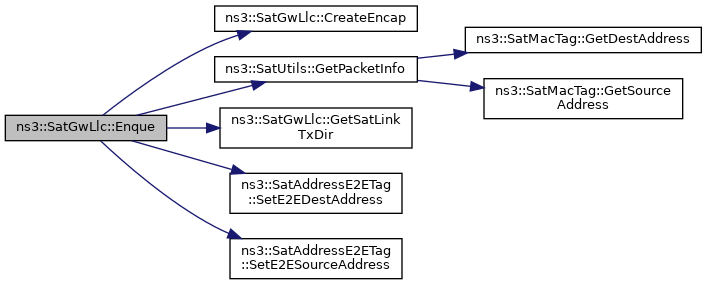

Here is the call graph for this function:

◆ GetNBytesInQueue()

uint32_t ns3::SatGwLlc::GetNBytesInQueue ( Mac48Address utAddress ) const

virtual

Get the number of (new) bytes at LLC queue for a certain UT.

Method checks only the SatQueue for packets, thus it does not count possible packets buffered at the encapsulator (e.g. in case of ARQ).

Parameters

utAddress the MAC address that identifies a particular UT node.

Returns: Number of bytes currently queued in the encapsulator(s) associated with the UT.

Implements ns3::SatLlc.

Definition at line 331 of file satellite-gw-llc.cc.

References ns3::SatLlc::m_encaps.

◆ GetNPacketsInQueue()

uint32_t ns3::SatGwLlc::GetNPacketsInQueue ( Mac48Address utAddress ) const

virtual

Get the number of (new) packets at LLC queues for a certain UT.

Method checks only the SatQueue for packets, thus it does not count possible packets buffered at the encapsulator (e.g. in case of ARQ).

Parameters

utAddress the MAC address that identifies a particular UT node.

Returns: Number of packets currently queued in the encapsulator(s) associated with the UT.

Implements ns3::SatLlc.

Definition at line 352 of file satellite-gw-llc.cc.

References ns3::SatLlc::m_encaps.

◆ GetSatLinkRxDir()

SatEnums::SatLinkDir_t ns3::SatGwLlc::GetSatLinkRxDir ( )

protectedvirtual

Get the link RX direction.

Must be implemented by child clases.

Returns: The link RX direction

Reimplemented from ns3::SatLlc.

Definition at line 298 of file satellite-gw-llc.cc.

References ns3::SatEnums::LD_RETURN.

◆ GetSatLinkTxDir()

SatEnums::SatLinkDir_t ns3::SatGwLlc::GetSatLinkTxDir ( )

protectedvirtual

Get the link TX direction.

Must be implemented by child clases.

Returns: The link TX direction

Reimplemented from ns3::SatLlc.

Definition at line 292 of file satellite-gw-llc.cc.

References ns3::SatEnums::LD_FORWARD.

Referenced by Enque().

Here is the caller graph for this function:

◆ GetSchedulingContexts()

void ns3::SatGwLlc::GetSchedulingContexts ( std::vector< Ptr< SatSchedulingObject >> & output ) const

virtual

Create and fill the scheduling objects based on LLC layer information.

Scheduling objects may be used at the MAC layer to assist in scheduling.

Parameters

output reference to an output vector that will be filled with pointer to scheduling objects

Implements ns3::SatLlc.

Definition at line 304 of file satellite-gw-llc.cc.

References ns3::SatLlc::m_encaps.

◆ GetTypeId()

TypeId ns3::SatGwLlc::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 45 of file satellite-gw-llc.cc.

◆ NotifyTxOpportunity()

Ptr< Packet > ns3::SatGwLlc::NotifyTxOpportunity	(	uint32_t	bytes,
		Mac48Address	utAddr,
		uint8_t	flowId,
		uint32_t &	bytesLeft,
		uint32_t &	nextMinTxO
	)

virtual

Called from lower layer (MAC) to inform a tx opportunity of certain amount of bytes.

Parameters

utAddr	MAC address of the UT with tx opportunity
bytes	Size of the Tx opportunity
flowId	Flow identifier
&bytesLeft	Bytes left after TxOpportunity
&nextMinTxO	Minimum TxO after this TxO

Returns: Pointer to packet to be transmitted

Implements ns3::SatLlc.

Definition at line 151 of file satellite-gw-llc.cc.

References ns3::SatUtils::GetPacketInfo(), ns3::SatEnums::LD_FORWARD, ns3::SatEnums::LL_LLC, ns3::SatLlc::m_encaps, ns3::SatLlc::m_nodeInfo, ns3::SatLlc::m_packetTrace, and ns3::SatEnums::PACKET_SENT.

Referenced by ns3::SatGwHelper::InstallDvb().

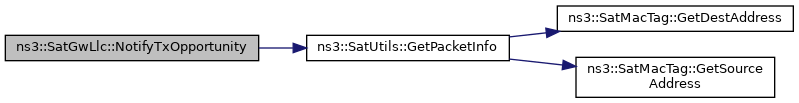

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-gw-llc.h
/builds/sns3/satellite/satellite/model/satellite-gw-llc.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SatGwLlc() [1/2]

◆ SatGwLlc() [2/2]

◆ ~SatGwLlc()

Member Function Documentation

◆ CreateDecap()

◆ CreateEncap()

◆ DoDispose()

◆ Enque()

◆ GetNBytesInQueue()

◆ GetNPacketsInQueue()

◆ GetSatLinkRxDir()

◆ GetSatLinkTxDir()

◆ GetSchedulingContexts()

◆ GetTypeId()

◆ NotifyTxOpportunity()
