SatOrbiterNetDevice to be utilized in geostationary satellite. More...

#include "satellite-orbiter-net-device.h"

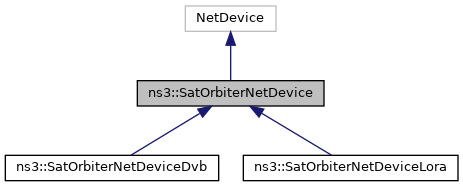

Inheritance diagram for ns3::SatOrbiterNetDevice:

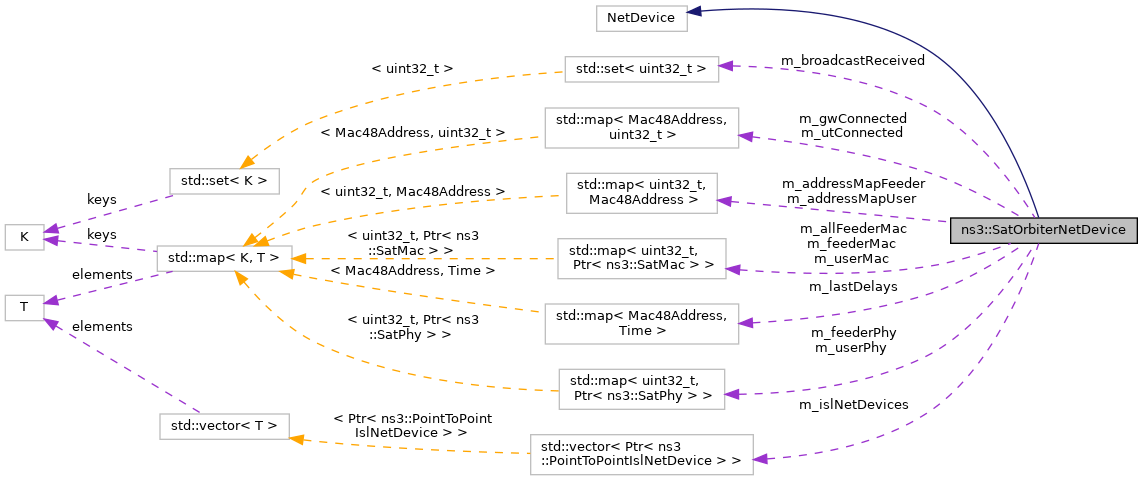

Collaboration diagram for ns3::SatOrbiterNetDevice:

Public Member Functions
	SatOrbiterNetDevice ()
	Default constructor. More...

void	AddFeederMac (Ptr< SatMac > mac, Ptr< SatMac > macUsed, uint32_t beamId)
	Add the Feeder MAC object for the beam. More...

void	AddFeederPair (uint32_t beamId, Mac48Address satelliteFeederAddress)
	Add an entry in the database to get satellite feeder address from beam ID. More...

void	AddFeederPhy (Ptr< SatPhy > phy, uint32_t beamId)
	Add the Feeder Phy object for the beam. More...

void	AddIslsNetDevice (Ptr< PointToPointIslNetDevice > islNetDevices)
	Add a ISL Net Device to this satellite. More...

virtual void	AddLinkChangeCallback (Callback< void > callback)

void	AddUserMac (Ptr< SatMac > mac, uint32_t beamId)
	Add the User MAC object for the beam. More...

void	AddUserPair (uint32_t beamId, Mac48Address satelliteUserAddress)
	Add an entry in the database to get satellite user address from beam ID. More...

void	AddUserPhy (Ptr< SatPhy > phy, uint32_t beamId)
	Add the User Phy object for the beam. More...

void	ConnectGw (Mac48Address gwAddress, uint32_t beamId)
	Connect a GW to this satellite. More...

virtual void	ConnectUt (Mac48Address utAddress, uint32_t beamId)=0
	Connect a UT to this satellite. More...

void	DisconnectGw (Mac48Address gwAddress, uint32_t beamId)
	Disconnect a GW to this satellite. More...

virtual void	DisconnectUt (Mac48Address utAddress, uint32_t beamId)=0
	Disconnect a UT to this satellite. More...

virtual Address	GetAddress (void) const

std::map< uint32_t, Ptr< SatMac > >	GetAllFeederMac ()
	Get all Feeder MAC objects attached to this satellite. More...

Ptr< SatIslArbiter >	GetArbiter ()
	Get the arbiter for ISL routing. More...

virtual Address	GetBroadcast (void) const

virtual Ptr< Channel >	GetChannel (void) const

std::map< uint32_t, Ptr< SatMac > >	GetFeederMac ()
	Get all Feeder MAC objects attached to this satellite that are in use. More...

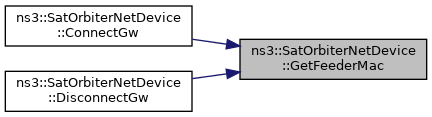

Ptr< SatMac >	GetFeederMac (uint32_t beamId)
	Get the Feeder MAC object for the beam. More...

std::map< uint32_t, Ptr< SatPhy > >	GetFeederPhy ()
	Get all Feeder Phy objects attached to this satellite. More...

Ptr< SatPhy >	GetFeederPhy (uint32_t beamId)
	Get the Feeder Phy object for the beam. More...

std::set< Mac48Address >	GetGwConnected ()
	The the list of MAC GW connected to this satellite. More...

virtual uint32_t	GetIfIndex (void) const

std::vector< Ptr< PointToPointIslNetDevice > >	GetIslsNetDevices ()
	Get all the ISL Net devices. More...

virtual uint16_t	GetMtu (void) const

virtual Address	GetMulticast (Ipv4Address multicastGroup) const

virtual Address	GetMulticast (Ipv6Address addr) const

virtual Ptr< Node >	GetNode (void) const

Mac48Address	GetSatelliteFeederAddress (uint32_t beamId)
	Get satellite feeder entry from associated beam ID. More...

Mac48Address	GetSatelliteUserAddress (uint32_t beamId)
	Get satellite user entry from associated beam ID. More...

std::map< uint32_t, Ptr< SatMac > >	GetUserMac ()
	Get all User MAC objects attached to this satellite. More...

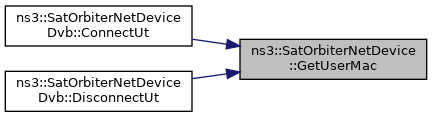

Ptr< SatMac >	GetUserMac (uint32_t beamId)
	Get the User MAC object for the beam. More...

std::map< uint32_t, Ptr< SatPhy > >	GetUserPhy ()
	Get all User Phy objects attached to this satellite. More...

Ptr< SatPhy >	GetUserPhy (uint32_t beamId)
	Get the User Phy object for the beam. More...

std::set< Mac48Address >	GetUtConnected ()
	The the list of UT MAC connected to this satellite. More...

virtual bool	IsBridge (void) const

virtual bool	IsBroadcast (void) const

virtual bool	IsLinkUp (void) const

virtual bool	IsMulticast (void) const

virtual bool	IsPointToPoint (void) const

virtual bool	NeedsArp (void) const

void	ReceiveFeeder (SatPhy::PacketContainer_t packets, Ptr< SatSignalParameters > rxParams)
	Receive the packet from the lower layers. More...

virtual void	ReceiveFromIsl (Ptr< Packet > packet, Mac48Address destination)=0
	Receive a packet from ISL. More...

virtual void	ReceivePacketFeeder (Ptr< Packet > packet, const Address &feederAddress)=0
	Receive the packet from the lower layers, in network regeneration on forward link. More...

virtual void	ReceivePacketUser (Ptr< Packet > packet, const Address &userAddress)=0
	Receive the packet from the lower layers, in network regeneration on return link. More...

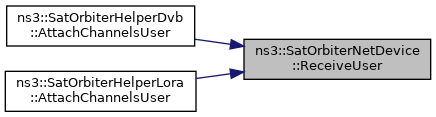

void	ReceiveUser (SatPhy::PacketContainer_t packets, Ptr< SatSignalParameters > rxParams)
	Receive the packet from the lower layers. More...

virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

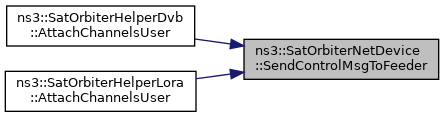

virtual bool	SendControlMsgToFeeder (Ptr< SatControlMessage > msg, const Address &dest, Ptr< SatSignalParameters > rxParams)=0
	Send a control packet on the feeder link. More...

virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

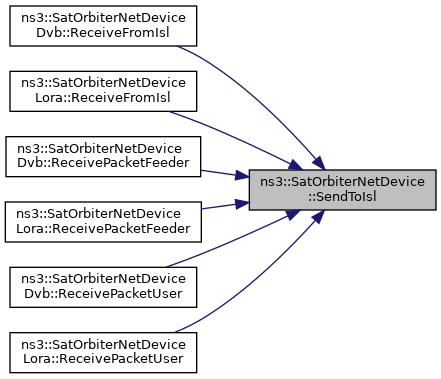

void	SendToIsl (Ptr< Packet > packet, Mac48Address destination)
	Send a packet to ISL. More...

virtual void	SetAddress (Address address)

void	SetArbiter (Ptr< SatIslArbiter > arbiter)
	Set the arbiter for ISL routing. More...

void	SetForwardLinkRegenerationMode (SatEnums::RegenerationMode_t forwardLinkRegenerationMode)
	Set the forward link regeneration mode. More...

virtual void	SetIfIndex (const uint32_t index)

virtual bool	SetMtu (const uint16_t mtu)

virtual void	SetNode (Ptr< Node > node)

void	SetNodeId (uint32_t nodeId)

virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)

virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)

void	SetReceiveErrorModel (Ptr< ErrorModel > em)
	Attach a receive ErrorModel to the SatOrbiterNetDevice. More...

void	SetReturnLinkRegenerationMode (SatEnums::RegenerationMode_t returnLinkRegenerationMode)
	Set the return link regeneration mode. More...

virtual bool	SupportsSendFrom (void) const

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	Dispose of this class instance. More...

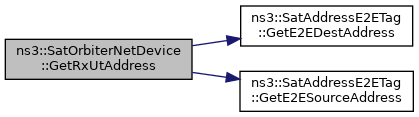

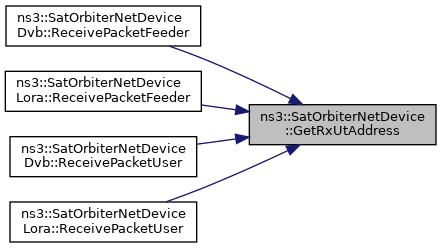

Address	GetRxUtAddress (Ptr< Packet > packet, SatEnums::SatLinkDir_t ld)
	Get UT MAC address associated to this packet. More...

Protected Attributes
Mac48Address	m_address

std::map< uint32_t, Mac48Address >	m_addressMapFeeder

std::map< uint32_t, Mac48Address >	m_addressMapUser

std::map< uint32_t, Ptr< SatMac > >	m_allFeederMac

Ptr< SatIslArbiter >	m_arbiter
	Arbiter used to route on ISLs. More...

std::set< uint32_t >	m_broadcastReceived
	Keep a count of all incoming broadcast data to avoid handling them several times. More...

std::map< uint32_t, Ptr< SatMac > >	m_feederMac

std::map< uint32_t, Ptr< SatPhy > >	m_feederPhy

SatEnums::RegenerationMode_t	m_forwardLinkRegenerationMode

std::map< Mac48Address, uint32_t >	m_gwConnected
	Set containing all connected GWs. More...

uint32_t	m_ifIndex

std::vector< Ptr< PointToPointIslNetDevice > >	m_islNetDevices
	List of ISLs starting from this node. More...

bool	m_isStatisticsTagsEnabled

std::map< Mac48Address, Time >	m_lastDelays

uint16_t	m_mtu

Ptr< Node >	m_node

uint32_t	m_nodeId

TracedCallback< Time, SatEnums::SatPacketEvent_t, SatEnums::SatNodeType_t, uint32_t, Mac48Address, SatEnums::SatLogLevel_t, SatEnums::SatLinkDir_t, std::string >	m_packetTrace

NetDevice::PromiscReceiveCallback	m_promiscCallback

Ptr< ErrorModel >	m_receiveErrorModel

SatEnums::RegenerationMode_t	m_returnLinkRegenerationMode

NetDevice::ReceiveCallback	m_rxCallback

TracedCallback< const Time &, const Address & >	m_rxFeederLinkDelayTrace
	Traced callback for all received packets, including feeder link delay information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxFeederLinkJitterTrace
	Traced callback for all received packets, including feeder link jitter information and the address of the senders. More...

TracedCallback< Ptr< const Packet >, const Address & >	m_rxFeederTrace
	Traced callback for all received packets on feeder, including the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxUserLinkDelayTrace
	Traced callback for all received packets, including user link delay information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxUserLinkJitterTrace
	Traced callback for all received packets, including user link jitter information and the address of the senders. More...

TracedCallback< Ptr< const Packet >, const Address & >	m_rxUserTrace
	Traced callback for all received packets on user, including the address of the senders. More...

TracedCallback< Ptr< const Packet >, const Address & >	m_signallingTxTrace
	Traced callback for all signalling (control message) packets sent, including the destination address. More...

TracedCallback< Ptr< const Packet > >	m_txTrace
	Traced callback for all packets received to be transmitted. More...

std::map< uint32_t, Ptr< SatMac > >	m_userMac

std::map< uint32_t, Ptr< SatPhy > >	m_userPhy

std::map< Mac48Address, uint32_t >	m_utConnected
	Set containing all connected UTs. More...

Detailed Description

SatOrbiterNetDevice to be utilized in geostationary satellite.

SatOrbiterNetDevice holds a set of phy layers towards user and feeder links; one pair of phy layers for each spot-beam. The SatNetDevice implements a simple switching between all user and feeder links modeling transparent payload.

Definition at line 57 of file satellite-orbiter-net-device.h.

Constructor & Destructor Documentation

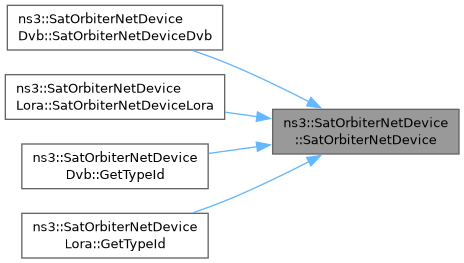

◆ SatOrbiterNetDevice()

ns3::SatOrbiterNetDevice::SatOrbiterNetDevice ( )

Default constructor.

Definition at line 141 of file satellite-orbiter-net-device.cc.

Member Function Documentation

◆ AddFeederMac()

void ns3::SatOrbiterNetDevice::AddFeederMac	(	Ptr< SatMac >	mac,
		Ptr< SatMac >	macUsed,
		uint32_t	beamId
	)

Add the Feeder MAC object for the beam.

Parameters

mac	feeder MAC created for this beam
macUsed	feeder MAC that will be used to send data
beamId	the id of the beam to use MAC for

Definition at line 489 of file satellite-orbiter-net-device.cc.

References m_allFeederMac, and m_feederMac.

◆ AddFeederPair()

void ns3::SatOrbiterNetDevice::AddFeederPair	(	uint32_t	beamId,
		Mac48Address	satelliteFeederAddress
	)

Add an entry in the database to get satellite feeder address from beam ID.

Parameters

beamId	Beam ID
satelliteFeederAddress	MAC address on the satellite feeder

Definition at line 535 of file satellite-orbiter-net-device.cc.

References m_addressMapFeeder.

◆ AddFeederPhy()

void ns3::SatOrbiterNetDevice::AddFeederPhy	(	Ptr< SatPhy >	phy,
		uint32_t	beamId
	)

Add the Feeder Phy object for the beam.

Parameters

phy	feeder phy object to add.
beamId	the id of the beam to use phy for

Definition at line 443 of file satellite-orbiter-net-device.cc.

References m_feederPhy.

◆ AddIslsNetDevice()

void ns3::SatOrbiterNetDevice::AddIslsNetDevice ( Ptr< PointToPointIslNetDevice > islNetDevices )

Add a ISL Net Device to this satellite.

Parameters

islNetDevices ISL Net Device to add.

Definition at line 672 of file satellite-orbiter-net-device.cc.

References m_islNetDevices.

◆ AddLinkChangeCallback()

void ns3::SatOrbiterNetDevice::AddLinkChangeCallback ( Callback< void > callback )

virtual

Definition at line 289 of file satellite-orbiter-net-device.cc.

◆ AddUserMac()

void ns3::SatOrbiterNetDevice::AddUserMac	(	Ptr< SatMac >	mac,
		uint32_t	beamId
	)

Add the User MAC object for the beam.

Parameters

mac	user MAC object to add.
beamId	the id of the beam to use MAC for

Definition at line 482 of file satellite-orbiter-net-device.cc.

References m_userMac.

◆ AddUserPair()

void ns3::SatOrbiterNetDevice::AddUserPair	(	uint32_t	beamId,
		Mac48Address	satelliteUserAddress
	)

Add an entry in the database to get satellite user address from beam ID.

Parameters

beamId	Beam ID
satelliteUserAddress	MAC address on the satellite user

Definition at line 543 of file satellite-orbiter-net-device.cc.

References m_addressMapUser.

◆ AddUserPhy()

void ns3::SatOrbiterNetDevice::AddUserPhy	(	Ptr< SatPhy >	phy,
		uint32_t	beamId
	)

Add the User Phy object for the beam.

Parameters

phy	user phy object to add.
beamId	the id of the beam to use phy for

Definition at line 436 of file satellite-orbiter-net-device.cc.

References m_userPhy.

◆ ConnectGw()

void ns3::SatOrbiterNetDevice::ConnectGw	(	Mac48Address	gwAddress,
		uint32_t	beamId
	)

Connect a GW to this satellite.

Parameters

gwAddress	MAC address of the GW to connect
beamId	beam used by satellite to reach this GW

Definition at line 599 of file satellite-orbiter-net-device.cc.

References GetFeederMac(), m_feederMac, m_gwConnected, and m_nodeId.

Here is the call graph for this function:

◆ ConnectUt()

virtual void ns3::SatOrbiterNetDevice::ConnectUt	(	Mac48Address	utAddress,
		uint32_t	beamId
	)

pure virtual

Connect a UT to this satellite.

Parameters

utAddress	MAC address of the UT to connect
beamId	beam used by satellite to reach this UT

Implemented in ns3::SatOrbiterNetDeviceLora, and ns3::SatOrbiterNetDeviceDvb.

◆ DisconnectGw()

void ns3::SatOrbiterNetDevice::DisconnectGw	(	Mac48Address	gwAddress,
		uint32_t	beamId
	)

Disconnect a GW to this satellite.

Parameters

gwAddress	MAC address of the GW to disconnect
beamId	beam used by satellite to reach this GW

Definition at line 621 of file satellite-orbiter-net-device.cc.

References GetFeederMac(), m_feederMac, and m_gwConnected.

Here is the call graph for this function:

◆ DisconnectUt()

virtual void ns3::SatOrbiterNetDevice::DisconnectUt	(	Mac48Address	utAddress,
		uint32_t	beamId
	)

pure virtual

Disconnect a UT to this satellite.

Parameters

utAddress	MAC address of the UT to disconnect
beamId	beam used by satellite to reach this UT

Implemented in ns3::SatOrbiterNetDeviceLora, and ns3::SatOrbiterNetDeviceDvb.

◆ DoDispose()

void ns3::SatOrbiterNetDevice::DoDispose ( void )

protectedvirtual

Dispose of this class instance.

Definition at line 400 of file satellite-orbiter-net-device.cc.

References m_addressMapFeeder, m_addressMapUser, m_feederMac, m_feederPhy, m_node, m_receiveErrorModel, m_userMac, and m_userPhy.

◆ GetAddress()

Address ns3::SatOrbiterNetDevice::GetAddress ( void ) const

virtual

Definition at line 257 of file satellite-orbiter-net-device.cc.

References m_address.

◆ GetAllFeederMac()

std::map< uint32_t, Ptr< SatMac > > ns3::SatOrbiterNetDevice::GetAllFeederMac ( )

Get all Feeder MAC objects attached to this satellite.

Returns: All the Feeder MAC. They may or not be used to send on return feeder

Definition at line 529 of file satellite-orbiter-net-device.cc.

References m_allFeederMac.

◆ GetArbiter()

Ptr< SatIslArbiter > ns3::SatOrbiterNetDevice::GetArbiter ( )

Get the arbiter for ISL routing.

Returns: The arbiter used on this satellite

Definition at line 696 of file satellite-orbiter-net-device.cc.

References m_arbiter.

◆ GetBroadcast()

Address ns3::SatOrbiterNetDevice::GetBroadcast ( void ) const

virtual

Definition at line 302 of file satellite-orbiter-net-device.cc.

◆ GetChannel()

Ptr< Channel > ns3::SatOrbiterNetDevice::GetChannel ( void ) const

virtual

Definition at line 429 of file satellite-orbiter-net-device.cc.

◆ GetFeederMac() [1/2]

std::map< uint32_t, Ptr< SatMac > > ns3::SatOrbiterNetDevice::GetFeederMac ( )

Get all Feeder MAC objects attached to this satellite that are in use.

Returns: All the Feeder MAC used to send on return feeder link

Definition at line 523 of file satellite-orbiter-net-device.cc.

References m_feederMac.

Referenced by ConnectGw(), and DisconnectGw().

Here is the caller graph for this function:

◆ GetFeederMac() [2/2]

Ptr< SatMac > ns3::SatOrbiterNetDevice::GetFeederMac ( uint32_t beamId )

Get the Feeder MAC object for the beam.

Parameters

beamId the id of the beam to use MAC for

Returns: The Feeder MAC

Definition at line 507 of file satellite-orbiter-net-device.cc.

References m_feederMac.

◆ GetFeederPhy() [1/2]

std::map< uint32_t, Ptr< SatPhy > > ns3::SatOrbiterNetDevice::GetFeederPhy ( )

Get all Feeder Phy objects attached to this satellite.

Returns: All the Feeder Phy

Definition at line 476 of file satellite-orbiter-net-device.cc.

References m_feederPhy.

◆ GetFeederPhy() [2/2]

Ptr< SatPhy > ns3::SatOrbiterNetDevice::GetFeederPhy ( uint32_t beamId )

Get the Feeder Phy object for the beam.

Parameters

beamId the id of the beam to use phy for

Returns: The Feeder Phy

Definition at line 460 of file satellite-orbiter-net-device.cc.

References m_feederPhy, and m_userPhy.

◆ GetGwConnected()

std::set< Mac48Address > ns3::SatOrbiterNetDevice::GetGwConnected ( )

The the list of MAC GW connected to this satellite.

The SatOrbiterNetDevice will send to a GW if connected, otherwise it will send to ISLs.

Definition at line 642 of file satellite-orbiter-net-device.cc.

References m_gwConnected.

◆ GetIfIndex()

uint32_t ns3::SatOrbiterNetDevice::GetIfIndex ( void ) const

virtual

Definition at line 243 of file satellite-orbiter-net-device.cc.

References m_ifIndex.

◆ GetIslsNetDevices()

std::vector< Ptr< PointToPointIslNetDevice > > ns3::SatOrbiterNetDevice::GetIslsNetDevices ( )

Get all the ISL Net devices.

Returns: Vector of all ISL Net Devices

Definition at line 680 of file satellite-orbiter-net-device.cc.

References m_islNetDevices.

◆ GetMtu()

uint16_t ns3::SatOrbiterNetDevice::GetMtu ( void ) const

virtual

Definition at line 275 of file satellite-orbiter-net-device.cc.

References m_mtu.

◆ GetMulticast() [1/2]

Address ns3::SatOrbiterNetDevice::GetMulticast ( Ipv4Address multicastGroup ) const

virtual

Definition at line 316 of file satellite-orbiter-net-device.cc.

◆ GetMulticast() [2/2]

Address ns3::SatOrbiterNetDevice::GetMulticast ( Ipv6Address addr ) const

virtual

Definition at line 323 of file satellite-orbiter-net-device.cc.

◆ GetNode()

Ptr< Node > ns3::SatOrbiterNetDevice::GetNode ( void ) const

virtual

Definition at line 373 of file satellite-orbiter-net-device.cc.

References m_node.

◆ GetRxUtAddress()

Address ns3::SatOrbiterNetDevice::GetRxUtAddress	(	Ptr< Packet >	packet,
		SatEnums::SatLinkDir_t	ld
	)

protected

Get UT MAC address associated to this packet.

May be source or destination depending on link

Definition at line 575 of file satellite-orbiter-net-device.cc.

References ns3::SatAddressE2ETag::GetE2EDestAddress(), ns3::SatAddressE2ETag::GetE2ESourceAddress(), ns3::SatEnums::LD_FORWARD, and ns3::SatEnums::LD_RETURN.

Referenced by ns3::SatOrbiterNetDeviceDvb::ReceivePacketFeeder(), ns3::SatOrbiterNetDeviceLora::ReceivePacketFeeder(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketUser(), and ns3::SatOrbiterNetDeviceLora::ReceivePacketUser().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSatelliteFeederAddress()

Mac48Address ns3::SatOrbiterNetDevice::GetSatelliteFeederAddress ( uint32_t beamId )

Get satellite feeder entry from associated beam ID.

Parameters

beamId Beam ID

Returns: satellite feeder MAC associated to this beam

Definition at line 551 of file satellite-orbiter-net-device.cc.

References m_addressMapFeeder.

◆ GetSatelliteUserAddress()

Mac48Address ns3::SatOrbiterNetDevice::GetSatelliteUserAddress ( uint32_t beamId )

Get satellite user entry from associated beam ID.

Parameters

beamId Beam ID

Returns: satellite user MAC associated to this beam

Definition at line 563 of file satellite-orbiter-net-device.cc.

References m_addressMapUser.

◆ GetTypeId()

TypeId ns3::SatOrbiterNetDevice::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 65 of file satellite-orbiter-net-device.cc.

References m_feederMac, m_feederPhy, m_isStatisticsTagsEnabled, m_packetTrace, m_receiveErrorModel, m_rxFeederLinkDelayTrace, m_rxFeederLinkJitterTrace, m_rxFeederTrace, m_rxUserLinkDelayTrace, m_rxUserLinkJitterTrace, m_rxUserTrace, m_signallingTxTrace, m_txTrace, m_userMac, and m_userPhy.

◆ GetUserMac() [1/2]

std::map< uint32_t, Ptr< SatMac > > ns3::SatOrbiterNetDevice::GetUserMac ( )

Get all User MAC objects attached to this satellite.

Returns: All the User MAC

Definition at line 517 of file satellite-orbiter-net-device.cc.

References m_userMac.

Referenced by ns3::SatOrbiterNetDeviceDvb::ConnectUt(), and ns3::SatOrbiterNetDeviceDvb::DisconnectUt().

Here is the caller graph for this function:

◆ GetUserMac() [2/2]

Ptr< SatMac > ns3::SatOrbiterNetDevice::GetUserMac ( uint32_t beamId )

Get the User MAC object for the beam.

Parameters

beamId the id of the beam to use MAC for

Returns: The User MAC

Definition at line 497 of file satellite-orbiter-net-device.cc.

References m_userMac.

◆ GetUserPhy() [1/2]

std::map< uint32_t, Ptr< SatPhy > > ns3::SatOrbiterNetDevice::GetUserPhy ( )

Get all User Phy objects attached to this satellite.

Returns: All the User Phy

Definition at line 470 of file satellite-orbiter-net-device.cc.

References m_userPhy.

◆ GetUserPhy() [2/2]

Ptr< SatPhy > ns3::SatOrbiterNetDevice::GetUserPhy ( uint32_t beamId )

Get the User Phy object for the beam.

Parameters

beamId the id of the beam to use phy for

Returns: The User Phy

Definition at line 450 of file satellite-orbiter-net-device.cc.

References m_userPhy.

◆ GetUtConnected()

std::set< Mac48Address > ns3::SatOrbiterNetDevice::GetUtConnected ( )

The the list of UT MAC connected to this satellite.

The SatOrbiterNetDevice will send to a UT if connected, otherwise it will send to ISLs.

Definition at line 657 of file satellite-orbiter-net-device.cc.

References m_utConnected.

◆ IsBridge()

bool ns3::SatOrbiterNetDevice::IsBridge ( void ) const

virtual

Definition at line 337 of file satellite-orbiter-net-device.cc.

◆ IsBroadcast()

bool ns3::SatOrbiterNetDevice::IsBroadcast ( void ) const

virtual

Definition at line 295 of file satellite-orbiter-net-device.cc.

◆ IsLinkUp()

bool ns3::SatOrbiterNetDevice::IsLinkUp ( void ) const

virtual

Definition at line 282 of file satellite-orbiter-net-device.cc.

◆ IsMulticast()

bool ns3::SatOrbiterNetDevice::IsMulticast ( void ) const

virtual

Definition at line 309 of file satellite-orbiter-net-device.cc.

◆ IsPointToPoint()

bool ns3::SatOrbiterNetDevice::IsPointToPoint ( void ) const

virtual

Definition at line 330 of file satellite-orbiter-net-device.cc.

◆ NeedsArp()

bool ns3::SatOrbiterNetDevice::NeedsArp ( void ) const

virtual

Definition at line 387 of file satellite-orbiter-net-device.cc.

◆ ReceiveFeeder()

void ns3::SatOrbiterNetDevice::ReceiveFeeder	(	SatPhy::PacketContainer_t	packets,
		Ptr< SatSignalParameters >	rxParams
	)

Receive the packet from the lower layers.

Parameters

packets	Container of pointers to the packets to be received.
rxParams	Packet transmission parameters

Definition at line 185 of file satellite-orbiter-net-device.cc.

References m_forwardLinkRegenerationMode, m_userPhy, ns3::SatEnums::REGENERATION_NETWORK, ns3::SatEnums::REGENERATION_PHY, and ns3::SatEnums::TRANSPARENT.

Referenced by ns3::SatOrbiterHelper::AttachChannelsFeeder().

Here is the caller graph for this function:

◆ ReceiveFromIsl()

virtual void ns3::SatOrbiterNetDevice::ReceiveFromIsl	(	Ptr< Packet >	packet,
		Mac48Address	destination
	)

pure virtual

Receive a packet from ISL.

Parameters

packet	The packet to send
destination	The MAC address of ground station that will receive the packet

Implemented in ns3::SatOrbiterNetDeviceLora, and ns3::SatOrbiterNetDeviceDvb.

◆ ReceivePacketFeeder()

virtual void ns3::SatOrbiterNetDevice::ReceivePacketFeeder	(	Ptr< Packet >	packet,
		const Address &	feederAddress
	)

pure virtual

Receive the packet from the lower layers, in network regeneration on forward link.

Parameters

packet	Packet received
feederAddress	MAC address of feeder that received this packet

Implemented in ns3::SatOrbiterNetDeviceLora, and ns3::SatOrbiterNetDeviceDvb.

Referenced by ns3::SatOrbiterHelper::AttachChannelsFeeder().

Here is the caller graph for this function:

◆ ReceivePacketUser()

virtual void ns3::SatOrbiterNetDevice::ReceivePacketUser	(	Ptr< Packet >	packet,
		const Address &	userAddress
	)

pure virtual

Receive the packet from the lower layers, in network regeneration on return link.

Parameters

packet	Packet received
userAddress	MAC address of user that received this packet

Implemented in ns3::SatOrbiterNetDeviceLora, and ns3::SatOrbiterNetDeviceDvb.

Referenced by ns3::SatOrbiterHelperDvb::AttachChannelsUser().

Here is the caller graph for this function:

◆ ReceiveUser()

void ns3::SatOrbiterNetDevice::ReceiveUser	(	SatPhy::PacketContainer_t	packets,
		Ptr< SatSignalParameters >	rxParams
	)

Receive the packet from the lower layers.

Parameters

packets	Container of pointers to the packets to be received.
rxParams	Packet transmission parameters

Definition at line 150 of file satellite-orbiter-net-device.cc.

References m_feederMac, m_feederPhy, m_returnLinkRegenerationMode, ns3::SatEnums::REGENERATION_LINK, ns3::SatEnums::REGENERATION_NETWORK, ns3::SatEnums::REGENERATION_PHY, and ns3::SatEnums::TRANSPARENT.

Referenced by ns3::SatOrbiterHelperDvb::AttachChannelsUser(), and ns3::SatOrbiterHelperLora::AttachChannelsUser().

Here is the caller graph for this function:

◆ Send()

bool ns3::SatOrbiterNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

The satellite does not have higher protocol layers which utilize the Send method! Thus, this method should not be used!

Definition at line 344 of file satellite-orbiter-net-device.cc.

◆ SendControlMsgToFeeder()

virtual bool ns3::SatOrbiterNetDevice::SendControlMsgToFeeder	(	Ptr< SatControlMessage >	msg,
		const Address &	dest,
		Ptr< SatSignalParameters >	rxParams
	)

pure virtual

Send a control packet on the feeder link.

Parameters

msg	The control message to send
dest	The MAC destination
rxParams	Strucutre storing additional parameters

Returns: True if success

Implemented in ns3::SatOrbiterNetDeviceLora, and ns3::SatOrbiterNetDeviceDvb.

Referenced by ns3::SatOrbiterHelperDvb::AttachChannelsUser(), and ns3::SatOrbiterHelperLora::AttachChannelsUser().

Here is the caller graph for this function:

◆ SendFrom()

bool ns3::SatOrbiterNetDevice::SendFrom	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

The satellite does not have higher protocol layers which utilize the SendFrom method! Thus, this method should not be used!

Definition at line 357 of file satellite-orbiter-net-device.cc.

◆ SendToIsl()

void ns3::SatOrbiterNetDevice::SendToIsl	(	Ptr< Packet >	packet,
		Mac48Address	destination
	)

Send a packet to ISL.

Parameters

packet	The packet to send
destination	The MAC address of ground station that will receive the packet

Definition at line 704 of file satellite-orbiter-net-device.cc.

References m_arbiter, m_islNetDevices, and m_nodeId.

Referenced by ns3::SatOrbiterNetDeviceDvb::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceLora::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketFeeder(), ns3::SatOrbiterNetDeviceLora::ReceivePacketFeeder(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketUser(), and ns3::SatOrbiterNetDeviceLora::ReceivePacketUser().

Here is the caller graph for this function:

◆ SetAddress()

void ns3::SatOrbiterNetDevice::SetAddress ( Address address )

virtual

Definition at line 250 of file satellite-orbiter-net-device.cc.

References m_address.

◆ SetArbiter()

void ns3::SatOrbiterNetDevice::SetArbiter ( Ptr< SatIslArbiter > arbiter )

Set the arbiter for ISL routing.

Parameters

arbiter The arbiter to set

Definition at line 688 of file satellite-orbiter-net-device.cc.

References m_arbiter.

◆ SetForwardLinkRegenerationMode()

void ns3::SatOrbiterNetDevice::SetForwardLinkRegenerationMode ( SatEnums::RegenerationMode_t forwardLinkRegenerationMode )

Set the forward link regeneration mode.

Parameters

forwardLinkRegenerationMode The regeneration mode.

Definition at line 216 of file satellite-orbiter-net-device.cc.

References m_forwardLinkRegenerationMode.

◆ SetIfIndex()

void ns3::SatOrbiterNetDevice::SetIfIndex ( const uint32_t index )

virtual

Definition at line 236 of file satellite-orbiter-net-device.cc.

References m_ifIndex.

◆ SetMtu()

bool ns3::SatOrbiterNetDevice::SetMtu ( const uint16_t mtu )

virtual

Definition at line 267 of file satellite-orbiter-net-device.cc.

References m_mtu.

◆ SetNode()

void ns3::SatOrbiterNetDevice::SetNode ( Ptr< Node > node )

virtual

Definition at line 380 of file satellite-orbiter-net-device.cc.

References m_node.

◆ SetNodeId()

void ns3::SatOrbiterNetDevice::SetNodeId ( uint32_t nodeId )

Definition at line 230 of file satellite-orbiter-net-device.cc.

References m_nodeId.

◆ SetPromiscReceiveCallback()

void ns3::SatOrbiterNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback cb )

virtual

Definition at line 415 of file satellite-orbiter-net-device.cc.

References m_promiscCallback.

◆ SetReceiveCallback()

void ns3::SatOrbiterNetDevice::SetReceiveCallback ( NetDevice::ReceiveCallback cb )

virtual

Definition at line 394 of file satellite-orbiter-net-device.cc.

◆ SetReceiveErrorModel()

void ns3::SatOrbiterNetDevice::SetReceiveErrorModel ( Ptr< ErrorModel > em )

Attach a receive ErrorModel to the SatOrbiterNetDevice.

Parameters

em	Ptr to the ErrorModel.

Definition at line 209 of file satellite-orbiter-net-device.cc.

References m_receiveErrorModel.

◆ SetReturnLinkRegenerationMode()

void ns3::SatOrbiterNetDevice::SetReturnLinkRegenerationMode ( SatEnums::RegenerationMode_t returnLinkRegenerationMode )

Set the return link regeneration mode.

Parameters

returnLinkRegenerationMode The regeneration mode.

Definition at line 223 of file satellite-orbiter-net-device.cc.

References m_returnLinkRegenerationMode.

◆ SupportsSendFrom()

bool ns3::SatOrbiterNetDevice::SupportsSendFrom ( void ) const

virtual

Definition at line 422 of file satellite-orbiter-net-device.cc.

Member Data Documentation

◆ m_address

Mac48Address ns3::SatOrbiterNetDevice::m_address

protected

Definition at line 373 of file satellite-orbiter-net-device.h.

Referenced by GetAddress(), ns3::SatOrbiterNetDeviceDvb::SendControlMsgToFeeder(), and SetAddress().

◆ m_addressMapFeeder

std::map<uint32_t, Mac48Address> ns3::SatOrbiterNetDevice::m_addressMapFeeder

protected

Definition at line 382 of file satellite-orbiter-net-device.h.

Referenced by AddFeederPair(), DoDispose(), and GetSatelliteFeederAddress().

◆ m_addressMapUser

std::map<uint32_t, Mac48Address> ns3::SatOrbiterNetDevice::m_addressMapUser

protected

Definition at line 384 of file satellite-orbiter-net-device.h.

Referenced by AddUserPair(), DoDispose(), and GetSatelliteUserAddress().

◆ m_allFeederMac

std::map<uint32_t, Ptr<SatMac> > ns3::SatOrbiterNetDevice::m_allFeederMac

protected

Definition at line 380 of file satellite-orbiter-net-device.h.

Referenced by AddFeederMac(), and GetAllFeederMac().

◆ m_arbiter

Ptr<SatIslArbiter> ns3::SatOrbiterNetDevice::m_arbiter

protected

Arbiter used to route on ISLs.

Definition at line 412 of file satellite-orbiter-net-device.h.

Referenced by GetArbiter(), SendToIsl(), and SetArbiter().

◆ m_broadcastReceived

std::set<uint32_t> ns3::SatOrbiterNetDevice::m_broadcastReceived

protected

Keep a count of all incoming broadcast data to avoid handling them several times.

Definition at line 417 of file satellite-orbiter-net-device.h.

Referenced by ns3::SatOrbiterNetDeviceDvb::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceLora::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketFeeder(), and ns3::SatOrbiterNetDeviceLora::ReceivePacketFeeder().

◆ m_feederMac

std::map<uint32_t, Ptr<SatMac> > ns3::SatOrbiterNetDevice::m_feederMac

protected

Definition at line 378 of file satellite-orbiter-net-device.h.

Referenced by AddFeederMac(), ConnectGw(), DisconnectGw(), DoDispose(), GetFeederMac(), GetTypeId(), ns3::SatOrbiterNetDeviceDvb::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceLora::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketUser(), ns3::SatOrbiterNetDeviceLora::ReceivePacketUser(), ReceiveUser(), and ns3::SatOrbiterNetDeviceDvb::SendControlMsgToFeeder().

◆ m_feederPhy

std::map<uint32_t, Ptr<SatPhy> > ns3::SatOrbiterNetDevice::m_feederPhy

protected

Definition at line 376 of file satellite-orbiter-net-device.h.

Referenced by AddFeederPhy(), DoDispose(), GetFeederPhy(), GetTypeId(), ReceiveUser(), and ns3::SatOrbiterNetDeviceDvb::SendControlMsgToFeeder().

◆ m_forwardLinkRegenerationMode

SatEnums::RegenerationMode_t ns3::SatOrbiterNetDevice::m_forwardLinkRegenerationMode

protected

Definition at line 386 of file satellite-orbiter-net-device.h.

Referenced by ReceiveFeeder(), and SetForwardLinkRegenerationMode().

◆ m_gwConnected

std::map<Mac48Address, uint32_t> ns3::SatOrbiterNetDevice::m_gwConnected

protected

Set containing all connected GWs.

Key is GW MAC address, and value is associated beam ID

Definition at line 397 of file satellite-orbiter-net-device.h.

Referenced by ConnectGw(), DisconnectGw(), GetGwConnected(), ns3::SatOrbiterNetDeviceDvb::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceLora::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketUser(), and ns3::SatOrbiterNetDeviceLora::ReceivePacketUser().

◆ m_ifIndex

uint32_t ns3::SatOrbiterNetDevice::m_ifIndex

protected

Definition at line 372 of file satellite-orbiter-net-device.h.

Referenced by GetIfIndex(), and SetIfIndex().

◆ m_islNetDevices

std::vector<Ptr<PointToPointIslNetDevice> > ns3::SatOrbiterNetDevice::m_islNetDevices

protected

List of ISLs starting from this node.

Definition at line 407 of file satellite-orbiter-net-device.h.

Referenced by AddIslsNetDevice(), GetIslsNetDevices(), ns3::SatOrbiterNetDeviceDvb::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceLora::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketFeeder(), ns3::SatOrbiterNetDeviceLora::ReceivePacketFeeder(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketUser(), ns3::SatOrbiterNetDeviceLora::ReceivePacketUser(), and SendToIsl().

◆ m_isStatisticsTagsEnabled

bool ns3::SatOrbiterNetDevice::m_isStatisticsTagsEnabled

protected

Definition at line 390 of file satellite-orbiter-net-device.h.

Referenced by GetTypeId(), ns3::SatOrbiterNetDeviceDvb::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceLora::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketFeeder(), ns3::SatOrbiterNetDeviceLora::ReceivePacketFeeder(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketUser(), ns3::SatOrbiterNetDeviceLora::ReceivePacketUser(), and ns3::SatOrbiterNetDeviceDvb::SendControlMsgToFeeder().

◆ m_lastDelays

std::map<Mac48Address, Time> ns3::SatOrbiterNetDevice::m_lastDelays

protected

Definition at line 392 of file satellite-orbiter-net-device.h.

Referenced by ns3::SatOrbiterNetDeviceDvb::ReceivePacketFeeder(), ns3::SatOrbiterNetDeviceLora::ReceivePacketFeeder(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketUser(), and ns3::SatOrbiterNetDeviceLora::ReceivePacketUser().

◆ m_mtu

uint16_t ns3::SatOrbiterNetDevice::m_mtu

protected

Definition at line 371 of file satellite-orbiter-net-device.h.

Referenced by GetMtu(), and SetMtu().

◆ m_node

Ptr<Node> ns3::SatOrbiterNetDevice::m_node

protected

Definition at line 370 of file satellite-orbiter-net-device.h.

Referenced by DoDispose(), GetNode(), and SetNode().

◆ m_nodeId

uint32_t ns3::SatOrbiterNetDevice::m_nodeId

protected

Definition at line 388 of file satellite-orbiter-net-device.h.

Referenced by ConnectGw(), ns3::SatOrbiterNetDeviceDvb::ConnectUt(), ns3::SatOrbiterNetDeviceLora::ConnectUt(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketFeeder(), ns3::SatOrbiterNetDeviceLora::ReceivePacketFeeder(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketUser(), ns3::SatOrbiterNetDeviceLora::ReceivePacketUser(), SendToIsl(), and SetNodeId().

◆ m_packetTrace

TracedCallback<Time, SatEnums::SatPacketEvent_t, SatEnums::SatNodeType_t, uint32_t, Mac48Address, SatEnums::SatLogLevel_t, SatEnums::SatLinkDir_t, std::string> ns3::SatOrbiterNetDevice::m_packetTrace

protected

Definition at line 427 of file satellite-orbiter-net-device.h.

Referenced by GetTypeId(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketFeeder(), ns3::SatOrbiterNetDeviceLora::ReceivePacketFeeder(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketUser(), and ns3::SatOrbiterNetDeviceLora::ReceivePacketUser().

◆ m_promiscCallback

NetDevice::PromiscReceiveCallback ns3::SatOrbiterNetDevice::m_promiscCallback

protected

Definition at line 369 of file satellite-orbiter-net-device.h.

Referenced by SetPromiscReceiveCallback().

◆ m_receiveErrorModel

Ptr<ErrorModel> ns3::SatOrbiterNetDevice::m_receiveErrorModel

protected

Definition at line 374 of file satellite-orbiter-net-device.h.

Referenced by DoDispose(), GetTypeId(), and SetReceiveErrorModel().

◆ m_returnLinkRegenerationMode

SatEnums::RegenerationMode_t ns3::SatOrbiterNetDevice::m_returnLinkRegenerationMode

protected

Definition at line 387 of file satellite-orbiter-net-device.h.

Referenced by ReceiveUser(), ns3::SatOrbiterNetDeviceDvb::SendControlMsgToFeeder(), and SetReturnLinkRegenerationMode().

◆ m_rxCallback

NetDevice::ReceiveCallback ns3::SatOrbiterNetDevice::m_rxCallback

protected

Definition at line 368 of file satellite-orbiter-net-device.h.

◆ m_rxFeederLinkDelayTrace

TracedCallback<const Time&, const Address&> ns3::SatOrbiterNetDevice::m_rxFeederLinkDelayTrace

protected

Traced callback for all received packets, including feeder link delay information and the address of the senders.

Definition at line 456 of file satellite-orbiter-net-device.h.

Referenced by GetTypeId(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketFeeder(), and ns3::SatOrbiterNetDeviceLora::ReceivePacketFeeder().

◆ m_rxFeederLinkJitterTrace

TracedCallback<const Time&, const Address&> ns3::SatOrbiterNetDevice::m_rxFeederLinkJitterTrace

protected

Traced callback for all received packets, including feeder link jitter information and the address of the senders.

Definition at line 462 of file satellite-orbiter-net-device.h.

Referenced by GetTypeId(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketFeeder(), and ns3::SatOrbiterNetDeviceLora::ReceivePacketFeeder().

◆ m_rxFeederTrace

TracedCallback<Ptr<const Packet>, const Address&> ns3::SatOrbiterNetDevice::m_rxFeederTrace

protected

Traced callback for all received packets on feeder, including the address of the senders.

Definition at line 444 of file satellite-orbiter-net-device.h.

Referenced by GetTypeId(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketFeeder(), and ns3::SatOrbiterNetDeviceLora::ReceivePacketFeeder().

◆ m_rxUserLinkDelayTrace

TracedCallback<const Time&, const Address&> ns3::SatOrbiterNetDevice::m_rxUserLinkDelayTrace

protected

Traced callback for all received packets, including user link delay information and the address of the senders.

Definition at line 468 of file satellite-orbiter-net-device.h.

Referenced by GetTypeId(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketUser(), and ns3::SatOrbiterNetDeviceLora::ReceivePacketUser().

◆ m_rxUserLinkJitterTrace

TracedCallback<const Time&, const Address&> ns3::SatOrbiterNetDevice::m_rxUserLinkJitterTrace

protected

Traced callback for all received packets, including user link jitter information and the address of the senders.

Definition at line 474 of file satellite-orbiter-net-device.h.

Referenced by GetTypeId(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketUser(), and ns3::SatOrbiterNetDeviceLora::ReceivePacketUser().

◆ m_rxUserTrace

TracedCallback<Ptr<const Packet>, const Address&> ns3::SatOrbiterNetDevice::m_rxUserTrace

protected

Traced callback for all received packets on user, including the address of the senders.

Definition at line 450 of file satellite-orbiter-net-device.h.

Referenced by GetTypeId(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketUser(), and ns3::SatOrbiterNetDeviceLora::ReceivePacketUser().

◆ m_signallingTxTrace

TracedCallback<Ptr<const Packet>, const Address&> ns3::SatOrbiterNetDevice::m_signallingTxTrace

protected

Traced callback for all signalling (control message) packets sent, including the destination address.

Definition at line 438 of file satellite-orbiter-net-device.h.

Referenced by GetTypeId().

◆ m_txTrace

TracedCallback<Ptr<const Packet> > ns3::SatOrbiterNetDevice::m_txTrace

protected

Traced callback for all packets received to be transmitted.

Definition at line 432 of file satellite-orbiter-net-device.h.

Referenced by GetTypeId().

◆ m_userMac

std::map<uint32_t, Ptr<SatMac> > ns3::SatOrbiterNetDevice::m_userMac

protected

Definition at line 377 of file satellite-orbiter-net-device.h.

Referenced by AddUserMac(), ns3::SatOrbiterNetDeviceDvb::ConnectUt(), ns3::SatOrbiterNetDeviceDvb::DisconnectUt(), DoDispose(), GetTypeId(), GetUserMac(), ns3::SatOrbiterNetDeviceDvb::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceLora::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketFeeder(), and ns3::SatOrbiterNetDeviceLora::ReceivePacketFeeder().

◆ m_userPhy

std::map<uint32_t, Ptr<SatPhy> > ns3::SatOrbiterNetDevice::m_userPhy

protected

Definition at line 375 of file satellite-orbiter-net-device.h.

Referenced by AddUserPhy(), DoDispose(), GetFeederPhy(), GetTypeId(), GetUserPhy(), and ReceiveFeeder().

◆ m_utConnected

std::map<Mac48Address, uint32_t> ns3::SatOrbiterNetDevice::m_utConnected

protected

Set containing all connected UTs.

Key is UT MAC address, and value is associated beam ID

Definition at line 402 of file satellite-orbiter-net-device.h.

Referenced by ns3::SatOrbiterNetDeviceDvb::ConnectUt(), ns3::SatOrbiterNetDeviceLora::ConnectUt(), ns3::SatOrbiterNetDeviceDvb::DisconnectUt(), ns3::SatOrbiterNetDeviceLora::DisconnectUt(), GetUtConnected(), ns3::SatOrbiterNetDeviceDvb::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceLora::ReceiveFromIsl(), ns3::SatOrbiterNetDeviceDvb::ReceivePacketFeeder(), and ns3::SatOrbiterNetDeviceLora::ReceivePacketFeeder().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-orbiter-net-device.h
/builds/sns3/satellite/satellite/model/satellite-orbiter-net-device.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SatOrbiterNetDevice()

Member Function Documentation

◆ AddFeederMac()

◆ AddFeederPair()

◆ AddFeederPhy()

◆ AddIslsNetDevice()

◆ AddLinkChangeCallback()

◆ AddUserMac()

◆ AddUserPair()

◆ AddUserPhy()

◆ ConnectGw()

◆ ConnectUt()

◆ DisconnectGw()

◆ DisconnectUt()

◆ DoDispose()

◆ GetAddress()

◆ GetAllFeederMac()

◆ GetArbiter()

◆ GetBroadcast()

◆ GetChannel()

◆ GetFeederMac() [1/2]

◆ GetFeederMac() [2/2]

◆ GetFeederPhy() [1/2]

◆ GetFeederPhy() [2/2]

◆ GetGwConnected()

◆ GetIfIndex()

◆ GetIslsNetDevices()

◆ GetMtu()

◆ GetMulticast() [1/2]

◆ GetMulticast() [2/2]

◆ GetNode()

◆ GetRxUtAddress()

◆ GetSatelliteFeederAddress()

◆ GetSatelliteUserAddress()

◆ GetTypeId()

◆ GetUserMac() [1/2]

◆ GetUserMac() [2/2]

◆ GetUserPhy() [1/2]

◆ GetUserPhy() [2/2]

◆ GetUtConnected()

◆ IsBridge()

◆ IsBroadcast()

◆ IsLinkUp()

◆ IsMulticast()

◆ IsPointToPoint()

◆ NeedsArp()

◆ ReceiveFeeder()

◆ ReceiveFromIsl()

◆ ReceivePacketFeeder()

◆ ReceivePacketUser()

◆ ReceiveUser()

◆ Send()

◆ SendControlMsgToFeeder()

◆ SendFrom()

◆ SendToIsl()

◆ SetAddress()

◆ SetArbiter()

◆ SetForwardLinkRegenerationMode()

◆ SetIfIndex()

◆ SetMtu()

◆ SetNode()

◆ SetNodeId()

◆ SetPromiscReceiveCallback()

◆ SetReceiveCallback()

◆ SetReceiveErrorModel()

◆ SetReturnLinkRegenerationMode()

◆ SupportsSendFrom()

Member Data Documentation

◆ m_address

◆ m_addressMapFeeder

◆ m_addressMapUser

◆ m_allFeederMac

◆ m_arbiter

◆ m_broadcastReceived
