The SatOrbiterMac models the global link MAC layer of the satellite node. More...

#include "satellite-orbiter-mac.h"

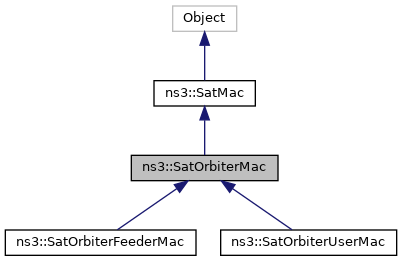

Inheritance diagram for ns3::SatOrbiterMac:

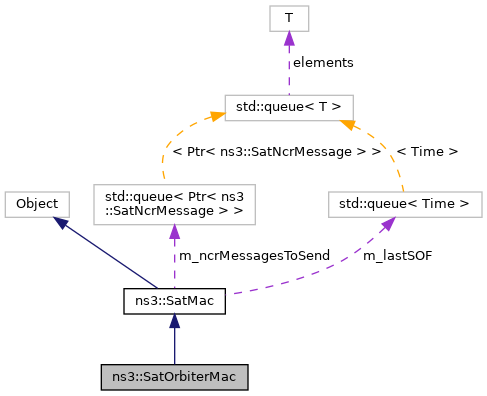

Collaboration diagram for ns3::SatOrbiterMac:

Public Types
typedef Callback< Ptr< SatBeamScheduler >, uint32_t, uint32_t >	BeamSchedulerCallback
	Callback to get the SatBeamScheduler from the beam ID for handover. More...

typedef Callback< void, SatPhy::PacketContainer_t, Ptr< SatSignalParameters > >	ReceiveNetDeviceCallback

typedef Callback< void, Ptr< SatSignalParameters > >	TransmitCallback

Public Types inherited from ns3::SatMac
typedef Callback< Ptr< SatBeamScheduler >, uint32_t, uint32_t >	BeamSchedulerCallback
	Callback to get the SatBeamScheduler from the beam ID for handover. More...

typedef Callback< void, Ptr< const Packet > >	LoraReceiveCallback
	Callback to receive packet by upper layer. More...

typedef Callback< Ptr< SatControlMessage >, uint32_t >	ReadCtrlMsgCallback
	Callback to read control messages from container storing control messages. More...

typedef Callback< void, Ptr< Packet >, Mac48Address, Mac48Address >	ReceiveCallback
	Callback to receive packet by upper layer. More...

typedef Callback< uint32_t, Ptr< SatControlMessage > >	ReserveCtrlMsgCallback
	Callback to reserve an id and initially store the control message. More...

typedef Callback< void, Address, Address >	RoutingUpdateCallback
	Callback to update routing and ARP tables after handover. More...

typedef Callback< uint32_t, uint32_t >	SendCtrlMsgCallback
	Callback to send a control message and allocate a recv ID for it. More...

typedef Callback< void, SatPhy::PacketContainer_t, uint32_t, Time, SatSignalParameters::txInfo_s >	TransmitCallback
	Callback to send packet to lower layer. More...

typedef Callback< void >	UpdateIslCallback
	Callback to update ISL routes when handovers are performed. More...

Public Member Functions
	SatOrbiterMac (uint32_t satId, uint32_t beamId)
	Construct a SatOrbiterMac. More...

	SatOrbiterMac (void)
	Default constructor. More...

virtual	~SatOrbiterMac ()
	Destructor for SatOrbiterMac. More...

virtual bool	AddPeer (Mac48Address address)=0
	Add a remote peer to this MAC. More...

virtual void	DoDispose (void)
	Dispose of this class instance. More...

virtual void	DoInitialize (void)

virtual void	EnquePacket (Ptr< Packet > packet)=0
	Add new packet to the LLC queue. More...

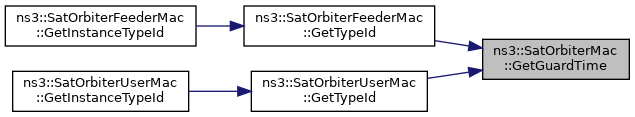

virtual Time	GetGuardTime () const

TypeId	GetInstanceTypeId (void) const

virtual bool	RemovePeer (Mac48Address address)=0
	Remove a remote peer from this MAC. More...

void	SetBeamSchedulerCallback (SatOrbiterMac::BeamSchedulerCallback cb)
	Set the beam scheduler callback. More...

void	SetFwdScheduler (Ptr< SatFwdLinkScheduler > fwdScheduler)
	Method to set link scheduler (forward or SCPC) More...

virtual void	SetGuardTime (Time guardTime)

void	SetLlc (Ptr< SatOrbiterLlc > llc)
	Set the orbiter LLC associated to this orbiter MAC layer. More...

void	SetReceiveNetDeviceCallback (SatOrbiterMac::ReceiveNetDeviceCallback cb)

void	SetTransmitCallback (SatOrbiterMac::TransmitCallback cb)

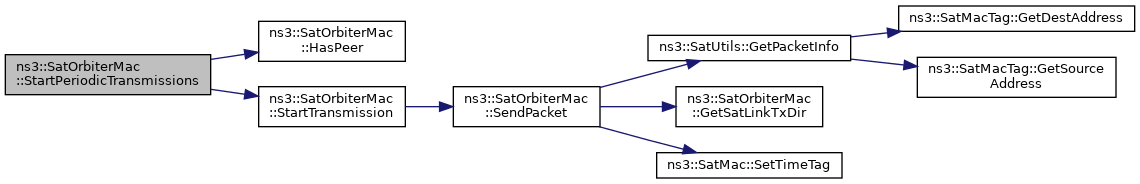

void	StartPeriodicTransmissions ()
	Starts periodical transmissions. More...

virtual void	StopPeriodicTransmissions ()
	Stop periodic transmission, until a pacquet in enqued. More...

Public Member Functions inherited from ns3::SatMac
	SatMac ()
	Construct a SatMac. More...

	SatMac (uint32_t satId, uint32_t beamId)
	Construct a SatMac. More...

	~SatMac ()
	Destroy a SatMac. More...

virtual void	Disable ()
	Disable the MAC layer, i.e. More...

virtual void	Enable ()
	Enable the MAC layer, i.e. More...

Address	GetAddress () const
	Get MAC address. More...

uint32_t	GetBeamId () const
	Get beam ID of the object. More...

uint32_t	GetSatId () const
	Get sat ID of the object. More...

virtual void	ReceiveQueueEvent (SatQueue::QueueEvent_t event, uint8_t flowIndex)
	Receive a queue event: More...

uint32_t	ReserveIdAndStoreCtrlMsgToContainer (Ptr< SatControlMessage > msg)
	Reserve id and store the control message. More...

uint32_t	SendCtrlMsgFromContainer (uint32_t sendId)
	Send the control message from the container. More...

void	SetBeamId (uint32_t beamId)
	Set beam ID of the object. More...

void	SetBeamSchedulerCallback (SatMac::BeamSchedulerCallback cb)
	Set the beam scheduler callback. More...

void	SetHandoverModule (Ptr< SatHandoverModule > handoverModule)
	Set the handover module. More...

void	SetLoraReceiveCallback (SatMac::LoraReceiveCallback cb)
	Method to set receive callback. More...

virtual void	SetNodeInfo (Ptr< SatNodeInfo > nodeInfo)
	Set the node info. More...

void	SetReadCtrlCallback (SatMac::ReadCtrlMsgCallback cb)
	Method to set read control message callback. More...

void	SetReceiveCallback (SatMac::ReceiveCallback cb)
	Method to set receive callback. More...

void	SetReserveCtrlCallback (SatMac::ReserveCtrlMsgCallback cb)
	Method to set reserve control message id callback. More...

void	SetRoutingUpdateCallback (SatMac::RoutingUpdateCallback cb)
	Method to set the routing update callback. More...

virtual void	SetSatelliteAddress (Address satelliteAddress)
	Set the satellite MAC address on the other side of this link (if regenerative satellite). More...

void	SetSatId (uint32_t satId)
	Set sat ID of the object. More...

void	SetSendCtrlCallback (SatMac::SendCtrlMsgCallback cb)
	Method to set send control message callback. More...

void	SetTransmitCallback (SatMac::TransmitCallback cb)
	Method to set transmit callback. More...

void	SetUpdateIslCallback (SatMac::UpdateIslCallback cb)
	Method to set update ISL callback. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	inherited from Object More...

Static Public Member Functions inherited from ns3::SatMac
static TypeId	GetTypeId (void)
	Derived from Object. More...

Protected Member Functions

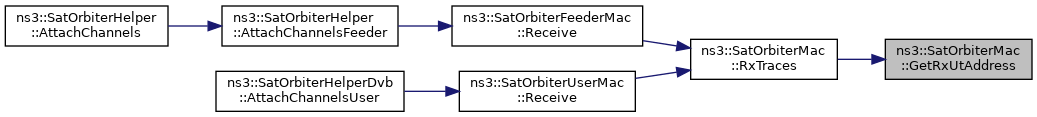

virtual Address	GetRxUtAddress (Ptr< Packet > packet)=0
	Get the UT address associated to this RX packet. More...

virtual SatEnums::SatLinkDir_t	GetSatLinkRxDir ()=0
	Get the link RX direction. More...

virtual SatEnums::SatLinkDir_t	GetSatLinkTxDir ()=0
	Get the link TX direction. More...

virtual bool	HasPeer ()=0
	Indicates if at least one device is connected in this beam. More...

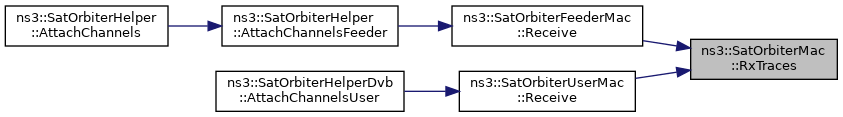

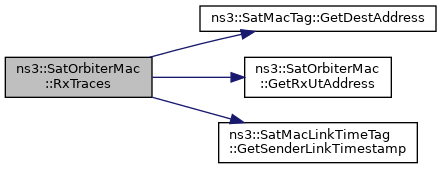

virtual void	RxTraces (SatPhy::PacketContainer_t packets)
	Invoke the `Rx` trace source for each received packet. More...

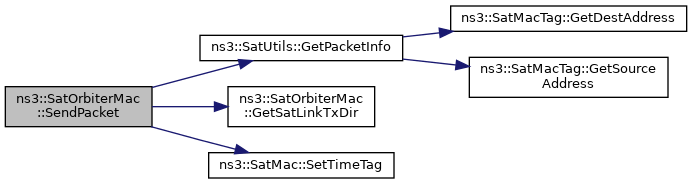

virtual void	SendPacket (SatPhy::PacketContainer_t packets, uint32_t carrierId, Time duration, SatSignalParameters::txInfo_s txInfo)
	Send packets to lower layer by using a callback. More...

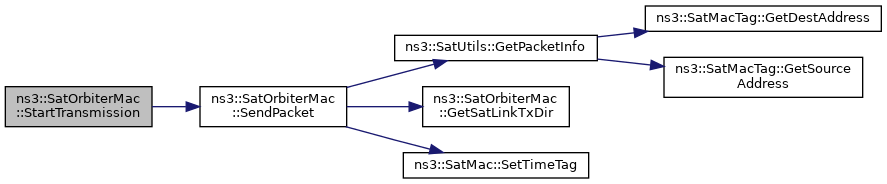

void	StartTransmission (uint32_t carrierId)
	Start sending a Packet Down the Wire. More...

Protected Member Functions inherited from ns3::SatMac
void	DoDispose (void)
	Dispose of SatMac. More...

void	RxTraces (SatPhy::PacketContainer_t packets)
	Invoke the `Rx` trace source for each received packet. More...

void	SetTimeTag (SatPhy::PacketContainer_t packets)
	Set SatMacTimeTag of packets. More...

Protected Attributes
TracedCallback< Ptr< SatBbFrame > >	m_bbFrameTxTrace
	Trace for transmitted BB frames. More...

uint32_t	m_beamId
	ID of beam for UT. More...

bool	m_disableSchedulingIfNoDeviceConnected
	If true, the periodic calls of StartTransmission are not called when no devices are connected to this MAC. More...

Ptr< SatFwdLinkScheduler >	m_fwdScheduler
	Scheduler for the forward link. More...

Time	m_guardTime
	Guard time for BB frames. More...

Ptr< SatOrbiterLlc >	m_llc
	LLC layer linked to this MAC. More...

bool	m_periodicTransmissionEnabled
	Indicated if periodic transmission is enabled. More...

ReceiveNetDeviceCallback	m_rxNetDeviceCallback

uint32_t	m_satId
	ID of sat for UT. More...

TransmitCallback	m_txCallback

Protected Attributes inherited from ns3::SatMac
Time	m_beamEnabledTime
	Time of the last beam enable event. More...

uint32_t	m_beamId
	The ID of the beam where mac belongs. More...

SatMac::BeamSchedulerCallback	m_beamSchedulerCallback
	Callback to get the SatBeamScheduler linked to a beam ID. More...

TracedCallback< Time >	m_beamServiceTrace
	Traced callback for beam being disabled and including service time. More...

SatEnums::RegenerationMode_t	m_forwardLinkRegenerationMode
	Regeneration mode on forward link. More...

Ptr< SatHandoverModule >	m_handoverModule
	Module used to perform handovers. More...

bool	m_isRegenerative
	Indicate if satellite is regeneration (at least LINK level) for TX. More...

bool	m_isStatisticsTagsEnabled
	`EnableStatisticsTags` attribute. More...

Time	m_lastDelay
	Last delay measurement. More...

Time	m_lastLinkDelay
	Last delay measurement for link. More...

std::queue< Time >	m_lastSOF
	Store last 3 SOF date for Forward messages, to insert in NCR packets. More...

std::queue< Ptr< SatNcrMessage > >	m_ncrMessagesToSend
	List of NCR control messages created but not sent yet. More...

bool	m_ncrV2
	Use of version 2 of NCR dates. More...

Ptr< SatNodeInfo >	m_nodeInfo
	Node info containing node related information, such as node type, node id and MAC address (of the SatNetDevice) More...

TracedCallback< Time, SatEnums::SatPacketEvent_t, SatEnums::SatNodeType_t, uint32_t, Mac48Address, SatEnums::SatLogLevel_t, SatEnums::SatLinkDir_t, std::string >	m_packetTrace
	Trace callback used for packet tracing. More...

SatMac::ReadCtrlMsgCallback	m_readCtrlCallback
	The read control message callback. More...

SatMac::ReserveCtrlMsgCallback	m_reserveCtrlCallback
	The reserve control message id callback. More...

SatEnums::RegenerationMode_t	m_returnLinkRegenerationMode
	Regeneration mode on return link. More...

SatMac::RoutingUpdateCallback	m_routingUpdateCallback
	Callback to update routing and ARP tables after a beam handover. More...

SatMac::ReceiveCallback	m_rxCallback
	The upper layer package receive callback. More...

TracedCallback< const Time &, const Address & >	m_rxDelayTrace
	Traced callback for all received packets, including delay information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxJitterTrace
	Traced callback for all received packets, including jitter information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxLinkDelayTrace
	Traced callback for all received packets, including link delay information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxLinkJitterTrace
	Traced callback for all received packets, including link jitter information and the address of the senders. More...

SatMac::LoraReceiveCallback	m_rxLoraCallback
	The upper layer package receive callback. More...

TracedCallback< Ptr< const Packet >, const Address & >	m_rxTrace
	Traced callback for all received packets, including the address of the senders. More...

Address	m_satelliteAddress
	MAC address of satellite on other side of the link. More...

uint32_t	m_satId
	The ID of the sat where mac belongs. More...

SatMac::SendCtrlMsgCallback	m_sendCtrlCallback
	The send control message callback. More...

SatMac::TransmitCallback	m_txCallback
	The lower layer packet transmit callback. More...

bool	m_txEnabled
	Flag indicating whether the MAC is enabled, i.e. More...

SatMac::UpdateIslCallback	m_updateIslCallback
	The update ISL routes callback. More...

Detailed Description

The SatOrbiterMac models the global link MAC layer of the satellite node.

Definition at line 47 of file satellite-orbiter-mac.h.

Member Typedef Documentation

◆ BeamSchedulerCallback

typedef Callback<Ptr<SatBeamScheduler>, uint32_t, uint32_t> ns3::SatOrbiterMac::BeamSchedulerCallback

Callback to get the SatBeamScheduler from the beam ID for handover.

Definition at line 119 of file satellite-orbiter-mac.h.

◆ ReceiveNetDeviceCallback

typedef Callback<void, SatPhy::PacketContainer_t, Ptr<SatSignalParameters> > ns3::SatOrbiterMac::ReceiveNetDeviceCallback

Definition at line 112 of file satellite-orbiter-mac.h.

◆ TransmitCallback

typedef Callback<void, Ptr<SatSignalParameters> > ns3::SatOrbiterMac::TransmitCallback

Definition at line 107 of file satellite-orbiter-mac.h.

Constructor & Destructor Documentation

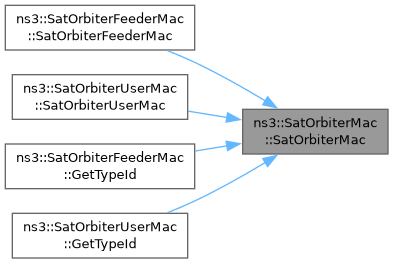

◆ SatOrbiterMac() [1/2]

ns3::SatOrbiterMac::SatOrbiterMac ( void )

Default constructor.

Definition at line 75 of file satellite-orbiter-mac.cc.

◆ SatOrbiterMac() [2/2]

ns3::SatOrbiterMac::SatOrbiterMac	(	uint32_t	satId,
		uint32_t	beamId
	)

Construct a SatOrbiterMac.

This is the constructor for the SatOrbiterMac

Parameters

satId	ID of sat for UT
beamId	ID of beam for UT

Definition at line 81 of file satellite-orbiter-mac.cc.

◆ ~SatOrbiterMac()

ns3::SatOrbiterMac::~SatOrbiterMac ( )

virtual

Destructor for SatOrbiterMac.

Definition at line 93 of file satellite-orbiter-mac.cc.

Member Function Documentation

◆ AddPeer()

virtual bool ns3::SatOrbiterMac::AddPeer ( Mac48Address address )

pure virtual

Add a remote peer to this MAC.

Parameters

address The MAC address of the peer

Returns: True if the peer has been added, false otherwise

Implemented in ns3::SatOrbiterUserMac, and ns3::SatOrbiterFeederMac.

◆ DoDispose()

void ns3::SatOrbiterMac::DoDispose ( void )

virtual

Dispose of this class instance.

Reimplemented in ns3::SatOrbiterUserMac, and ns3::SatOrbiterFeederMac.

Definition at line 99 of file satellite-orbiter-mac.cc.

◆ DoInitialize()

void ns3::SatOrbiterMac::DoInitialize ( void )

virtual

Reimplemented in ns3::SatOrbiterUserMac, and ns3::SatOrbiterFeederMac.

Definition at line 106 of file satellite-orbiter-mac.cc.

◆ EnquePacket()

virtual void ns3::SatOrbiterMac::EnquePacket ( Ptr< Packet > packet )

pure virtual

Add new packet to the LLC queue.

Parameters

packet Packets to be sent.

Implemented in ns3::SatOrbiterUserMac, and ns3::SatOrbiterFeederMac.

◆ GetGuardTime()

Time ns3::SatOrbiterMac::GetGuardTime ( ) const

virtual

Definition at line 282 of file satellite-orbiter-mac.cc.

References m_guardTime.

Referenced by ns3::SatOrbiterFeederMac::GetTypeId(), and ns3::SatOrbiterUserMac::GetTypeId().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SatOrbiterMac::GetInstanceTypeId ( void ) const

Definition at line 68 of file satellite-orbiter-mac.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetRxUtAddress()

virtual Address ns3::SatOrbiterMac::GetRxUtAddress ( Ptr< Packet > packet )

protectedpure virtual

Get the UT address associated to this RX packet.

May be source or destination address depending on link used

Parameters

packet The packet to consider

Returns: The address of associated UT

Implemented in ns3::SatOrbiterUserMac, and ns3::SatOrbiterFeederMac.

Referenced by RxTraces().

Here is the caller graph for this function:

◆ GetSatLinkRxDir()

virtual SatEnums::SatLinkDir_t ns3::SatOrbiterMac::GetSatLinkRxDir ( )

protectedpure virtual

Get the link RX direction.

Must be implemented by child clases.

Returns: The link RX direction

Implemented in ns3::SatOrbiterUserMac, and ns3::SatOrbiterFeederMac.

◆ GetSatLinkTxDir()

virtual SatEnums::SatLinkDir_t ns3::SatOrbiterMac::GetSatLinkTxDir ( )

protectedpure virtual

Get the link TX direction.

Must be implemented by child clases.

Returns: The link TX direction

Implemented in ns3::SatOrbiterUserMac, and ns3::SatOrbiterFeederMac.

Referenced by SendPacket().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatOrbiterMac::GetTypeId ( void )

static

inherited from Object

Definition at line 47 of file satellite-orbiter-mac.cc.

References m_bbFrameTxTrace, and m_disableSchedulingIfNoDeviceConnected.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

◆ HasPeer()

virtual bool ns3::SatOrbiterMac::HasPeer ( )

protectedpure virtual

Indicates if at least one device is connected in this beam.

Returns: True if at least a device is connected, false otherwise

Implemented in ns3::SatOrbiterUserMac, and ns3::SatOrbiterFeederMac.

Referenced by StartPeriodicTransmissions().

Here is the caller graph for this function:

◆ RemovePeer()

virtual bool ns3::SatOrbiterMac::RemovePeer ( Mac48Address address )

pure virtual

Remove a remote peer from this MAC.

Parameters

address The MAC address of the peer

Returns: True if the peer has been removed, false otherwise

Implemented in ns3::SatOrbiterUserMac, and ns3::SatOrbiterFeederMac.

◆ RxTraces()

void ns3::SatOrbiterMac::RxTraces ( SatPhy::PacketContainer_t packets )

protectedvirtual

Invoke the Rx trace source for each received packet.

Parameters

packets Container of the pointers to the packets received.

Definition at line 224 of file satellite-orbiter-mac.cc.

References ns3::SatMacTag::GetDestAddress(), GetRxUtAddress(), ns3::SatMacLinkTimeTag::GetSenderLinkTimestamp(), ns3::SatMac::m_isStatisticsTagsEnabled, ns3::SatMac::m_lastLinkDelay, ns3::SatMac::m_nodeInfo, ns3::SatMac::m_rxLinkDelayTrace, ns3::SatMac::m_rxLinkJitterTrace, and ns3::SatMac::m_rxTrace.

Referenced by ns3::SatOrbiterFeederMac::Receive(), and ns3::SatOrbiterUserMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendPacket()

void ns3::SatOrbiterMac::SendPacket	(	SatPhy::PacketContainer_t	packets,
		uint32_t	carrierId,
		Time	duration,
		SatSignalParameters::txInfo_s	txInfo
	)

protectedvirtual

Send packets to lower layer by using a callback.

Parameters

packets	Packets to be sent.
carrierId	ID of the carrier used for transmission.
duration	Duration of the physical layer transmission.
txInfo	Additional parameterization for burst transmission.

Reimplemented from ns3::SatMac.

Definition at line 191 of file satellite-orbiter-mac.cc.

References ns3::SatUtils::GetPacketInfo(), GetSatLinkTxDir(), ns3::SatEnums::LL_MAC, m_beamId, ns3::SatMac::m_nodeInfo, ns3::SatMac::m_packetTrace, m_satId, m_txCallback, ns3::SatEnums::PACKET_SENT, and ns3::SatMac::SetTimeTag().

Referenced by StartTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBeamSchedulerCallback()

void ns3::SatOrbiterMac::SetBeamSchedulerCallback ( SatOrbiterMac::BeamSchedulerCallback cb )

Set the beam scheduler callback.

Parameters

cb	Callback to get the SatBeamScheduler

◆ SetFwdScheduler()

void ns3::SatOrbiterMac::SetFwdScheduler ( Ptr< SatFwdLinkScheduler > fwdScheduler )

Method to set link scheduler (forward or SCPC)

Parameters

The	scheduler to use

Definition at line 270 of file satellite-orbiter-mac.cc.

References m_fwdScheduler.

◆ SetGuardTime()

void ns3::SatOrbiterMac::SetGuardTime ( Time guardTime )

virtual

Definition at line 288 of file satellite-orbiter-mac.cc.

References m_guardTime.

Referenced by ns3::SatOrbiterFeederMac::GetTypeId(), and ns3::SatOrbiterUserMac::GetTypeId().

Here is the caller graph for this function:

◆ SetLlc()

void ns3::SatOrbiterMac::SetLlc ( Ptr< SatOrbiterLlc > llc )

Set the orbiter LLC associated to this orbiter MAC layer.

Definition at line 276 of file satellite-orbiter-mac.cc.

References m_llc.

◆ SetReceiveNetDeviceCallback()

void ns3::SatOrbiterMac::SetReceiveNetDeviceCallback ( SatOrbiterMac::ReceiveNetDeviceCallback cb )

Definition at line 301 of file satellite-orbiter-mac.cc.

References m_rxNetDeviceCallback.

◆ SetTransmitCallback()

void ns3::SatOrbiterMac::SetTransmitCallback ( SatOrbiterMac::TransmitCallback cb )

Definition at line 294 of file satellite-orbiter-mac.cc.

References m_txCallback.

◆ StartPeriodicTransmissions()

void ns3::SatOrbiterMac::StartPeriodicTransmissions ( )

Starts periodical transmissions.

Called when MAC is wanted to take care of periodic sending.

Definition at line 113 of file satellite-orbiter-mac.cc.

References HasPeer(), m_beamId, m_disableSchedulingIfNoDeviceConnected, m_fwdScheduler, m_llc, m_periodicTransmissionEnabled, and StartTransmission().

Referenced by ns3::SatOrbiterUserMac::AddPeer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StartTransmission()

void ns3::SatOrbiterMac::StartTransmission ( uint32_t carrierId )

protected

Start sending a Packet Down the Wire.

The StartTransmission method is used internally in the SatOrbiterMac to begin the process of sending a packet out on the PHY layer.

Parameters

carrierId id of the carrier.

Returns: true if success, false on failure

Decrease a guard time from BB frame duration.

Orbiter MAC is disabled, thus get the duration of the default BB frame and try again then.

Definition at line 142 of file satellite-orbiter-mac.cc.

References ns3::SatSignalParameters::txInfo_s::frameType, m_bbFrameTxTrace, m_disableSchedulingIfNoDeviceConnected, m_fwdScheduler, m_guardTime, m_periodicTransmissionEnabled, ns3::SatMac::m_txEnabled, ns3::SatSignalParameters::txInfo_s::modCod, ns3::SatEnums::PACKET_TYPE_DEDICATED_ACCESS, ns3::SatSignalParameters::txInfo_s::packetType, SendPacket(), ns3::SatSignalParameters::txInfo_s::sliceId, and ns3::SatSignalParameters::txInfo_s::waveformId.

Referenced by StartPeriodicTransmissions().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StopPeriodicTransmissions()

void ns3::SatOrbiterMac::StopPeriodicTransmissions ( )

virtual

Stop periodic transmission, until a pacquet in enqued.

Definition at line 308 of file satellite-orbiter-mac.cc.

References m_llc, and m_periodicTransmissionEnabled.

Referenced by ns3::SatOrbiterUserMac::RemovePeer().

Here is the caller graph for this function:

Member Data Documentation

◆ m_bbFrameTxTrace

TracedCallback<Ptr<SatBbFrame> > ns3::SatOrbiterMac::m_bbFrameTxTrace

protected

Trace for transmitted BB frames.

Definition at line 240 of file satellite-orbiter-mac.h.

Referenced by GetTypeId(), and StartTransmission().

◆ m_beamId

uint32_t ns3::SatOrbiterMac::m_beamId

protected

ID of beam for UT.

Definition at line 230 of file satellite-orbiter-mac.h.

Referenced by ns3::SatOrbiterUserMac::AddPeer(), ns3::SatOrbiterUserMac::RemovePeer(), SendPacket(), and StartPeriodicTransmissions().

◆ m_disableSchedulingIfNoDeviceConnected

bool ns3::SatOrbiterMac::m_disableSchedulingIfNoDeviceConnected

protected

If true, the periodic calls of StartTransmission are not called when no devices are connected to this MAC.

Definition at line 209 of file satellite-orbiter-mac.h.

Referenced by ns3::SatOrbiterUserMac::AddPeer(), GetTypeId(), ns3::SatOrbiterUserMac::RemovePeer(), StartPeriodicTransmissions(), and StartTransmission().

◆ m_fwdScheduler

Ptr<SatFwdLinkScheduler> ns3::SatOrbiterMac::m_fwdScheduler

protected

Scheduler for the forward link.

Definition at line 214 of file satellite-orbiter-mac.h.

Referenced by ns3::SatOrbiterFeederMac::ReceiveSignalingPacket(), ns3::SatOrbiterUserMac::ReceiveSignalingPacket(), SetFwdScheduler(), StartPeriodicTransmissions(), and StartTransmission().

◆ m_guardTime

Time ns3::SatOrbiterMac::m_guardTime

protected

Guard time for BB frames.

The guard time is modeled by shortening the duration of a BB frame by a m_guardTime set by an attribute.

Definition at line 220 of file satellite-orbiter-mac.h.

Referenced by GetGuardTime(), SetGuardTime(), and StartTransmission().

◆ m_llc

Ptr<SatOrbiterLlc> ns3::SatOrbiterMac::m_llc

protected

LLC layer linked to this MAC.

Definition at line 235 of file satellite-orbiter-mac.h.

Referenced by ns3::SatOrbiterFeederMac::EnquePacket(), ns3::SatOrbiterUserMac::EnquePacket(), SetLlc(), StartPeriodicTransmissions(), and StopPeriodicTransmissions().

◆ m_periodicTransmissionEnabled

bool ns3::SatOrbiterMac::m_periodicTransmissionEnabled

protected

Indicated if periodic transmission is enabled.

Definition at line 248 of file satellite-orbiter-mac.h.

Referenced by ns3::SatOrbiterFeederMac::EnquePacket(), ns3::SatOrbiterUserMac::EnquePacket(), StartPeriodicTransmissions(), StartTransmission(), and StopPeriodicTransmissions().

◆ m_rxNetDeviceCallback

ReceiveNetDeviceCallback ns3::SatOrbiterMac::m_rxNetDeviceCallback

protected

Definition at line 243 of file satellite-orbiter-mac.h.

Referenced by ns3::SatOrbiterFeederMac::Receive(), ns3::SatOrbiterUserMac::Receive(), and SetReceiveNetDeviceCallback().

◆ m_satId

uint32_t ns3::SatOrbiterMac::m_satId

protected

ID of sat for UT.

Definition at line 225 of file satellite-orbiter-mac.h.

Referenced by SendPacket().

◆ m_txCallback

TransmitCallback ns3::SatOrbiterMac::m_txCallback

protected

Definition at line 242 of file satellite-orbiter-mac.h.

Referenced by SendPacket(), and SetTransmitCallback().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-orbiter-mac.h
/builds/sns3/satellite/satellite/model/satellite-orbiter-mac.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ BeamSchedulerCallback

◆ ReceiveNetDeviceCallback

◆ TransmitCallback

Constructor & Destructor Documentation

◆ SatOrbiterMac() [1/2]

◆ SatOrbiterMac() [2/2]

◆ ~SatOrbiterMac()

Member Function Documentation

◆ AddPeer()

◆ DoDispose()

◆ DoInitialize()

◆ EnquePacket()

◆ GetGuardTime()

◆ GetInstanceTypeId()

◆ GetRxUtAddress()

◆ GetSatLinkRxDir()

◆ GetSatLinkTxDir()

◆ GetTypeId()

◆ HasPeer()

◆ RemovePeer()

◆ RxTraces()

◆ SendPacket()

◆ SetBeamSchedulerCallback()

◆ SetFwdScheduler()

◆ SetGuardTime()

◆ SetLlc()

◆ SetReceiveNetDeviceCallback()

◆ SetTransmitCallback()

◆ StartPeriodicTransmissions()

◆ StartTransmission()

◆ StopPeriodicTransmissions()

Member Data Documentation

◆ m_bbFrameTxTrace

◆ m_beamId

◆ m_disableSchedulingIfNoDeviceConnected

◆ m_fwdScheduler

◆ m_guardTime

◆ m_llc

◆ m_periodicTransmissionEnabled

◆ m_rxNetDeviceCallback

◆ m_satId

◆ m_txCallback
