class for module Beam Scheduler. More...

#include "satellite-beam-scheduler.h"

Inheritance diagram for ns3::SatBeamScheduler:

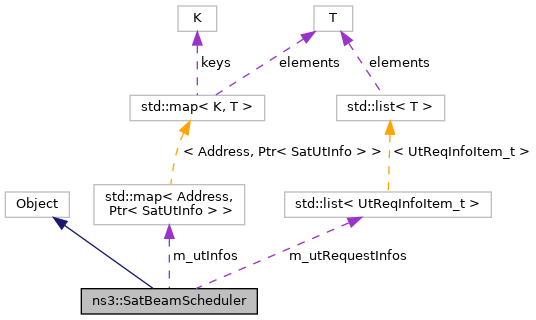

Collaboration diagram for ns3::SatBeamScheduler:

Classes
class	CnoCompare
	CnoCompare class to sort UT request according to C/N0 information. More...

class	SatUtInfo
	UT information helper class for SatBeamScheduler. More...

Public Types
typedef void(*	BacklogRequestsTraceCallback) (std::string trace)
	Callback signature for `BacklogRequestsTrace` trace source. More...

typedef void(*	ExceedingCapacityTraceCallback) (uint32_t exceedingCapacity)
	Callback signature for the `ExceedingCapacityTrace` trace source. More...

enum	HandoverInformationForward_t { BASIC , CHECK_GATEWAY }
	Strategies to exchange informations between beams. More...

typedef Callback< bool, Ptr< SatControlMessage >, const Address & >	SendCtrlMsgCallback

typedef Callback< void, Ptr< SatTbtpMessage > >	SendTbtpCallback

typedef Callback< void, uint32_t, Ptr< SatTbtpMessage > >	TbtpAddCallback

typedef void(*	UnmetCapacityTraceCallback) (uint32_t unmetCapacity)
	Callback signature for the `UnmetCapacityTrace` trace source. More...

typedef void(*	UsableCapacityTraceCallback) (uint32_t usableCapacity)
	Callback signature for the `UsableCapacityTrace` trace source. More...

typedef void(*	WaveformTraceCallback) (uint32_t waveformId)
	Callback signature for `WaveformTrace` trace source. More...

Public Member Functions
	SatBeamScheduler ()
	Construct a SatBeamScheduler. More...

	~SatBeamScheduler ()
	Destroy a SatBeamScheduler. More...

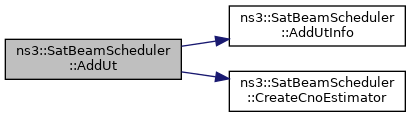

uint32_t	AddUt (Address utId, Ptr< SatLowerLayerServiceConf > llsConf)
	Add UT to scheduler. More...

void	ConnectGw (Mac48Address address)
	Connect a new GW address to this scheduler. More...

void	ConnectUt (Mac48Address address)
	Connect a new UT address to this scheduler. More...

Ptr< SatTimuMessage >	CreateTimu () const
	Create a TIM unicast message containing enough data for a terminal to connect to the beam handled by this SatBeamScheduler. More...

void	DisconnectGw (Mac48Address address)
	Disconnect a new GW address from this scheduler. More...

void	DisconnectUt (Mac48Address address)
	Disconnect a new UT address from this scheduler. More...

Address	GetGwAddress (void) const
	Return the address of the gateway responsible of this beam. More...

Address	GetSatAddress (void) const
	Return the address of the satellite responsible of this beam. More...

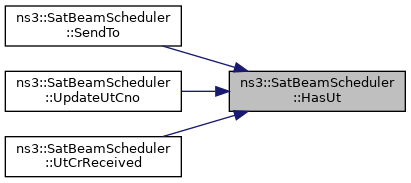

bool	HasUt ()
	Check whether an UT is handled by this scheduler. More...

bool	HasUt (Address utId)
	Check whether an UT is handled by this scheduler. More...

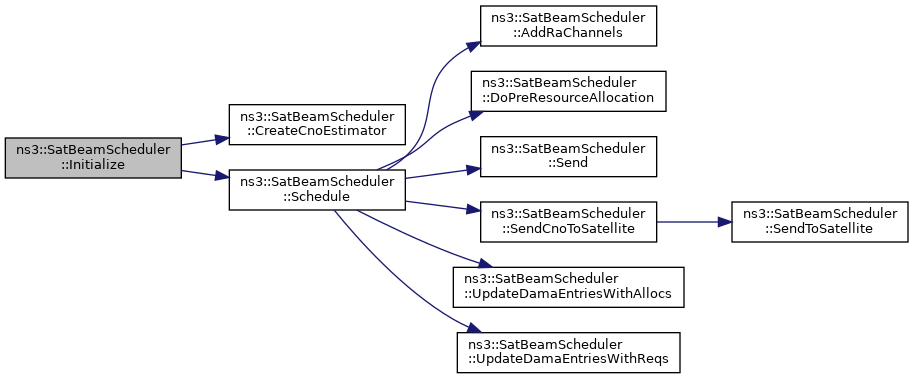

void	Initialize (uint32_t satId, uint32_t beamId, Ptr< SatNetDevice > gwNetDevice, Ptr< SatOrbiterNetDevice > orbiterNetDevice, SatBeamScheduler::SendCtrlMsgCallback cb, Ptr< SatSuperframeSeq > seq, uint32_t maxFrameSizeInBytes, Address satAddress, Address gwAddress)

void	RemoveUt (Address utId)
	Remove a UT from its SatBeamScheduler. More...

void	ReserveLogonChannel (uint32_t logonChannelId)

bool	Send (Ptr< SatControlMessage > message)
	Send control messages to the beam. More...

bool	SendTo (Ptr< SatControlMessage > message, Address utId)
	Send control message to an UT into the beam. More...

bool	SendToSatellite (Ptr< SatControlMessage > msg, Address satelliteMac)
	Send control message to the satellite. More...

void	SetSendTbtpCallback (SendTbtpCallback cb)
	Set the callback to inform NCC a TBTP has been sent. More...

void	SetUseLora (bool useLora)
	Set if SNS-3 is used with Lora standard. More...

void	TransferUtToBeam (Address utId, Ptr< SatBeamScheduler > destination)
	Transfer ownership of a terminal to the given SatBeamScheduler. More...

void	UpdateSatelliteCno (Address satelliteMac, double cno)
	Update satellite C/N0 info with the latest value. More...

void	UpdateUtCno (Address utId, double cno)
	Update UT C/N0 info with the latest value. More...

void	UtCrReceived (Address utId, Ptr< SatCrMessage > crMsg)
	Receive capacity requests from UTs. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::map< Address, Ptr< SatUtInfo > >	UtInfoMap_t
	Map container to store UT information. More...

typedef std::list< UtReqInfoItem_t >	UtReqInfoContainer_t
	Container to store capacity request information for the UTs. More...

typedef std::pair< Address, SatFrameAllocator::SatFrameAllocReq >	UtReqInfoItem_t
	Pair to store capacity request information for the UT. More...

Private Member Functions
void	AddRaChannels (std::vector< Ptr< SatTbtpMessage >> &tbtpContainer)
	Add RA channel information to TBTP(s). More...

void	AddUtInfo (Address utId, Ptr< SatUtInfo > utInfo)

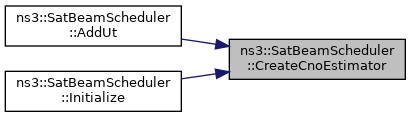

Ptr< SatCnoEstimator >	CreateCnoEstimator ()
	Create estimator for the UT according to set attributes. More...

void	DoDispose (void)
	Dispose actions for SatBeamScheduler. More...

void	DoPreResourceAllocation ()
	Do pre-allocation of the symbols per UT/RC, before time slot generation. More...

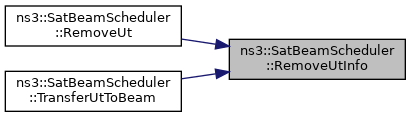

void	RemoveUtInfo (UtInfoMap_t::iterator iterator)

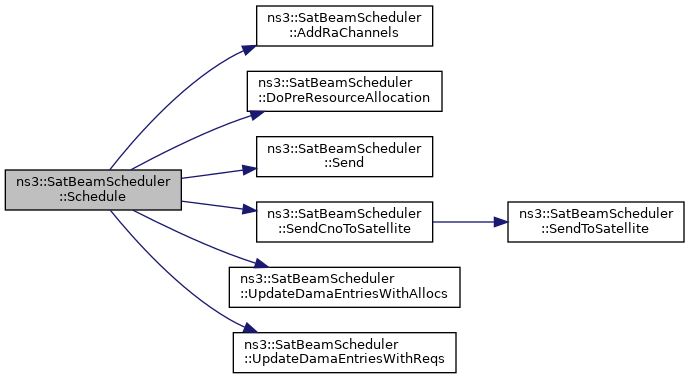

void	Schedule ()
	Schedule UTs added (registered) to scheduler. More...

void	SendCnoToSatellite ()
	Send an estimation of cno to satellite, if samples have been received. More...

uint32_t	UpdateDamaEntriesWithAllocs (SatFrameAllocator::UtAllocInfoContainer_t &utAllocContainer)
	Update dama entries with given allocations at end of the scheduling. More...

uint32_t	UpdateDamaEntriesWithReqs ()
	Update dama entries with received requests at beginning of the scheduling. More...

Private Attributes
TracedCallback< std::string >	m_backlogRequestsTrace
	Trace for backlog requests done to beam scheduler. More...

uint32_t	m_beamId
	ID of the beam. More...

Time	m_cnoEstimationWindow
	Time window for C/N0 estimation. More...

SatCnoEstimator::EstimationMode_t	m_cnoEstimatorMode
	Mode used for C/N0 estimator. More...

Time	m_controlSlotInterval
	Interval to generate control time slots. More...

bool	m_controlSlotsEnabled
	Flag to indicated if control time slots generation is enabled. More...

TracedCallback< uint32_t >	m_exceedingCapacityTrace
	Trace exceeding capacity. More...

TracedCallback< uint32_t, double >	m_frameLoadTrace
	Trace frame load ratio. More...

TracedCallback< uint32_t, uint32_t >	m_frameUtLoadTrace
	Trace count of UTs scheduled per Frame. More...

Address	m_gwAddress

Ptr< SatGwMac >	m_gwMac
	GW MAC linked to this beam. More...

HandoverInformationForward_t	m_handoverStrategy

uint32_t	m_logonChannelIndex
	Logon channel ID to exclude it from the RA channel selection. More...

uint32_t	m_maxBbFrameSize
	Maximum size of the BB frame. More...

Time	m_maxTbtpTxAndProcessingDelay
	Maximum TBTP tx and processing delay estimate at the GW (scheduler). More...

Time	m_maxTwoWayPropagationDelay
	Maximum two-way propagation delay estimate between GW-SAT-UT-SAT-GW. More...

Ptr< SatOrbiterNetDevice >	m_orbiterNetDevice
	OrbiterNetDevice on satellite linked to this beam. More...

Ptr< RandomVariableStream >	m_raChRandomIndex
	Random variable stream to select RA channel for a UT. More...

bool	m_receivedSatelliteCnoSample
	Indicates if Cno sample have been received since last C/N0 control message sent. More...

Address	m_satAddress

Ptr< SatCnoEstimator >	m_satelliteCnoEstimator
	Estimator for the C/N0 from satellite. More...

Address	m_satelliteMac
	MAC address of the satellite (used when regenerative) More...

uint32_t	m_satId
	ID of the satellite using this beam. More...

Ptr< SatSuperframeAllocator >	m_superframeAllocator
	Superframe allocator to maintain load information of the frames and their configurations. More...

SatEnums::SuperframeAllocatorType_t	m_superframeAllocatorType
	Type of SatSuperframeAllocator class to use. More...

uint32_t	m_superFrameCounter
	Counter for super frame sequence. More...

Ptr< SatSuperframeSeq >	m_superframeSeq
	Pointer to super frame sequence. More...

SatBeamScheduler::SendCtrlMsgCallback	m_txCallback
	The control message send callback. More...

SatBeamScheduler::SendTbtpCallback	m_txTbtpCallback
	The TBTP send callback to inform GW Mac. More...

TracedCallback< uint32_t >	m_unmetCapacityTrace
	Trace unmet capacity. More...

TracedCallback< uint32_t >	m_usableCapacityTrace
	Trace usable capacity. More...

bool	m_useLora
	Flag indicating if lora standard is used. More...

UtInfoMap_t	m_utInfos
	Map to store UT information in beam for updating purposes. More...

UtReqInfoContainer_t	m_utRequestInfos
	Container including every UT's allocation requests. More...

TracedCallback< uint32_t >	m_waveformTrace
	Trace first wave form scheduled for the UT. More...

Detailed Description

class for module Beam Scheduler.

This SatBeamScheduler class implements scheduler used to for one specific beam. It's is created and used by NCC.

The scheduling process is briefly:

SatDamaEntry/CR update
Preliminary resource allocation
Time slot generation
SatDamaEntry update
TBTP signaling (generation)
- Schedule next scheduling time for the next SF
One scheduler per spot-beam is created and utilized.

Definition at line 80 of file satellite-beam-scheduler.h.

Member Typedef Documentation

◆ BacklogRequestsTraceCallback

typedef void(* ns3::SatBeamScheduler::BacklogRequestsTraceCallback) (std::string trace)

Callback signature for BacklogRequestsTrace trace source.

Parameters

trace

A string containing the following information:

the current simulation time (in seconds),
beam ID,
UT ID,
type (RBDC or VBDC), and
request size (in kbps for RBDC or in bytes for VBDC).

Definition at line 243 of file satellite-beam-scheduler.h.

◆ ExceedingCapacityTraceCallback

typedef void(* ns3::SatBeamScheduler::ExceedingCapacityTraceCallback) (uint32_t exceedingCapacity)

Callback signature for the ExceedingCapacityTrace trace source.

Parameters

exceedingCapacity The amount capacity offered exceeds capacity requested, in kbps.

Definition at line 273 of file satellite-beam-scheduler.h.

◆ SendCtrlMsgCallback

typedef Callback<bool, Ptr<SatControlMessage>, const Address&> ns3::SatBeamScheduler::SendCtrlMsgCallback

Parameters

msg	the message send
address	Packet destination address

Returns: Result of sending, true success or false failure

Definition at line 119 of file satellite-beam-scheduler.h.

◆ SendTbtpCallback

typedef Callback<void, Ptr<SatTbtpMessage> > ns3::SatBeamScheduler::SendTbtpCallback

Parameters

msg	the TBTP sent

Definition at line 124 of file satellite-beam-scheduler.h.

◆ TbtpAddCallback

typedef Callback<void, uint32_t, Ptr<SatTbtpMessage> > ns3::SatBeamScheduler::TbtpAddCallback

Parameters

id	Id of the TBTP message to add.
tbtp	Pointer to the TBTP message to add.

Definition at line 130 of file satellite-beam-scheduler.h.

◆ UnmetCapacityTraceCallback

typedef void(* ns3::SatBeamScheduler::UnmetCapacityTraceCallback) (uint32_t unmetCapacity)

Callback signature for the UnmetCapacityTrace trace source.

Parameters

unmetCapacity The amount of capacity requested but not used, in kbps.

Definition at line 265 of file satellite-beam-scheduler.h.

◆ UsableCapacityTraceCallback

typedef void(* ns3::SatBeamScheduler::UsableCapacityTraceCallback) (uint32_t usableCapacity)

Callback signature for the UsableCapacityTrace trace source.

Parameters

usableCapacity The amount of capacity allocated, in kbps.

Definition at line 257 of file satellite-beam-scheduler.h.

◆ UtInfoMap_t

typedef std::map<Address, Ptr<SatUtInfo> > ns3::SatBeamScheduler::UtInfoMap_t

private

Map container to store UT information.

Definition at line 463 of file satellite-beam-scheduler.h.

◆ UtReqInfoContainer_t

typedef std::list<UtReqInfoItem_t> ns3::SatBeamScheduler::UtReqInfoContainer_t

private

Container to store capacity request information for the UTs.

Definition at line 468 of file satellite-beam-scheduler.h.

◆ UtReqInfoItem_t

typedef std::pair<Address, SatFrameAllocator::SatFrameAllocReq> ns3::SatBeamScheduler::UtReqInfoItem_t

private

Pair to store capacity request information for the UT.

Definition at line 458 of file satellite-beam-scheduler.h.

◆ WaveformTraceCallback

typedef void(* ns3::SatBeamScheduler::WaveformTraceCallback) (uint32_t waveformId)

Callback signature for WaveformTrace trace source.

Parameters

waveformId The first waveform scheduled for a UT.

Definition at line 250 of file satellite-beam-scheduler.h.

Member Enumeration Documentation

◆ HandoverInformationForward_t

enum ns3::SatBeamScheduler::HandoverInformationForward_t

Strategies to exchange informations between beams.

Enumerator
BASIC
CHECK_GATEWAY

Definition at line 87 of file satellite-beam-scheduler.h.

Constructor & Destructor Documentation

◆ SatBeamScheduler()

ns3::SatBeamScheduler::SatBeamScheduler ( )

Construct a SatBeamScheduler.

This is the constructor for the SatBeamScheduler

Definition at line 282 of file satellite-beam-scheduler.cc.

◆ ~SatBeamScheduler()

ns3::SatBeamScheduler::~SatBeamScheduler ( )

Destroy a SatBeamScheduler.

This is the destructor for the SatBeamScheduler.

Definition at line 298 of file satellite-beam-scheduler.cc.

Member Function Documentation

◆ AddRaChannels()

void ns3::SatBeamScheduler::AddRaChannels ( std::vector< Ptr< SatTbtpMessage >> & tbtpContainer )

private

Add RA channel information to TBTP(s).

Parameters

tbtpContainer Reference to container including TBTPs already and to be added.

Definition at line 715 of file satellite-beam-scheduler.cc.

References m_maxBbFrameSize, m_superframeSeq, and ns3::SatConstVariables::SUPERFRAME_SEQUENCE.

Referenced by Schedule().

Here is the caller graph for this function:

◆ AddUt()

uint32_t ns3::SatBeamScheduler::AddUt	(	Address	utId,
		Ptr< SatLowerLayerServiceConf >	llsConf
	)

Add UT to scheduler.

Parameters

utId	ID (mac address) of the UT to be added
llsConf	Lower layer service configuration for the UT.

Returns: Index of the RA channel allocated to added UT

Definition at line 447 of file satellite-beam-scheduler.cc.

References AddUtInfo(), CreateCnoEstimator(), m_controlSlotInterval, m_controlSlotsEnabled, m_logonChannelIndex, m_raChRandomIndex, m_superframeSeq, and ns3::SatConstVariables::SUPERFRAME_SEQUENCE.

Here is the call graph for this function:

◆ AddUtInfo()

void ns3::SatBeamScheduler::AddUtInfo	(	Address	utId,
		Ptr< SatUtInfo >	utInfo
	)

private

Definition at line 484 of file satellite-beam-scheduler.cc.

References ns3::SatFrameAllocator::SatFrameAllocReq::m_address, ns3::SatFrameAllocator::SatFrameAllocReq::m_cno, m_controlSlotsEnabled, m_superframeAllocator, m_utInfos, and m_utRequestInfos.

Referenced by AddUt().

Here is the caller graph for this function:

◆ ConnectGw()

void ns3::SatBeamScheduler::ConnectGw ( Mac48Address address )

Connect a new GW address to this scheduler.

Parameters

address The GW address to connect

Definition at line 1037 of file satellite-beam-scheduler.cc.

References m_beamId, and m_orbiterNetDevice.

◆ ConnectUt()

void ns3::SatBeamScheduler::ConnectUt ( Mac48Address address )

Connect a new UT address to this scheduler.

Parameters

address The UT address to connect

Definition at line 1019 of file satellite-beam-scheduler.cc.

References m_beamId, m_gwMac, and m_orbiterNetDevice.

◆ CreateCnoEstimator()

Ptr< SatCnoEstimator > ns3::SatBeamScheduler::CreateCnoEstimator ( )

private

Create estimator for the UT according to set attributes.

Returns: pointer to created estimator

Definition at line 588 of file satellite-beam-scheduler.cc.

References ns3::SatCnoEstimator::AVERAGE, ns3::SatCnoEstimator::LAST, m_cnoEstimationWindow, m_cnoEstimatorMode, and ns3::SatCnoEstimator::MINIMUM.

Referenced by AddUt(), and Initialize().

Here is the caller graph for this function:

◆ CreateTimu()

Ptr< SatTimuMessage > ns3::SatBeamScheduler::CreateTimu ( ) const

Create a TIM unicast message containing enough data for a terminal to connect to the beam handled by this SatBeamScheduler.

Definition at line 1069 of file satellite-beam-scheduler.cc.

References m_beamId, m_gwAddress, m_satAddress, and m_satId.

◆ DisconnectGw()

void ns3::SatBeamScheduler::DisconnectGw ( Mac48Address address )

Disconnect a new GW address from this scheduler.

Parameters

address The GW address to disconnect

Definition at line 1045 of file satellite-beam-scheduler.cc.

References m_beamId, and m_orbiterNetDevice.

◆ DisconnectUt()

void ns3::SatBeamScheduler::DisconnectUt ( Mac48Address address )

Disconnect a new UT address from this scheduler.

Parameters

address The UT address to disconnect

Definition at line 1028 of file satellite-beam-scheduler.cc.

References m_beamId, m_gwMac, and m_orbiterNetDevice.

◆ DoDispose()

void ns3::SatBeamScheduler::DoDispose ( void )

private

Dispose actions for SatBeamScheduler.

Definition at line 304 of file satellite-beam-scheduler.cc.

References m_txCallback.

◆ DoPreResourceAllocation()

void ns3::SatBeamScheduler::DoPreResourceAllocation ( )

private

Do pre-allocation of the symbols per UT/RC, before time slot generation.

Definition at line 866 of file satellite-beam-scheduler.cc.

References m_superframeAllocator, m_utInfos, and m_utRequestInfos.

Referenced by Schedule().

Here is the caller graph for this function:

◆ GetGwAddress()

Address ns3::SatBeamScheduler::GetGwAddress ( void ) const

inline

Return the address of the gateway responsible of this beam.

Definition at line 335 of file satellite-beam-scheduler.h.

References m_gwAddress.

◆ GetSatAddress()

Address ns3::SatBeamScheduler::GetSatAddress ( void ) const

inline

Return the address of the satellite responsible of this beam.

Definition at line 327 of file satellite-beam-scheduler.h.

References m_satAddress.

◆ GetTypeId()

TypeId ns3::SatBeamScheduler::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 192 of file satellite-beam-scheduler.cc.

References ns3::SatCnoEstimator::AVERAGE, BASIC, CHECK_GATEWAY, ns3::SatEnums::DEFAULT_SUPERFRAME_ALLOCATOR, ns3::SatCnoEstimator::LAST, m_backlogRequestsTrace, m_cnoEstimationWindow, m_cnoEstimatorMode, m_controlSlotInterval, m_controlSlotsEnabled, m_exceedingCapacityTrace, m_frameLoadTrace, m_frameUtLoadTrace, m_handoverStrategy, m_maxTbtpTxAndProcessingDelay, m_maxTwoWayPropagationDelay, m_superframeAllocatorType, m_unmetCapacityTrace, m_usableCapacityTrace, m_waveformTrace, and ns3::SatCnoEstimator::MINIMUM.

◆ HasUt() [1/2]

bool ns3::SatBeamScheduler::HasUt ( )

Check whether an UT is handled by this scheduler.

Returns: Whether or not at least one UT is handled by this beam

Definition at line 547 of file satellite-beam-scheduler.cc.

References m_utInfos.

Referenced by SendTo(), UpdateUtCno(), and UtCrReceived().

Here is the caller graph for this function:

◆ HasUt() [2/2]

bool ns3::SatBeamScheduler::HasUt ( Address utId )

Check whether an UT is handled by this scheduler.

Parameters

utId	ID (mac address) of the UT to be searched for

Returns: Whether or not this UT is in this beam

Definition at line 538 of file satellite-beam-scheduler.cc.

References m_utInfos.

◆ Initialize()

void ns3::SatBeamScheduler::Initialize	(	uint32_t	satId,
		uint32_t	beamId,
		Ptr< SatNetDevice >	gwNetDevice,
		Ptr< SatOrbiterNetDevice >	orbiterNetDevice,
		SatBeamScheduler::SendCtrlMsgCallback	cb,
		Ptr< SatSuperframeSeq >	seq,
		uint32_t	maxFrameSizeInBytes,
		Address	satAddress,
		Address	gwAddress
	)

Parameters

beamId	ID of the beam which for callback is set
satId	ID of the satellite using the beam which for callback is set
gwNetDevice	GW NetDevice linked to this beam
orbiterNetDevice	OrbiterNetDevice on satellite linked to this beam
cb	callback to invoke whenever a TBTP is ready for sending and must be forwarded to the Beam UTs.
seq	Superframe sequence.
maxFrameSizeInBytes	Maximum non fragmented BB frame size with most robust ModCod
satAddress	Mac address of the satellite responsible for this beam
gwAddress	Mac address of the gateway responsible for this beam

Calculating to start time for super frame counts to start the scheduling from. The offset is calculated by estimating the maximum delay between GW and UT, so that the sent TBTP will be received by UT in time to be able to still send the packet in time.

It is assumed currently, that a random RA channel index is selected for each UT. If there is only one RA possible RA channel, then all UTs shall be using the same channel.

Definition at line 352 of file satellite-beam-scheduler.cc.

References CreateCnoEstimator(), ns3::SatEnums::DEFAULT_SUPERFRAME_ALLOCATOR, m_beamId, m_gwAddress, m_gwMac, m_logonChannelIndex, m_maxBbFrameSize, m_maxTbtpTxAndProcessingDelay, m_maxTwoWayPropagationDelay, m_orbiterNetDevice, m_raChRandomIndex, m_satAddress, m_satelliteCnoEstimator, m_satId, m_superframeAllocator, m_superframeAllocatorType, m_superFrameCounter, m_superframeSeq, m_txCallback, Schedule(), and ns3::SatConstVariables::SUPERFRAME_SEQUENCE.

Here is the call graph for this function:

◆ RemoveUt()

void ns3::SatBeamScheduler::RemoveUt ( Address utId )

Remove a UT from its SatBeamScheduler.

Parameters

utId	the terminal that is leaving this beam

Definition at line 1053 of file satellite-beam-scheduler.cc.

References m_utInfos, and RemoveUtInfo().

Here is the call graph for this function:

◆ RemoveUtInfo()

void ns3::SatBeamScheduler::RemoveUtInfo ( UtInfoMap_t::iterator iterator )

private

Definition at line 515 of file satellite-beam-scheduler.cc.

References m_controlSlotsEnabled, m_superframeAllocator, m_utInfos, and m_utRequestInfos.

Referenced by RemoveUt(), and TransferUtToBeam().

Here is the caller graph for this function:

◆ ReserveLogonChannel()

void ns3::SatBeamScheduler::ReserveLogonChannel ( uint32_t logonChannelId )

Definition at line 1082 of file satellite-beam-scheduler.cc.

References m_logonChannelIndex, and m_raChRandomIndex.

◆ Schedule()

void ns3::SatBeamScheduler::Schedule ( )

private

Schedule UTs added (registered) to scheduler.

Definition at line 627 of file satellite-beam-scheduler.cc.

References AddRaChannels(), DoPreResourceAllocation(), m_exceedingCapacityTrace, m_frameLoadTrace, m_frameUtLoadTrace, m_maxBbFrameSize, m_superframeAllocator, m_superFrameCounter, m_superframeSeq, m_txTbtpCallback, m_unmetCapacityTrace, m_usableCapacityTrace, m_useLora, m_utInfos, m_waveformTrace, Send(), SendCnoToSatellite(), ns3::SatConstVariables::SUPERFRAME_SEQUENCE, UpdateDamaEntriesWithAllocs(), and UpdateDamaEntriesWithReqs().

Referenced by Initialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Send()

bool ns3::SatBeamScheduler::Send ( Ptr< SatControlMessage > message )

Send control messages to the beam.

Parameters

message Pointer or control message to send.

Returns: true if sending is success, false otherwise.

Definition at line 312 of file satellite-beam-scheduler.cc.

References m_txCallback.

Referenced by Schedule().

Here is the caller graph for this function:

◆ SendCnoToSatellite()

void ns3::SatBeamScheduler::SendCnoToSatellite ( )

private

Send an estimation of cno to satellite, if samples have been received.

Definition at line 611 of file satellite-beam-scheduler.cc.

References m_receivedSatelliteCnoSample, m_satelliteCnoEstimator, m_satelliteMac, and SendToSatellite().

Referenced by Schedule().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendTo()

bool ns3::SatBeamScheduler::SendTo	(	Ptr< SatControlMessage >	message,
		Address	utId
	)

Send control message to an UT into the beam.

Parameters

message	Pointer of control message to send.
utId	Address of the UT to send the message to.

Returns: true if sending is success, false otherwise.

Definition at line 321 of file satellite-beam-scheduler.cc.

References HasUt(), and m_txCallback.

Here is the call graph for this function:

◆ SendToSatellite()

bool ns3::SatBeamScheduler::SendToSatellite	(	Ptr< SatControlMessage >	msg,
		Address	satelliteMac
	)

Send control message to the satellite.

Parameters

message	Pointer of control message to send.
satelliteMac	Address of the feeder SAT to send the message to.

Returns: true if sending is success, false otherwise.

Definition at line 335 of file satellite-beam-scheduler.cc.

References m_txCallback.

Referenced by SendCnoToSatellite().

Here is the caller graph for this function:

◆ SetSendTbtpCallback()

void ns3::SatBeamScheduler::SetSendTbtpCallback ( SendTbtpCallback cb )

Set the callback to inform NCC a TBTP has been sent.

Definition at line 344 of file satellite-beam-scheduler.cc.

References m_txTbtpCallback.

◆ SetUseLora()

void ns3::SatBeamScheduler::SetUseLora ( bool useLora )

Set if SNS-3 is used with Lora standard.

TBTPs are not sent in this mode.

Parameters

useLora boolean indicating if lora is used.

Definition at line 1105 of file satellite-beam-scheduler.cc.

References m_useLora.

◆ TransferUtToBeam()

void ns3::SatBeamScheduler::TransferUtToBeam	(	Address	utId,
		Ptr< SatBeamScheduler >	destination
	)

Transfer ownership of a terminal to the given SatBeamScheduler.

Parameters

utId	the terminal that is leaving this beam
destination	the beam that should accept the terminal

Definition at line 980 of file satellite-beam-scheduler.cc.

References BASIC, CHECK_GATEWAY, m_gwAddress, m_handoverStrategy, m_satAddress, m_utInfos, and RemoveUtInfo().

Here is the call graph for this function:

◆ UpdateDamaEntriesWithAllocs()

uint32_t ns3::SatBeamScheduler::UpdateDamaEntriesWithAllocs ( SatFrameAllocator::UtAllocInfoContainer_t & utAllocContainer )

private

Update dama entries with given allocations at end of the scheduling.

Parameters

utAllocContainer Reference to container including granted allocations per UT.

Definition at line 890 of file satellite-beam-scheduler.cc.

References ns3::SatConstVariables::BITS_IN_KBIT, ns3::SatConstVariables::BITS_PER_BYTE, m_controlSlotInterval, m_superframeSeq, m_utInfos, m_utRequestInfos, and ns3::SatConstVariables::SUPERFRAME_SEQUENCE.

Referenced by Schedule().

Here is the caller graph for this function:

◆ UpdateDamaEntriesWithReqs()

uint32_t ns3::SatBeamScheduler::UpdateDamaEntriesWithReqs ( )

private

Update dama entries with received requests at beginning of the scheduling.

Definition at line 777 of file satellite-beam-scheduler.cc.

References ns3::SatConstVariables::BITS_IN_KBIT, ns3::SatConstVariables::BITS_PER_BYTE, ns3::SatEnums::DA_RBDC, ns3::SatEnums::DA_VBDC, m_backlogRequestsTrace, m_beamId, m_superframeSeq, m_utInfos, m_utRequestInfos, and ns3::SatConstVariables::SUPERFRAME_SEQUENCE.

Referenced by Schedule().

Here is the caller graph for this function:

◆ UpdateSatelliteCno()

void ns3::SatBeamScheduler::UpdateSatelliteCno	(	Address	satelliteMac,
		double	cno
	)

Update satellite C/N0 info with the latest value.

Parameters

satelliteMac	MAC of the SAT (address).
cno	C/N0 value

Definition at line 566 of file satellite-beam-scheduler.cc.

References m_receivedSatelliteCnoSample, m_satelliteCnoEstimator, and m_satelliteMac.

◆ UpdateUtCno()

void ns3::SatBeamScheduler::UpdateUtCno	(	Address	utId,
		double	cno
	)

Update UT C/N0 info with the latest value.

Parameters

utId	Id of the UT (address).
cno	C/N0 value

Definition at line 555 of file satellite-beam-scheduler.cc.

References HasUt(), and m_utInfos.

Here is the call graph for this function:

◆ UtCrReceived()

void ns3::SatBeamScheduler::UtCrReceived	(	Address	utId,
		Ptr< SatCrMessage >	crMsg
	)

Receive capacity requests from UTs.

Parameters

utId	Id of the UT (address).
crMsg	Pointer to the CR message

Definition at line 577 of file satellite-beam-scheduler.cc.

References HasUt(), and m_utInfos.

Here is the call graph for this function:

Member Data Documentation

◆ m_backlogRequestsTrace

TracedCallback<std::string> ns3::SatBeamScheduler::m_backlogRequestsTrace

private

Trace for backlog requests done to beam scheduler.

Definition at line 629 of file satellite-beam-scheduler.h.

Referenced by GetTypeId(), and UpdateDamaEntriesWithReqs().

◆ m_beamId

uint32_t ns3::SatBeamScheduler::m_beamId

private

ID of the beam.

Definition at line 530 of file satellite-beam-scheduler.h.

Referenced by ConnectGw(), ConnectUt(), CreateTimu(), DisconnectGw(), DisconnectUt(), Initialize(), and UpdateDamaEntriesWithReqs().

◆ m_cnoEstimationWindow

Time ns3::SatBeamScheduler::m_cnoEstimationWindow

private

Time window for C/N0 estimation.

Definition at line 590 of file satellite-beam-scheduler.h.

Referenced by CreateCnoEstimator(), and GetTypeId().

◆ m_cnoEstimatorMode

SatCnoEstimator::EstimationMode_t ns3::SatBeamScheduler::m_cnoEstimatorMode

private

Mode used for C/N0 estimator.

Definition at line 585 of file satellite-beam-scheduler.h.

Referenced by CreateCnoEstimator(), and GetTypeId().

◆ m_controlSlotInterval

Time ns3::SatBeamScheduler::m_controlSlotInterval

private

Interval to generate control time slots.

Definition at line 619 of file satellite-beam-scheduler.h.

Referenced by AddUt(), GetTypeId(), and UpdateDamaEntriesWithAllocs().

◆ m_controlSlotsEnabled

bool ns3::SatBeamScheduler::m_controlSlotsEnabled

private

Flag to indicated if control time slots generation is enabled.

Definition at line 624 of file satellite-beam-scheduler.h.

Referenced by AddUt(), AddUtInfo(), GetTypeId(), ns3::SatBeamScheduler::SatUtInfo::IsControlSlotGenerationTime(), and RemoveUtInfo().

◆ m_exceedingCapacityTrace

TracedCallback<uint32_t> ns3::SatBeamScheduler::m_exceedingCapacityTrace

private

Trace exceeding capacity.

Definition at line 659 of file satellite-beam-scheduler.h.

Referenced by GetTypeId(), and Schedule().

◆ m_frameLoadTrace

TracedCallback<uint32_t, double> ns3::SatBeamScheduler::m_frameLoadTrace

private

Trace frame load ratio.

Definition at line 644 of file satellite-beam-scheduler.h.

Referenced by GetTypeId(), and Schedule().

◆ m_frameUtLoadTrace

TracedCallback<uint32_t, uint32_t> ns3::SatBeamScheduler::m_frameUtLoadTrace

private

Trace count of UTs scheduled per Frame.

Definition at line 639 of file satellite-beam-scheduler.h.

Referenced by GetTypeId(), and Schedule().

◆ m_gwAddress

Address ns3::SatBeamScheduler::m_gwAddress

private

Definition at line 711 of file satellite-beam-scheduler.h.

Referenced by CreateTimu(), GetGwAddress(), Initialize(), and TransferUtToBeam().

◆ m_gwMac

Ptr<SatGwMac> ns3::SatBeamScheduler::m_gwMac

private

GW MAC linked to this beam.

Definition at line 535 of file satellite-beam-scheduler.h.

Referenced by ConnectUt(), DisconnectUt(), and Initialize().

◆ m_handoverStrategy

HandoverInformationForward_t ns3::SatBeamScheduler::m_handoverStrategy

private

Definition at line 713 of file satellite-beam-scheduler.h.

Referenced by GetTypeId(), and TransferUtToBeam().

◆ m_logonChannelIndex

uint32_t ns3::SatBeamScheduler::m_logonChannelIndex

private

Logon channel ID to exclude it from the RA channel selection.

Definition at line 580 of file satellite-beam-scheduler.h.

Referenced by AddUt(), Initialize(), and ReserveLogonChannel().

◆ m_maxBbFrameSize

uint32_t ns3::SatBeamScheduler::m_maxBbFrameSize

private

Maximum size of the BB frame.

Definition at line 614 of file satellite-beam-scheduler.h.

Referenced by AddRaChannels(), Initialize(), and Schedule().

◆ m_maxTbtpTxAndProcessingDelay

Time ns3::SatBeamScheduler::m_maxTbtpTxAndProcessingDelay

private

Maximum TBTP tx and processing delay estimate at the GW (scheduler).

This is used to estimate how much time into the future the scheduler has to schedule the super frames.

Definition at line 609 of file satellite-beam-scheduler.h.

Referenced by GetTypeId(), and Initialize().

◆ m_maxTwoWayPropagationDelay

Time ns3::SatBeamScheduler::m_maxTwoWayPropagationDelay

private

Maximum two-way propagation delay estimate between GW-SAT-UT-SAT-GW.

This is used to estimate how much time into the future the scheduler has to schedule the super frames.

Definition at line 602 of file satellite-beam-scheduler.h.

Referenced by GetTypeId(), and Initialize().

◆ m_orbiterNetDevice

Ptr<SatOrbiterNetDevice> ns3::SatBeamScheduler::m_orbiterNetDevice

private

OrbiterNetDevice on satellite linked to this beam.

Definition at line 540 of file satellite-beam-scheduler.h.

Referenced by ConnectGw(), ConnectUt(), DisconnectGw(), DisconnectUt(), and Initialize().

◆ m_raChRandomIndex

Ptr<RandomVariableStream> ns3::SatBeamScheduler::m_raChRandomIndex

private

Random variable stream to select RA channel for a UT.

Definition at line 575 of file satellite-beam-scheduler.h.

Referenced by AddUt(), Initialize(), and ReserveLogonChannel().

◆ m_receivedSatelliteCnoSample

bool ns3::SatBeamScheduler::m_receivedSatelliteCnoSample

private

Indicates if Cno sample have been received since last C/N0 control message sent.

Definition at line 733 of file satellite-beam-scheduler.h.

Referenced by SendCnoToSatellite(), and UpdateSatelliteCno().

◆ m_satAddress

Address ns3::SatBeamScheduler::m_satAddress

private

Definition at line 709 of file satellite-beam-scheduler.h.

Referenced by CreateTimu(), GetSatAddress(), Initialize(), and TransferUtToBeam().

◆ m_satelliteCnoEstimator

Ptr<SatCnoEstimator> ns3::SatBeamScheduler::m_satelliteCnoEstimator

private

Estimator for the C/N0 from satellite.

Definition at line 723 of file satellite-beam-scheduler.h.

Referenced by Initialize(), SendCnoToSatellite(), and UpdateSatelliteCno().

◆ m_satelliteMac

Address ns3::SatBeamScheduler::m_satelliteMac

private

MAC address of the satellite (used when regenerative)

Definition at line 728 of file satellite-beam-scheduler.h.

Referenced by SendCnoToSatellite(), and UpdateSatelliteCno().

◆ m_satId

uint32_t ns3::SatBeamScheduler::m_satId

private

ID of the satellite using this beam.

Definition at line 525 of file satellite-beam-scheduler.h.

Referenced by CreateTimu(), and Initialize().

◆ m_superframeAllocator

Ptr<SatSuperframeAllocator> ns3::SatBeamScheduler::m_superframeAllocator

private

Superframe allocator to maintain load information of the frames and their configurations.

Definition at line 595 of file satellite-beam-scheduler.h.

Referenced by AddUtInfo(), DoPreResourceAllocation(), Initialize(), RemoveUtInfo(), and Schedule().

◆ m_superframeAllocatorType

SatEnums::SuperframeAllocatorType_t ns3::SatBeamScheduler::m_superframeAllocatorType

private

Type of SatSuperframeAllocator class to use.

Definition at line 718 of file satellite-beam-scheduler.h.

Referenced by GetTypeId(), and Initialize().

◆ m_superFrameCounter

uint32_t ns3::SatBeamScheduler::m_superFrameCounter

private

Counter for super frame sequence.

Definition at line 550 of file satellite-beam-scheduler.h.

Referenced by Initialize(), and Schedule().

◆ m_superframeSeq

Ptr<SatSuperframeSeq> ns3::SatBeamScheduler::m_superframeSeq

private

Pointer to super frame sequence.

Definition at line 545 of file satellite-beam-scheduler.h.

Referenced by AddRaChannels(), AddUt(), Initialize(), Schedule(), UpdateDamaEntriesWithAllocs(), and UpdateDamaEntriesWithReqs().

◆ m_txCallback

SatBeamScheduler::SendCtrlMsgCallback ns3::SatBeamScheduler::m_txCallback

private

The control message send callback.

Definition at line 555 of file satellite-beam-scheduler.h.

Referenced by DoDispose(), Initialize(), Send(), SendTo(), and SendToSatellite().

◆ m_txTbtpCallback

SatBeamScheduler::SendTbtpCallback ns3::SatBeamScheduler::m_txTbtpCallback

private

The TBTP send callback to inform GW Mac.

Definition at line 560 of file satellite-beam-scheduler.h.

Referenced by Schedule(), and SetSendTbtpCallback().

◆ m_unmetCapacityTrace

TracedCallback<uint32_t> ns3::SatBeamScheduler::m_unmetCapacityTrace

private

Trace unmet capacity.

Definition at line 654 of file satellite-beam-scheduler.h.

Referenced by GetTypeId(), and Schedule().

◆ m_usableCapacityTrace

TracedCallback<uint32_t> ns3::SatBeamScheduler::m_usableCapacityTrace

private

Trace usable capacity.

Definition at line 649 of file satellite-beam-scheduler.h.

Referenced by GetTypeId(), and Schedule().

◆ m_useLora

bool ns3::SatBeamScheduler::m_useLora

private

Flag indicating if lora standard is used.

Definition at line 738 of file satellite-beam-scheduler.h.

Referenced by Schedule(), and SetUseLora().

◆ m_utInfos

UtInfoMap_t ns3::SatBeamScheduler::m_utInfos

private

Map to store UT information in beam for updating purposes.

Definition at line 565 of file satellite-beam-scheduler.h.

Referenced by AddUtInfo(), DoPreResourceAllocation(), HasUt(), RemoveUt(), RemoveUtInfo(), Schedule(), TransferUtToBeam(), UpdateDamaEntriesWithAllocs(), UpdateDamaEntriesWithReqs(), UpdateUtCno(), and UtCrReceived().

◆ m_utRequestInfos

UtReqInfoContainer_t ns3::SatBeamScheduler::m_utRequestInfos

private

Container including every UT's allocation requests.

Definition at line 570 of file satellite-beam-scheduler.h.

Referenced by AddUtInfo(), DoPreResourceAllocation(), RemoveUtInfo(), UpdateDamaEntriesWithAllocs(), and UpdateDamaEntriesWithReqs().

◆ m_waveformTrace

TracedCallback<uint32_t> ns3::SatBeamScheduler::m_waveformTrace

private

Trace first wave form scheduled for the UT.

Definition at line 634 of file satellite-beam-scheduler.h.

Referenced by GetTypeId(), and Schedule().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-beam-scheduler.h
/builds/sns3/satellite/satellite/model/satellite-beam-scheduler.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ BacklogRequestsTraceCallback

◆ ExceedingCapacityTraceCallback

◆ SendCtrlMsgCallback

◆ SendTbtpCallback

◆ TbtpAddCallback

◆ UnmetCapacityTraceCallback

◆ UsableCapacityTraceCallback

◆ UtInfoMap_t

◆ UtReqInfoContainer_t

◆ UtReqInfoItem_t

◆ WaveformTraceCallback

Member Enumeration Documentation

◆ HandoverInformationForward_t

Constructor & Destructor Documentation

◆ SatBeamScheduler()

◆ ~SatBeamScheduler()

Member Function Documentation

◆ AddRaChannels()

◆ AddUt()

◆ AddUtInfo()

◆ ConnectGw()

◆ ConnectUt()

◆ CreateCnoEstimator()

◆ CreateTimu()

◆ DisconnectGw()

◆ DisconnectUt()

◆ DoDispose()

◆ DoPreResourceAllocation()

◆ GetGwAddress()

◆ GetSatAddress()

◆ GetTypeId()

◆ HasUt() [1/2]

◆ HasUt() [2/2]

◆ Initialize()

◆ RemoveUt()

◆ RemoveUtInfo()

◆ ReserveLogonChannel()

◆ Schedule()

◆ Send()

◆ SendCnoToSatellite()

◆ SendTo()

◆ SendToSatellite()

◆ SetSendTbtpCallback()

◆ SetUseLora()

◆ TransferUtToBeam()

◆ UpdateDamaEntriesWithAllocs()

◆ UpdateDamaEntriesWithReqs()

◆ UpdateSatelliteCno()

◆ UpdateUtCno()

◆ UtCrReceived()

Member Data Documentation

◆ m_backlogRequestsTrace

◆ m_beamId

◆ m_cnoEstimationWindow

◆ m_cnoEstimatorMode

◆ m_controlSlotInterval

◆ m_controlSlotsEnabled

◆ m_exceedingCapacityTrace

◆ m_frameLoadTrace

◆ m_frameUtLoadTrace

◆ m_gwAddress

◆ m_gwMac

◆ m_handoverStrategy

◆ m_logonChannelIndex

◆ m_maxBbFrameSize

◆ m_maxTbtpTxAndProcessingDelay

◆ m_maxTwoWayPropagationDelay

◆ m_orbiterNetDevice

◆ m_raChRandomIndex

◆ m_receivedSatelliteCnoSample

◆ m_satAddress
