SatQueue implements a queue utilized in the satellite module. More...

#include "satellite-queue.h"

Inheritance diagram for ns3::SatQueue:

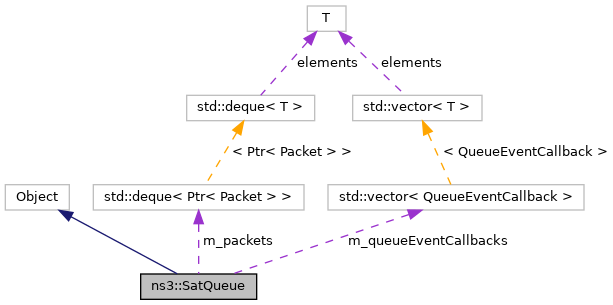

Collaboration diagram for ns3::SatQueue:

Classes
struct	QueueStats_t
	QueueStats_t definition for passing queue related statistics to any interested modules. More...

Public Types
typedef Callback< void, Ptr< Packet > >	LogonCallback
	logon msg sending callback More...

enum	QueueEvent_t { FIRST_BUFFERED_PKT , BUFFERED_PKT }

typedef Callback< void, SatQueue::QueueEvent_t, uint8_t >	QueueEventCallback
	Callback to indicate queue related event. More...

Public Member Functions
	SatQueue ()
	Default constructor. More...

	SatQueue (uint8_t flowId)
	Constructor. More...

	~SatQueue ()
	Destructor for SatQueue. More...

void	AddLogonCallback (SatQueue::LogonCallback cb)
	Add queue event callback. More...

void	AddQueueEventCallback (SatQueue::QueueEventCallback cb)
	Add queue event callback. More...

virtual Ptr< Packet >	Dequeue (void)
	Deque takes packet from the packet container (front) More...

void	DequeueAll (void)
	Flush the queue. More...

virtual void	DoDispose ()
	Dispose of this class instance. More...

virtual bool	Enqueue (Ptr< Packet > p)
	Enque pushes packet to the packet container (back) More...

uint32_t	GetNBytes (void) const
	Get number of bytes currently stored in the queue. More...

uint32_t	GetNPackets (void) const
	Get number of packets currently stored in the queue. More...

uint32_t	GetNumSmallerPackets (uint32_t maxPacketSizeBytes) const
	Method checks how many packets are smaller or equal in size than the maximum packets size threshold specified as an argument. More...

QueueStats_t	GetQueueStatistics (bool reset)
	GetQueueStatistics returns a struct of KPIs. More...

uint32_t	GetTotalDroppedBytes (void) const
	Get total number of bytes dropped by this Queue since the simulation began, or since ResetStatistics was called, according to whichever happened more recently. More...

uint32_t	GetTotalDroppedPackets (void) const
	Get total number of bytes dropped by this Queue since the simulation began, or since ResetStatistics was called, according to whichever happened more recently. More...

uint32_t	GetTotalReceivedBytes (void) const
	Get total number of bytes received by this queue since the simulation began, or since ResetStatistics was called, according to whichever happened more recently. More...

uint32_t	GetTotalReceivedPackets (void) const
	Get total number of packets received by this Queue since the simulation began, or since ResetStatistics was called, according to whichever happened more recently. More...

virtual bool	IsEmpty (void) const
	Is the queue empty. More...

virtual Ptr< const Packet >	Peek (void) const
	Get a copy of the item at the front of the queue without removing it. More...

virtual void	PushFront (Ptr< Packet > p)
	PushFront pushes a fragmented packet back to the front of the packet container. More...

void	ResetStatistics (void)
	Resets the counts for dropped packets, dropped bytes, received packets, and received bytes. More...

void	SetFlowId (uint32_t flowId)
	Configured flow index for this queue. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
void	Drop (Ptr< Packet > packet)
	Drop a packet. More...

Private Types
typedef std::vector< QueueEventCallback >	EventCallbackContainer_t

typedef std::deque< Ptr< Packet > >	PacketContainer_t

Private Member Functions
void	ResetShortTermStatistics ()
	Reset the short term statistics. More...

void	SendEvent (SatQueue::QueueEvent_t event)
	Send queue event to all registered callbacks. More...

Private Attributes
uint8_t	m_flowId
	An unique id for each queue. More...

LogonCallback	m_logonCallback
	Callback to send control messages. More...

uint32_t	m_maxPackets
	Maximum allowed packets within the packet container. More...

uint32_t	m_nBytes

uint32_t	m_nDequeBytesSinceReset

uint32_t	m_nEnqueBytesSinceReset

uint32_t	m_nPackets

uint32_t	m_nTotalDroppedBytes

uint32_t	m_nTotalDroppedPackets

uint32_t	m_nTotalReceivedBytes

uint32_t	m_nTotalReceivedPackets

PacketContainer_t	m_packets
	Packet container. More...

EventCallbackContainer_t	m_queueEventCallbacks
	Container of callbacks for queue related events. More...

Time	m_statResetTime

TracedCallback< Ptr< const Packet > >	m_traceDequeue

TracedCallback< Ptr< const Packet > >	m_traceDrop

TracedCallback< Ptr< const Packet > >	m_traceEnqueue

Detailed Description

SatQueue implements a queue utilized in the satellite module.

SatQueue is utilized in both FWD and RTN link to store incoming packets inside either SatGenericStreamEncapsulator (FWD link) or SatReturnLinkEncapsulator (RTN link). SatQueue is capable of collecting statistics from the incoming and outgoing bits and packets.

Definition at line 48 of file satellite-queue.h.

Member Typedef Documentation

◆ EventCallbackContainer_t

typedef std::vector<QueueEventCallback> ns3::SatQueue::EventCallbackContainer_t

private

Definition at line 261 of file satellite-queue.h.

◆ LogonCallback

typedef Callback<void, Ptr<Packet> > ns3::SatQueue::LogonCallback

logon msg sending callback

Parameters

pkt

Returns: bool

Definition at line 110 of file satellite-queue.h.

◆ PacketContainer_t

typedef std::deque<Ptr<Packet> > ns3::SatQueue::PacketContainer_t

private

Definition at line 262 of file satellite-queue.h.

◆ QueueEventCallback

typedef Callback<void, SatQueue::QueueEvent_t, uint8_t> ns3::SatQueue::QueueEventCallback

Callback to indicate queue related event.

Parameters

SatQueue::QueueEvent_t	Event type
uint32_t	Queue id

Returns: void

Definition at line 118 of file satellite-queue.h.

Member Enumeration Documentation

◆ QueueEvent_t

enum ns3::SatQueue::QueueEvent_t

Enumerator
FIRST_BUFFERED_PKT
BUFFERED_PKT

Definition at line 79 of file satellite-queue.h.

Constructor & Destructor Documentation

◆ SatQueue() [1/2]

ns3::SatQueue::SatQueue ( )

Default constructor.

Definition at line 71 of file satellite-queue.cc.

◆ SatQueue() [2/2]

ns3::SatQueue::SatQueue ( uint8_t flowId )

Constructor.

Definition at line 89 of file satellite-queue.cc.

◆ ~SatQueue()

ns3::SatQueue::~SatQueue ( )

Destructor for SatQueue.

Definition at line 107 of file satellite-queue.cc.

Member Function Documentation

◆ AddLogonCallback()

void ns3::SatQueue::AddLogonCallback ( SatQueue::LogonCallback cb )

Add queue event callback.

Parameters

cb Callback

Definition at line 290 of file satellite-queue.cc.

References m_logonCallback.

◆ AddQueueEventCallback()

void ns3::SatQueue::AddQueueEventCallback ( SatQueue::QueueEventCallback cb )

Add queue event callback.

Parameters

cb Callback

Definition at line 283 of file satellite-queue.cc.

References m_queueEventCallbacks.

◆ Dequeue()

Ptr< Packet > ns3::SatQueue::Dequeue ( void )

virtual

Deque takes packet from the packet container (front)

Returns: p Packet

Definition at line 202 of file satellite-queue.cc.

References IsEmpty(), m_nBytes, m_nDequeBytesSinceReset, m_nPackets, m_packets, and m_traceDequeue.

Referenced by DequeueAll().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DequeueAll()

void ns3::SatQueue::DequeueAll ( void )

Flush the queue.

Definition at line 261 of file satellite-queue.cc.

References Dequeue(), and IsEmpty().

Referenced by DoDispose().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::SatQueue::DoDispose ( void )

virtual

Dispose of this class instance.

Definition at line 113 of file satellite-queue.cc.

References DequeueAll(), and m_queueEventCallbacks.

Here is the call graph for this function:

◆ Drop()

void ns3::SatQueue::Drop ( Ptr< Packet > packet )

protected

Drop a packet.

Parameters

packet packet that was dropped

Definition at line 271 of file satellite-queue.cc.

References m_nTotalDroppedBytes, m_nTotalDroppedPackets, and m_traceDrop.

Referenced by Enqueue().

Here is the caller graph for this function:

◆ Enqueue()

bool ns3::SatQueue::Enqueue ( Ptr< Packet > p )

virtual

Enque pushes packet to the packet container (back)

Parameters

p Packet

Returns: bool indicating whether the enque was successfull

Definition at line 143 of file satellite-queue.cc.

References BUFFERED_PKT, Drop(), FIRST_BUFFERED_PKT, ns3::SatControlMsgTag::GetMsgType(), ns3::SatLog::LOG_WARNING, m_logonCallback, m_maxPackets, m_nBytes, m_nEnqueBytesSinceReset, m_nPackets, m_nTotalReceivedBytes, m_nTotalReceivedPackets, m_packets, m_traceEnqueue, ns3::SatControlMsgTag::SAT_LOGON_CTRL_MSG, and SendEvent().

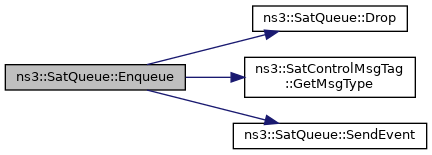

Here is the call graph for this function:

◆ GetNBytes()

uint32_t ns3::SatQueue::GetNBytes ( void ) const

Get number of bytes currently stored in the queue.

Returns: Bytes in queue

Definition at line 321 of file satellite-queue.cc.

References m_nBytes.

Referenced by GetQueueStatistics().

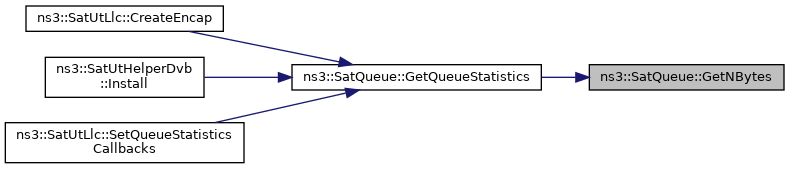

Here is the caller graph for this function:

◆ GetNPackets()

uint32_t ns3::SatQueue::GetNPackets ( void ) const

Get number of packets currently stored in the queue.

Returns: Number of packets in queue

Definition at line 313 of file satellite-queue.cc.

References m_nPackets.

◆ GetNumSmallerPackets()

uint32_t ns3::SatQueue::GetNumSmallerPackets ( uint32_t maxPacketSizeBytes ) const

Method checks how many packets are smaller or equal in size than the maximum packets size threshold specified as an argument.

Note, that each queue is gone through from the front up until there is first packet larger than threshold.

Parameters

maxPacketSizeBytes Maximum packet size threshold in Bytes

Returns: Number of packets

Definition at line 412 of file satellite-queue.cc.

References m_packets.

◆ GetQueueStatistics()

SatQueue::QueueStats_t ns3::SatQueue::GetQueueStatistics ( bool reset )

GetQueueStatistics returns a struct of KPIs.

Parameters

reset Reset flag indicating whether the statistics should be reset now

Returns: QueueStats_t Struct of KPIs

Definition at line 361 of file satellite-queue.cc.

References ns3::SatConstVariables::BITS_IN_KBIT, ns3::SatConstVariables::BITS_PER_BYTE, GetNBytes(), ns3::SatQueue::QueueStats_t::m_incomingRateKbps, m_nDequeBytesSinceReset, m_nEnqueBytesSinceReset, ns3::SatQueue::QueueStats_t::m_outgoingRateKbps, ns3::SatQueue::QueueStats_t::m_queueSizeBytes, m_statResetTime, ns3::SatQueue::QueueStats_t::m_volumeInBytes, ns3::SatQueue::QueueStats_t::m_volumeOutBytes, and ResetShortTermStatistics().

Referenced by ns3::SatUtLlc::CreateEncap(), ns3::SatUtHelperDvb::Install(), and ns3::SatUtLlc::SetQueueStatisticsCallbacks().

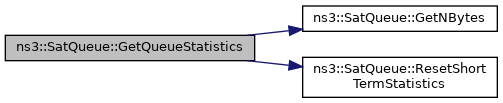

Here is the call graph for this function:

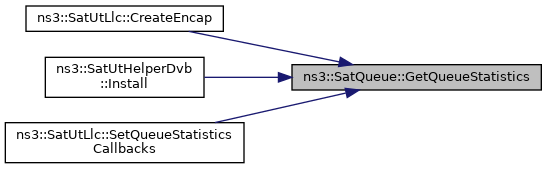

Here is the caller graph for this function:

◆ GetTotalDroppedBytes()

uint32_t ns3::SatQueue::GetTotalDroppedBytes ( void ) const

Get total number of bytes dropped by this Queue since the simulation began, or since ResetStatistics was called, according to whichever happened more recently.

Returns: Dropped bytes

Definition at line 345 of file satellite-queue.cc.

References m_nTotalDroppedBytes.

◆ GetTotalDroppedPackets()

uint32_t ns3::SatQueue::GetTotalDroppedPackets ( void ) const

Get total number of bytes dropped by this Queue since the simulation began, or since ResetStatistics was called, according to whichever happened more recently.

Returns: Dropped packets

Definition at line 353 of file satellite-queue.cc.

References m_nTotalDroppedPackets.

◆ GetTotalReceivedBytes()

uint32_t ns3::SatQueue::GetTotalReceivedBytes ( void ) const

Get total number of bytes received by this queue since the simulation began, or since ResetStatistics was called, according to whichever happened more recently.

Returns: Received bytes

Definition at line 329 of file satellite-queue.cc.

References m_nTotalReceivedBytes.

◆ GetTotalReceivedPackets()

uint32_t ns3::SatQueue::GetTotalReceivedPackets ( void ) const

Get total number of packets received by this Queue since the simulation began, or since ResetStatistics was called, according to whichever happened more recently.

Returns: Received packets

Definition at line 337 of file satellite-queue.cc.

References m_nTotalReceivedPackets.

◆ GetTypeId()

TypeId ns3::SatQueue::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 44 of file satellite-queue.cc.

References m_maxPackets, m_traceDequeue, m_traceDrop, and m_traceEnqueue.

◆ IsEmpty()

bool ns3::SatQueue::IsEmpty ( void ) const

virtual

Is the queue empty.

Returns: true if the queue is empty; false otherwise

Definition at line 136 of file satellite-queue.cc.

References m_packets.

Referenced by Dequeue(), DequeueAll(), and Peek().

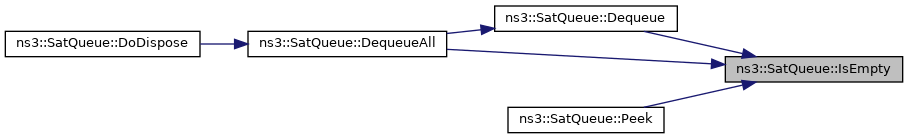

Here is the caller graph for this function:

◆ Peek()

Ptr< const Packet > ns3::SatQueue::Peek ( void ) const

virtual

Get a copy of the item at the front of the queue without removing it.

Returns: Pointer to the packet

Definition at line 229 of file satellite-queue.cc.

References IsEmpty(), m_nBytes, and m_packets.

Here is the call graph for this function:

◆ PushFront()

void ns3::SatQueue::PushFront ( Ptr< Packet > p )

virtual

PushFront pushes a fragmented packet back to the front of the packet container.

Parameters

p Packet

Definition at line 248 of file satellite-queue.cc.

References m_nBytes, m_nDequeBytesSinceReset, m_nPackets, and m_packets.

◆ ResetShortTermStatistics()

void ns3::SatQueue::ResetShortTermStatistics ( )

private

Reset the short term statistics.

Short term reflects here e.g. to superframe duration.

Definition at line 402 of file satellite-queue.cc.

References m_nDequeBytesSinceReset, m_nEnqueBytesSinceReset, and m_statResetTime.

Referenced by GetQueueStatistics().

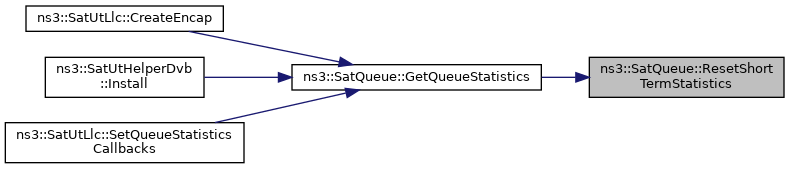

Here is the caller graph for this function:

◆ ResetStatistics()

void ns3::SatQueue::ResetStatistics ( void )

Resets the counts for dropped packets, dropped bytes, received packets, and received bytes.

Definition at line 389 of file satellite-queue.cc.

References m_nBytes, m_nPackets, m_nTotalDroppedBytes, m_nTotalDroppedPackets, m_nTotalReceivedBytes, and m_nTotalReceivedPackets.

◆ SendEvent()

void ns3::SatQueue::SendEvent ( SatQueue::QueueEvent_t event )

private

Send queue event to all registered callbacks.

Parameters

event Queue event

Definition at line 297 of file satellite-queue.cc.

References m_flowId, and m_queueEventCallbacks.

Referenced by Enqueue().

Here is the caller graph for this function:

◆ SetFlowId()

void ns3::SatQueue::SetFlowId ( uint32_t flowId )

Configured flow index for this queue.

Parameters

flowId

Definition at line 129 of file satellite-queue.cc.

References m_flowId.

Member Data Documentation

◆ m_flowId

uint8_t ns3::SatQueue::m_flowId

private

An unique id for each queue.

Definition at line 282 of file satellite-queue.h.

Referenced by SendEvent(), and SetFlowId().

◆ m_logonCallback

LogonCallback ns3::SatQueue::m_logonCallback

private

Callback to send control messages.

Definition at line 305 of file satellite-queue.h.

Referenced by AddLogonCallback(), and Enqueue().

◆ m_maxPackets

uint32_t ns3::SatQueue::m_maxPackets

private

Maximum allowed packets within the packet container.

Definition at line 277 of file satellite-queue.h.

Referenced by Enqueue(), and GetTypeId().

◆ m_nBytes

uint32_t ns3::SatQueue::m_nBytes

private

Definition at line 285 of file satellite-queue.h.

Referenced by Dequeue(), Enqueue(), GetNBytes(), Peek(), PushFront(), and ResetStatistics().

◆ m_nDequeBytesSinceReset

uint32_t ns3::SatQueue::m_nDequeBytesSinceReset

private

Definition at line 294 of file satellite-queue.h.

Referenced by Dequeue(), GetQueueStatistics(), PushFront(), and ResetShortTermStatistics().

◆ m_nEnqueBytesSinceReset

uint32_t ns3::SatQueue::m_nEnqueBytesSinceReset

private

Definition at line 293 of file satellite-queue.h.

Referenced by Enqueue(), GetQueueStatistics(), and ResetShortTermStatistics().

◆ m_nPackets

uint32_t ns3::SatQueue::m_nPackets

private

Definition at line 287 of file satellite-queue.h.

Referenced by Dequeue(), Enqueue(), GetNPackets(), PushFront(), and ResetStatistics().

◆ m_nTotalDroppedBytes

uint32_t ns3::SatQueue::m_nTotalDroppedBytes

private

Definition at line 289 of file satellite-queue.h.

Referenced by Drop(), GetTotalDroppedBytes(), and ResetStatistics().

◆ m_nTotalDroppedPackets

uint32_t ns3::SatQueue::m_nTotalDroppedPackets

private

Definition at line 290 of file satellite-queue.h.

Referenced by Drop(), GetTotalDroppedPackets(), and ResetStatistics().

◆ m_nTotalReceivedBytes

uint32_t ns3::SatQueue::m_nTotalReceivedBytes

private

Definition at line 286 of file satellite-queue.h.

Referenced by Enqueue(), GetTotalReceivedBytes(), and ResetStatistics().

◆ m_nTotalReceivedPackets

uint32_t ns3::SatQueue::m_nTotalReceivedPackets

private

Definition at line 288 of file satellite-queue.h.

Referenced by Enqueue(), GetTotalReceivedPackets(), and ResetStatistics().

◆ m_packets

PacketContainer_t ns3::SatQueue::m_packets

private

Packet container.

Definition at line 272 of file satellite-queue.h.

Referenced by Dequeue(), Enqueue(), GetNumSmallerPackets(), IsEmpty(), Peek(), and PushFront().

◆ m_queueEventCallbacks

EventCallbackContainer_t ns3::SatQueue::m_queueEventCallbacks

private

Container of callbacks for queue related events.

Definition at line 267 of file satellite-queue.h.

Referenced by AddQueueEventCallback(), DoDispose(), and SendEvent().

◆ m_statResetTime

Time ns3::SatQueue::m_statResetTime

private

Definition at line 295 of file satellite-queue.h.

Referenced by GetQueueStatistics(), and ResetShortTermStatistics().

◆ m_traceDequeue

TracedCallback<Ptr<const Packet> > ns3::SatQueue::m_traceDequeue

private

Definition at line 299 of file satellite-queue.h.

Referenced by Dequeue(), and GetTypeId().

◆ m_traceDrop

TracedCallback<Ptr<const Packet> > ns3::SatQueue::m_traceDrop

private

Definition at line 300 of file satellite-queue.h.

Referenced by Drop(), and GetTypeId().

◆ m_traceEnqueue

TracedCallback<Ptr<const Packet> > ns3::SatQueue::m_traceEnqueue

private

Definition at line 298 of file satellite-queue.h.

Referenced by Enqueue(), and GetTypeId().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-queue.h
/builds/sns3/satellite/satellite/model/satellite-queue.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ EventCallbackContainer_t

◆ LogonCallback

◆ PacketContainer_t

◆ QueueEventCallback

Member Enumeration Documentation

◆ QueueEvent_t

Constructor & Destructor Documentation

◆ SatQueue() [1/2]

◆ SatQueue() [2/2]

◆ ~SatQueue()

Member Function Documentation

◆ AddLogonCallback()

◆ AddQueueEventCallback()

◆ Dequeue()

◆ DequeueAll()

◆ DoDispose()

◆ Drop()

◆ Enqueue()

◆ GetNBytes()

◆ GetNPackets()

◆ GetNumSmallerPackets()

◆ GetQueueStatistics()

◆ GetTotalDroppedBytes()

◆ GetTotalDroppedPackets()

◆ GetTotalReceivedBytes()

◆ GetTotalReceivedPackets()

◆ GetTypeId()

◆ IsEmpty()

◆ Peek()

◆ PushFront()

◆ ResetShortTermStatistics()

◆ ResetStatistics()

◆ SendEvent()

◆ SetFlowId()

Member Data Documentation

◆ m_flowId

◆ m_logonCallback

◆ m_maxPackets

◆ m_nBytes

◆ m_nDequeBytesSinceReset

◆ m_nEnqueBytesSinceReset

◆ m_nPackets

◆ m_nTotalDroppedBytes

◆ m_nTotalDroppedPackets

◆ m_nTotalReceivedBytes

◆ m_nTotalReceivedPackets

◆ m_packets

◆ m_queueEventCallbacks

◆ m_statResetTime

◆ m_traceDequeue

◆ m_traceDrop

◆ m_traceEnqueue
