Base MAC class for SatNetDevices. More...

#include "satellite-mac.h"

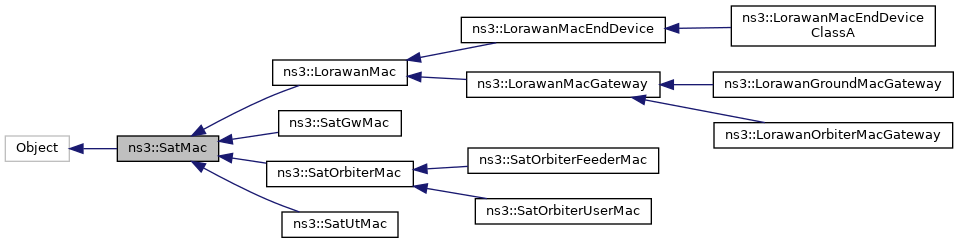

Inheritance diagram for ns3::SatMac:

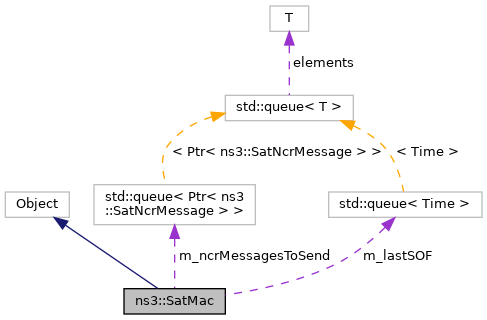

Collaboration diagram for ns3::SatMac:

Public Types
typedef Callback< Ptr< SatBeamScheduler >, uint32_t, uint32_t >	BeamSchedulerCallback
	Callback to get the SatBeamScheduler from the beam ID for handover. More...

typedef Callback< void, Ptr< const Packet > >	LoraReceiveCallback
	Callback to receive packet by upper layer. More...

typedef Callback< Ptr< SatControlMessage >, uint32_t >	ReadCtrlMsgCallback
	Callback to read control messages from container storing control messages. More...

typedef Callback< void, Ptr< Packet >, Mac48Address, Mac48Address >	ReceiveCallback
	Callback to receive packet by upper layer. More...

typedef Callback< uint32_t, Ptr< SatControlMessage > >	ReserveCtrlMsgCallback
	Callback to reserve an id and initially store the control message. More...

typedef Callback< void, Address, Address >	RoutingUpdateCallback
	Callback to update routing and ARP tables after handover. More...

typedef Callback< uint32_t, uint32_t >	SendCtrlMsgCallback
	Callback to send a control message and allocate a recv ID for it. More...

typedef Callback< void, SatPhy::PacketContainer_t, uint32_t, Time, SatSignalParameters::txInfo_s >	TransmitCallback
	Callback to send packet to lower layer. More...

typedef Callback< void >	UpdateIslCallback
	Callback to update ISL routes when handovers are performed. More...

Public Member Functions
	SatMac ()
	Construct a SatMac. More...

	SatMac (uint32_t satId, uint32_t beamId)
	Construct a SatMac. More...

	~SatMac ()
	Destroy a SatMac. More...

virtual void	Disable ()
	Disable the MAC layer, i.e. More...

virtual void	Enable ()
	Enable the MAC layer, i.e. More...

Address	GetAddress () const
	Get MAC address. More...

uint32_t	GetBeamId () const
	Get beam ID of the object. More...

uint32_t	GetSatId () const
	Get sat ID of the object. More...

virtual void	ReceiveQueueEvent (SatQueue::QueueEvent_t event, uint8_t flowIndex)
	Receive a queue event: More...

uint32_t	ReserveIdAndStoreCtrlMsgToContainer (Ptr< SatControlMessage > msg)
	Reserve id and store the control message. More...

uint32_t	SendCtrlMsgFromContainer (uint32_t sendId)
	Send the control message from the container. More...

void	SetBeamId (uint32_t beamId)
	Set beam ID of the object. More...

void	SetBeamSchedulerCallback (SatMac::BeamSchedulerCallback cb)
	Set the beam scheduler callback. More...

void	SetHandoverModule (Ptr< SatHandoverModule > handoverModule)
	Set the handover module. More...

void	SetLoraReceiveCallback (SatMac::LoraReceiveCallback cb)
	Method to set receive callback. More...

virtual void	SetNodeInfo (Ptr< SatNodeInfo > nodeInfo)
	Set the node info. More...

void	SetReadCtrlCallback (SatMac::ReadCtrlMsgCallback cb)
	Method to set read control message callback. More...

void	SetReceiveCallback (SatMac::ReceiveCallback cb)
	Method to set receive callback. More...

void	SetReserveCtrlCallback (SatMac::ReserveCtrlMsgCallback cb)
	Method to set reserve control message id callback. More...

void	SetRoutingUpdateCallback (SatMac::RoutingUpdateCallback cb)
	Method to set the routing update callback. More...

virtual void	SetSatelliteAddress (Address satelliteAddress)
	Set the satellite MAC address on the other side of this link (if regenerative satellite). More...

void	SetSatId (uint32_t satId)
	Set sat ID of the object. More...

void	SetSendCtrlCallback (SatMac::SendCtrlMsgCallback cb)
	Method to set send control message callback. More...

void	SetTransmitCallback (SatMac::TransmitCallback cb)
	Method to set transmit callback. More...

void	SetUpdateIslCallback (SatMac::UpdateIslCallback cb)
	Method to set update ISL callback. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Derived from Object. More...

Protected Member Functions
void	DoDispose (void)
	Dispose of SatMac. More...

void	RxTraces (SatPhy::PacketContainer_t packets)
	Invoke the `Rx` trace source for each received packet. More...

virtual void	SendPacket (SatPhy::PacketContainer_t packets, uint32_t carrierId, Time duration, SatSignalParameters::txInfo_s txInfo)
	Send packets to lower layer by using a callback. More...

void	SetTimeTag (SatPhy::PacketContainer_t packets)
	Set SatMacTimeTag of packets. More...

Protected Attributes
Time	m_beamEnabledTime
	Time of the last beam enable event. More...

uint32_t	m_beamId
	The ID of the beam where mac belongs. More...

SatMac::BeamSchedulerCallback	m_beamSchedulerCallback
	Callback to get the SatBeamScheduler linked to a beam ID. More...

TracedCallback< Time >	m_beamServiceTrace
	Traced callback for beam being disabled and including service time. More...

SatEnums::RegenerationMode_t	m_forwardLinkRegenerationMode
	Regeneration mode on forward link. More...

Ptr< SatHandoverModule >	m_handoverModule
	Module used to perform handovers. More...

bool	m_isRegenerative
	Indicate if satellite is regeneration (at least LINK level) for TX. More...

bool	m_isStatisticsTagsEnabled
	`EnableStatisticsTags` attribute. More...

Time	m_lastDelay
	Last delay measurement. More...

Time	m_lastLinkDelay
	Last delay measurement for link. More...

std::queue< Time >	m_lastSOF
	Store last 3 SOF date for Forward messages, to insert in NCR packets. More...

std::queue< Ptr< SatNcrMessage > >	m_ncrMessagesToSend
	List of NCR control messages created but not sent yet. More...

bool	m_ncrV2
	Use of version 2 of NCR dates. More...

Ptr< SatNodeInfo >	m_nodeInfo
	Node info containing node related information, such as node type, node id and MAC address (of the SatNetDevice) More...

TracedCallback< Time, SatEnums::SatPacketEvent_t, SatEnums::SatNodeType_t, uint32_t, Mac48Address, SatEnums::SatLogLevel_t, SatEnums::SatLinkDir_t, std::string >	m_packetTrace
	Trace callback used for packet tracing. More...

SatMac::ReadCtrlMsgCallback	m_readCtrlCallback
	The read control message callback. More...

SatMac::ReserveCtrlMsgCallback	m_reserveCtrlCallback
	The reserve control message id callback. More...

SatEnums::RegenerationMode_t	m_returnLinkRegenerationMode
	Regeneration mode on return link. More...

SatMac::RoutingUpdateCallback	m_routingUpdateCallback
	Callback to update routing and ARP tables after a beam handover. More...

SatMac::ReceiveCallback	m_rxCallback
	The upper layer package receive callback. More...

TracedCallback< const Time &, const Address & >	m_rxDelayTrace
	Traced callback for all received packets, including delay information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxJitterTrace
	Traced callback for all received packets, including jitter information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxLinkDelayTrace
	Traced callback for all received packets, including link delay information and the address of the senders. More...

TracedCallback< const Time &, const Address & >	m_rxLinkJitterTrace
	Traced callback for all received packets, including link jitter information and the address of the senders. More...

SatMac::LoraReceiveCallback	m_rxLoraCallback
	The upper layer package receive callback. More...

TracedCallback< Ptr< const Packet >, const Address & >	m_rxTrace
	Traced callback for all received packets, including the address of the senders. More...

Address	m_satelliteAddress
	MAC address of satellite on other side of the link. More...

uint32_t	m_satId
	The ID of the sat where mac belongs. More...

SatMac::SendCtrlMsgCallback	m_sendCtrlCallback
	The send control message callback. More...

SatMac::TransmitCallback	m_txCallback
	The lower layer packet transmit callback. More...

bool	m_txEnabled
	Flag indicating whether the MAC is enabled, i.e. More...

SatMac::UpdateIslCallback	m_updateIslCallback
	The update ISL routes callback. More...

Private Member Functions
	SatMac (const SatMac &)

SatMac &	operator= (const SatMac &)

Detailed Description

Base MAC class for SatNetDevices.

SatMac implements the common MAC layer functionality for both UT and GW. More specialized implementations are located at the inherited classes. Satellite does not have a MAC sublayer at all.

Definition at line 56 of file satellite-mac.h.

Member Typedef Documentation

◆ BeamSchedulerCallback

typedef Callback<Ptr<SatBeamScheduler>, uint32_t, uint32_t> ns3::SatMac::BeamSchedulerCallback

Callback to get the SatBeamScheduler from the beam ID for handover.

Definition at line 208 of file satellite-mac.h.

◆ LoraReceiveCallback

typedef Callback<void, Ptr<const Packet> > ns3::SatMac::LoraReceiveCallback

Callback to receive packet by upper layer.

Parameters

packet the packet received

Definition at line 166 of file satellite-mac.h.

◆ ReadCtrlMsgCallback

typedef Callback<Ptr<SatControlMessage>, uint32_t> ns3::SatMac::ReadCtrlMsgCallback

Callback to read control messages from container storing control messages.

Real length of the control messages are simulated in a packet, but not structure.

Parameters

uint32_t ID of the message to read.

Returns: Pointer to read packet. (NULL if not found).

Definition at line 188 of file satellite-mac.h.

◆ ReceiveCallback

typedef Callback<void, Ptr<Packet>, Mac48Address, Mac48Address> ns3::SatMac::ReceiveCallback

Callback to receive packet by upper layer.

Parameters

Source	MAC address
Destination	MAC address
packet	the packet received

Definition at line 160 of file satellite-mac.h.

◆ ReserveCtrlMsgCallback

typedef Callback<uint32_t, Ptr<SatControlMessage> > ns3::SatMac::ReserveCtrlMsgCallback

Callback to reserve an id and initially store the control message.

Parameters

Pointer to the message to be stored.

Returns: uint32_t ID of the stored message.

Definition at line 196 of file satellite-mac.h.

◆ RoutingUpdateCallback

typedef Callback<void, Address, Address> ns3::SatMac::RoutingUpdateCallback

Callback to update routing and ARP tables after handover.

Parameters

Address	the address of this device
Address	the address of the new gateway

Definition at line 251 of file satellite-mac.h.

◆ SendCtrlMsgCallback

typedef Callback<uint32_t, uint32_t> ns3::SatMac::SendCtrlMsgCallback

Callback to send a control message and allocate a recv ID for it.

Parameters

uint32_t Internal ID used for initial storing of the control msg.

Returns: uint32_t ID for the control message read operation.

Definition at line 203 of file satellite-mac.h.

◆ TransmitCallback

typedef Callback<void, SatPhy::PacketContainer_t, uint32_t, Time, SatSignalParameters::txInfo_s> ns3::SatMac::TransmitCallback

Callback to send packet to lower layer.

Parameters

Container	of the pointers to the packets received
uint32_t	carrierId
Time	duration

Definition at line 145 of file satellite-mac.h.

◆ UpdateIslCallback

typedef Callback<void> ns3::SatMac::UpdateIslCallback

Callback to update ISL routes when handovers are performed.

Definition at line 213 of file satellite-mac.h.

Constructor & Destructor Documentation

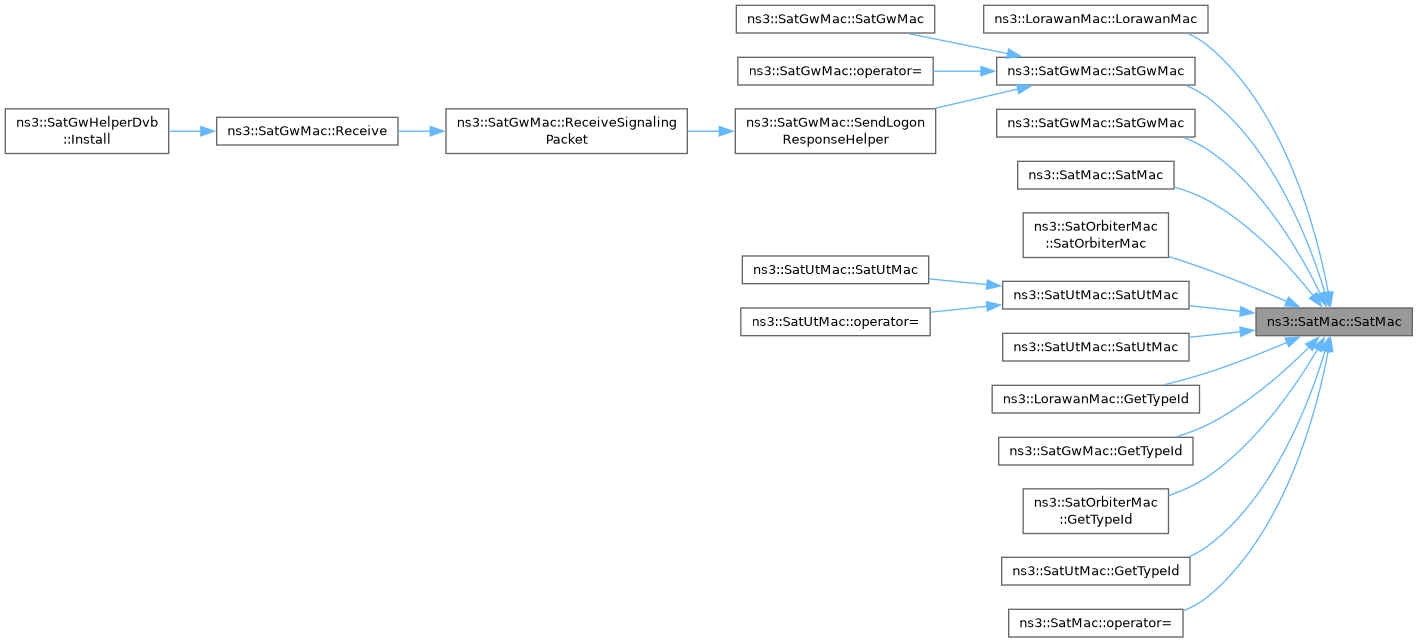

◆ SatMac() [1/3]

ns3::SatMac::SatMac ( )

Construct a SatMac.

This default constructor for the SatMac, which should not been used

Definition at line 95 of file satellite-mac.cc.

◆ SatMac() [2/3]

ns3::SatMac::SatMac	(	uint32_t	satId,
		uint32_t	beamId
	)

Construct a SatMac.

Parameters

satId	ID of sat for this MAC
beamId	ID of beam for this MAC

Definition at line 115 of file satellite-mac.cc.

◆ ~SatMac()

ns3::SatMac::~SatMac ( )

Destroy a SatMac.

This is the destructor for the SatMac.

Definition at line 136 of file satellite-mac.cc.

◆ SatMac() [3/3]

ns3::SatMac::SatMac ( const SatMac & )

private

Member Function Documentation

◆ Disable()

void ns3::SatMac::Disable ( )

virtual

Disable the MAC layer, i.e.

disallow it to send data to the PHY layer. This is used in beam hopping implementation.

Definition at line 222 of file satellite-mac.cc.

References m_beamEnabledTime, m_beamServiceTrace, and m_txEnabled.

◆ DoDispose()

void ns3::SatMac::DoDispose ( void )

protected

Dispose of SatMac.

Definition at line 142 of file satellite-mac.cc.

References m_beamEnabledTime, m_beamSchedulerCallback, m_beamServiceTrace, m_readCtrlCallback, m_reserveCtrlCallback, m_routingUpdateCallback, m_rxCallback, m_sendCtrlCallback, m_txCallback, and m_txEnabled.

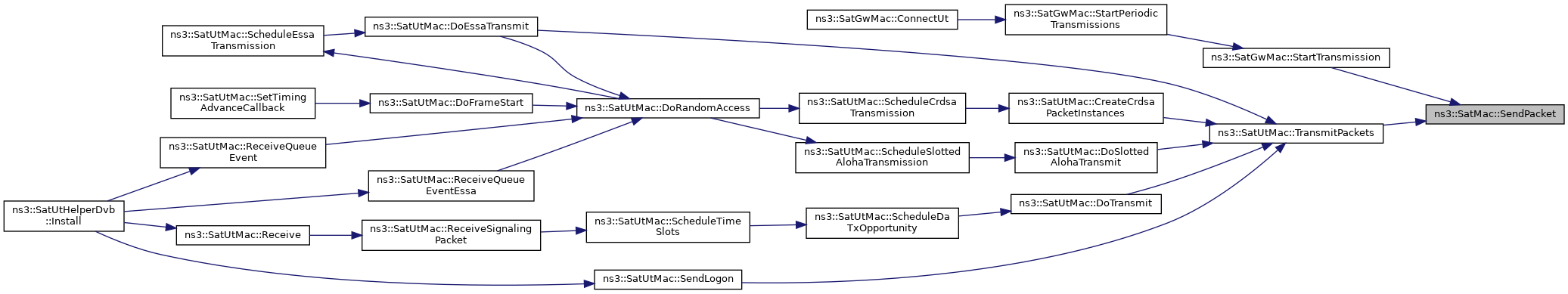

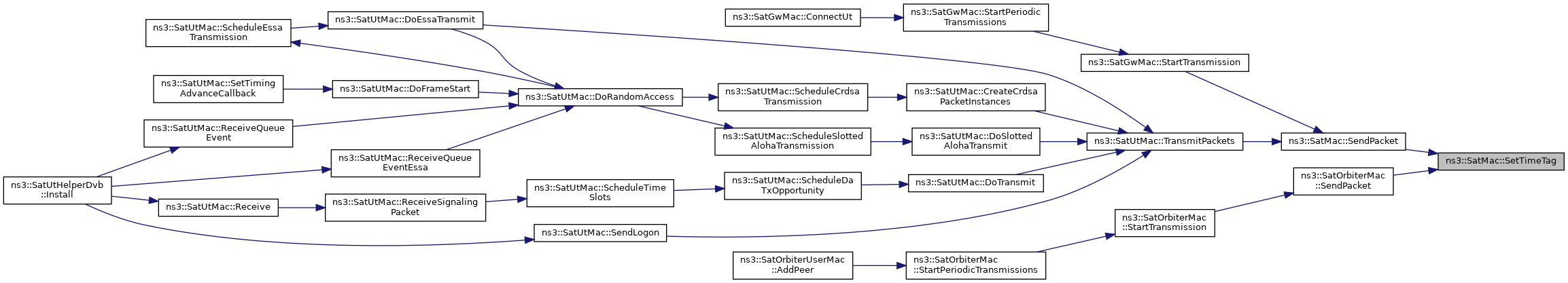

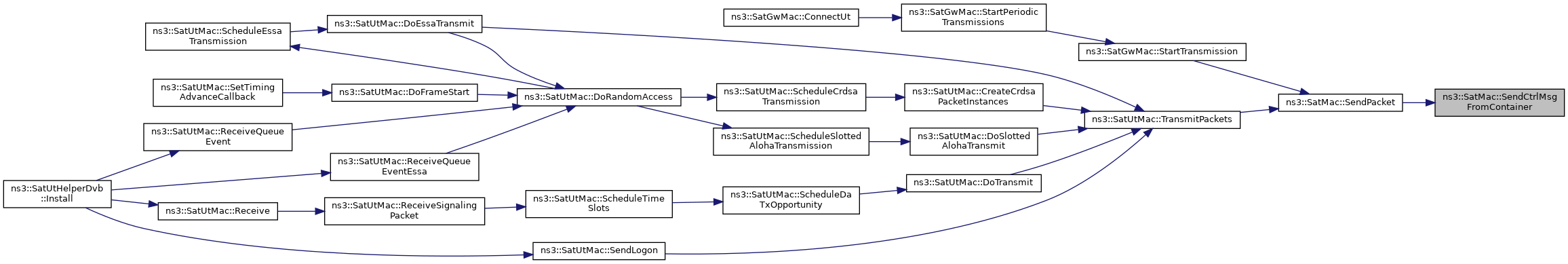

Referenced by ns3::SatGwMac::DoDispose(), and ns3::SatUtMac::DoDispose().

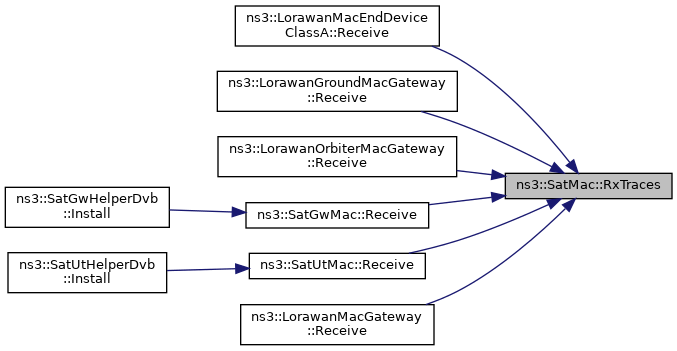

Here is the caller graph for this function:

◆ Enable()

void ns3::SatMac::Enable ( )

virtual

Enable the MAC layer, i.e.

allow it to send data to the PHY layer. This is used in beam hopping implementation.

Definition at line 213 of file satellite-mac.cc.

References m_beamEnabledTime, and m_txEnabled.

◆ GetAddress()

Address ns3::SatMac::GetAddress ( void ) const

inline

Get MAC address.

Returns: The MAC address

Definition at line 126 of file satellite-mac.h.

References m_nodeInfo.

◆ GetBeamId()

uint32_t ns3::SatMac::GetBeamId ( void ) const

inline

Get beam ID of the object.

Returns: beam ID

Definition at line 99 of file satellite-mac.h.

References m_beamId.

Referenced by ns3::LorawanGroundMacGateway::Receive(), and ns3::LorawanOrbiterMacGateway::Receive().

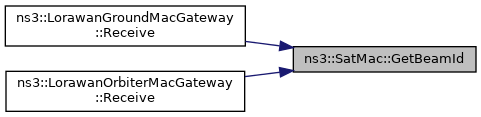

Here is the caller graph for this function:

◆ GetSatId()

uint32_t ns3::SatMac::GetSatId ( ) const

inline

Get sat ID of the object.

Returns: sat ID

Definition at line 90 of file satellite-mac.h.

References m_satId.

◆ GetTypeId()

TypeId ns3::SatMac::GetTypeId ( void )

static

Derived from Object.

Definition at line 47 of file satellite-mac.cc.

References m_beamServiceTrace, m_isStatisticsTagsEnabled, m_ncrV2, m_packetTrace, m_rxDelayTrace, m_rxJitterTrace, m_rxLinkDelayTrace, m_rxLinkJitterTrace, and m_rxTrace.

◆ operator=()

SatMac& ns3::SatMac::operator= ( const SatMac & )

private

◆ ReceiveQueueEvent()

void ns3::SatMac::ReceiveQueueEvent	(	SatQueue::QueueEvent_t	event,
		uint8_t	flowIndex
	)

virtual

Receive a queue event:

FIRST_BUFFER_RCVD
BUFFER_EMPTY
Parameters

event Queue event from SatQueue

flowIndex Identifier of the queue

Reimplemented in ns3::SatUtMac.

Definition at line 207 of file satellite-mac.cc.

◆ ReserveIdAndStoreCtrlMsgToContainer()

uint32_t ns3::SatMac::ReserveIdAndStoreCtrlMsgToContainer ( Ptr< SatControlMessage > msg )

Reserve id and store the control message.

Parameters

msg	Control message to store to the container.

Returns: Id of the internally stored message (send ID).

Definition at line 172 of file satellite-mac.cc.

References m_reserveCtrlCallback.

◆ RxTraces()

void ns3::SatMac::RxTraces ( SatPhy::PacketContainer_t packets )

protected

Invoke the Rx trace source for each received packet.

Parameters

packets Container of the pointers to the packets received.

Definition at line 329 of file satellite-mac.cc.

References ns3::SatMacTag::GetDestAddress(), ns3::SatMacLinkTimeTag::GetSenderLinkTimestamp(), ns3::SatMacTimeTag::GetSenderTimestamp(), ns3::SatAddressTag::GetSourceAddress(), ns3::SatAddressTag::GetTypeId(), m_isStatisticsTagsEnabled, m_lastDelay, m_lastLinkDelay, m_nodeInfo, m_rxDelayTrace, m_rxJitterTrace, m_rxLinkDelayTrace, m_rxLinkJitterTrace, and m_rxTrace.

Referenced by ns3::LorawanMacEndDeviceClassA::Receive(), ns3::LorawanGroundMacGateway::Receive(), ns3::LorawanOrbiterMacGateway::Receive(), ns3::SatGwMac::Receive(), ns3::SatUtMac::Receive(), and ns3::LorawanMacGateway::Receive().

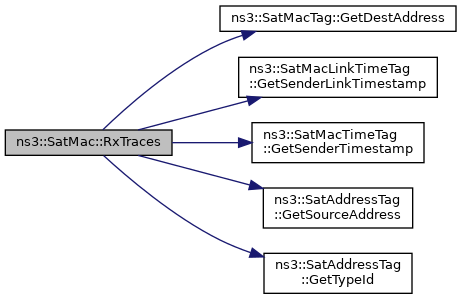

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendCtrlMsgFromContainer()

uint32_t ns3::SatMac::SendCtrlMsgFromContainer ( uint32_t sendId )

Send the control message from the container.

Parameters

sendId Id of the internally stored message.

Returns: ID to be used in the control packet reception (recv ID).

Definition at line 190 of file satellite-mac.cc.

References m_sendCtrlCallback.

Referenced by SendPacket().

Here is the caller graph for this function:

◆ SendPacket()

void ns3::SatMac::SendPacket	(	SatPhy::PacketContainer_t	packets,
		uint32_t	carrierId,
		Time	duration,
		SatSignalParameters::txInfo_s	txInfo
	)

protectedvirtual

Send packets to lower layer by using a callback.

Parameters

packets	Packets to be sent.
carrierId	ID of the carrier used for transmission.
duration	Duration of the physical layer transmission.
txInfo	Additional parameterization for burst transmission.

The transmitted packets are gone through to check whether the PHY transmission contains control packets. If a control packet is found, its control tag is peeked and the control message is added to the control message container with control message id. Only made if not on a satellite.

Reimplemented in ns3::SatOrbiterMac.

Definition at line 261 of file satellite-mac.cc.

References ns3::SatControlMsgTag::GetMsgId(), ns3::SatControlMsgTag::GetMsgType(), m_isRegenerative, m_lastSOF, m_ncrMessagesToSend, m_ncrV2, m_satelliteAddress, m_txCallback, ns3::SatControlMsgTag::SAT_NCR_CTRL_MSG, SendCtrlMsgFromContainer(), ns3::SatMacTag::SetDestAddress(), ns3::SatControlMsgTag::SetMsgId(), and SetTimeTag().

Referenced by ns3::SatGwMac::StartTransmission(), and ns3::SatUtMac::TransmitPackets().

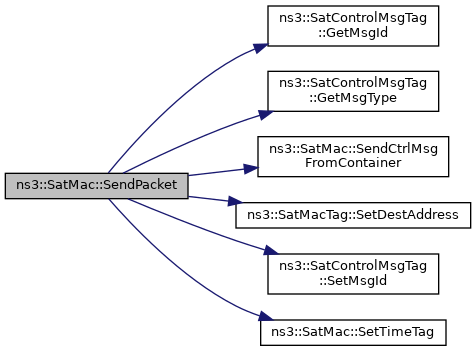

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBeamId()

void ns3::SatMac::SetBeamId ( uint32_t beamId )

inline

Set beam ID of the object.

Parameters

beamId beam ID

Definition at line 117 of file satellite-mac.h.

References m_beamId.

Referenced by ns3::SatUtMac::DoFrameStart().

Here is the caller graph for this function:

◆ SetBeamSchedulerCallback()

void ns3::SatMac::SetBeamSchedulerCallback ( SatMac::BeamSchedulerCallback cb )

Set the beam scheduler callback.

Parameters

cb	Callback to get the SatBeamScheduler

Definition at line 464 of file satellite-mac.cc.

References m_beamSchedulerCallback.

◆ SetHandoverModule()

void ns3::SatMac::SetHandoverModule ( Ptr< SatHandoverModule > handoverModule )

Set the handover module.

Parameters

handoverModule The handover module

Definition at line 407 of file satellite-mac.cc.

References m_handoverModule.

◆ SetLoraReceiveCallback()

void ns3::SatMac::SetLoraReceiveCallback ( SatMac::LoraReceiveCallback cb )

Method to set receive callback.

Parameters

cb	callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Definition at line 429 of file satellite-mac.cc.

References m_rxLoraCallback.

◆ SetNodeInfo()

void ns3::SatMac::SetNodeInfo ( Ptr< SatNodeInfo > nodeInfo )

virtual

Set the node info.

Parameters

nodeInfo containing node specific information

Reimplemented in ns3::SatUtMac.

Definition at line 162 of file satellite-mac.cc.

References m_nodeInfo.

Referenced by ns3::SatUtMac::SetNodeInfo().

Here is the caller graph for this function:

◆ SetReadCtrlCallback()

void ns3::SatMac::SetReadCtrlCallback ( SatMac::ReadCtrlMsgCallback cb )

Method to set read control message callback.

Parameters

cb	callback to invoke whenever a control message is wanted to read.

Definition at line 436 of file satellite-mac.cc.

References m_readCtrlCallback.

◆ SetReceiveCallback()

void ns3::SatMac::SetReceiveCallback ( SatMac::ReceiveCallback cb )

Method to set receive callback.

Parameters

cb	callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Definition at line 422 of file satellite-mac.cc.

References m_rxCallback.

◆ SetReserveCtrlCallback()

void ns3::SatMac::SetReserveCtrlCallback ( SatMac::ReserveCtrlMsgCallback cb )

Method to set reserve control message id callback.

Parameters

cb	callback to invoke whenever an id is wanted to be reserved for a control message.

Definition at line 443 of file satellite-mac.cc.

References m_reserveCtrlCallback.

◆ SetRoutingUpdateCallback()

void ns3::SatMac::SetRoutingUpdateCallback ( SatMac::RoutingUpdateCallback cb )

Method to set the routing update callback.

Parameters

cb	callback to invoke to update routing

Definition at line 457 of file satellite-mac.cc.

References m_routingUpdateCallback.

◆ SetSatelliteAddress()

void ns3::SatMac::SetSatelliteAddress ( Address satelliteAddress )

virtual

Set the satellite MAC address on the other side of this link (if regenerative satellite).

Reimplemented in ns3::SatUtMac.

Definition at line 231 of file satellite-mac.cc.

References m_isRegenerative, and m_satelliteAddress.

Referenced by ns3::LorawanMacEndDevice::CheckHandovers(), and ns3::SatGwMac::StartTransmission().

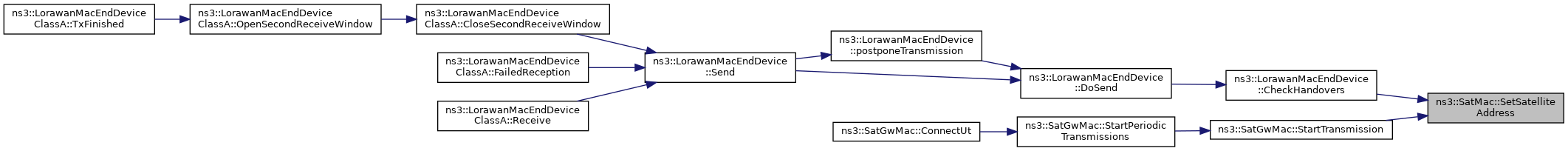

Here is the caller graph for this function:

◆ SetSatId()

void ns3::SatMac::SetSatId ( uint32_t satId )

inline

Set sat ID of the object.

Parameters

satId sat ID

Definition at line 108 of file satellite-mac.h.

References m_satId.

Referenced by ns3::SatUtMac::DoFrameStart().

Here is the caller graph for this function:

◆ SetSendCtrlCallback()

void ns3::SatMac::SetSendCtrlCallback ( SatMac::SendCtrlMsgCallback cb )

Method to set send control message callback.

Parameters

cb	callback to invoke whenever a control message is wanted to sent.

Definition at line 450 of file satellite-mac.cc.

References m_sendCtrlCallback.

◆ SetTimeTag()

void ns3::SatMac::SetTimeTag ( SatPhy::PacketContainer_t packets )

protected

Set SatMacTimeTag of packets.

Parameters

packets Container of the pointers to the packets to tag.

Definition at line 238 of file satellite-mac.cc.

References m_isStatisticsTagsEnabled.

Referenced by SendPacket(), and ns3::SatOrbiterMac::SendPacket().

Here is the caller graph for this function:

◆ SetTransmitCallback()

void ns3::SatMac::SetTransmitCallback ( SatMac::TransmitCallback cb )

Method to set transmit callback.

Parameters

cb	callback to invoke whenever a packet needs to be sent to lower layer (PHY)

Definition at line 415 of file satellite-mac.cc.

References m_txCallback.

◆ SetUpdateIslCallback()

void ns3::SatMac::SetUpdateIslCallback ( SatMac::UpdateIslCallback cb )

Method to set update ISL callback.

Parameters

cb	callback to invoke whenever ISL routes need to be updated.

Definition at line 472 of file satellite-mac.cc.

References m_updateIslCallback.

Member Data Documentation

◆ m_beamEnabledTime

Time ns3::SatMac::m_beamEnabledTime

protected

Time of the last beam enable event.

Definition at line 477 of file satellite-mac.h.

Referenced by Disable(), DoDispose(), and Enable().

◆ m_beamId

uint32_t ns3::SatMac::m_beamId

protected

The ID of the beam where mac belongs.

Definition at line 460 of file satellite-mac.h.

Referenced by ns3::SatGwMac::ConnectUt(), ns3::SatGwMac::DisconnectUt(), GetBeamId(), SetBeamId(), ns3::SatGwMac::StartPeriodicTransmissions(), and ns3::SatGwMac::StartTransmission().

◆ m_beamSchedulerCallback

SatMac::BeamSchedulerCallback ns3::SatMac::m_beamSchedulerCallback

protected

Callback to get the SatBeamScheduler linked to a beam ID.

Definition at line 374 of file satellite-mac.h.

Referenced by ns3::LorawanMacEndDevice::CheckHandovers(), DoDispose(), ns3::SatUtMac::DoFrameStart(), SetBeamSchedulerCallback(), and ns3::SatGwMac::StartTransmission().

◆ m_beamServiceTrace

TracedCallback<Time> ns3::SatMac::m_beamServiceTrace

protected

Traced callback for beam being disabled and including service time.

Definition at line 439 of file satellite-mac.h.

Referenced by Disable(), DoDispose(), and GetTypeId().

◆ m_forwardLinkRegenerationMode

SatEnums::RegenerationMode_t ns3::SatMac::m_forwardLinkRegenerationMode

protected

Regeneration mode on forward link.

Definition at line 497 of file satellite-mac.h.

Referenced by ns3::SatOrbiterUserMac::EnquePacket(), ns3::SatOrbiterFeederMac::Receive(), and ns3::SatGwMac::ReceiveSignalingPacket().

◆ m_handoverModule

Ptr<SatHandoverModule> ns3::SatMac::m_handoverModule

protected

Module used to perform handovers.

Definition at line 465 of file satellite-mac.h.

Referenced by ns3::LorawanMacEndDevice::CheckHandovers(), ns3::SatUtMac::DoFrameStart(), SetHandoverModule(), and ns3::SatGwMac::StartTransmission().

◆ m_isRegenerative

bool ns3::SatMac::m_isRegenerative

protected

Indicate if satellite is regeneration (at least LINK level) for TX.

Definition at line 507 of file satellite-mac.h.

Referenced by SendPacket(), SetSatelliteAddress(), and ns3::SatUtMac::SetSatelliteAddress().

◆ m_isStatisticsTagsEnabled

bool ns3::SatMac::m_isStatisticsTagsEnabled

protected

EnableStatisticsTags attribute.

Definition at line 384 of file satellite-mac.h.

Referenced by GetTypeId(), RxTraces(), ns3::SatOrbiterMac::RxTraces(), ns3::LorawanGroundMacGateway::Send(), ns3::LorawanOrbiterMacGateway::Send(), ns3::LorawanMacGateway::Send(), ns3::LorawanMacEndDeviceClassA::SendToPhy(), and SetTimeTag().

◆ m_lastDelay

Time ns3::SatMac::m_lastDelay

protected

Last delay measurement.

Used to compute jitter.

Definition at line 482 of file satellite-mac.h.

Referenced by RxTraces().

◆ m_lastLinkDelay

Time ns3::SatMac::m_lastLinkDelay

protected

Last delay measurement for link.

Used to compute link jitter.

Definition at line 517 of file satellite-mac.h.

Referenced by RxTraces(), and ns3::SatOrbiterMac::RxTraces().

◆ m_lastSOF

std::queue<Time> ns3::SatMac::m_lastSOF

protected

Store last 3 SOF date for Forward messages, to insert in NCR packets.

Definition at line 492 of file satellite-mac.h.

Referenced by SendPacket(), and ns3::SatGwMac::StartTransmission().

◆ m_ncrMessagesToSend

std::queue<Ptr<SatNcrMessage> > ns3::SatMac::m_ncrMessagesToSend

protected

List of NCR control messages created but not sent yet.

Definition at line 487 of file satellite-mac.h.

Referenced by ns3::SatGwMac::SendNcrMessage(), and SendPacket().

◆ m_ncrV2

bool ns3::SatMac::m_ncrV2

protected

Use of version 2 of NCR dates.

Version 1 use date of frame N-2. Version 2 use date of frame N.

Definition at line 391 of file satellite-mac.h.

Referenced by GetTypeId(), ns3::SatUtMac::ReceiveSignalingPacket(), SendPacket(), ns3::SatGwMac::SetFwdScheduler(), and ns3::SatGwMac::StartTransmission().

◆ m_nodeInfo

Ptr<SatNodeInfo> ns3::SatMac::m_nodeInfo

protected

Node info containing node related information, such as node type, node id and MAC address (of the SatNetDevice)

Definition at line 450 of file satellite-mac.h.

Referenced by ns3::LorawanMacEndDevice::CheckHandovers(), ns3::SatUtMac::CreateCrdsaPacketInstances(), ns3::SatUtMac::DoEssaTransmit(), ns3::SatUtMac::DoFrameStart(), ns3::SatUtMac::DoRandomAccess(), ns3::SatUtMac::DoSlottedAlohaTransmit(), ns3::SatUtMac::DoTransmit(), ns3::SatOrbiterFeederMac::EnquePacket(), ns3::SatOrbiterUserMac::EnquePacket(), ns3::SatUtMac::FetchPackets(), ns3::SatUtMac::FindNextAvailableRandomAccessSlot(), GetAddress(), ns3::SatUtMac::GetNextRandomAccessAllocationChannel(), ns3::SatUtMac::PrintUsedRandomAccessSlots(), ns3::LorawanMacEndDeviceClassA::Receive(), ns3::SatOrbiterFeederMac::Receive(), ns3::SatOrbiterUserMac::Receive(), ns3::LorawanOrbiterMacGateway::Receive(), ns3::SatGwMac::Receive(), ns3::SatUtMac::Receive(), ns3::SatUtMac::ReceiveQueueEvent(), ns3::SatUtMac::ReceiveQueueEventEssa(), ns3::SatUtMac::ReceiveSignalingPacket(), ns3::SatUtMac::RemovePastRandomAccessSlots(), RxTraces(), ns3::SatOrbiterMac::RxTraces(), ns3::SatUtMac::ScheduleCrdsaTransmission(), ns3::SatUtMac::ScheduleEssaTransmission(), ns3::SatUtMac::ScheduleSlottedAlohaTransmission(), ns3::SatUtMac::ScheduleTimeSlots(), ns3::SatUtMac::SearchFrameForAvailableSlot(), ns3::LorawanGroundMacGateway::Send(), ns3::LorawanOrbiterMacGateway::Send(), ns3::LorawanMacGateway::Send(), ns3::SatOrbiterMac::SendPacket(), ns3::LorawanMacEndDeviceClassA::SendToPhy(), SetNodeInfo(), ns3::SatGwMac::StartTransmission(), ns3::SatUtMac::TransmitPackets(), and ns3::SatUtMac::UpdateUsedRandomAccessSlots().

◆ m_packetTrace

TracedCallback<Time, SatEnums::SatPacketEvent_t, SatEnums::SatNodeType_t, uint32_t, Mac48Address, SatEnums::SatLogLevel_t, SatEnums::SatLinkDir_t, std::string> ns3::SatMac::m_packetTrace

protected

Trace callback used for packet tracing.

Definition at line 404 of file satellite-mac.h.

Referenced by ns3::SatUtMac::DoEssaTransmit(), ns3::SatUtMac::DoSlottedAlohaTransmit(), ns3::SatUtMac::FetchPackets(), GetTypeId(), ns3::SatOrbiterFeederMac::Receive(), ns3::SatOrbiterUserMac::Receive(), ns3::SatGwMac::Receive(), ns3::SatUtMac::Receive(), ns3::SatOrbiterMac::SendPacket(), and ns3::SatGwMac::StartTransmission().

◆ m_readCtrlCallback

SatMac::ReadCtrlMsgCallback ns3::SatMac::m_readCtrlCallback

protected

The read control message callback.

Definition at line 359 of file satellite-mac.h.

Referenced by DoDispose(), ns3::SatOrbiterFeederMac::ReceiveSignalingPacket(), ns3::SatOrbiterUserMac::ReceiveSignalingPacket(), ns3::SatUtMac::ReceiveSignalingPacket(), ns3::SatGwMac::ReceiveSignalingPacket(), and SetReadCtrlCallback().

◆ m_reserveCtrlCallback

SatMac::ReserveCtrlMsgCallback ns3::SatMac::m_reserveCtrlCallback

protected

The reserve control message id callback.

Definition at line 364 of file satellite-mac.h.

Referenced by DoDispose(), ReserveIdAndStoreCtrlMsgToContainer(), and SetReserveCtrlCallback().

◆ m_returnLinkRegenerationMode

SatEnums::RegenerationMode_t ns3::SatMac::m_returnLinkRegenerationMode

protected

Regeneration mode on return link.

Definition at line 502 of file satellite-mac.h.

Referenced by ns3::SatUtMac::DoTransmit(), ns3::SatOrbiterFeederMac::EnquePacket(), ns3::SatOrbiterUserMac::Receive(), and ns3::SatGwMac::Receive().

◆ m_routingUpdateCallback

SatMac::RoutingUpdateCallback ns3::SatMac::m_routingUpdateCallback

protected

Callback to update routing and ARP tables after a beam handover.

Definition at line 444 of file satellite-mac.h.

Referenced by ns3::LorawanMacEndDevice::CheckHandovers(), DoDispose(), ns3::SatUtMac::DoFrameStart(), and SetRoutingUpdateCallback().

◆ m_rxCallback

SatMac::ReceiveCallback ns3::SatMac::m_rxCallback

protected

The upper layer package receive callback.

Definition at line 349 of file satellite-mac.h.

Referenced by DoDispose(), ns3::SatOrbiterFeederMac::Receive(), ns3::SatOrbiterUserMac::Receive(), ns3::SatGwMac::Receive(), ns3::SatUtMac::Receive(), ns3::SatUtMac::ReceiveSignalingPacket(), ns3::SatGwMac::ReceiveSignalingPacket(), and SetReceiveCallback().

◆ m_rxDelayTrace

TracedCallback<const Time&, const Address&> ns3::SatMac::m_rxDelayTrace

protected

Traced callback for all received packets, including delay information and the address of the senders.

Definition at line 416 of file satellite-mac.h.

Referenced by GetTypeId(), and RxTraces().

◆ m_rxJitterTrace

TracedCallback<const Time&, const Address&> ns3::SatMac::m_rxJitterTrace

protected

Traced callback for all received packets, including jitter information and the address of the senders.

Definition at line 428 of file satellite-mac.h.

Referenced by GetTypeId(), and RxTraces().

◆ m_rxLinkDelayTrace

TracedCallback<const Time&, const Address&> ns3::SatMac::m_rxLinkDelayTrace

protected

Traced callback for all received packets, including link delay information and the address of the senders.

Definition at line 422 of file satellite-mac.h.

Referenced by GetTypeId(), RxTraces(), and ns3::SatOrbiterMac::RxTraces().

◆ m_rxLinkJitterTrace

TracedCallback<const Time&, const Address&> ns3::SatMac::m_rxLinkJitterTrace

protected

Traced callback for all received packets, including link jitter information and the address of the senders.

Definition at line 434 of file satellite-mac.h.

Referenced by GetTypeId(), RxTraces(), and ns3::SatOrbiterMac::RxTraces().

◆ m_rxLoraCallback

SatMac::LoraReceiveCallback ns3::SatMac::m_rxLoraCallback

protected

The upper layer package receive callback.

Definition at line 354 of file satellite-mac.h.

Referenced by SetLoraReceiveCallback().

◆ m_rxTrace

TracedCallback<Ptr<const Packet>, const Address&> ns3::SatMac::m_rxTrace

protected

Traced callback for all received packets, including the address of the senders.

Definition at line 410 of file satellite-mac.h.

Referenced by GetTypeId(), RxTraces(), and ns3::SatOrbiterMac::RxTraces().

◆ m_satelliteAddress

Address ns3::SatMac::m_satelliteAddress

protected

MAC address of satellite on other side of the link.

Use in regenerative cases.

Definition at line 512 of file satellite-mac.h.

Referenced by ns3::LorawanMacEndDevice::CheckHandovers(), ns3::SatUtMac::DoFrameStart(), ns3::SatUtMac::DoTransmit(), ns3::SatGwMac::ReceiveSignalingPacket(), SendPacket(), ns3::LorawanMacEndDeviceClassA::SendToPhy(), ns3::LorawanMacEndDevice::SetSatAddress(), SetSatelliteAddress(), and ns3::SatUtMac::SetSatelliteAddress().

◆ m_satId

uint32_t ns3::SatMac::m_satId

protected

The ID of the sat where mac belongs.

Definition at line 455 of file satellite-mac.h.

Referenced by ns3::LorawanMacEndDevice::CheckHandovers(), GetSatId(), SetSatId(), and ns3::SatGwMac::StartTransmission().

◆ m_sendCtrlCallback

SatMac::SendCtrlMsgCallback ns3::SatMac::m_sendCtrlCallback

protected

The send control message callback.

Definition at line 369 of file satellite-mac.h.

Referenced by DoDispose(), SendCtrlMsgFromContainer(), and SetSendCtrlCallback().

◆ m_txCallback

SatMac::TransmitCallback ns3::SatMac::m_txCallback

protected

The lower layer packet transmit callback.

Definition at line 344 of file satellite-mac.h.

Referenced by DoDispose(), SendPacket(), and SetTransmitCallback().

◆ m_txEnabled

bool ns3::SatMac::m_txEnabled

protected

Flag indicating whether the MAC is enabled, i.e.

it is capable/allowed to transmit data to PHY layer. This is used for beam hopping, where forward link is only supported currently, thus, it is set to true by default.

Definition at line 472 of file satellite-mac.h.

Referenced by Disable(), DoDispose(), Enable(), ns3::SatGwMac::StartTransmission(), and ns3::SatOrbiterMac::StartTransmission().

◆ m_updateIslCallback

SatMac::UpdateIslCallback ns3::SatMac::m_updateIslCallback

protected

The update ISL routes callback.

Definition at line 379 of file satellite-mac.h.

Referenced by ns3::LorawanMacEndDevice::CheckHandovers(), ns3::SatUtMac::DoFrameStart(), SetUpdateIslCallback(), and ns3::SatGwMac::StartTransmission().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-mac.h
/builds/sns3/satellite/satellite/model/satellite-mac.cc

event	Queue event from SatQueue
flowIndex	Identifier of the queue

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Member Typedef Documentation

◆ BeamSchedulerCallback

◆ LoraReceiveCallback

◆ ReadCtrlMsgCallback

◆ ReceiveCallback

◆ ReserveCtrlMsgCallback

◆ RoutingUpdateCallback

◆ SendCtrlMsgCallback

◆ TransmitCallback

◆ UpdateIslCallback

Constructor & Destructor Documentation

◆ SatMac() [1/3]

◆ SatMac() [2/3]

◆ ~SatMac()

◆ SatMac() [3/3]

Member Function Documentation

◆ Disable()

◆ DoDispose()

◆ Enable()

◆ GetAddress()

◆ GetBeamId()

◆ GetSatId()

◆ GetTypeId()

◆ operator=()

◆ ReceiveQueueEvent()

◆ ReserveIdAndStoreCtrlMsgToContainer()

◆ RxTraces()

◆ SendCtrlMsgFromContainer()

◆ SendPacket()

◆ SetBeamId()

◆ SetBeamSchedulerCallback()

◆ SetHandoverModule()

◆ SetLoraReceiveCallback()

◆ SetNodeInfo()

◆ SetReadCtrlCallback()

◆ SetReceiveCallback()

◆ SetReserveCtrlCallback()

◆ SetRoutingUpdateCallback()

◆ SetSatelliteAddress()

◆ SetSatId()

◆ SetSendCtrlCallback()

◆ SetTimeTag()

◆ SetTransmitCallback()

◆ SetUpdateIslCallback()

Member Data Documentation

◆ m_beamEnabledTime

◆ m_beamId

◆ m_beamSchedulerCallback

◆ m_beamServiceTrace

◆ m_forwardLinkRegenerationMode

◆ m_handoverModule

◆ m_isRegenerative

◆ m_isStatisticsTagsEnabled

◆ m_lastDelay

◆ m_lastLinkDelay

◆ m_lastSOF

◆ m_ncrMessagesToSend

◆ m_ncrV2

◆ m_nodeInfo

◆ m_packetTrace

◆ m_readCtrlCallback

◆ m_reserveCtrlCallback

◆ m_returnLinkRegenerationMode

◆ m_routingUpdateCallback

◆ m_rxCallback

◆ m_rxDelayTrace

◆ m_rxJitterTrace

◆ m_rxLinkDelayTrace

◆ m_rxLinkJitterTrace

◆ m_rxLoraCallback

◆ m_rxTrace

◆ m_satelliteAddress

◆ m_satId
