SatBbFrame class implements functionality for BB frames. More...

#include "satellite-bbframe.h"

Inheritance diagram for ns3::SatBbFrame:

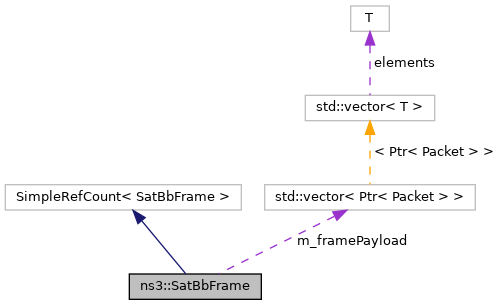

Collaboration diagram for ns3::SatBbFrame:

Public Types
typedef void(*	BbFrameCallback) (Ptr< SatBbFrame > bbFrame)
	Callback signature for Ptr<SatBbFrame>. More...

typedef void(*	BbFrameMergeCallback) (Ptr< SatBbFrame > to, Ptr< SatBbFrame > from)
	Callback signature for merging of two instances of SatBbFrame. More...

typedef std::vector< Ptr< Packet > >	SatBbFramePayload_t
	Define type SatBbFramePayload_t. More...

Public Member Functions
	SatBbFrame ()
	Default constructor. More...

	SatBbFrame (SatEnums::SatModcod_t modCod, SatEnums::SatBbFrameType_t type, Ptr< SatBbFrameConf > conf)
	Constructor to create BB frame according to given type and MODCOD, type and BB frame configuration. More...

virtual	~SatBbFrame ()
	Destructor fro BB frame. More...

uint32_t	AddPayload (Ptr< Packet > packet)
	Add payload (packet) to transmit buffer of this BB Frame info. More...

Time	Extend (Ptr< SatBbFrameConf > conf)
	Extent BB frame to the longest type. More...

Time	GetDuration () const
	Get duration of the frame transmission. More...

uint32_t	GetFrameHeaderSize () const
	Get header size of the frame. More...

SatEnums::SatBbFrameType_t	GetFrameType () const
	Get type of the frame. More...

uint32_t	GetMaxSpaceInBytes () const
	Get the maximum size of the BB Frame transmit buffer in bytes. More...

SatEnums::SatModcod_t	GetModcod () const
	Get type of the frame. More...

double	GetOccupancy () const
	Get the occupancy of the of the BB Frame. More...

double	GetOccupancyIfMerged (Ptr< SatBbFrame > mergedFrame) const
	Checks occupancy of the frame if given frame would been merged with this frame. More...

const SatBbFramePayload_t &	GetPayload ()
	Get the data in the BB Frame info as container of the packet pointers. More...

uint8_t	GetSliceId () const
	Get the slice ID of the BBFrame. More...

uint32_t	GetSpaceLeftInBytes () const
	Get space left in BB frame transmit buffer in bytes. More...

uint32_t	GetSpaceUsedInBytes () const
	Get space used in BB frame transmit buffer in bytes. More...

double	GetSpectralEfficiency (double carrierBandwidthInHz) const
	Get spectra efficiency of the frame. More...

bool	MergeWithFrame (Ptr< SatBbFrame > mergedFrame, TracedCallback< Ptr< SatBbFrame >, Ptr< SatBbFrame >> mergeTraceCb)
	Merge given frame with this frame. More...

void	SetSliceId (uint8_t sliceId)
	Set the slice ID of the BBFrame. More...

Time	Shrink (Ptr< SatBbFrameConf > conf)
	Shrink BB frame to the shortest type possible according to current load in the frame. More...

Private Attributes
Time	m_duration

SatBbFramePayload_t	m_framePayload

SatEnums::SatBbFrameType_t	m_frameType

uint32_t	m_freeSpaceInBytes

uint32_t	m_headerSizeInBytes

uint32_t	m_maxSpaceInBytes

SatEnums::SatModcod_t	m_modCod

uint8_t	m_sliceId

Detailed Description

SatBbFrame class implements functionality for BB frames.

Holds information of a BB Frame for forward link scheduling. It also provides methods to query information of the frame and methods to modify frames like shrink, extend and merge.

Definition at line 47 of file satellite-bbframe.h.

Member Typedef Documentation

◆ BbFrameCallback

typedef void(* ns3::SatBbFrame::BbFrameCallback) (Ptr< SatBbFrame > bbFrame)

Callback signature for Ptr<SatBbFrame>.

Parameters

bbFrame The BB frame.

Definition at line 214 of file satellite-bbframe.h.

◆ BbFrameMergeCallback

typedef void(* ns3::SatBbFrame::BbFrameMergeCallback) (Ptr< SatBbFrame > to, Ptr< SatBbFrame > from)

Callback signature for merging of two instances of SatBbFrame.

Parameters

to	The frame merged to.
to	The frame merged from.

Definition at line 221 of file satellite-bbframe.h.

◆ SatBbFramePayload_t

typedef std::vector<Ptr<Packet> > ns3::SatBbFrame::SatBbFramePayload_t

Define type SatBbFramePayload_t.

Definition at line 53 of file satellite-bbframe.h.

Constructor & Destructor Documentation

◆ SatBbFrame() [1/2]

ns3::SatBbFrame::SatBbFrame ( )

Default constructor.

Constructs BB frame with default ModCod and default frame type.

Definition at line 33 of file satellite-bbframe.cc.

◆ SatBbFrame() [2/2]

ns3::SatBbFrame::SatBbFrame	(	SatEnums::SatModcod_t	modCod,
		SatEnums::SatBbFrameType_t	type,
		Ptr< SatBbFrameConf >	conf
	)

Constructor to create BB frame according to given type and MODCOD, type and BB frame configuration.

Parameters

modCod	Used ModCod
type	Type of the frame
conf	Pointer to BBFrame configuration

Dummy frame is assumed to be a short frame but with no valid data.

Definition at line 44 of file satellite-bbframe.cc.

References ns3::SatConstVariables::BITS_PER_BYTE, ns3::SatEnums::DUMMY_FRAME, ns3::SatEnums::DVB_S2, ns3::SatEnums::DVB_S2X, m_duration, m_freeSpaceInBytes, m_headerSizeInBytes, m_maxSpaceInBytes, ns3::SatEnums::NORMAL_FRAME, and ns3::SatEnums::SHORT_FRAME.

◆ ~SatBbFrame()

ns3::SatBbFrame::~SatBbFrame ( )

virtual

Destructor fro BB frame.

Definition at line 93 of file satellite-bbframe.cc.

Member Function Documentation

◆ AddPayload()

uint32_t ns3::SatBbFrame::AddPayload ( Ptr< Packet > packet )

Add payload (packet) to transmit buffer of this BB Frame info.

Parameters

packet Pointer to packet wanted to add to transmit buffer

Returns: Space left bytes in transmit buffer after addition

Definition at line 106 of file satellite-bbframe.cc.

References GetSpaceLeftInBytes(), m_framePayload, and m_freeSpaceInBytes.

Here is the call graph for this function:

◆ Extend()

Time ns3::SatBbFrame::Extend ( Ptr< SatBbFrameConf > conf )

Extent BB frame to the longest type.

Parameters

conf	Pointer to BB frame configuration

Returns: Increase of the frame duration after extending it

Definition at line 236 of file satellite-bbframe.cc.

References ns3::SatConstVariables::BITS_PER_BYTE, GetSpaceUsedInBytes(), m_duration, m_frameType, m_freeSpaceInBytes, m_maxSpaceInBytes, m_modCod, ns3::SatEnums::NORMAL_FRAME, and ns3::SatEnums::SHORT_FRAME.

Here is the call graph for this function:

◆ GetDuration()

Time ns3::SatBbFrame::GetDuration ( ) const

inline

Get duration of the frame transmission.

Returns: duration of the frame transmission

Definition at line 160 of file satellite-bbframe.h.

References m_duration.

◆ GetFrameHeaderSize()

uint32_t ns3::SatBbFrame::GetFrameHeaderSize ( ) const

inline

Get header size of the frame.

Returns: Header size in bytes.

Definition at line 205 of file satellite-bbframe.h.

References m_headerSizeInBytes.

◆ GetFrameType()

SatEnums::SatBbFrameType_t ns3::SatBbFrame::GetFrameType ( ) const

inline

Get type of the frame.

Returns: Type of the frame

Definition at line 169 of file satellite-bbframe.h.

References m_frameType.

◆ GetMaxSpaceInBytes()

uint32_t ns3::SatBbFrame::GetMaxSpaceInBytes ( ) const

Get the maximum size of the BB Frame transmit buffer in bytes.

Returns: the maximum size of the BB Frame transmit buffer in bytes

Definition at line 141 of file satellite-bbframe.cc.

References m_maxSpaceInBytes.

◆ GetModcod()

SatEnums::SatModcod_t ns3::SatBbFrame::GetModcod ( void ) const

inline

Get type of the frame.

Returns: Type of the frame

Definition at line 178 of file satellite-bbframe.h.

References m_modCod.

◆ GetOccupancy()

double ns3::SatBbFrame::GetOccupancy ( ) const

Get the occupancy of the of the BB Frame.

Returns: the occupancy of the BB Frame 0 - 1.

Definition at line 148 of file satellite-bbframe.cc.

References GetSpaceUsedInBytes(), and m_maxSpaceInBytes.

Here is the call graph for this function:

◆ GetOccupancyIfMerged()

double ns3::SatBbFrame::GetOccupancyIfMerged ( Ptr< SatBbFrame > mergedFrame ) const

Checks occupancy of the frame if given frame would been merged with this frame.

Parameters

mergedFrame Another frame wanted to merge with this frame.

Returns: O, if frames cannot be merged, occupancy of the merged frame in otherwise.

Definition at line 155 of file satellite-bbframe.cc.

References GetSpaceUsedInBytes(), m_freeSpaceInBytes, and m_maxSpaceInBytes.

Here is the call graph for this function:

◆ GetPayload()

const SatBbFrame::SatBbFramePayload_t & ns3::SatBbFrame::GetPayload ( )

Get the data in the BB Frame info as container of the packet pointers.

Returns: Container having data as packet pointers.

Definition at line 99 of file satellite-bbframe.cc.

References m_framePayload.

◆ GetSliceId()

uint8_t ns3::SatBbFrame::GetSliceId ( ) const

inline

Get the slice ID of the BBFrame.

Returns: The slice ID of the BBFrame

Definition at line 187 of file satellite-bbframe.h.

References m_sliceId.

◆ GetSpaceLeftInBytes()

uint32_t ns3::SatBbFrame::GetSpaceLeftInBytes ( ) const

Get space left in BB frame transmit buffer in bytes.

Returns: space left in bytes in transmit buffer

Definition at line 127 of file satellite-bbframe.cc.

References m_freeSpaceInBytes.

Referenced by AddPayload().

Here is the caller graph for this function:

◆ GetSpaceUsedInBytes()

uint32_t ns3::SatBbFrame::GetSpaceUsedInBytes ( ) const

Get space used in BB frame transmit buffer in bytes.

Returns: space used in bytes in transmit buffer

Definition at line 134 of file satellite-bbframe.cc.

References m_freeSpaceInBytes, and m_maxSpaceInBytes.

Referenced by Extend(), GetOccupancy(), GetOccupancyIfMerged(), and Shrink().

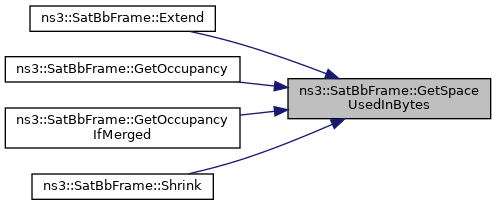

Here is the caller graph for this function:

◆ GetSpectralEfficiency()

double ns3::SatBbFrame::GetSpectralEfficiency ( double carrierBandwidthInHz ) const

Get spectra efficiency of the frame.

Parameters

carrierBandwidthInHz Carrier bandwidth in hertz.

Returns

Definition at line 174 of file satellite-bbframe.cc.

References ns3::SatConstVariables::BITS_PER_BYTE, m_duration, and m_maxSpaceInBytes.

◆ MergeWithFrame()

bool ns3::SatBbFrame::MergeWithFrame	(	Ptr< SatBbFrame >	mergedFrame,
		TracedCallback< Ptr< SatBbFrame >, Ptr< SatBbFrame >>	mergeTraceCb
	)

Merge given frame with this frame.

Parameters

mergedFrame	Another frame to be merged with this frame.
mergeTraceCb	Logging trace source for BB frame optimization.

Returns: true if merging done, false otherwise.

Definition at line 183 of file satellite-bbframe.cc.

References m_framePayload, and m_freeSpaceInBytes.

◆ SetSliceId()

void ns3::SatBbFrame::SetSliceId ( uint8_t sliceId )

inline

Set the slice ID of the BBFrame.

Parameters

sliceId The slice ID of the BBFrame

Definition at line 196 of file satellite-bbframe.h.

References m_sliceId.

◆ Shrink()

Time ns3::SatBbFrame::Shrink ( Ptr< SatBbFrameConf > conf )

Shrink BB frame to the shortest type possible according to current load in the frame.

Parameters

conf	Pointer to BB frame configuration

Returns: Decrease of the frame duration after shrinking it

Definition at line 206 of file satellite-bbframe.cc.

References ns3::SatConstVariables::BITS_PER_BYTE, GetSpaceUsedInBytes(), m_duration, m_frameType, m_freeSpaceInBytes, m_headerSizeInBytes, m_maxSpaceInBytes, m_modCod, ns3::SatEnums::NORMAL_FRAME, and ns3::SatEnums::SHORT_FRAME.

Here is the call graph for this function:

Member Data Documentation

◆ m_duration

Time ns3::SatBbFrame::m_duration

private

Definition at line 230 of file satellite-bbframe.h.

Referenced by SatBbFrame(), Extend(), GetDuration(), GetSpectralEfficiency(), and Shrink().

◆ m_framePayload

SatBbFramePayload_t ns3::SatBbFrame::m_framePayload

private

Definition at line 229 of file satellite-bbframe.h.

Referenced by AddPayload(), GetPayload(), and MergeWithFrame().

◆ m_frameType

SatEnums::SatBbFrameType_t ns3::SatBbFrame::m_frameType

private

Definition at line 231 of file satellite-bbframe.h.

Referenced by Extend(), GetFrameType(), and Shrink().

◆ m_freeSpaceInBytes

uint32_t ns3::SatBbFrame::m_freeSpaceInBytes

private

Definition at line 226 of file satellite-bbframe.h.

Referenced by SatBbFrame(), AddPayload(), Extend(), GetOccupancyIfMerged(), GetSpaceLeftInBytes(), GetSpaceUsedInBytes(), MergeWithFrame(), and Shrink().

◆ m_headerSizeInBytes

uint32_t ns3::SatBbFrame::m_headerSizeInBytes

private

Definition at line 228 of file satellite-bbframe.h.

Referenced by SatBbFrame(), GetFrameHeaderSize(), and Shrink().

◆ m_maxSpaceInBytes

uint32_t ns3::SatBbFrame::m_maxSpaceInBytes

private

Definition at line 227 of file satellite-bbframe.h.

Referenced by SatBbFrame(), Extend(), GetMaxSpaceInBytes(), GetOccupancy(), GetOccupancyIfMerged(), GetSpaceUsedInBytes(), GetSpectralEfficiency(), and Shrink().

◆ m_modCod

SatEnums::SatModcod_t ns3::SatBbFrame::m_modCod

private

Definition at line 224 of file satellite-bbframe.h.

Referenced by Extend(), GetModcod(), and Shrink().

◆ m_sliceId

uint8_t ns3::SatBbFrame::m_sliceId

private

Definition at line 225 of file satellite-bbframe.h.

Referenced by GetSliceId(), and SetSliceId().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-bbframe.h
/builds/sns3/satellite/satellite/model/satellite-bbframe.cc

Public Types

Public Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ BbFrameCallback

◆ BbFrameMergeCallback

◆ SatBbFramePayload_t

Constructor & Destructor Documentation

◆ SatBbFrame() [1/2]

◆ SatBbFrame() [2/2]

◆ ~SatBbFrame()

Member Function Documentation

◆ AddPayload()

◆ Extend()

◆ GetDuration()

◆ GetFrameHeaderSize()

◆ GetFrameType()

◆ GetMaxSpaceInBytes()

◆ GetModcod()

◆ GetOccupancy()

◆ GetOccupancyIfMerged()

◆ GetPayload()

◆ GetSliceId()

◆ GetSpaceLeftInBytes()

◆ GetSpaceUsedInBytes()

◆ GetSpectralEfficiency()

◆ MergeWithFrame()

◆ SetSliceId()

◆ Shrink()

Member Data Documentation

◆ m_duration

◆ m_framePayload

◆ m_frameType

◆ m_freeSpaceInBytes

◆ m_headerSizeInBytes

◆ m_maxSpaceInBytes

◆ m_modCod

◆ m_sliceId
