Creates needed objects for Satellite node like SatorbiterNetDevice objects. More...

#include "satellite-orbiter-helper-dvb.h"

Inheritance diagram for ns3::SatOrbiterHelperDvb:

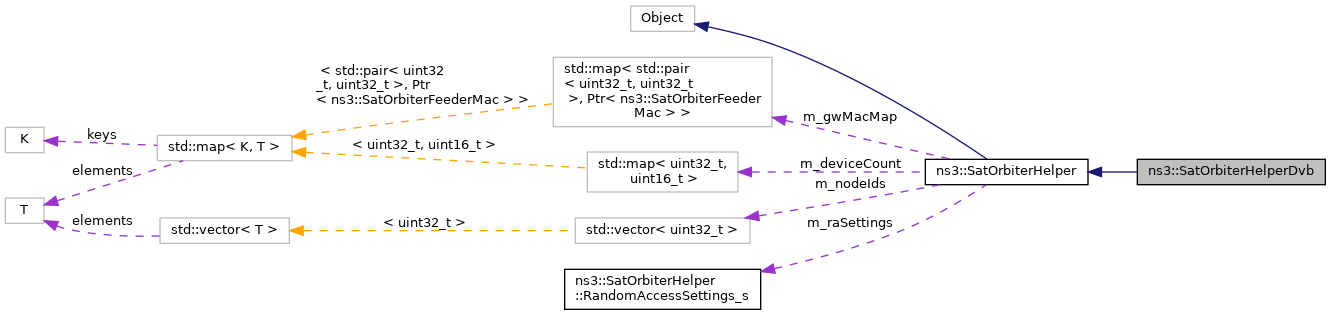

Collaboration diagram for ns3::SatOrbiterHelperDvb:

Public Member Functions
	SatOrbiterHelperDvb ()
	Default constructor. More...

	SatOrbiterHelperDvb (SatTypedefs::CarrierBandwidthConverter_t bandwidthConverterCb, uint32_t rtnLinkCarrierCount, uint32_t fwdLinkCarrierCount, Ptr< SatSuperframeSeq > seq, SatMac::ReadCtrlMsgCallback fwdReadCb, SatMac::ReadCtrlMsgCallback rtnReadCb, RandomAccessSettings_s randomAccessSettings)
	Create a SatOrbiterHelperDvb to make life easier when creating Satellite point to point network connections. More...

virtual	~SatOrbiterHelperDvb ()

virtual void	AttachChannelsUser (Ptr< SatOrbiterNetDevice > dev, Ptr< SatChannel > uf, Ptr< SatChannel > ur, Ptr< SatAntennaGainPattern > userAgp, Ptr< SatNcc > ncc, uint32_t satId, uint32_t userBeamId)

virtual Ptr< SatOrbiterNetDevice >	CreateOrbiterNetDevice ()
	Create a SatOrbiterNetDevice instance, with correct type infered from child classes. More...

TypeId	GetInstanceTypeId (void) const

Public Member Functions inherited from ns3::SatOrbiterHelper
	SatOrbiterHelper ()
	Default constructor. More...

	SatOrbiterHelper (SatTypedefs::CarrierBandwidthConverter_t bandwidthConverterCb, uint32_t rtnLinkCarrierCount, uint32_t fwdLinkCarrierCount, Ptr< SatSuperframeSeq > seq, SatMac::ReadCtrlMsgCallback fwdReadCb, SatMac::ReadCtrlMsgCallback rtnReadCb, RandomAccessSettings_s randomAccessSettings)
	Create a SatOrbiterHelper to make life easier when creating Satellite point to point network connections. More...

virtual	~SatOrbiterHelper ()

void	AttachChannels (Ptr< NetDevice > dev, Ptr< SatChannel > ff, Ptr< SatChannel > fr, Ptr< SatChannel > uf, Ptr< SatChannel > ur, Ptr< SatAntennaGainPattern > userAgp, Ptr< SatAntennaGainPattern > feederAgp, Ptr< SatNcc > ncc, uint32_t satId, uint32_t gwId, uint32_t userBeamId)

void	AttachChannelsFeeder (Ptr< SatOrbiterNetDevice > dev, Ptr< SatChannel > ff, Ptr< SatChannel > fr, Ptr< SatAntennaGainPattern > feederAgp, Ptr< SatNcc > ncc, uint32_t satId, uint32_t gwId, uint32_t userBeamId)

void	EnableCreationTraces (Ptr< OutputStreamWrapper > stream, CallbackBase &cb)
	Enables creation traces to be written in given file. More...

TypeId	GetInstanceTypeId (void) const

void	Initialize (Ptr< SatLinkResultsFwd > lrFwd, Ptr< SatLinkResultsRtn > lrRcs2)

Ptr< NetDevice >	Install (Ptr< Node > n)

Ptr< NetDevice >	Install (std::string aName)

NetDeviceContainer	InstallAllOrbiters ()
	This method creates a ns3::SatOrbiterNetDevices with the requested attributes and associate the resulting ns3::NetDevices with the ns3::Nodes corresponding to the orbiters. More...

void	SetDeviceAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each NetDevice created by the helper. More...

void	SetFeederPhyAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each Feeder Phy created by the helper. More...

void	SetIslRoutes (std::vector< std::pair< uint32_t, uint32_t >> isls)
	Set ISL routes. More...

void	SetUserPhyAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each User Phy created by the helper. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::SatOrbiterHelper
static TypeId	GetTypeId (void)
	Get the type ID. More...

Additional Inherited Members
Protected Attributes inherited from ns3::SatOrbiterHelper
Ptr< SatBbFrameConf >	m_bbFrameConfFwd

Ptr< SatBbFrameConf >	m_bbFrameConfRtn

SatTypedefs::CarrierBandwidthConverter_t	m_carrierBandwidthConverter

TracedCallback< std::string >	m_creationTrace
	Trace callback for creation traces. More...

SatPhy::InterferenceModel	m_daFwdLinkInterferenceModel

SatPhy::InterferenceModel	m_daRtnLinkInterferenceModel

std::map< uint32_t, uint16_t >	m_deviceCount

ObjectFactory	m_deviceFactory

double	m_fwdDaConstantErrorRate

SatPhy::ErrorModel	m_fwdErrorModel

uint32_t	m_fwdLinkCarrierCount

Ptr< SatLinkResults >	m_fwdLinkResults
	Forward channel link results (DVB-S2) are created if ErrorModel is configured to be AVI. More...

SatMac::ReadCtrlMsgCallback	m_fwdReadCtrlCb
	Control forward link messages callback. More...

std::map< std::pair< uint32_t, uint32_t >, Ptr< SatOrbiterFeederMac > >	m_gwMacMap
	Map used in regenerative mode to store if MAC already created for a given pair SAT ID / GW ID. More...

SatEnums::IslArbiterType_t	m_islArbiterType
	Arbiter in use to route packets on ISLs. More...

std::vector< uint32_t >	m_nodeIds
	Satellites node id. More...

RandomAccessSettings_s	m_raSettings
	The used random access model settings. More...

double	m_rtnDaConstantErrorRate

SatPhy::ErrorModel	m_rtnErrorModel

uint32_t	m_rtnLinkCarrierCount

Ptr< SatLinkResults >	m_rtnLinkResults
	Return channel link results (DVB-RCS2) are created if ErrorModel is configured to be AVI. More...

SatMac::ReadCtrlMsgCallback	m_rtnReadCtrlCb
	Control return link messages callback. More...

Ptr< SatSuperframeSeq >	m_superframeSeq
	Superframe sequence. More...

double	m_symbolRateFwd

double	m_symbolRateRtn

Detailed Description

Creates needed objects for Satellite node like SatorbiterNetDevice objects.

Handles needed configuration for the Satellite node.

Definition at line 60 of file satellite-orbiter-helper-dvb.h.

Constructor & Destructor Documentation

◆ SatOrbiterHelperDvb() [1/2]

ns3::SatOrbiterHelperDvb::SatOrbiterHelperDvb ( )

Default constructor.

Definition at line 83 of file satellite-orbiter-helper-dvb.cc.

◆ SatOrbiterHelperDvb() [2/2]

ns3::SatOrbiterHelperDvb::SatOrbiterHelperDvb	(	SatTypedefs::CarrierBandwidthConverter_t	bandwidthConverterCb,
		uint32_t	rtnLinkCarrierCount,
		uint32_t	fwdLinkCarrierCount,
		Ptr< SatSuperframeSeq >	seq,
		SatMac::ReadCtrlMsgCallback	fwdReadCb,
		SatMac::ReadCtrlMsgCallback	rtnReadCb,
		RandomAccessSettings_s	randomAccessSettings
	)

Create a SatOrbiterHelperDvb to make life easier when creating Satellite point to point network connections.

Definition at line 92 of file satellite-orbiter-helper-dvb.cc.

References ns3::SatOrbiterHelper::m_deviceFactory.

◆ ~SatOrbiterHelperDvb()

virtual ns3::SatOrbiterHelperDvb::~SatOrbiterHelperDvb ( )

inlinevirtual

Definition at line 87 of file satellite-orbiter-helper-dvb.h.

Member Function Documentation

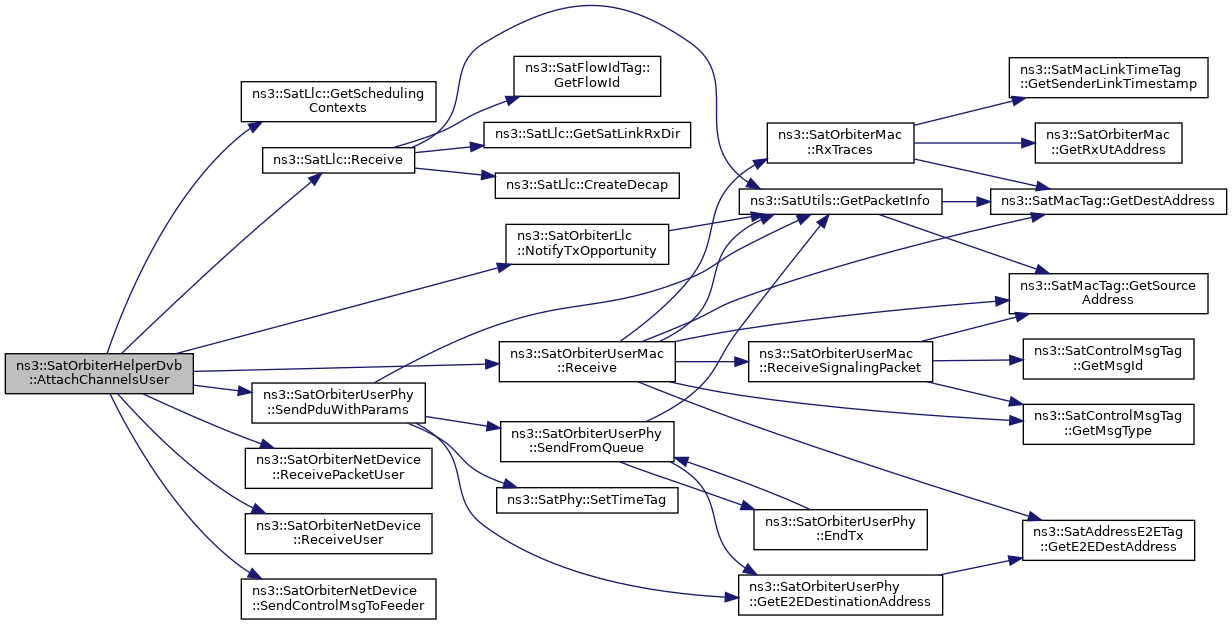

◆ AttachChannelsUser()

void ns3::SatOrbiterHelperDvb::AttachChannelsUser	(	Ptr< SatOrbiterNetDevice >	dev,
		Ptr< SatChannel >	uf,
		Ptr< SatChannel >	ur,
		Ptr< SatAntennaGainPattern >	userAgp,
		Ptr< SatNcc >	ncc,
		uint32_t	satId,
		uint32_t	userBeamId
	)
