SatLlc base class holds the UT specific SatBaseEncapsulator instances, which are responsible of fragmentation, defragmentation, encapsulation and decapsulation. More...

#include "satellite-llc.h"

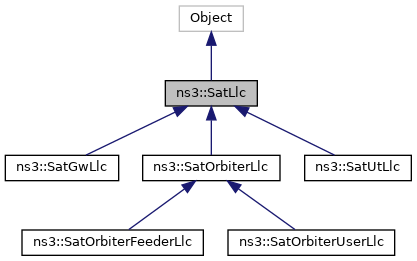

Inheritance diagram for ns3::SatLlc:

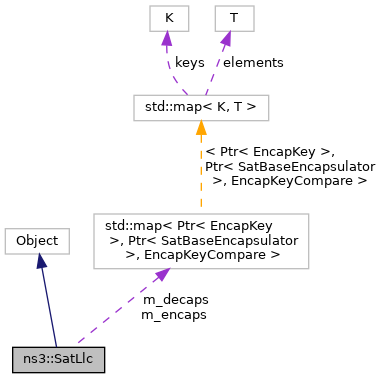

Collaboration diagram for ns3::SatLlc:

Public Types
typedef std::map< Ptr< EncapKey >, Ptr< SatBaseEncapsulator >, EncapKeyCompare >	EncapContainer_t
	Key = Ptr<EncapKey> (source, dest, flowId) Value = Ptr<SatBaseEncapsulator> Compare class = EncapKeyCompare. More...

typedef Callback< Ptr< SatControlMessage >, uint32_t >	ReadCtrlMsgCallback
	Callback to read control messages from container storing control messages. More...

typedef Callback< void, Ptr< const Packet > >	ReceiveCallback
	Receive callback used for sending packet to netdevice layer. More...

Public Member Functions
	SatLlc ()
	Construct a SatLlc, should not be used. More...

	SatLlc (SatEnums::RegenerationMode_t forwardLinkRegenerationMode, SatEnums::RegenerationMode_t returnLinkRegenerationMode)
	Construct a SatLlc. More...

virtual	~SatLlc ()
	Destroy a SatLlc. More...

void	AddDecap (Mac48Address source, Mac48Address dest, uint8_t flowId, Ptr< SatBaseEncapsulator > dec)
	Add an decapsulator entry for the LLC. More...

void	AddEncap (Mac48Address source, Mac48Address dest, uint8_t flowId, Ptr< SatBaseEncapsulator > enc)
	Add an encapsulator entry for the LLC. More...

virtual bool	BuffersEmpty () const
	Are buffers empty? More...

virtual bool	ControlBuffersEmpty () const
	Are buffers empty? More...

virtual bool	Enque (Ptr< Packet > packet, Address dest, uint8_t flowId)
	Called from higher layer (SatNetDevice) to enque packet to LLC. More...

virtual uint32_t	GetNBytesInQueue () const
	Get the total number of (new) bytes in all encapsulators. More...

virtual uint32_t	GetNBytesInQueue (Mac48Address utAddress) const =0
	Get the number of (new) bytes at LLC queue for a certain UT. More...

virtual uint32_t	GetNPacketsInQueue () const
	Get the total number of (new) packets in all encapsulators. More...

virtual uint32_t	GetNPacketsInQueue (Mac48Address utAddress) const =0
	Get the number of (new) packets at LLC queues for a certain UT. More...

virtual void	GetSchedulingContexts (std::vector< Ptr< SatSchedulingObject >> &output) const =0
	Create and fill the scheduling objects based on LLC layer information. More...

virtual Ptr< Packet >	NotifyTxOpportunity (uint32_t bytes, Mac48Address utAddr, uint8_t flowId, uint32_t &bytesLeft, uint32_t &nextMinTxO)=0
	Called from lower layer (MAC) to inform a Tx opportunity of certain amount of bytes. More...

virtual void	Receive (Ptr< Packet > packet, Mac48Address source, Mac48Address dest)
	Receive user data packet from lower layer. More...

virtual void	ReceiveHigherLayerPdu (Ptr< Packet > packet, Mac48Address source, Mac48Address dest)
	Receive HL PDU from encapsulator/decapsulator entity. More...

void	SetAdditionalHeaderSize (uint32_t additionalHeaderSize)
	Set the additional header size. More...

void	SetCtrlMsgCallback (SatBaseEncapsulator::SendCtrlCallback cb)

virtual void	SetGwAddress (Mac48Address address)
	Set the GW address. More...

virtual void	SetNodeInfo (Ptr< SatNodeInfo > nodeInfo)
	Set the node info. More...

void	SetReadCtrlCallback (SatLlc::ReadCtrlMsgCallback cb)
	Method to set read control message callback. More...

void	SetReceiveCallback (SatLlc::ReceiveCallback cb)
	Set Receive callback to forward packet to upper layer. More...

virtual void	SetSatelliteAddress (Mac48Address address)
	Set the SAT address. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Derived from Object. More...

Protected Member Functions
virtual void	CreateDecap (Ptr< EncapKey > key)=0
	Virtual method to create a new decapsulator 'on-a-need-basis' dynamically. More...

virtual void	CreateEncap (Ptr< EncapKey > key)=0
	Virtual method to create a new encapsulator 'on-a-need-basis' dynamically. More...

virtual void	DoDispose ()
	Dispose of this class instance. More...

virtual SatEnums::SatLinkDir_t	GetSatLinkRxDir ()
	Get the link RX direction. More...

virtual SatEnums::SatLinkDir_t	GetSatLinkTxDir ()
	Get the link TX direction. More...

virtual void	ReceiveAck (Ptr< SatArqAckMessage > ack, Mac48Address source, Mac48Address dest)
	Receive a control msg (ARQ ACK) from lower layer. More...

Protected Attributes
uint32_t	m_additionalHeaderSize
	Additional header size to add to encapsulation/decapsulation. More...

EncapContainer_t	m_decaps
	Map of decapsulator base pointers. More...

EncapContainer_t	m_encaps
	Map of encapsulator base pointers. More...

SatEnums::RegenerationMode_t	m_forwardLinkRegenerationMode
	Regeneration mode on forward link. More...

bool	m_fwdLinkArqEnabled
	Is FWD link ARQ enabled. More...

Mac48Address	m_gwAddress
	GW address. More...

Ptr< SatNodeInfo >	m_nodeInfo
	Node info containing node related information, such as node type, node id and MAC address (of the SatNetDevice) More...

TracedCallback< Time, SatEnums::SatPacketEvent_t, SatEnums::SatNodeType_t, uint32_t, Mac48Address, SatEnums::SatLogLevel_t, SatEnums::SatLinkDir_t, std::string >	m_packetTrace
	Trace callback used for packet tracing: More...

SatLlc::ReadCtrlMsgCallback	m_readCtrlCallback
	The read control message callback. More...

SatEnums::RegenerationMode_t	m_returnLinkRegenerationMode
	Regeneration mode on return link. More...

bool	m_rtnLinkArqEnabled
	Is RTN link ARQ enabled. More...

ReceiveCallback	m_rxCallback
	The upper layer package receive callback. More...

Mac48Address	m_satelliteAddress
	SAT address, used in case of network regeneration. More...

SatBaseEncapsulator::SendCtrlCallback	m_sendCtrlCallback
	Callback to send control messages. More...

Detailed Description

SatLlc base class holds the UT specific SatBaseEncapsulator instances, which are responsible of fragmentation, defragmentation, encapsulation and decapsulation.

Encapsulator class is thus capable of working in both transmission and reception side of the system. The SatLlc base class holds base pointers of the encapsulators, but the actual encapsulator types depend on the simulation direction:

At GW:

Encapsulators are of type SatGenericStreamEncapsulator or SatGenericStreamEncapsulatorArq
Decapsulators are of type SatReturnLinkEncapsulator or SatReturnLinkEncapsulatorArq
There are as many encapsulators and decapsulators as there are UTs within the spot-beam.

At UT

Encapsulators are of type SatReturnLinkEncapsulator or SatReturnLinkEncapsulatorArq
Decapsulators are of type SatGenericStreamEncapsulator or SatGenericStreamEncapsulatorArq
There is only one encapsulator and one decapsulator

Fragmentation is not allowed for control packets, thus the basic functionality of just buffering control packets without encapsulation, decapsulation, fragmentation and packing is implemented to the SatBaseEncapsulator class.

SatLlc is a pure virtual class, thus it is not supposed to be instantiated. A proper version of the SatLlc is inherited: SatUtLlc at the UT and SatGwLlc at the GW. There is no LLC layer at the satellite.

Definition at line 129 of file satellite-llc.h.

Member Typedef Documentation

◆ EncapContainer_t

typedef std::map<Ptr<EncapKey>, Ptr<SatBaseEncapsulator>, EncapKeyCompare> ns3::SatLlc::EncapContainer_t

Key = Ptr<EncapKey> (source, dest, flowId) Value = Ptr<SatBaseEncapsulator> Compare class = EncapKeyCompare.

Definition at line 162 of file satellite-llc.h.

◆ ReadCtrlMsgCallback

typedef Callback<Ptr<SatControlMessage>, uint32_t> ns3::SatLlc::ReadCtrlMsgCallback

Callback to read control messages from container storing control messages.

Real length of the control messages are simulated in a packet, but not structure.

Parameters

uint32_t ID of the message to read.

Returns: Pointer to read packet. (NULL if not found).

Definition at line 176 of file satellite-llc.h.

◆ ReceiveCallback

typedef Callback<void, Ptr<const Packet> > ns3::SatLlc::ReceiveCallback

Receive callback used for sending packet to netdevice layer.

Parameters

packet the packet received

Definition at line 168 of file satellite-llc.h.

Constructor & Destructor Documentation

◆ SatLlc() [1/2]

ns3::SatLlc::SatLlc ( )

Construct a SatLlc, should not be used.

Definition at line 65 of file satellite-llc.cc.

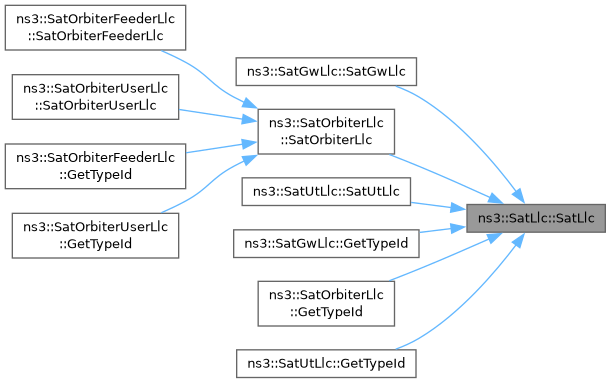

◆ SatLlc() [2/2]

ns3::SatLlc::SatLlc	(	SatEnums::RegenerationMode_t	forwardLinkRegenerationMode,
		SatEnums::RegenerationMode_t	returnLinkRegenerationMode
	)

Construct a SatLlc.

Parameters

forwardLinkRegenerationMode	Forward link regeneration model
returnLinkRegenerationMode	Return link regeneration model

Definition at line 81 of file satellite-llc.cc.

◆ ~SatLlc()

ns3::SatLlc::~SatLlc ( )

virtual

Destroy a SatLlc.

This is the destructor for the SatLlc.

Definition at line 97 of file satellite-llc.cc.

Member Function Documentation

◆ AddDecap()

void ns3::SatLlc::AddDecap	(	Mac48Address	source,
		Mac48Address	dest,
		uint8_t	flowId,
		Ptr< SatBaseEncapsulator >	dec
	)

Add an decapsulator entry for the LLC.

This is called from the helpers at initialization phase.

Parameters

source	Source MAC address
dest	Destination MAC address
flowId	Flow id of this encapsulator queue
dec	Decapsulator pointer

Definition at line 346 of file satellite-llc.cc.

References m_decaps.

◆ AddEncap()

void ns3::SatLlc::AddEncap	(	Mac48Address	source,
		Mac48Address	dest,
		uint8_t	flowId,
		Ptr< SatBaseEncapsulator >	enc
	)

Add an encapsulator entry for the LLC.

This is called from the helpers at initialization phase.

Parameters

source	Source MAC address
dest	Destination MAC address
flowId	Flow id of this encapsulator queue
enc	Encapsulator pointer

Definition at line 315 of file satellite-llc.cc.

References m_encaps.

◆ BuffersEmpty()

bool ns3::SatLlc::BuffersEmpty ( ) const

virtual

Are buffers empty?

Returns: Boolean to indicate whether the buffers are empty or not.

Definition at line 391 of file satellite-llc.cc.

References m_encaps.

Referenced by ns3::SatUtHelper::InstallDvb().

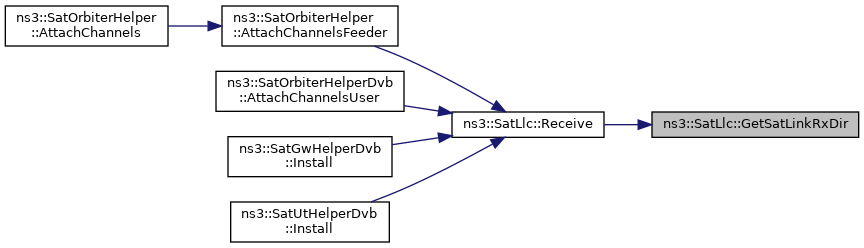

Here is the caller graph for this function:

◆ ControlBuffersEmpty()

bool ns3::SatLlc::ControlBuffersEmpty ( ) const

virtual

Are buffers empty?

Returns: Boolean to indicate whether the buffers are empty or not.

Definition at line 404 of file satellite-llc.cc.

References ns3::SatEnums::CONTROL_FID, and m_encaps.

Referenced by ns3::SatUtHelper::InstallDvb().

Here is the caller graph for this function:

◆ CreateDecap()

virtual void ns3::SatLlc::CreateDecap ( Ptr< EncapKey > key )

protectedpure virtual

Virtual method to create a new decapsulator 'on-a-need-basis' dynamically.

Method is implemented in the inherited class which knows which type of decapsulator to create. This is a pure virtual method to be implemented to inherited classes.

Parameters

key	Encapsulator key class

Implemented in ns3::SatUtLlc, ns3::SatGwLlc, ns3::SatGeoUserLlc, ns3::SatGeoLlc, and ns3::SatGeoFeederLlc.

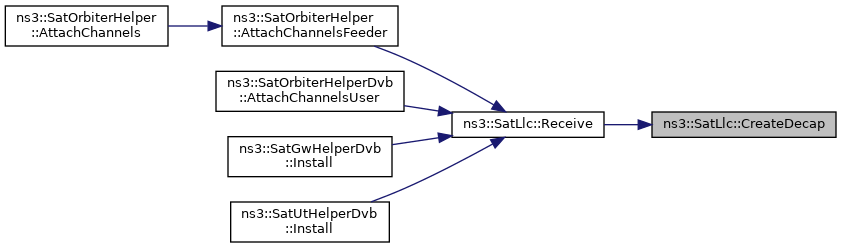

Referenced by Receive().

Here is the caller graph for this function:

◆ CreateEncap()

virtual void ns3::SatLlc::CreateEncap ( Ptr< EncapKey > key )

protectedpure virtual

Virtual method to create a new encapsulator 'on-a-need-basis' dynamically.

Method is implemented in the inherited class which knows which type of encapsulator to create. This is a pure virtual method to be implemented to inherited classes.

Parameters

key	Encapsulator key class

Implemented in ns3::SatUtLlc, ns3::SatGwLlc, ns3::SatGeoUserLlc, ns3::SatGeoLlc, and ns3::SatGeoFeederLlc.

Referenced by Enque().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::SatLlc::DoDispose ( void )

protectedvirtual

Dispose of this class instance.

Reimplemented in ns3::SatUtLlc, ns3::SatGwLlc, ns3::SatGeoUserLlc, ns3::SatGeoLlc, and ns3::SatGeoFeederLlc.

Definition at line 103 of file satellite-llc.cc.

References m_decaps, m_encaps, and m_rxCallback.

Referenced by ns3::SatGwLlc::DoDispose(), and ns3::SatUtLlc::DoDispose().

Here is the caller graph for this function:

◆ Enque()

bool ns3::SatLlc::Enque	(	Ptr< Packet >	packet,
		Address	dest,
		uint8_t	flowId
	)

virtual

Called from higher layer (SatNetDevice) to enque packet to LLC.

Parameters

packet	packet sent from above down to SatMac
dest	Destination MAC address of the packet
flowId	Flow identifier

Returns: Boolean indicating whether the enque operation succeeded

Encapsulator not found, thus create a new one. This method is implemented in the inherited classes, which knows which type of encapsulator to create.

Reimplemented in ns3::SatUtLlc, ns3::SatGwLlc, and ns3::SatGeoLlc.

Definition at line 128 of file satellite-llc.cc.

References CreateEncap(), ns3::SatUtils::GetPacketInfo(), GetSatLinkTxDir(), ns3::SatEnums::LL_LLC, m_encaps, m_nodeInfo, m_packetTrace, ns3::SatEnums::PACKET_ENQUE, ns3::SatAddressE2ETag::SetE2EDestAddress(), and ns3::SatAddressE2ETag::SetE2ESourceAddress().

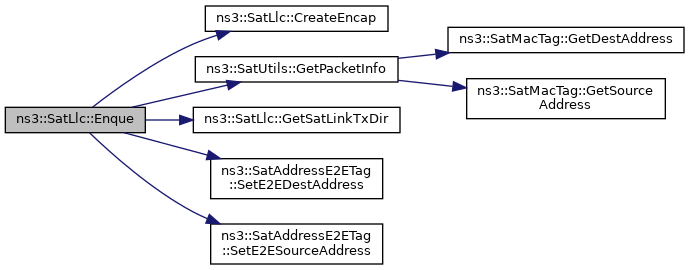

Here is the call graph for this function:

◆ GetNBytesInQueue() [1/2]

uint32_t ns3::SatLlc::GetNBytesInQueue ( ) const

virtual

Get the total number of (new) bytes in all encapsulators.

Method checks only the SatQueue for packets, thus it does not count possible packets buffered at the encapsulator (e.g. in case of ARQ).

Returns: Total number of bytes currently queued in all the encapsulators.

Definition at line 420 of file satellite-llc.cc.

References m_encaps.

◆ GetNBytesInQueue() [2/2]

virtual uint32_t ns3::SatLlc::GetNBytesInQueue ( Mac48Address utAddress ) const

pure virtual

Get the number of (new) bytes at LLC queue for a certain UT.

Method checks only the SatQueue for packets, thus it does not count possible packets buffered at the encapsulator (e.g. in case of ARQ). This is a pure virtual method to be implemented to inherited classes.

Parameters

utAddress the MAC address that identifies a particular UT node.

Returns: Number of bytes currently queued in the encapsulator(s) associated with the UT.

Implemented in ns3::SatUtLlc, ns3::SatGwLlc, and ns3::SatGeoLlc.

◆ GetNPacketsInQueue() [1/2]

uint32_t ns3::SatLlc::GetNPacketsInQueue ( ) const

virtual

Get the total number of (new) packets in all encapsulators.

Method checks only the SatQueue for packets, thus it does not count possible packets buffered at the encapsulator (e.g. in case of ARQ).

Returns: Total number of packets currently queued in all the encapsulators.

Definition at line 438 of file satellite-llc.cc.

References m_encaps.

◆ GetNPacketsInQueue() [2/2]

virtual uint32_t ns3::SatLlc::GetNPacketsInQueue ( Mac48Address utAddress ) const

pure virtual

Get the number of (new) packets at LLC queues for a certain UT.

Method checks only the SatQueue for packets, thus it does not count possible packets buffered at the encapsulator (e.g. in case of ARQ). This is a pure virtual method to be implemented to inherited classes.

Parameters

utAddress the MAC address that identifies a particular UT node.

Returns: Number of packets currently queued in the encapsulator(s) associated with the UT.

Implemented in ns3::SatUtLlc, ns3::SatGwLlc, and ns3::SatGeoLlc.

◆ GetSatLinkRxDir()

SatEnums::SatLinkDir_t ns3::SatLlc::GetSatLinkRxDir ( )

protectedvirtual

Get the link RX direction.

Must be implemented by child clases.

Returns: The link RX direction

Reimplemented in ns3::SatUtLlc, and ns3::SatGwLlc.

Definition at line 263 of file satellite-llc.cc.

References ns3::SatEnums::LD_UNDEFINED.

Referenced by Receive().

Here is the caller graph for this function:

◆ GetSatLinkTxDir()

SatEnums::SatLinkDir_t ns3::SatLlc::GetSatLinkTxDir ( )

protectedvirtual

Get the link TX direction.

Must be implemented by child clases.

Returns: The link TX direction

Reimplemented in ns3::SatUtLlc, and ns3::SatGwLlc.

Definition at line 257 of file satellite-llc.cc.

References ns3::SatEnums::LD_UNDEFINED.

Referenced by ns3::SatGeoLlc::Enque(), and Enque().

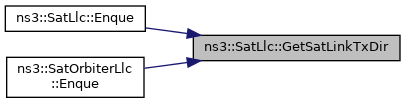

Here is the caller graph for this function:

◆ GetSchedulingContexts()

virtual void ns3::SatLlc::GetSchedulingContexts ( std::vector< Ptr< SatSchedulingObject >> & output ) const

pure virtual

Create and fill the scheduling objects based on LLC layer information.

Scheduling objects may be used at the MAC layer to assist in scheduling. This is a pure virtual method to be implemented to inherited classes.

Parameters

output reference to an output vector that will be filled with pointer to scheduling objects

Implemented in ns3::SatUtLlc, ns3::SatGwLlc, and ns3::SatGeoLlc.

Referenced by ns3::SatGeoHelper::AttachChannelsFeeder(), ns3::SatGeoHelper::AttachChannelsUser(), ns3::SatGwHelper::InstallDvb(), and ns3::SatUtHelper::InstallDvb().

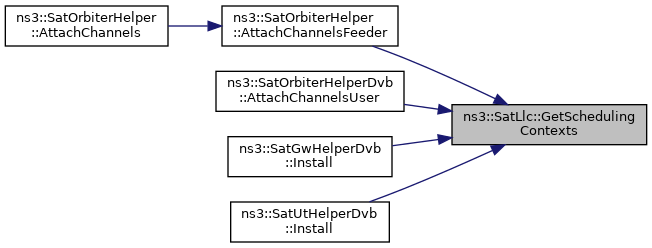

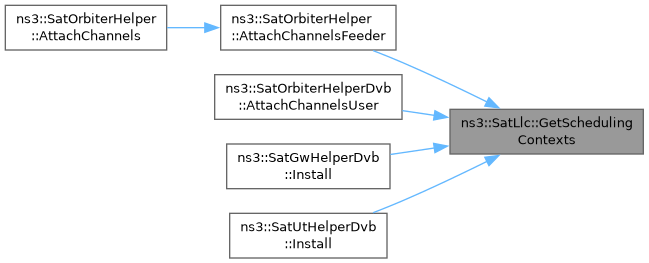

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatLlc::GetTypeId ( void )

static

Derived from Object.

Definition at line 44 of file satellite-llc.cc.

References m_fwdLinkArqEnabled, m_packetTrace, and m_rtnLinkArqEnabled.

◆ NotifyTxOpportunity()

virtual Ptr<Packet> ns3::SatLlc::NotifyTxOpportunity	(	uint32_t	bytes,
		Mac48Address	utAddr,
		uint8_t	flowId,
		uint32_t &	bytesLeft,
		uint32_t &	nextMinTxO
	)

pure virtual

Called from lower layer (MAC) to inform a Tx opportunity of certain amount of bytes.

Note, that this method is not to be used in this class, but the real implementation is located in inherited classes.

Parameters

bytes	Size of the Tx opportunity
utAddr	MAC address of the UT with the Tx opportunity
flowId	Flow identifier
&bytesLeft	Bytes left after TxOpportunity
&nextMinTxO	Minimum TxO after this TxO

Returns: Pointer to packet to be transmitted

Implemented in ns3::SatUtLlc, ns3::SatGwLlc, and ns3::SatGeoLlc.

◆ Receive()

void ns3::SatLlc::Receive	(	Ptr< Packet >	packet,
		Mac48Address	source,
		Mac48Address	dest
	)

virtual

Receive user data packet from lower layer.

Parameters

packet	Pointer to packet received.
source	MAC address of the source
dest	MAC address of the destination

Decapsulator not found, thus create a new one. This method is implemented in the inherited classes, which knows which type of decapsulator to create.

Definition at line 182 of file satellite-llc.cc.

References ns3::SatEnums::CONTROL_FID, CreateDecap(), ns3::SatFlowIdTag::GetFlowId(), ns3::SatUtils::GetPacketInfo(), GetSatLinkRxDir(), ns3::SatEnums::LL_LLC, m_decaps, m_nodeInfo, m_packetTrace, ns3::SatEnums::NT_SAT, and ns3::SatEnums::PACKET_RECV.

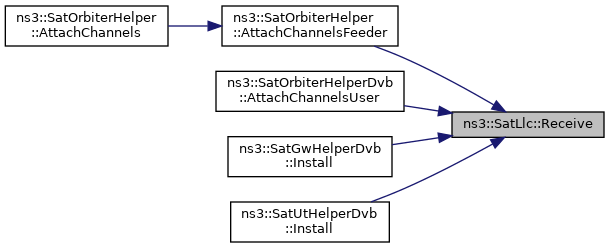

Referenced by ns3::SatGeoHelper::AttachChannelsFeeder(), ns3::SatGeoHelper::AttachChannelsUser(), ns3::SatGwHelper::InstallDvb(), and ns3::SatUtHelper::InstallDvb().

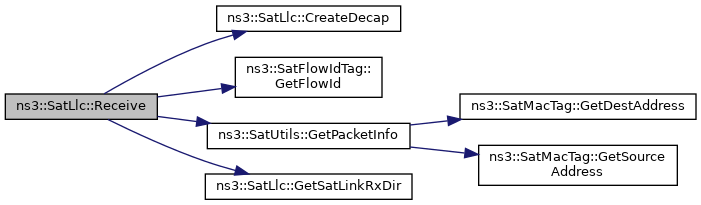

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReceiveAck()

void ns3::SatLlc::ReceiveAck	(	Ptr< SatArqAckMessage >	ack,
		Mac48Address	source,
		Mac48Address	dest
	)

protectedvirtual

Receive a control msg (ARQ ACK) from lower layer.

Parameters

ack	ARQ ACK message
source	Source MAC address
dest	Destination MAC address

Note, that the received ACK is forwarded to the proper encapsulator instead of a decapsulator. The source and destination MAC addresses reflect to the ACK direction, thus they are turned around to represent the other direction when mapping it to the encapsulator.

Definition at line 230 of file satellite-llc.cc.

References m_encaps.

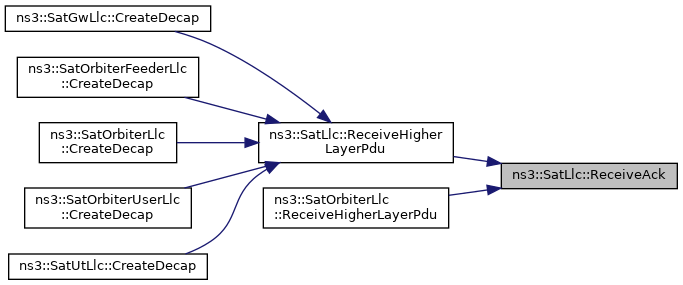

Referenced by ns3::SatGeoLlc::ReceiveHigherLayerPdu(), and ReceiveHigherLayerPdu().

Here is the caller graph for this function:

◆ ReceiveHigherLayerPdu()

void ns3::SatLlc::ReceiveHigherLayerPdu	(	Ptr< Packet >	packet,
		Mac48Address	source,
		Mac48Address	dest
	)

virtual

Receive HL PDU from encapsulator/decapsulator entity.

Parameters

packet	Pointer to packet received.
source	MAC address of the source
dest	MAC address of the destination

Reimplemented in ns3::SatGeoLlc.

Definition at line 269 of file satellite-llc.cc.

References ns3::SatControlMsgTag::GetMsgId(), ns3::SatControlMsgTag::GetMsgType(), m_readCtrlCallback, m_rxCallback, ReceiveAck(), and ns3::SatControlMsgTag::SAT_ARQ_ACK.

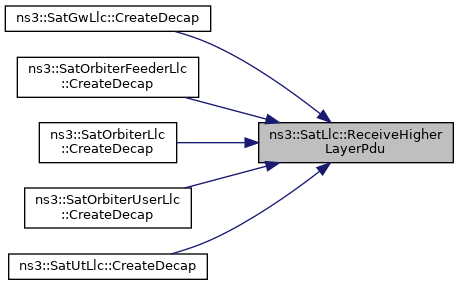

Referenced by ns3::SatGeoFeederLlc::CreateDecap(), ns3::SatGeoLlc::CreateDecap(), ns3::SatGeoUserLlc::CreateDecap(), ns3::SatGwLlc::CreateDecap(), and ns3::SatUtLlc::CreateDecap().

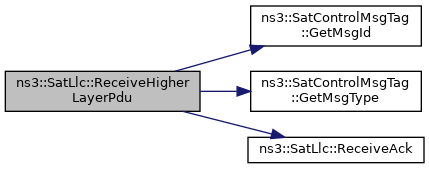

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetAdditionalHeaderSize()

void ns3::SatLlc::SetAdditionalHeaderSize ( uint32_t additionalHeaderSize )

Set the additional header size.

Parameters

The	additional header size

Definition at line 485 of file satellite-llc.cc.

References m_additionalHeaderSize.

◆ SetCtrlMsgCallback()

void ns3::SatLlc::SetCtrlMsgCallback ( SatBaseEncapsulator::SendCtrlCallback cb )

Parameters

cb	callback to send control messages.

Definition at line 463 of file satellite-llc.cc.

References m_sendCtrlCallback.

◆ SetGwAddress()

void ns3::SatLlc::SetGwAddress ( Mac48Address address )

virtual

Set the GW address.

Parameters

address GW MAC address

Reimplemented in ns3::SatUtLlc.

Definition at line 471 of file satellite-llc.cc.

References m_gwAddress.

Referenced by ns3::SatUtLlc::SetGwAddress().

Here is the caller graph for this function:

◆ SetNodeInfo()

void ns3::SatLlc::SetNodeInfo ( Ptr< SatNodeInfo > nodeInfo )

virtual

Set the node info.

Parameters

nodeInfo containing node specific information

Reimplemented in ns3::SatUtLlc.

Definition at line 377 of file satellite-llc.cc.

References m_nodeInfo.

Referenced by ns3::SatUtLlc::SetNodeInfo().

Here is the caller graph for this function:

◆ SetReadCtrlCallback()

void ns3::SatLlc::SetReadCtrlCallback ( SatLlc::ReadCtrlMsgCallback cb )

Method to set read control message callback.

Parameters

cb	callback to invoke whenever a control message is wanted to read.

Definition at line 456 of file satellite-llc.cc.

References m_readCtrlCallback.

◆ SetReceiveCallback()

void ns3::SatLlc::SetReceiveCallback ( SatLlc::ReceiveCallback cb )

Set Receive callback to forward packet to upper layer.

Parameters

cb	callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Definition at line 384 of file satellite-llc.cc.

References m_rxCallback.

◆ SetSatelliteAddress()

void ns3::SatLlc::SetSatelliteAddress ( Mac48Address address )

virtual

Set the SAT address.

Parameters

address SAT MAC address

Definition at line 478 of file satellite-llc.cc.

References m_satelliteAddress.

Member Data Documentation

◆ m_additionalHeaderSize

uint32_t ns3::SatLlc::m_additionalHeaderSize

protected

Additional header size to add to encapsulation/decapsulation.

Definition at line 445 of file satellite-llc.h.

Referenced by ns3::SatGeoFeederLlc::CreateDecap(), ns3::SatGeoUserLlc::CreateDecap(), ns3::SatGwLlc::CreateDecap(), ns3::SatUtLlc::CreateDecap(), ns3::SatGeoFeederLlc::CreateEncap(), ns3::SatGeoUserLlc::CreateEncap(), ns3::SatGwLlc::CreateEncap(), ns3::SatUtLlc::CreateEncap(), and SetAdditionalHeaderSize().

◆ m_decaps

EncapContainer_t ns3::SatLlc::m_decaps

protected

Map of decapsulator base pointers.

Definition at line 420 of file satellite-llc.h.

Referenced by AddDecap(), ns3::SatGeoFeederLlc::CreateDecap(), ns3::SatGeoLlc::CreateDecap(), ns3::SatGeoUserLlc::CreateDecap(), ns3::SatGwLlc::CreateDecap(), ns3::SatUtLlc::CreateDecap(), DoDispose(), and Receive().

◆ m_encaps

EncapContainer_t ns3::SatLlc::m_encaps

protected

Map of encapsulator base pointers.

Definition at line 415 of file satellite-llc.h.

Referenced by AddEncap(), BuffersEmpty(), ControlBuffersEmpty(), ns3::SatGeoFeederLlc::CreateEncap(), ns3::SatGeoLlc::CreateEncap(), ns3::SatGeoUserLlc::CreateEncap(), ns3::SatGwLlc::CreateEncap(), ns3::SatUtLlc::CreateEncap(), DoDispose(), ns3::SatGeoLlc::Enque(), ns3::SatGwLlc::Enque(), Enque(), ns3::SatUtLlc::Enque(), GetNBytesInQueue(), ns3::SatGeoLlc::GetNBytesInQueue(), ns3::SatGwLlc::GetNBytesInQueue(), ns3::SatUtLlc::GetNBytesInQueue(), GetNPacketsInQueue(), ns3::SatGeoLlc::GetNPacketsInQueue(), ns3::SatGwLlc::GetNPacketsInQueue(), ns3::SatUtLlc::GetNPacketsInQueue(), ns3::SatUtLlc::GetNumSmallerPackets(), ns3::SatGeoLlc::GetSchedulingContexts(), ns3::SatGwLlc::GetSchedulingContexts(), ns3::SatGeoLlc::NotifyTxOpportunity(), ns3::SatGwLlc::NotifyTxOpportunity(), ns3::SatUtLlc::NotifyTxOpportunity(), ReceiveAck(), ns3::SatUtLlc::SetGwAddress(), and ns3::SatUtLlc::SetQueueStatisticsCallbacks().

◆ m_forwardLinkRegenerationMode

SatEnums::RegenerationMode_t ns3::SatLlc::m_forwardLinkRegenerationMode

protected

Regeneration mode on forward link.

Definition at line 467 of file satellite-llc.h.

Referenced by ns3::SatGeoFeederLlc::CreateDecap(), ns3::SatGeoUserLlc::CreateEncap(), ns3::SatGwLlc::CreateEncap(), and ns3::SatGwLlc::Enque().

◆ m_fwdLinkArqEnabled

bool ns3::SatLlc::m_fwdLinkArqEnabled

protected

Is FWD link ARQ enabled.

Definition at line 425 of file satellite-llc.h.

Referenced by ns3::SatGeoFeederLlc::CreateDecap(), ns3::SatUtLlc::CreateDecap(), ns3::SatGeoUserLlc::CreateEncap(), ns3::SatGwLlc::CreateEncap(), and GetTypeId().

◆ m_gwAddress

Mac48Address ns3::SatLlc::m_gwAddress

protected

GW address.

Definition at line 435 of file satellite-llc.h.

Referenced by ns3::SatUtLlc::Enque(), ns3::SatUtLlc::NotifyTxOpportunity(), SetGwAddress(), and ns3::SatUtLlc::SetGwAddress().

◆ m_nodeInfo

Ptr<SatNodeInfo> ns3::SatLlc::m_nodeInfo

protected

Node info containing node related information, such as node type, node id and MAC address (of the SatNetDevice)

Definition at line 410 of file satellite-llc.h.

Referenced by ns3::SatGeoLlc::Enque(), ns3::SatGwLlc::Enque(), Enque(), ns3::SatUtLlc::Enque(), ns3::SatGeoLlc::NotifyTxOpportunity(), ns3::SatGwLlc::NotifyTxOpportunity(), ns3::SatUtLlc::NotifyTxOpportunity(), Receive(), ns3::SatGeoLlc::ReceiveHigherLayerPdu(), ns3::SatUtLlc::SetGwAddress(), and SetNodeInfo().

◆ m_packetTrace

TracedCallback<Time, SatEnums::SatPacketEvent_t, SatEnums::SatNodeType_t, uint32_t, Mac48Address, SatEnums::SatLogLevel_t, SatEnums::SatLinkDir_t, std::string> ns3::SatLlc::m_packetTrace

protected

Trace callback used for packet tracing:

Definition at line 404 of file satellite-llc.h.

Referenced by ns3::SatGeoLlc::Enque(), ns3::SatGwLlc::Enque(), Enque(), ns3::SatUtLlc::Enque(), GetTypeId(), ns3::SatGeoLlc::NotifyTxOpportunity(), ns3::SatGwLlc::NotifyTxOpportunity(), ns3::SatUtLlc::NotifyTxOpportunity(), and Receive().

◆ m_readCtrlCallback

SatLlc::ReadCtrlMsgCallback ns3::SatLlc::m_readCtrlCallback

protected

The read control message callback.

Definition at line 455 of file satellite-llc.h.

Referenced by ns3::SatGeoLlc::ReceiveHigherLayerPdu(), ReceiveHigherLayerPdu(), and SetReadCtrlCallback().

◆ m_returnLinkRegenerationMode

SatEnums::RegenerationMode_t ns3::SatLlc::m_returnLinkRegenerationMode

protected

Regeneration mode on return link.

Definition at line 472 of file satellite-llc.h.

Referenced by ns3::SatGeoUserLlc::CreateDecap(), ns3::SatGeoFeederLlc::CreateEncap(), ns3::SatUtLlc::CreateEncap(), ns3::SatUtLlc::Enque(), and ns3::SatUtLlc::NotifyTxOpportunity().

◆ m_rtnLinkArqEnabled

bool ns3::SatLlc::m_rtnLinkArqEnabled

protected

Is RTN link ARQ enabled.

Definition at line 430 of file satellite-llc.h.

Referenced by ns3::SatGeoUserLlc::CreateDecap(), ns3::SatGwLlc::CreateDecap(), ns3::SatGeoFeederLlc::CreateEncap(), ns3::SatUtLlc::CreateEncap(), and GetTypeId().

◆ m_rxCallback

ReceiveCallback ns3::SatLlc::m_rxCallback

protected

The upper layer package receive callback.

Definition at line 450 of file satellite-llc.h.

Referenced by DoDispose(), ReceiveHigherLayerPdu(), and SetReceiveCallback().

◆ m_satelliteAddress

Mac48Address ns3::SatLlc::m_satelliteAddress

protected

SAT address, used in case of network regeneration.

Definition at line 440 of file satellite-llc.h.

Referenced by ns3::SatGwLlc::Enque(), ns3::SatUtLlc::Enque(), ns3::SatUtLlc::NotifyTxOpportunity(), and SetSatelliteAddress().

◆ m_sendCtrlCallback

SatBaseEncapsulator::SendCtrlCallback ns3::SatLlc::m_sendCtrlCallback

protected

Callback to send control messages.

Note, that this is not actually used by the LLC but the encapsulators. It is just stored here.

Definition at line 462 of file satellite-llc.h.

Referenced by ns3::SatGeoLlc::CreateDecap(), ns3::SatGwLlc::CreateDecap(), ns3::SatUtLlc::CreateDecap(), and SetCtrlMsgCallback().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-llc.h
/builds/sns3/satellite/satellite/model/satellite-llc.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ EncapContainer_t

◆ ReadCtrlMsgCallback

◆ ReceiveCallback

Constructor & Destructor Documentation

◆ SatLlc() [1/2]

◆ SatLlc() [2/2]

◆ ~SatLlc()

Member Function Documentation

◆ AddDecap()

◆ AddEncap()

◆ BuffersEmpty()

◆ ControlBuffersEmpty()

◆ CreateDecap()

◆ CreateEncap()

◆ DoDispose()

◆ Enque()

◆ GetNBytesInQueue() [1/2]

◆ GetNBytesInQueue() [2/2]

◆ GetNPacketsInQueue() [1/2]

◆ GetNPacketsInQueue() [2/2]

◆ GetSatLinkRxDir()

◆ GetSatLinkTxDir()

◆ GetSchedulingContexts()

◆ GetTypeId()

◆ NotifyTxOpportunity()

◆ Receive()

◆ ReceiveAck()

◆ ReceiveHigherLayerPdu()

◆ SetAdditionalHeaderSize()

◆ SetCtrlMsgCallback()

◆ SetGwAddress()

◆ SetNodeInfo()

◆ SetReadCtrlCallback()

◆ SetReceiveCallback()

◆ SetSatelliteAddress()

Member Data Documentation

◆ m_additionalHeaderSize

◆ m_decaps

◆ m_encaps

◆ m_forwardLinkRegenerationMode

◆ m_fwdLinkArqEnabled

◆ m_gwAddress

◆ m_nodeInfo

◆ m_packetTrace

◆ m_readCtrlCallback

◆ m_returnLinkRegenerationMode

◆ m_rtnLinkArqEnabled

◆ m_rxCallback

◆ m_satelliteAddress

◆ m_sendCtrlCallback
