Link results for forward link. More...

#include "satellite-link-results.h"

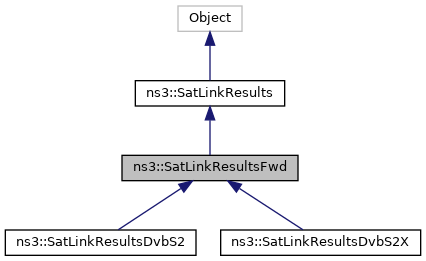

Inheritance diagram for ns3::SatLinkResultsFwd:

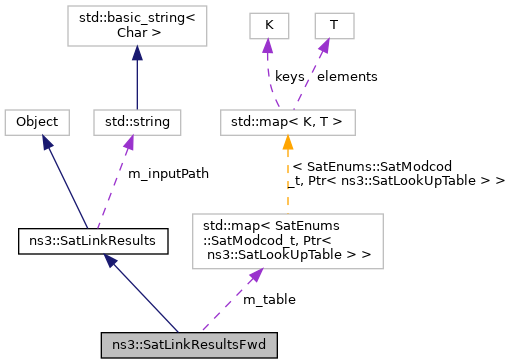

Collaboration diagram for ns3::SatLinkResultsFwd:

Public Member Functions
	SatLinkResultsFwd ()
	Default constructor. More...

	~SatLinkResultsFwd ()

double	GetBler (SatEnums::SatModcod_t modcod, SatEnums::SatBbFrameType_t frameType, double esNoDb) const
	Get a BLER value from link results. More...

double	GetEsNoDb (SatEnums::SatModcod_t modcod, SatEnums::SatBbFrameType_t frameType, double blerTarget) const
	Get a Es/No requirement for a given BLER target from link results. More...

Public Member Functions inherited from ns3::SatLinkResults
	SatLinkResults ()
	Default constructor. More...

void	Initialize ()
	Initialize look up tables. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::SatLinkResults
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
virtual void	DoInitialize ()=0
	Initialize look up tables. More...

Protected Attributes
double	m_shortFrameOffsetInDb

std::map< SatEnums::SatModcod_t, Ptr< SatLookUpTable > >	m_table
	Map of satellite link result look up tables. More...

Protected Attributes inherited from ns3::SatLinkResults
std::string	m_inputPath
	The base path where the text files containing link results data can be found. More...

bool	m_isInitialized
	Indicates if SatLinkResults::Initialize has been called. More...

Detailed Description

Link results for forward link.

The instance will be SatLinkResultsDvbS2 or SatLinkResultsDvbS2X.

Loads and maintains multiple SatLookUpTable. Provides query service based on modulation and coding scheme.

See usage examples in the parent class documentation (SatLinkResults).

Definition at line 352 of file satellite-link-results.h.

Constructor & Destructor Documentation

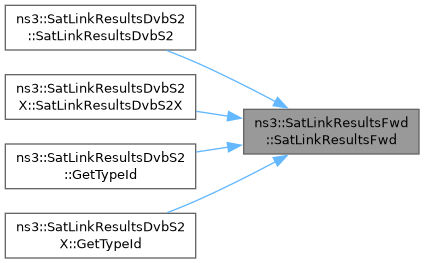

◆ SatLinkResultsFwd()

ns3::SatLinkResultsFwd::SatLinkResultsFwd ( )

Default constructor.

Definition at line 222 of file satellite-link-results.cc.

◆ ~SatLinkResultsFwd()

ns3::SatLinkResultsFwd::~SatLinkResultsFwd ( )

inline

Definition at line 360 of file satellite-link-results.h.

Member Function Documentation

◆ DoInitialize()

virtual void ns3::SatLinkResultsFwd::DoInitialize ( )

protectedpure virtual

Initialize look up tables.

Child classes must implement this function to initialize m_table member variable. This is typically done by loading pre-defined input files from the file system. In case of failure, the function should throw an error by calling NS_FATAL_ERROR.

Implements ns3::SatLinkResults.

Implemented in ns3::SatLinkResultsDvbS2X, and ns3::SatLinkResultsDvbS2.

◆ GetBler()

double ns3::SatLinkResultsFwd::GetBler	(	SatEnums::SatModcod_t	modcod,
		SatEnums::SatBbFrameType_t	frameType,
		double	esNoDb
	)		const

Get a BLER value from link results.

Parameters

modcod	Modulation and coding scheme
frameType	BB frame type (short, long)
esNoDb	the received Es/No in dB

Returns: BLER value, which is a double ranging between [0..1]

Must be run after SatLinkResults::Initialize is called.

Short BB frame is assumed to be requiring m_shortFrameOffsetInDb dB higher Es/No if compared to normal BB frame. TODO: Proper link results need to be added for short BB frame in FWD link.

Definition at line 244 of file satellite-link-results.cc.

References ns3::SatLinkResults::m_isInitialized, m_shortFrameOffsetInDb, m_table, and ns3::SatEnums::SHORT_FRAME.

◆ GetEsNoDb()

double ns3::SatLinkResultsFwd::GetEsNoDb	(	SatEnums::SatModcod_t	modcod,
		SatEnums::SatBbFrameType_t	frameType,
		double	blerTarget
	)		const

Get a Es/No requirement for a given BLER target from link results.

Parameters

modcod	Modulation and coding scheme
frameType	BB frame type (short, long)
blerTarget	Target BLER for the system

Returns: Es/No value

Must be run after SatLinkResults::Initialize is called.

Short BB frame is assumed to be requiring "m_shortFrameOffsetInDb" dB higher Es/No if compared to normal BB frame. TODO: Proper link results need to be added for short BB frame in FWD link.

Definition at line 269 of file satellite-link-results.cc.

References ns3::SatLinkResults::m_isInitialized, m_shortFrameOffsetInDb, m_table, and ns3::SatEnums::SHORT_FRAME.

◆ GetTypeId()

TypeId ns3::SatLinkResultsFwd::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 230 of file satellite-link-results.cc.

References m_shortFrameOffsetInDb.

Member Data Documentation

◆ m_shortFrameOffsetInDb

double ns3::SatLinkResultsFwd::m_shortFrameOffsetInDb

protected

Definition at line 418 of file satellite-link-results.h.

Referenced by GetBler(), GetEsNoDb(), and GetTypeId().

◆ m_table

std::map<SatEnums::SatModcod_t, Ptr<SatLookUpTable> > ns3::SatLinkResultsFwd::m_table

protected

Map of satellite link result look up tables.

key = SatModcod_e, i.e. modulation and coding scheme
value = Ptr<SatLookUpTable>, i.e. look-up table containing the link results

Definition at line 416 of file satellite-link-results.h.

Referenced by ns3::SatLinkResultsDvbS2::DoInitialize(), ns3::SatLinkResultsDvbS2X::DoInitialize(), GetBler(), and GetEsNoDb().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-link-results.h
/builds/sns3/satellite/satellite/model/satellite-link-results.cc
