This class implements the BB Frame configurations for DVB-S2. More...

#include "satellite-bbframe-conf.h"

Inheritance diagram for ns3::SatBbFrameConf:

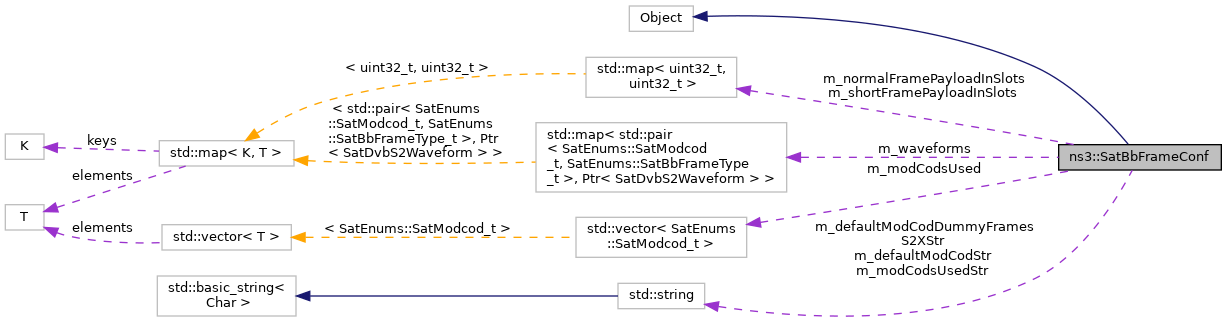

Collaboration diagram for ns3::SatBbFrameConf:

Public Types
typedef std::map< std::pair< SatEnums::SatModcod_t, SatEnums::SatBbFrameType_t >, Ptr< SatDvbS2Waveform > >	waveformMap_t
	Define type waveformMap_t. More...

Public Member Functions
	SatBbFrameConf ()
	Default constructor. More...

	SatBbFrameConf (double symbolRate, SatEnums::DvbVersion_t dvbVersion)
	SatBbFrameConf constructor. More...

virtual	~SatBbFrameConf ()
	Destructor for SatBbFrameConf. More...

void	DumpWaveforms () const
	Dump waveform details for debugging purposes. More...

Time	GetBbFrameDuration (SatEnums::SatModcod_t modcod, SatEnums::SatBbFrameType_t frameType) const
	Get the BB frame frame duration. More...

uint32_t	GetBbFrameHeaderSizeInBytes () const
	Get BB frame header size in bytes. More...

double	GetBbFrameHighOccupancyThreshold () const
	Get configured BB frame high occupancy threshold. More...

double	GetBbFrameLowOccupancyThreshold () const
	Get configured BB frame low occupancy threshold. More...

uint32_t	GetBbFramePayloadBits (SatEnums::SatModcod_t modcod, SatEnums::SatBbFrameType_t frameType) const
	Get the BB frame payload in bits. More...

SatEnums::BbFrameUsageMode_t	GetBbFrameUsageMode () const
	Get configured BB frame usage mode. More...

SatEnums::SatModcod_t	GetBestModcod (double cNo, SatEnums::SatBbFrameType_t frameType) const
	Get the best MODCOD with a given BB frame type. More...

SatEnums::SatModcod_t	GetDefaultModCod () const
	Get the default MODCOD. More...

SatEnums::SatModcod_t	GetDefaultModCodDummyFramesS2X () const
	Get the default MODCOD for short DVB-S2X frames. More...

Time	GetDummyBbFrameDuration () const
	Get the dummy frame duration in Time. More...

SatEnums::DvbVersion_t	GetDvbVersion ()
	Indicates if using DVB-S2 or DVB-S2X. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the type ID of instance. More...

std::vector< SatEnums::SatModcod_t >	GetModCodsUsed ()
	Get the list of ModCods used. More...

SatEnums::SatModcod_t	GetMostRobustModcod (SatEnums::SatBbFrameType_t frameType) const
	Get the most robust MODCOD with a given BB frame type. More...

double	GetSymbolRate ()
	Symbol rate in baud. More...

void	InitializeCNoRequirements (Ptr< SatLinkResultsFwd > linkResults)
	Initialize the C/No requirements for a given BLER target. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
Time	CalculateBbFrameDuration (SatEnums::SatModcod_t modcod, SatEnums::SatBbFrameType_t frameType) const
	Calculate the BBFrame duration in Time. More...

uint32_t	CalculateBbFramePayloadBits (SatEnums::SatModcod_t modcod, SatEnums::SatBbFrameType_t frameType) const
	Calculate the BBrame higher layer payload in bits. More...

void	GetModCodsList ()
	Get the list of ModCods from their string representation. More...

Private Attributes
bool	m_acmEnabled
	Flag to indicate whether ACM is enabled or disabled. More...

uint32_t	m_bbFrameHeaderSizeInBytes
	The BB frame header size in bytes. More...

double	m_bbFrameHighOccupancyThreshold
	The BB frame high occupancy threshold in range 0 - 1. More...

double	m_bbFrameLowOccupancyThreshold
	The BB frame low occupancy threshold in range 0 - 1. More...

bool	m_bbFrameS2XPilots
	Indicates if using pilots in BBFrames when DVB-S2X is chosen. More...

SatEnums::BbFrameUsageMode_t	m_bbFrameUsageMode
	BBFrame usage mode. More...

SatEnums::SatModcod_t	m_defaultModCod
	Default MODCOD is used. More...

SatEnums::SatModcod_t	m_defaultModCodDummyFramesS2X
	Default MODCOD for DVB-S2X dummy Frames. More...

std::string	m_defaultModCodDummyFramesS2XStr
	String representation of default ModCod for DVB-S2X Dummy Frames. More...

std::string	m_defaultModCodStr
	The string representation of default ModCod. More...

uint32_t	m_dummyFrameInSlots
	Dummy BBFrame length in slots. More...

SatEnums::DvbVersion_t	m_dvbVersion
	Indicates if using DVB-S2 or DVB-S2X. More...

std::vector< SatEnums::SatModcod_t >	m_modCodsUsed
	List of ModCods used. More...

std::string	m_modCodsUsedStr
	String containing all DVB-S2X ModCods used. More...

SatEnums::SatModcod_t	m_mostRobustNormalFrameModcod
	The most robust MODCOD for long frame. More...

SatEnums::SatModcod_t	m_mostRobustShortFrameModcod
	The most robust MODCOD for short frame. More...

std::map< uint32_t, uint32_t >	m_normalFramePayloadInSlots

uint32_t	m_pilotBlockInSymbols
	The size of the pilot block in symbols. More...

uint32_t	m_pilotBlockIntervalInSlots
	Interval of pilot block in slots. More...

uint32_t	m_plHeaderInSlots
	The PL header size in slots. More...

std::map< uint32_t, uint32_t >	m_shortFramePayloadInSlots

double	m_symbolRate
	Symbol rate in baud. More...

uint32_t	m_symbolsPerSlot
	The size of the (data) slot in symbols. More...

double	m_targetBler
	Block error rate target for the waveforms. More...

waveformMap_t	m_waveforms
	Available "waveforms", i.e. More...

Detailed Description

This class implements the BB Frame configurations for DVB-S2.

Available waveforms are for two BB frame types (short and normal) and for all supported DVB-S2 MODCODs defined in SatEnums.

Definition at line 148 of file satellite-bbframe-conf.h.

Member Typedef Documentation

◆ waveformMap_t

typedef std::map<std::pair<SatEnums::SatModcod_t, SatEnums::SatBbFrameType_t>, Ptr<SatDvbS2Waveform> > ns3::SatBbFrameConf::waveformMap_t

Define type waveformMap_t.

Definition at line 184 of file satellite-bbframe-conf.h.

Constructor & Destructor Documentation

◆ SatBbFrameConf() [1/2]

ns3::SatBbFrameConf::SatBbFrameConf ( )

Default constructor.

Definition at line 141 of file satellite-bbframe-conf.cc.

◆ SatBbFrameConf() [2/2]

ns3::SatBbFrameConf::SatBbFrameConf	(	double	symbolRate,
		SatEnums::DvbVersion_t	dvbVersion
	)

SatBbFrameConf constructor.

Parameters

symbolRate Symbol rate in baud

Definition at line 171 of file satellite-bbframe-conf.cc.

References CalculateBbFrameDuration(), CalculateBbFramePayloadBits(), ns3::SatEnums::DVB_S2, ns3::SatEnums::DVB_S2X, ns3::SatEnums::GetAvailableBbFrameTypes(), ns3::SatUtils::GetFrameTypeS2X(), ns3::SatEnums::GetModcodFromName(), GetModCodsList(), ns3::SatEnums::GetModcodTypeName(), m_bbFrameS2XPilots, m_bbFrameUsageMode, m_defaultModCod, m_defaultModCodDummyFramesS2X, m_defaultModCodDummyFramesS2XStr, m_defaultModCodStr, m_dvbVersion, m_modCodsUsed, m_mostRobustNormalFrameModcod, m_mostRobustShortFrameModcod, m_normalFramePayloadInSlots, m_shortFramePayloadInSlots, m_waveforms, ns3::SatEnums::NORMAL_FRAME, ns3::SatEnums::NORMAL_FRAMES, ns3::payloadConf, ns3::SatEnums::SAT_NONVALID_MODCOD, ns3::SatEnums::SHORT_AND_NORMAL_FRAMES, ns3::SatEnums::SHORT_FRAME, and ns3::SatEnums::SHORT_FRAMES.

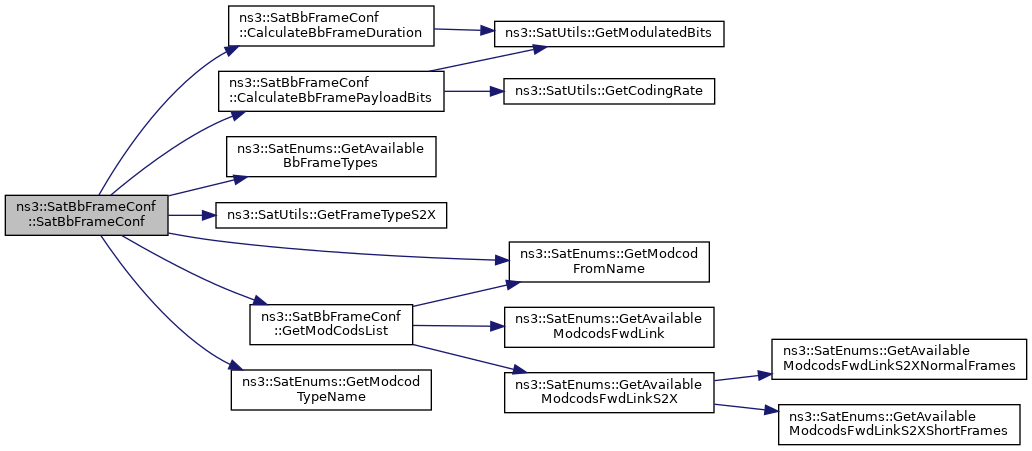

Here is the call graph for this function:

◆ ~SatBbFrameConf()

ns3::SatBbFrameConf::~SatBbFrameConf ( )

virtual

Destructor for SatBbFrameConf.

Definition at line 454 of file satellite-bbframe-conf.cc.

Member Function Documentation

◆ CalculateBbFrameDuration()

Time ns3::SatBbFrameConf::CalculateBbFrameDuration	(	SatEnums::SatModcod_t	modcod,
		SatEnums::SatBbFrameType_t	frameType
	)		const

private

Calculate the BBFrame duration in Time.

Parameters

modcod	Used MODCOD in the BBFrame
frameType	Used BBFrame type (short OR normal)
symbolRate	The symbol rate of the scheduled carrier

Returns: The BBFrame duration in Time

Definition at line 538 of file satellite-bbframe-conf.cc.

References ns3::SatUtils::GetModulatedBits(), m_normalFramePayloadInSlots, m_pilotBlockInSymbols, m_pilotBlockIntervalInSlots, m_plHeaderInSlots, m_shortFramePayloadInSlots, m_symbolRate, m_symbolsPerSlot, ns3::SatEnums::NORMAL_FRAME, and ns3::SatEnums::SHORT_FRAME.

Referenced by SatBbFrameConf().

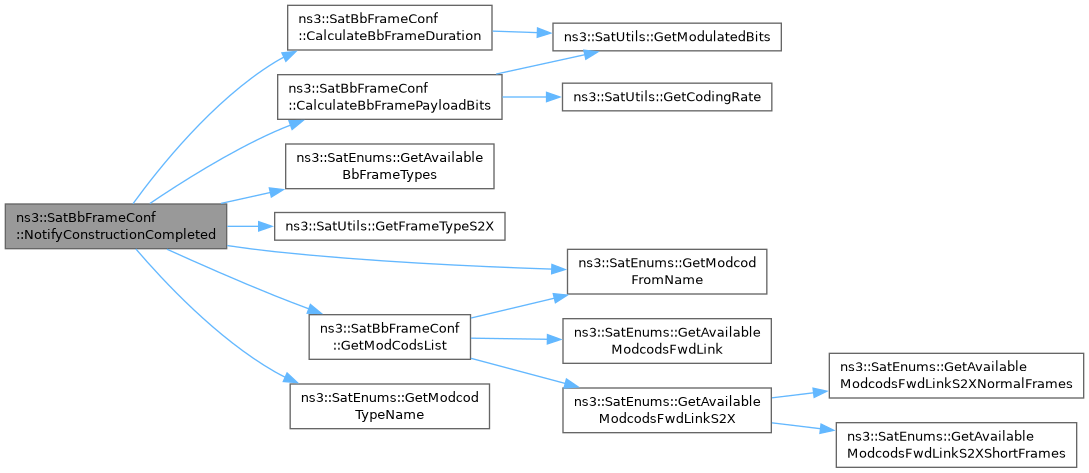

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CalculateBbFramePayloadBits()

uint32_t ns3::SatBbFrameConf::CalculateBbFramePayloadBits	(	SatEnums::SatModcod_t	modcod,
		SatEnums::SatBbFrameType_t	frameType
	)		const

private

Calculate the BBrame higher layer payload in bits.

Parameters

modcod	Used MODCOD in the BBFrame
frameType	Used BBFrame type (short OR normal)

Returns: The maximum payload in bits

Definition at line 509 of file satellite-bbframe-conf.cc.

References ns3::SatUtils::GetCodingRate(), ns3::SatUtils::GetModulatedBits(), m_normalFramePayloadInSlots, m_shortFramePayloadInSlots, m_symbolsPerSlot, ns3::SatEnums::NORMAL_FRAME, and ns3::SatEnums::SHORT_FRAME.

Referenced by SatBbFrameConf().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DumpWaveforms()

void ns3::SatBbFrameConf::DumpWaveforms ( ) const

Dump waveform details for debugging purposes.

Definition at line 484 of file satellite-bbframe-conf.cc.

References m_waveforms.

◆ GetBbFrameDuration()

Time ns3::SatBbFrameConf::GetBbFrameDuration	(	SatEnums::SatModcod_t	modcod,
		SatEnums::SatBbFrameType_t	frameType
	)		const

Get the BB frame frame duration.

Parameters

modcod	MODCOD
frameType	BB frame type: short, normal

Definition at line 641 of file satellite-bbframe-conf.cc.

References m_waveforms.

◆ GetBbFrameHeaderSizeInBytes()

uint32_t ns3::SatBbFrameConf::GetBbFrameHeaderSizeInBytes ( ) const

inline

Get BB frame header size in bytes.

Returns: BB frame header size in bytes

Definition at line 191 of file satellite-bbframe-conf.h.

References m_bbFrameHeaderSizeInBytes.

◆ GetBbFrameHighOccupancyThreshold()

double ns3::SatBbFrameConf::GetBbFrameHighOccupancyThreshold ( ) const

inline

Get configured BB frame high occupancy threshold.

Returns: BB frame high occupancy threshold

Definition at line 201 of file satellite-bbframe-conf.h.

References m_bbFrameHighOccupancyThreshold.

◆ GetBbFrameLowOccupancyThreshold()

double ns3::SatBbFrameConf::GetBbFrameLowOccupancyThreshold ( ) const

inline

Get configured BB frame low occupancy threshold.

Returns: BB frame low occupancy threshold

Definition at line 211 of file satellite-bbframe-conf.h.

References m_bbFrameLowOccupancyThreshold.

◆ GetBbFramePayloadBits()

uint32_t ns3::SatBbFrameConf::GetBbFramePayloadBits	(	SatEnums::SatModcod_t	modcod,
		SatEnums::SatBbFrameType_t	frameType
	)		const

Get the BB frame payload in bits.

Parameters

modcod	MODCOD
frameType	BB frame type: short, normal

Definition at line 626 of file satellite-bbframe-conf.cc.

References m_waveforms.

◆ GetBbFrameUsageMode()

SatEnums::BbFrameUsageMode_t ns3::SatBbFrameConf::GetBbFrameUsageMode ( ) const

inline

Get configured BB frame usage mode.

Returns: BB frame usage mode

Definition at line 221 of file satellite-bbframe-conf.h.

References m_bbFrameUsageMode.

◆ GetBestModcod()

SatEnums::SatModcod_t ns3::SatBbFrameConf::GetBestModcod	(	double	cNo,
		SatEnums::SatBbFrameType_t	frameType
	)		const

Get the best MODCOD with a given BB frame type.

Parameters

cNo	C/No of the UT to be scheduled
frameType	Used BBFrame type (short OR normal)

Returns: SatModcod_t The best MODCOD

Definition at line 656 of file satellite-bbframe-conf.cc.

References m_acmEnabled, m_defaultModCod, and m_waveforms.

◆ GetDefaultModCod()

SatEnums::SatModcod_t ns3::SatBbFrameConf::GetDefaultModCod ( ) const

Get the default MODCOD.

Returns: SatModcod_t The default MODCOD

Definition at line 708 of file satellite-bbframe-conf.cc.

References m_defaultModCod.

◆ GetDefaultModCodDummyFramesS2X()

SatEnums::SatModcod_t ns3::SatBbFrameConf::GetDefaultModCodDummyFramesS2X ( ) const

Get the default MODCOD for short DVB-S2X frames.

Returns: SatModcod_t The default MODCOD for short DVB-S2X frames

Definition at line 715 of file satellite-bbframe-conf.cc.

References m_defaultModCodDummyFramesS2X.

◆ GetDummyBbFrameDuration()

Time ns3::SatBbFrameConf::GetDummyBbFrameDuration ( ) const

Get the dummy frame duration in Time.

Returns: The dummy BBFrame length in Time

Definition at line 649 of file satellite-bbframe-conf.cc.

References m_dummyFrameInSlots, m_symbolRate, and m_symbolsPerSlot.

◆ GetDvbVersion()

SatEnums::DvbVersion_t ns3::SatBbFrameConf::GetDvbVersion ( )

Indicates if using DVB-S2 or DVB-S2X.

Returns: The DVB version chosen

Definition at line 495 of file satellite-bbframe-conf.cc.

References m_dvbVersion.

◆ GetInstanceTypeId()

TypeId ns3::SatBbFrameConf::GetInstanceTypeId ( void ) const

virtual

Get the type ID of instance.

Returns: the object TypeId

Definition at line 449 of file satellite-bbframe-conf.cc.

References GetTypeId().

Here is the call graph for this function:

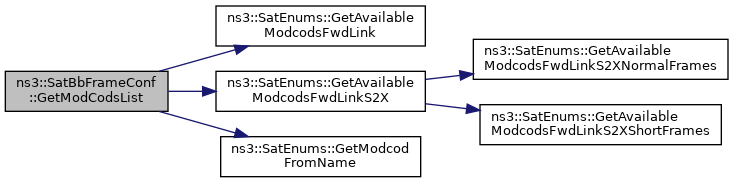

◆ GetModCodsList()

void ns3::SatBbFrameConf::GetModCodsList ( )

private

Get the list of ModCods from their string representation.

Definition at line 574 of file satellite-bbframe-conf.cc.

References ns3::SatEnums::DVB_S2, ns3::SatEnums::DVB_S2X, ns3::SatEnums::GetAvailableModcodsFwdLink(), ns3::SatEnums::GetAvailableModcodsFwdLinkS2X(), ns3::SatEnums::GetModcodFromName(), m_bbFrameS2XPilots, m_bbFrameUsageMode, m_dvbVersion, m_modCodsUsed, m_modCodsUsedStr, and ns3::SatEnums::NORMAL_FRAMES.

Referenced by SatBbFrameConf().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetModCodsUsed()

std::vector< SatEnums::SatModcod_t > ns3::SatBbFrameConf::GetModCodsUsed ( )

Get the list of ModCods used.

Returns: All the ModCods used in this conf.

Definition at line 502 of file satellite-bbframe-conf.cc.

References m_modCodsUsed.

◆ GetMostRobustModcod()

SatEnums::SatModcod_t ns3::SatBbFrameConf::GetMostRobustModcod ( SatEnums::SatBbFrameType_t frameType ) const

Get the most robust MODCOD with a given BB frame type.

Parameters

frameType Used BBFrame type (short OR normal)

Returns: SatModcod_t The most robust MODCOD

Definition at line 685 of file satellite-bbframe-conf.cc.

References m_mostRobustNormalFrameModcod, m_mostRobustShortFrameModcod, ns3::SatEnums::NORMAL_FRAME, ns3::SatEnums::SAT_NONVALID_MODCOD, and ns3::SatEnums::SHORT_FRAME.

◆ GetSymbolRate()

double ns3::SatBbFrameConf::GetSymbolRate ( )

Symbol rate in baud.

Returns: Symbol rate in baud

Definition at line 634 of file satellite-bbframe-conf.cc.

References m_symbolRate.

◆ GetTypeId()

TypeId ns3::SatBbFrameConf::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 356 of file satellite-bbframe-conf.cc.

References m_acmEnabled, m_bbFrameHeaderSizeInBytes, m_bbFrameHighOccupancyThreshold, m_bbFrameLowOccupancyThreshold, m_bbFrameS2XPilots, m_bbFrameUsageMode, m_defaultModCodDummyFramesS2XStr, m_defaultModCodStr, m_dummyFrameInSlots, m_modCodsUsedStr, m_pilotBlockInSymbols, m_pilotBlockIntervalInSlots, m_plHeaderInSlots, m_symbolsPerSlot, m_targetBler, ns3::SatEnums::NORMAL_FRAMES, ns3::SatEnums::SHORT_AND_NORMAL_FRAMES, and ns3::SatEnums::SHORT_FRAMES.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

◆ InitializeCNoRequirements()

void ns3::SatBbFrameConf::InitializeCNoRequirements ( Ptr< SatLinkResultsFwd > linkResults )

Initialize the C/No requirements for a given BLER target.

Parameters

linkResults DVB-S2, DVB-S2X or DVB-RCS2 link results

TODO: We have link results for only normal BB frames! The link results for short BB frames should be added and the interface changed to be able to GetEsNoDb for both frame types.

In forward link the link results are in Es/No format, thus here we need to convert the Es/No into C/No: Es/No = (C*Ts)/No = C/No * (1/fs) = C/N

Definition at line 460 of file satellite-bbframe-conf.cc.

References ns3::SatUtils::DbToLinear(), m_symbolRate, m_targetBler, and m_waveforms.

Here is the call graph for this function:

Member Data Documentation

◆ m_acmEnabled

bool ns3::SatBbFrameConf::m_acmEnabled

private

Flag to indicate whether ACM is enabled or disabled.

If ACM is disabled, the m_defaultModCod is used.

Definition at line 390 of file satellite-bbframe-conf.h.

Referenced by GetBestModcod(), and GetTypeId().

◆ m_bbFrameHeaderSizeInBytes

uint32_t ns3::SatBbFrameConf::m_bbFrameHeaderSizeInBytes

private

The BB frame header size in bytes.

Definition at line 368 of file satellite-bbframe-conf.h.

Referenced by GetBbFrameHeaderSizeInBytes(), and GetTypeId().

◆ m_bbFrameHighOccupancyThreshold

double ns3::SatBbFrameConf::m_bbFrameHighOccupancyThreshold

private

The BB frame high occupancy threshold in range 0 - 1.

Definition at line 373 of file satellite-bbframe-conf.h.

Referenced by GetBbFrameHighOccupancyThreshold(), and GetTypeId().

◆ m_bbFrameLowOccupancyThreshold

double ns3::SatBbFrameConf::m_bbFrameLowOccupancyThreshold

private

The BB frame low occupancy threshold in range 0 - 1.

Definition at line 378 of file satellite-bbframe-conf.h.

Referenced by GetBbFrameLowOccupancyThreshold(), and GetTypeId().

◆ m_bbFrameS2XPilots

bool ns3::SatBbFrameConf::m_bbFrameS2XPilots

private

Indicates if using pilots in BBFrames when DVB-S2X is chosen.

Definition at line 458 of file satellite-bbframe-conf.h.

Referenced by SatBbFrameConf(), GetModCodsList(), and GetTypeId().

◆ m_bbFrameUsageMode

SatEnums::BbFrameUsageMode_t ns3::SatBbFrameConf::m_bbFrameUsageMode

private

BBFrame usage mode.

Definition at line 438 of file satellite-bbframe-conf.h.

Referenced by SatBbFrameConf(), GetBbFrameUsageMode(), GetModCodsList(), and GetTypeId().

◆ m_defaultModCod

SatEnums::SatModcod_t ns3::SatBbFrameConf::m_defaultModCod

private

Default MODCOD is used.

For broadcast control messages
When ACM is disabled
When there is not valid C/No information

It will be m_defaultModCodS2 or m_defaultModCodS2X depending on the DVB version chosen: DVB-S2 or DVB-S2X.

TODO: The attribute for m_defaultModCod does not currently accept all MODCODs due to maximum arguments limitation (<=22) of MakeEnumChecker (...)

Definition at line 418 of file satellite-bbframe-conf.h.

Referenced by SatBbFrameConf(), GetBestModcod(), and GetDefaultModCod().

◆ m_defaultModCodDummyFramesS2X

SatEnums::SatModcod_t ns3::SatBbFrameConf::m_defaultModCodDummyFramesS2X

private

Default MODCOD for DVB-S2X dummy Frames.

This must be a short frame.

Definition at line 395 of file satellite-bbframe-conf.h.

Referenced by SatBbFrameConf(), and GetDefaultModCodDummyFramesS2X().

◆ m_defaultModCodDummyFramesS2XStr

std::string ns3::SatBbFrameConf::m_defaultModCodDummyFramesS2XStr

private

String representation of default ModCod for DVB-S2X Dummy Frames.

Must be only modulation and coding rate in the string. This must exist in short Frame format. Used in the attributes and converted into correct m_defaultModCodDummyFramesS2X. In DVB-S2, Dummy Frames use m_defaultModCod.

Definition at line 404 of file satellite-bbframe-conf.h.

Referenced by SatBbFrameConf(), and GetTypeId().

◆ m_defaultModCodStr

std::string ns3::SatBbFrameConf::m_defaultModCodStr

private

The string representation of default ModCod.

Should be only modulation and coding rate. Used in the attributes and converted into correct m_defaultModCod.

Definition at line 425 of file satellite-bbframe-conf.h.

Referenced by SatBbFrameConf(), and GetTypeId().

◆ m_dummyFrameInSlots

uint32_t ns3::SatBbFrameConf::m_dummyFrameInSlots

private

Dummy BBFrame length in slots.

Definition at line 363 of file satellite-bbframe-conf.h.

Referenced by GetDummyBbFrameDuration(), and GetTypeId().

◆ m_dvbVersion

SatEnums::DvbVersion_t ns3::SatBbFrameConf::m_dvbVersion

private

Indicates if using DVB-S2 or DVB-S2X.

Definition at line 453 of file satellite-bbframe-conf.h.

Referenced by SatBbFrameConf(), GetDvbVersion(), and GetModCodsList().

◆ m_modCodsUsed

std::vector<SatEnums::SatModcod_t> ns3::SatBbFrameConf::m_modCodsUsed

private

List of ModCods used.

Definition at line 463 of file satellite-bbframe-conf.h.

Referenced by SatBbFrameConf(), GetModCodsList(), and GetModCodsUsed().

◆ m_modCodsUsedStr

std::string ns3::SatBbFrameConf::m_modCodsUsedStr

private

String containing all DVB-S2X ModCods used.

Definition at line 468 of file satellite-bbframe-conf.h.

Referenced by GetModCodsList(), and GetTypeId().

◆ m_mostRobustNormalFrameModcod

SatEnums::SatModcod_t ns3::SatBbFrameConf::m_mostRobustNormalFrameModcod

private

The most robust MODCOD for long frame.

Definition at line 448 of file satellite-bbframe-conf.h.

Referenced by SatBbFrameConf(), and GetMostRobustModcod().

◆ m_mostRobustShortFrameModcod

SatEnums::SatModcod_t ns3::SatBbFrameConf::m_mostRobustShortFrameModcod

private

The most robust MODCOD for short frame.

Definition at line 443 of file satellite-bbframe-conf.h.

Referenced by SatBbFrameConf(), and GetMostRobustModcod().

◆ m_normalFramePayloadInSlots

std::map<uint32_t, uint32_t> ns3::SatBbFrameConf::m_normalFramePayloadInSlots

private

Definition at line 428 of file satellite-bbframe-conf.h.

Referenced by SatBbFrameConf(), CalculateBbFrameDuration(), and CalculateBbFramePayloadBits().

◆ m_pilotBlockInSymbols

uint32_t ns3::SatBbFrameConf::m_pilotBlockInSymbols

private

The size of the pilot block in symbols.

Definition at line 348 of file satellite-bbframe-conf.h.

Referenced by CalculateBbFrameDuration(), and GetTypeId().

◆ m_pilotBlockIntervalInSlots

uint32_t ns3::SatBbFrameConf::m_pilotBlockIntervalInSlots

private

Interval of pilot block in slots.

Definition at line 353 of file satellite-bbframe-conf.h.

Referenced by CalculateBbFrameDuration(), and GetTypeId().

◆ m_plHeaderInSlots

uint32_t ns3::SatBbFrameConf::m_plHeaderInSlots

private

The PL header size in slots.

Definition at line 358 of file satellite-bbframe-conf.h.

Referenced by CalculateBbFrameDuration(), and GetTypeId().

◆ m_shortFramePayloadInSlots

std::map<uint32_t, uint32_t> ns3::SatBbFrameConf::m_shortFramePayloadInSlots

private

Definition at line 427 of file satellite-bbframe-conf.h.

Referenced by SatBbFrameConf(), CalculateBbFrameDuration(), and CalculateBbFramePayloadBits().

◆ m_symbolRate

double ns3::SatBbFrameConf::m_symbolRate

private

Symbol rate in baud.

Definition at line 338 of file satellite-bbframe-conf.h.

Referenced by CalculateBbFrameDuration(), GetDummyBbFrameDuration(), GetSymbolRate(), and InitializeCNoRequirements().

◆ m_symbolsPerSlot

uint32_t ns3::SatBbFrameConf::m_symbolsPerSlot

private

The size of the (data) slot in symbols.

Definition at line 343 of file satellite-bbframe-conf.h.

Referenced by CalculateBbFrameDuration(), CalculateBbFramePayloadBits(), GetDummyBbFrameDuration(), and GetTypeId().

◆ m_targetBler

double ns3::SatBbFrameConf::m_targetBler

private

Block error rate target for the waveforms.

Default value set as an attribute to 10^(-5).

Definition at line 384 of file satellite-bbframe-conf.h.

Referenced by GetTypeId(), and InitializeCNoRequirements().

◆ m_waveforms

waveformMap_t ns3::SatBbFrameConf::m_waveforms

private

Available "waveforms", i.e.

MODCOD + BBFrame combinations

Definition at line 433 of file satellite-bbframe-conf.h.

Referenced by SatBbFrameConf(), DumpWaveforms(), GetBbFrameDuration(), GetBbFramePayloadBits(), GetBestModcod(), and InitializeCNoRequirements().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-bbframe-conf.h
/builds/sns3/satellite/satellite/model/satellite-bbframe-conf.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ waveformMap_t

Constructor & Destructor Documentation

◆ SatBbFrameConf() [1/2]

◆ SatBbFrameConf() [2/2]

◆ ~SatBbFrameConf()

Member Function Documentation

◆ CalculateBbFrameDuration()

◆ CalculateBbFramePayloadBits()

◆ DumpWaveforms()

◆ GetBbFrameDuration()

◆ GetBbFrameHeaderSizeInBytes()

◆ GetBbFrameHighOccupancyThreshold()

◆ GetBbFrameLowOccupancyThreshold()

◆ GetBbFramePayloadBits()

◆ GetBbFrameUsageMode()

◆ GetBestModcod()

◆ GetDefaultModCod()

◆ GetDefaultModCodDummyFramesS2X()

◆ GetDummyBbFrameDuration()

◆ GetDvbVersion()

◆ GetInstanceTypeId()

◆ GetModCodsList()

◆ GetModCodsUsed()

◆ GetMostRobustModcod()

◆ GetSymbolRate()

◆ GetTypeId()

◆ InitializeCNoRequirements()

Member Data Documentation

◆ m_acmEnabled

◆ m_bbFrameHeaderSizeInBytes

◆ m_bbFrameHighOccupancyThreshold

◆ m_bbFrameLowOccupancyThreshold

◆ m_bbFrameS2XPilots

◆ m_bbFrameUsageMode

◆ m_defaultModCod

◆ m_defaultModCodDummyFramesS2X

◆ m_defaultModCodDummyFramesS2XStr

◆ m_defaultModCodStr

◆ m_dummyFrameInSlots

◆ m_dvbVersion

◆ m_modCodsUsed

◆ m_modCodsUsedStr

◆ m_mostRobustNormalFrameModcod

◆ m_mostRobustShortFrameModcod

◆ m_normalFramePayloadInSlots

◆ m_pilotBlockInSymbols

◆ m_pilotBlockIntervalInSlots

◆ m_plHeaderInSlots

◆ m_shortFramePayloadInSlots

◆ m_symbolRate

◆ m_symbolsPerSlot

◆ m_targetBler

◆ m_waveforms
