SatBeamHelper builds a set Satellite beams with needed objects and configuration. More...

#include "satellite-beam-helper.h"

Inheritance diagram for ns3::SatBeamHelper:

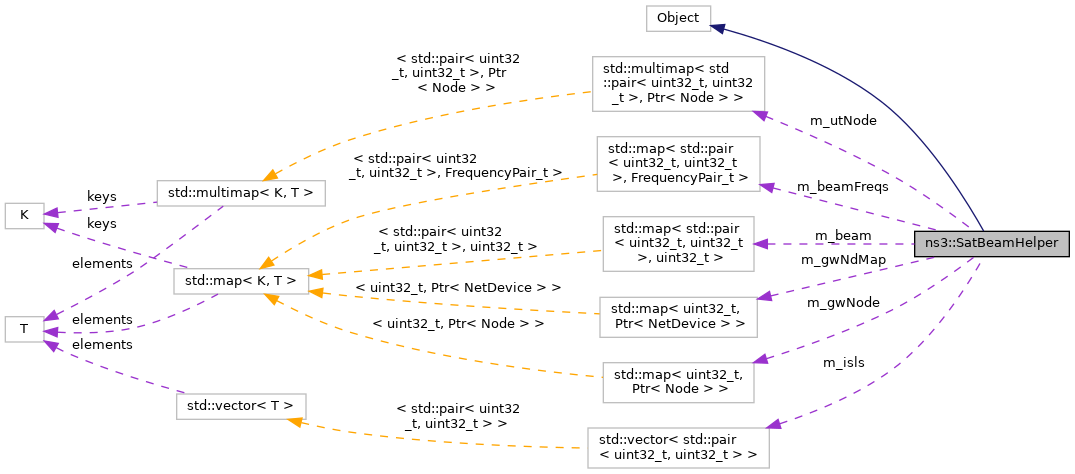

Collaboration diagram for ns3::SatBeamHelper:

Public Types
typedef SatTypedefs::CarrierBandwidthConverter_t	CarrierBandwidthConverter
	Define type CarrierBandwidthConverter. More...

typedef SatChannel::CarrierFreqConverter	CarrierFreqConverter
	Define type CarrierFreqConverter. More...

typedef std::pair< uint32_t, uint32_t >	FrequencyPair_t

typedef std::pair< uint32_t, uint32_t >	GwLink_t

typedef std::map< uint32_t, std::set< Ptr< Node > > >	MulticastBeamInfo_t

typedef std::set< Ptr< Node > >	MulticastBeamInfoItem_t

Public Member Functions
	SatBeamHelper ()
	Default constructor for SatBeamHelper (should not be used). More...

	SatBeamHelper (NodeContainer geoNodes, std::vector< std::pair< uint32_t, uint32_t >> isls, SatTypedefs::CarrierBandwidthConverter_t bandwidthConverterCb, uint32_t fwdLinkCarrierCount, uint32_t rtnLinkCarrierCount, Ptr< SatSuperframeSeq > seq, SatEnums::RegenerationMode_t forwardLinkRegenerationMode, SatEnums::RegenerationMode_t returnLinkRegenerationMode)
	Constructor for SatBeamHelper. More...

virtual	~SatBeamHelper ()
	Destructor for SatBeamHelper. More...

NetDeviceContainer	AddMulticastGroupRoutes (MulticastBeamInfo_t beamInfo, Ptr< Node > sourceUtNode, Ipv4Address sourceAddress, Ipv4Address groupAddress, bool routeToGwUsers, Ptr< NetDevice > &gwOutputDev)

virtual void	DoDispose ()
	Dispose of this class instance. More...

void	EnableCreationTraces (Ptr< OutputStreamWrapper > stream, CallbackBase &cb)
	Enables creation traces to be written in given file. More...

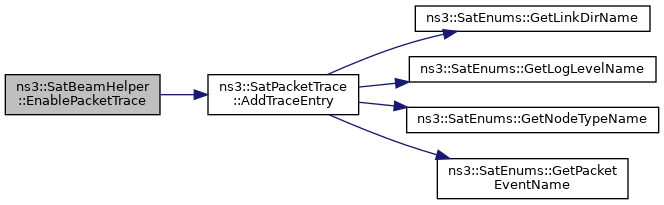

void	EnablePacketTrace ()
	Enable packet traces. More...

std::string	GetBeamInfo () const

std::list< std::pair< uint32_t, uint32_t > >	GetBeams () const

uint32_t	GetClosestSat (GeoCoordinate position)
	Get closest satellite to a ground station. More...

Ptr< SatGeoHelper >	GetGeoHelper () const

NodeContainer	GetGeoSatNodes () const
	Gets Geo Satellite nodes. More...

Ptr< SatGwHelper >	GetGwHelper () const

uint32_t	GetGwId (uint32_t satId, uint32_t beamId) const

Ptr< Node >	GetGwNode (uint32_t gwId) const
	Gets GW node according to given id. More...

NodeContainer	GetGwNodes () const

virtual TypeId	GetInstanceTypeId (void) const
	Get the type ID of instance. More...

Ptr< SatNcc >	GetNcc () const

Ptr< PropagationDelayModel >	GetPropagationDelayModel (uint32_t satId, uint32_t beamId, SatEnums::ChannelType_t channelType)

SatEnums::PropagationDelayModel_t	GetPropagationDelayModelEnum ()

SatEnums::RegenerationMode_t	GetReturnLinkRegenerationMode () const
	Get the regeneration mode used in satellites for return link. More...

uint32_t	GetUtBeamId (Ptr< Node > utNode) const
	Get beam Id of the given UT. More...

Ptr< SatUtHelper >	GetUtHelper () const

std::string	GetUtInfo () const

NodeContainer	GetUtNodes () const

NodeContainer	GetUtNodes (uint32_t satId, uint32_t beamId) const

void	Init ()
	Init method is called after all the initial configurations have been done by the SatHelper and SatBeamHelper. More...

std::pair< Ptr< NetDevice >, NetDeviceContainer >	Install (NodeContainer ut, Ptr< Node > gwNode, uint32_t gwId, uint32_t satId, uint32_t beamId, uint32_t rtnUlFreqId, uint32_t rtnFlFreqId, uint32_t fwdUlFreqId, uint32_t fwdFlFreqId, SatUtMac::RoutingUpdateCallback routingCallback)

Ptr< NetDevice >	InstallFeeder (Ptr< SatGeoNetDevice > geoNetDevice, Ptr< Node > gwNode, uint32_t gwId, uint32_t satId, uint32_t beamId, SatChannelPair::ChannelPair_t feederLink, uint32_t rtnFlFreqId, uint32_t fwdFlFreqId, SatUtMac::RoutingUpdateCallback routingCallback)

void	InstallIsls ()
	Create all the ISLs. More...

NetDeviceContainer	InstallUser (Ptr< SatGeoNetDevice > geoNetDevice, NodeContainer ut, Ptr< NetDevice > gwNd, uint32_t satId, uint32_t beamId, SatChannelPair::ChannelPair_t userLink, uint32_t rtnUlFreqId, uint32_t fwdUlFreqId, SatUtMac::RoutingUpdateCallback routingCallback)

void	SetAntennaGainPatterns (Ptr< SatAntennaGainPatternContainer > antennaPatterns)
	Set the antenna gain patterns to be used when configuring the beams to the GEO satellite. More...

void	SetChannelAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each Channel created by the helper. More...

void	SetDeviceAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each NetDevice created by the helper. More...

void	SetIslRoutes ()
	Set ISL routes. More...

void	SetNccRoutingCallback (SatNcc::UpdateRoutingCallback cb)
	Attach an update routing callback to the NCC of this simulation. More...

void	SetStandard (SatEnums::Standard_t standard)
	Set the standard to either DVB or Lora. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	AddMulticastRouteToUt (Ptr< Node > utNode, Ipv4Address sourceAddress, Ipv4Address groupAddress, bool routeToSatellite)
	Add multicast route to UT node. More...

std::string	CreateBeamInfo () const
	Creates info of the beam. More...

SatChannelPair::ChannelPair_t	GetChannelPair (uint32_t satId, uint32_t beamId, uint32_t fwdFrequencyId, uint32_t rtnFrequencyId, bool isUserLink)
	Gets satellite channel pair from requested map. More...

Ptr< SatBaseFading >	InstallFadingContainer (Ptr< Node > node) const
	Install fading model to node, if fading model doesn't exist already in node. More...

bool	StoreGwNode (uint32_t id, Ptr< Node > node)
	Creates GW node according to given id and stores GW to map. More...

Private Attributes
Ptr< SatAntennaGainPatternContainer >	m_antennaGainPatterns

std::map< std::pair< uint32_t, uint32_t >, uint32_t >	m_beam

std::map< std::pair< uint32_t, uint32_t >, FrequencyPair_t >	m_beamFreqs

Ptr< SatBstpController >	m_bstpController
	Beam Switching Time Plan controller, which is created if FWD link beam hopping is enabled (m_enableFwdLinkBeamHopping). More...

SatTypedefs::CarrierBandwidthConverter_t	m_carrierBandwidthConverter

CarrierFreqConverter	m_carrierFreqConverter

ObjectFactory	m_channelFactory

Time	m_constantPropagationDelay
	Constant propagation delay. More...

TracedCallback< std::string >	m_creationTrace
	Trace callback for creation traces. More...

Time	m_ctrlMsgStoreTimeFwdLink
	Control message store time in container for forward link. More...

Time	m_ctrlMsgStoreTimeRtnLink
	Control message store in container for return link. More...

SatEnums::DvbVersion_t	m_dvbVersion
	Indicates if using DVB-S2 or DVB-S2X. More...

bool	m_enableFwdLinkBeamHopping
	Flag indicating whether beam hopping is enabled in FWD link. More...

bool	m_enableTracesOnReturnLink
	Helper flag to activate packet traces on the return link only. More...

SatEnums::FadingModel_t	m_fadingModel
	Configured fading model. More...

Ptr< SatChannelPair >	m_flChannels

SatEnums::RegenerationMode_t	m_forwardLinkRegenerationMode
	The regeneration mode used in satellites for forward link. More...

Ptr< SatGeoHelper >	m_geoHelper

NodeContainer	m_geoNodes

Ptr< SatGwHelper >	m_gwHelper

std::map< uint32_t, Ptr< NetDevice > >	m_gwNdMap
	Map used in regenerative mode to store GW Net device (we need only one per GW) More...

std::map< uint32_t, Ptr< Node > >	m_gwNode

std::vector< std::pair< uint32_t, uint32_t > >	m_isls
	Vector constaining all the ISLs of the topology. More...

Ptr< SatMarkovConf >	m_markovConf
	Common configuration for Markov model. More...

Ptr< SatNcc >	m_ncc

Ptr< SatPacketTrace >	m_packetTrace
	Packet trace. More...

bool	m_printDetailedInformationToCreationTraces
	Flag indicating whether to print detailed information to the creation traces. More...

SatEnums::PropagationDelayModel_t	m_propagationDelayModel
	Propagation delay model. More...

SatPhyRxCarrierConf::RandomAccessCollisionModel	m_raCollisionModel
	The used collision model for random access. More...

double	m_raConstantErrorRate
	Constant error rate for random access. More...

SatPhyRxCarrierConf::InterferenceEliminationModel	m_raInterferenceEliminationModel
	The used interference model for random access. More...

SatPhyRxCarrierConf::InterferenceModel	m_raInterferenceModel
	The used interference model for random access. More...

SatEnums::RandomAccessModel_t	m_randomAccessModel
	The used random access model. More...

SatEnums::RegenerationMode_t	m_returnLinkRegenerationMode
	The regeneration mode used in satellites for return link. More...

SatEnums::LinkResults_t	m_rlLinkResultsType
	Type of Return channel link results. More...

SatEnums::Standard_t	m_standard
	The global standard used. More...

Ptr< SatSuperframeSeq >	m_superframeSeq

Ptr< SatChannelPair >	m_ulChannels

Ptr< SatUtHelper >	m_utHelper

std::multimap< std::pair< uint32_t, uint32_t >, Ptr< Node > >	m_utNode

Detailed Description

SatBeamHelper builds a set Satellite beams with needed objects and configuration.

It utilizes SatUtHelper, SatGwHelper and SatGeoHelper to create needed objects.

SatBeamHelper creates needed routes between nodes inside satellite network.

Definition at line 62 of file satellite-beam-helper.h.

Member Typedef Documentation

◆ CarrierBandwidthConverter

typedef SatTypedefs::CarrierBandwidthConverter_t ns3::SatBeamHelper::CarrierBandwidthConverter

Define type CarrierBandwidthConverter.

Definition at line 73 of file satellite-beam-helper.h.

◆ CarrierFreqConverter

typedef SatChannel::CarrierFreqConverter ns3::SatBeamHelper::CarrierFreqConverter

Define type CarrierFreqConverter.

Definition at line 68 of file satellite-beam-helper.h.

◆ FrequencyPair_t

typedef std::pair<uint32_t, uint32_t> ns3::SatBeamHelper::FrequencyPair_t

Definition at line 75 of file satellite-beam-helper.h.

◆ GwLink_t

typedef std::pair<uint32_t, uint32_t> ns3::SatBeamHelper::GwLink_t

Definition at line 76 of file satellite-beam-helper.h.

◆ MulticastBeamInfo_t

typedef std::map<uint32_t, std::set<Ptr<Node> > > ns3::SatBeamHelper::MulticastBeamInfo_t

Definition at line 81 of file satellite-beam-helper.h.

◆ MulticastBeamInfoItem_t

typedef std::set<Ptr<Node> > ns3::SatBeamHelper::MulticastBeamInfoItem_t

Definition at line 79 of file satellite-beam-helper.h.

Constructor & Destructor Documentation

◆ SatBeamHelper() [1/2]

ns3::SatBeamHelper::SatBeamHelper ( )

Default constructor for SatBeamHelper (should not be used).

Definition at line 214 of file satellite-beam-helper.cc.

◆ SatBeamHelper() [2/2]

ns3::SatBeamHelper::SatBeamHelper	(	NodeContainer	geoNodes,
		std::vector< std::pair< uint32_t, uint32_t >>	isls,
		SatTypedefs::CarrierBandwidthConverter_t	bandwidthConverterCb,
		uint32_t	fwdLinkCarrierCount,
		uint32_t	rtnLinkCarrierCount,
		Ptr< SatSuperframeSeq >	seq,
		SatEnums::RegenerationMode_t	forwardLinkRegenerationMode,
		SatEnums::RegenerationMode_t	returnLinkRegenerationMode
	)

Constructor for SatBeamHelper.

Parameters

geoNodes	Container of Geo Satellite node
isls	List of all ISLs
bandwidthConverterCb	Callback to convert bandwidth
fwdLinkCarrierCount	Number of carriers used in forward link
rtnLinkCarrierCount	Number of carriers used in return link
seq	Pointer to used superframe sequence configuration (containing superframe configurations).
forwardLinkRegenerationMode	The regeneration mode used in satellites for forward link
returnLinkRegenerationMode	The regeneration mode used in satellites for return link

set dynamic load control values required by NCC

create default Markov & Loo configurations

Definition at line 235 of file satellite-beam-helper.cc.

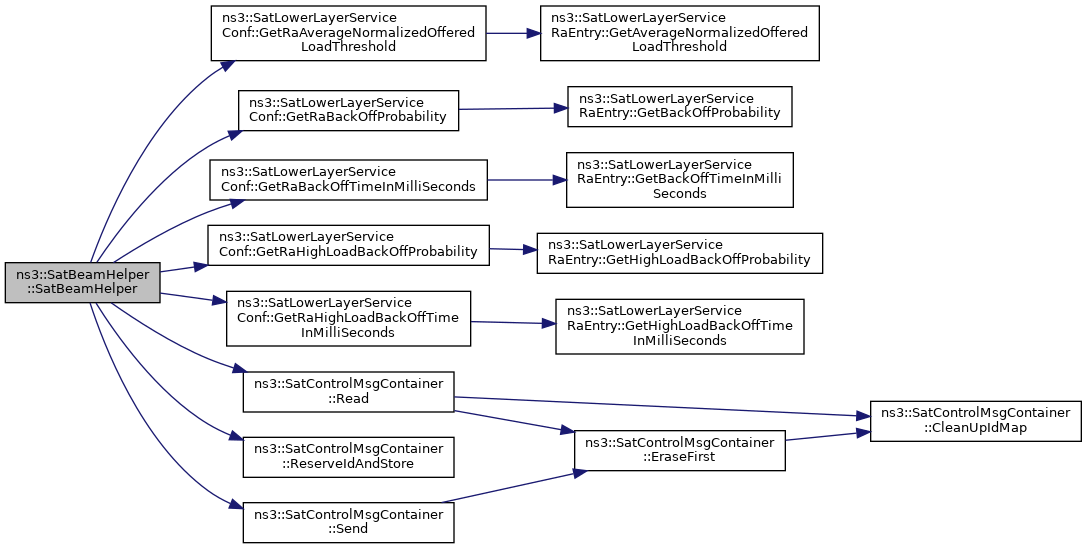

Here is the call graph for this function:

◆ ~SatBeamHelper()

virtual ns3::SatBeamHelper::~SatBeamHelper ( )

inlinevirtual

Destructor for SatBeamHelper.

Definition at line 125 of file satellite-beam-helper.h.

Member Function Documentation

◆ AddMulticastGroupRoutes()

NetDeviceContainer ns3::SatBeamHelper::AddMulticastGroupRoutes	(	MulticastBeamInfo_t	beamInfo,
		Ptr< Node >	sourceUtNode,
		Ipv4Address	sourceAddress,
		Ipv4Address	groupAddress,
		bool	routeToGwUsers,
		Ptr< NetDevice > &	gwOutputDev
	)

Parameters

beamInfo	Multicast info for the beams. Receiver UTs in a beam for the multicast group.
sourceUtNode	Source UT node. (NULL in case that source is behind gateway/backbone network)
sourceAddress	Source address of the group.
groupAddress	Address of the multicast group.
routeToGwUsers	Flag indicating if there are GW receivers in public network behind IP router.
gwOutputDev	Pointer to device which delivers multicast traffic to public/backbone network from satellite network. In case that traffic is not needed to deliver to backbone network gwOutputDev is set to NULL. (source is not UT or no receivers behind routing GW.)

Returns: Net device container including devices where multicast traffic shall be forwarded (GWs and users in public network) by IP router.

Definition at line 1088 of file satellite-beam-helper.cc.

References AddMulticastRouteToUt(), GetGwNodes(), and GetUtBeamId().

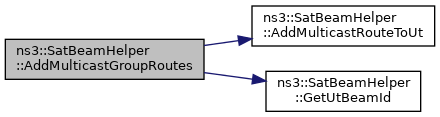

Here is the call graph for this function:

◆ AddMulticastRouteToUt()

void ns3::SatBeamHelper::AddMulticastRouteToUt	(	Ptr< Node >	utNode,
		Ipv4Address	sourceAddress,
		Ipv4Address	groupAddress,
		bool	routeToSatellite
	)

private

Add multicast route to UT node.

Parameters

utNode	Pointer to UT node where to add route.
sourceAddress	Source address of the multicast group.
groupAddress	Address of the multicast group.
routeToSatellite	Flag indicating if traffic is going toward satellite network.

Definition at line 1655 of file satellite-beam-helper.cc.

Referenced by AddMulticastGroupRoutes().

Here is the caller graph for this function:

◆ CreateBeamInfo()

std::string ns3::SatBeamHelper::CreateBeamInfo ( ) const

private

Creates info of the beam.

Returns: info for beams as std::string.

Definition at line 1394 of file satellite-beam-helper.cc.

References ns3::GeoCoordinate::GetLatitude(), m_beam, m_beamFreqs, m_geoNodes, m_gwNode, and m_printDetailedInformationToCreationTraces.

Referenced by GetBeamInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::SatBeamHelper::DoDispose ( )

virtual

Dispose of this class instance.

Definition at line 462 of file satellite-beam-helper.cc.

References m_antennaGainPatterns, m_beam, m_beamFreqs, m_flChannels, m_geoHelper, m_gwHelper, m_gwNode, m_markovConf, m_ncc, m_ulChannels, and m_utHelper.

◆ EnableCreationTraces()

void ns3::SatBeamHelper::EnableCreationTraces	(	Ptr< OutputStreamWrapper >	stream,
		CallbackBase &	cb
	)

Enables creation traces to be written in given file.

Parameters

stream	stream for creation trace outputs
cb	callback to connect traces

Definition at line 1233 of file satellite-beam-helper.cc.

References m_geoHelper, m_gwHelper, and m_utHelper.

◆ EnablePacketTrace()

void ns3::SatBeamHelper::EnablePacketTrace ( )

Enable packet traces.

(Called by SatHelper after scenario creation, if packet traces are enabled.)

Connect the trace callbacks By default the packet traces are connected to

NetDevice
LLC
MAC
PHY

TODO: Currently the packet trace logs all entries updated by the protocol layers. Here we could restrict the protocol layers from where the traced data are collected from. This could be controlled by the user using attributes.

Definition at line 1266 of file satellite-beam-helper.cc.

References ns3::SatPacketTrace::AddTraceEntry(), ns3::SatEnums::DVB, m_forwardLinkRegenerationMode, m_packetTrace, m_returnLinkRegenerationMode, m_standard, ns3::SatEnums::REGENERATION_LINK, and ns3::SatEnums::REGENERATION_NETWORK.

Here is the call graph for this function:

◆ GetBeamInfo()

std::string ns3::SatBeamHelper::GetBeamInfo ( ) const

Returns: info of created beams as std::string with GW info..

Definition at line 1314 of file satellite-beam-helper.cc.

References CreateBeamInfo(), and m_beam.

Here is the call graph for this function:

◆ GetBeams()

std::list< std::pair< uint32_t, uint32_t > > ns3::SatBeamHelper::GetBeams ( ) const

Parameters

satId satellite ID

Returns: a list of pair satellite ID / beam ID which are currently activated.

Definition at line 1034 of file satellite-beam-helper.cc.

References m_beam.

◆ GetChannelPair()

SatChannelPair::ChannelPair_t ns3::SatBeamHelper::GetChannelPair	(	uint32_t	satId,
		uint32_t	beamId,
		uint32_t	fwdFrequencyId,
		uint32_t	rtnFrequencyId,
		bool	isUserLink
	)

private

Gets satellite channel pair from requested map.

In case that channel pair is not found, new is created and returned.

Parameters

fwdFrequencyId	ID of the frequency
rtnFrequencyId	ID of the frequency
isUserLink	flag indicating if link user link is requested (otherwise feeder link).

Returns: satellite channel pair from requested SatChannelPair

Definition at line 1492 of file satellite-beam-helper.cc.

References ns3::SatEnums::FORWARD_FEEDER_CH, ns3::SatEnums::FORWARD_USER_CH, m_carrierBandwidthConverter, m_carrierFreqConverter, m_channelFactory, m_constantPropagationDelay, m_flChannels, m_propagationDelayModel, m_ulChannels, ns3::SatEnums::PD_CONSTANT, ns3::SatEnums::PD_CONSTANT_SPEED, ns3::SatEnums::RETURN_FEEDER_CH, ns3::SatEnums::RETURN_USER_CH, ns3::SatChannel::SetChannelType(), and ns3::SatConstVariables::SPEED_OF_LIGHT.

Referenced by Install().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetClosestSat()

uint32_t ns3::SatBeamHelper::GetClosestSat ( GeoCoordinate position )

Get closest satellite to a ground station.

Parameters

position The position of the ground station

Returns: The ID of the closest satellite

Definition at line 1244 of file satellite-beam-helper.cc.

References m_geoNodes, and ns3::GeoCoordinate::ToVector().

Here is the call graph for this function:

◆ GetGeoHelper()

Ptr< SatGeoHelper > ns3::SatBeamHelper::GetGeoHelper ( ) const

Returns: pointer to Geo helper.

Definition at line 970 of file satellite-beam-helper.cc.

References m_geoHelper.

◆ GetGeoSatNodes()

NodeContainer ns3::SatBeamHelper::GetGeoSatNodes ( ) const

Gets Geo Satellite nodes.

Returns: pointer to Geo Satellite nodes.

Definition at line 949 of file satellite-beam-helper.cc.

References m_geoNodes.

◆ GetGwHelper()

Ptr< SatGwHelper > ns3::SatBeamHelper::GetGwHelper ( ) const

Returns: pointer to GW helper.

Definition at line 963 of file satellite-beam-helper.cc.

References m_gwHelper.

◆ GetGwId()

uint32_t ns3::SatBeamHelper::GetGwId	(	uint32_t	satId,
		uint32_t	beamId
	)		const

Parameters

beamId	beam ID
satId	satellite ID

Returns: the ID of the GW serving the specified beam, or zero if the ID is invalid

Definition at line 917 of file satellite-beam-helper.cc.

References m_beam.

◆ GetGwNode()

Ptr< Node > ns3::SatBeamHelper::GetGwNode ( uint32_t gwId ) const

Gets GW node according to given id.

In case that GW is not found NULL is returned.

Parameters

gwId	ID of the GW

Returns: pointer to found GW node or NULL.

Definition at line 933 of file satellite-beam-helper.cc.

References m_gwNode.

Referenced by StoreGwNode().

Here is the caller graph for this function:

◆ GetGwNodes()

NodeContainer ns3::SatBeamHelper::GetGwNodes ( ) const

Returns: container having all GW nodes in satellite network.

Definition at line 977 of file satellite-beam-helper.cc.

References m_gwNode.

Referenced by AddMulticastGroupRoutes().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SatBeamHelper::GetInstanceTypeId ( void ) const

virtual

Get the type ID of instance.

Returns: the object TypeId

Definition at line 207 of file satellite-beam-helper.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetNcc()

Ptr< SatNcc > ns3::SatBeamHelper::GetNcc ( ) const

Returns: pointer to the NCC.

Definition at line 1051 of file satellite-beam-helper.cc.

References m_ncc.

◆ GetPropagationDelayModel()

Ptr< PropagationDelayModel > ns3::SatBeamHelper::GetPropagationDelayModel	(	uint32_t	satId,
		uint32_t	beamId,
		SatEnums::ChannelType_t	channelType
	)

Definition at line 1703 of file satellite-beam-helper.cc.

References ns3::SatEnums::FORWARD_FEEDER_CH, ns3::SatEnums::FORWARD_USER_CH, m_flChannels, m_ulChannels, ns3::SatEnums::RETURN_FEEDER_CH, and ns3::SatEnums::RETURN_USER_CH.

Referenced by ns3::SatHelper::SatHelper().

Here is the caller graph for this function:

◆ GetPropagationDelayModelEnum()

SatEnums::PropagationDelayModel_t ns3::SatBeamHelper::GetPropagationDelayModelEnum ( )

Definition at line 1735 of file satellite-beam-helper.cc.

References m_propagationDelayModel.

◆ GetReturnLinkRegenerationMode()

SatEnums::RegenerationMode_t ns3::SatBeamHelper::GetReturnLinkRegenerationMode ( ) const

Get the regeneration mode used in satellites for return link.

Returns: The regeneration mode used in satellites for return link

Definition at line 1080 of file satellite-beam-helper.cc.

References m_returnLinkRegenerationMode.

◆ GetTypeId()

TypeId ns3::SatBeamHelper::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 70 of file satellite-beam-helper.cc.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

◆ GetUtBeamId()

uint32_t ns3::SatBeamHelper::GetUtBeamId ( Ptr< Node > utNode ) const

Get beam Id of the given UT.

Parameters

utNode Pointer to UT node return Id of the beam of the requested UT. O in case that given node is not UT node.

Definition at line 1059 of file satellite-beam-helper.cc.

References m_utNode.

Referenced by AddMulticastGroupRoutes().

Here is the caller graph for this function:

◆ GetUtHelper()

Ptr< SatUtHelper > ns3::SatBeamHelper::GetUtHelper ( ) const

Returns: pointer to UT helper.

Definition at line 956 of file satellite-beam-helper.cc.

References m_utHelper.

◆ GetUtInfo()

std::string ns3::SatBeamHelper::GetUtInfo ( ) const

Returns: Information of UTs.

Definition at line 1331 of file satellite-beam-helper.cc.

References ns3::GeoCoordinate::GetLatitude(), m_printDetailedInformationToCreationTraces, and m_utNode.

Here is the call graph for this function:

◆ GetUtNodes() [1/2]

NodeContainer ns3::SatBeamHelper::GetUtNodes ( ) const

Returns: container having all UT nodes in satellite network.

Definition at line 993 of file satellite-beam-helper.cc.

References m_utNode.

◆ GetUtNodes() [2/2]

NodeContainer ns3::SatBeamHelper::GetUtNodes	(	uint32_t	satId,
		uint32_t	beamId
	)		const

Parameters

satId	satellite ID
beamId	beam ID

Returns: container having all UT nodes of a specific beam.

Definition at line 1011 of file satellite-beam-helper.cc.

References m_utNode.

◆ Init()

void ns3::SatBeamHelper::Init ( )

Init method is called after all the initial configurations have been done by the SatHelper and SatBeamHelper.

Definition at line 480 of file satellite-beam-helper.cc.

References m_bstpController.

◆ Install()

std::pair< Ptr< NetDevice >, NetDeviceContainer > ns3::SatBeamHelper::Install	(	NodeContainer	ut,
		Ptr< Node >	gwNode,
		uint32_t	gwId,
		uint32_t	satId,
		uint32_t	beamId,
		uint32_t	rtnUlFreqId,
		uint32_t	rtnFlFreqId,
		uint32_t	fwdUlFreqId,
		uint32_t	fwdFlFreqId,
		SatUtMac::RoutingUpdateCallback	routingCallback
	)

Parameters

ut	a set of UT nodes
gwNode	pointer of GW node
gwId	id of the GW
satId	ID of the satellite
beamId	id of the beam
rtnUlFreqId	id of the return user link frequency
rtnFlFreqId	id of the return feeder link frequency
fwdUlFreqId	id of the forward user link frequency
fwdFlFreqId	id of the forward feeder link frequency
routingCallback	the callback UT mac layers should call to update the node routes when receiving handover orders

This method creates a beam with the requested attributes and associate the resulting ns3::NetDevices with the ns3::Nodes.

Returns: a pair containing the new SatNetDevice of the gateway and a NetDeviceContainer of all SatNetDevice for the UTs

Definition at line 527 of file satellite-beam-helper.cc.

References ns3::SatEnums::FADING_OFF, GetChannelPair(), InstallFadingContainer(), InstallFeeder(), InstallUser(), m_antennaGainPatterns, m_beam, m_bstpController, m_fadingModel, m_forwardLinkRegenerationMode, m_geoHelper, m_geoNodes, m_gwNdMap, m_returnLinkRegenerationMode, m_utNode, ns3::SatEnums::REGENERATION_LINK, ns3::SatEnums::REGENERATION_NETWORK, and ns3::SatNetDevice::ToggleState().

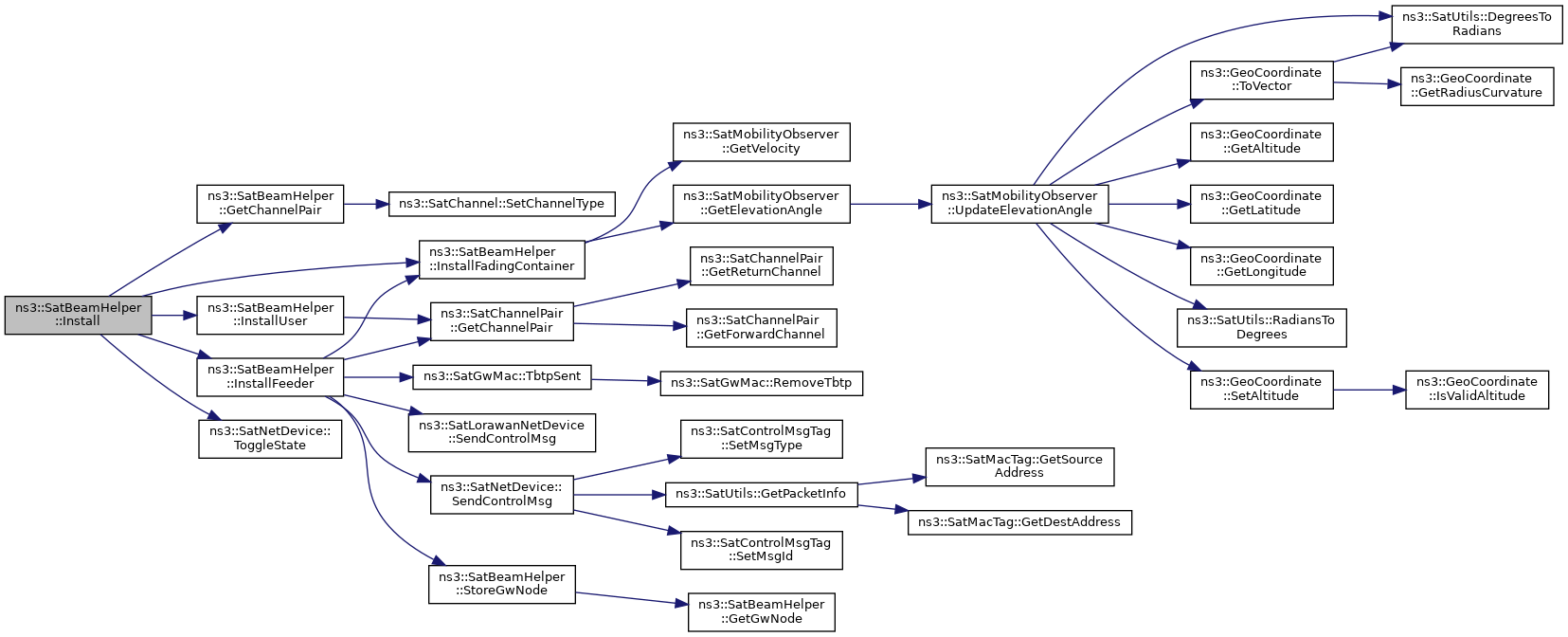

Here is the call graph for this function:

◆ InstallFadingContainer()

Ptr< SatBaseFading > ns3::SatBeamHelper::InstallFadingContainer ( Ptr< Node > node ) const

private

Install fading model to node, if fading model doesn't exist already in node.

Parameters

node	Pointer to node

Returns: Pointer to fading container

create a Markov fading container based on default configuration

create a input trace fading container based on default configuration

FADING_OFF option should never get to InstallFadingContainer

Definition at line 1609 of file satellite-beam-helper.cc.

References ns3::SatEnums::FADING_MARKOV, ns3::SatEnums::FADING_OFF, ns3::SatEnums::FADING_TRACE, ns3::SatMobilityObserver::GetElevationAngle(), ns3::SatMobilityObserver::GetVelocity(), m_fadingModel, and m_markovConf.

Referenced by Install(), and InstallFeeder().

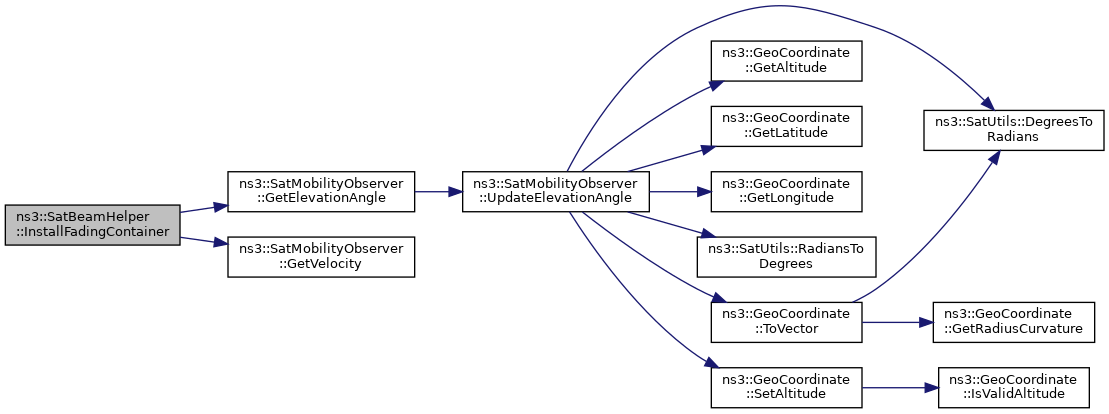

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InstallFeeder()

Ptr< NetDevice > ns3::SatBeamHelper::InstallFeeder	(	Ptr< SatGeoNetDevice >	geoNetDevice,
		Ptr< Node >	gwNode,
		uint32_t	gwId,
		uint32_t	satId,
		uint32_t	beamId,
		SatChannelPair::ChannelPair_t	feederLink,
		uint32_t	rtnFlFreqId,
		uint32_t	fwdFlFreqId,
		SatUtMac::RoutingUpdateCallback	routingCallback
	)

Parameters

geoNetDevice	Net device of satellite
gwNode	pointer of GW node
gwId	id of the GW
satId	ID of the satellite
beamId	id of the beam
feederLink	Feeder link channel
rtnFlFreqId	id of the return feeder link frequency
fwdFlFreqId	id of the forward feeder link frequency
routingCallback	the callback UT mac layers should call to update the node routes when receiving handover orders

This method creates a beam on feeder side with the requested attributes and associate the resulting ns3::NetDevices with the ns3::Nodes.

Returns: the new SatNetDevice of the gateway

Definition at line 661 of file satellite-beam-helper.cc.

References ns3::SatConstVariables::BITS_PER_BYTE, ns3::SatEnums::DVB, ns3::SatEnums::FADING_OFF, InstallFadingContainer(), ns3::SatEnums::LORA, m_enableTracesOnReturnLink, m_fadingModel, m_forwardLinkRegenerationMode, m_gwHelper, m_ncc, m_returnLinkRegenerationMode, m_standard, m_superframeSeq, m_utHelper, ns3::SatEnums::NORMAL_FRAME, ns3::SatEnums::REGENERATION_LINK, ns3::SatEnums::REGENERATION_NETWORK, ns3::SatEnums::RX_PWR_INPUT_TRACE, ns3::SatLorawanNetDevice::SendControlMsg(), ns3::SatNetDevice::SendControlMsg(), ns3::SatEnums::SHORT_FRAME, ns3::SatEnums::SHORT_FRAMES, StoreGwNode(), and ns3::SatGwMac::TbtpSent().

Referenced by Install().

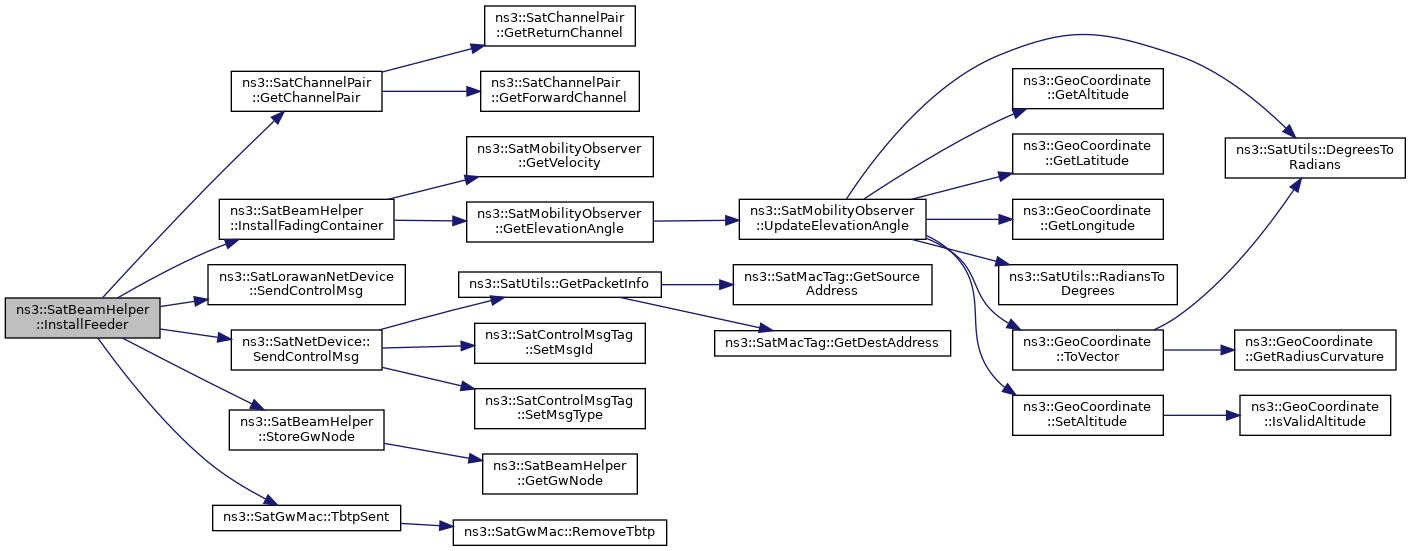

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InstallIsls()

void ns3::SatBeamHelper::InstallIsls ( )

Create all the ISLs.

Definition at line 876 of file satellite-beam-helper.cc.

References m_geoNodes, and m_isls.

◆ InstallUser()

NetDeviceContainer ns3::SatBeamHelper::InstallUser	(	Ptr< SatGeoNetDevice >	geoNetDevice,
		NodeContainer	ut,
		Ptr< NetDevice >	gwNd,
		uint32_t	satId,
		uint32_t	beamId,
		SatChannelPair::ChannelPair_t	userLink,
		uint32_t	rtnUlFreqId,
		uint32_t	fwdUlFreqId,
		SatUtMac::RoutingUpdateCallback	routingCallback
	)

Parameters

geoNetDevice	Net device of satellite
ut	a set of UT nodes
gwNd	Net Device of GW
satId	ID of the satellite
beamId	id of the beam
userLink	User link channel
rtnUlFreqId	id of the return user link frequency
fwdUlFreqId	id of the forward user link frequency
routingCallback	the callback UT mac layers should call to update the node routes when receiving handover orders

This method creates a beam on user side with the requested attributes and associate the resulting ns3::NetDevices with the ns3::Nodes.

Returns: a NetDeviceContainer of all SatNetDevice for the UTs

Definition at line 789 of file satellite-beam-helper.cc.

References ns3::SatEnums::DVB, ns3::SatChannelPair::GetChannelPair(), ns3::SatEnums::LORA, m_enableTracesOnReturnLink, m_forwardLinkRegenerationMode, m_ncc, m_returnLinkRegenerationMode, m_standard, m_ulChannels, m_utHelper, ns3::SatEnums::REGENERATION_LINK, ns3::SatEnums::REGENERATION_NETWORK, and ns3::SatEnums::RX_PWR_INPUT_TRACE.

Referenced by Install().

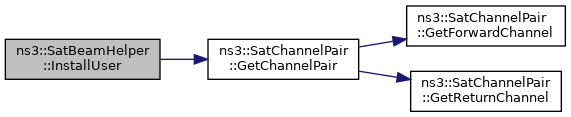

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetAntennaGainPatterns()

void ns3::SatBeamHelper::SetAntennaGainPatterns ( Ptr< SatAntennaGainPatternContainer > antennaPatterns )

Set the antenna gain patterns to be used when configuring the beams to the GEO satellite.

Note, that currently we have only one set of antenna patterns, which are utilized in both user return (Rx gain) and user forward (Tx gain) links. Antenna gain patterns are not utilized in feeder link at all.

Parameters

antennaPatterns to antenna gain pattern container

Definition at line 497 of file satellite-beam-helper.cc.

References m_antennaGainPatterns.

◆ SetChannelAttribute()

void ns3::SatBeamHelper::SetChannelAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Set an attribute value to be propagated to each Channel created by the helper.

Parameters

name	the name of the attribute to set
value	the value of the attribute to set

Set these attribute on each ns3::SatChannel created by SatBeamHelper::Install

Definition at line 511 of file satellite-beam-helper.cc.

References m_channelFactory.

◆ SetDeviceAttribute()

void ns3::SatBeamHelper::SetDeviceAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Set an attribute value to be propagated to each NetDevice created by the helper.

Parameters

name	the name of the attribute to set
value	the value of the attribute to set

Set these attributes on each ns3::SatNetDevice created by SatBeamHelper::Install

Definition at line 505 of file satellite-beam-helper.cc.

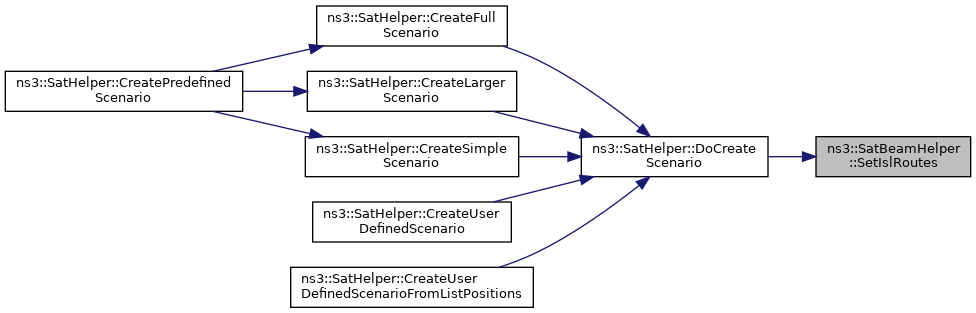

◆ SetIslRoutes()

void ns3::SatBeamHelper::SetIslRoutes ( )

Set ISL routes.

Definition at line 909 of file satellite-beam-helper.cc.

References m_geoHelper, m_geoNodes, and m_isls.

◆ SetNccRoutingCallback()

void ns3::SatBeamHelper::SetNccRoutingCallback ( SatNcc::UpdateRoutingCallback cb )

Attach an update routing callback to the NCC of this simulation.

Parameters

cb	the callback to update routing after a terminal handover

Definition at line 519 of file satellite-beam-helper.cc.

References m_ncc.

◆ SetStandard()

void ns3::SatBeamHelper::SetStandard ( SatEnums::Standard_t standard )

Set the standard to either DVB or Lora.

Definition at line 491 of file satellite-beam-helper.cc.

References m_standard.

◆ StoreGwNode()

bool ns3::SatBeamHelper::StoreGwNode	(	uint32_t	id,
		Ptr< Node >	node
	)

private

Creates GW node according to given id and stores GW to map.

Parameters

id	ID of the GW
node	pointer to the GW

Returns: result of storing

Definition at line 1583 of file satellite-beam-helper.cc.

References GetGwNode(), and m_gwNode.

Referenced by InstallFeeder().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_antennaGainPatterns

Ptr<SatAntennaGainPatternContainer> ns3::SatBeamHelper::m_antennaGainPatterns

private

Definition at line 428 of file satellite-beam-helper.h.

Referenced by DoDispose(), Install(), and SetAntennaGainPatterns().

◆ m_beam

std::map<std::pair<uint32_t, uint32_t>, uint32_t> ns3::SatBeamHelper::m_beam

private

Definition at line 431 of file satellite-beam-helper.h.

Referenced by CreateBeamInfo(), DoDispose(), GetBeamInfo(), GetBeams(), GetGwId(), and Install().

◆ m_beamFreqs

std::map<std::pair<uint32_t, uint32_t>, FrequencyPair_t> ns3::SatBeamHelper::m_beamFreqs

private

Definition at line 438 of file satellite-beam-helper.h.

Referenced by CreateBeamInfo(), and DoDispose().

◆ m_bstpController

Ptr<SatBstpController> ns3::SatBeamHelper::m_bstpController

private

Beam Switching Time Plan controller, which is created if FWD link beam hopping is enabled (m_enableFwdLinkBeamHopping).

Definition at line 526 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), Init(), and Install().

◆ m_carrierBandwidthConverter

SatTypedefs::CarrierBandwidthConverter_t ns3::SatBeamHelper::m_carrierBandwidthConverter

private

Definition at line 417 of file satellite-beam-helper.h.

Referenced by GetChannelPair().

◆ m_carrierFreqConverter

CarrierFreqConverter ns3::SatBeamHelper::m_carrierFreqConverter

private

Definition at line 416 of file satellite-beam-helper.h.

Referenced by GetChannelPair(), and GetTypeId().

◆ m_channelFactory

ObjectFactory ns3::SatBeamHelper::m_channelFactory

private

Definition at line 421 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), GetChannelPair(), and SetChannelAttribute().

◆ m_constantPropagationDelay

Time ns3::SatBeamHelper::m_constantPropagationDelay

private

Constant propagation delay.

Note, that this is valid only if SatConstantPropagationDelay is used.

Definition at line 487 of file satellite-beam-helper.h.

Referenced by GetChannelPair(), and GetTypeId().

◆ m_creationTrace

TracedCallback<std::string> ns3::SatBeamHelper::m_creationTrace

private

Trace callback for creation traces.

Definition at line 443 of file satellite-beam-helper.h.

Referenced by GetTypeId().

◆ m_ctrlMsgStoreTimeFwdLink

Time ns3::SatBeamHelper::m_ctrlMsgStoreTimeFwdLink

private

Control message store time in container for forward link.

Definition at line 454 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), and GetTypeId().

◆ m_ctrlMsgStoreTimeRtnLink

Time ns3::SatBeamHelper::m_ctrlMsgStoreTimeRtnLink

private

Control message store in container for return link.

Definition at line 459 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), and GetTypeId().

◆ m_dvbVersion

SatEnums::DvbVersion_t ns3::SatBeamHelper::m_dvbVersion

private

Indicates if using DVB-S2 or DVB-S2X.

Definition at line 597 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), and GetTypeId().

◆ m_enableFwdLinkBeamHopping

bool ns3::SatBeamHelper::m_enableFwdLinkBeamHopping

private

Flag indicating whether beam hopping is enabled in FWD link.

If enabled, SatBstpController is created with proper callbacks and reuse 1 is configured for FWD link.

Definition at line 520 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), and GetTypeId().

◆ m_enableTracesOnReturnLink

bool ns3::SatBeamHelper::m_enableTracesOnReturnLink

private

Helper flag to activate packet traces on the return link only.

Definition at line 536 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), GetTypeId(), InstallFeeder(), and InstallUser().

◆ m_fadingModel

SatEnums::FadingModel_t ns3::SatBeamHelper::m_fadingModel

private

Configured fading model.

Set as an attribute.

Definition at line 469 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), GetTypeId(), Install(), InstallFadingContainer(), and InstallFeeder().

◆ m_flChannels

Ptr<SatChannelPair> ns3::SatBeamHelper::m_flChannels

private

Definition at line 436 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), DoDispose(), GetChannelPair(), and GetPropagationDelayModel().

◆ m_forwardLinkRegenerationMode

SatEnums::RegenerationMode_t ns3::SatBeamHelper::m_forwardLinkRegenerationMode

private

The regeneration mode used in satellites for forward link.

Definition at line 602 of file satellite-beam-helper.h.

Referenced by EnablePacketTrace(), Install(), InstallFeeder(), and InstallUser().

◆ m_geoHelper

Ptr<SatGeoHelper> ns3::SatBeamHelper::m_geoHelper

private

Definition at line 422 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), DoDispose(), EnableCreationTraces(), GetGeoHelper(), Install(), and SetIslRoutes().

◆ m_geoNodes

NodeContainer ns3::SatBeamHelper::m_geoNodes

private

Definition at line 425 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), CreateBeamInfo(), GetClosestSat(), GetGeoSatNodes(), Install(), InstallIsls(), and SetIslRoutes().

◆ m_gwHelper

Ptr<SatGwHelper> ns3::SatBeamHelper::m_gwHelper

private

Definition at line 423 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), DoDispose(), EnableCreationTraces(), GetGwHelper(), and InstallFeeder().

◆ m_gwNdMap

std::map<uint32_t, Ptr<NetDevice> > ns3::SatBeamHelper::m_gwNdMap

private

Map used in regenerative mode to store GW Net device (we need only one per GW)

Definition at line 612 of file satellite-beam-helper.h.

Referenced by Install().

◆ m_gwNode

std::map<uint32_t, Ptr<Node> > ns3::SatBeamHelper::m_gwNode

private

Definition at line 432 of file satellite-beam-helper.h.

Referenced by CreateBeamInfo(), DoDispose(), GetGwNode(), GetGwNodes(), and StoreGwNode().

◆ m_isls

std::vector<std::pair<uint32_t, uint32_t> > ns3::SatBeamHelper::m_isls

private

Vector constaining all the ISLs of the topology.

Definition at line 617 of file satellite-beam-helper.h.

Referenced by InstallIsls(), and SetIslRoutes().

◆ m_markovConf

Ptr<SatMarkovConf> ns3::SatBeamHelper::m_markovConf

private

Common configuration for Markov model.

Definition at line 474 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), DoDispose(), and InstallFadingContainer().

◆ m_ncc

Ptr<SatNcc> ns3::SatBeamHelper::m_ncc

private

Definition at line 426 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), DoDispose(), GetNcc(), InstallFeeder(), InstallUser(), and SetNccRoutingCallback().

◆ m_packetTrace

Ptr<SatPacketTrace> ns3::SatBeamHelper::m_packetTrace

private

Packet trace.

Definition at line 531 of file satellite-beam-helper.h.

Referenced by EnablePacketTrace().

◆ m_printDetailedInformationToCreationTraces

bool ns3::SatBeamHelper::m_printDetailedInformationToCreationTraces

private

Flag indicating whether to print detailed information to the creation traces.

Definition at line 449 of file satellite-beam-helper.h.

Referenced by CreateBeamInfo(), GetTypeId(), and GetUtInfo().

◆ m_propagationDelayModel

SatEnums::PropagationDelayModel_t ns3::SatBeamHelper::m_propagationDelayModel

private

Propagation delay model.

Constant
Constant speed (speed of light)

Definition at line 481 of file satellite-beam-helper.h.

Referenced by GetChannelPair(), GetPropagationDelayModelEnum(), and GetTypeId().

◆ m_raCollisionModel

SatPhyRxCarrierConf::RandomAccessCollisionModel ns3::SatBeamHelper::m_raCollisionModel

private

The used collision model for random access.

Definition at line 507 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), and GetTypeId().

◆ m_raConstantErrorRate

double ns3::SatBeamHelper::m_raConstantErrorRate

private

Constant error rate for random access.

Used if RA collision model is RA_CONSTANT_COLLISION_PROBABILITY.

Definition at line 513 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), and GetTypeId().

◆ m_raInterferenceEliminationModel

SatPhyRxCarrierConf::InterferenceEliminationModel ns3::SatBeamHelper::m_raInterferenceEliminationModel

private

The used interference model for random access.

Definition at line 502 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), and GetTypeId().

◆ m_raInterferenceModel

SatPhyRxCarrierConf::InterferenceModel ns3::SatBeamHelper::m_raInterferenceModel

private

The used interference model for random access.

Definition at line 497 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), and GetTypeId().

◆ m_randomAccessModel

SatEnums::RandomAccessModel_t ns3::SatBeamHelper::m_randomAccessModel

private

The used random access model.

Definition at line 492 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), and GetTypeId().

◆ m_returnLinkRegenerationMode

SatEnums::RegenerationMode_t ns3::SatBeamHelper::m_returnLinkRegenerationMode

private

The regeneration mode used in satellites for return link.

Definition at line 607 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), EnablePacketTrace(), GetReturnLinkRegenerationMode(), Install(), InstallFeeder(), and InstallUser().

◆ m_rlLinkResultsType

SatEnums::LinkResults_t ns3::SatBeamHelper::m_rlLinkResultsType

private

Type of Return channel link results.

Definition at line 464 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), and GetTypeId().

◆ m_standard

SatEnums::Standard_t ns3::SatBeamHelper::m_standard

private

The global standard used.

Can be either DVB or Lora

Definition at line 592 of file satellite-beam-helper.h.

Referenced by EnablePacketTrace(), InstallFeeder(), InstallUser(), and SetStandard().

◆ m_superframeSeq

Ptr<SatSuperframeSeq> ns3::SatBeamHelper::m_superframeSeq

private

Definition at line 419 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), and InstallFeeder().

◆ m_ulChannels

Ptr<SatChannelPair> ns3::SatBeamHelper::m_ulChannels

private

Definition at line 435 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), DoDispose(), GetChannelPair(), GetPropagationDelayModel(), and InstallUser().

◆ m_utHelper

Ptr<SatUtHelper> ns3::SatBeamHelper::m_utHelper

private

Definition at line 424 of file satellite-beam-helper.h.

Referenced by SatBeamHelper(), DoDispose(), EnableCreationTraces(), GetUtHelper(), InstallFeeder(), and InstallUser().

◆ m_utNode

std::multimap<std::pair<uint32_t, uint32_t>, Ptr<Node> > ns3::SatBeamHelper::m_utNode

private

Definition at line 434 of file satellite-beam-helper.h.

Referenced by GetUtBeamId(), GetUtInfo(), GetUtNodes(), and Install().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/helper/satellite-beam-helper.h
/builds/sns3/satellite/satellite/helper/satellite-beam-helper.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ CarrierBandwidthConverter

◆ CarrierFreqConverter

◆ FrequencyPair_t

◆ GwLink_t

◆ MulticastBeamInfo_t

◆ MulticastBeamInfoItem_t

Constructor & Destructor Documentation

◆ SatBeamHelper() [1/2]

◆ SatBeamHelper() [2/2]

◆ ~SatBeamHelper()

Member Function Documentation

◆ AddMulticastGroupRoutes()

◆ AddMulticastRouteToUt()

◆ CreateBeamInfo()

◆ DoDispose()

◆ EnableCreationTraces()

◆ EnablePacketTrace()

◆ GetBeamInfo()

◆ GetBeams()

◆ GetChannelPair()

◆ GetClosestSat()

◆ GetGeoHelper()

◆ GetGeoSatNodes()

◆ GetGwHelper()

◆ GetGwId()

◆ GetGwNode()

◆ GetGwNodes()

◆ GetInstanceTypeId()

◆ GetNcc()

◆ GetPropagationDelayModel()

◆ GetPropagationDelayModelEnum()

◆ GetReturnLinkRegenerationMode()

◆ GetTypeId()

◆ GetUtBeamId()

◆ GetUtHelper()

◆ GetUtInfo()

◆ GetUtNodes() [1/2]

◆ GetUtNodes() [2/2]

◆ Init()

◆ Install()

◆ InstallFadingContainer()

◆ InstallFeeder()

◆ InstallIsls()

◆ InstallUser()

◆ SetAntennaGainPatterns()

◆ SetChannelAttribute()

◆ SetDeviceAttribute()

◆ SetIslRoutes()

◆ SetNccRoutingCallback()

◆ SetStandard()

◆ StoreGwNode()

Member Data Documentation

◆ m_antennaGainPatterns

◆ m_beam

◆ m_beamFreqs

◆ m_bstpController

◆ m_carrierBandwidthConverter

◆ m_carrierFreqConverter

◆ m_channelFactory

◆ m_constantPropagationDelay

◆ m_creationTrace

◆ m_ctrlMsgStoreTimeFwdLink

◆ m_ctrlMsgStoreTimeRtnLink

◆ m_dvbVersion

◆ m_enableFwdLinkBeamHopping

◆ m_enableTracesOnReturnLink

◆ m_fadingModel

◆ m_flChannels

◆ m_forwardLinkRegenerationMode

◆ m_geoHelper

◆ m_geoNodes

◆ m_gwHelper

◆ m_gwNdMap
