Creates needed objects for GW nodes like SatGeoNetDevice objects. More...

#include "satellite-gw-helper.h"

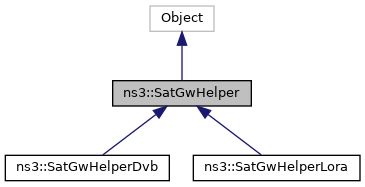

Inheritance diagram for ns3::SatGwHelper:

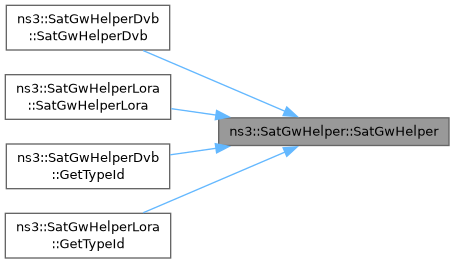

Collaboration diagram for ns3::SatGwHelper:

Classes
struct	RandomAccessSettings_s
	Random access setting options. More...

Public Member Functions
	SatGwHelper ()
	Default constructor. More...

	SatGwHelper (SatTypedefs::CarrierBandwidthConverter_t carrierBandwidthConverter, uint32_t fwdLinkCarrierCount, Ptr< SatSuperframeSeq > seq, SatMac::ReadCtrlMsgCallback readCb, SatMac::ReserveCtrlMsgCallback reserveCb, SatMac::SendCtrlMsgCallback sendCb, RandomAccessSettings_s randomAccessSettings)
	Create a SatGwHelper to make life easier when creating Satellite point to point network connections. More...

virtual	~SatGwHelper ()

void	EnableCreationTraces (Ptr< OutputStreamWrapper > stream, CallbackBase &cb)
	Enables creation traces to be written in given file. More...

Ptr< SatBbFrameConf >	GetBbFrameConf () const
	Get BB frame configuration. More...

TypeId	GetInstanceTypeId (void) const

void	Initialize (Ptr< SatLinkResultsRtn > lrRcs2, Ptr< SatLinkResultsFwd > lrFwd, SatEnums::DvbVersion_t dvbVersion, bool useScpc)

NetDeviceContainer	InstallDvb (NodeContainer c, uint32_t gwId, uint32_t satId, uint32_t beamId, Ptr< SatChannel > fCh, Ptr< SatChannel > rCh, Ptr< SatNcc > ncc, Ptr< SatLowerLayerServiceConf > llsConf, SatEnums::RegenerationMode_t forwardLinkRegenerationMode, SatEnums::RegenerationMode_t returnLinkRegenerationMode)

Ptr< NetDevice >	InstallDvb (Ptr< Node > n, uint32_t gwId, uint32_t satId, uint32_t beamId, Ptr< SatChannel > fCh, Ptr< SatChannel > rCh, Ptr< SatNcc > ncc, Ptr< SatLowerLayerServiceConf > llsConf, SatEnums::RegenerationMode_t forwardLinkRegenerationMode, SatEnums::RegenerationMode_t returnLinkRegenerationMode)

NetDeviceContainer	InstallLora (NodeContainer c, uint32_t gwId, uint32_t satId, uint32_t beamId, Ptr< SatChannel > fCh, Ptr< SatChannel > rCh, Ptr< SatNcc > ncc, Ptr< SatLowerLayerServiceConf > llsConf, SatEnums::RegenerationMode_t forwardLinkRegenerationMode, SatEnums::RegenerationMode_t returnLinkRegenerationMode)

Ptr< NetDevice >	InstallLora (Ptr< Node > n, uint32_t gwId, uint32_t satId, uint32_t beamId, Ptr< SatChannel > fCh, Ptr< SatChannel > rCh, Ptr< SatNcc > ncc, Ptr< SatLowerLayerServiceConf > llsConf, SatEnums::RegenerationMode_t forwardLinkRegenerationMode, SatEnums::RegenerationMode_t returnLinkRegenerationMode)

void	SetChannelAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each Channel created by the helper. More...

void	SetDeviceAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each NetDevice created by the helper. More...

void	SetPhyAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each Phy created by the helper. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ptr< SatBbFrameConf >	m_bbFrameConf

SatTypedefs::CarrierBandwidthConverter_t	m_carrierBandwidthConverter

ObjectFactory	m_channelFactory

TracedCallback< std::string >	m_creationTrace
	Trace callback for creation traces. More...

double	m_daConstantErrorRate

SatPhy::InterferenceModel	m_daInterferenceModel

ObjectFactory	m_deviceFactory

bool	m_enableChannelEstimationError
	Enable channel estimation error modeling at forward link receiver (= UT). More...

SatPhy::ErrorModel	m_errorModel

SatEnums::FwdSchedulingAlgorithm_t	m_fwdSchedulingAlgorithm
	The forward link algorithm used. More...

Ptr< SatLinkResults >	m_linkResults

RandomAccessSettings_s	m_raSettings
	The used random access model settings. More...

SatMac::ReadCtrlMsgCallback	m_readCtrlCb

SatMac::ReserveCtrlMsgCallback	m_reserveCtrlCb

uint32_t	m_rtnLinkCarrierCount

SatMac::SendCtrlMsgCallback	m_sendCtrlCb

Ptr< SatSuperframeSeq >	m_superframeSeq

double	m_symbolRate

Detailed Description

Creates needed objects for GW nodes like SatGeoNetDevice objects.

Handles needed configuration for the GW nodes.

Definition at line 50 of file satellite-gw-helper.h.

Constructor & Destructor Documentation

◆ SatGwHelper() [1/2]

ns3::SatGwHelper::SatGwHelper ( )

Default constructor.

Definition at line 138 of file satellite-gw-helper.cc.

◆ SatGwHelper() [2/2]

ns3::SatGwHelper::SatGwHelper	(	SatTypedefs::CarrierBandwidthConverter_t	carrierBandwidthConverter,
		uint32_t	fwdLinkCarrierCount,
		Ptr< SatSuperframeSeq >	seq,
		SatMac::ReadCtrlMsgCallback	readCb,
		SatMac::ReserveCtrlMsgCallback	reserveCb,
		SatMac::SendCtrlMsgCallback	sendCb,
		RandomAccessSettings_s	randomAccessSettings
	)

Create a SatGwHelper to make life easier when creating Satellite point to point network connections.

Definition at line 151 of file satellite-gw-helper.cc.

References m_channelFactory, and m_deviceFactory.

◆ ~SatGwHelper()

virtual ns3::SatGwHelper::~SatGwHelper ( )

inlinevirtual

Definition at line 88 of file satellite-gw-helper.h.

Member Function Documentation

◆ EnableCreationTraces()

void ns3::SatGwHelper::EnableCreationTraces	(	Ptr< OutputStreamWrapper >	stream,
		CallbackBase &	cb
	)

Enables creation traces to be written in given file.

Parameters

stream	stream for creation trace outputs
cb	callback to connect traces

Definition at line 697 of file satellite-gw-helper.cc.

◆ GetBbFrameConf()

Ptr< SatBbFrameConf > ns3::SatGwHelper::GetBbFrameConf ( ) const

Get BB frame configuration.

Returns: BB frame configuration create by helper.

Definition at line 224 of file satellite-gw-helper.cc.

References m_bbFrameConf.

◆ GetInstanceTypeId()

TypeId ns3::SatGwHelper::GetInstanceTypeId ( void ) const

Definition at line 133 of file satellite-gw-helper.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::SatGwHelper::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 79 of file satellite-gw-helper.cc.

References ns3::SatPhyRxCarrierConf::EM_AVI, ns3::SatPhyRxCarrierConf::EM_CONSTANT, ns3::SatPhyRxCarrierConf::EM_NONE, ns3::SatPhyRxCarrierConf::IF_CONSTANT, ns3::SatPhyRxCarrierConf::IF_PER_FRAGMENT, ns3::SatPhyRxCarrierConf::IF_PER_PACKET, ns3::SatPhyRxCarrierConf::IF_TRACE, m_creationTrace, m_daConstantErrorRate, m_daInterferenceModel, m_enableChannelEstimationError, m_errorModel, m_fwdSchedulingAlgorithm, ns3::SatEnums::NO_TIME_SLICING, and ns3::SatEnums::TIME_SLICING.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

◆ Initialize()

void ns3::SatGwHelper::Initialize	(	Ptr< SatLinkResultsRtn >	lrRcs2,
		Ptr< SatLinkResultsFwd >	lrFwd,
		SatEnums::DvbVersion_t	dvbVersion,
		bool	useScpc
	)

Definition at line 180 of file satellite-gw-helper.cc.

References ns3::SatEnums::EFFECTIVE_BANDWIDTH, ns3::SatPhyRxCarrierConf::EM_AVI, ns3::SatEnums::FORWARD_FEEDER_CH, m_bbFrameConf, m_carrierBandwidthConverter, m_errorModel, m_fwdSchedulingAlgorithm, m_linkResults, m_symbolRate, ns3::SatEnums::NO_TIME_SLICING, and ns3::SatEnums::TIME_SLICING.

◆ InstallDvb() [1/2]

NetDeviceContainer ns3::SatGwHelper::InstallDvb	(	NodeContainer	c,
		uint32_t	gwId,
		uint32_t	satId,
		uint32_t	beamId,
		Ptr< SatChannel >	fCh,
		Ptr< SatChannel >	rCh,
		Ptr< SatNcc >	ncc,
		Ptr< SatLowerLayerServiceConf >	llsConf,
		SatEnums::RegenerationMode_t	forwardLinkRegenerationMode,
		SatEnums::RegenerationMode_t	returnLinkRegenerationMode
	)

Parameters

c	a set of nodes
gwId	id of the gw
satId	id of the satellite
beamId	id of the beam
fCh	forward channel
rCh	return channel
ncc	NCC (Network Control Center)
forwardLinkRegenerationMode	The regeneration mode on forward link
returnLinkRegenerationMode	The regeneration mode on return link

This method creates a ns3::SatChannel with the attributes configured by SatGwHelper::SetChannelAttribute, then, for each node in the input container, we create a ns3::SatNetDevice with the requested attributes, a queue for this ns3::SatNetDevice, and associate the resulting ns3::SatNetDevice with the ns3::Node and ns3::SatChannel.

Definition at line 256 of file satellite-gw-helper.cc.

◆ InstallDvb() [2/2]

Ptr< NetDevice > ns3::SatGwHelper::InstallDvb	(	Ptr< Node >	n,
		uint32_t	gwId,
		uint32_t	satId,
		uint32_t	beamId,
		Ptr< SatChannel >	fCh,
		Ptr< SatChannel >	rCh,
		Ptr< SatNcc >	ncc,
		Ptr< SatLowerLayerServiceConf >	llsConf,
		SatEnums::RegenerationMode_t	forwardLinkRegenerationMode,
		SatEnums::RegenerationMode_t	returnLinkRegenerationMode
	)

Parameters

n	node
gwId	id of the gw
satId	id of the satellite
beamId	id of the beam
fCh	forward channel
rCh	return channel
ncc	NCC (Network Control Center)
forwardLinkRegenerationMode	The regeneration mode on forward link
returnLinkRegenerationMode	The regeneration mode on return link

Saves you from having to construct a temporary NodeContainer.

Channel estimation errors

Definition at line 289 of file satellite-gw-helper.cc.

References ns3::SatEnums::CONTROL_FID, ns3::SatNcc::DoRandomAccessDynamicLoadControl(), ns3::SatEnums::DVB_GW, ns3::SatEnums::EFFECTIVE_BANDWIDTH, ns3::SatEnums::FORWARD_FEEDER_CH, ns3::SatLlc::GetSchedulingContexts(), ns3::logonCallbackHelper(), m_bbFrameConf, ns3::SatPhy::CreateParam_t::m_beamId, m_carrierBandwidthConverter, m_daConstantErrorRate, m_daInterferenceModel, ns3::SatPhy::CreateParam_t::m_device, m_deviceFactory, m_enableChannelEstimationError, m_errorModel, m_fwdSchedulingAlgorithm, m_linkResults, ns3::SatGwHelper::RandomAccessSettings_s::m_raCollisionModel, ns3::SatGwHelper::RandomAccessSettings_s::m_raConstantErrorRate, ns3::SatGwHelper::RandomAccessSettings_s::m_raInterferenceEliminationModel, ns3::SatGwHelper::RandomAccessSettings_s::m_raInterferenceModel, ns3::SatGwHelper::RandomAccessSettings_s::m_randomAccessModel, m_raSettings, m_readCtrlCb, m_reserveCtrlCb, m_rtnLinkCarrierCount, ns3::SatPhy::CreateParam_t::m_rxCh, ns3::SatPhy::CreateParam_t::m_satId, m_sendCtrlCb, ns3::SatPhy::CreateParam_t::m_standard, m_superframeSeq, ns3::SatPhy::CreateParam_t::m_txCh, ns3::SatNcc::MoveUtBetweenBeams(), ns3::SatEnums::NO_TIME_SLICING, ns3::SatGwLlc::NotifyTxOpportunity(), ns3::SatEnums::NT_GW, ns3::SatNetDevice::Receive(), ns3::SatLlc::Receive(), ns3::SatGwMac::Receive(), ns3::SatNcc::ReceiveControlBurst(), ns3::SatEnums::REGENERATION_PHY, ns3::SatNcc::RemoveUt(), ns3::SatNetDevice::SendControlMsg(), ns3::SatPhy::SendPdu(), ns3::SatAddressE2ETag::SIZE, ns3::SatConstVariables::SUPERFRAME_SEQUENCE, ns3::SatEnums::TIME_SLICING, ns3::SatEnums::TRANSPARENT, ns3::SatNcc::UtCnoUpdated(), and ns3::SatNcc::UtCrReceived().

Here is the call graph for this function:

◆ InstallLora() [1/2]

NetDeviceContainer ns3::SatGwHelper::InstallLora	(	NodeContainer	c,
		uint32_t	gwId,
		uint32_t	satId,
		uint32_t	beamId,
		Ptr< SatChannel >	fCh,
		Ptr< SatChannel >	rCh,
		Ptr< SatNcc >	ncc,
		Ptr< SatLowerLayerServiceConf >	llsConf,
		SatEnums::RegenerationMode_t	forwardLinkRegenerationMode,
		SatEnums::RegenerationMode_t	returnLinkRegenerationMode
	)

Parameters

c	a set of nodes
gwId	id of the gw
satId	id of the satellite
beamId	id of the beam
fCh	forward channel
rCh	return channel
ncc	NCC (Network Control Center)
forwardLinkRegenerationMode	The regeneration mode on forward link
returnLinkRegenerationMode	The regeneration mode on return link

This method creates a ns3::SatChannel with the attributes configured by SatGwHelper::SetChannelAttribute, then, for each node in the input container, we create a ns3::SatLorawanNetDevice with the requested attributes, a queue for this ns3::SatLorawanNetDevice, and associate the resulting ns3::SatLorawanNetDevice with the ns3::Node and ns3::SatChannel.

Definition at line 523 of file satellite-gw-helper.cc.

◆ InstallLora() [2/2]

Ptr< NetDevice > ns3::SatGwHelper::InstallLora	(	Ptr< Node >	n,
		uint32_t	gwId,
		uint32_t	satId,
		uint32_t	beamId,
		Ptr< SatChannel >	fCh,
		Ptr< SatChannel >	rCh,
		Ptr< SatNcc >	ncc,
		Ptr< SatLowerLayerServiceConf >	llsConf,
		SatEnums::RegenerationMode_t	forwardLinkRegenerationMode,
		SatEnums::RegenerationMode_t	returnLinkRegenerationMode
	)

Parameters

n	node
gwId	id of the gw
satId	id of the satellite
beamId	id of the beam
fCh	forward channel
rCh	return channel
ncc	NCC (Network Control Center)
forwardLinkRegenerationMode	The regeneration mode on forward link
returnLinkRegenerationMode	The regeneration mode on return link

Saves you from having to construct a temporary NodeContainer.

Channel estimation errors

Definition at line 556 of file satellite-gw-helper.cc.

References ns3::SatNcc::DoRandomAccessDynamicLoadControl(), ns3::SatEnums::LORA_GW, ns3::SatPhy::CreateParam_t::m_beamId, m_carrierBandwidthConverter, m_daConstantErrorRate, m_daInterferenceModel, ns3::SatPhy::CreateParam_t::m_device, m_deviceFactory, m_enableChannelEstimationError, m_errorModel, m_linkResults, ns3::SatGwHelper::RandomAccessSettings_s::m_raCollisionModel, ns3::SatGwHelper::RandomAccessSettings_s::m_raConstantErrorRate, ns3::SatGwHelper::RandomAccessSettings_s::m_raInterferenceEliminationModel, ns3::SatGwHelper::RandomAccessSettings_s::m_raInterferenceModel, ns3::SatGwHelper::RandomAccessSettings_s::m_randomAccessModel, m_raSettings, m_rtnLinkCarrierCount, ns3::SatPhy::CreateParam_t::m_rxCh, ns3::SatPhy::CreateParam_t::m_satId, ns3::SatPhy::CreateParam_t::m_standard, m_superframeSeq, ns3::SatPhy::CreateParam_t::m_txCh, ns3::SatEnums::NT_GW, ns3::LorawanMac::Receive(), ns3::SatEnums::REGENERATION_PHY, ns3::SatLoraConf::SetConf(), ns3::SatConstVariables::SUPERFRAME_SEQUENCE, ns3::SatEnums::TRANSPARENT, and ns3::SatNcc::UtCnoUpdated().

Here is the call graph for this function:

◆ SetChannelAttribute()

void ns3::SatGwHelper::SetChannelAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Set an attribute value to be propagated to each Channel created by the helper.

Parameters

name	the name of the attribute to set
value	the value of the attribute to set

Set these attribute on each ns3::SatChannel created by SatGwHelper::Install

Definition at line 240 of file satellite-gw-helper.cc.

References m_channelFactory.

◆ SetDeviceAttribute()

void ns3::SatGwHelper::SetDeviceAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Set an attribute value to be propagated to each NetDevice created by the helper.

Parameters

name	the name of the attribute to set
value	the value of the attribute to set

Set these attributes on each ns3::SatNetDevice created by SatGwHelper::Install

Definition at line 232 of file satellite-gw-helper.cc.

References m_deviceFactory.

◆ SetPhyAttribute()

void ns3::SatGwHelper::SetPhyAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Set an attribute value to be propagated to each Phy created by the helper.

Parameters

name	the name of the attribute to set
value	the value of the attribute to set

Set these attributes on each ns3::SatNetDevice created by SatGwHelper::Install

Definition at line 248 of file satellite-gw-helper.cc.

Member Data Documentation

◆ m_bbFrameConf

Ptr<SatBbFrameConf> ns3::SatGwHelper::m_bbFrameConf

private

Definition at line 264 of file satellite-gw-helper.h.

Referenced by GetBbFrameConf(), Initialize(), and InstallDvb().

◆ m_carrierBandwidthConverter

SatTypedefs::CarrierBandwidthConverter_t ns3::SatGwHelper::m_carrierBandwidthConverter

private

Definition at line 260 of file satellite-gw-helper.h.

Referenced by Initialize(), InstallDvb(), and InstallLora().

◆ m_channelFactory

ObjectFactory ns3::SatGwHelper::m_channelFactory

private

Definition at line 271 of file satellite-gw-helper.h.

Referenced by SatGwHelper(), and SetChannelAttribute().

◆ m_creationTrace

TracedCallback<std::string> ns3::SatGwHelper::m_creationTrace

private

Trace callback for creation traces.

Definition at line 299 of file satellite-gw-helper.h.

Referenced by GetTypeId().

◆ m_daConstantErrorRate

double ns3::SatGwHelper::m_daConstantErrorRate

private

Definition at line 287 of file satellite-gw-helper.h.

Referenced by GetTypeId(), InstallDvb(), and InstallLora().

◆ m_daInterferenceModel

SatPhy::InterferenceModel ns3::SatGwHelper::m_daInterferenceModel

private

Definition at line 277 of file satellite-gw-helper.h.

Referenced by GetTypeId(), InstallDvb(), and InstallLora().

◆ m_deviceFactory

ObjectFactory ns3::SatGwHelper::m_deviceFactory

private

Definition at line 272 of file satellite-gw-helper.h.

Referenced by SatGwHelper(), InstallDvb(), InstallLora(), and SetDeviceAttribute().

◆ m_enableChannelEstimationError

bool ns3::SatGwHelper::m_enableChannelEstimationError

private

Enable channel estimation error modeling at forward link receiver (= UT).

Definition at line 307 of file satellite-gw-helper.h.

Referenced by GetTypeId(), InstallDvb(), and InstallLora().

◆ m_errorModel

SatPhy::ErrorModel ns3::SatGwHelper::m_errorModel

private

Definition at line 282 of file satellite-gw-helper.h.

Referenced by GetTypeId(), Initialize(), InstallDvb(), and InstallLora().

◆ m_fwdSchedulingAlgorithm

SatEnums::FwdSchedulingAlgorithm_t ns3::SatGwHelper::m_fwdSchedulingAlgorithm

private

The forward link algorithm used.

Definition at line 317 of file satellite-gw-helper.h.

Referenced by GetTypeId(), Initialize(), and InstallDvb().

◆ m_linkResults

Ptr<SatLinkResults> ns3::SatGwHelper::m_linkResults

private

Definition at line 294 of file satellite-gw-helper.h.

Referenced by Initialize(), InstallDvb(), and InstallLora().

◆ m_raSettings

RandomAccessSettings_s ns3::SatGwHelper::m_raSettings

private

The used random access model settings.

Definition at line 312 of file satellite-gw-helper.h.

Referenced by InstallDvb(), and InstallLora().

◆ m_readCtrlCb

SatMac::ReadCtrlMsgCallback ns3::SatGwHelper::m_readCtrlCb

private

Definition at line 267 of file satellite-gw-helper.h.

Referenced by InstallDvb().

◆ m_reserveCtrlCb

SatMac::ReserveCtrlMsgCallback ns3::SatGwHelper::m_reserveCtrlCb

private

Definition at line 268 of file satellite-gw-helper.h.

Referenced by InstallDvb().

◆ m_rtnLinkCarrierCount

uint32_t ns3::SatGwHelper::m_rtnLinkCarrierCount

private

Definition at line 261 of file satellite-gw-helper.h.

Referenced by InstallDvb(), and InstallLora().

◆ m_sendCtrlCb

SatMac::SendCtrlMsgCallback ns3::SatGwHelper::m_sendCtrlCb

private

Definition at line 269 of file satellite-gw-helper.h.

Referenced by InstallDvb().

◆ m_superframeSeq

Ptr<SatSuperframeSeq> ns3::SatGwHelper::m_superframeSeq

private

Definition at line 262 of file satellite-gw-helper.h.

Referenced by InstallDvb(), and InstallLora().

◆ m_symbolRate

double ns3::SatGwHelper::m_symbolRate

private

Definition at line 301 of file satellite-gw-helper.h.

Referenced by Initialize().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/helper/satellite-gw-helper.h
/builds/sns3/satellite/satellite/helper/satellite-gw-helper.cc

Classes

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SatGwHelper() [1/2]

◆ SatGwHelper() [2/2]

◆ ~SatGwHelper()

Member Function Documentation

◆ EnableCreationTraces()

◆ GetBbFrameConf()

◆ GetInstanceTypeId()

◆ GetTypeId()

◆ Initialize()

◆ InstallDvb() [1/2]

◆ InstallDvb() [2/2]

◆ InstallLora() [1/2]

◆ InstallLora() [2/2]

◆ SetChannelAttribute()

◆ SetDeviceAttribute()

◆ SetPhyAttribute()

Member Data Documentation

◆ m_bbFrameConf

◆ m_carrierBandwidthConverter

◆ m_channelFactory

◆ m_creationTrace

◆ m_daConstantErrorRate

◆ m_daInterferenceModel

◆ m_deviceFactory

◆ m_enableChannelEstimationError

◆ m_errorModel

◆ m_fwdSchedulingAlgorithm

◆ m_linkResults

◆ m_raSettings

◆ m_readCtrlCb

◆ m_reserveCtrlCb

◆ m_rtnLinkCarrierCount

◆ m_sendCtrlCb

◆ m_superframeSeq

◆ m_symbolRate
