Base class for fading models such as Markov-based fading or fading trace. More...
#include "satellite-base-fading.h"

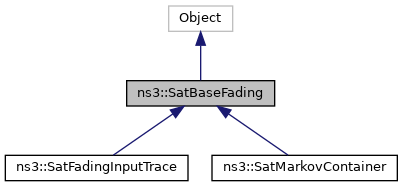

Inheritance diagram for ns3::SatBaseFading:
Collaboration diagram for ns3::SatBaseFading:
Public Types | |
| typedef Callback< double > | ElevationCallback |
| Gets elevation angle in degrees. More... | |
| typedef Callback< double > | VelocityCallback |
| Gets velocity in m/s. More... | |
Public Member Functions | |
| SatBaseFading () | |
| Constructor. More... | |
| virtual | ~SatBaseFading () |
| Destructor. More... | |
| virtual double | DoGetFading (Address macAddress, SatEnums::ChannelType_t channelType)=0 |
| Function for getting the fading value. More... | |
| double | GetFading (Address macAddress, SatEnums::ChannelType_t channelType) |
| Function for getting the fading value. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| NS-3 type id function. More... | |
Detailed Description
Base class for fading models such as Markov-based fading or fading trace.
This class defines the functions which all the different fading models must implement for the fading interface. This base class itself is abstract and will not implement any real functionality.
Definition at line 42 of file satellite-base-fading.h.
Member Typedef Documentation
◆ ElevationCallback
| typedef Callback<double> ns3::SatBaseFading::ElevationCallback |
Gets elevation angle in degrees.
Definition at line 48 of file satellite-base-fading.h.
◆ VelocityCallback
| typedef Callback<double> ns3::SatBaseFading::VelocityCallback |
Gets velocity in m/s.
Definition at line 53 of file satellite-base-fading.h.
Constructor & Destructor Documentation
◆ SatBaseFading()
| ns3::SatBaseFading::SatBaseFading | ( | ) |
Constructor.
Definition at line 39 of file satellite-base-fading.cc.
◆ ~SatBaseFading()
|
virtual |
Destructor.
Definition at line 44 of file satellite-base-fading.cc.
Member Function Documentation
◆ DoGetFading()
|
pure virtual |
Function for getting the fading value.
This is an abstract method, thus it is implemented in the inherited fading classes.
- Parameters
-
macAddress channelType channel type
- Returns
- fading value
Implemented in ns3::SatMarkovContainer, and ns3::SatFadingInputTrace.
Referenced by GetFading().

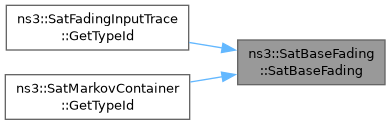

Here is the caller graph for this function:
◆ GetFading()
| double ns3::SatBaseFading::GetFading | ( | Address | macAddress, |
| SatEnums::ChannelType_t | channelType | ||
| ) |
Function for getting the fading value.
- Parameters
-
macAddress channelType channel type
- Returns
- fading value
Definition at line 50 of file satellite-base-fading.cc.
References DoGetFading().
Here is the call graph for this function:
◆ GetTypeId()
|
static |
The documentation for this class was generated from the following files:
- /builds/sns3/satellite/satellite/model/satellite-base-fading.h
- /builds/sns3/satellite/satellite/model/satellite-base-fading.cc
