Build a satellite network set with needed objects and configuration. More...

#include "satellite-helper.h"

Inheritance diagram for ns3::SatHelper:

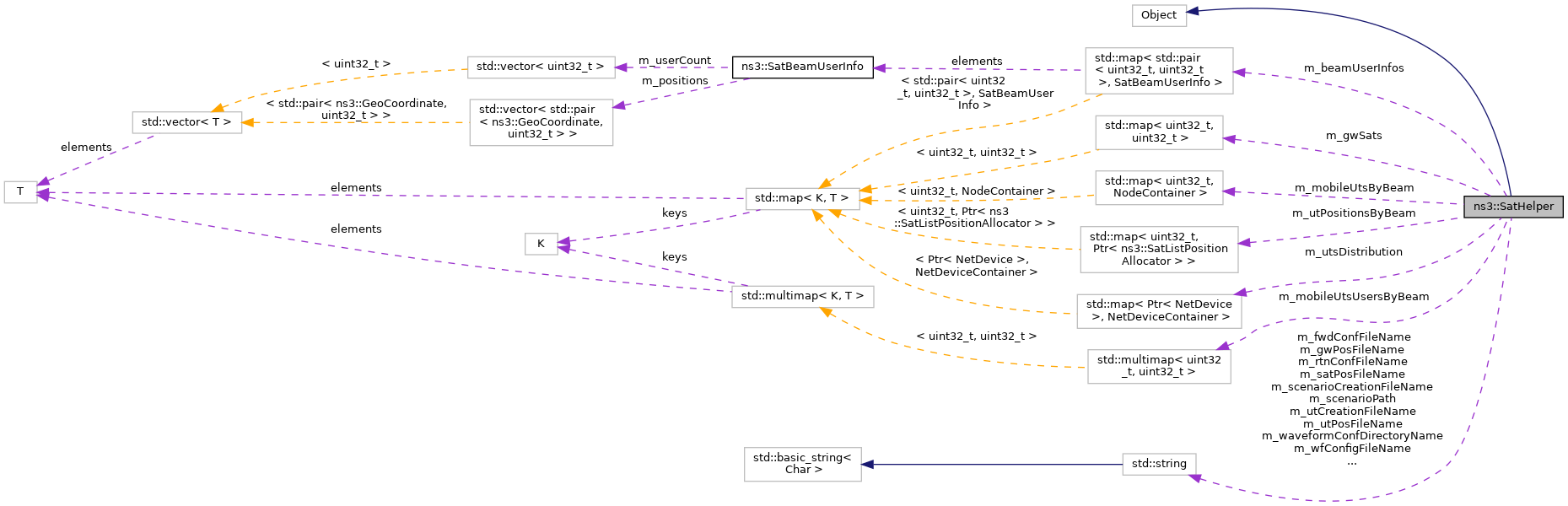

Collaboration diagram for ns3::SatHelper:

Public Types
typedef std::map< std::pair< uint32_t, uint32_t >, SatBeamUserInfo >	BeamUserInfoMap_t
	definition for beam map key is pair sat ID / beam ID and value is UT/user info. More...

typedef Callback< uint32_t >	GetNextUtUserCountCallback
	Get number of Users for a UT. More...

enum	PreDefinedScenario_t { NONE , SIMPLE , LARGER , FULL }
	Values for pre-defined scenarios to be used by helper when building satellite network topology base. More...

Public Member Functions
	SatHelper ()
	Create a base SatHelper for creating customized Satellite topologies. More...

	SatHelper (std::string scenarioName)
	Create a base SatHelper for creating customized Satellite topologies. More...

virtual	~SatHelper ()
	Destructor for SatHelper. More...

void	CreateConstellationScenario (BeamUserInfoMap_t &info, GetNextUtUserCountCallback getNextUtUserCountCallback)
	Creates satellite objects according to constellation parameters. More...

void	CreatePredefinedScenario (PreDefinedScenario_t scenario)
	Create a pre-defined SatHelper to make life easier when creating Satellite topologies. More...

void	CreateUserDefinedScenario (BeamUserInfoMap_t &info)
	Creates satellite objects according to user defined scenario. More...

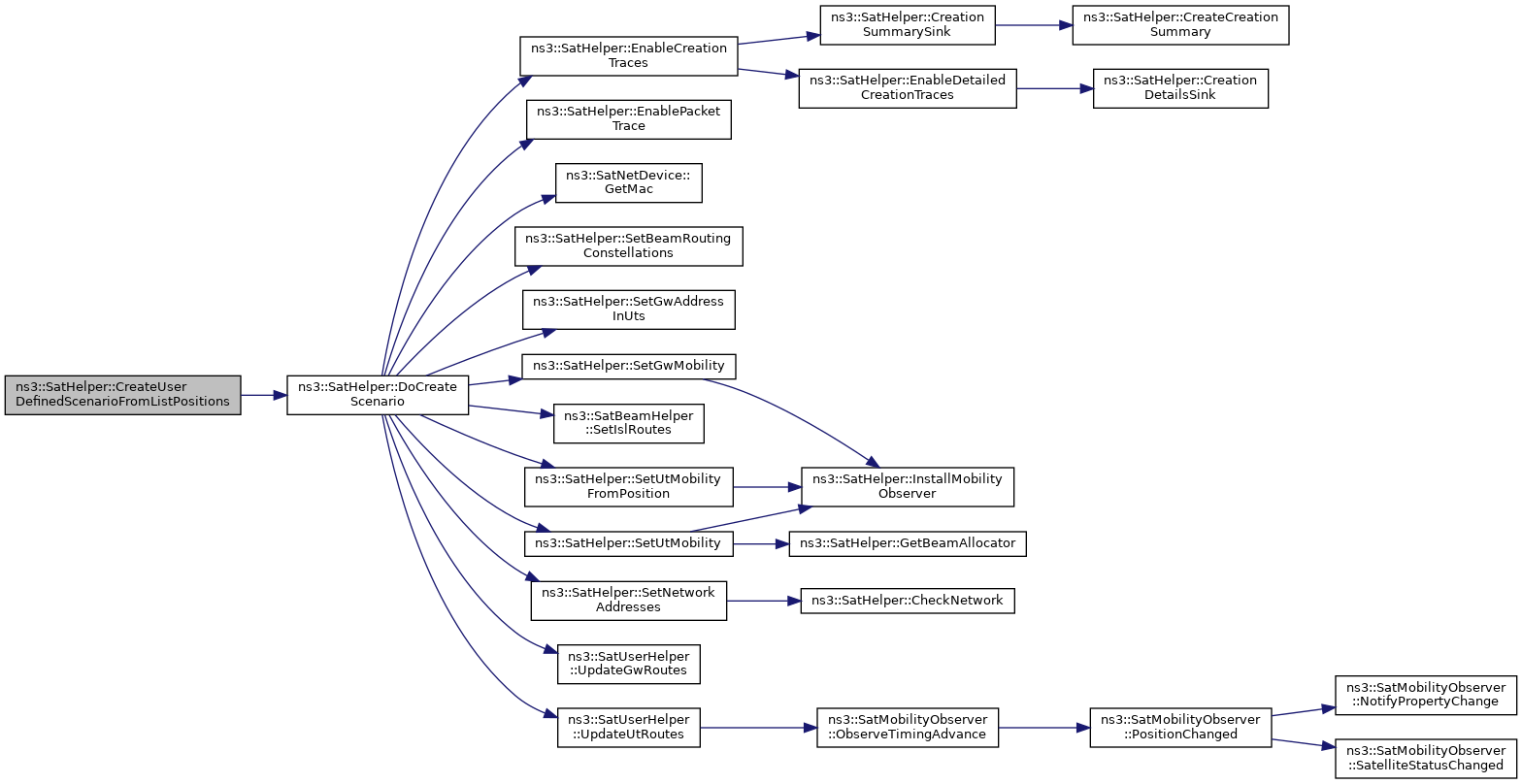

void	CreateUserDefinedScenarioFromListPositions (uint32_t satId, BeamUserInfoMap_t &info, bool checkBeam)
	Creates satellite objects according to user defined scenario. More...

void	DoDispose ()
	Dispose of this class instance. More...

NodeContainer	GeoSatNodes ()

Ptr< SatAntennaGainPatternContainer >	GetAntennaGainPatterns ()

Ptr< SatSpotBeamPositionAllocator >	GetBeamAllocator (uint32_t beamId)
	Create a SatSpotBeamPositionAllocator able to generate random position within the given beam. More...

uint32_t	GetBeamCount () const
	Get count of the beams (configurations). More...

Ptr< SatBeamHelper >	GetBeamHelper () const

uint32_t	GetClosestSat (GeoCoordinate position)
	Get closest satellite to a ground station. More...

Ptr< SatGroupHelper >	GetGroupHelper () const

NodeContainer	GetGwUsers () const

TypeId	GetInstanceTypeId (void) const
	Get the type ID of object instance. More...

Ipv4Address	GetUserAddress (Ptr< Node > node)

Ptr< SatUserHelper >	GetUserHelper () const

NodeContainer	GetUtUsers () const

NodeContainer	GetUtUsers (NodeContainer utNodes) const

NodeContainer	GetUtUsers (Ptr< Node > utNode) const

NodeContainer	GwNodes ()

bool	IsSatConstellationEnabled ()

Ptr< Node >	LoadMobileUtFromFile (uint32_t satId, const std::string &filename)
	Load an UT with a SatTracedMobilityModel associated to them from the given file. More...

void	LoadMobileUTsFromFolder (uint32_t satId, const std::string &folderName, Ptr< RandomVariableStream > utUsers)
	Load UTs with a SatTracedMobilityModel associated to them from the files found in the given folder. More...

void	PrintTopology (std::ostream &os) const
	Print all the satellite topology. More...

void	SetAntennaGainPatterns (Ptr< SatAntennaGainPatternContainer > antennaGainPattern)
	Set the antenna gain patterns. More...

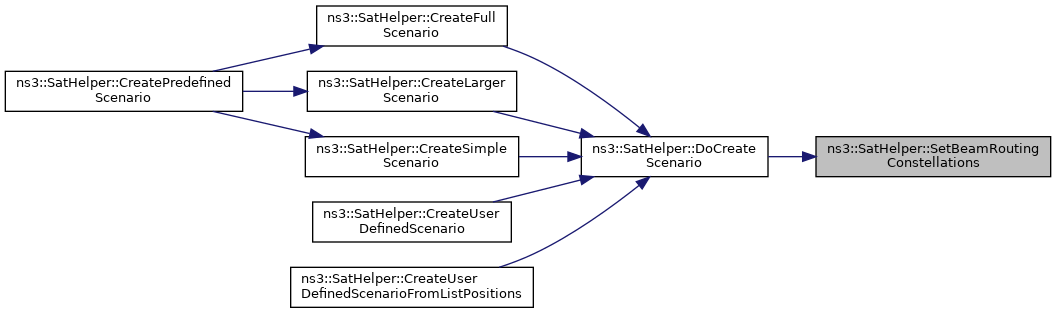

void	SetBeamRoutingConstellations ()
	Populate the routes, when using constellations. More...

void	SetCustomUtPositionAllocator (Ptr< SatListPositionAllocator > posAllocator)
	Set custom position allocator. More...

void	SetGroupHelper (Ptr< SatGroupHelper > groupHelper)
	set the group helper. More...

void	SetGwAddressInUt ()
	Set the value of GW address for each UT. More...

void	SetMulticastGroupRoutes (Ptr< Node > source, NodeContainer receivers, Ipv4Address sourceAddress, Ipv4Address groupAddress)
	Set multicast group to satellite network and IP router. More...

void	SetUtPositionAllocatorForBeam (uint32_t beamId, Ptr< SatListPositionAllocator > posAllocator)
	Set custom position allocator for specific beam. More...

NodeContainer	UtNodes ()

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef SatBeamHelper::MulticastBeamInfo_t	MulticastBeamInfo_t

typedef SatBeamHelper::MulticastBeamInfoItem_t	MulticastBeamInfoItem_t

Private Member Functions
void	CheckNetwork (std::string networkName, const Ipv4Address &firstNetwork, const Ipv4Mask &mask, const std::set< uint32_t > &networkAddresses, uint32_t networkCount, uint32_t hostCount) const
	Check validity of the configured network space. More...

bool	ConstructMulticastInfo (Ptr< Node > sourceUtNode, NodeContainer receivers, MulticastBeamInfo_t &beamInfo, Ptr< NetDevice > &routerUserOutputDev)
	Construct multicast information from source UT node and group receivers. More...

std::string	CreateCreationSummary (std::string title)
	Creates trace summary starting with give title. More...

void	CreateFullScenario ()
	Creates satellite objects according to full scenario. More...

void	CreateLargerScenario ()
	Creates satellite objects according to larger scenario. More...

void	CreateSimpleScenario ()
	Creates satellite objects according to simple scenario. More...

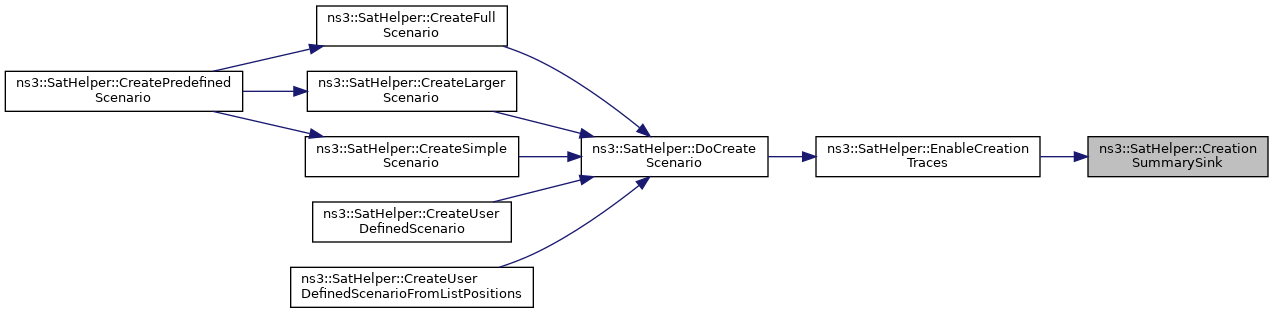

void	CreationSummarySink (std::string title)
	Sink for creation summary traces. More...

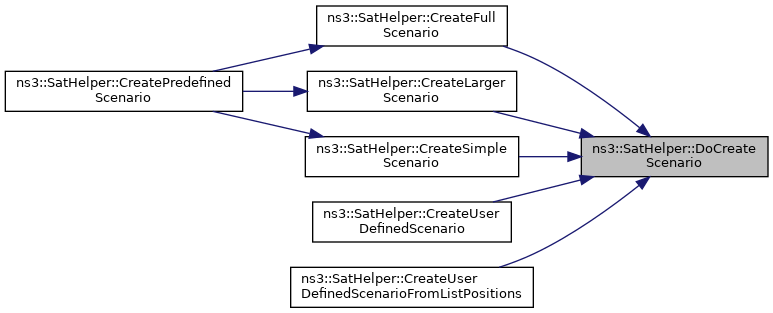

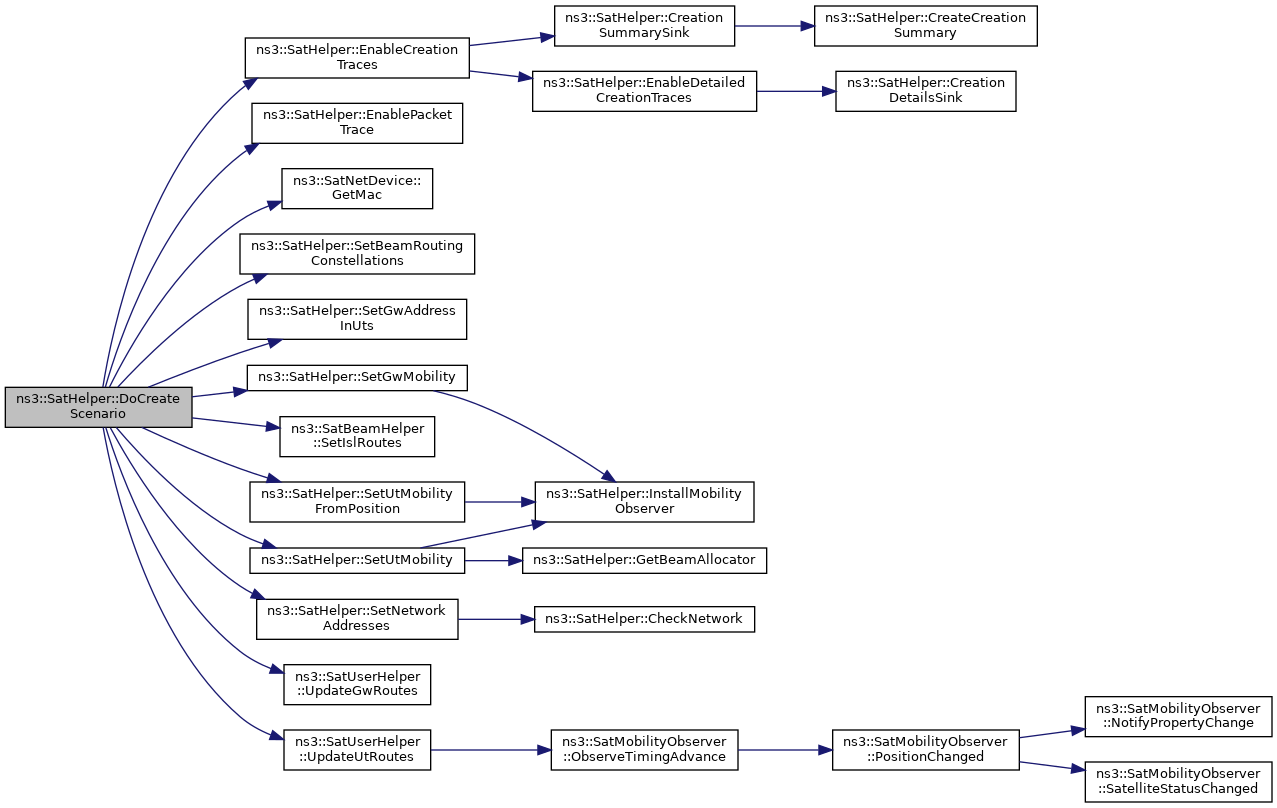

void	DoCreateScenario (BeamUserInfoMap_t &info, uint32_t gwUsers)
	Creates satellite objects according to given beam info. More...

void	EnableCreationTraces ()
	Enables creation traces to be written in given file. More...

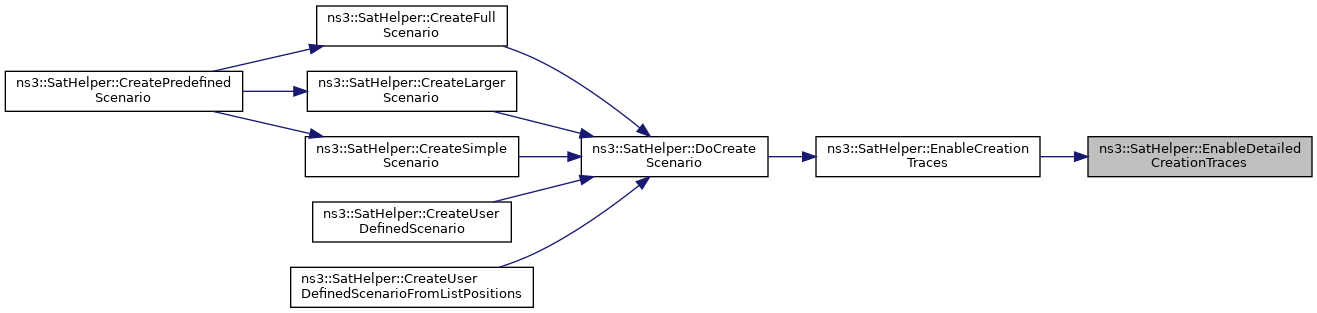

void	EnableDetailedCreationTraces ()
	Enables creation traces in sub-helpers. More...

void	EnablePacketTrace ()
	Enable packet traces. More...

Ptr< NetDevice >	FindMatchingDevice (Ptr< NetDevice > devA, Ptr< Node > nodeB)
	Find given device's counterpart (device belonging to same network) device from given node. More...

bool	FindMatchingDevices (Ptr< Node > nodeA, Ptr< Node > nodeB, std::pair< Ptr< NetDevice >, Ptr< NetDevice >> &matchingDevices)
	Find counterpart (device belonging to same network) devices from given nodes. More...

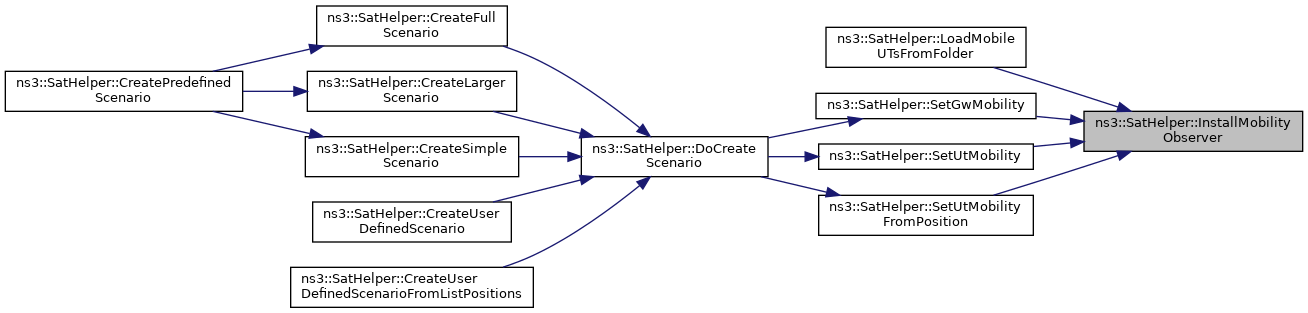

void	InstallMobilityObserver (uint32_t satId, NodeContainer nodes) const
	Install Satellite Mobility Observer to nodes, if observer doesn't exist already in a node. More...

void	LoadConstellationTopology (std::string path, std::vector< std::string > &tles, std::vector< std::pair< uint32_t, uint32_t >> &isls)
	Load a constellation topology. More...

void	SetGeoSatMobility (Ptr< Node > node)
	Sets mobility to created Sat Geo node. More...

void	SetGwMobility (uint32_t satId, Ptr< Node > gw, uint32_t gwIndex)
	Sets mobilities to created GW nodes. More...

void	SetMulticastRouteToSourceNetwork (Ptr< Node > source, Ptr< Node > destination)
	Set multicast traffic to source's nwtwork by finding source network utilizing given destination node. More...

void	SetNetworkAddresses (BeamUserInfoMap_t &info, uint32_t gwUsers) const
	Set configured network addresses to user and beam helpers. More...

void	SetSatMobility (Ptr< Node > node, std::string tle="")
	Sets SGP4 mobility to created Sat node. More...

void	SetUtMobility (NodeContainer uts, uint32_t satId, uint32_t beamId)
	Sets mobility to created UT nodes. More...

void	SetUtMobilityFromPosition (NodeContainer uts, uint32_t satId, uint32_t beamId, std::vector< std::pair< GeoCoordinate, uint32_t >> positionsAndGroupId)
	Sets mobility to created UT nodes when position is known. More...

Static Private Member Functions
static void	CreationDetailsSink (Ptr< OutputStreamWrapper > stream, std::string context, std::string info)
	Sink for creation details traces. More...

Private Attributes
Ptr< SatAntennaGainPatternContainer >	m_antennaGainPatterns
	Antenna gain patterns for all spot-beams. More...

Ptr< SatBeamHelper >	m_beamHelper
	Beam helper. More...

Ipv4Address	m_beamNetworkAddress
	Initial network number of satellite devices, e.g., 10.1.1.0. More...

Ipv4Mask	m_beamNetworkMask
	Network mask number of satellite devices. More...

BeamUserInfoMap_t	m_beamUserInfos
	Info for beam creation in user defined scenario. More...

TracedCallback< std::string >	m_creationDetailsTrace
	Trace callback for creation traces (details) More...

TracedCallback< std::string >	m_creationSummaryTrace
	Trace callback for creation traces (summary) More...

bool	m_creationTraces
	flag to indicate if creation trace should be enabled for scenario creation. More...

Ptr< OutputStreamWrapper >	m_creationTraceStream
	Stream wrapper used for creation traces. More...

bool	m_detailedCreationTraces
	flag to indicate if detailed creation trace should be enabled for scenario creation. More...

std::string	m_fwdConfFileName

std::string	m_geoPosFileName

Ptr< SatGroupHelper >	m_groupHelper
	Group helper. More...

std::map< Ptr< Node >, Ptr< Node > >	m_gwDistribution
	Map indicating the GW node associated to each UT node. More...

Ipv4Address	m_gwNetworkAddress
	Initial network number of GW, router, and GW users, e.g., 10.2.1.0. More...

Ipv4Mask	m_gwNetworkMask
	Network mask number of GW, router, and GW users. More...

std::string	m_gwPosFileName

std::map< uint32_t, uint32_t >	m_gwSats
	Map of closest satellite for each GW. More...

NodeContainer	m_gwUser
	Gateway container. More...

uint32_t	m_gwUsers
	Number of users created in public network (behind GWs) in full or user-defined scenario. More...

std::map< uint32_t, NodeContainer >	m_mobileUtsByBeam
	List of mobile UTs by beam ID. More...

std::multimap< uint32_t, uint32_t >	m_mobileUtsUsersByBeam
	List of users by mobile UT by beam ID. More...

bool	m_packetTraces
	flag to indicate if packet trace should be enabled after scenario creation. More...

std::string	m_rtnConfFileName
	Configuration file names as attributes of this class. More...

Ptr< SatConf >	m_satConf
	Configuration for satellite network. More...

bool	m_satConstellationEnabled
	Use a constellation of satellites. More...

std::string	m_satConstellationFolder
	Folder where are stored satellite constellation data. More...

bool	m_satMobilitySGP4Enabled
	The satellite moves following a SGP4 model. More...

std::string	m_satMobilitySGP4TleFileName
	TLE input filename used for SGP4 mobility. More...

bool	m_scenarioCreated
	flag to check if scenario is already created. More...

std::string	m_scenarioCreationFileName
	File name for scenario creation trace output. More...

SatEnums::Standard_t	m_standard

Ptr< SatUserHelper >	m_userHelper
	User helper. More...

std::string	m_utCreationFileName
	File name for UT creation trace output. More...

Ipv4Address	m_utNetworkAddress
	Initial network number of UT and UT users, e.g., 10.3.1.0. More...

Ipv4Mask	m_utNetworkMask
	Network mask number of UT and UT users. More...

Ptr< SatListPositionAllocator >	m_utPositions
	User defined UT positions from SatConf (or manually set) More...

std::map< uint32_t, Ptr< SatListPositionAllocator > >	m_utPositionsByBeam
	User defined UT positions by beam ID. More...

std::map< Ptr< NetDevice >, NetDeviceContainer >	m_utsDistribution
	Map indicating all UT NetDevices associated to each GW NetDevice. More...

uint32_t	m_utsInBeam
	Number of UTs created per Beam in full or user-defined scenario. More...

Ptr< OutputStreamWrapper >	m_utTraceStream
	Stream wrapper used for UT position traces. More...

uint32_t	m_utUsers
	Number of users created in end user network (behind every UT) in full or user-defined scenario. More...

std::string	m_waveformConfFileName

std::string	m_wfConfigFileName
	File name for Waveform configurations file. More...

Static Private Attributes
static const uint16_t	MAX_ADDRESS_PREFIX_LENGTH = 31

static const uint16_t	MIN_ADDRESS_PREFIX_LENGTH = 1

Detailed Description

Build a satellite network set with needed objects and configuration.

Utilizes SatUserHelper and SatBeamHelper helper objects.

Definition at line 55 of file satellite-helper.h.

Member Typedef Documentation

◆ BeamUserInfoMap_t

typedef std::map<std::pair<uint32_t, uint32_t>, SatBeamUserInfo> ns3::SatHelper::BeamUserInfoMap_t

definition for beam map key is pair sat ID / beam ID and value is UT/user info.

Definition at line 61 of file satellite-helper.h.

◆ GetNextUtUserCountCallback

typedef Callback<uint32_t> ns3::SatHelper::GetNextUtUserCountCallback

Get number of Users for a UT.

Returns: The number of UT users

Definition at line 108 of file satellite-helper.h.

◆ MulticastBeamInfo_t

typedef SatBeamHelper::MulticastBeamInfo_t ns3::SatHelper::MulticastBeamInfo_t

private

Definition at line 321 of file satellite-helper.h.

◆ MulticastBeamInfoItem_t

typedef SatBeamHelper::MulticastBeamInfoItem_t ns3::SatHelper::MulticastBeamInfoItem_t

private

Definition at line 320 of file satellite-helper.h.

Member Enumeration Documentation

◆ PreDefinedScenario_t

enum ns3::SatHelper::PreDefinedScenario_t

Values for pre-defined scenarios to be used by helper when building satellite network topology base.

Enumerator
NONE	NONE Not used.
SIMPLE	SIMPLE Simple scenario used as base.
LARGER	LARGER Larger scenario used as base.
FULL	FULL Full scenario used as base.

Definition at line 67 of file satellite-helper.h.

Constructor & Destructor Documentation

◆ SatHelper() [1/2]

ns3::SatHelper::SatHelper ( )

Create a base SatHelper for creating customized Satellite topologies.

Definition at line 219 of file satellite-helper.cc.

References ns3::SatConf::GetCarrierBandwidthHz(), ns3::SatConf::GetCarrierFrequencyHz(), ns3::SatBeamHelper::GetPropagationDelayModel(), LoadConstellationTopology(), ns3::SatEnums::LORA, m_antennaGainPatterns, m_beamHelper, m_fwdConfFileName, m_geoPosFileName, m_gwPosFileName, m_rtnConfFileName, m_satConf, m_satConstellationEnabled, m_satConstellationFolder, m_satMobilitySGP4Enabled, m_satMobilitySGP4TleFileName, m_standard, m_userHelper, m_waveformConfFileName, ns3::SatEnums::PD_CONSTANT_SPEED, ns3::SatEnums::REGENERATION_NETWORK, SetGeoSatMobility(), ns3::SatLoraConf::setSatConfAttributes(), and SetSatMobility().

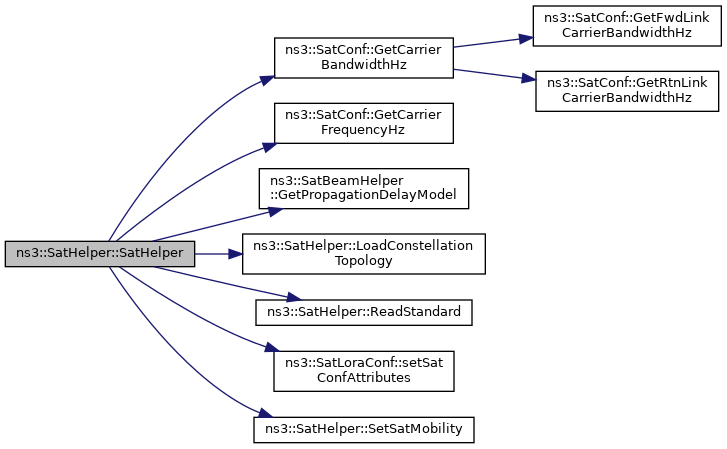

Here is the call graph for this function:

◆ SatHelper() [2/2]

ns3::SatHelper::SatHelper ( std::string scenarioName )

Create a base SatHelper for creating customized Satellite topologies.

◆ ~SatHelper()

virtual ns3::SatHelper::~SatHelper ( )

inlinevirtual

Destructor for SatHelper.

Definition at line 100 of file satellite-helper.h.

Member Function Documentation

◆ CheckNetwork()

void ns3::SatHelper::CheckNetwork	(	std::string	networkName,
		const Ipv4Address &	firstNetwork,
		const Ipv4Mask &	mask,
		const std::set< uint32_t > &	networkAddresses,
		uint32_t	networkCount,
		uint32_t	hostCount
	)		const

private

Check validity of the configured network space.

Parameters

networkName	Name string of the network to check. To be used when printing out possible errors.
firstNetwork	Address of the first network.
mask	The mask of the networks.
networkAddresses	The container of first address values of the networks used all together.
networkCount	The number of the networks created in network.
hostCount	The maximum number of the hosts created in a network.

Definition at line 1827 of file satellite-helper.cc.

References MAX_ADDRESS_PREFIX_LENGTH, and MIN_ADDRESS_PREFIX_LENGTH.

Referenced by SetNetworkAddresses().

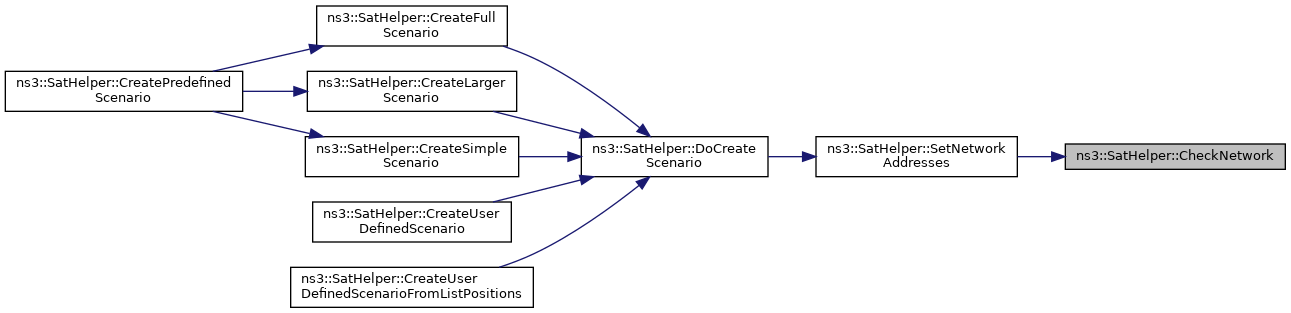

Here is the caller graph for this function:

◆ ConstructMulticastInfo()

bool ns3::SatHelper::ConstructMulticastInfo	(	Ptr< Node >	sourceUtNode,
		NodeContainer	receivers,
		MulticastBeamInfo_t &	beamInfo,
		Ptr< NetDevice > &	routerUserOutputDev
	)

private

Construct multicast information from source UT node and group receivers.

Parameters

sourceUtNode	Pointer to UT source node. When NULL source node is not UT.
receivers	Container of the multicast group receivers.
beamInfo	Beam information to be filled in for multicast group.
routerUserOutputDev	Pointer to router output device for backbone network (GW users). Set to NULL when traffic is not needed to route backbone network.

Returns: true when multicast traffic shall be routed to source's network.

Definition at line 1651 of file satellite-helper.cc.

References FindMatchingDevices(), m_beamHelper, and m_userHelper.

Referenced by SetMulticastGroupRoutes().

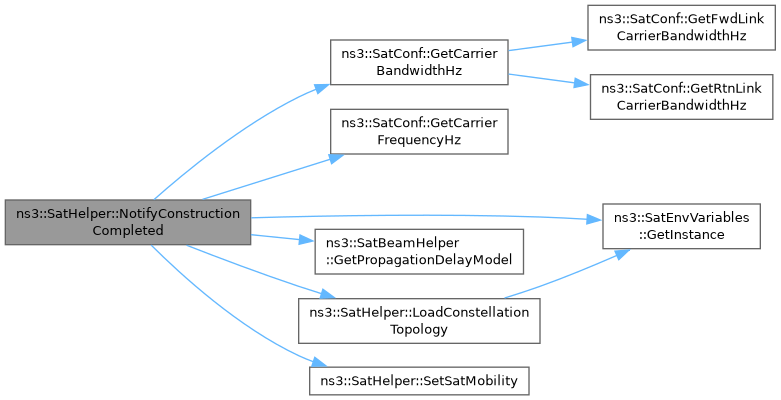

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateConstellationScenario()

void ns3::SatHelper::CreateConstellationScenario	(	BeamUserInfoMap_t &	info,
		GetNextUtUserCountCallback	getNextUtUserCountCallback
	)

Creates satellite objects according to constellation parameters.

Parameters

infoList	information of the enabled beams. UT information is given in parameters files.
getNextUtUserCountCallback	Callback to get number of users per UT.

Definition at line 692 of file satellite-helper.cc.

References DoCreateScenario(), m_antennaGainPatterns, m_beamHelper, m_groupHelper, m_gwSats, m_gwUsers, and m_satConf.

Here is the call graph for this function:

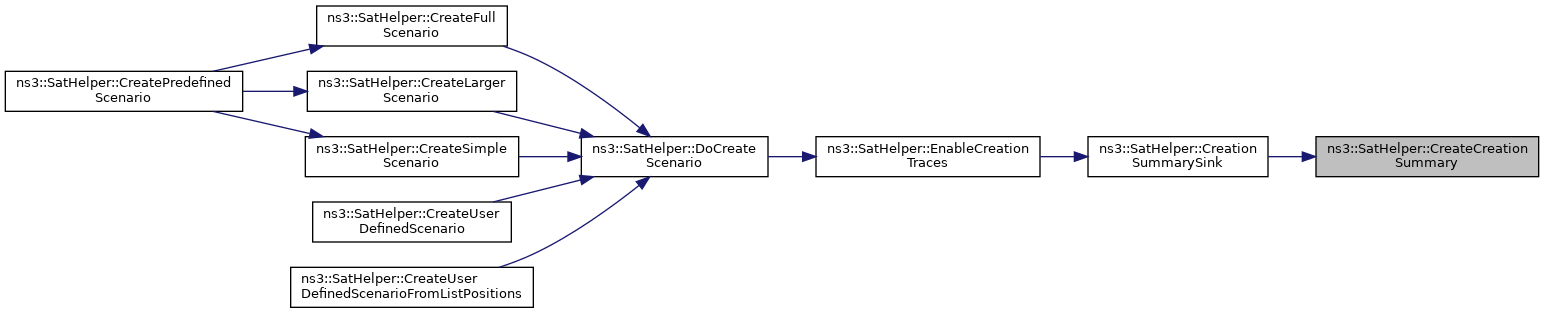

◆ CreateCreationSummary()

std::string ns3::SatHelper::CreateCreationSummary ( std::string title )

private

Creates trace summary starting with give title.

Parameters

title title for summary

Returns: std::string as summary

Definition at line 1410 of file satellite-helper.cc.

References m_beamHelper, and m_userHelper.

Referenced by CreationSummarySink().

Here is the caller graph for this function:

◆ CreateFullScenario()

void ns3::SatHelper::CreateFullScenario ( )

private

Creates satellite objects according to full scenario.

Definition at line 588 of file satellite-helper.cc.

References DoCreateScenario(), m_beamUserInfos, m_creationSummaryTrace, m_gwUsers, m_satConf, m_utsInBeam, and m_utUsers.

Referenced by CreatePredefinedScenario().

Here is the call graph for this function:

Here is the caller graph for this function:

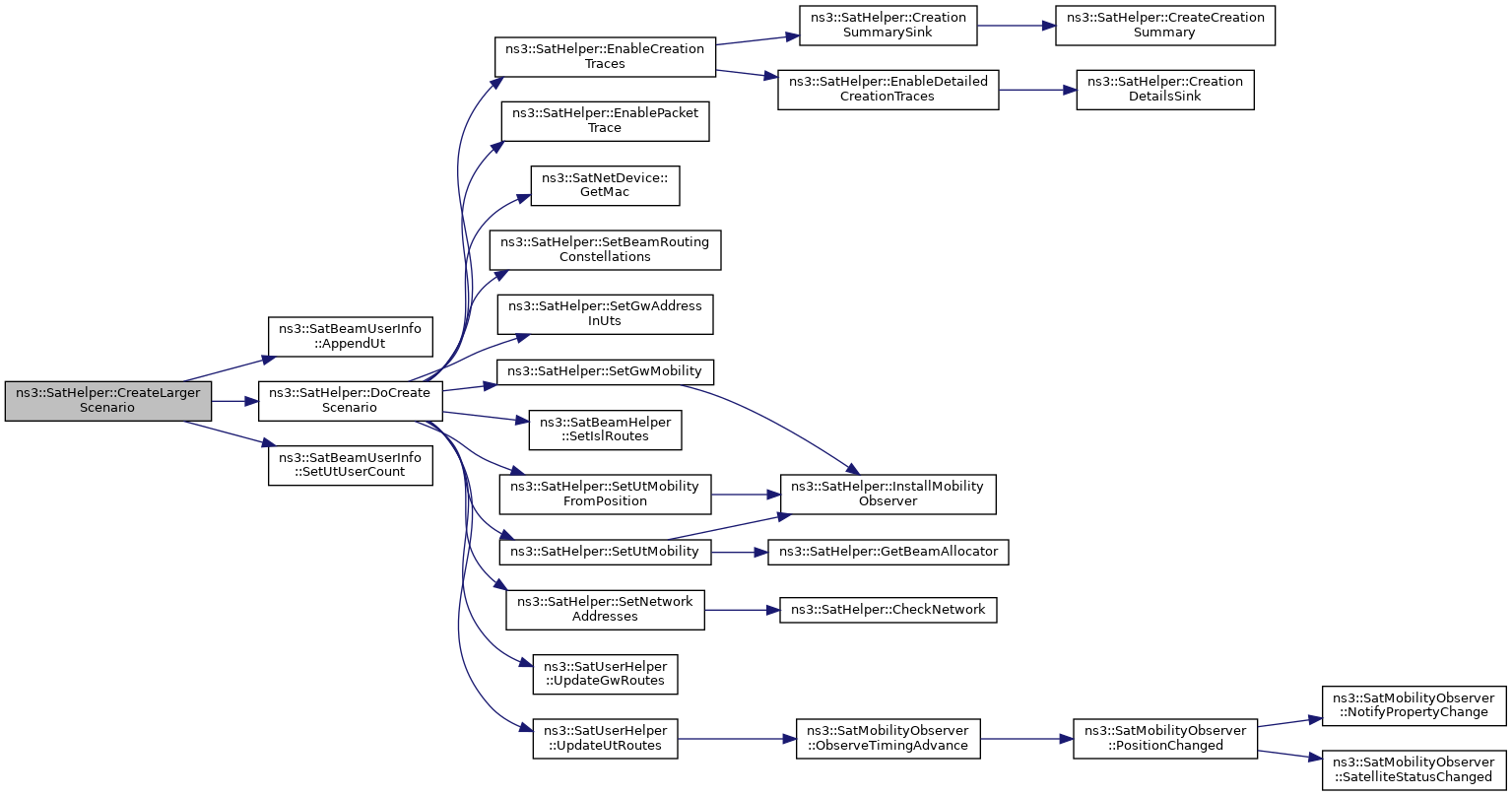

◆ CreateLargerScenario()

void ns3::SatHelper::CreateLargerScenario ( )

private

Creates satellite objects according to larger scenario.

Definition at line 565 of file satellite-helper.cc.

References ns3::SatBeamUserInfo::AppendUt(), DoCreateScenario(), m_creationSummaryTrace, and ns3::SatBeamUserInfo::SetUtUserCount().

Referenced by CreatePredefinedScenario().

Here is the call graph for this function:

Here is the caller graph for this function:

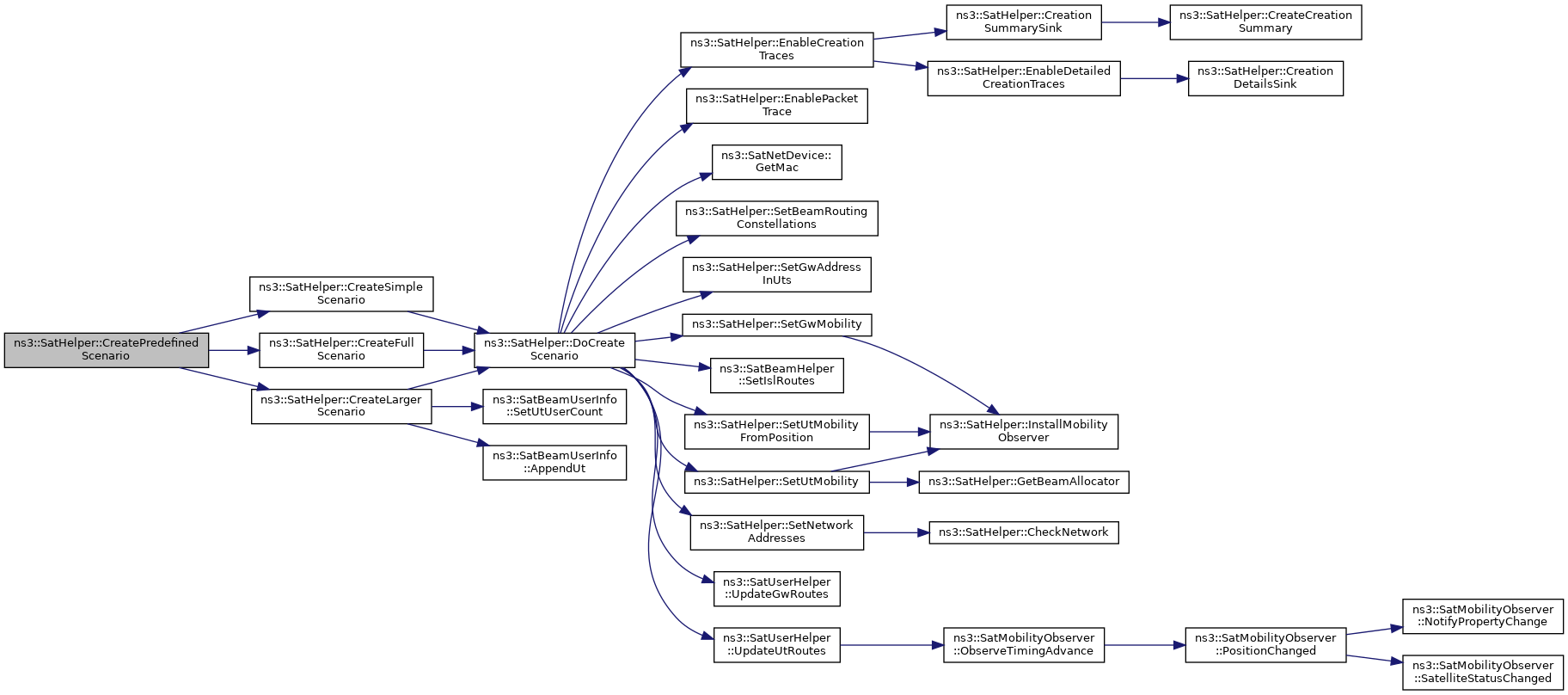

◆ CreatePredefinedScenario()

void ns3::SatHelper::CreatePredefinedScenario ( PreDefinedScenario_t scenario )

Create a pre-defined SatHelper to make life easier when creating Satellite topologies.

Definition at line 351 of file satellite-helper.cc.

References CreateFullScenario(), CreateLargerScenario(), CreateSimpleScenario(), FULL, LARGER, and SIMPLE.

Here is the call graph for this function:

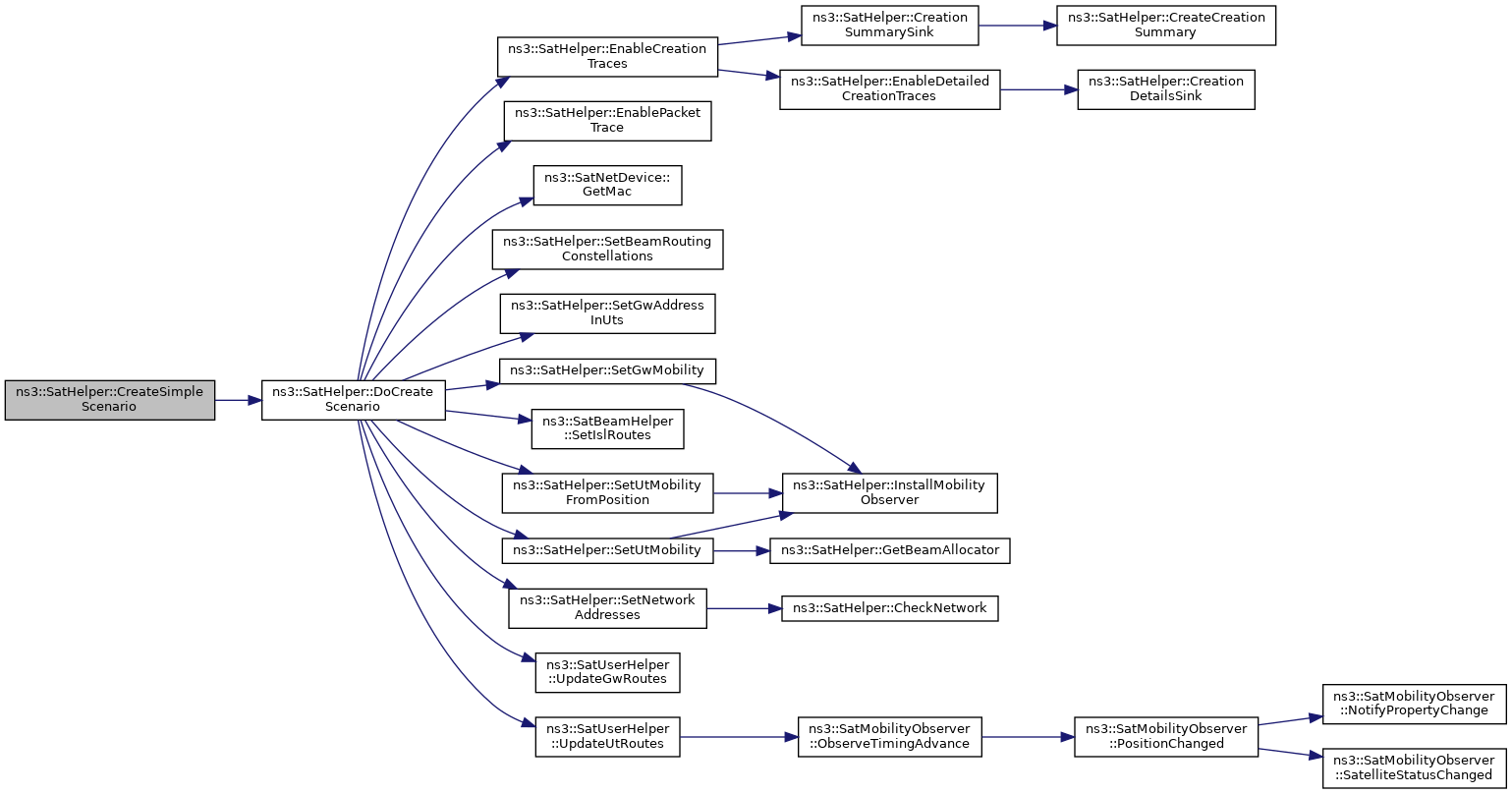

◆ CreateSimpleScenario()

void ns3::SatHelper::CreateSimpleScenario ( )

private

Creates satellite objects according to simple scenario.

Definition at line 551 of file satellite-helper.cc.

References DoCreateScenario(), and m_creationSummaryTrace.

Referenced by CreatePredefinedScenario().

Here is the call graph for this function:

Here is the caller graph for this function:

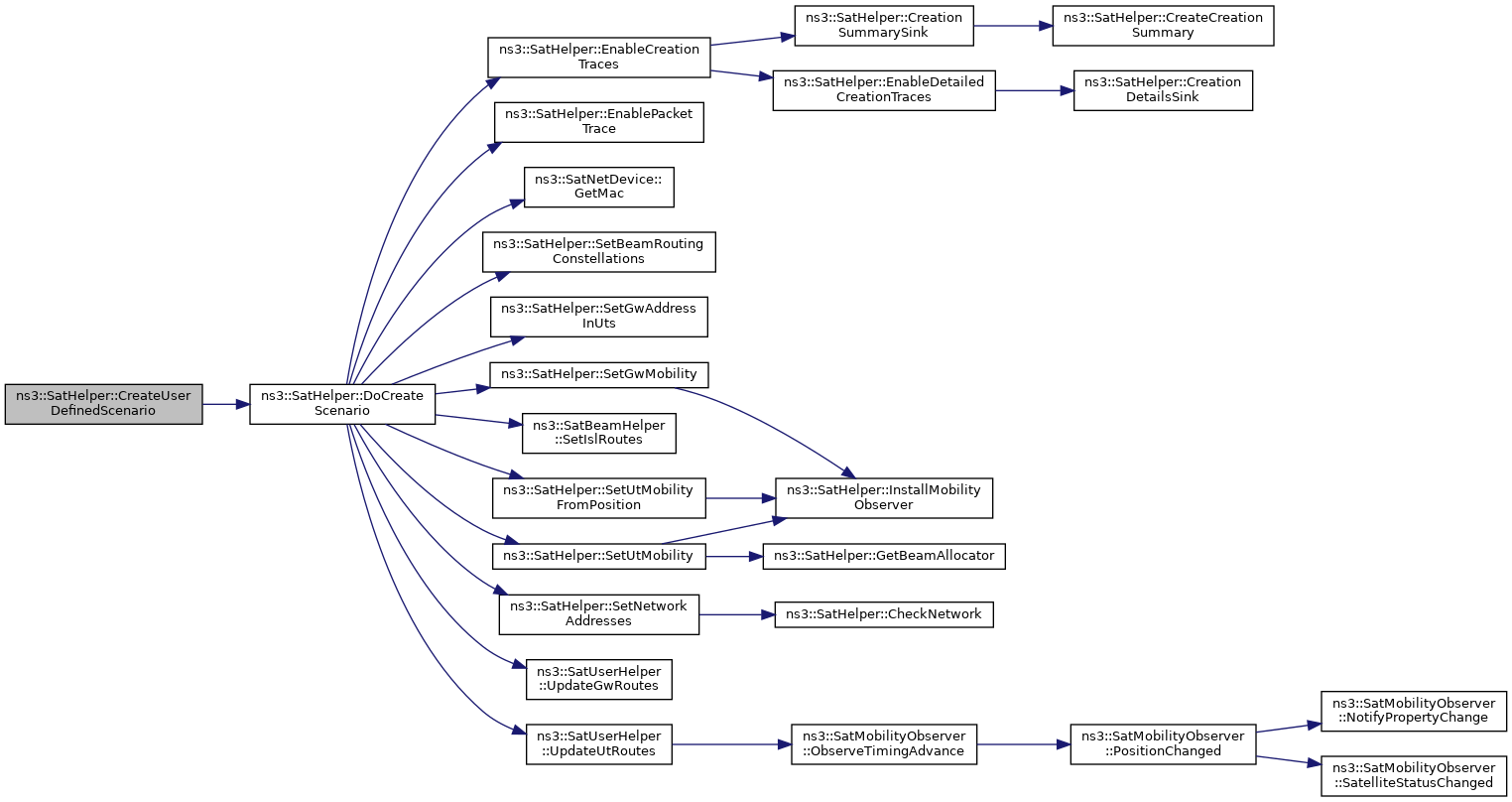

◆ CreateUserDefinedScenario()

void ns3::SatHelper::CreateUserDefinedScenario ( BeamUserInfoMap_t & info )

Creates satellite objects according to user defined scenario.

Parameters

info	information of the beams, and beam UTs and users in beams

Definition at line 618 of file satellite-helper.cc.

References DoCreateScenario(), m_creationSummaryTrace, and m_gwUsers.

Here is the call graph for this function:

◆ CreateUserDefinedScenarioFromListPositions()

void ns3::SatHelper::CreateUserDefinedScenarioFromListPositions	(	uint32_t	satId,
		BeamUserInfoMap_t &	info,
		bool	checkBeam
	)

Creates satellite objects according to user defined scenario.

Positions are read from different input files from file set by attribute ns3::SatConf::UtPositionInputFileName.

Parameters

satId	The ID of the satellite
info	information of the beams, and beam UTs and users in beams
checkBeam	Check that positions (set through SatConf) match with given beam (the beam is the best according to configured antenna patterns).

Definition at line 644 of file satellite-helper.cc.

References DoCreateScenario(), m_antennaGainPatterns, m_creationSummaryTrace, m_gwUsers, m_satConf, and m_utPositions.

Here is the call graph for this function:

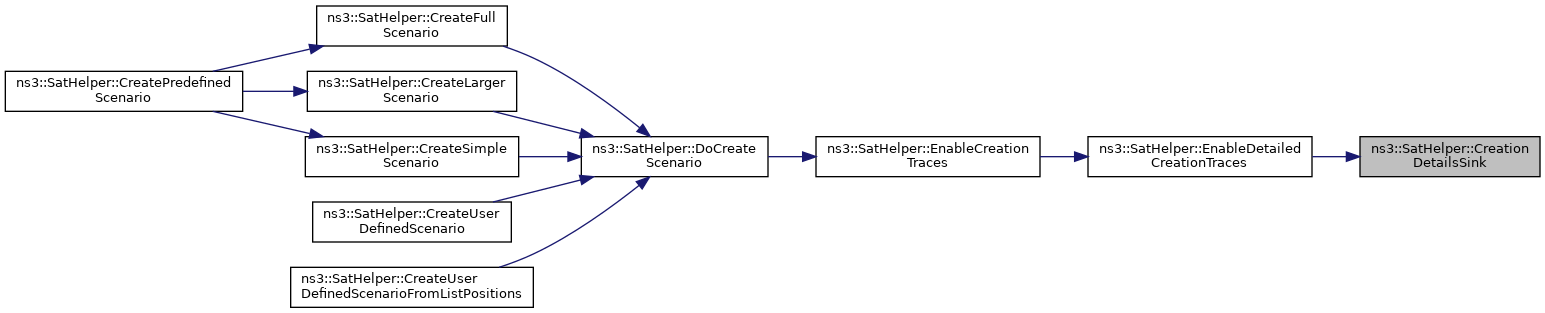

◆ CreationDetailsSink()

void ns3::SatHelper::CreationDetailsSink	(	Ptr< OutputStreamWrapper >	stream,
		std::string	context,
		std::string	info
	)

staticprivate

Sink for creation details traces.

Parameters

stream	stream for traces
context	context for traces
info	creation info

Definition at line 1393 of file satellite-helper.cc.

Referenced by EnableDetailedCreationTraces().

Here is the caller graph for this function:

◆ CreationSummarySink()

void ns3::SatHelper::CreationSummarySink ( std::string title )

private

Sink for creation summary traces.

Parameters

title creation summary title

Definition at line 1401 of file satellite-helper.cc.

References CreateCreationSummary(), m_beamHelper, m_creationTraceStream, and m_utTraceStream.

Referenced by EnableCreationTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoCreateScenario()

void ns3::SatHelper::DoCreateScenario	(	BeamUserInfoMap_t &	info,
		uint32_t	gwUsers
	)

private

Creates satellite objects according to given beam info.

Parameters

infoList	information of the sats and beam to create (and beams which are given in map)
gwUsers	number of the users in GW(s) side

GW and beam ids are assumed to be the same for both directions currently!

Definition at line 731 of file satellite-helper.cc.

References ns3::SatConf::BEAM_ID_INDEX, EnableCreationTraces(), EnablePacketTrace(), ns3::SatConf::F_FREQ_ID_INDEX, ns3::SatNetDevice::GetMac(), ns3::SatConf::GW_ID_INDEX, GwNodes(), ns3::SatEnums::LD_FORWARD, ns3::SatEnums::LD_RETURN, ns3::SatLog::LOG_WARNING, ns3::SatEnums::LORA, m_beamHelper, m_creationTraces, m_gwDistribution, m_gwSats, m_mobileUtsByBeam, m_mobileUtsUsersByBeam, m_packetTraces, m_satConf, m_satConstellationEnabled, m_scenarioCreated, m_standard, m_userHelper, m_utsDistribution, SetBeamRoutingConstellations(), SetGwAddressInUt(), SetGwMobility(), SetNetworkAddresses(), SetUtMobility(), SetUtMobilityFromPosition(), ns3::SatConf::U_FREQ_ID_INDEX, ns3::SatUserHelper::UpdateGwRoutes(), ns3::SatUserHelper::UpdateUtRoutes(), and UtNodes().

Referenced by CreateConstellationScenario(), CreateFullScenario(), CreateLargerScenario(), CreateSimpleScenario(), CreateUserDefinedScenario(), and CreateUserDefinedScenarioFromListPositions().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::SatHelper::DoDispose ( )

Dispose of this class instance.

Definition at line 1427 of file satellite-helper.cc.

References m_antennaGainPatterns, m_beamHelper, m_mobileUtsByBeam, m_mobileUtsUsersByBeam, m_userHelper, and m_utPositionsByBeam.

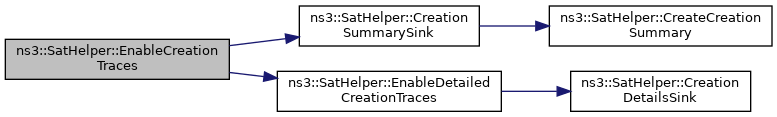

◆ EnableCreationTraces()

void ns3::SatHelper::EnableCreationTraces ( )

private

Enables creation traces to be written in given file.

Definition at line 376 of file satellite-helper.cc.

References CreationSummarySink(), EnableDetailedCreationTraces(), m_creationTraceStream, m_detailedCreationTraces, m_scenarioCreationFileName, m_utCreationFileName, and m_utTraceStream.

Referenced by DoCreateScenario().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnableDetailedCreationTraces()

void ns3::SatHelper::EnableDetailedCreationTraces ( )

private

Enables creation traces in sub-helpers.

Definition at line 438 of file satellite-helper.cc.

References CreationDetailsSink(), m_beamHelper, m_creationTraceStream, and m_userHelper.

Referenced by EnableCreationTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnablePacketTrace()

void ns3::SatHelper::EnablePacketTrace ( )

private

Enable packet traces.

Definition at line 402 of file satellite-helper.cc.

References m_beamHelper.

Referenced by DoCreateScenario().

Here is the caller graph for this function:

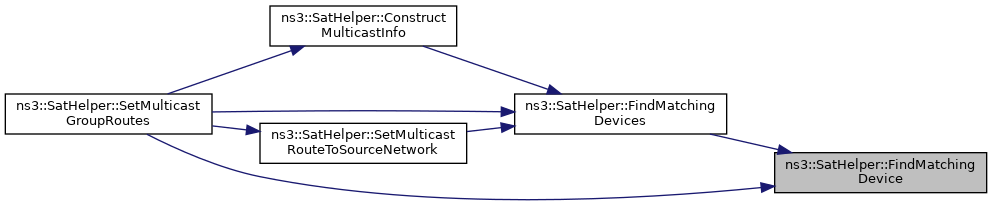

◆ FindMatchingDevice()

Ptr< NetDevice > ns3::SatHelper::FindMatchingDevice	(	Ptr< NetDevice >	devA,
		Ptr< Node >	nodeB
	)

private

Find given device's counterpart (device belonging to same network) device from given node.

Parameters

devA	Pointer to the device whose counterpart device is found from given node.
nodeB	Pointer to node where given device's counterpart device is searched.

Returns: Pointer to device belonging to same network with given device in given node. NULL in cast that counterpart device is not found.

Definition at line 1588 of file satellite-helper.cc.

Referenced by FindMatchingDevices(), and SetMulticastGroupRoutes().

Here is the caller graph for this function:

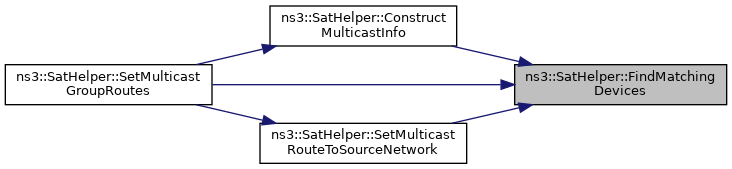

◆ FindMatchingDevices()

bool ns3::SatHelper::FindMatchingDevices	(	Ptr< Node >	nodeA,
		Ptr< Node >	nodeB,
		std::pair< Ptr< NetDevice >, Ptr< NetDevice >> &	matchingDevices
	)

private

Find counterpart (device belonging to same network) devices from given nodes.

Returns: The device belonging to same network with given device on given node.

Parameters

nodeA	Pointer to node A where given device's counterpart device is searched.
nodeB	Pointer to node A where given device's counterpart device is searched.
matchingDevices	Pair consisting pointers to found devices. first belongs to nodeA and second to nodeB.

Returns: true when counterpart devices are found from given nodes, false in other cases.

Definition at line 1566 of file satellite-helper.cc.

References FindMatchingDevice().

Referenced by ConstructMulticastInfo(), SetMulticastGroupRoutes(), and SetMulticastRouteToSourceNetwork().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GeoSatNodes()

NodeContainer ns3::SatHelper::GeoSatNodes ( )

inline

Definition at line 287 of file satellite-helper.h.

References m_beamHelper.

◆ GetAntennaGainPatterns()

Ptr< SatAntennaGainPatternContainer > ns3::SatHelper::GetAntennaGainPatterns ( )

Returns: Get the antenna gain patterns

Definition at line 530 of file satellite-helper.cc.

References m_antennaGainPatterns.

◆ GetBeamAllocator()

Ptr< SatSpotBeamPositionAllocator > ns3::SatHelper::GetBeamAllocator ( uint32_t beamId )

Create a SatSpotBeamPositionAllocator able to generate random position within the given beam.

Parameters

beamId the beam for which the position allocator should be configured

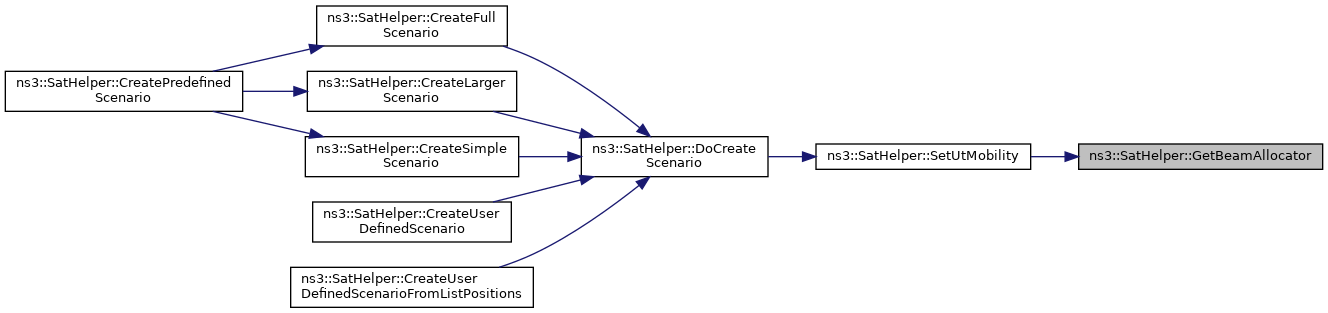

Definition at line 1198 of file satellite-helper.cc.

References m_antennaGainPatterns, m_beamHelper, m_satConf, and m_satMobilitySGP4Enabled.

Referenced by SetUtMobility().

Here is the caller graph for this function:

◆ GetBeamCount()

uint32_t ns3::SatHelper::GetBeamCount ( ) const

Get count of the beams (configurations).

Returns: beam count

Definition at line 543 of file satellite-helper.cc.

References m_satConf.

◆ GetBeamHelper()

Ptr< SatBeamHelper > ns3::SatHelper::GetBeamHelper ( ) const

Returns: pointer to beam helper.

Definition at line 502 of file satellite-helper.cc.

References m_beamHelper.

◆ GetClosestSat()

uint32_t ns3::SatHelper::GetClosestSat ( GeoCoordinate position )

Get closest satellite to a ground station.

Parameters

position The position of the ground station

Returns: The ID of the closest satellite

Definition at line 451 of file satellite-helper.cc.

References m_beamHelper.

Referenced by SetGwAddressInUt().

Here is the caller graph for this function:

◆ GetGroupHelper()

Ptr< SatGroupHelper > ns3::SatHelper::GetGroupHelper ( ) const

Returns: pointer to group helper.

Definition at line 509 of file satellite-helper.cc.

References m_groupHelper.

◆ GetGwUsers()

NodeContainer ns3::SatHelper::GetGwUsers ( ) const

Returns: container having GW users.

Definition at line 494 of file satellite-helper.cc.

References m_userHelper.

◆ GetInstanceTypeId()

TypeId ns3::SatHelper::GetInstanceTypeId ( void ) const

Get the type ID of object instance.

Returns: the TypeId of object instance

Definition at line 212 of file satellite-helper.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::SatHelper::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 63 of file satellite-helper.cc.

References ns3::SatEnums::DVB, ns3::SatEnums::LORA, m_beamNetworkAddress, m_beamNetworkMask, m_creationDetailsTrace, m_creationSummaryTrace, m_creationTraces, m_detailedCreationTraces, m_fwdConfFileName, m_geoPosFileName, m_gwNetworkAddress, m_gwNetworkMask, m_gwPosFileName, m_gwUsers, m_packetTraces, m_rtnConfFileName, m_satConstellationEnabled, m_satConstellationFolder, m_satMobilitySGP4Enabled, m_satMobilitySGP4TleFileName, m_scenarioCreationFileName, m_standard, m_utCreationFileName, m_utNetworkAddress, m_utNetworkMask, m_utsInBeam, m_utUsers, and m_waveformConfFileName.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

◆ GetUserAddress()

Ipv4Address ns3::SatHelper::GetUserAddress ( Ptr< Node > node )

Parameters

node	pointer to user node.

Returns: address of the user.

Definition at line 459 of file satellite-helper.cc.

◆ GetUserHelper()

Ptr< SatUserHelper > ns3::SatHelper::GetUserHelper ( ) const

Returns: pointer to user helper.

Definition at line 536 of file satellite-helper.cc.

References m_userHelper.

◆ GetUtUsers() [1/3]

NodeContainer ns3::SatHelper::GetUtUsers ( ) const

Returns: container having UT users

Definition at line 469 of file satellite-helper.cc.

References m_userHelper.

Referenced by GetUtUsers().

Here is the caller graph for this function:

◆ GetUtUsers() [2/3]

NodeContainer ns3::SatHelper::GetUtUsers ( NodeContainer utNodes ) const

Parameters

utNodes Container to UT nodes, which user nodes are requested.

Returns: A container having UT specific user nodes in satellite network.

Definition at line 483 of file satellite-helper.cc.

References GetUtUsers().

Here is the call graph for this function:

◆ GetUtUsers() [3/3]

NodeContainer ns3::SatHelper::GetUtUsers ( Ptr< Node > utNode ) const

Parameters

utNode Pointer to UT node, which user nodes are requested.

Returns: A container having UT specific user nodes in satellite network.

Definition at line 477 of file satellite-helper.cc.

References m_userHelper.

◆ GwNodes()

NodeContainer ns3::SatHelper::GwNodes ( )

inline

Definition at line 277 of file satellite-helper.h.

References m_beamHelper.

Referenced by DoCreateScenario(), and SetBeamRoutingConstellations().

Here is the caller graph for this function:

◆ InstallMobilityObserver()

void ns3::SatHelper::InstallMobilityObserver	(	uint32_t	satId,
		NodeContainer	nodes
	)		const

private

Install Satellite Mobility Observer to nodes, if observer doesn't exist already in a node.

Parameters

satId	ID of the satellite.
nodes	Nodecontainer of nodes to install mobility observer.

Definition at line 1262 of file satellite-helper.cc.

References m_beamHelper, satMobility, and ns3::SatEnums::TRANSPARENT.

Referenced by LoadMobileUTsFromFolder(), SetGwMobility(), SetUtMobility(), and SetUtMobilityFromPosition().

Here is the caller graph for this function:

◆ IsSatConstellationEnabled()

bool ns3::SatHelper::IsSatConstellationEnabled ( )

inline

Definition at line 305 of file satellite-helper.h.

References m_satConstellationEnabled.

◆ LoadConstellationTopology()

void ns3::SatHelper::LoadConstellationTopology	(	std::string	path,
		std::vector< std::string > &	tles,
		std::vector< std::pair< uint32_t, uint32_t >> &	isls
	)

private

Load a constellation topology.

Parameters

path	Folder where configuration files are located
tles	vector to store read TLEs
isls	vector to store read ISLs

Definition at line 408 of file satellite-helper.cc.

References m_fwdConfFileName, m_geoPosFileName, m_rtnConfFileName, m_satConf, m_satMobilitySGP4TleFileName, and m_waveformConfFileName.

Referenced by SatHelper().

Here is the caller graph for this function:

◆ LoadMobileUtFromFile()

Ptr< Node > ns3::SatHelper::LoadMobileUtFromFile	(	uint32_t	satId,
		const std::string &	filename
	)

Load an UT with a SatTracedMobilityModel associated to them from the given file.

Parameters

satId	ID of satellite
filename	Name of the trace file containing UT positions

Definition at line 1084 of file satellite-helper.cc.

References m_antennaGainPatterns.

Referenced by LoadMobileUTsFromFolder().

Here is the caller graph for this function:

◆ LoadMobileUTsFromFolder()

void ns3::SatHelper::LoadMobileUTsFromFolder	(	uint32_t	satId,
		const std::string &	folderName,
		Ptr< RandomVariableStream >	utUsers
	)

Load UTs with a SatTracedMobilityModel associated to them from the files found in the given folder.

Each UT will be associated to the beam it is at it's starting position.

Parameters

satId	ID of satellite
folderName	Name of the folder to search for mobility trace files
utUsers	Stream to generate the number of users associated to each loaded UT

Definition at line 1034 of file satellite-helper.cc.

References InstallMobilityObserver(), LoadMobileUtFromFile(), m_mobileUtsByBeam, and m_mobileUtsUsersByBeam.

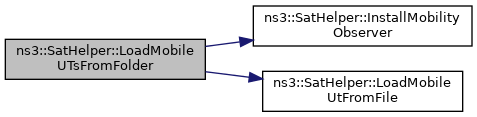

Here is the call graph for this function:

◆ PrintTopology()

void ns3::SatHelper::PrintTopology ( std::ostream & os ) const

Print all the satellite topology.

Parameters

os	output stream in which the data should be printed

Definition at line 1441 of file satellite-helper.cc.

References m_beamHelper, and m_userHelper.

◆ SetAntennaGainPatterns()

void ns3::SatHelper::SetAntennaGainPatterns ( Ptr< SatAntennaGainPatternContainer > antennaGainPattern )

Set the antenna gain patterns.

Parameters

antennaGainPattern The pattern to set

Definition at line 523 of file satellite-helper.cc.

References m_antennaGainPatterns.

◆ SetBeamRoutingConstellations()

void ns3::SatHelper::SetBeamRoutingConstellations ( )

Populate the routes, when using constellations.

Definition at line 1008 of file satellite-helper.cc.

References GwNodes(), m_userHelper, and m_utsDistribution.

Referenced by DoCreateScenario().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetCustomUtPositionAllocator()

void ns3::SatHelper::SetCustomUtPositionAllocator ( Ptr< SatListPositionAllocator > posAllocator )

Set custom position allocator.

Parameters

posAllocator

Definition at line 629 of file satellite-helper.cc.

References m_utPositions.

◆ SetGeoSatMobility()

void ns3::SatHelper::SetGeoSatMobility ( Ptr< Node > node )

private

Sets mobility to created Sat Geo node.

Parameters

node	node pointer of Geo Satellite to set mobility

Definition at line 1217 of file satellite-helper.cc.

References m_satConf.

Referenced by SatHelper().

Here is the caller graph for this function:

◆ SetGroupHelper()

void ns3::SatHelper::SetGroupHelper ( Ptr< SatGroupHelper > groupHelper )

set the group helper.

Definition at line 516 of file satellite-helper.cc.

References m_groupHelper.

◆ SetGwAddressInUt()

void ns3::SatHelper::SetGwAddressInUt ( )

Set the value of GW address for each UT.

This method is called when using constellations.

Definition at line 938 of file satellite-helper.cc.

References GetClosestSat(), m_beamHelper, and m_gwDistribution.

Referenced by DoCreateScenario().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetGwMobility()

void ns3::SatHelper::SetGwMobility	(	uint32_t	satId,
		Ptr< Node >	gw,
		uint32_t	gwIndex
	)

private

Sets mobilities to created GW nodes.

Parameters

satId	ID of the satellite link to this GW
gw	GW to set mobility
gwIndex	Index of GW in SatConf

Definition at line 1096 of file satellite-helper.cc.

References InstallMobilityObserver(), and m_satConf.

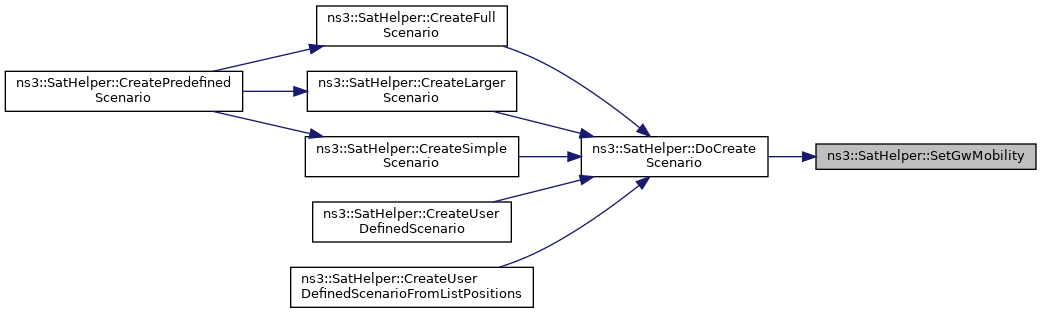

Referenced by DoCreateScenario().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetMulticastGroupRoutes()

void ns3::SatHelper::SetMulticastGroupRoutes	(	Ptr< Node >	source,
		NodeContainer	receivers,
		Ipv4Address	sourceAddress,
		Ipv4Address	groupAddress
	)

Set multicast group to satellite network and IP router.

Add needed routes to net devices.

Parameters

source	Source node of the multicast group (GW or UT connected user node)
receivers	Receiver nodes of the multicast group. (GW or UT connected user nodes)
sourceAddress	Source address of the multicast group.
groupAddress	Address of the multicast group.

Definition at line 1290 of file satellite-helper.cc.

References ConstructMulticastInfo(), FindMatchingDevice(), FindMatchingDevices(), m_beamHelper, m_userHelper, and SetMulticastRouteToSourceNetwork().

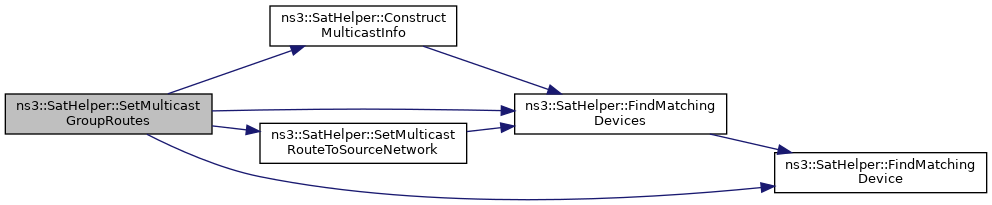

Here is the call graph for this function:

◆ SetMulticastRouteToSourceNetwork()

void ns3::SatHelper::SetMulticastRouteToSourceNetwork	(	Ptr< Node >	source,
		Ptr< Node >	destination
	)

private

Set multicast traffic to source's nwtwork by finding source network utilizing given destination node.

Note that all multicast traffic is routed by source through selected device in source node to found network.

Parameters

source	Pointer to source node of the multicast traffic.
destination	Pointer to destination node where to find matching source network

Definition at line 1616 of file satellite-helper.cc.

References FindMatchingDevices().

Referenced by SetMulticastGroupRoutes().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetNetworkAddresses()

void ns3::SatHelper::SetNetworkAddresses	(	BeamUserInfoMap_t &	info,
		uint32_t	gwUsers
	)		const

private

Set configured network addresses to user and beam helpers.

Definition at line 1742 of file satellite-helper.cc.

References CheckNetwork(), m_beamHelper, m_beamNetworkAddress, m_beamNetworkMask, m_gwNetworkAddress, m_gwNetworkMask, m_userHelper, m_utNetworkAddress, and m_utNetworkMask.

Referenced by DoCreateScenario().

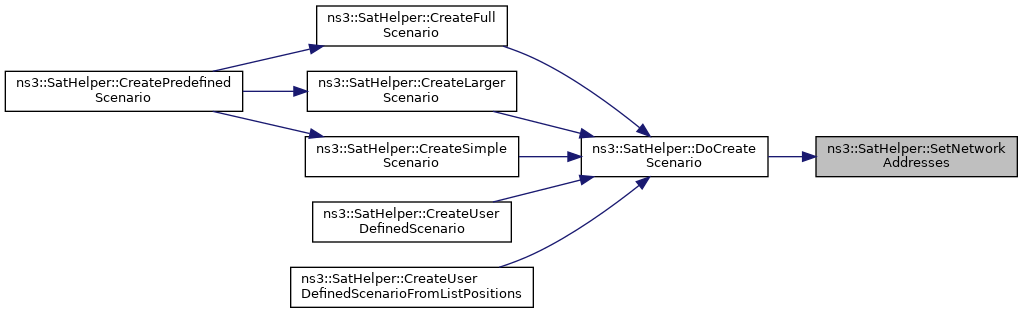

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetSatMobility()

void ns3::SatHelper::SetSatMobility	(	Ptr< Node >	node,
		std::string	tle = `""`
	)

private

Sets SGP4 mobility to created Sat node.

Parameters

node	node pointer of Satellite to set mobility

Definition at line 1232 of file satellite-helper.cc.

References m_satConf.

Referenced by SatHelper().

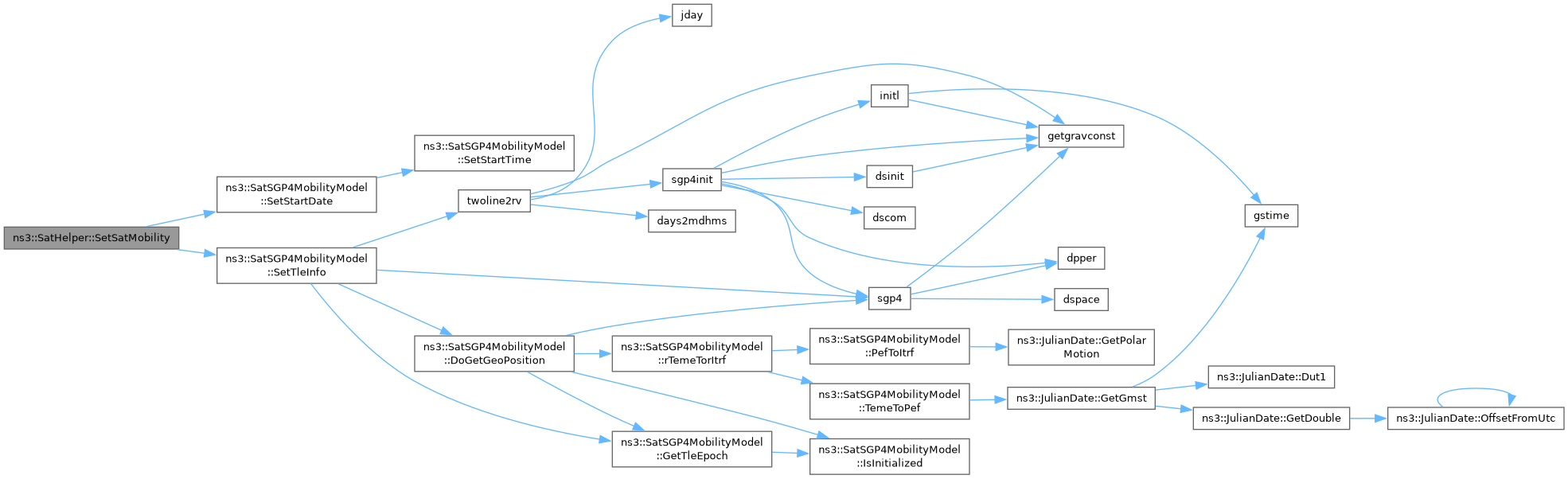

Here is the caller graph for this function:

◆ SetUtMobility()

void ns3::SatHelper::SetUtMobility	(	NodeContainer	uts,
		uint32_t	satId,
		uint32_t	beamId
	)

private

Sets mobility to created UT nodes.

Parameters

uts	node container of UTs to set mobility
satId	the satellite id, where the UTs should be placed
beamId	the spot-beam id, where the UTs should be placed

Definition at line 1114 of file satellite-helper.cc.

References GetBeamAllocator(), InstallMobilityObserver(), m_antennaGainPatterns, m_beamHelper, m_utPositions, and m_utPositionsByBeam.

Referenced by DoCreateScenario().

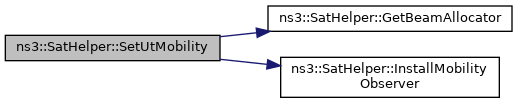

Here is the call graph for this function:

Here is the caller graph for this function:

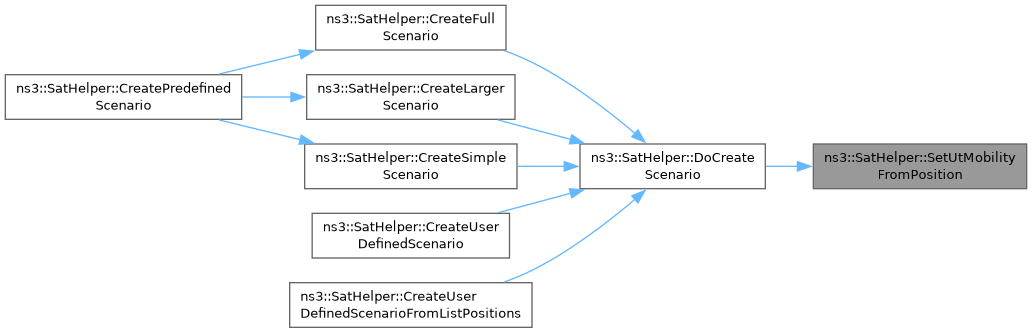

◆ SetUtMobilityFromPosition()

void ns3::SatHelper::SetUtMobilityFromPosition	(	NodeContainer	uts,
		uint32_t	satId,
		uint32_t	beamId,
		std::vector< std::pair< GeoCoordinate, uint32_t >>	positionsAndGroupId
	)

private

Sets mobility to created UT nodes when position is known.

Parameters

uts	node container of UTs to set mobility
satId	the satellite id, where the UTs should be placed
beamId	the spot-beam id, where the UTs should be placed
positionsAndGroupId	the list of known positions, associated to a group ID

Definition at line 1157 of file satellite-helper.cc.

References InstallMobilityObserver(), m_antennaGainPatterns, m_beamHelper, and m_groupHelper.

Referenced by DoCreateScenario().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetUtPositionAllocatorForBeam()

void ns3::SatHelper::SetUtPositionAllocatorForBeam	(	uint32_t	beamId,
		Ptr< SatListPositionAllocator >	posAllocator
	)

Set custom position allocator for specific beam.

This overrides the custom position allocator for this beam.

Parameters

beamId
posAllocator

Definition at line 636 of file satellite-helper.cc.

References m_utPositionsByBeam.

◆ UtNodes()

NodeContainer ns3::SatHelper::UtNodes ( )

inline

Definition at line 282 of file satellite-helper.h.

References m_beamHelper.

Referenced by DoCreateScenario().

Here is the caller graph for this function:

Member Data Documentation

◆ m_antennaGainPatterns

Ptr<SatAntennaGainPatternContainer> ns3::SatHelper::m_antennaGainPatterns

private

Antenna gain patterns for all spot-beams.

Used for beam selection.

Definition at line 476 of file satellite-helper.h.

Referenced by SatHelper(), CreateConstellationScenario(), CreateUserDefinedScenarioFromListPositions(), DoDispose(), GetAntennaGainPatterns(), GetBeamAllocator(), LoadMobileUtFromFile(), SetAntennaGainPatterns(), SetUtMobility(), and SetUtMobilityFromPosition().

◆ m_beamHelper

Ptr<SatBeamHelper> ns3::SatHelper::m_beamHelper

private

◆ m_beamNetworkAddress

Ipv4Address ns3::SatHelper::m_beamNetworkAddress

private

Initial network number of satellite devices, e.g., 10.1.1.0.

Definition at line 404 of file satellite-helper.h.

Referenced by GetTypeId(), and SetNetworkAddresses().

◆ m_beamNetworkMask

Ipv4Mask ns3::SatHelper::m_beamNetworkMask

private

Network mask number of satellite devices.

Definition at line 409 of file satellite-helper.h.

Referenced by GetTypeId(), and SetNetworkAddresses().

◆ m_beamUserInfos

BeamUserInfoMap_t ns3::SatHelper::m_beamUserInfos

private

Info for beam creation in user defined scenario.

first is ID of the beam and second is number of beam created in beam. If second is zero then default number of UTs is created (number set by attribute UtCount)

Info is set by attribute BeamInfo

Definition at line 456 of file satellite-helper.h.

Referenced by CreateFullScenario().

◆ m_creationDetailsTrace

TracedCallback<std::string> ns3::SatHelper::m_creationDetailsTrace

private

Trace callback for creation traces (details)

Definition at line 385 of file satellite-helper.h.

Referenced by GetTypeId().

◆ m_creationSummaryTrace

TracedCallback<std::string> ns3::SatHelper::m_creationSummaryTrace

private

Trace callback for creation traces (summary)

Definition at line 391 of file satellite-helper.h.

Referenced by CreateFullScenario(), CreateLargerScenario(), CreateSimpleScenario(), CreateUserDefinedScenario(), CreateUserDefinedScenarioFromListPositions(), and GetTypeId().

◆ m_creationTraces

bool ns3::SatHelper::m_creationTraces

private

flag to indicate if creation trace should be enabled for scenario creation.

Definition at line 421 of file satellite-helper.h.

Referenced by DoCreateScenario(), and GetTypeId().

◆ m_creationTraceStream

Ptr<OutputStreamWrapper> ns3::SatHelper::m_creationTraceStream

private

Stream wrapper used for creation traces.

Definition at line 396 of file satellite-helper.h.

Referenced by CreationSummarySink(), EnableCreationTraces(), and EnableDetailedCreationTraces().

◆ m_detailedCreationTraces

bool ns3::SatHelper::m_detailedCreationTraces

private

flag to indicate if detailed creation trace should be enabled for scenario creation.

Definition at line 426 of file satellite-helper.h.

Referenced by EnableCreationTraces(), and GetTypeId().

◆ m_fwdConfFileName

std::string ns3::SatHelper::m_fwdConfFileName

private

Definition at line 327 of file satellite-helper.h.

Referenced by SatHelper(), GetTypeId(), and LoadConstellationTopology().

◆ m_geoPosFileName

std::string ns3::SatHelper::m_geoPosFileName

private

Definition at line 329 of file satellite-helper.h.

Referenced by SatHelper(), GetTypeId(), and LoadConstellationTopology().

◆ m_groupHelper

Ptr<SatGroupHelper> ns3::SatHelper::m_groupHelper

private

Group helper.

Definition at line 370 of file satellite-helper.h.

Referenced by CreateConstellationScenario(), GetGroupHelper(), SetGroupHelper(), and SetUtMobilityFromPosition().

◆ m_gwDistribution

std::map<Ptr<Node>, Ptr<Node> > ns3::SatHelper::m_gwDistribution

private

Map indicating the GW node associated to each UT node.

Definition at line 507 of file satellite-helper.h.

Referenced by DoCreateScenario(), and SetGwAddressInUt().

◆ m_gwNetworkAddress

Ipv4Address ns3::SatHelper::m_gwNetworkAddress

private

Initial network number of GW, router, and GW users, e.g., 10.2.1.0.

Definition at line 406 of file satellite-helper.h.

Referenced by GetTypeId(), and SetNetworkAddresses().

◆ m_gwNetworkMask

Ipv4Mask ns3::SatHelper::m_gwNetworkMask

private

Network mask number of GW, router, and GW users.

Definition at line 410 of file satellite-helper.h.

Referenced by GetTypeId(), and SetNetworkAddresses().

◆ m_gwPosFileName

std::string ns3::SatHelper::m_gwPosFileName

private

Definition at line 328 of file satellite-helper.h.

Referenced by SatHelper(), and GetTypeId().

◆ m_gwSats

std::map<uint32_t, uint32_t> ns3::SatHelper::m_gwSats

private

Map of closest satellite for each GW.

Definition at line 502 of file satellite-helper.h.

Referenced by CreateConstellationScenario(), and DoCreateScenario().

◆ m_gwUser

NodeContainer ns3::SatHelper::m_gwUser

private

Gateway container.

Definition at line 375 of file satellite-helper.h.

◆ m_gwUsers

uint32_t ns3::SatHelper::m_gwUsers

private

Number of users created in public network (behind GWs) in full or user-defined scenario.

Definition at line 441 of file satellite-helper.h.

Referenced by CreateConstellationScenario(), CreateFullScenario(), CreateUserDefinedScenario(), CreateUserDefinedScenarioFromListPositions(), and GetTypeId().

◆ m_mobileUtsByBeam

std::map<uint32_t, NodeContainer> ns3::SatHelper::m_mobileUtsByBeam

private

List of mobile UTs by beam ID.

Definition at line 492 of file satellite-helper.h.

Referenced by DoCreateScenario(), DoDispose(), and LoadMobileUTsFromFolder().

◆ m_mobileUtsUsersByBeam

std::multimap<uint32_t, uint32_t> ns3::SatHelper::m_mobileUtsUsersByBeam

private

List of users by mobile UT by beam ID.

Definition at line 497 of file satellite-helper.h.

Referenced by DoCreateScenario(), DoDispose(), and LoadMobileUTsFromFolder().

◆ m_packetTraces

bool ns3::SatHelper::m_packetTraces

private

flag to indicate if packet trace should be enabled after scenario creation.

Definition at line 431 of file satellite-helper.h.

Referenced by DoCreateScenario(), and GetTypeId().

◆ m_rtnConfFileName

std::string ns3::SatHelper::m_rtnConfFileName

private

Configuration file names as attributes of this class.

Definition at line 326 of file satellite-helper.h.

Referenced by SatHelper(), GetTypeId(), and LoadConstellationTopology().

◆ m_satConf

Ptr<SatConf> ns3::SatHelper::m_satConf

private

Configuration for satellite network.

Definition at line 380 of file satellite-helper.h.

Referenced by SatHelper(), CreateConstellationScenario(), CreateFullScenario(), CreateUserDefinedScenarioFromListPositions(), DoCreateScenario(), GetBeamAllocator(), GetBeamCount(), LoadConstellationTopology(), SetGeoSatMobility(), SetGwMobility(), and SetSatMobility().

◆ m_satConstellationEnabled

bool ns3::SatHelper::m_satConstellationEnabled

private

Use a constellation of satellites.

Definition at line 345 of file satellite-helper.h.

Referenced by SatHelper(), DoCreateScenario(), GetTypeId(), and IsSatConstellationEnabled().

◆ m_satConstellationFolder

std::string ns3::SatHelper::m_satConstellationFolder

private

Folder where are stored satellite constellation data.

Definition at line 350 of file satellite-helper.h.

Referenced by SatHelper(), and GetTypeId().

◆ m_satMobilitySGP4Enabled

bool ns3::SatHelper::m_satMobilitySGP4Enabled

private

The satellite moves following a SGP4 model.

Definition at line 335 of file satellite-helper.h.

Referenced by SatHelper(), GetBeamAllocator(), and GetTypeId().

◆ m_satMobilitySGP4TleFileName

std::string ns3::SatHelper::m_satMobilitySGP4TleFileName

private

TLE input filename used for SGP4 mobility.

Definition at line 340 of file satellite-helper.h.

Referenced by SatHelper(), GetTypeId(), and LoadConstellationTopology().

◆ m_scenarioCreated

bool ns3::SatHelper::m_scenarioCreated

private

flag to check if scenario is already created.

Definition at line 416 of file satellite-helper.h.

Referenced by DoCreateScenario().

◆ m_scenarioCreationFileName

std::string ns3::SatHelper::m_scenarioCreationFileName

private

File name for scenario creation trace output.

Definition at line 461 of file satellite-helper.h.

Referenced by EnableCreationTraces(), and GetTypeId().

◆ m_standard

SatEnums::Standard_t ns3::SatHelper::m_standard

private

Definition at line 355 of file satellite-helper.h.

Referenced by SatHelper(), DoCreateScenario(), and GetTypeId().

◆ m_userHelper

Ptr<SatUserHelper> ns3::SatHelper::m_userHelper

private

User helper.

Definition at line 360 of file satellite-helper.h.

Referenced by SatHelper(), ConstructMulticastInfo(), CreateCreationSummary(), DoCreateScenario(), DoDispose(), EnableDetailedCreationTraces(), GetGwUsers(), GetUserHelper(), GetUtUsers(), PrintTopology(), SetBeamRoutingConstellations(), SetMulticastGroupRoutes(), and SetNetworkAddresses().

◆ m_utCreationFileName

std::string ns3::SatHelper::m_utCreationFileName

private

File name for UT creation trace output.

Definition at line 466 of file satellite-helper.h.

Referenced by EnableCreationTraces(), and GetTypeId().

◆ m_utNetworkAddress

Ipv4Address ns3::SatHelper::m_utNetworkAddress

private

Initial network number of UT and UT users, e.g., 10.3.1.0.

Definition at line 407 of file satellite-helper.h.

Referenced by GetTypeId(), and SetNetworkAddresses().

◆ m_utNetworkMask

Ipv4Mask ns3::SatHelper::m_utNetworkMask

private

Network mask number of UT and UT users.

Definition at line 411 of file satellite-helper.h.

Referenced by GetTypeId(), and SetNetworkAddresses().

◆ m_utPositions

Ptr<SatListPositionAllocator> ns3::SatHelper::m_utPositions

private

User defined UT positions from SatConf (or manually set)

Definition at line 487 of file satellite-helper.h.

Referenced by CreateUserDefinedScenarioFromListPositions(), SetCustomUtPositionAllocator(), and SetUtMobility().

◆ m_utPositionsByBeam

std::map<uint32_t, Ptr<SatListPositionAllocator> > ns3::SatHelper::m_utPositionsByBeam

private

User defined UT positions by beam ID.

This is preferred to m_utPositions, which is a common list for all UTs.

Definition at line 482 of file satellite-helper.h.

Referenced by DoDispose(), SetUtMobility(), and SetUtPositionAllocatorForBeam().

◆ m_utsDistribution

std::map<Ptr<NetDevice>, NetDeviceContainer> ns3::SatHelper::m_utsDistribution

private

Map indicating all UT NetDevices associated to each GW NetDevice.

Definition at line 512 of file satellite-helper.h.

Referenced by DoCreateScenario(), and SetBeamRoutingConstellations().

◆ m_utsInBeam

uint32_t ns3::SatHelper::m_utsInBeam

private

Number of UTs created per Beam in full or user-defined scenario.

Definition at line 436 of file satellite-helper.h.

Referenced by CreateFullScenario(), and GetTypeId().

◆ m_utTraceStream

Ptr<OutputStreamWrapper> ns3::SatHelper::m_utTraceStream

private

Stream wrapper used for UT position traces.

Definition at line 401 of file satellite-helper.h.

Referenced by CreationSummarySink(), and EnableCreationTraces().

◆ m_utUsers

uint32_t ns3::SatHelper::m_utUsers

private

Number of users created in end user network (behind every UT) in full or user-defined scenario.

Definition at line 447 of file satellite-helper.h.

Referenced by CreateFullScenario(), and GetTypeId().

◆ m_waveformConfFileName

std::string ns3::SatHelper::m_waveformConfFileName

private

Definition at line 330 of file satellite-helper.h.

Referenced by SatHelper(), GetTypeId(), and LoadConstellationTopology().

◆ m_wfConfigFileName

std::string ns3::SatHelper::m_wfConfigFileName

private

File name for Waveform configurations file.

Definition at line 471 of file satellite-helper.h.

◆ MAX_ADDRESS_PREFIX_LENGTH

const uint16_t ns3::SatHelper::MAX_ADDRESS_PREFIX_LENGTH = 31

staticprivate

Definition at line 318 of file satellite-helper.h.

Referenced by CheckNetwork().

◆ MIN_ADDRESS_PREFIX_LENGTH

const uint16_t ns3::SatHelper::MIN_ADDRESS_PREFIX_LENGTH = 1

staticprivate

Definition at line 317 of file satellite-helper.h.

Referenced by CheckNetwork().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/helper/satellite-helper.h
/builds/sns3/satellite/satellite/helper/satellite-helper.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Typedef Documentation

◆ BeamUserInfoMap_t

◆ GetNextUtUserCountCallback

◆ MulticastBeamInfo_t

◆ MulticastBeamInfoItem_t

Member Enumeration Documentation

◆ PreDefinedScenario_t

Constructor & Destructor Documentation

◆ SatHelper() [1/2]

◆ SatHelper() [2/2]

◆ ~SatHelper()

Member Function Documentation

◆ CheckNetwork()

◆ ConstructMulticastInfo()

◆ CreateConstellationScenario()

◆ CreateCreationSummary()

◆ CreateFullScenario()

◆ CreateLargerScenario()

◆ CreatePredefinedScenario()

◆ CreateSimpleScenario()

◆ CreateUserDefinedScenario()

◆ CreateUserDefinedScenarioFromListPositions()

◆ CreationDetailsSink()

◆ CreationSummarySink()

◆ DoCreateScenario()

◆ DoDispose()

◆ EnableCreationTraces()

◆ EnableDetailedCreationTraces()

◆ EnablePacketTrace()

◆ FindMatchingDevice()

◆ FindMatchingDevices()

◆ GeoSatNodes()

◆ GetAntennaGainPatterns()

◆ GetBeamAllocator()

◆ GetBeamCount()

◆ GetBeamHelper()

◆ GetClosestSat()

◆ GetGroupHelper()

◆ GetGwUsers()

◆ GetInstanceTypeId()

◆ GetTypeId()

◆ GetUserAddress()

◆ GetUserHelper()

◆ GetUtUsers() [1/3]

◆ GetUtUsers() [2/3]

◆ GetUtUsers() [3/3]

◆ GwNodes()

◆ InstallMobilityObserver()

◆ IsSatConstellationEnabled()

◆ LoadConstellationTopology()

◆ LoadMobileUtFromFile()

◆ LoadMobileUTsFromFolder()

◆ PrintTopology()

◆ SetAntennaGainPatterns()

◆ SetBeamRoutingConstellations()

◆ SetCustomUtPositionAllocator()

◆ SetGeoSatMobility()

◆ SetGroupHelper()

◆ SetGwAddressInUt()

◆ SetGwMobility()

◆ SetMulticastGroupRoutes()

◆ SetMulticastRouteToSourceNetwork()

◆ SetNetworkAddresses()

◆ SetSatMobility()

◆ SetUtMobility()

◆ SetUtMobilityFromPosition()

◆ SetUtPositionAllocatorForBeam()

◆ UtNodes()

Member Data Documentation

◆ m_antennaGainPatterns

◆ m_beamHelper
