SatReturnLinkEncapsulator class is used in the RTN link for RLE encapsulation and fragmentation of higher layer packets. More...

#include "satellite-return-link-encapsulator.h"

Inheritance diagram for ns3::SatReturnLinkEncapsulator:

Collaboration diagram for ns3::SatReturnLinkEncapsulator:

Public Member Functions
	SatReturnLinkEncapsulator ()
	Default constructor, not used. More...

	SatReturnLinkEncapsulator (Mac48Address encapAddress, Mac48Address decapAddress, Mac48Address sourceE2EAddress, Mac48Address destE2EAddress, uint8_t rcIndex, uint32_t additionalHeaderSize=0)
	Constructor. More...

virtual	~SatReturnLinkEncapsulator ()
	Destructor for SatReturnLinkEncapsulator. More...

virtual void	DoDispose ()
	Dispose of this class instance. More...

virtual void	EnquePdu (Ptr< Packet > p, Mac48Address dest)
	Enqueue a Higher Layer packet to txBuffer. More...

virtual uint32_t	GetMinTxOpportunityInBytes () const
	Get minimum Tx opportunity in bytes, which takes the assumed header sizes into account. More...

virtual Ptr< Packet >	NotifyTxOpportunity (uint32_t bytes, uint32_t &bytesLeft, uint32_t &nextMinTxO)
	Notify a Tx opportunity to this encapsulator. More...

virtual void	ReceiveAck (Ptr< SatArqAckMessage > ack)
	Receive a control msg (ARQ ACK) More...

virtual void	ReceivePdu (Ptr< Packet > p)
	Receive a packet, thus decapsulate and defragment/deconcatenate if needed. More...

Public Member Functions inherited from ns3::SatBaseEncapsulator
	SatBaseEncapsulator ()
	Default constructor not used. More...

	SatBaseEncapsulator (Mac48Address encapAddress, Mac48Address decapAddress, Mac48Address sourceE2EAddress, Mac48Address destE2EAddress, uint8_t flowId, uint32_t additionalHeaderSize=0)
	Constructor. More...

virtual	~SatBaseEncapsulator ()
	Destructor for SatBaseEncapsulator. More...

virtual Time	GetHolDelay () const
	Get Head-of-Line packet buffering delay. More...

Ptr< SatQueue >	GetQueue ()
	Get the queue instance. More...

virtual uint32_t	GetTxBufferSizeInBytes () const
	Get the buffered packets for this encapsulator. More...

void	SetCtrlMsgCallback (SatBaseEncapsulator::SendCtrlCallback cb)

void	SetQueue (Ptr< SatQueue > queue)
	Set the used queue from outside. More...

void	SetReceiveCallback (ReceiveCallback cb)
	Method to set receive callback. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::SatBaseEncapsulator
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
Ptr< Packet >	GetNewRlePdu (uint32_t txOpportunityBytes, uint32_t maxRlePduSize, uint32_t additionalHeaderSize=0)
	Get new packet performs the RLE fragmentation and encapsulation for a one single packet. More...

void	IncreaseFragmentId ()
	Method increases the fragment id by one. More...

virtual void	ProcessPdu (Ptr< Packet > p)
	Process the reception of individual RLE PDUs. More...

void	Reset ()
	Reset defragmentation variables. More...

Protected Attributes
uint32_t	m_currRxFragmentId
	Current fragment id in the reassembly process. More...

Ptr< Packet >	m_currRxPacketFragment
	Current packet in the reassembly process. More...

uint32_t	m_currRxPacketFragmentBytes
	Currently received bytes of the fragmented packet. More...

uint32_t	m_currRxPacketSize
	The total size of the ALPDU size reassembly process. More...

uint32_t	m_minTxOpportunity
	Minimum Tx opportunity. More...

uint32_t	m_txFragmentId
	Fragment id used in the packet transmissions. More...

const uint32_t	MAX_FRAGMENT_ID
	The fragment is described with 3 bits, thus the maximum fragment id is 8. More...

const uint32_t	MAX_HL_PDU_PACKET_SIZE
	The maximum packet size is described with 12 bits, thus, the maximum HL packet size is 4096 bytes. More...

const uint32_t	MAX_PPDU_PACKET_SIZE
	The maximum PPDU fragment size is described with 11 bits, thus, the maximum fragment size is 2048 bytes. More...

Protected Attributes inherited from ns3::SatBaseEncapsulator
uint32_t	m_additionalHeaderSize
	Additional value in to take into account when pulling packets to represent E2E tags. More...

SendCtrlCallback	m_ctrlCallback
	Callback to send control messages. More...

Mac48Address	m_decapAddress

Mac48Address	m_destE2EAddress

Mac48Address	m_encapAddress
	Source and destination mac addresses. More...

uint8_t	m_flowId
	Flow identifier. More...

ReceiveCallback	m_rxCallback
	Receive callback. More...

Mac48Address	m_sourceE2EAddress

Ptr< SatQueue >	m_txQueue
	Used queue in satellite encapsulator. More...

Additional Inherited Members
Public Types inherited from ns3::SatBaseEncapsulator
typedef Callback< void, Ptr< Packet >, Mac48Address, Mac48Address >	ReceiveCallback
	Callback to send packet to lower layer. More...

typedef Callback< bool, Ptr< SatControlMessage >, const Address & >	SendCtrlCallback
	Control msg sending callback. More...

Detailed Description

SatReturnLinkEncapsulator class is used in the RTN link for RLE encapsulation and fragmentation of higher layer packets.

SatReturnLinkEncapsulator object is flow (UT address - flow id) specific and its entities are located at both UT (encapsulation, fragmentation) and GW (decapsulation, defragmentation). Return link encapsulators/decapsulators are created dynamically when first needed (when a packet is received for this flow).

See also: ETSI TS 103 179 V1.1.1 Satellite Earth Stations and Systems (SES); Return Link Encapsulation (RLE) protocol

Definition at line 48 of file satellite-return-link-encapsulator.h.

Constructor & Destructor Documentation

◆ SatReturnLinkEncapsulator() [1/2]

ns3::SatReturnLinkEncapsulator::SatReturnLinkEncapsulator ( )

Default constructor, not used.

Default constuctor is not meant to be used!

Definition at line 41 of file satellite-return-link-encapsulator.cc.

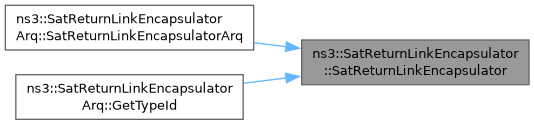

◆ SatReturnLinkEncapsulator() [2/2]

ns3::SatReturnLinkEncapsulator::SatReturnLinkEncapsulator	(	Mac48Address	encapAddress,
		Mac48Address	decapAddress,
		Mac48Address	sourceE2EAddress,
		Mac48Address	destE2EAddress,
		uint8_t	rcIndex,
		uint32_t	additionalHeaderSize = `0`
	)

Constructor.

Parameters

encapAddress	MAC addressd of encapsulator
decapAddress	MAC addressd of decapsulator
sourceE2EAddress	E2E source MAC addressd of packets (used to set SatAddressE2ETag)
destE2EAddress	E2E destination MAC addressd of packets (used to set SatAddressE2ETag)
rcIndex	RC index
additionalHeaderSize	Additional value in to take into account when pulling packets to represent E2E tags

Definition at line 59 of file satellite-return-link-encapsulator.cc.

References ns3::SatPPduHeader::GetMaxHeaderSizeInBytes(), and m_minTxOpportunity.

Here is the call graph for this function:

◆ ~SatReturnLinkEncapsulator()

ns3::SatReturnLinkEncapsulator::~SatReturnLinkEncapsulator ( )

virtual

Destructor for SatReturnLinkEncapsulator.

Definition at line 86 of file satellite-return-link-encapsulator.cc.

Member Function Documentation

◆ DoDispose()

void ns3::SatReturnLinkEncapsulator::DoDispose ( void )

virtual

Dispose of this class instance.

Reimplemented from ns3::SatBaseEncapsulator.

Reimplemented in ns3::SatReturnLinkEncapsulatorArq.

Definition at line 101 of file satellite-return-link-encapsulator.cc.

References ns3::SatBaseEncapsulator::DoDispose().

Referenced by ns3::SatReturnLinkEncapsulatorArq::DoDispose().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnquePdu()

void ns3::SatReturnLinkEncapsulator::EnquePdu	(	Ptr< Packet >	p,
		Mac48Address	dest
	)

virtual

Enqueue a Higher Layer packet to txBuffer.

Parameters

p	To be buffered packet
dest	Target MAC address

TODO: This is the place to encapsulate the higher layer packet with Addressed Link (AL) header, if needed.

Reimplemented from ns3::SatBaseEncapsulator.

Definition at line 109 of file satellite-return-link-encapsulator.cc.

References ns3::SatEncapPduStatusTag::FULL_PDU, ns3::SatBaseEncapsulator::m_decapAddress, ns3::SatBaseEncapsulator::m_encapAddress, ns3::SatBaseEncapsulator::m_txQueue, MAX_HL_PDU_PACKET_SIZE, ns3::SatMacTag::SetDestAddress(), ns3::SatMacTag::SetSourceAddress(), and ns3::SatEncapPduStatusTag::SetStatus().

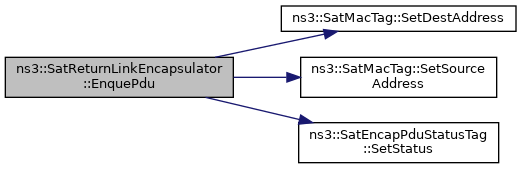

Here is the call graph for this function:

◆ GetMinTxOpportunityInBytes()

uint32_t ns3::SatReturnLinkEncapsulator::GetMinTxOpportunityInBytes ( ) const

virtual

Get minimum Tx opportunity in bytes, which takes the assumed header sizes into account.

Returns: Minimum Tx opportunity

Reimplemented from ns3::SatBaseEncapsulator.

Definition at line 533 of file satellite-return-link-encapsulator.cc.

References m_minTxOpportunity.

Referenced by ns3::SatReturnLinkEncapsulatorArq::NotifyTxOpportunity(), and NotifyTxOpportunity().

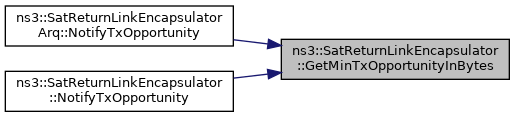

Here is the caller graph for this function:

◆ GetNewRlePdu()

Ptr< Packet > ns3::SatReturnLinkEncapsulator::GetNewRlePdu	(	uint32_t	txOpportunityBytes,
		uint32_t	maxRlePduSize,
		uint32_t	additionalHeaderSize = `0`
	)

protected

Get new packet performs the RLE fragmentation and encapsulation for a one single packet.

Returns NULL packet if a suitable packet is not created.

Returns: A RLE packet

Definition at line 214 of file satellite-return-link-encapsulator.cc.

References ns3::SatEncapPduStatusTag::CONTINUATION_PDU, ns3::SatEncapPduStatusTag::END_PDU, ns3::SatEncapPduStatusTag::FULL_PDU, ns3::SatPPduHeader::GetHeaderSizeInBytes(), ns3::SatEncapPduStatusTag::GetStatus(), IncreaseFragmentId(), m_txFragmentId, ns3::SatBaseEncapsulator::m_txQueue, ns3::SatPPduHeader::SetEndIndicator(), ns3::SatPPduHeader::SetFragmentId(), ns3::SatPPduHeader::SetPPduLength(), ns3::SatPPduHeader::SetStartIndicator(), ns3::SatEncapPduStatusTag::SetStatus(), ns3::SatPPduHeader::SetTotalLength(), and ns3::SatEncapPduStatusTag::START_PDU.

Referenced by ns3::SatReturnLinkEncapsulatorArq::NotifyTxOpportunity(), and NotifyTxOpportunity().

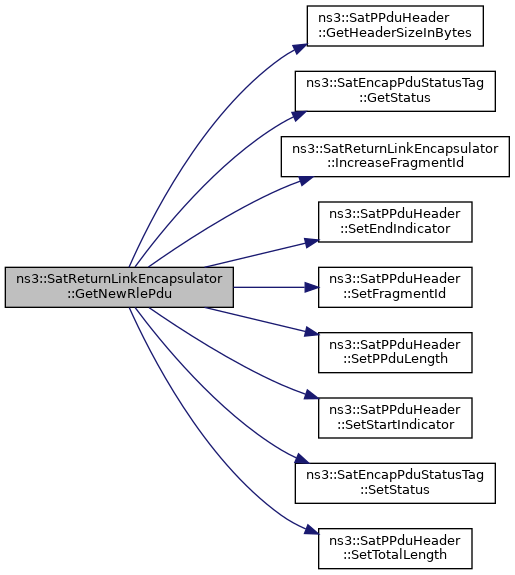

Here is the call graph for this function:

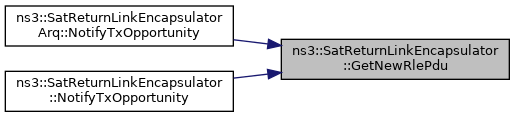

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatReturnLinkEncapsulator::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 92 of file satellite-return-link-encapsulator.cc.

◆ IncreaseFragmentId()

void ns3::SatReturnLinkEncapsulator::IncreaseFragmentId ( )

protected

Method increases the fragment id by one.

If the maximum fragment id is reached, it is reset to zero.

Definition at line 510 of file satellite-return-link-encapsulator.cc.

References m_txFragmentId, and MAX_FRAGMENT_ID.

Referenced by GetNewRlePdu().

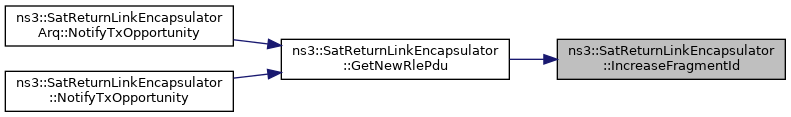

Here is the caller graph for this function:

◆ NotifyTxOpportunity()

Ptr< Packet > ns3::SatReturnLinkEncapsulator::NotifyTxOpportunity	(	uint32_t	bytes,
		uint32_t &	bytesLeft,
		uint32_t &	nextMinTxO
	)

virtual

Notify a Tx opportunity to this encapsulator.

Parameters

bytes	Notified tx opportunity bytes from lower layer
bytesLeft	Bytes left after this TxOpportunity in txBuffer
&nextMinTxO	Minimum TxO after this TxO

Returns: Ptr<Packet> a Frame PDU

Reimplemented from ns3::SatBaseEncapsulator.

Reimplemented in ns3::SatReturnLinkEncapsulatorArq.

Definition at line 147 of file satellite-return-link-encapsulator.cc.

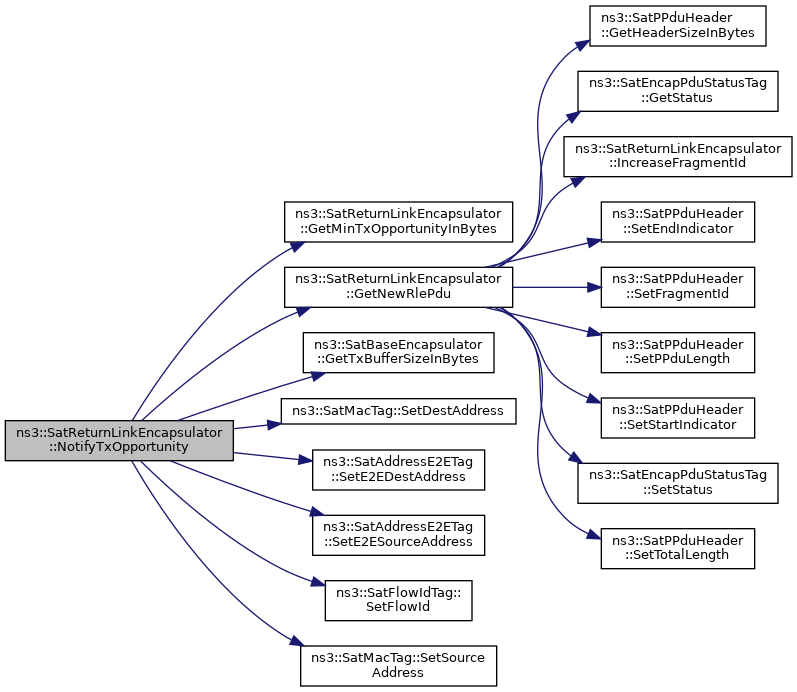

Here is the call graph for this function:

◆ ProcessPdu()

void ns3::SatReturnLinkEncapsulator::ProcessPdu ( Ptr< Packet > p )

protectedvirtual

Process the reception of individual RLE PDUs.

Parameters

p	Packet to be received

Definition at line 414 of file satellite-return-link-encapsulator.cc.

References ns3::SatPPduHeader::GetEndIndicator(), ns3::SatPPduHeader::GetFragmentId(), ns3::SatPPduHeader::GetPPduLength(), ns3::SatPPduHeader::GetStartIndicator(), ns3::SatPPduHeader::GetTotalLength(), m_currRxFragmentId, m_currRxPacketFragment, m_currRxPacketFragmentBytes, m_currRxPacketSize, ns3::SatBaseEncapsulator::m_decapAddress, ns3::SatBaseEncapsulator::m_encapAddress, ns3::SatBaseEncapsulator::m_rxCallback, and Reset().

Referenced by ns3::SatReturnLinkEncapsulatorArq::ReassembleAndReceive(), and ReceivePdu().

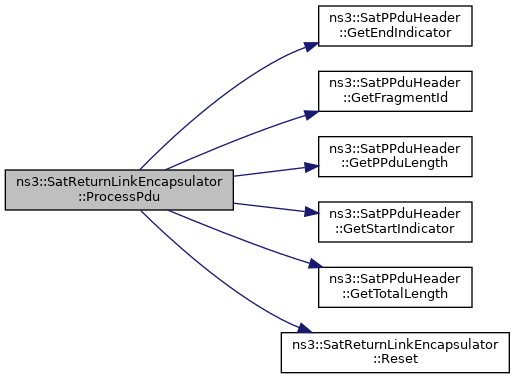

Here is the call graph for this function:

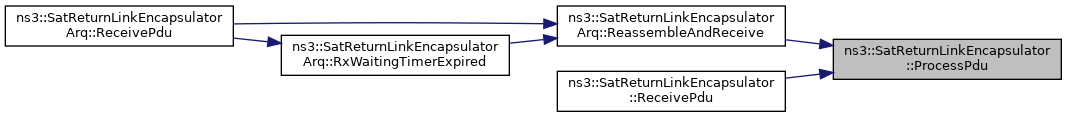

Here is the caller graph for this function:

◆ ReceiveAck()

void ns3::SatReturnLinkEncapsulator::ReceiveAck ( Ptr< SatArqAckMessage > ack )

virtual

Receive a control msg (ARQ ACK)

Parameters

ack	ACK control message pointer received from lower layer

The base encapsulator should not be used at receiving control packets at all! This functionality is implemented in the inherited classes.

Reimplemented from ns3::SatBaseEncapsulator.

Reimplemented in ns3::SatReturnLinkEncapsulatorArq.

Definition at line 498 of file satellite-return-link-encapsulator.cc.

◆ ReceivePdu()

void ns3::SatReturnLinkEncapsulator::ReceivePdu ( Ptr< Packet > p )

virtual

Receive a packet, thus decapsulate and defragment/deconcatenate if needed.

The decapsulated/defragmented HL PDU is forwarded back to LLC and to upper layer.

Parameters

p	packet pointer received from lower layer

Reimplemented from ns3::SatBaseEncapsulator.

Reimplemented in ns3::SatReturnLinkEncapsulatorArq.

Definition at line 385 of file satellite-return-link-encapsulator.cc.

References ns3::SatMacTag::GetDestAddress(), ns3::SatBaseEncapsulator::m_decapAddress, and ProcessPdu().

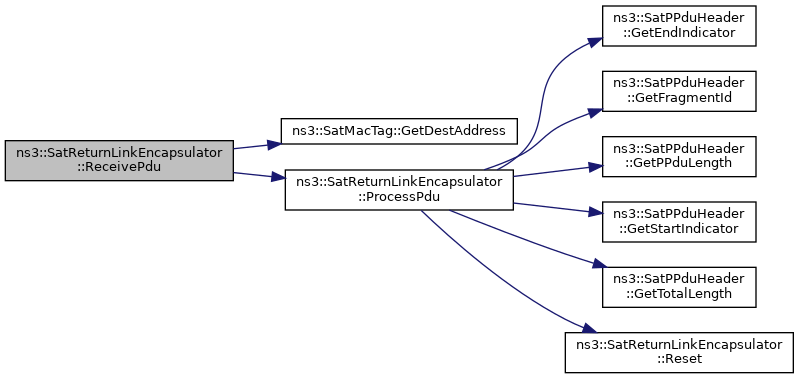

Here is the call graph for this function:

◆ Reset()

void ns3::SatReturnLinkEncapsulator::Reset ( void )

protected

Reset defragmentation variables.

Definition at line 522 of file satellite-return-link-encapsulator.cc.

References m_currRxFragmentId, m_currRxPacketFragment, m_currRxPacketFragmentBytes, and m_currRxPacketSize.

Referenced by ProcessPdu().

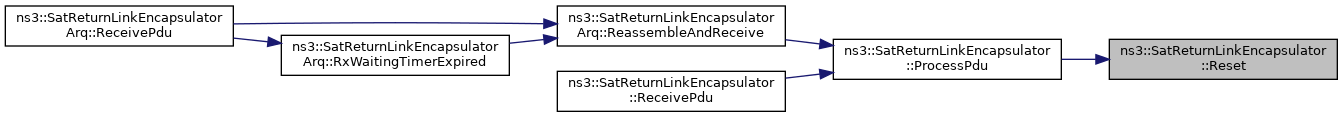

Here is the caller graph for this function:

Member Data Documentation

◆ m_currRxFragmentId

uint32_t ns3::SatReturnLinkEncapsulator::m_currRxFragmentId

protected

Current fragment id in the reassembly process.

Definition at line 163 of file satellite-return-link-encapsulator.h.

Referenced by ProcessPdu(), and Reset().

◆ m_currRxPacketFragment

Ptr<Packet> ns3::SatReturnLinkEncapsulator::m_currRxPacketFragment

protected

Current packet in the reassembly process.

Definition at line 168 of file satellite-return-link-encapsulator.h.

Referenced by ProcessPdu(), and Reset().

◆ m_currRxPacketFragmentBytes

uint32_t ns3::SatReturnLinkEncapsulator::m_currRxPacketFragmentBytes

protected

Currently received bytes of the fragmented packet.

Definition at line 178 of file satellite-return-link-encapsulator.h.

Referenced by ProcessPdu(), and Reset().

◆ m_currRxPacketSize

uint32_t ns3::SatReturnLinkEncapsulator::m_currRxPacketSize

protected

The total size of the ALPDU size reassembly process.

Definition at line 173 of file satellite-return-link-encapsulator.h.

Referenced by ProcessPdu(), and Reset().

◆ m_minTxOpportunity

uint32_t ns3::SatReturnLinkEncapsulator::m_minTxOpportunity

protected

Minimum Tx opportunity.

Definition at line 183 of file satellite-return-link-encapsulator.h.

Referenced by SatReturnLinkEncapsulator(), and GetMinTxOpportunityInBytes().

◆ m_txFragmentId

uint32_t ns3::SatReturnLinkEncapsulator::m_txFragmentId

protected

Fragment id used in the packet transmissions.

Definition at line 159 of file satellite-return-link-encapsulator.h.

Referenced by GetNewRlePdu(), and IncreaseFragmentId().

◆ MAX_FRAGMENT_ID

const uint32_t ns3::SatReturnLinkEncapsulator::MAX_FRAGMENT_ID

protected

The fragment is described with 3 bits, thus the maximum fragment id is 8.

Definition at line 189 of file satellite-return-link-encapsulator.h.

Referenced by IncreaseFragmentId().

◆ MAX_HL_PDU_PACKET_SIZE

const uint32_t ns3::SatReturnLinkEncapsulator::MAX_HL_PDU_PACKET_SIZE

protected

The maximum packet size is described with 12 bits, thus, the maximum HL packet size is 4096 bytes.

Definition at line 201 of file satellite-return-link-encapsulator.h.

Referenced by EnquePdu().

◆ MAX_PPDU_PACKET_SIZE

const uint32_t ns3::SatReturnLinkEncapsulator::MAX_PPDU_PACKET_SIZE

protected

The maximum PPDU fragment size is described with 11 bits, thus, the maximum fragment size is 2048 bytes.

Definition at line 195 of file satellite-return-link-encapsulator.h.

Referenced by NotifyTxOpportunity().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-return-link-encapsulator.h
/builds/sns3/satellite/satellite/model/satellite-return-link-encapsulator.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SatReturnLinkEncapsulator() [1/2]

◆ SatReturnLinkEncapsulator() [2/2]

◆ ~SatReturnLinkEncapsulator()

Member Function Documentation

◆ DoDispose()

◆ EnquePdu()

◆ GetMinTxOpportunityInBytes()

◆ GetNewRlePdu()

◆ GetTypeId()

◆ IncreaseFragmentId()

◆ NotifyTxOpportunity()

◆ ProcessPdu()

◆ ReceiveAck()

◆ ReceivePdu()

◆ Reset()

Member Data Documentation

◆ m_currRxFragmentId

◆ m_currRxPacketFragment

◆ m_currRxPacketFragmentBytes

◆ m_currRxPacketSize

◆ m_minTxOpportunity

◆ m_txFragmentId

◆ MAX_FRAGMENT_ID

◆ MAX_HL_PDU_PACKET_SIZE

◆ MAX_PPDU_PACKET_SIZE
