SatGenericStreamEncapsulator class is used in the FWD link for GSE encapsulation and fragmentation of higher layer packets. More...

#include "satellite-generic-stream-encapsulator.h"

Inheritance diagram for ns3::SatGenericStreamEncapsulator:

Collaboration diagram for ns3::SatGenericStreamEncapsulator:

Public Member Functions
	SatGenericStreamEncapsulator ()
	Default constructor, not used. More...

	SatGenericStreamEncapsulator (Mac48Address encapAddress, Mac48Address decapAddress, Mac48Address sourceE2EAddress, Mac48Address destE2EAddress, uint8_t flowId, uint32_t additionalHeaderSize=0)
	Constructor. More...

virtual	~SatGenericStreamEncapsulator ()
	Destructor for SatGenericStreamEncapsulator. More...

virtual void	DoDispose ()
	Dispose of this class instance. More...

virtual void	EnquePdu (Ptr< Packet > p, Mac48Address dest)
	Enqueue a Higher Layer packet to txBuffer. More...

virtual uint32_t	GetMinTxOpportunityInBytes () const
	Get minimum Tx opportunity in bytes, which takes the assumed header sizes into account. More...

virtual Ptr< Packet >	NotifyTxOpportunity (uint32_t bytes, uint32_t &bytesLeft, uint32_t &nextMinTxO)
	Notify a Tx opportunity to this encapsulator. More...

virtual void	ReceivePdu (Ptr< Packet > p)
	Receive a packet, thus decapsulate and defragment/deconcatenate if needed. More...

Public Member Functions inherited from ns3::SatBaseEncapsulator
	SatBaseEncapsulator ()
	Default constructor not used. More...

	SatBaseEncapsulator (Mac48Address encapAddress, Mac48Address decapAddress, Mac48Address sourceE2EAddress, Mac48Address destE2EAddress, uint8_t flowId, uint32_t additionalHeaderSize=0)
	Constructor. More...

virtual	~SatBaseEncapsulator ()
	Destructor for SatBaseEncapsulator. More...

virtual Time	GetHolDelay () const
	Get Head-of-Line packet buffering delay. More...

Ptr< SatQueue >	GetQueue ()
	Get the queue instance. More...

virtual uint32_t	GetTxBufferSizeInBytes () const
	Get the buffered packets for this encapsulator. More...

virtual void	ReceiveAck (Ptr< SatArqAckMessage > ack)
	Receive a control message (ARQ ACK) More...

void	SetCtrlMsgCallback (SatBaseEncapsulator::SendCtrlCallback cb)

void	SetQueue (Ptr< SatQueue > queue)
	Set the used queue from outside. More...

void	SetReceiveCallback (ReceiveCallback cb)
	Method to set receive callback. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::SatBaseEncapsulator
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
Ptr< Packet >	GetNewGsePdu (uint32_t txOpportunityBytes, uint32_t maxGsePduSize, uint32_t additionalHeaderSize=0)
	Get new packet performs the GSE fragmentation and encapsulation for a one single packet. More...

void	IncreaseFragmentId ()
	Method increases the fragment id by one. More...

virtual void	ProcessPdu (Ptr< Packet > p)
	Process the reception of individual GSE PDUs. More...

void	Reset ()
	Reset defragmentation variables. More...

Protected Attributes
uint32_t	m_currRxFragmentId
	Current fragment id in the reassembly process. More...

Ptr< Packet >	m_currRxPacketFragment
	Current packet in the reassembly process. More...

uint32_t	m_currRxPacketFragmentBytes
	Currently received bytes of the fragmented packet. More...

uint32_t	m_currRxPacketSize
	The total size of the ALPDU size reassembly process. More...

uint32_t	m_maxGsePduSize
	Maximum GSE PDU size. More...

uint32_t	m_minGseTxOpportunity
	If the GSE opportunity is smaller than this, a NULL packet is returned. More...

uint32_t	m_txFragmentId
	Fragment id used in the packet transmissions. More...

Protected Attributes inherited from ns3::SatBaseEncapsulator
uint32_t	m_additionalHeaderSize
	Additional value in to take into account when pulling packets to represent E2E tags. More...

SendCtrlCallback	m_ctrlCallback
	Callback to send control messages. More...

Mac48Address	m_decapAddress

Mac48Address	m_destE2EAddress

Mac48Address	m_encapAddress
	Source and destination mac addresses. More...

uint8_t	m_flowId
	Flow identifier. More...

ReceiveCallback	m_rxCallback
	Receive callback. More...

Mac48Address	m_sourceE2EAddress

Ptr< SatQueue >	m_txQueue
	Used queue in satellite encapsulator. More...

Static Protected Attributes
static const uint32_t	MAX_FRAGMENT_ID = 256
	The fragment is described with 8 bits, thus the maximum fragment id is 256. More...

static const uint32_t	MAX_HL_PACKET_SIZE = 65536
	The maximum packet size is described with 16 bits, thus, the maximum HL packet size is 65536 bytes. More...

Additional Inherited Members
Public Types inherited from ns3::SatBaseEncapsulator
typedef Callback< void, Ptr< Packet >, Mac48Address, Mac48Address >	ReceiveCallback
	Callback to send packet to lower layer. More...

typedef Callback< bool, Ptr< SatControlMessage >, const Address & >	SendCtrlCallback
	Control msg sending callback. More...

Detailed Description

SatGenericStreamEncapsulator class is used in the FWD link for GSE encapsulation and fragmentation of higher layer packets.

SatGenericStreamEncapsulator object is flow (UT address - flow id) specific and its entities are located at both GW (encapsulation, fragmentation) and UT (decapsulation, defragmentation). Generic stream encapsulators/decapsulators are created dynamically when first needed (when a packet is received for this flow).

See also: ETSI TS 102 606 V1.1.1 Digital Video Broadcasting (DVB); Generic Stream Encapsulation (GSE) Protocol

Definition at line 48 of file satellite-generic-stream-encapsulator.h.

Constructor & Destructor Documentation

◆ SatGenericStreamEncapsulator() [1/2]

ns3::SatGenericStreamEncapsulator::SatGenericStreamEncapsulator ( )

Default constructor, not used.

Definition at line 42 of file satellite-generic-stream-encapsulator.cc.

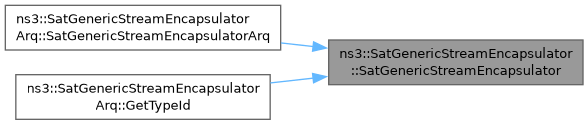

◆ SatGenericStreamEncapsulator() [2/2]

ns3::SatGenericStreamEncapsulator::SatGenericStreamEncapsulator	(	Mac48Address	encapAddress,
		Mac48Address	decapAddress,
		Mac48Address	sourceE2EAddress,
		Mac48Address	destE2EAddress,
		uint8_t	flowId,
		uint32_t	additionalHeaderSize = `0`
	)

Constructor.

Parameters

encapAddress	MAC addressd of encapsulator
decapAddress	MAC addressd of decapsulator
sourceE2EAddress	E2E source MAC addressd of packets (used to set SatAddressE2ETag)
destE2EAddress	E2E destination MAC addressd of packets (used to set SatAddressE2ETag)
flowId	Flow identifier
additionalHeaderSize	Additional value in to take into account when pulling packets to represent E2E tags

Definition at line 55 of file satellite-generic-stream-encapsulator.cc.

References ns3::SatGseHeader::GetMaxGseHeaderSizeInBytes(), and m_minGseTxOpportunity.

Here is the call graph for this function:

◆ ~SatGenericStreamEncapsulator()

ns3::SatGenericStreamEncapsulator::~SatGenericStreamEncapsulator ( )

virtual

Destructor for SatGenericStreamEncapsulator.

Definition at line 80 of file satellite-generic-stream-encapsulator.cc.

Member Function Documentation

◆ DoDispose()

void ns3::SatGenericStreamEncapsulator::DoDispose ( void )

virtual

Dispose of this class instance.

Reimplemented from ns3::SatBaseEncapsulator.

Reimplemented in ns3::SatGenericStreamEncapsulatorArq.

Definition at line 101 of file satellite-generic-stream-encapsulator.cc.

References ns3::SatBaseEncapsulator::DoDispose().

Referenced by ns3::SatGenericStreamEncapsulatorArq::DoDispose().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnquePdu()

void ns3::SatGenericStreamEncapsulator::EnquePdu	(	Ptr< Packet >	p,
		Mac48Address	dest
	)

virtual

Enqueue a Higher Layer packet to txBuffer.

Parameters

p	To be buffered packet
dest	Target MAC address

Reimplemented from ns3::SatBaseEncapsulator.

Definition at line 109 of file satellite-generic-stream-encapsulator.cc.

References ns3::SatEncapPduStatusTag::FULL_PDU, ns3::SatBaseEncapsulator::m_txQueue, MAX_HL_PACKET_SIZE, and ns3::SatEncapPduStatusTag::SetStatus().

Here is the call graph for this function:

◆ GetMinTxOpportunityInBytes()

uint32_t ns3::SatGenericStreamEncapsulator::GetMinTxOpportunityInBytes ( ) const

virtual

Get minimum Tx opportunity in bytes, which takes the assumed header sizes into account.

Returns: uint32_t minimum tx opportunity

Reimplemented from ns3::SatBaseEncapsulator.

Definition at line 497 of file satellite-generic-stream-encapsulator.cc.

References m_minGseTxOpportunity.

Referenced by ns3::SatGenericStreamEncapsulatorArq::NotifyTxOpportunity(), and NotifyTxOpportunity().

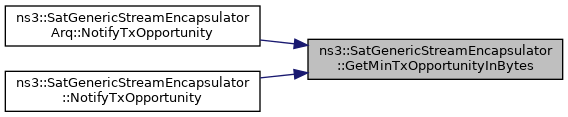

Here is the caller graph for this function:

◆ GetNewGsePdu()

Ptr< Packet > ns3::SatGenericStreamEncapsulator::GetNewGsePdu	(	uint32_t	txOpportunityBytes,
		uint32_t	maxGsePduSize,
		uint32_t	additionalHeaderSize = `0`
	)

protected

Get new packet performs the GSE fragmentation and encapsulation for a one single packet.

Returns NULL packet if a suitable packet is not created.

Returns: Ptr<Packet> GSE packet

Definition at line 195 of file satellite-generic-stream-encapsulator.cc.

References ns3::SatEncapPduStatusTag::CONTINUATION_PDU, ns3::SatEncapPduStatusTag::END_PDU, ns3::SatEncapPduStatusTag::FULL_PDU, ns3::SatGseHeader::GetGseHeaderSizeInBytes(), ns3::SatEncapPduStatusTag::GetStatus(), IncreaseFragmentId(), m_txFragmentId, ns3::SatBaseEncapsulator::m_txQueue, ns3::SatGseHeader::SetEndIndicator(), ns3::SatGseHeader::SetFragmentId(), ns3::SatGseHeader::SetGsePduLength(), ns3::SatGseHeader::SetStartIndicator(), ns3::SatEncapPduStatusTag::SetStatus(), ns3::SatGseHeader::SetTotalLength(), and ns3::SatEncapPduStatusTag::START_PDU.

Referenced by ns3::SatGenericStreamEncapsulatorArq::NotifyTxOpportunity(), and NotifyTxOpportunity().

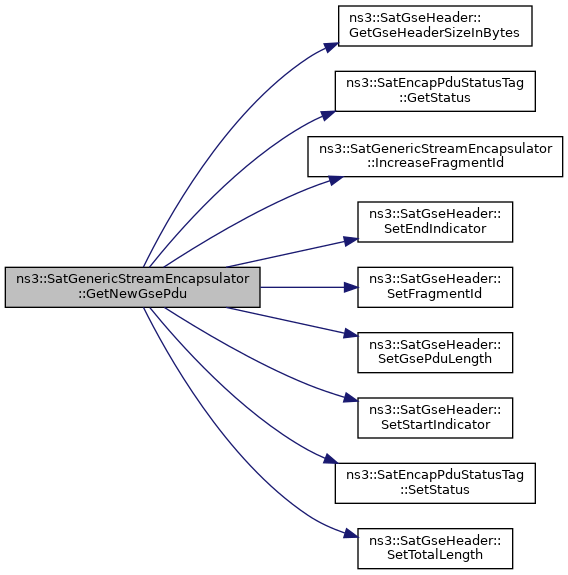

Here is the call graph for this function:

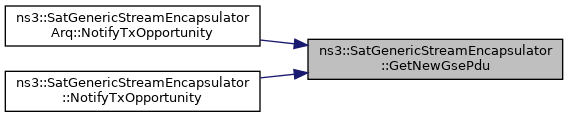

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatGenericStreamEncapsulator::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 86 of file satellite-generic-stream-encapsulator.cc.

References m_maxGsePduSize.

◆ IncreaseFragmentId()

void ns3::SatGenericStreamEncapsulator::IncreaseFragmentId ( )

protected

Method increases the fragment id by one.

If the maximum fragment id is reached, it is reset to zero.

Definition at line 362 of file satellite-generic-stream-encapsulator.cc.

References m_txFragmentId, and MAX_FRAGMENT_ID.

Referenced by GetNewGsePdu().

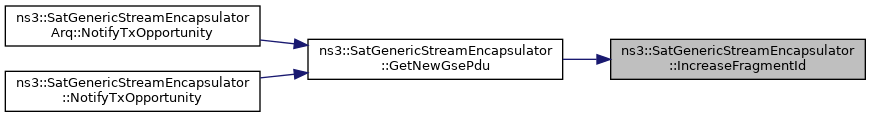

Here is the caller graph for this function:

◆ NotifyTxOpportunity()

Ptr< Packet > ns3::SatGenericStreamEncapsulator::NotifyTxOpportunity	(	uint32_t	bytes,
		uint32_t &	bytesLeft,
		uint32_t &	nextMinTxO
	)

virtual

Notify a Tx opportunity to this encapsulator.

Parameters

bytes	Notified tx opportunity bytes from lower layer
bytesLeft	Bytes left after this TxOpportunity in SatQueue
&nextMinTxO	Minimum TxO after this TxO

Returns: A GSE PDU

Reimplemented from ns3::SatBaseEncapsulator.

Reimplemented in ns3::SatGenericStreamEncapsulatorArq.

Definition at line 136 of file satellite-generic-stream-encapsulator.cc.

Here is the call graph for this function:

◆ ProcessPdu()

void ns3::SatGenericStreamEncapsulator::ProcessPdu ( Ptr< Packet > p )

protectedvirtual

Process the reception of individual GSE PDUs.

Parameters

p	Packet to be received

Definition at line 403 of file satellite-generic-stream-encapsulator.cc.

References ns3::SatGseHeader::GetEndIndicator(), ns3::SatGseHeader::GetFragmentId(), ns3::SatGseHeader::GetGsePduLength(), ns3::SatGseHeader::GetStartIndicator(), ns3::SatGseHeader::GetTotalLength(), m_currRxFragmentId, m_currRxPacketFragment, m_currRxPacketFragmentBytes, m_currRxPacketSize, ns3::SatBaseEncapsulator::m_decapAddress, ns3::SatBaseEncapsulator::m_encapAddress, ns3::SatBaseEncapsulator::m_rxCallback, and Reset().

Referenced by ns3::SatGenericStreamEncapsulatorArq::ReassembleAndReceive(), and ReceivePdu().

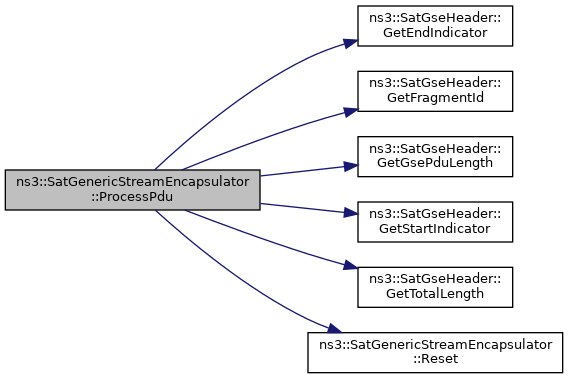

Here is the call graph for this function:

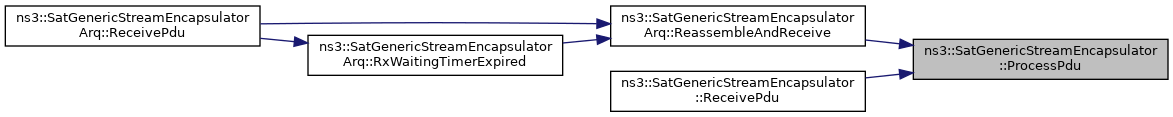

Here is the caller graph for this function:

◆ ReceivePdu()

void ns3::SatGenericStreamEncapsulator::ReceivePdu ( Ptr< Packet > p )

virtual

Receive a packet, thus decapsulate and defragment/deconcatenate if needed.

The decapsulated/defragmented HL PDU is forwarded back to LLC and to upper layer.

Parameters

p	packet pointer received from lower layer

Reimplemented from ns3::SatBaseEncapsulator.

Reimplemented in ns3::SatGenericStreamEncapsulatorArq.

Definition at line 374 of file satellite-generic-stream-encapsulator.cc.

References ns3::SatMacTag::GetDestAddress(), ns3::SatBaseEncapsulator::m_decapAddress, and ProcessPdu().

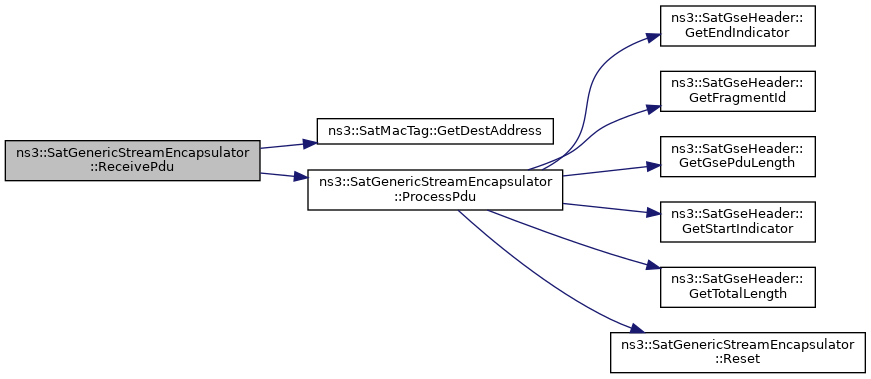

Here is the call graph for this function:

◆ Reset()

void ns3::SatGenericStreamEncapsulator::Reset ( )

protected

Reset defragmentation variables.

Definition at line 486 of file satellite-generic-stream-encapsulator.cc.

References m_currRxFragmentId, m_currRxPacketFragment, m_currRxPacketFragmentBytes, and m_currRxPacketSize.

Referenced by ProcessPdu().

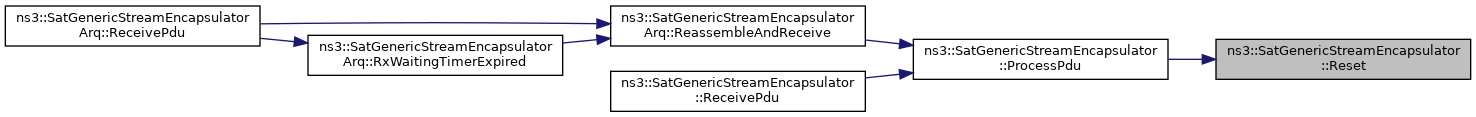

Here is the caller graph for this function:

Member Data Documentation

◆ m_currRxFragmentId

uint32_t ns3::SatGenericStreamEncapsulator::m_currRxFragmentId

protected

Current fragment id in the reassembly process.

Definition at line 162 of file satellite-generic-stream-encapsulator.h.

Referenced by ProcessPdu(), and Reset().

◆ m_currRxPacketFragment

Ptr<Packet> ns3::SatGenericStreamEncapsulator::m_currRxPacketFragment

protected

Current packet in the reassembly process.

Definition at line 167 of file satellite-generic-stream-encapsulator.h.

Referenced by ProcessPdu(), and Reset().

◆ m_currRxPacketFragmentBytes

uint32_t ns3::SatGenericStreamEncapsulator::m_currRxPacketFragmentBytes

protected

Currently received bytes of the fragmented packet.

Definition at line 177 of file satellite-generic-stream-encapsulator.h.

Referenced by ProcessPdu(), and Reset().

◆ m_currRxPacketSize

uint32_t ns3::SatGenericStreamEncapsulator::m_currRxPacketSize

protected

The total size of the ALPDU size reassembly process.

Definition at line 172 of file satellite-generic-stream-encapsulator.h.

Referenced by ProcessPdu(), and Reset().

◆ m_maxGsePduSize

uint32_t ns3::SatGenericStreamEncapsulator::m_maxGsePduSize

protected

Maximum GSE PDU size.

Definition at line 153 of file satellite-generic-stream-encapsulator.h.

Referenced by GetTypeId(), and NotifyTxOpportunity().

◆ m_minGseTxOpportunity

uint32_t ns3::SatGenericStreamEncapsulator::m_minGseTxOpportunity

protected

If the GSE opportunity is smaller than this, a NULL packet is returned.

Definition at line 183 of file satellite-generic-stream-encapsulator.h.

Referenced by SatGenericStreamEncapsulator(), and GetMinTxOpportunityInBytes().

◆ m_txFragmentId

uint32_t ns3::SatGenericStreamEncapsulator::m_txFragmentId

protected

Fragment id used in the packet transmissions.

Definition at line 158 of file satellite-generic-stream-encapsulator.h.

Referenced by GetNewGsePdu(), and IncreaseFragmentId().

◆ MAX_FRAGMENT_ID

const uint32_t ns3::SatGenericStreamEncapsulator::MAX_FRAGMENT_ID = 256

staticprotected

The fragment is described with 8 bits, thus the maximum fragment id is 256.

Definition at line 189 of file satellite-generic-stream-encapsulator.h.

Referenced by IncreaseFragmentId().

◆ MAX_HL_PACKET_SIZE

const uint32_t ns3::SatGenericStreamEncapsulator::MAX_HL_PACKET_SIZE = 65536

staticprotected

The maximum packet size is described with 16 bits, thus, the maximum HL packet size is 65536 bytes.

Definition at line 195 of file satellite-generic-stream-encapsulator.h.

Referenced by EnquePdu().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-generic-stream-encapsulator.h
/builds/sns3/satellite/satellite/model/satellite-generic-stream-encapsulator.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SatGenericStreamEncapsulator() [1/2]

◆ SatGenericStreamEncapsulator() [2/2]

◆ ~SatGenericStreamEncapsulator()

Member Function Documentation

◆ DoDispose()

◆ EnquePdu()

◆ GetMinTxOpportunityInBytes()

◆ GetNewGsePdu()

◆ GetTypeId()

◆ IncreaseFragmentId()

◆ NotifyTxOpportunity()

◆ ProcessPdu()

◆ ReceivePdu()

◆ Reset()

Member Data Documentation

◆ m_currRxFragmentId

◆ m_currRxPacketFragment

◆ m_currRxPacketFragmentBytes

◆ m_currRxPacketSize

◆ m_maxGsePduSize

◆ m_minGseTxOpportunity

◆ m_txFragmentId

◆ MAX_FRAGMENT_ID

◆ MAX_HL_PACKET_SIZE
