Build a set of user nodes and links channels between user nodes and satellite nodes. More...

#include "satellite-user-helper.h"

Inheritance diagram for ns3::SatUserHelper:

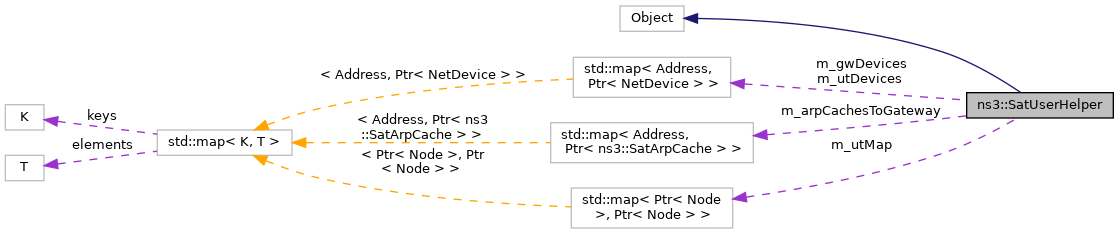

Collaboration diagram for ns3::SatUserHelper:

Public Types
enum	NetworkType { NETWORK_TYPE_SAT_SIMPLE , NETWORK_TYPE_CSMA }
	Network types in user networks (subscriber or backbone) More...

typedef Callback< Ptr< PropagationDelayModel >, uint32_t, uint32_t, SatEnums::ChannelType_t >	PropagationDelayCallback

typedef std::map< Ptr< Node >, NodeContainer >	UtUsersContainer_t
	Define UT user container. More...

Public Member Functions
	SatUserHelper ()
	Create a SatUserHelper to make life easier when creating Users and their connections to satellite network. More...

virtual	~SatUserHelper ()

void	EnableCreationTraces (Ptr< OutputStreamWrapper > stream, CallbackBase &cb)
	Enables creation traces to be written in given file. More...

TypeId	GetInstanceTypeId (void) const
	Derived from Object. More...

Ptr< Node >	GetRouter () const

std::string	GetRouterInfo () const
	Get router information. More...

void	InstallGw (uint32_t users)

NodeContainer	InstallUt (NodeContainer ut, uint32_t users)

NodeContainer	InstallUt (Ptr< Node > ut, uint32_t users)

bool	IsGwUser (Ptr< Node > node) const
	Check if node is GW user or not. More...

void	PopulateBeamRoutings (NodeContainer ut, NetDeviceContainer utNd, Ptr< Node > gw, Ptr< NetDevice > gwNd)
	Set needed routings of satellite network and fill ARP cache for the network. More...

void	SetBeamBaseAddress (const Ipv4Address &network, const Ipv4Mask &mask, Ipv4Address base="0.0.0.1")

void	SetCsmaChannelAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each CsmaChannel object created by the helper. More...

void	SetCsmaDeviceAttribute (std::string name, const AttributeValue &value)
	Set an attribute value to be propagated to each CsmaNetDevice object created by the helper. More...

void	SetCsmaQueue (std::string type, std::string name1="", const AttributeValue &value1=EmptyAttributeValue(), std::string name2="", const AttributeValue &value2=EmptyAttributeValue(), std::string name3="", const AttributeValue &value3=EmptyAttributeValue(), std::string name4="", const AttributeValue &value4=EmptyAttributeValue())
	Set the type and the attribute values to be associated with each Queue object in each CsmaNetDevice created by the helper. More...

void	SetGwBaseAddress (const Ipv4Address &network, const Ipv4Mask &mask, Ipv4Address base="0.0.0.1")

void	SetUtBaseAddress (const Ipv4Address &network, const Ipv4Mask &mask, Ipv4Address base="0.0.0.1")

void	UpdateGwRoutes (Address ut, Address oldGateway, Address newGateway)
	Update ARP cache and default route on the terrestrial network so packets are properly routed to the UT handed over. More...

void	UpdateUtRoutes (Address ut, Address newGateway)
	Update ARP cache and default route on an UT so packets are properly routed to the new GW as their next hop. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Derived from Object. More...

Private Member Functions
NetDeviceContainer	InstallBackboneNetwork (const NodeContainer &c) const
	Install network between GW and Router (or users) or Router and its users. More...

void	InstallRouter (Ptr< Node > router)
	Install IP router to to Gateways. More...

NetDeviceContainer	InstallSatSimpleNetwork (const NodeContainer &c) const
	Install satellite simple network. More...

NetDeviceContainer	InstallSubscriberNetwork (const NodeContainer &c) const
	Install network between UT and its users. More...

Private Attributes
std::map< Address, Ptr< SatArpCache > >	m_arpCachesToGateway
	Container of ARP tables to reach a gateway accessible by MAC address. More...

NetworkType	m_backboneNetworkType

TracedCallback< std::string >	m_creationTrace
	Trace callback for creation traces. More...

CsmaHelper	m_csma

std::map< Address, Ptr< NetDevice > >	m_gwDevices
	Container of GW SatNetDevice accessible by MAC address. More...

Ipv4AddressHelper	m_ipv4Beam

Ipv4AddressHelper	m_ipv4Gw

Ipv4AddressHelper	m_ipv4Ut

SatUserHelper::PropagationDelayCallback	m_propagationDelayCallback

Ptr< Node >	m_router

NetworkType	m_subscriberNetworkType

std::map< Address, Ptr< NetDevice > >	m_utDevices
	Container of UT SatNetDevice accessible by MAC address. More...

std::map< Ptr< Node >, Ptr< Node > >	m_utMap
	Container of UT users and their corresponding UT. More...

Detailed Description

Build a set of user nodes and links channels between user nodes and satellite nodes.

Definition at line 49 of file satellite-user-helper.h.

Member Typedef Documentation

◆ PropagationDelayCallback

typedef Callback<Ptr<PropagationDelayModel>, uint32_t, uint32_t, SatEnums::ChannelType_t> ns3::SatUserHelper::PropagationDelayCallback

Definition at line 276 of file satellite-user-helper.h.

◆ UtUsersContainer_t

typedef std::map<Ptr<Node>, NodeContainer> ns3::SatUserHelper::UtUsersContainer_t

Define UT user container.

Definition at line 64 of file satellite-user-helper.h.

Member Enumeration Documentation

◆ NetworkType

enum ns3::SatUserHelper::NetworkType

Network types in user networks (subscriber or backbone)

Enumerator
NETWORK_TYPE_SAT_SIMPLE
NETWORK_TYPE_CSMA

Definition at line 55 of file satellite-user-helper.h.

Constructor & Destructor Documentation

◆ SatUserHelper()

ns3::SatUserHelper::SatUserHelper ( )

Create a SatUserHelper to make life easier when creating Users and their connections to satellite network.

Definition at line 100 of file satellite-user-helper.cc.

◆ ~SatUserHelper()

ns3::SatUserHelper::~SatUserHelper ( )

virtual

Definition at line 108 of file satellite-user-helper.cc.

Member Function Documentation

◆ EnableCreationTraces()

void ns3::SatUserHelper::EnableCreationTraces	(	Ptr< OutputStreamWrapper >	stream,
		CallbackBase &	cb
	)

Enables creation traces to be written in given file.

Parameters

stream	stream for creation trace outputs
cb	callback to connect traces

Definition at line 321 of file satellite-user-helper.cc.

◆ GetInstanceTypeId()

TypeId ns3::SatUserHelper::GetInstanceTypeId ( void ) const

Derived from Object.

Definition at line 95 of file satellite-user-helper.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetRouter()

Ptr< Node > ns3::SatUserHelper::GetRouter ( ) const

Returns: pointer to the router.

Definition at line 476 of file satellite-user-helper.cc.

References m_router.

◆ GetRouterInfo()

std::string ns3::SatUserHelper::GetRouterInfo ( ) const

Get router information.

Returns: Information of router used between GWs and users.

Definition at line 448 of file satellite-user-helper.cc.

References m_router.

◆ GetTypeId()

TypeId ns3::SatUserHelper::GetTypeId ( void )

static

Derived from Object.

Definition at line 57 of file satellite-user-helper.cc.

References m_backboneNetworkType, m_creationTrace, m_propagationDelayCallback, m_subscriberNetworkType, NETWORK_TYPE_CSMA, and NETWORK_TYPE_SAT_SIMPLE.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

◆ InstallBackboneNetwork()

NetDeviceContainer ns3::SatUserHelper::InstallBackboneNetwork ( const NodeContainer & c ) const

private

Install network between GW and Router (or users) or Router and its users.

Parameters

c	node container having UT and its users

Returns: container of the installed net devices

Definition at line 403 of file satellite-user-helper.cc.

References InstallSatSimpleNetwork(), m_backboneNetworkType, m_csma, NETWORK_TYPE_CSMA, and NETWORK_TYPE_SAT_SIMPLE.

Referenced by InstallGw(), and InstallRouter().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InstallGw()

void ns3::SatUserHelper::InstallGw ( uint32_t users )

Parameters

users number of users to install for GWs. If gw has more than one GWs then IP router is added between GWs and users.

This method creates users with the requested attributes to satellite network and add csma net device on them and csma channel between GW and their users. In case of more than one GW channel is created between GW and router and between router and users.

Definition at line 246 of file satellite-user-helper.cc.

References InstallBackboneNetwork(), InstallRouter(), m_ipv4Gw, and m_router.

Here is the call graph for this function:

◆ InstallRouter()

void ns3::SatUserHelper::InstallRouter ( Ptr< Node > router )

private

Install IP router to to Gateways.

Creates csma link between gateways and router.

Parameters

router pointer to IP router

Definition at line 329 of file satellite-user-helper.cc.

References InstallBackboneNetwork(), and m_ipv4Gw.

Referenced by InstallGw().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InstallSatSimpleNetwork()

NetDeviceContainer ns3::SatUserHelper::InstallSatSimpleNetwork ( const NodeContainer & c ) const

private

Install satellite simple network.

Parameters

c	node container having UT and its users

Returns: container of the installed net devices

Definition at line 428 of file satellite-user-helper.cc.

Referenced by InstallBackboneNetwork(), and InstallSubscriberNetwork().

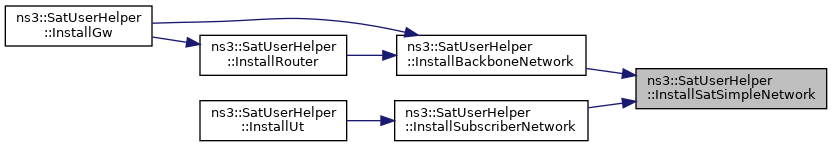

Here is the caller graph for this function:

◆ InstallSubscriberNetwork()

NetDeviceContainer ns3::SatUserHelper::InstallSubscriberNetwork ( const NodeContainer & c ) const

private

Install network between UT and its users.

Parameters

c	node container having UT and its users

Returns: container of the installed net devices

Definition at line 378 of file satellite-user-helper.cc.

References InstallSatSimpleNetwork(), m_csma, m_subscriberNetworkType, NETWORK_TYPE_CSMA, and NETWORK_TYPE_SAT_SIMPLE.

Referenced by InstallUt().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InstallUt() [1/2]

NodeContainer ns3::SatUserHelper::InstallUt	(	NodeContainer	ut,
		uint32_t	users
	)

Parameters

ut	a set of UT nodes
users	number of users to install for every UT

This method creates users with the requested attributes to satellite network and add csma netdevice on them and csma channel between UTs/GW and their users.

Returns: node container of created users for the UT.

Definition at line 174 of file satellite-user-helper.cc.

◆ InstallUt() [2/2]

NodeContainer ns3::SatUserHelper::InstallUt	(	Ptr< Node >	ut,
		uint32_t	users
	)

Parameters

ut	a UT node
users	number of users to install for the UT

This method creates users with the requested attributes to satellite network and add csma netdevice on them and csma channel between UT/GW and their users.

Returns: node container of created users for the UTs.

Definition at line 190 of file satellite-user-helper.cc.

References InstallSubscriberNetwork(), m_ipv4Ut, and m_utMap.

Here is the call graph for this function:

◆ IsGwUser()

bool ns3::SatUserHelper::IsGwUser ( Ptr< Node > node ) const

Check if node is GW user or not.

Parameters

node	Pointer to node checked if it is GW user or not

Returns: true when requested node is GW user node, false in other case.

Definition at line 301 of file satellite-user-helper.cc.

◆ PopulateBeamRoutings()

void ns3::SatUserHelper::PopulateBeamRoutings	(	NodeContainer	ut,
		NetDeviceContainer	utNd,
		Ptr< Node >	gw,
		Ptr< NetDevice >	gwNd
	)

Set needed routings of satellite network and fill ARP cache for the network.

Parameters

ut	container having UTs of the beam
utNd	container having UT netdevices of the beam
gw	pointer to gateway node
gwNd	pointer to gateway netdevice

Definition at line 484 of file satellite-user-helper.cc.

References m_arpCachesToGateway, m_gwDevices, m_ipv4Beam, and m_utDevices.

◆ SetBeamBaseAddress()

void ns3::SatUserHelper::SetBeamBaseAddress	(	const Ipv4Address &	network,
		const Ipv4Mask &	mask,
		Ipv4Address	base = `"0.0.0.1"`
	)

Parameters

network	The Ipv4Address containing the initial network number to use for satellite network allocation. The bits outside the network mask are not used.
mask	The Ipv4Mask containing one bits in each bit position of the network number.
base	An optional Ipv4Address containing the initial address used for IP address allocation. Will be combined (ORed) with the network number to generate the first IP address. Defaults to 0.0.0.1.

Definition at line 164 of file satellite-user-helper.cc.

References m_ipv4Beam.

◆ SetCsmaChannelAttribute()

void ns3::SatUserHelper::SetCsmaChannelAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Set an attribute value to be propagated to each CsmaChannel object created by the helper.

Parameters

name	the name of the attribute to set
value	the value of the attribute to set

Set these attribute on each ns3::CsmaChannel created by SatUserHelper::Install().

Definition at line 137 of file satellite-user-helper.cc.

References m_csma.

◆ SetCsmaDeviceAttribute()

void ns3::SatUserHelper::SetCsmaDeviceAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Set an attribute value to be propagated to each CsmaNetDevice object created by the helper.

Parameters

name	the name of the attribute to set
value	the value of the attribute to set

Set these attributes on each ns3::CsmaNetDevice created by SatUserHelper::Install().

Definition at line 130 of file satellite-user-helper.cc.

References m_csma.

◆ SetCsmaQueue()

void ns3::SatUserHelper::SetCsmaQueue	(	std::string	type,
		std::string	name1 = `""`,
		const AttributeValue &	value1 = `EmptyAttributeValue()`,
		std::string	name2 = `""`,
		const AttributeValue &	value2 = `EmptyAttributeValue()`,
		std::string	name3 = `""`,
		const AttributeValue &	value3 = `EmptyAttributeValue()`,
		std::string	name4 = `""`,
		const AttributeValue &	value4 = `EmptyAttributeValue()`
	)

Set the type and the attribute values to be associated with each Queue object in each CsmaNetDevice created by the helper.

Parameters

type	the type of queue
name1	the name of the attribute to set on the queue
value1	the value of the attribute to set on the queue
name2	the name of the attribute to set on the queue
value2	the value of the attribute to set on the queue
name3	the name of the attribute to set on the queue
value3	the value of the attribute to set on the queue
name4	the name of the attribute to set on the queue
value4	the value of the attribute to set on the queue

Set these attributes on each ns3::Queue created by SatUserHelper::Install().

Definition at line 114 of file satellite-user-helper.cc.

References m_csma.

◆ SetGwBaseAddress()

void ns3::SatUserHelper::SetGwBaseAddress	(	const Ipv4Address &	network,
		const Ipv4Mask &	mask,
		Ipv4Address	base = `"0.0.0.1"`
	)

Parameters

network	The Ipv4Address containing the initial network number to use for satellite network allocation. The bits outside the network mask are not used.
mask	The Ipv4Mask containing one bits in each bit position of the network number.
base	An optional Ipv4Address containing the initial address used for IP address allocation. Will be combined (ORed) with the network number to generate the first IP address. Defaults to 0.0.0.1.

Definition at line 154 of file satellite-user-helper.cc.

References m_ipv4Gw.

◆ SetUtBaseAddress()

void ns3::SatUserHelper::SetUtBaseAddress	(	const Ipv4Address &	network,
		const Ipv4Mask &	mask,
		Ipv4Address	base = `"0.0.0.1"`
	)

Parameters

network	The Ipv4Address containing the initial network number to use for satellite network allocation. The bits outside the network mask are not used.
mask	The Ipv4Mask containing one bits in each bit position of the network number.
base	An optional Ipv4Address containing the initial address used for IP address allocation. Will be combined (ORed) with the network number to generate the first IP address. Defaults to 0.0.0.1.

Definition at line 144 of file satellite-user-helper.cc.

References m_ipv4Ut.

◆ UpdateGwRoutes()

void ns3::SatUserHelper::UpdateGwRoutes	(	Address	ut,
		Address	oldGateway,
		Address	newGateway
	)

Update ARP cache and default route on the terrestrial network so packets are properly routed to the UT handed over.

Parameters

ut	Address of the UT which was just handed over
oldGateway	Address of the GW the UT was assigned to
newGateway	Address of the GW the UT is newly assigned to

Definition at line 622 of file satellite-user-helper.cc.

References m_gwDevices, m_router, and m_utDevices.

Referenced by ns3::SatHelper::DoCreateScenario().

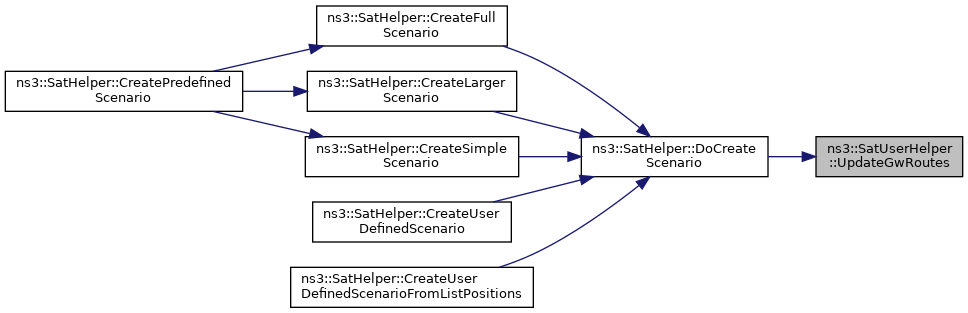

Here is the caller graph for this function:

◆ UpdateUtRoutes()

void ns3::SatUserHelper::UpdateUtRoutes	(	Address	ut,
		Address	newGateway
	)

Update ARP cache and default route on an UT so packets are properly routed to the new GW as their next hop.

Parameters

ut	Address of the UT for which tables should be updated
newGateway	Address of the newly assigned GW for this UT
ulDelayModel	The delay model used by the UT return link

Definition at line 573 of file satellite-user-helper.cc.

References m_arpCachesToGateway, m_gwDevices, m_propagationDelayCallback, m_utDevices, ns3::SatMobilityObserver::ObserveTimingAdvance(), ns3::SatEnums::RETURN_FEEDER_CH, and ns3::SatEnums::RETURN_USER_CH.

Referenced by ns3::SatHelper::DoCreateScenario().

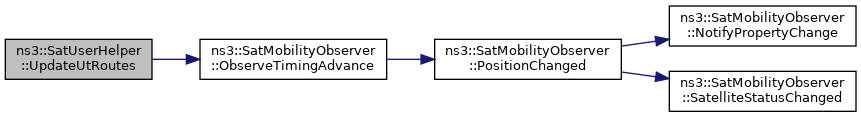

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_arpCachesToGateway

std::map<Address, Ptr<SatArpCache> > ns3::SatUserHelper::m_arpCachesToGateway

private

Container of ARP tables to reach a gateway accessible by MAC address.

Used to update routing during handover

Definition at line 358 of file satellite-user-helper.h.

Referenced by PopulateBeamRoutings(), and UpdateUtRoutes().

◆ m_backboneNetworkType

NetworkType ns3::SatUserHelper::m_backboneNetworkType

private

Definition at line 315 of file satellite-user-helper.h.

Referenced by GetTypeId(), and InstallBackboneNetwork().

◆ m_creationTrace

TracedCallback<std::string> ns3::SatUserHelper::m_creationTrace

private

Trace callback for creation traces.

Definition at line 337 of file satellite-user-helper.h.

Referenced by GetTypeId().

◆ m_csma

CsmaHelper ns3::SatUserHelper::m_csma

private

Definition at line 310 of file satellite-user-helper.h.

Referenced by InstallBackboneNetwork(), InstallSubscriberNetwork(), SetCsmaChannelAttribute(), SetCsmaDeviceAttribute(), and SetCsmaQueue().

◆ m_gwDevices

std::map<Address, Ptr<NetDevice> > ns3::SatUserHelper::m_gwDevices

private

Container of GW SatNetDevice accessible by MAC address.

Used to update routing during handover

Definition at line 351 of file satellite-user-helper.h.

Referenced by PopulateBeamRoutings(), UpdateGwRoutes(), and UpdateUtRoutes().

◆ m_ipv4Beam

Ipv4AddressHelper ns3::SatUserHelper::m_ipv4Beam

private

Definition at line 313 of file satellite-user-helper.h.

Referenced by PopulateBeamRoutings(), and SetBeamBaseAddress().

◆ m_ipv4Gw

Ipv4AddressHelper ns3::SatUserHelper::m_ipv4Gw

private

Definition at line 312 of file satellite-user-helper.h.

Referenced by InstallGw(), InstallRouter(), and SetGwBaseAddress().

◆ m_ipv4Ut

Ipv4AddressHelper ns3::SatUserHelper::m_ipv4Ut

private

Definition at line 311 of file satellite-user-helper.h.

Referenced by InstallUt(), and SetUtBaseAddress().

◆ m_propagationDelayCallback

SatUserHelper::PropagationDelayCallback ns3::SatUserHelper::m_propagationDelayCallback

private

Definition at line 360 of file satellite-user-helper.h.

Referenced by GetTypeId(), and UpdateUtRoutes().

◆ m_router

Ptr<Node> ns3::SatUserHelper::m_router

private

Definition at line 318 of file satellite-user-helper.h.

Referenced by GetRouter(), GetRouterInfo(), InstallGw(), and UpdateGwRoutes().

◆ m_subscriberNetworkType

NetworkType ns3::SatUserHelper::m_subscriberNetworkType

private

Definition at line 316 of file satellite-user-helper.h.

Referenced by GetTypeId(), and InstallSubscriberNetwork().

◆ m_utDevices

std::map<Address, Ptr<NetDevice> > ns3::SatUserHelper::m_utDevices

private

Container of UT SatNetDevice accessible by MAC address.

Used to update routing during handover

Definition at line 344 of file satellite-user-helper.h.

Referenced by PopulateBeamRoutings(), UpdateGwRoutes(), and UpdateUtRoutes().

◆ m_utMap

std::map<Ptr<Node>, Ptr<Node> > ns3::SatUserHelper::m_utMap

private

Container of UT users and their corresponding UT.

The data structure is a map which each key is a pointer to the UT user node. The corresponding value is a pointer to the UT node which serves the corresponding UT user node.

The member is redundant, in a sense that #m_utUsers also stores the same set of pointers to UT users. This approach is taken to preserve the ordering of the node pointers in #m_utUsers, which is difficult to be replicated as a map.

Definition at line 332 of file satellite-user-helper.h.

Referenced by InstallUt().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/helper/satellite-user-helper.h
/builds/sns3/satellite/satellite/helper/satellite-user-helper.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ PropagationDelayCallback

◆ UtUsersContainer_t

Member Enumeration Documentation

◆ NetworkType

Constructor & Destructor Documentation

◆ SatUserHelper()

◆ ~SatUserHelper()

Member Function Documentation

◆ EnableCreationTraces()

◆ GetInstanceTypeId()

◆ GetRouter()

◆ GetRouterInfo()

◆ GetTypeId()

◆ InstallBackboneNetwork()

◆ InstallGw()

◆ InstallRouter()

◆ InstallSatSimpleNetwork()

◆ InstallSubscriberNetwork()

◆ InstallUt() [1/2]

◆ InstallUt() [2/2]

◆ IsGwUser()

◆ PopulateBeamRoutings()

◆ SetBeamBaseAddress()

◆ SetCsmaChannelAttribute()

◆ SetCsmaDeviceAttribute()

◆ SetCsmaQueue()

◆ SetGwBaseAddress()

◆ SetUtBaseAddress()

◆ UpdateGwRoutes()

◆ UpdateUtRoutes()

Member Data Documentation

◆ m_arpCachesToGateway

◆ m_backboneNetworkType

◆ m_creationTrace

◆ m_csma

◆ m_gwDevices

◆ m_ipv4Beam

◆ m_ipv4Gw

◆ m_ipv4Ut

◆ m_propagationDelayCallback

◆ m_router

◆ m_subscriberNetworkType

◆ m_utDevices

◆ m_utMap
