Class that holds information for each beam regarding UTs and their users camped in each beam. More...

#include "satellite-beam-user-info.h"

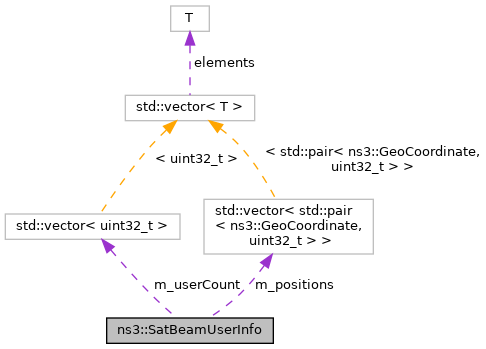

Collaboration diagram for ns3::SatBeamUserInfo:

Public Member Functions
	SatBeamUserInfo ()
	Default constructor for SatBeamUserInfo enables creating an empty information structure. More...

	SatBeamUserInfo (uint32_t utCount, uint32_t userCountPerUt)
	Constructor for SatBeamUserInfo which allows creating a group of UT information structures with each UT having the same number of users. More...

virtual	~SatBeamUserInfo ()
	Destructor for SatBeamUserInfo. More...

void	AppendUt (uint32_t userCount)
	Appends new UT to end of the list with given user count for the appended UT. More...

std::vector< std::pair< GeoCoordinate, uint32_t > >	GetPositions ()

uint32_t	GetUtCount () const

uint32_t	GetUtUserCount (uint32_t utIndex) const

void	SetPositions (std::vector< std::pair< GeoCoordinate, uint32_t >> positions)
	Set the list of custom positions to create, and associated group. More...

void	SetUtUserCount (uint32_t utIndex, uint32_t userCount)
	Sets user count for the UT with given uIndex. More...

Private Attributes
std::vector< std::pair< GeoCoordinate, uint32_t > >	m_positions

std::vector< uint32_t >	m_userCount

Detailed Description

Class that holds information for each beam regarding UTs and their users camped in each beam.

Default constructor enables creating an empty information structure. The developer needs to Append individual UTs with individual number of users in each UT by calling the method AppendUt().

The second constructor allows creating a group of UT information structures with each UT having the same number of users.

Definition at line 45 of file satellite-beam-user-info.h.

Constructor & Destructor Documentation

◆ SatBeamUserInfo() [1/2]

ns3::SatBeamUserInfo::SatBeamUserInfo ( )

Default constructor for SatBeamUserInfo enables creating an empty information structure.

Definition at line 34 of file satellite-beam-user-info.cc.

◆ SatBeamUserInfo() [2/2]

ns3::SatBeamUserInfo::SatBeamUserInfo	(	uint32_t	utCount,
		uint32_t	userCountPerUt
	)

Constructor for SatBeamUserInfo which allows creating a group of UT information structures with each UT having the same number of users.

Parameters

utCount	UT count of the beam (can be added later by method AddUt)
userCountPerUt	User count of the UTs (can be changed for the specific UT by method SetUtUserCount)

Definition at line 39 of file satellite-beam-user-info.cc.

References m_userCount.

◆ ~SatBeamUserInfo()

virtual ns3::SatBeamUserInfo::~SatBeamUserInfo ( )

inlinevirtual

Destructor for SatBeamUserInfo.

Definition at line 66 of file satellite-beam-user-info.h.

Member Function Documentation

◆ AppendUt()

void ns3::SatBeamUserInfo::AppendUt ( uint32_t userCount )

Appends new UT to end of the list with given user count for the appended UT.

Parameters

userCount Number of users under the appended UT. Minimum value is 1.

Definition at line 81 of file satellite-beam-user-info.cc.

References m_userCount.

Referenced by ns3::SatHelper::CreateLargerScenario(), ns3::SimulationHelper::CreateSatScenario(), and ScenarioCreationUser::DoRun().

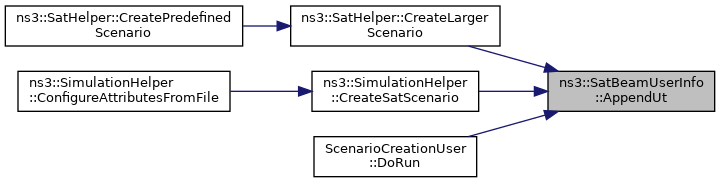

Here is the caller graph for this function:

◆ GetPositions()

std::vector< std::pair< GeoCoordinate, uint32_t > > ns3::SatBeamUserInfo::GetPositions ( )

Returns: Get the list of custom positions to create, and associated group

Definition at line 97 of file satellite-beam-user-info.cc.

References m_positions.

◆ GetUtCount()

uint32_t ns3::SatBeamUserInfo::GetUtCount ( ) const

Returns: number of UTs in beam.

Definition at line 53 of file satellite-beam-user-info.cc.

References m_userCount.

◆ GetUtUserCount()

uint32_t ns3::SatBeamUserInfo::GetUtUserCount ( uint32_t utIndex ) const

Parameters

utIndex index of the UT. Possible indexes are 0 to value -1 returned by GetUtCount

Returns: number of users in a UT.

Definition at line 61 of file satellite-beam-user-info.cc.

References m_userCount.

◆ SetPositions()

void ns3::SatBeamUserInfo::SetPositions ( std::vector< std::pair< GeoCoordinate, uint32_t >> positions )

Set the list of custom positions to create, and associated group.

Definition at line 91 of file satellite-beam-user-info.cc.

References m_positions.

◆ SetUtUserCount()

void ns3::SatBeamUserInfo::SetUtUserCount	(	uint32_t	utIndex,
		uint32_t	userCount
	)

Sets user count for the UT with given uIndex.

Parameters

utIndex	index of the UT. Possible indexes are 0 to value -1 returned by GetUtCount.
userCount	Number of users under the UT of with given utIndex. Minimum value is 1. If this is not called for the UT then default value (1) is used for the UT.

Definition at line 71 of file satellite-beam-user-info.cc.

References m_userCount.

Referenced by ns3::SatHelper::CreateLargerScenario().

Here is the caller graph for this function:
