This class supports LorawanMac instances by managing a list of the logical channels that the device is supposed to be using, and establishes their relationship with LoraSubBands. More...

#include "lora-logical-channel-helper.h"

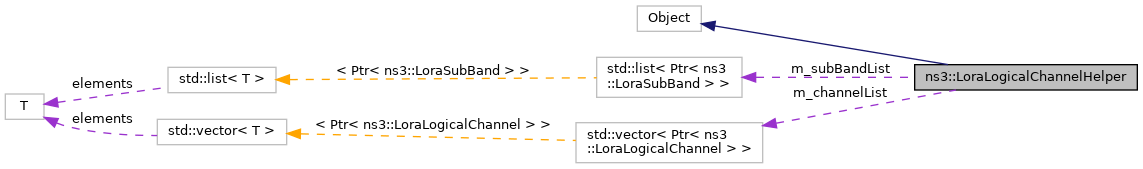

Inheritance diagram for ns3::LoraLogicalChannelHelper:

Collaboration diagram for ns3::LoraLogicalChannelHelper:

Public Member Functions
	LoraLogicalChannelHelper ()

virtual	~LoraLogicalChannelHelper ()

void	AddChannel (double frequency)
	Add a new channel to the list. More...

void	AddChannel (Ptr< LoraLogicalChannel > logicalChannel)
	Add a new channel to the list. More...

void	AddEvent (Time duration, Ptr< LoraLogicalChannel > channel)
	Register the transmission of a packet. More...

void	AddLoraSubBand (double firstFrequency, double lastFrequency, double dutyCycle, double maxTxPowerDbm)
	Add a new LoraSubBand to this helper. More...

void	AddLoraSubBand (Ptr< LoraSubBand > subBand)
	Add a new LoraSubBand. More...

void	DisableChannel (int index)
	Disable the channel at a specified index. More...

Time	GetAggregatedWaitingTime (void)
	Get the time it is necessary to wait before transmitting again, according to the aggregate duty cycle timer. More...

std::vector< Ptr< LoraLogicalChannel > >	GetChannelList (void)
	Get the list of LoraLogicalChannels currently registered on this helper. More...

std::vector< Ptr< LoraLogicalChannel > >	GetEnabledChannelList (void)
	Get the list of LoraLogicalChannels currently registered on this helper that have been enabled for Uplink transmission with the channel mask. More...

Ptr< LoraSubBand >	GetLoraSubBandFromChannel (Ptr< LoraLogicalChannel > channel)
	Get the LoraSubBand a channel belongs to. More...

Ptr< LoraSubBand >	GetLoraSubBandFromFrequency (double frequency)
	Get the LoraSubBand a frequency belongs to. More...

double	GetTxPowerForChannel (Ptr< LoraLogicalChannel > logicalChannel)
	Returns the maximum transmission power [dBm] that is allowed on a channel. More...

Time	GetWaitingTime (Ptr< LoraLogicalChannel > channel)
	Get the time it is necessary to wait for before transmitting on a given channel. More...

void	RemoveChannel (Ptr< LoraLogicalChannel > channel)
	Remove a channel. More...

void	SetChannel (uint8_t chIndex, Ptr< LoraLogicalChannel > logicalChannel)
	Set a new channel at a fixed index. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Attributes
double	m_aggregatedDutyCycle
	transmission will be possible according to the aggregated transmission timer More...

std::vector< Ptr< LoraLogicalChannel > >	m_channelList
	A vector of the LoraLogicalChannels that are currently registered within this helper. More...

Time	m_nextAggregatedTransmissionTime
	The next time at which. More...

std::list< Ptr< LoraSubBand > >	m_subBandList
	A list of the LoraSubBands that are currently registered within this helper. More...

Detailed Description

This class supports LorawanMac instances by managing a list of the logical channels that the device is supposed to be using, and establishes their relationship with LoraSubBands.

This class also takes into account duty cycle limitations, by updating a list of LoraSubBand objects and providing methods to query whether transmission on a set channel is admissible or not.

Definition at line 50 of file lora-logical-channel-helper.h.

Constructor & Destructor Documentation

◆ LoraLogicalChannelHelper()

ns3::LoraLogicalChannelHelper::LoraLogicalChannelHelper ( )

Definition at line 47 of file lora-logical-channel-helper.cc.

◆ ~LoraLogicalChannelHelper()

ns3::LoraLogicalChannelHelper::~LoraLogicalChannelHelper ( )

virtual

Definition at line 54 of file lora-logical-channel-helper.cc.

Member Function Documentation

◆ AddChannel() [1/2]

void ns3::LoraLogicalChannelHelper::AddChannel ( double frequency )

Add a new channel to the list.

Parameters

frequency The frequency of the channel to create.

Definition at line 124 of file lora-logical-channel-helper.cc.

References m_channelList.

Referenced by ns3::LorawanMacEndDevice::AddLogicalChannel(), ns3::SatLoraConf::SetEu863_870Conf(), and ns3::SatLoraConf::SetSatelliteConf().

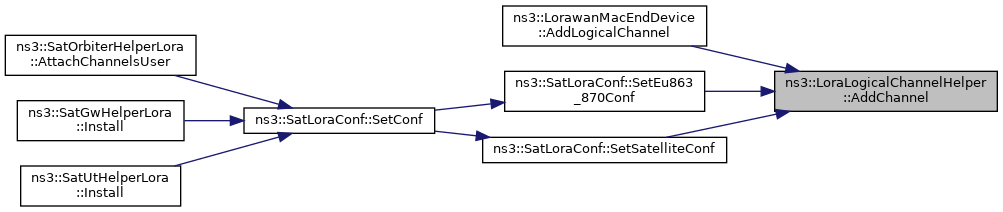

Here is the caller graph for this function:

◆ AddChannel() [2/2]

void ns3::LoraLogicalChannelHelper::AddChannel ( Ptr< LoraLogicalChannel > logicalChannel )

Add a new channel to the list.

Parameters

logicalChannel A pointer to the channel to add to the list.

Definition at line 138 of file lora-logical-channel-helper.cc.

References m_channelList.

◆ AddEvent()

void ns3::LoraLogicalChannelHelper::AddEvent	(	Time	duration,
		Ptr< LoraLogicalChannel >	channel
	)

Register the transmission of a packet.

Parameters

duration	The duration of the transmission event.
channel	The channel the transmission was made on.

Definition at line 225 of file lora-logical-channel-helper.cc.

References GetLoraSubBandFromChannel(), m_aggregatedDutyCycle, and m_nextAggregatedTransmissionTime.

Referenced by ns3::LorawanGroundMacGateway::Send(), ns3::LorawanOrbiterMacGateway::Send(), ns3::LorawanMacGateway::Send(), and ns3::LorawanMacEndDeviceClassA::SendToPhy().

Here is the call graph for this function:

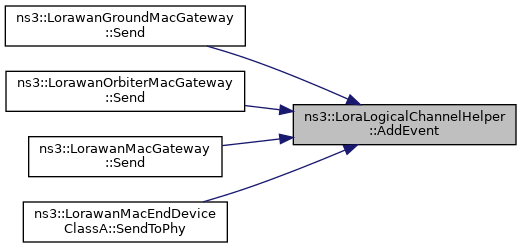

Here is the caller graph for this function:

◆ AddLoraSubBand() [1/2]

void ns3::LoraLogicalChannelHelper::AddLoraSubBand	(	double	firstFrequency,
		double	lastFrequency,
		double	dutyCycle,
		double	maxTxPowerDbm
	)

Add a new LoraSubBand to this helper.

Parameters

firstFrequency	The first frequency of the subband, in MHz.
lastFrequency	The last frequency of the subband, in MHz.
dutyCycle	The duty cycle that needs to be enforced on this subband.
maxTxPowerDbm	The maximum transmission power [dBm] that can be used on this LoraSubBand.

Definition at line 156 of file lora-logical-channel-helper.cc.

References m_subBandList.

Referenced by ns3::LorawanMacEndDevice::AddLoraSubBand(), ns3::SatLoraConf::SetEu863_870Conf(), and ns3::SatLoraConf::SetSatelliteConf().

Here is the caller graph for this function:

◆ AddLoraSubBand() [2/2]

void ns3::LoraLogicalChannelHelper::AddLoraSubBand ( Ptr< LoraSubBand > subBand )

Add a new LoraSubBand.

Parameters

subBand A pointer to the LoraSubBand that needs to be added.

Definition at line 170 of file lora-logical-channel-helper.cc.

References m_subBandList.

◆ DisableChannel()

void ns3::LoraLogicalChannelHelper::DisableChannel ( int index )

Disable the channel at a specified index.

Parameters

index The index of the channel to disable.

Definition at line 271 of file lora-logical-channel-helper.cc.

References m_channelList.

◆ GetAggregatedWaitingTime()

Time ns3::LoraLogicalChannelHelper::GetAggregatedWaitingTime ( void )

Get the time it is necessary to wait before transmitting again, according to the aggregate duty cycle timer.

Returns: The aggregate waiting time.

Definition at line 194 of file lora-logical-channel-helper.cc.

References m_nextAggregatedTransmissionTime.

◆ GetChannelList()

std::vector< Ptr< LoraLogicalChannel > > ns3::LoraLogicalChannelHelper::GetChannelList ( void )

Get the list of LoraLogicalChannels currently registered on this helper.

Returns: A list of the managed channels.

Definition at line 60 of file lora-logical-channel-helper.cc.

References m_channelList.

Referenced by ns3::LorawanMacEndDevice::OnLinkAdrReq().

Here is the caller graph for this function:

◆ GetEnabledChannelList()

std::vector< Ptr< LoraLogicalChannel > > ns3::LoraLogicalChannelHelper::GetEnabledChannelList ( void )

Get the list of LoraLogicalChannels currently registered on this helper that have been enabled for Uplink transmission with the channel mask.

Returns: A list of the managed channels enabled for Uplink transmission.

Definition at line 73 of file lora-logical-channel-helper.cc.

References m_channelList.

Referenced by ns3::LorawanMacEndDevice::GetChannelForTx(), and ns3::LorawanMacEndDevice::GetNextTransmissionDelay().

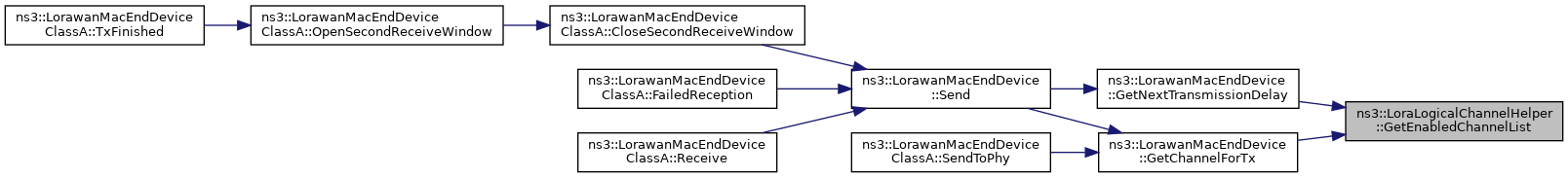

Here is the caller graph for this function:

◆ GetLoraSubBandFromChannel()

Ptr< LoraSubBand > ns3::LoraLogicalChannelHelper::GetLoraSubBandFromChannel ( Ptr< LoraLogicalChannel > channel )

Get the LoraSubBand a channel belongs to.

Parameters

channel The channel whose LoraSubBand we want to get.

Returns: The LoraSubBand the channel belongs to.

Definition at line 98 of file lora-logical-channel-helper.cc.

References GetLoraSubBandFromFrequency().

Referenced by AddEvent(), and GetWaitingTime().

Here is the call graph for this function:

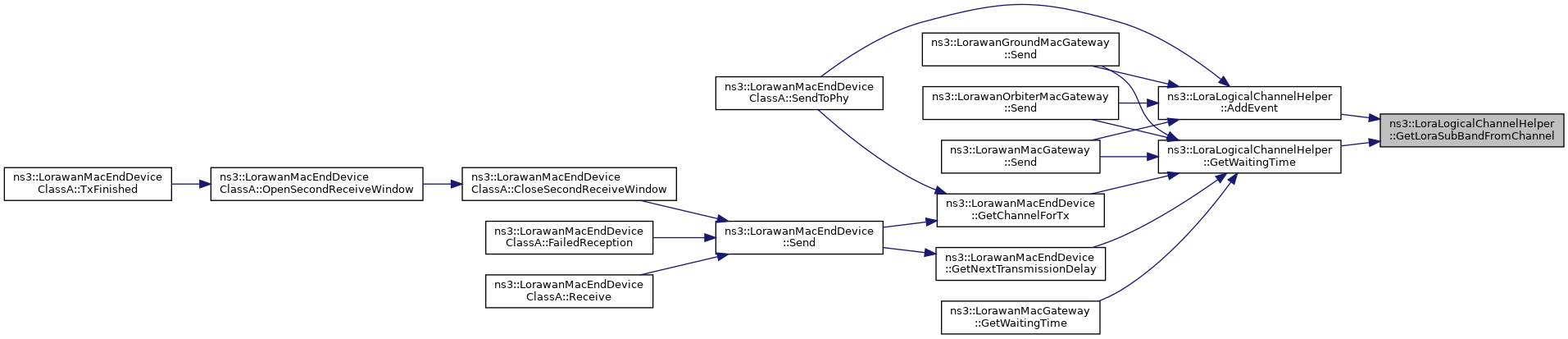

Here is the caller graph for this function:

◆ GetLoraSubBandFromFrequency()

Ptr< LoraSubBand > ns3::LoraLogicalChannelHelper::GetLoraSubBandFromFrequency ( double frequency )

Get the LoraSubBand a frequency belongs to.

Parameters

frequency The frequency we want to check.

Returns: The LoraSubBand the frequency belongs to.

Definition at line 104 of file lora-logical-channel-helper.cc.

References m_subBandList.

Referenced by GetLoraSubBandFromChannel().

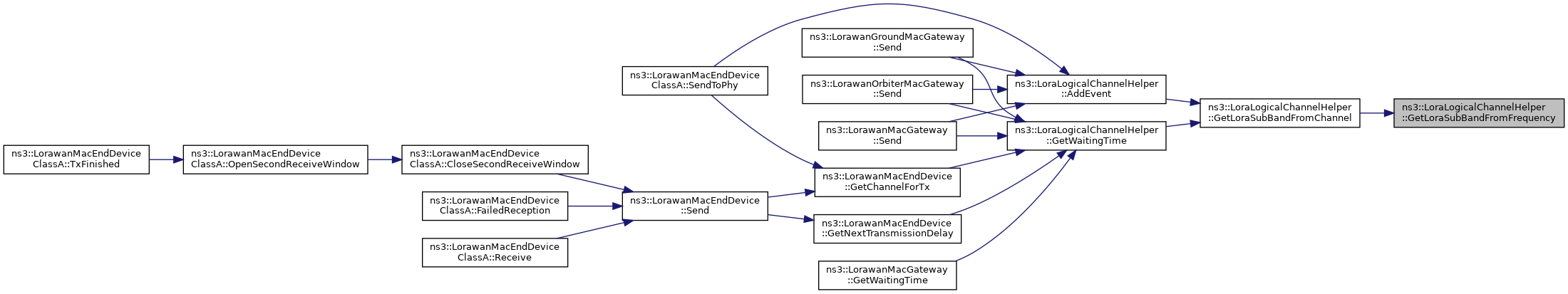

Here is the caller graph for this function:

◆ GetTxPowerForChannel()

double ns3::LoraLogicalChannelHelper::GetTxPowerForChannel ( Ptr< LoraLogicalChannel > logicalChannel )

Returns the maximum transmission power [dBm] that is allowed on a channel.

Parameters

logicalChannel The power for which to check the maximum allowed transmission power.

Returns: The power in dBm.

Definition at line 251 of file lora-logical-channel-helper.cc.

References m_subBandList.

Referenced by ns3::LorawanMacEndDevice::Send().

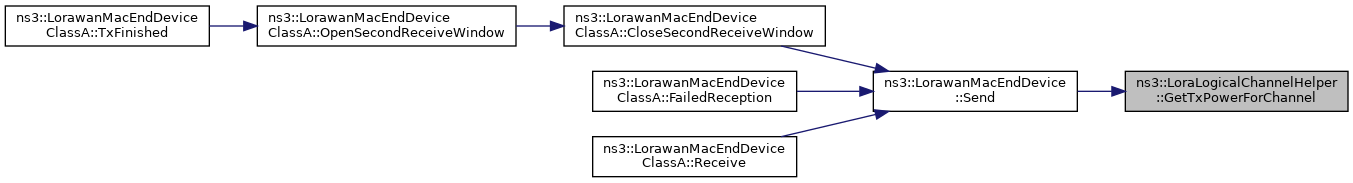

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::LoraLogicalChannelHelper::GetTypeId ( void )

static

Definition at line 41 of file lora-logical-channel-helper.cc.

◆ GetWaitingTime()

Time ns3::LoraLogicalChannelHelper::GetWaitingTime ( Ptr< LoraLogicalChannel > channel )

Get the time it is necessary to wait for before transmitting on a given channel.

Remarks: This function does not take into account aggregate waiting time. Check on this should be performed before calling this function.

Parameters

channel A pointer to the channel we want to know the waiting time for.

Returns: A Time instance containing the waiting time before transmission is allowed on the channel.

Definition at line 208 of file lora-logical-channel-helper.cc.

References GetLoraSubBandFromChannel().

Referenced by ns3::LorawanMacEndDevice::GetChannelForTx(), ns3::LorawanMacEndDevice::GetNextTransmissionDelay(), ns3::LorawanMacGateway::GetWaitingTime(), ns3::LorawanGroundMacGateway::Send(), ns3::LorawanOrbiterMacGateway::Send(), and ns3::LorawanMacGateway::Send().

Here is the call graph for this function:

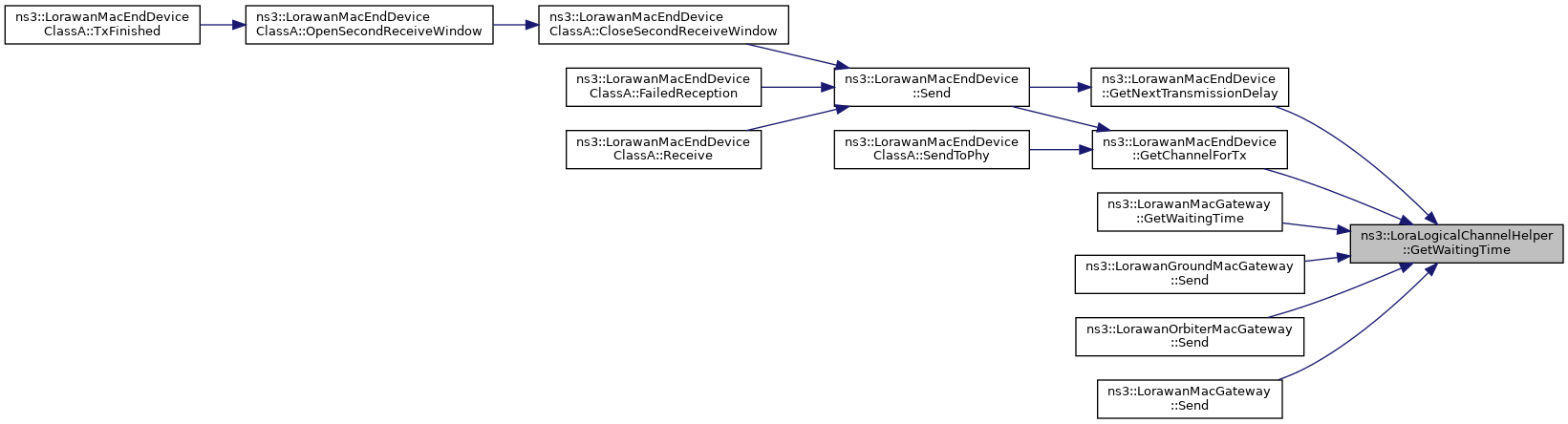

Here is the caller graph for this function:

◆ RemoveChannel()

void ns3::LoraLogicalChannelHelper::RemoveChannel ( Ptr< LoraLogicalChannel > channel )

Remove a channel.

Parameters

channel A pointer to the channel we want to remove.

Definition at line 178 of file lora-logical-channel-helper.cc.

References m_channelList.

◆ SetChannel()

void ns3::LoraLogicalChannelHelper::SetChannel	(	uint8_t	chIndex,
		Ptr< LoraLogicalChannel >	logicalChannel
	)

Set a new channel at a fixed index.

Parameters

chIndex	The index of the channel to substitute.
logicalChannel	A pointer to the channel to add to the list.

Definition at line 147 of file lora-logical-channel-helper.cc.

References m_channelList.

Referenced by ns3::LorawanMacEndDevice::SetLogicalChannel().

Here is the caller graph for this function:

Member Data Documentation

◆ m_aggregatedDutyCycle

double ns3::LoraLogicalChannelHelper::m_aggregatedDutyCycle

private

transmission will be possible according to the aggregated transmission timer

The next time at which transmission will be possible

Definition at line 203 of file lora-logical-channel-helper.h.

Referenced by AddEvent().

◆ m_channelList

std::vector<Ptr<LoraLogicalChannel> > ns3::LoraLogicalChannelHelper::m_channelList

private

A vector of the LoraLogicalChannels that are currently registered within this helper.

This vector represents the node's channel mask. The first N channels are the default ones for a fixed region.

Definition at line 196 of file lora-logical-channel-helper.h.

Referenced by AddChannel(), DisableChannel(), GetChannelList(), GetEnabledChannelList(), RemoveChannel(), and SetChannel().

◆ m_nextAggregatedTransmissionTime

Time ns3::LoraLogicalChannelHelper::m_nextAggregatedTransmissionTime

private

The next time at which.

Definition at line 198 of file lora-logical-channel-helper.h.

Referenced by AddEvent(), and GetAggregatedWaitingTime().

◆ m_subBandList

std::list<Ptr<LoraSubBand> > ns3::LoraLogicalChannelHelper::m_subBandList

private

A list of the LoraSubBands that are currently registered within this helper.

Definition at line 189 of file lora-logical-channel-helper.h.

Referenced by AddLoraSubBand(), GetLoraSubBandFromFrequency(), and GetTxPowerForChannel().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/lora-logical-channel-helper.h
/builds/sns3/satellite/satellite/model/lora-logical-channel-helper.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ LoraLogicalChannelHelper()

◆ ~LoraLogicalChannelHelper()

Member Function Documentation

◆ AddChannel() [1/2]

◆ AddChannel() [2/2]

◆ AddEvent()

◆ AddLoraSubBand() [1/2]

◆ AddLoraSubBand() [2/2]

◆ DisableChannel()

◆ GetAggregatedWaitingTime()

◆ GetChannelList()

◆ GetEnabledChannelList()

◆ GetLoraSubBandFromChannel()

◆ GetLoraSubBandFromFrequency()

◆ GetTxPowerForChannel()

◆ GetTypeId()

◆ GetWaitingTime()

◆ RemoveChannel()

◆ SetChannel()

Member Data Documentation

◆ m_aggregatedDutyCycle

◆ m_channelList

◆ m_nextAggregatedTransmissionTime

◆ m_subBandList
