Class adding methods linked to Lora, needed to be used in a satellite context. More...

#include "satellite-lora-phy-rx.h"

Inheritance diagram for ns3::SatLoraPhyRx:

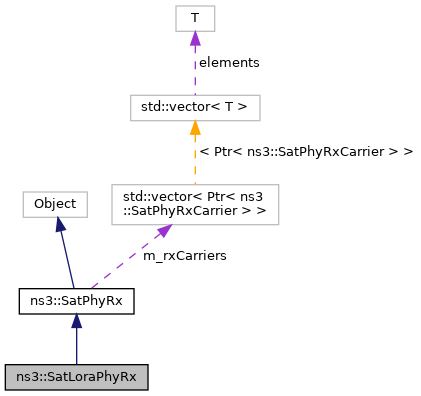

Collaboration diagram for ns3::SatLoraPhyRx:

Public Types
enum	State { SLEEP , STANDBY , TX , RX }

Public Types inherited from ns3::SatPhyRx
typedef Callback< void, uint32_t, uint32_t, uint32_t, uint8_t, double >	AverageNormalizedOfferedLoadCallback

typedef Callback< void, uint32_t, uint32_t, Address, Address, double, bool >	CnoCallback

typedef Callback< void, Ptr< SatSignalParameters >, bool >	ReceiveCallback

Public Member Functions
	SatLoraPhyRx ()
	Constructor and destructor. More...

virtual	~SatLoraPhyRx ()

State	GetState ()

bool	IsOnFrequency (double frequency)
	Whether this device is listening on the specified frequency or not. More...

bool	IsTransmitting (void)
	Whether this device is transmitting or not. More...

void	SetFrequency (double frequencyMHz)
	Set the frequency this EndDevice will listen on. More...

void	SetSpreadingFactor (uint8_t sf)
	Set the Spreading Factor this EndDevice will listen for. More...

virtual void	StartRx (Ptr< SatSignalParameters > rxParams)
	Start receiving a packet. More...

void	SwitchToRx ()
	Switch to the RX state. More...

void	SwitchToSleep (void)
	Switch to the SLEEP state. More...

void	SwitchToStandby (void)
	Switch to the STANDBY state. More...

void	SwitchToTx ()
	Switch to the TX state. More...

Public Member Functions inherited from ns3::SatPhyRx
	SatPhyRx ()
	Default constructor. More...

virtual	~SatPhyRx ()
	Destructor for SatPhyRx. More...

void	BeginEndScheduling ()
	Begin frame/window end scheduling for processes utilizing frame length as interval. More...

void	ConfigurePhyRxCarriers (Ptr< SatPhyRxCarrierConf > carrierConf, Ptr< SatSuperframeConf > superFrameConf)

virtual void	DoDispose ()
	Dispose of this class instance. More...

Mac48Address	GetAddress () const
	Get MAC address of this PHY/MAC. More...

double	GetAntennaGain (Ptr< MobilityModel > mobility)
	Get antenna gain based on position or in case that antenna pattern is not configured, maximum configured gain is return. More...

uint32_t	GetBeamId () const
	Get beam id of this receiver. More...

Ptr< NetDevice >	GetDevice ()

double	GetFadingValue (Address macAddress, SatEnums::ChannelType_t channelType)
	Get fading value. More...

double	GetLosses ()
	Get configures RX losses, currently only antenna loss used. More...

Ptr< MobilityModel >	GetMobility ()

double	GetRxTemperatureK (Ptr< SatSignalParameters > rxParams)
	Method for querying the temperature of the chosen carrier. More...

uint32_t	GetSatId () const
	Get satellite id of this receiver. More...

void	SetAntennaGainPattern (Ptr< SatAntennaGainPattern > agp, Ptr< SatMobilityModel > mobility)

void	SetAntennaLoss_Db (double loss_Db)
	Set the Antenna loss in Db. More...

void	SetAverageNormalizedOfferedLoadCallback (SatPhyRx::AverageNormalizedOfferedLoadCallback cb)
	Set average normalized offered load callback. More...

void	SetBeamId (uint32_t beamId)
	Set the beam id for all the transmissions from this SatPhyTx. More...

void	SetCnoCallback (SatPhyRx::CnoCallback cb)
	Set C/N0 receiver. More...

void	SetDefaultFadingValue (double fadingValue)
	Function for setting the default fading value. More...

void	SetDevice (Ptr< NetDevice > d)

void	SetFadingContainer (Ptr< SatBaseFading > fadingContainer)
	Set fading container. More...

void	SetMaxAntennaGain_Db (double gain_Db)
	Set the maximum Antenna gain in Db. More...

void	SetMobility (Ptr< MobilityModel > m)

void	SetNodeInfo (const Ptr< SatNodeInfo > nodeInfo)
	Set the node info class. More...

void	SetReceiveCallback (SatPhyRx::ReceiveCallback cb)
	Set the upper layer receive callback. More...

void	SetSatId (uint32_t satId)
	Set the satellite id for all the transmissions from this SatPhyTx. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SatPhyRx
static TypeId	GetTypeId (void)
	inherited from Object More...

Private Attributes
double	m_frequency

uint8_t	m_sf

State	m_state

Detailed Description

Class adding methods linked to Lora, needed to be used in a satellite context.

Definition at line 39 of file satellite-lora-phy-rx.h.

Member Enumeration Documentation

◆ State

enum ns3::SatLoraPhyRx::State

Enumerator
SLEEP	The PHY layer is sleeping. During sleep, the device is not listening for incoming messages.
STANDBY	The PHY layer is in STANDBY. When the PHY is in this state, it's listening to the channel, and it's also ready to transmit data passed to it by the MAC layer.
TX	The PHY layer is sending a packet. During transmission, the device cannot receive any packet or send any additional packet.
RX	The PHY layer is receiving a packet. While the device is locked on an incoming packet, transmission is not possible.

Definition at line 42 of file satellite-lora-phy-rx.h.

Constructor & Destructor Documentation

◆ SatLoraPhyRx()

ns3::SatLoraPhyRx::SatLoraPhyRx ( )

Constructor and destructor.

Definition at line 39 of file satellite-lora-phy-rx.cc.

◆ ~SatLoraPhyRx()

ns3::SatLoraPhyRx::~SatLoraPhyRx ( )

virtual

Definition at line 44 of file satellite-lora-phy-rx.cc.

Member Function Documentation

◆ GetState()

SatLoraPhyRx::State ns3::SatLoraPhyRx::GetState ( )

Definition at line 105 of file satellite-lora-phy-rx.cc.

References m_state.

◆ GetTypeId()

TypeId ns3::SatLoraPhyRx::GetTypeId ( void )

static

Definition at line 33 of file satellite-lora-phy-rx.cc.

◆ IsOnFrequency()

bool ns3::SatLoraPhyRx::IsOnFrequency ( double frequency )

Whether this device is listening on the specified frequency or not.

Parameters

frequency The frequency to query.

Returns: true if the device is listening on that frequency, false otherwise.

Definition at line 87 of file satellite-lora-phy-rx.cc.

References m_frequency.

◆ IsTransmitting()

bool ns3::SatLoraPhyRx::IsTransmitting ( void )

Whether this device is transmitting or not.

Returns: true if the device is currently transmitting a packet, false otherwise.

Definition at line 81 of file satellite-lora-phy-rx.cc.

◆ SetFrequency()

void ns3::SatLoraPhyRx::SetFrequency ( double frequencyMHz )

Set the frequency this EndDevice will listen on.

Should a packet be transmitted on a frequency different than that the EndDeviceLoraPhy is listening on, the packet will be discarded.

Parameters

The	frequency [MHz] to listen to.

Definition at line 93 of file satellite-lora-phy-rx.cc.

References m_frequency.

◆ SetSpreadingFactor()

void ns3::SatLoraPhyRx::SetSpreadingFactor ( uint8_t sf )

Set the Spreading Factor this EndDevice will listen for.

The EndDeviceLoraPhy object will not be able to lock on transmissions that use a different SF than the one it's listening for.

Parameters

sf	The spreading factor to listen for.

Definition at line 99 of file satellite-lora-phy-rx.cc.

References m_sf.

◆ StartRx()

void ns3::SatLoraPhyRx::StartRx ( Ptr< SatSignalParameters > rxParams )

virtual

Start receiving a packet.

Set a few actions then call mother class method.

Parameters

rxParams All the info needed.

Reimplemented from ns3::SatPhyRx.

Definition at line 49 of file satellite-lora-phy-rx.cc.

References m_state, RX, SLEEP, STANDBY, ns3::SatPhyRx::StartRx(), and TX.

Here is the call graph for this function:

◆ SwitchToRx()

void ns3::SatLoraPhyRx::SwitchToRx ( void )

Switch to the RX state.

Definition at line 119 of file satellite-lora-phy-rx.cc.

References m_state, RX, and STANDBY.

◆ SwitchToSleep()

void ns3::SatLoraPhyRx::SwitchToSleep ( void )

Switch to the SLEEP state.

Definition at line 139 of file satellite-lora-phy-rx.cc.

References m_state, SLEEP, and STANDBY.

◆ SwitchToStandby()

void ns3::SatLoraPhyRx::SwitchToStandby ( void )

Switch to the STANDBY state.

Definition at line 111 of file satellite-lora-phy-rx.cc.

References m_state, and STANDBY.

◆ SwitchToTx()

void ns3::SatLoraPhyRx::SwitchToTx ( )

Switch to the TX state.

Definition at line 129 of file satellite-lora-phy-rx.cc.

References m_state, RX, and TX.

Member Data Documentation

◆ m_frequency

double ns3::SatLoraPhyRx::m_frequency

private

Definition at line 153 of file satellite-lora-phy-rx.h.

Referenced by IsOnFrequency(), and SetFrequency().

◆ m_sf

uint8_t ns3::SatLoraPhyRx::m_sf

private

Definition at line 156 of file satellite-lora-phy-rx.h.

Referenced by SetSpreadingFactor().

◆ m_state

State ns3::SatLoraPhyRx::m_state

private

Definition at line 150 of file satellite-lora-phy-rx.h.

Referenced by GetState(), StartRx(), SwitchToRx(), SwitchToSleep(), SwitchToStandby(), and SwitchToTx().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-lora-phy-rx.h
/builds/sns3/satellite/satellite/model/satellite-lora-phy-rx.cc
