Helper for return link queue statistics using packet as unit. More...

#include "satellite-stats-queue-helper.h"

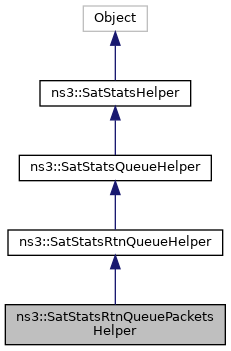

Inheritance diagram for ns3::SatStatsRtnQueuePacketsHelper:

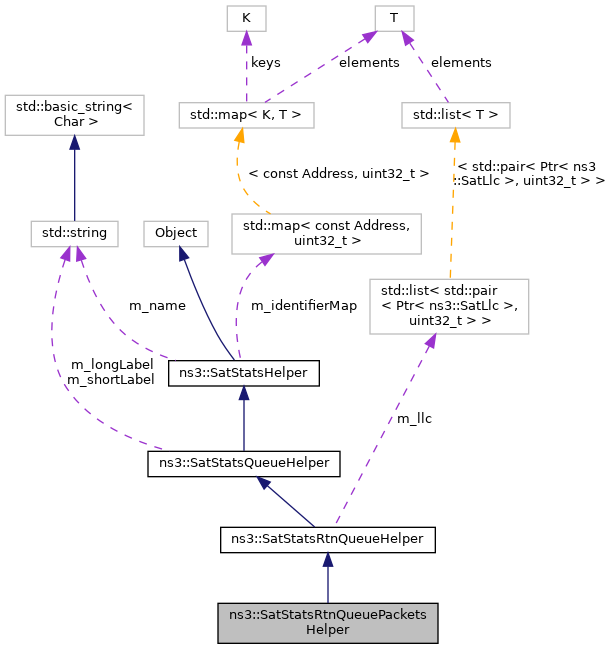

Collaboration diagram for ns3::SatStatsRtnQueuePacketsHelper:

Public Member Functions
	SatStatsRtnQueuePacketsHelper (Ptr< const SatHelper > satHelper)

virtual	~SatStatsRtnQueuePacketsHelper ()
	/ Destructor. More...

Public Member Functions inherited from ns3::SatStatsRtnQueueHelper
	SatStatsRtnQueueHelper (Ptr< const SatHelper > satHelper)

virtual	~SatStatsRtnQueueHelper ()
	/ Destructor. More...

Public Member Functions inherited from ns3::SatStatsQueueHelper
	SatStatsQueueHelper (Ptr< const SatHelper > satHelper)

virtual	~SatStatsQueueHelper ()
	/ Destructor. More...

void	EnlistSource ()
	Identify the list of source of queue events. More...

Time	GetPollInterval () const

UnitType_t	GetUnitType () const

void	Poll ()
	Retrieve the queue size of every relevant encapsulator and push the values to the right collectors. More...

void	SetPollInterval (Time pollInterval)

void	SetUnitType (UnitType_t unitType)

Public Member Functions inherited from ns3::SatStatsHelper
	SatStatsHelper (Ptr< const SatHelper > satHelper)
	Creates a new helper instance. More...

virtual	~SatStatsHelper ()
	/ Destructor. More...

IdentifierType_t	GetIdentifierType () const

std::string	GetName () const

OutputType_t	GetOutputType () const

Ptr< const SatHelper >	GetSatHelper () const

void	Install ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

bool	IsInstalled () const

void	SetIdentifierType (IdentifierType_t identifierType)

void	SetName (std::string name)

void	SetOutputType (OutputType_t outputType)

Static Public Member Functions
static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Static Public Member Functions inherited from ns3::SatStatsRtnQueueHelper
static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Static Public Member Functions inherited from ns3::SatStatsQueueHelper
static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

static std::string	GetUnitTypeName (UnitType_t unitType)

Static Public Member Functions inherited from ns3::SatStatsHelper
static std::string	GetIdentifierTypeName (IdentifierType_t identifierType)

static std::string	GetOutputTypeName (OutputType_t outputType)

static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Additional Inherited Members
Public Types inherited from ns3::SatStatsQueueHelper
enum	UnitType_t { UNIT_BYTES = 0 , UNIT_NUMBER_OF_PACKETS }

Public Types inherited from ns3::SatStatsHelper
enum	IdentifierType_t { IDENTIFIER_GLOBAL = 0 , IDENTIFIER_GW , IDENTIFIER_BEAM , IDENTIFIER_UT , IDENTIFIER_UT_USER , IDENTIFIER_SLICE , IDENTIFIER_GROUP , IDENTIFIER_SAT , IDENTIFIER_ISL }
	Possible categorization of statistics output. More...

enum	OutputType_t { OUTPUT_NONE = 0 , OUTPUT_SCALAR_FILE , OUTPUT_SCATTER_FILE , OUTPUT_HISTOGRAM_FILE , OUTPUT_PDF_FILE , OUTPUT_CDF_FILE , OUTPUT_SCALAR_PLOT , OUTPUT_SCATTER_PLOT , OUTPUT_HISTOGRAM_PLOT , OUTPUT_PDF_PLOT , OUTPUT_CDF_PLOT }
	Possible types and formats of statistics output. More...

Protected Member Functions inherited from ns3::SatStatsRtnQueueHelper
void	DoEnlistSource ()

void	DoPoll ()
	Retrieve the queue size of every relevant encapsulator and push the values to the right collectors. More...

Protected Member Functions inherited from ns3::SatStatsQueueHelper
void	DoInstall ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

void	PushToCollector (uint32_t identifier, uint32_t value)

Protected Member Functions inherited from ns3::SatStatsHelper
Ptr< DataCollectionObject >	CreateAggregator (std::string aggregatorTypeId, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue())
	Create the aggregator according to the output type. More...

uint32_t	CreateCollectorPerIdentifier (CollectorMap &collectorMap) const
	Create one collector instance for each identifier in the simulation. More...

virtual std::string	GetDistributionHeading (std::string dataLabel) const

uint32_t	GetGwId (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForBeam (uint32_t satId, uint32_t beamId) const

uint32_t	GetIdentifierForGroup (uint32_t groupId) const

uint32_t	GetIdentifierForGw (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForIsl (Ptr< Node > satNodeSrc, Ptr< Node > satNodeDst) const

uint32_t	GetIdentifierForSat (Ptr< Node > satNode) const

uint32_t	GetIdentifierForUt (Ptr< Node > utNode) const

uint32_t	GetIdentifierForUtUser (Ptr< Node > utUserNode) const

virtual std::string	GetIdentifierHeading (std::string dataLabel) const

virtual std::string	GetOutputFileName () const
	Compute the path and file name where statistics output should be written to. More...

virtual std::string	GetOutputPath () const

uint32_t	GetSatId (Ptr< Node > satNode) const

virtual std::string	GetTimeHeading (std::string dataLabel) const

uint32_t	GetUtId (Ptr< Node > utNode) const

uint32_t	GetUtUserId (Ptr< Node > utUserNode) const

Static Protected Member Functions inherited from ns3::SatStatsHelper
static NetDeviceContainer	GetGwSatNetDevice (Ptr< Node > gwNode)

static Ptr< NetDevice >	GetSatSatGeoNetDevice (Ptr< Node > satNode)

static Ptr< NetDevice >	GetUtSatNetDevice (Ptr< Node > utNode)

Protected Attributes inherited from ns3::SatStatsQueueHelper
Ptr< DataCollectionObject >	m_aggregator
	The aggregator created by this helper. More...

CollectorMap	m_terminalCollectors
	Maintains a list of collectors created by this helper. More...
