Helper for queue statistics. More...

#include "satellite-stats-queue-helper.h"

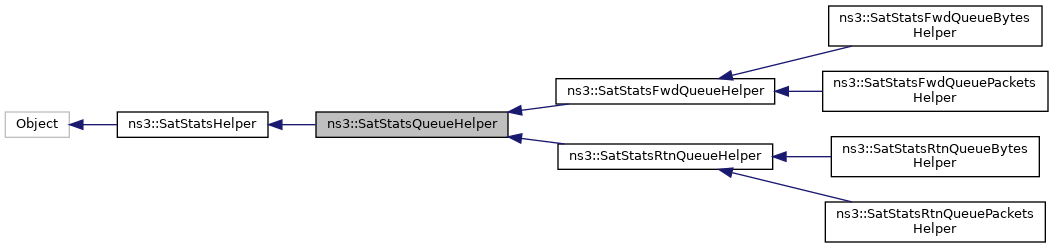

Inheritance diagram for ns3::SatStatsQueueHelper:

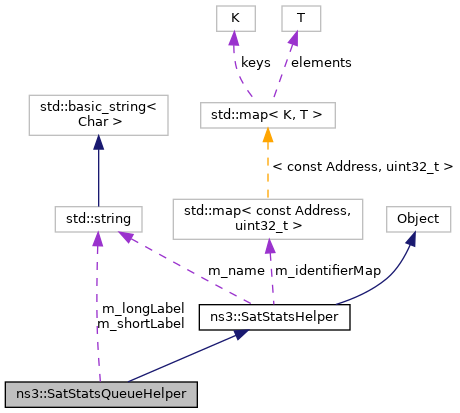

Collaboration diagram for ns3::SatStatsQueueHelper:

Public Types
enum	UnitType_t { UNIT_BYTES = 0 , UNIT_NUMBER_OF_PACKETS }

Public Types inherited from ns3::SatStatsHelper
enum	IdentifierType_t { IDENTIFIER_GLOBAL = 0 , IDENTIFIER_GW , IDENTIFIER_BEAM , IDENTIFIER_UT , IDENTIFIER_UT_USER , IDENTIFIER_SLICE , IDENTIFIER_GROUP , IDENTIFIER_SAT , IDENTIFIER_ISL }
	Possible categorization of statistics output. More...

enum	OutputType_t { OUTPUT_NONE = 0 , OUTPUT_SCALAR_FILE , OUTPUT_SCATTER_FILE , OUTPUT_HISTOGRAM_FILE , OUTPUT_PDF_FILE , OUTPUT_CDF_FILE , OUTPUT_SCALAR_PLOT , OUTPUT_SCATTER_PLOT , OUTPUT_HISTOGRAM_PLOT , OUTPUT_PDF_PLOT , OUTPUT_CDF_PLOT }
	Possible types and formats of statistics output. More...

Public Member Functions
	SatStatsQueueHelper (Ptr< const SatHelper > satHelper)

virtual	~SatStatsQueueHelper ()
	/ Destructor. More...

void	EnlistSource ()
	Identify the list of source of queue events. More...

Time	GetPollInterval () const

UnitType_t	GetUnitType () const

void	Poll ()
	Retrieve the queue size of every relevant encapsulator and push the values to the right collectors. More...

void	SetPollInterval (Time pollInterval)

void	SetUnitType (UnitType_t unitType)

Public Member Functions inherited from ns3::SatStatsHelper
	SatStatsHelper (Ptr< const SatHelper > satHelper)
	Creates a new helper instance. More...

virtual	~SatStatsHelper ()
	/ Destructor. More...

IdentifierType_t	GetIdentifierType () const

std::string	GetName () const

OutputType_t	GetOutputType () const

Ptr< const SatHelper >	GetSatHelper () const

void	Install ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

bool	IsInstalled () const

void	SetIdentifierType (IdentifierType_t identifierType)

void	SetName (std::string name)

void	SetOutputType (OutputType_t outputType)

virtual void	UpdateAddressAndIdentifier (Ptr< Node > utNode)
	Update the address and the proper identifier from the given UT node. More...

virtual void	UpdateIdentifierOnProbes ()
	Change identifier used on probes, when handovers occur. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

static std::string	GetUnitTypeName (UnitType_t unitType)

Static Public Member Functions inherited from ns3::SatStatsHelper
static std::string	GetIdentifierTypeName (IdentifierType_t identifierType)

static std::string	GetOutputTypeName (OutputType_t outputType)

static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Protected Member Functions
virtual void	DoEnlistSource ()=0

void	DoInstall ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

virtual void	DoPoll ()=0
	Retrieve the queue size of every relevant encapsulator and push the values to the right collectors. More...

void	PushToCollector (uint32_t identifier, uint32_t value)

Protected Member Functions inherited from ns3::SatStatsHelper
Ptr< DataCollectionObject >	CreateAggregator (std::string aggregatorTypeId, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue())
	Create the aggregator according to the output type. More...

uint32_t	CreateCollectorPerIdentifier (CollectorMap &collectorMap) const
	Create one collector instance for each identifier in the simulation. More...

virtual std::string	GetDistributionHeading (std::string dataLabel) const

uint32_t	GetGwId (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForBeam (uint32_t satId, uint32_t beamId) const

uint32_t	GetIdentifierForGroup (uint32_t groupId) const

uint32_t	GetIdentifierForGw (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForIsl (Ptr< Node > satNodeSrc, Ptr< Node > satNodeDst) const

uint32_t	GetIdentifierForSat (Ptr< Node > satNode) const

uint32_t	GetIdentifierForUt (Ptr< Node > utNode) const

uint32_t	GetIdentifierForUtUser (Ptr< Node > utUserNode) const

virtual std::string	GetIdentifierHeading (std::string dataLabel) const

virtual std::string	GetOutputFileName () const
	Compute the path and file name where statistics output should be written to. More...

virtual std::string	GetOutputPath () const

uint32_t	GetSatId (Ptr< Node > satNode) const

virtual std::string	GetTimeHeading (std::string dataLabel) const

uint32_t	GetUtId (Ptr< Node > utNode) const

uint32_t	GetUtUserId (Ptr< Node > utUserNode) const

virtual void	SaveAddressAndIdentifier (Ptr< Node > utNode)
	Save the address and the proper identifier from the given UT node. More...

Protected Attributes
Ptr< DataCollectionObject >	m_aggregator
	The aggregator created by this helper. More...

CollectorMap	m_terminalCollectors
	Maintains a list of collectors created by this helper. More...

Protected Attributes inherited from ns3::SatStatsHelper
std::map< const Address, uint32_t >	m_identifierMap
	Map of address and the identifier associated with it. More...

Private Attributes
std::string	m_longLabel

Time	m_pollInterval
	`PollInterval` attribute. More...

std::string	m_shortLabel

UnitType_t	m_unitType

Additional Inherited Members
Static Protected Member Functions inherited from ns3::SatStatsHelper
static NetDeviceContainer	GetGwSatNetDevice (Ptr< Node > gwNode)

static Ptr< NetDevice >	GetSatSatOrbiterNetDevice (Ptr< Node > satNode)

static Ptr< NetDevice >	GetUtSatNetDevice (Ptr< Node > utNode)

Detailed Description

Helper for queue statistics.

Base class.

Definition at line 48 of file satellite-stats-queue-helper.h.

Member Enumeration Documentation

◆ UnitType_t

enum ns3::SatStatsQueueHelper::UnitType_t

Enumerator
UNIT_BYTES
UNIT_NUMBER_OF_PACKETS

Definition at line 55 of file satellite-stats-queue-helper.h.

Constructor & Destructor Documentation

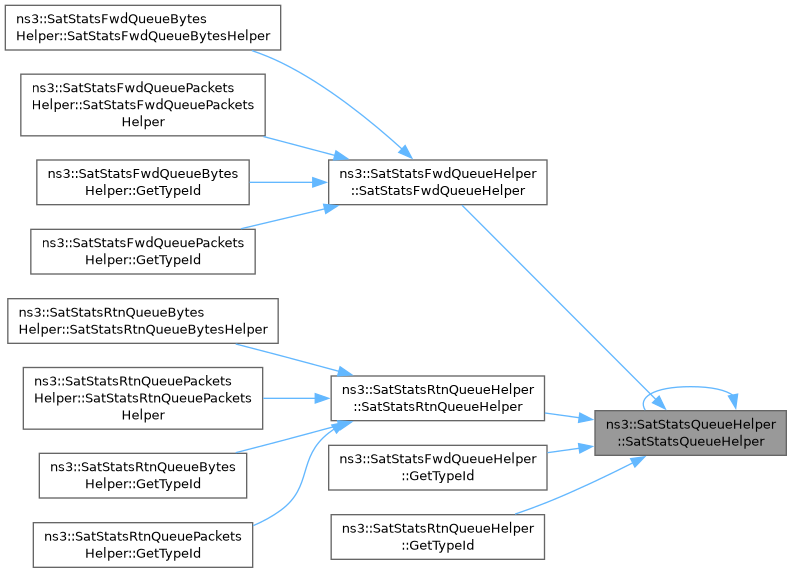

◆ SatStatsQueueHelper()

ns3::SatStatsQueueHelper::SatStatsQueueHelper ( Ptr< const SatHelper > satHelper )

Definition at line 80 of file satellite-stats-queue-helper.cc.

◆ ~SatStatsQueueHelper()

ns3::SatStatsQueueHelper::~SatStatsQueueHelper ( )

virtual

/ Destructor.

Definition at line 90 of file satellite-stats-queue-helper.cc.

Member Function Documentation

◆ DoEnlistSource()

virtual void ns3::SatStatsQueueHelper::DoEnlistSource ( )

protectedpure virtual

Implemented in ns3::SatStatsRtnQueueHelper, and ns3::SatStatsFwdQueueHelper.

Referenced by EnlistSource().

Here is the caller graph for this function:

◆ DoInstall()

void ns3::SatStatsQueueHelper::DoInstall ( )

protectedvirtual

Install the probes, collectors, and aggregators necessary to produce the statistics output.

An abstract method of SatStatsHelper which must be implemented by child classes. It will be invoked by Install().

Todo:: Add support for boxes in Gnuplot.

Implements ns3::SatStatsHelper.

Definition at line 152 of file satellite-stats-queue-helper.cc.

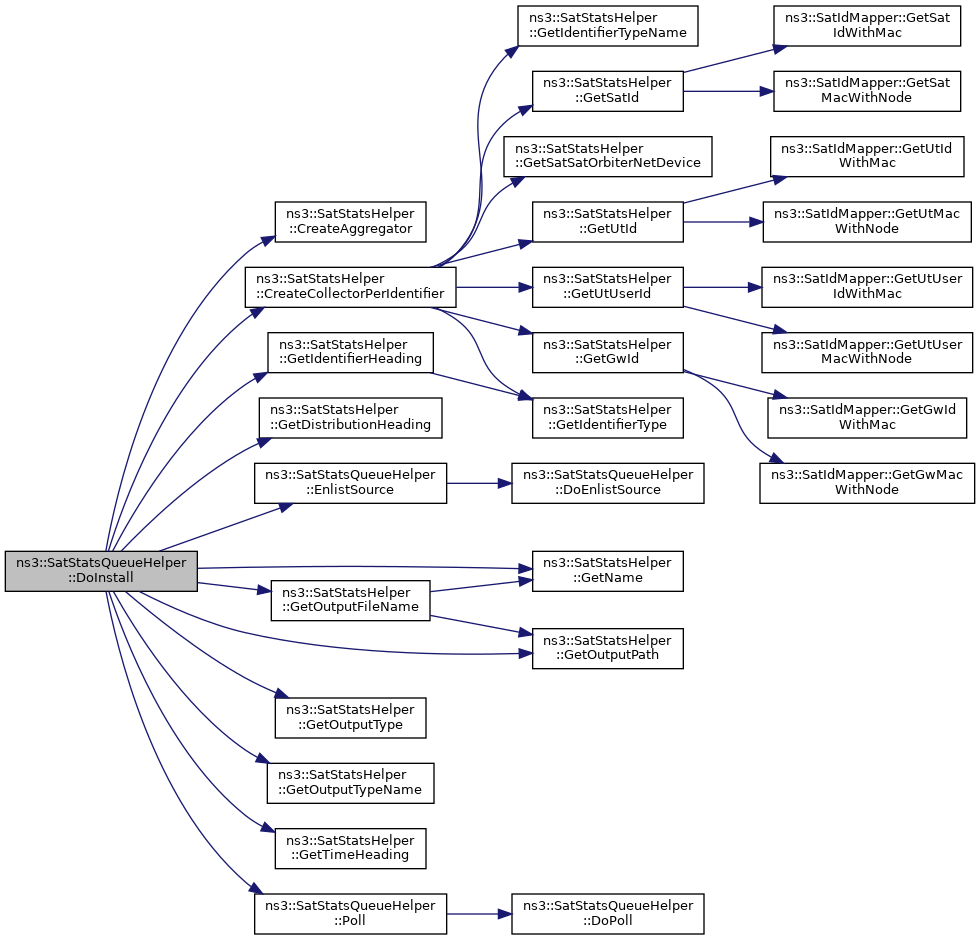

Here is the call graph for this function:

◆ DoPoll()

virtual void ns3::SatStatsQueueHelper::DoPoll ( )

protectedpure virtual

Retrieve the queue size of every relevant encapsulator and push the values to the right collectors.

Implemented in ns3::SatStatsRtnQueueHelper, and ns3::SatStatsFwdQueueHelper.

Referenced by Poll().

Here is the caller graph for this function:

◆ EnlistSource()

void ns3::SatStatsQueueHelper::EnlistSource ( )

Identify the list of source of queue events.

Definition at line 346 of file satellite-stats-queue-helper.cc.

References DoEnlistSource().

Referenced by DoInstall().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPollInterval()

Time ns3::SatStatsQueueHelper::GetPollInterval ( ) const

Returns

Definition at line 146 of file satellite-stats-queue-helper.cc.

References m_pollInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatStatsQueueHelper::GetTypeId ( void )

static

inherited from ObjectBase base class

Definition at line 96 of file satellite-stats-queue-helper.cc.

References GetPollInterval(), and SetPollInterval().

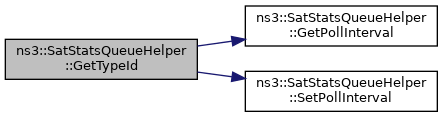

Here is the call graph for this function:

◆ GetUnitType()

SatStatsQueueHelper::UnitType_t ns3::SatStatsQueueHelper::GetUnitType ( ) const

Returns

Definition at line 133 of file satellite-stats-queue-helper.cc.

References m_unitType.

Referenced by ns3::SatStatsFwdQueueHelper::DoPoll(), and ns3::SatStatsRtnQueueHelper::DoPoll().

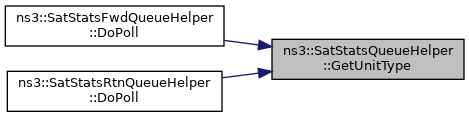

Here is the caller graph for this function:

◆ GetUnitTypeName()

std::string ns3::SatStatsQueueHelper::GetUnitTypeName ( SatStatsQueueHelper::UnitType_t unitType )

static

Parameters

unitType

Returns

Definition at line 63 of file satellite-stats-queue-helper.cc.

References UNIT_BYTES, and UNIT_NUMBER_OF_PACKETS.

Referenced by SetUnitType().

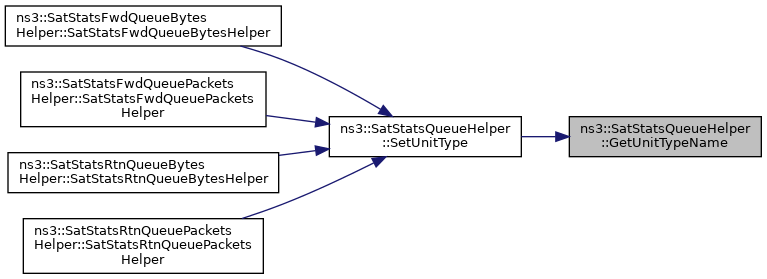

Here is the caller graph for this function:

◆ Poll()

void ns3::SatStatsQueueHelper::Poll ( )

Retrieve the queue size of every relevant encapsulator and push the values to the right collectors.

Definition at line 355 of file satellite-stats-queue-helper.cc.

References DoPoll(), and m_pollInterval.

Referenced by DoInstall().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PushToCollector()

void ns3::SatStatsQueueHelper::PushToCollector	(	uint32_t	identifier,
		uint32_t	value
	)

protected

Parameters

identifier
value

Definition at line 367 of file satellite-stats-queue-helper.cc.

Referenced by ns3::SatStatsFwdQueueHelper::DoPoll(), and ns3::SatStatsRtnQueueHelper::DoPoll().

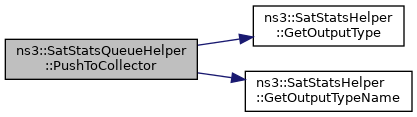

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetPollInterval()

void ns3::SatStatsQueueHelper::SetPollInterval ( Time pollInterval )

Parameters

pollInterval

Definition at line 139 of file satellite-stats-queue-helper.cc.

References m_pollInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetUnitType()

void ns3::SatStatsQueueHelper::SetUnitType ( SatStatsQueueHelper::UnitType_t unitType )

Parameters

unitType

Definition at line 110 of file satellite-stats-queue-helper.cc.

References GetUnitTypeName(), m_longLabel, m_shortLabel, m_unitType, UNIT_BYTES, and UNIT_NUMBER_OF_PACKETS.

Referenced by ns3::SatStatsFwdQueueBytesHelper::SatStatsFwdQueueBytesHelper(), ns3::SatStatsFwdQueuePacketsHelper::SatStatsFwdQueuePacketsHelper(), ns3::SatStatsRtnQueueBytesHelper::SatStatsRtnQueueBytesHelper(), and ns3::SatStatsRtnQueuePacketsHelper::SatStatsRtnQueuePacketsHelper().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_aggregator

Ptr<DataCollectionObject> ns3::SatStatsQueueHelper::m_aggregator

protected

The aggregator created by this helper.

Definition at line 136 of file satellite-stats-queue-helper.h.

Referenced by DoInstall().

◆ m_longLabel

std::string ns3::SatStatsQueueHelper::m_longLabel

private

Definition at line 142 of file satellite-stats-queue-helper.h.

Referenced by DoInstall(), and SetUnitType().

◆ m_pollInterval

Time ns3::SatStatsQueueHelper::m_pollInterval

private

PollInterval attribute.

Definition at line 139 of file satellite-stats-queue-helper.h.

Referenced by DoInstall(), GetPollInterval(), Poll(), and SetPollInterval().

◆ m_shortLabel

std::string ns3::SatStatsQueueHelper::m_shortLabel

private

Definition at line 141 of file satellite-stats-queue-helper.h.

Referenced by DoInstall(), and SetUnitType().

◆ m_terminalCollectors

CollectorMap ns3::SatStatsQueueHelper::m_terminalCollectors

protected

Maintains a list of collectors created by this helper.

Definition at line 133 of file satellite-stats-queue-helper.h.

Referenced by DoInstall(), and PushToCollector().

◆ m_unitType

UnitType_t ns3::SatStatsQueueHelper::m_unitType

private

Definition at line 140 of file satellite-stats-queue-helper.h.

Referenced by GetUnitType(), and SetUnitType().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/stats/satellite-stats-queue-helper.h
/builds/sns3/satellite/satellite/stats/satellite-stats-queue-helper.cc
