Base class for packet error statistics helpers. More...

#include "satellite-stats-packet-error-helper.h"

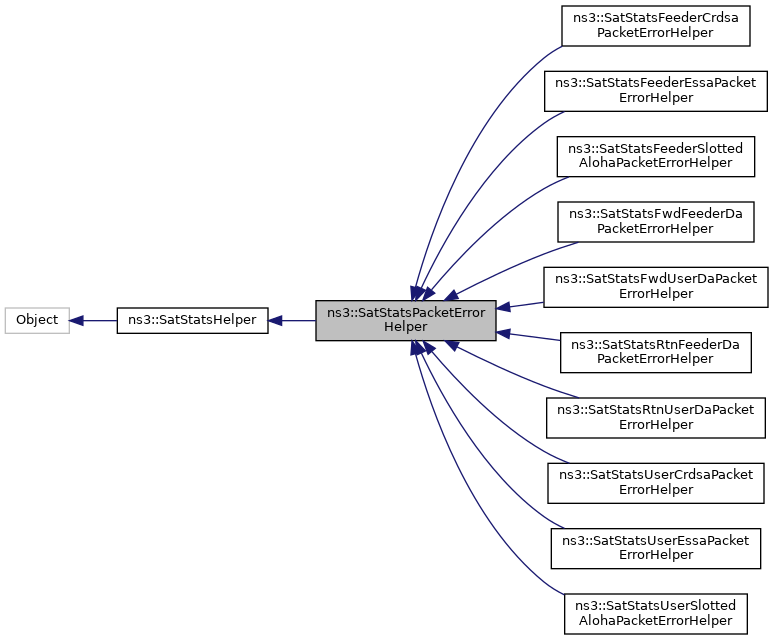

Inheritance diagram for ns3::SatStatsPacketErrorHelper:

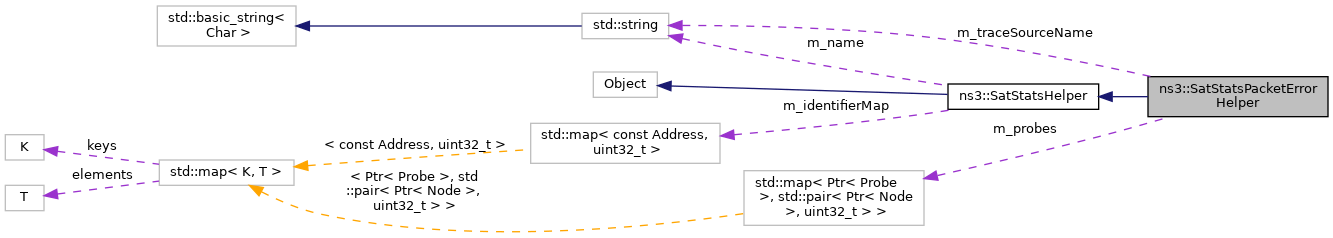

Collaboration diagram for ns3::SatStatsPacketErrorHelper:

Public Member Functions
	SatStatsPacketErrorHelper (Ptr< const SatHelper > satHelper)

virtual	~SatStatsPacketErrorHelper ()
	/ Destructor. More...

bool	ConnectProbeToCollector (Ptr< Probe > probe, uint32_t identifier)
	Connect the probe to the right collector. More...

bool	DisconnectProbeFromCollector (Ptr< Probe > probe, uint32_t identifier)
	Disconnect the probe from the right collector. More...

void	ErrorRxCallback (uint32_t nPackets, const Address &fromOrTo, bool isError)
	Receive inputs from trace sources and determine the right collector to forward the inputs to. More...

SatEnums::ChannelType_t	GetChannelType () const

std::string	GetTraceSourceName () const

SatPhyRxCarrier::CarrierType	GetValidCarrierType () const
	Get the valid carrier type. More...

void	SetChannelType (SatEnums::ChannelType_t channelType)

void	SetTraceSourceName (std::string traceSourceName)

virtual void	UpdateIdentifierOnProbes ()
	Change identifier used on probes, when handovers occur. More...

Public Member Functions inherited from ns3::SatStatsHelper
	SatStatsHelper (Ptr< const SatHelper > satHelper)
	Creates a new helper instance. More...

virtual	~SatStatsHelper ()
	/ Destructor. More...

IdentifierType_t	GetIdentifierType () const

std::string	GetName () const

OutputType_t	GetOutputType () const

Ptr< const SatHelper >	GetSatHelper () const

void	Install ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

bool	IsInstalled () const

void	SetIdentifierType (IdentifierType_t identifierType)

void	SetName (std::string name)

void	SetOutputType (OutputType_t outputType)

virtual void	UpdateAddressAndIdentifier (Ptr< Node > utNode)
	Update the address and the proper identifier from the given UT node. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Static Public Member Functions inherited from ns3::SatStatsHelper
static std::string	GetIdentifierTypeName (IdentifierType_t identifierType)

static std::string	GetOutputTypeName (OutputType_t outputType)

static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Protected Member Functions
void	DoInstall ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

void	SetValidCarrierType (SatPhyRxCarrier::CarrierType carrierType)
	Set valid carrier type for this statistics helper type. More...

Protected Member Functions inherited from ns3::SatStatsHelper
Ptr< DataCollectionObject >	CreateAggregator (std::string aggregatorTypeId, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue())
	Create the aggregator according to the output type. More...

uint32_t	CreateCollectorPerIdentifier (CollectorMap &collectorMap) const
	Create one collector instance for each identifier in the simulation. More...

virtual std::string	GetDistributionHeading (std::string dataLabel) const

uint32_t	GetGwId (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForBeam (uint32_t satId, uint32_t beamId) const

uint32_t	GetIdentifierForGroup (uint32_t groupId) const

uint32_t	GetIdentifierForGw (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForIsl (Ptr< Node > satNodeSrc, Ptr< Node > satNodeDst) const

uint32_t	GetIdentifierForSat (Ptr< Node > satNode) const

uint32_t	GetIdentifierForUt (Ptr< Node > utNode) const

uint32_t	GetIdentifierForUtUser (Ptr< Node > utUserNode) const

virtual std::string	GetIdentifierHeading (std::string dataLabel) const

virtual std::string	GetOutputFileName () const
	Compute the path and file name where statistics output should be written to. More...

virtual std::string	GetOutputPath () const

uint32_t	GetSatId (Ptr< Node > satNode) const

virtual std::string	GetTimeHeading (std::string dataLabel) const

uint32_t	GetUtId (Ptr< Node > utNode) const

uint32_t	GetUtUserId (Ptr< Node > utUserNode) const

virtual void	SaveAddressAndIdentifier (Ptr< Node > utNode)
	Save the address and the proper identifier from the given UT node. More...

Private Member Functions
void	InstallProbeOnGw (Ptr< Node > gwNode)
	Set up several listeners on a GW node and connect them to the collectors. More...

void	InstallProbeOnSatFeeder (Ptr< Node > satNode)
	Set up several listeners on a SAT feeder node and connect them to the collectors. More...

void	InstallProbeOnSatUser (Ptr< Node > satNode)
	Set up several listeners on a SAT user node and connect them to the collectors. More...

void	InstallProbeOnUt (Ptr< Node > utNode)
	Set up several probes on a UT node and connect them to the collectors. More...

Private Attributes
Ptr< DataCollectionObject >	m_aggregator
	The aggregator created by this helper. More...

SatPhyRxCarrier::CarrierType	m_carrierType
	Valid carrier type. More...

SatEnums::ChannelType_t	m_channelType
	Link where statistics are gathered from. More...

std::map< Ptr< Probe >, std::pair< Ptr< Node >, uint32_t > >	m_probes
	Maintains a list of probes created by this helper (for forward link). More...

CollectorMap	m_terminalCollectors
	Maintains a list of collectors created by this helper. More...

std::string	m_traceSourceName
	Name of trace source of PHY RX carrier to listen to. More...

Additional Inherited Members
Public Types inherited from ns3::SatStatsHelper
enum	IdentifierType_t { IDENTIFIER_GLOBAL = 0 , IDENTIFIER_GW , IDENTIFIER_BEAM , IDENTIFIER_UT , IDENTIFIER_UT_USER , IDENTIFIER_SLICE , IDENTIFIER_GROUP , IDENTIFIER_SAT , IDENTIFIER_ISL }
	Possible categorization of statistics output. More...

enum	OutputType_t { OUTPUT_NONE = 0 , OUTPUT_SCALAR_FILE , OUTPUT_SCATTER_FILE , OUTPUT_HISTOGRAM_FILE , OUTPUT_PDF_FILE , OUTPUT_CDF_FILE , OUTPUT_SCALAR_PLOT , OUTPUT_SCATTER_PLOT , OUTPUT_HISTOGRAM_PLOT , OUTPUT_PDF_PLOT , OUTPUT_CDF_PLOT }
	Possible types and formats of statistics output. More...

Static Protected Member Functions inherited from ns3::SatStatsHelper
static NetDeviceContainer	GetGwSatNetDevice (Ptr< Node > gwNode)

static Ptr< NetDevice >	GetSatSatOrbiterNetDevice (Ptr< Node > satNode)

static Ptr< NetDevice >	GetUtSatNetDevice (Ptr< Node > utNode)

Protected Attributes inherited from ns3::SatStatsHelper
std::map< const Address, uint32_t >	m_identifierMap
	Map of address and the identifier associated with it. More...

Detailed Description

Base class for packet error statistics helpers.

Definition at line 51 of file satellite-stats-packet-error-helper.h.

Constructor & Destructor Documentation

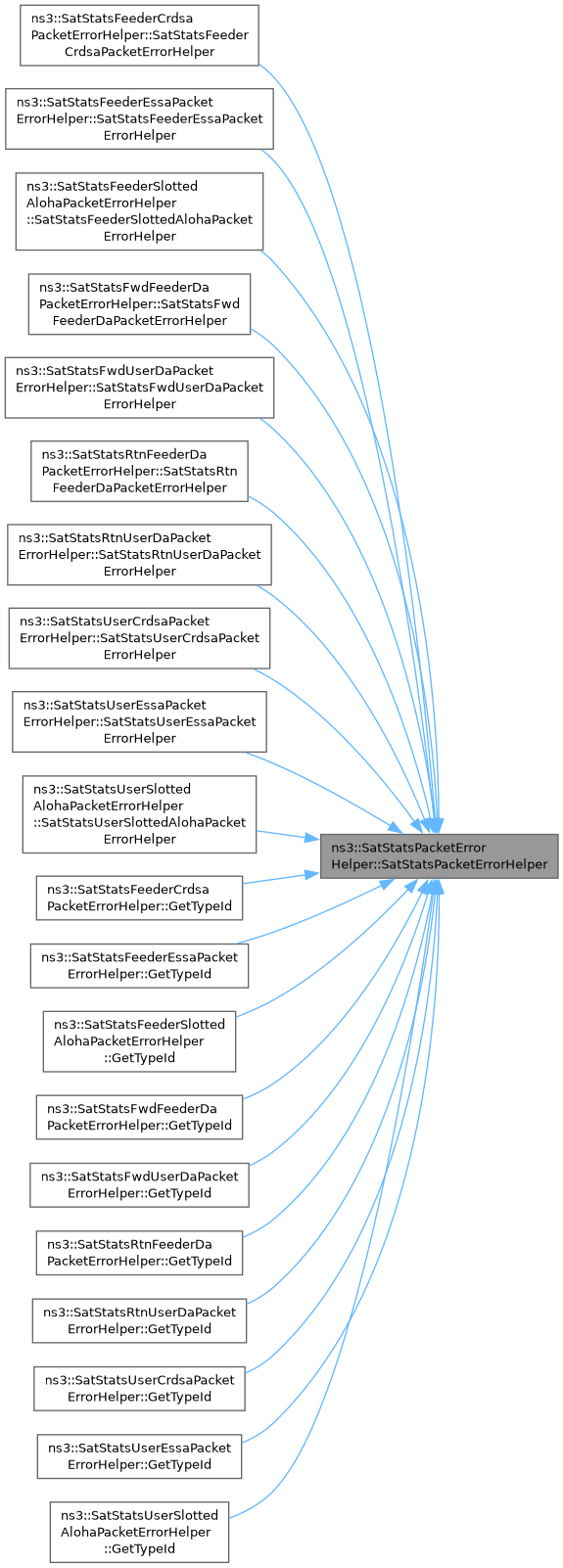

◆ SatStatsPacketErrorHelper()

ns3::SatStatsPacketErrorHelper::SatStatsPacketErrorHelper ( Ptr< const SatHelper > satHelper )

Definition at line 63 of file satellite-stats-packet-error-helper.cc.

◆ ~SatStatsPacketErrorHelper()

ns3::SatStatsPacketErrorHelper::~SatStatsPacketErrorHelper ( )

virtual

/ Destructor.

Definition at line 71 of file satellite-stats-packet-error-helper.cc.

Member Function Documentation

◆ ConnectProbeToCollector()

bool ns3::SatStatsPacketErrorHelper::ConnectProbeToCollector	(	Ptr< Probe >	probe,
		uint32_t	identifier
	)

Connect the probe to the right collector.

Parameters

probe
identifier

Definition at line 404 of file satellite-stats-packet-error-helper.cc.

References ns3::SatStatsHelper::GetOutputType(), ns3::SatStatsHelper::GetOutputTypeName(), m_terminalCollectors, ns3::SatStatsHelper::OUTPUT_SCALAR_FILE, ns3::SatStatsHelper::OUTPUT_SCALAR_PLOT, ns3::SatStatsHelper::OUTPUT_SCATTER_FILE, and ns3::SatStatsHelper::OUTPUT_SCATTER_PLOT.

Referenced by InstallProbeOnUt(), and UpdateIdentifierOnProbes().

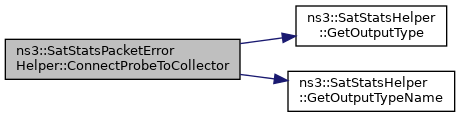

Here is the call graph for this function:

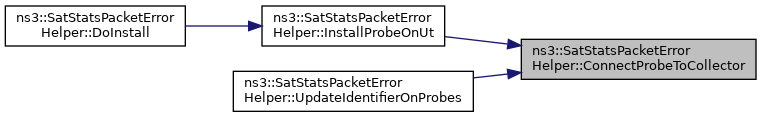

Here is the caller graph for this function:

◆ DisconnectProbeFromCollector()

bool ns3::SatStatsPacketErrorHelper::DisconnectProbeFromCollector	(	Ptr< Probe >	probe,
		uint32_t	identifier
	)

Disconnect the probe from the right collector.

Parameters

probe
identifier

Definition at line 450 of file satellite-stats-packet-error-helper.cc.

References ns3::SatStatsHelper::GetOutputType(), ns3::SatStatsHelper::GetOutputTypeName(), m_terminalCollectors, ns3::SatStatsHelper::OUTPUT_SCALAR_FILE, ns3::SatStatsHelper::OUTPUT_SCALAR_PLOT, ns3::SatStatsHelper::OUTPUT_SCATTER_FILE, and ns3::SatStatsHelper::OUTPUT_SCATTER_PLOT.

Referenced by UpdateIdentifierOnProbes().

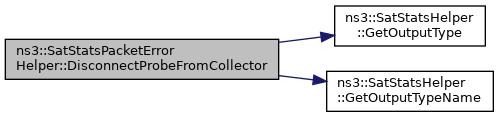

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoInstall()

void ns3::SatStatsPacketErrorHelper::DoInstall ( )

protectedvirtual

Install the probes, collectors, and aggregators necessary to produce the statistics output.

An abstract method of SatStatsHelper which must be implemented by child classes. It will be invoked by Install().

Todo:: Add support for boxes in Gnuplot.

Implements ns3::SatStatsHelper.

Definition at line 110 of file satellite-stats-packet-error-helper.cc.

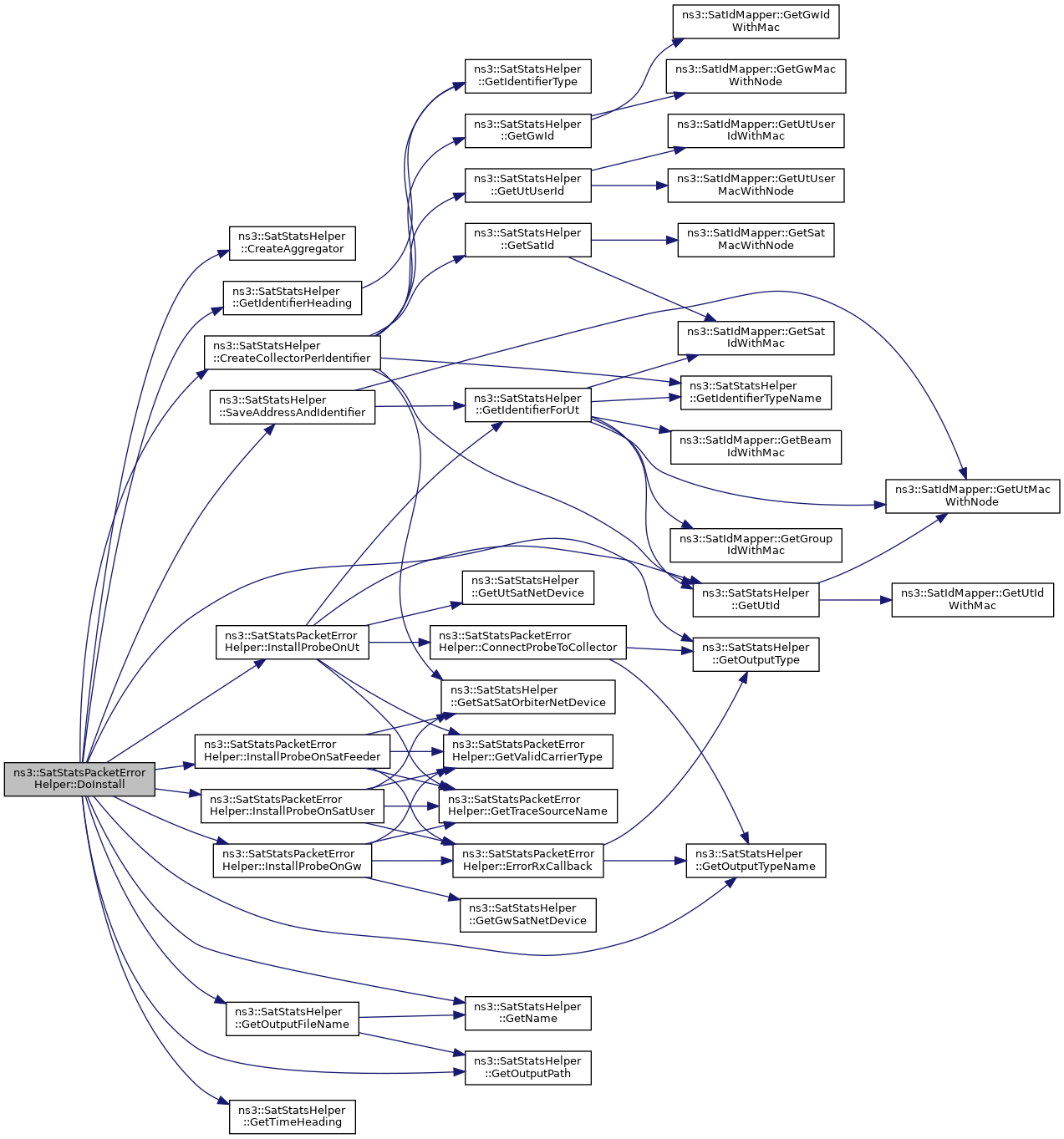

Here is the call graph for this function:

◆ ErrorRxCallback()

void ns3::SatStatsPacketErrorHelper::ErrorRxCallback	(	uint32_t	nPackets,
		const Address &	fromOrTo,
		bool	isError
	)

Receive inputs from trace sources and determine the right collector to forward the inputs to.

Parameters

nPackets	number of packets in the received packet burst.
fromOrTo	the source or destination address of the packet.
isError	whether a PHY error has occurred.

Used only in return link.

Definition at line 309 of file satellite-stats-packet-error-helper.cc.

References ns3::SatStatsHelper::GetOutputType(), ns3::SatStatsHelper::GetOutputTypeName(), ns3::SatStatsHelper::m_identifierMap, m_terminalCollectors, ns3::SatStatsHelper::OUTPUT_SCALAR_FILE, ns3::SatStatsHelper::OUTPUT_SCALAR_PLOT, ns3::SatStatsHelper::OUTPUT_SCATTER_FILE, and ns3::SatStatsHelper::OUTPUT_SCATTER_PLOT.

Referenced by InstallProbeOnGw(), InstallProbeOnSatFeeder(), and InstallProbeOnSatUser().

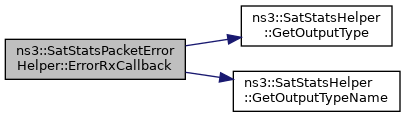

Here is the call graph for this function:

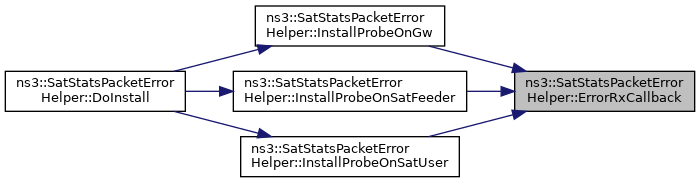

Here is the caller graph for this function:

◆ GetChannelType()

SatEnums::ChannelType_t ns3::SatStatsPacketErrorHelper::GetChannelType ( ) const

Returns: link where statistics are gathered from.

Definition at line 104 of file satellite-stats-packet-error-helper.cc.

References m_channelType.

◆ GetTraceSourceName()

std::string ns3::SatStatsPacketErrorHelper::GetTraceSourceName ( ) const

Returns: name of trace source of PHY RX carrier to listen to.

Definition at line 91 of file satellite-stats-packet-error-helper.cc.

References m_traceSourceName.

Referenced by InstallProbeOnGw(), InstallProbeOnSatFeeder(), InstallProbeOnSatUser(), and InstallProbeOnUt().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatStatsPacketErrorHelper::GetTypeId ( void )

static

inherited from ObjectBase base class

Definition at line 77 of file satellite-stats-packet-error-helper.cc.

◆ GetValidCarrierType()

SatPhyRxCarrier::CarrierType ns3::SatStatsPacketErrorHelper::GetValidCarrierType ( ) const

inline

Get the valid carrier type.

Returns: the valid carrier type

Definition at line 121 of file satellite-stats-packet-error-helper.h.

References m_carrierType.

Referenced by InstallProbeOnGw(), InstallProbeOnSatFeeder(), InstallProbeOnSatUser(), and InstallProbeOnUt().

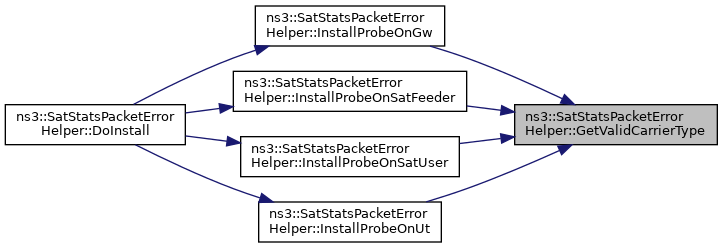

Here is the caller graph for this function:

◆ InstallProbeOnGw()

void ns3::SatStatsPacketErrorHelper::InstallProbeOnGw ( Ptr< Node > gwNode )

private

Set up several listeners on a GW node and connect them to the collectors.

Parameters

gwNode

Definition at line 525 of file satellite-stats-packet-error-helper.cc.

References ErrorRxCallback(), ns3::SatStatsHelper::GetGwSatNetDevice(), GetTraceSourceName(), and GetValidCarrierType().

Referenced by DoInstall().

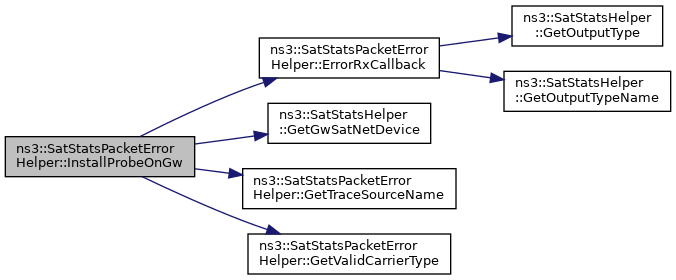

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InstallProbeOnSatFeeder()

void ns3::SatStatsPacketErrorHelper::InstallProbeOnSatFeeder ( Ptr< Node > satNode )

private

Set up several listeners on a SAT feeder node and connect them to the collectors.

Parameters

satNode

Definition at line 578 of file satellite-stats-packet-error-helper.cc.

References ErrorRxCallback(), ns3::SatStatsHelper::GetSatSatOrbiterNetDevice(), GetTraceSourceName(), and GetValidCarrierType().

Referenced by DoInstall().

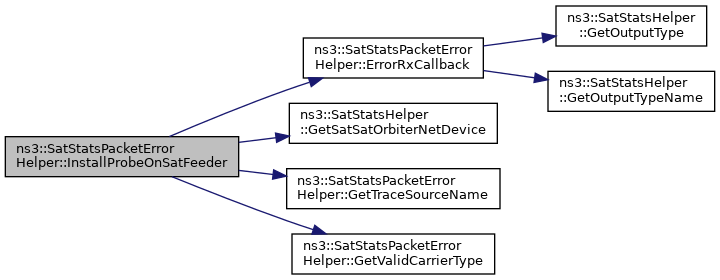

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InstallProbeOnSatUser()

void ns3::SatStatsPacketErrorHelper::InstallProbeOnSatUser ( Ptr< Node > satNode )

private

Set up several listeners on a SAT user node and connect them to the collectors.

Parameters

satNode

Definition at line 636 of file satellite-stats-packet-error-helper.cc.

References ErrorRxCallback(), ns3::SatStatsHelper::GetSatSatOrbiterNetDevice(), GetTraceSourceName(), and GetValidCarrierType().

Referenced by DoInstall().

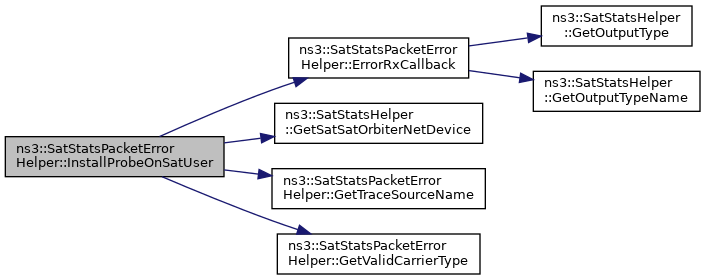

Here is the call graph for this function:

Here is the caller graph for this function:

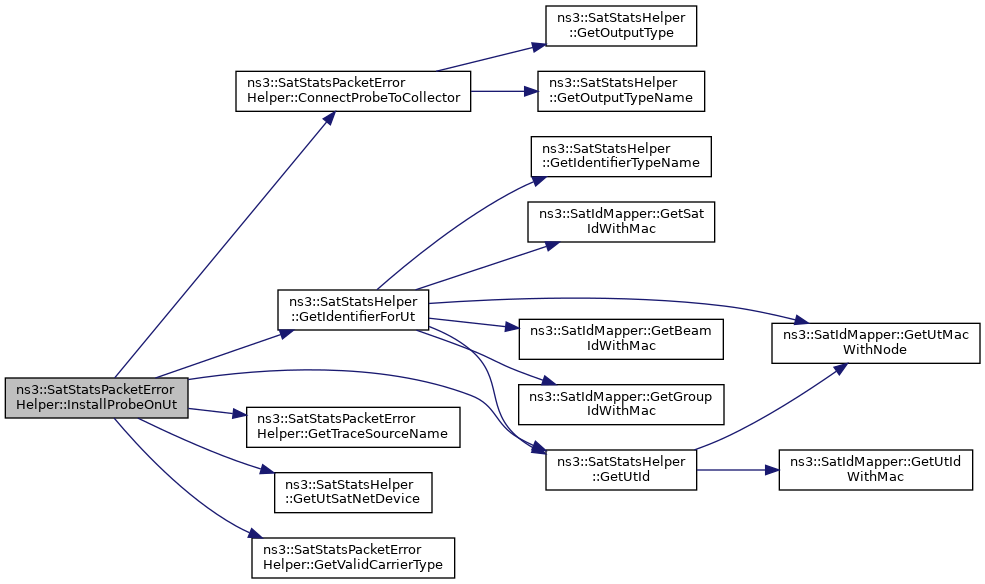

◆ InstallProbeOnUt()

void ns3::SatStatsPacketErrorHelper::InstallProbeOnUt ( Ptr< Node > utNode )

private

Set up several probes on a UT node and connect them to the collectors.

Parameters

utNode

Definition at line 694 of file satellite-stats-packet-error-helper.cc.

References ConnectProbeToCollector(), ns3::SatStatsHelper::GetIdentifierForUt(), GetTraceSourceName(), ns3::SatStatsHelper::GetUtId(), ns3::SatStatsHelper::GetUtSatNetDevice(), GetValidCarrierType(), and m_probes.

Referenced by DoInstall().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetChannelType()

void ns3::SatStatsPacketErrorHelper::SetChannelType ( SatEnums::ChannelType_t channelType )

Parameters

channelType link where statistics are gathered from.

Definition at line 97 of file satellite-stats-packet-error-helper.cc.

References ns3::SatEnums::GetChannelTypeName(), and m_channelType.

Here is the call graph for this function:

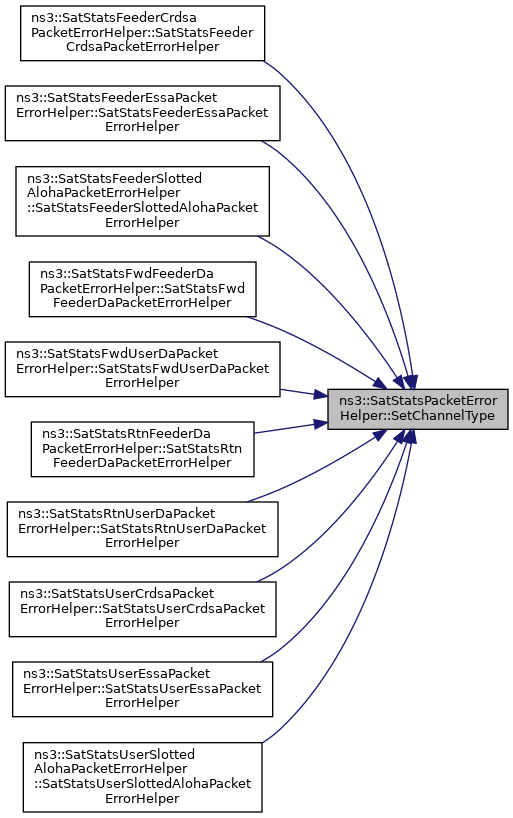

Here is the caller graph for this function:

◆ SetTraceSourceName()

void ns3::SatStatsPacketErrorHelper::SetTraceSourceName ( std::string traceSourceName )

Parameters

traceSourceName name of trace source of PHY RX carrier to listen to.

Definition at line 84 of file satellite-stats-packet-error-helper.cc.

References m_traceSourceName.

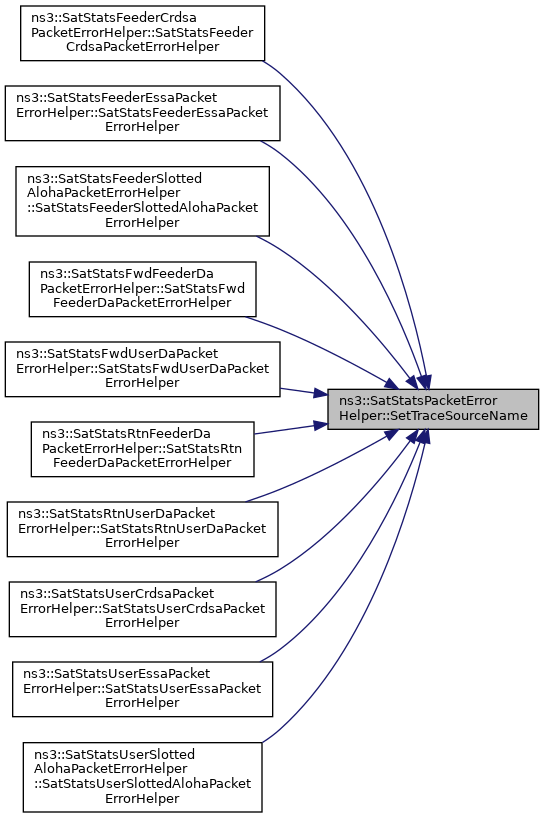

Here is the caller graph for this function:

◆ SetValidCarrierType()

void ns3::SatStatsPacketErrorHelper::SetValidCarrierType ( SatPhyRxCarrier::CarrierType carrierType )

inlineprotected

Set valid carrier type for this statistics helper type.

Parameters

carrierType

Definition at line 134 of file satellite-stats-packet-error-helper.h.

References m_carrierType.

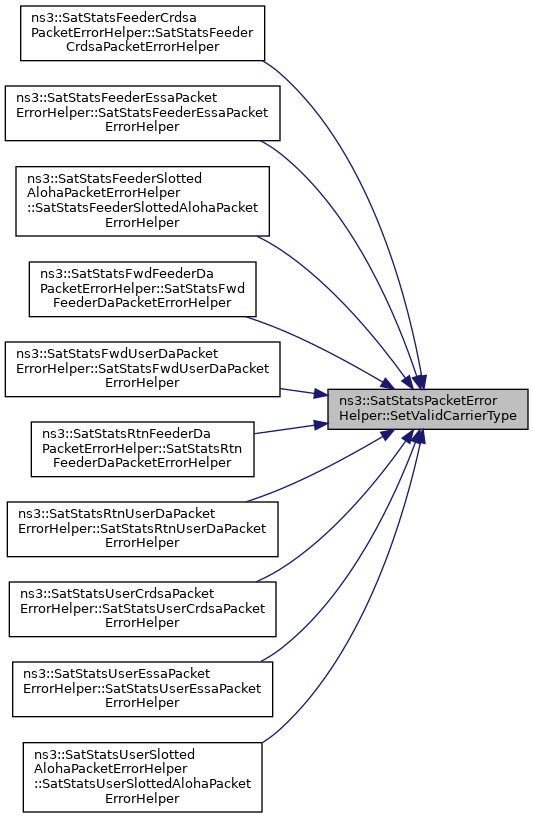

Here is the caller graph for this function:

◆ UpdateIdentifierOnProbes()

void ns3::SatStatsPacketErrorHelper::UpdateIdentifierOnProbes ( )

virtual

Change identifier used on probes, when handovers occur.

Reimplemented from ns3::SatStatsHelper.

Definition at line 496 of file satellite-stats-packet-error-helper.cc.

References ConnectProbeToCollector(), DisconnectProbeFromCollector(), ns3::SatStatsHelper::GetIdentifierForUtUser(), and m_probes.

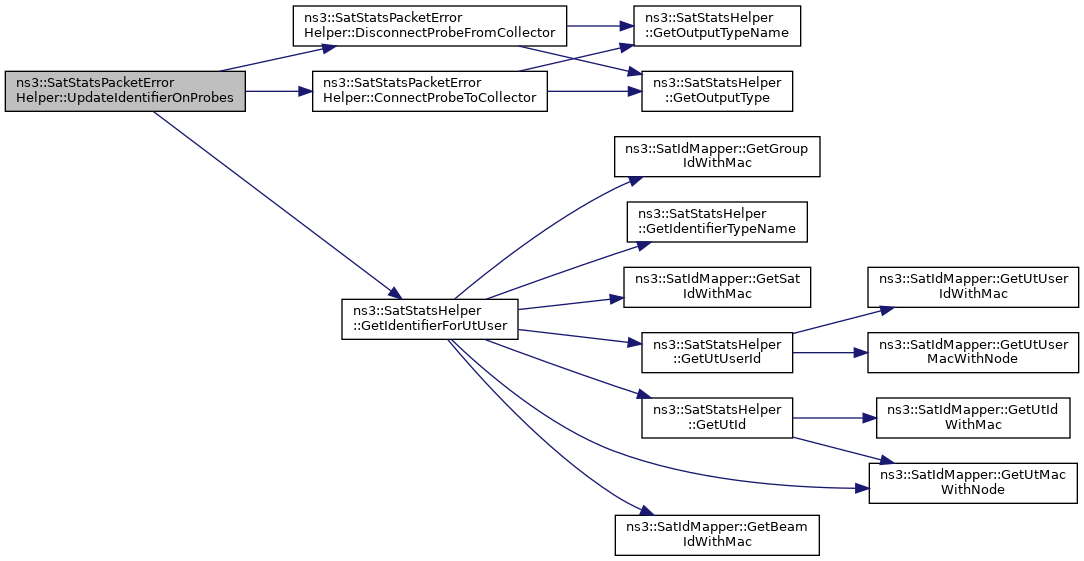

Here is the call graph for this function:

Member Data Documentation

◆ m_aggregator

Ptr<DataCollectionObject> ns3::SatStatsPacketErrorHelper::m_aggregator

private

The aggregator created by this helper.

Definition at line 175 of file satellite-stats-packet-error-helper.h.

Referenced by DoInstall().

◆ m_carrierType

SatPhyRxCarrier::CarrierType ns3::SatStatsPacketErrorHelper::m_carrierType

private

Valid carrier type.

Definition at line 184 of file satellite-stats-packet-error-helper.h.

Referenced by GetValidCarrierType(), and SetValidCarrierType().

◆ m_channelType

SatEnums::ChannelType_t ns3::SatStatsPacketErrorHelper::m_channelType

private

Link where statistics are gathered from.

Definition at line 181 of file satellite-stats-packet-error-helper.h.

Referenced by DoInstall(), GetChannelType(), and SetChannelType().

◆ m_probes

std::map<Ptr<Probe>, std::pair<Ptr<Node>, uint32_t> > ns3::SatStatsPacketErrorHelper::m_probes

private

Maintains a list of probes created by this helper (for forward link).

Definition at line 169 of file satellite-stats-packet-error-helper.h.

Referenced by InstallProbeOnUt(), and UpdateIdentifierOnProbes().

◆ m_terminalCollectors

CollectorMap ns3::SatStatsPacketErrorHelper::m_terminalCollectors

private

Maintains a list of collectors created by this helper.

Definition at line 172 of file satellite-stats-packet-error-helper.h.

Referenced by ConnectProbeToCollector(), DisconnectProbeFromCollector(), DoInstall(), and ErrorRxCallback().

◆ m_traceSourceName

std::string ns3::SatStatsPacketErrorHelper::m_traceSourceName

private

Name of trace source of PHY RX carrier to listen to.

Definition at line 178 of file satellite-stats-packet-error-helper.h.

Referenced by GetTraceSourceName(), and SetTraceSourceName().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/stats/satellite-stats-packet-error-helper.h
/builds/sns3/satellite/satellite/stats/satellite-stats-packet-error-helper.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SatStatsPacketErrorHelper()

◆ ~SatStatsPacketErrorHelper()

Member Function Documentation

◆ ConnectProbeToCollector()

◆ DisconnectProbeFromCollector()

◆ DoInstall()

◆ ErrorRxCallback()

◆ GetChannelType()

◆ GetTraceSourceName()

◆ GetTypeId()

◆ GetValidCarrierType()

◆ InstallProbeOnGw()

◆ InstallProbeOnSatFeeder()

◆ InstallProbeOnSatUser()

◆ InstallProbeOnUt()

◆ SetChannelType()

◆ SetTraceSourceName()

◆ SetValidCarrierType()

◆ UpdateIdentifierOnProbes()

Member Data Documentation

◆ m_aggregator

◆ m_carrierType

◆ m_channelType

◆ m_probes

◆ m_terminalCollectors

◆ m_traceSourceName
