Base class for jitter statistics helpers. More...

#include "satellite-stats-jitter-helper.h"

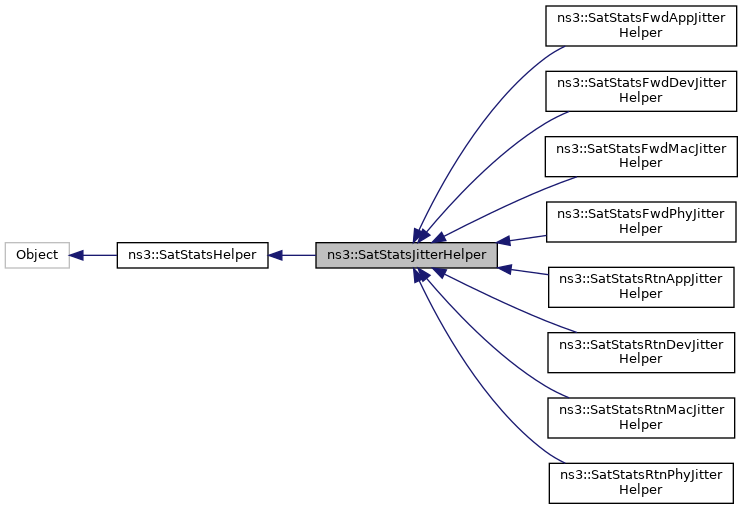

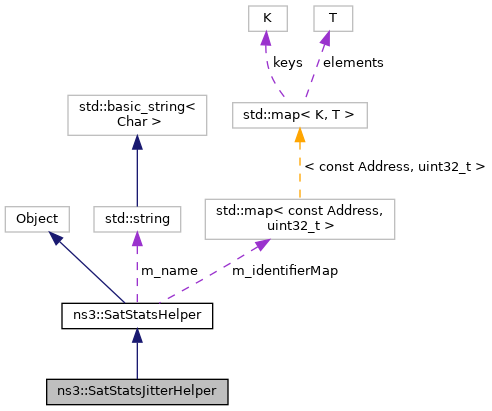

Inheritance diagram for ns3::SatStatsJitterHelper:

Collaboration diagram for ns3::SatStatsJitterHelper:

Public Member Functions
	SatStatsJitterHelper (Ptr< const SatHelper > satHelper)

virtual	~SatStatsJitterHelper ()
	/ Destructor. More...

bool	GetAveragingMode () const

void	InstallProbes ()
	Set up several probes or other means of listeners and connect them to the collectors. More...

void	RxJitterCallback (const Time &jitter, const Address &from)
	Receive inputs from trace sources and determine the right collector to forward the inputs to. More...

void	SetAveragingMode (bool averagingMode)

Public Member Functions inherited from ns3::SatStatsHelper
	SatStatsHelper (Ptr< const SatHelper > satHelper)
	Creates a new helper instance. More...

virtual	~SatStatsHelper ()
	/ Destructor. More...

IdentifierType_t	GetIdentifierType () const

std::string	GetName () const

OutputType_t	GetOutputType () const

Ptr< const SatHelper >	GetSatHelper () const

void	Install ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

bool	IsInstalled () const

void	SetIdentifierType (IdentifierType_t identifierType)

void	SetName (std::string name)

void	SetOutputType (OutputType_t outputType)

virtual void	UpdateAddressAndIdentifier (Ptr< Node > utNode)
	Update the address and the proper identifier from the given UT node. More...

virtual void	UpdateIdentifierOnProbes ()
	Change identifier used on probes, when handovers occur. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Static Public Member Functions inherited from ns3::SatStatsHelper
static std::string	GetIdentifierTypeName (IdentifierType_t identifierType)

static std::string	GetOutputTypeName (OutputType_t outputType)

static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Protected Member Functions
bool	ConnectProbeToCollector (Ptr< Probe > probe, uint32_t identifier)
	Connect the probe to the right collector. More...

bool	DisconnectProbeFromCollector (Ptr< Probe > probe, uint32_t identifier)
	Disconnect the probe from the right collector. More...

void	DoInstall ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

virtual void	DoInstallProbes ()=0

void	PassSampleToCollector (const Time &jitter, uint32_t identifier)
	Find a collector with the right identifier and pass a sample data to it. More...

Protected Member Functions inherited from ns3::SatStatsHelper
Ptr< DataCollectionObject >	CreateAggregator (std::string aggregatorTypeId, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue())
	Create the aggregator according to the output type. More...

uint32_t	CreateCollectorPerIdentifier (CollectorMap &collectorMap) const
	Create one collector instance for each identifier in the simulation. More...

virtual std::string	GetDistributionHeading (std::string dataLabel) const

uint32_t	GetGwId (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForBeam (uint32_t satId, uint32_t beamId) const

uint32_t	GetIdentifierForGroup (uint32_t groupId) const

uint32_t	GetIdentifierForGw (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForIsl (Ptr< Node > satNodeSrc, Ptr< Node > satNodeDst) const

uint32_t	GetIdentifierForSat (Ptr< Node > satNode) const

uint32_t	GetIdentifierForUt (Ptr< Node > utNode) const

uint32_t	GetIdentifierForUtUser (Ptr< Node > utUserNode) const

virtual std::string	GetIdentifierHeading (std::string dataLabel) const

virtual std::string	GetOutputFileName () const
	Compute the path and file name where statistics output should be written to. More...

virtual std::string	GetOutputPath () const

uint32_t	GetSatId (Ptr< Node > satNode) const

virtual std::string	GetTimeHeading (std::string dataLabel) const

uint32_t	GetUtId (Ptr< Node > utNode) const

uint32_t	GetUtUserId (Ptr< Node > utUserNode) const

virtual void	SaveAddressAndIdentifier (Ptr< Node > utNode)
	Save the address and the proper identifier from the given UT node. More...

Protected Attributes
Ptr< DataCollectionObject >	m_aggregator
	The aggregator created by this helper. More...

Ptr< DistributionCollector >	m_averagingCollector
	The final collector utilized in averaged output (histogram, PDF, and CDF). More...

CollectorMap	m_terminalCollectors
	Maintains a list of collectors created by this helper. More...

Protected Attributes inherited from ns3::SatStatsHelper
std::map< const Address, uint32_t >	m_identifierMap
	Map of address and the identifier associated with it. More...

Private Attributes
bool	m_averagingMode
	`AveragingMode` attribute. More...

Additional Inherited Members
Public Types inherited from ns3::SatStatsHelper
enum	IdentifierType_t { IDENTIFIER_GLOBAL = 0 , IDENTIFIER_GW , IDENTIFIER_BEAM , IDENTIFIER_UT , IDENTIFIER_UT_USER , IDENTIFIER_SLICE , IDENTIFIER_GROUP , IDENTIFIER_SAT , IDENTIFIER_ISL }
	Possible categorization of statistics output. More...

enum	OutputType_t { OUTPUT_NONE = 0 , OUTPUT_SCALAR_FILE , OUTPUT_SCATTER_FILE , OUTPUT_HISTOGRAM_FILE , OUTPUT_PDF_FILE , OUTPUT_CDF_FILE , OUTPUT_SCALAR_PLOT , OUTPUT_SCATTER_PLOT , OUTPUT_HISTOGRAM_PLOT , OUTPUT_PDF_PLOT , OUTPUT_CDF_PLOT }
	Possible types and formats of statistics output. More...

Static Protected Member Functions inherited from ns3::SatStatsHelper
static NetDeviceContainer	GetGwSatNetDevice (Ptr< Node > gwNode)

static Ptr< NetDevice >	GetSatSatOrbiterNetDevice (Ptr< Node > satNode)

static Ptr< NetDevice >	GetUtSatNetDevice (Ptr< Node > utNode)

Detailed Description

Base class for jitter statistics helpers.

Definition at line 50 of file satellite-stats-jitter-helper.h.

Constructor & Destructor Documentation

◆ SatStatsJitterHelper()

ns3::SatStatsJitterHelper::SatStatsJitterHelper ( Ptr< const SatHelper > satHelper )

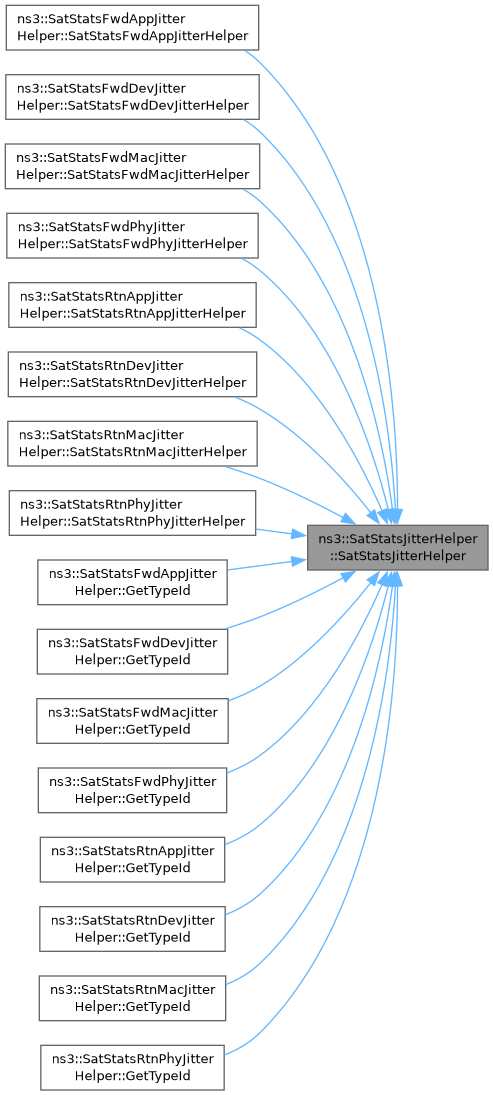

Definition at line 67 of file satellite-stats-jitter-helper.cc.

◆ ~SatStatsJitterHelper()

ns3::SatStatsJitterHelper::~SatStatsJitterHelper ( )

virtual

/ Destructor.

Definition at line 74 of file satellite-stats-jitter-helper.cc.

Member Function Documentation

◆ ConnectProbeToCollector()

bool ns3::SatStatsJitterHelper::ConnectProbeToCollector	(	Ptr< Probe >	probe,
		uint32_t	identifier
	)

protected

Connect the probe to the right collector.

Parameters

probe
identifier

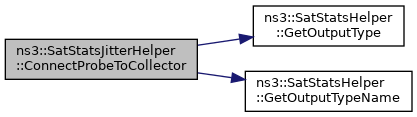

Definition at line 451 of file satellite-stats-jitter-helper.cc.

Referenced by ns3::SatStatsFwdAppJitterHelper::DoInstallProbes(), ns3::SatStatsFwdDevJitterHelper::DoInstallProbes(), ns3::SatStatsFwdMacJitterHelper::DoInstallProbes(), ns3::SatStatsFwdPhyJitterHelper::DoInstallProbes(), ns3::SatStatsFwdAppJitterHelper::UpdateIdentifierOnProbes(), ns3::SatStatsFwdDevJitterHelper::UpdateIdentifierOnProbes(), ns3::SatStatsFwdMacJitterHelper::UpdateIdentifierOnProbes(), and ns3::SatStatsFwdPhyJitterHelper::UpdateIdentifierOnProbes().

Here is the call graph for this function:

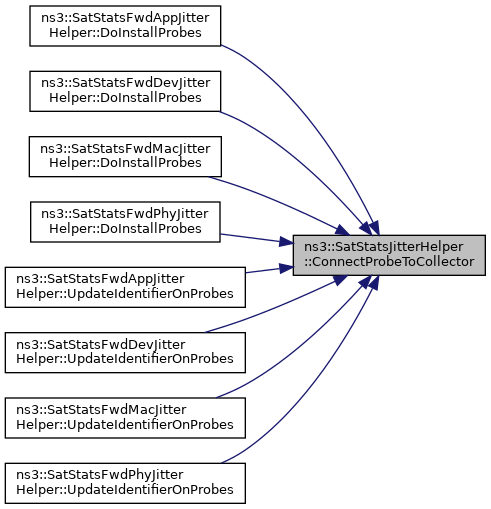

Here is the caller graph for this function:

◆ DisconnectProbeFromCollector()

bool ns3::SatStatsJitterHelper::DisconnectProbeFromCollector	(	Ptr< Probe >	probe,
		uint32_t	identifier
	)

protected

Disconnect the probe from the right collector.

Parameters

probe
identifier

Definition at line 517 of file satellite-stats-jitter-helper.cc.

Referenced by ns3::SatStatsFwdAppJitterHelper::UpdateIdentifierOnProbes(), ns3::SatStatsFwdDevJitterHelper::UpdateIdentifierOnProbes(), ns3::SatStatsFwdMacJitterHelper::UpdateIdentifierOnProbes(), and ns3::SatStatsFwdPhyJitterHelper::UpdateIdentifierOnProbes().

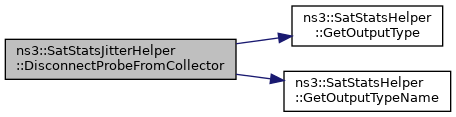

Here is the call graph for this function:

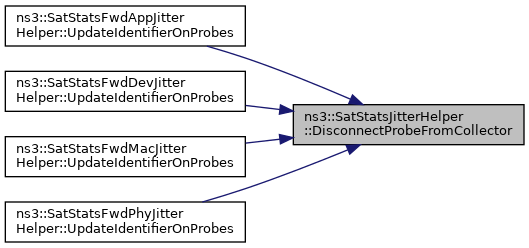

Here is the caller graph for this function:

◆ DoInstall()

void ns3::SatStatsJitterHelper::DoInstall ( )

protectedvirtual

Install the probes, collectors, and aggregators necessary to produce the statistics output.

An abstract method of SatStatsHelper which must be implemented by child classes. It will be invoked by Install().

Todo:: Add support for boxes in Gnuplot.

Todo:: Find a better dataset name.

Todo:: Find a better dataset name.

Implements ns3::SatStatsHelper.

Definition at line 109 of file satellite-stats-jitter-helper.cc.

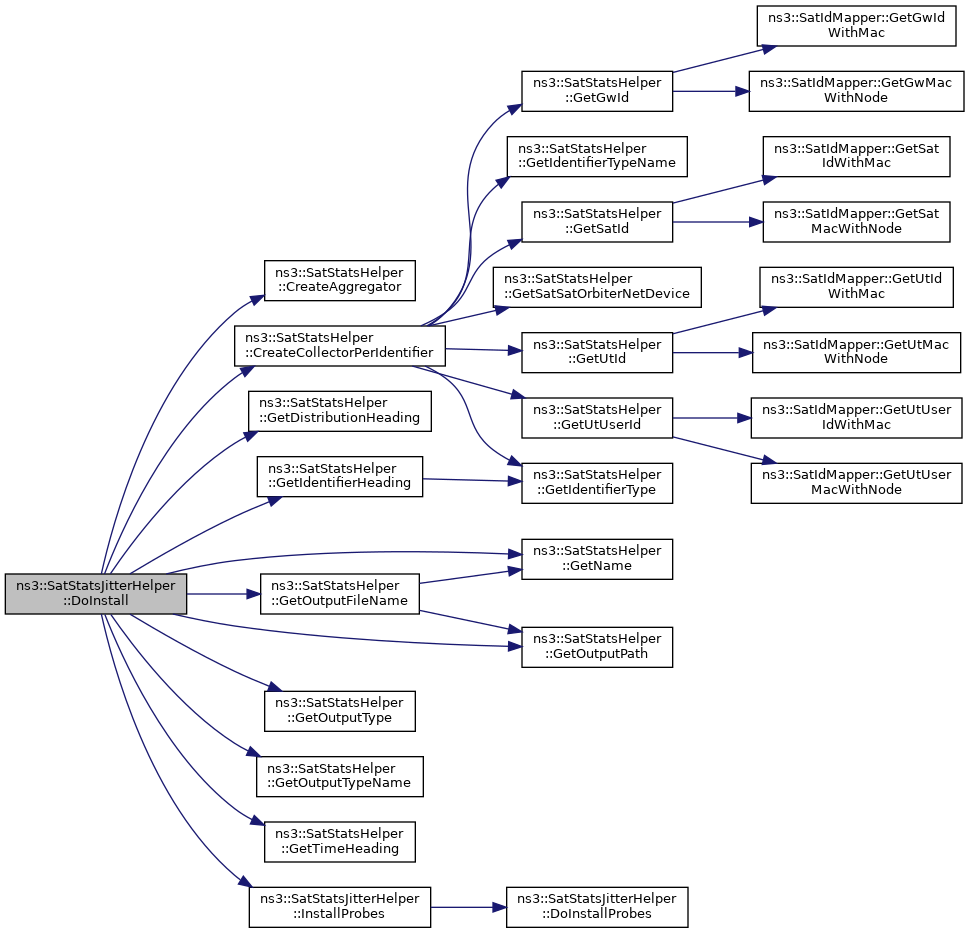

Here is the call graph for this function:

◆ DoInstallProbes()

virtual void ns3::SatStatsJitterHelper::DoInstallProbes ( )

protectedpure virtual

Implemented in ns3::SatStatsRtnPhyJitterHelper, ns3::SatStatsRtnMacJitterHelper, ns3::SatStatsRtnDevJitterHelper, ns3::SatStatsRtnAppJitterHelper, ns3::SatStatsFwdPhyJitterHelper, ns3::SatStatsFwdMacJitterHelper, ns3::SatStatsFwdDevJitterHelper, and ns3::SatStatsFwdAppJitterHelper.

Referenced by InstallProbes().

Here is the caller graph for this function:

◆ GetAveragingMode()

bool ns3::SatStatsJitterHelper::GetAveragingMode ( ) const

Returns: the currently active averaging mode.

Definition at line 103 of file satellite-stats-jitter-helper.cc.

References m_averagingMode.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatStatsJitterHelper::GetTypeId ( void )

static

inherited from ObjectBase base class

Definition at line 80 of file satellite-stats-jitter-helper.cc.

References GetAveragingMode(), and SetAveragingMode().

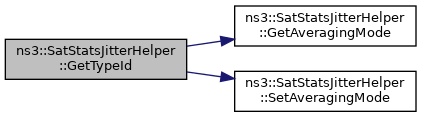

Here is the call graph for this function:

◆ InstallProbes()

void ns3::SatStatsJitterHelper::InstallProbes ( )

Set up several probes or other means of listeners and connect them to the collectors.

Definition at line 415 of file satellite-stats-jitter-helper.cc.

References DoInstallProbes().

Referenced by DoInstall().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PassSampleToCollector()

void ns3::SatStatsJitterHelper::PassSampleToCollector	(	const Time &	jitter,
		uint32_t	identifier
	)

protected

Find a collector with the right identifier and pass a sample data to it.

Parameters

jitter
identifier

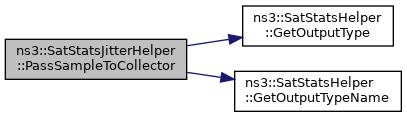

Definition at line 583 of file satellite-stats-jitter-helper.cc.

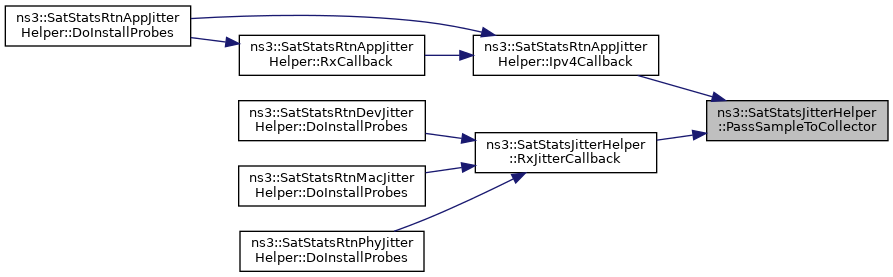

Referenced by ns3::SatStatsRtnAppJitterHelper::Ipv4Callback(), and RxJitterCallback().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RxJitterCallback()

void ns3::SatStatsJitterHelper::RxJitterCallback	(	const Time &	jitter,
		const Address &	from
	)

Receive inputs from trace sources and determine the right collector to forward the inputs to.

Parameters

jitter	packet jitter.
from	the address of the sender of the packet.

Used in return link statistics. DoInstallProbes() is expected to connect the right trace sources to this method.

Definition at line 422 of file satellite-stats-jitter-helper.cc.

References ns3::SatStatsHelper::m_identifierMap, and PassSampleToCollector().

Referenced by ns3::SatStatsRtnDevJitterHelper::DoInstallProbes(), ns3::SatStatsRtnMacJitterHelper::DoInstallProbes(), and ns3::SatStatsRtnPhyJitterHelper::DoInstallProbes().

Here is the call graph for this function:

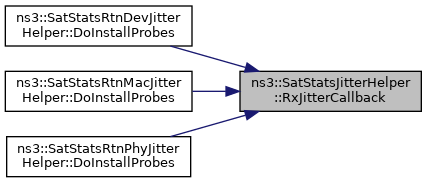

Here is the caller graph for this function:

◆ SetAveragingMode()

void ns3::SatStatsJitterHelper::SetAveragingMode ( bool averagingMode )

Parameters

averagingMode average all samples before passing them to aggregator.

Definition at line 96 of file satellite-stats-jitter-helper.cc.

References m_averagingMode.

Referenced by GetTypeId().

Here is the caller graph for this function:

Member Data Documentation

◆ m_aggregator

Ptr<DataCollectionObject> ns3::SatStatsJitterHelper::m_aggregator

protected

The aggregator created by this helper.

Definition at line 131 of file satellite-stats-jitter-helper.h.

Referenced by DoInstall().

◆ m_averagingCollector

Ptr<DistributionCollector> ns3::SatStatsJitterHelper::m_averagingCollector

protected

The final collector utilized in averaged output (histogram, PDF, and CDF).

Definition at line 128 of file satellite-stats-jitter-helper.h.

Referenced by DoInstall().

◆ m_averagingMode

bool ns3::SatStatsJitterHelper::m_averagingMode

private

AveragingMode attribute.

Definition at line 134 of file satellite-stats-jitter-helper.h.

Referenced by ConnectProbeToCollector(), DisconnectProbeFromCollector(), DoInstall(), GetAveragingMode(), PassSampleToCollector(), and SetAveragingMode().

◆ m_terminalCollectors

CollectorMap ns3::SatStatsJitterHelper::m_terminalCollectors

protected

Maintains a list of collectors created by this helper.

Definition at line 125 of file satellite-stats-jitter-helper.h.

Referenced by ConnectProbeToCollector(), DisconnectProbeFromCollector(), DoInstall(), and PassSampleToCollector().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/stats/satellite-stats-jitter-helper.h
/builds/sns3/satellite/satellite/stats/satellite-stats-jitter-helper.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SatStatsJitterHelper()

◆ ~SatStatsJitterHelper()

Member Function Documentation

◆ ConnectProbeToCollector()

◆ DisconnectProbeFromCollector()

◆ DoInstall()

◆ DoInstallProbes()

◆ GetAveragingMode()

◆ GetTypeId()

◆ InstallProbes()

◆ PassSampleToCollector()

◆ RxJitterCallback()

◆ SetAveragingMode()

Member Data Documentation

◆ m_aggregator

◆ m_averagingCollector

◆ m_averagingMode

◆ m_terminalCollectors
