#include "satellite-stats-jitter-helper.h"

Inheritance diagram for ns3::SatStatsFwdDevJitterHelper:

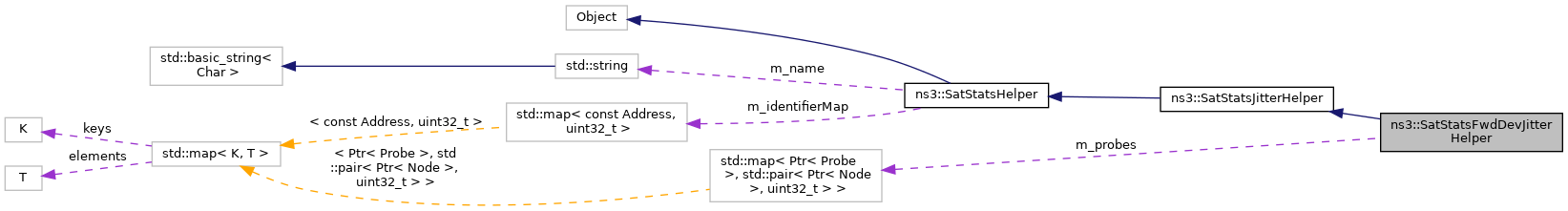

Collaboration diagram for ns3::SatStatsFwdDevJitterHelper:

Public Member Functions
	SatStatsFwdDevJitterHelper (Ptr< const SatHelper > satHelper)

virtual	~SatStatsFwdDevJitterHelper ()
	/ Destructor. More...

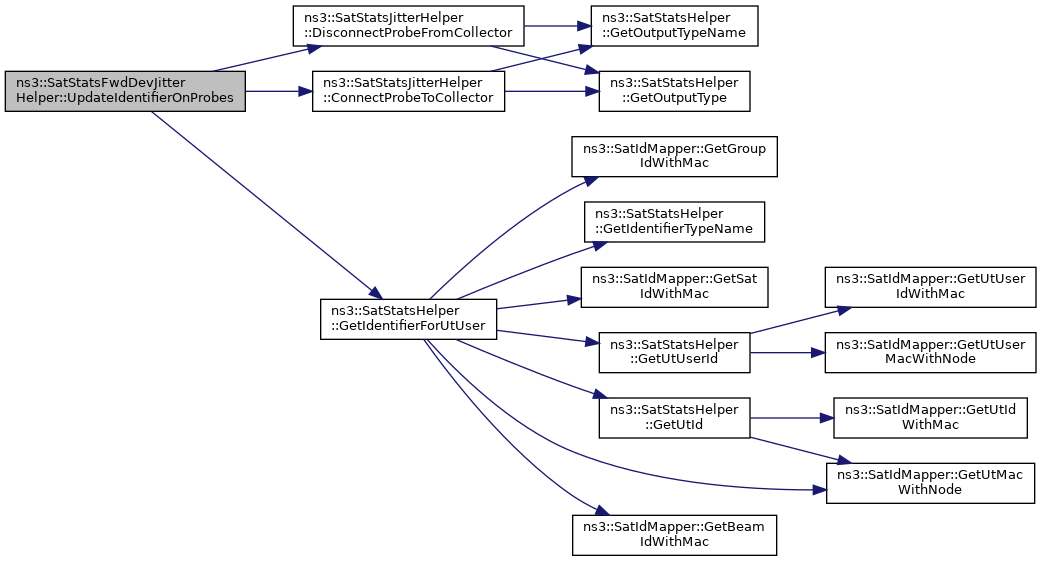

virtual void	UpdateIdentifierOnProbes ()
	Change identifier used on probes, when handovers occur. More...

Public Member Functions inherited from ns3::SatStatsJitterHelper
	SatStatsJitterHelper (Ptr< const SatHelper > satHelper)

virtual	~SatStatsJitterHelper ()
	/ Destructor. More...

bool	GetAveragingMode () const

void	InstallProbes ()
	Set up several probes or other means of listeners and connect them to the collectors. More...

void	RxJitterCallback (const Time &jitter, const Address &from)
	Receive inputs from trace sources and determine the right collector to forward the inputs to. More...

void	SetAveragingMode (bool averagingMode)

Public Member Functions inherited from ns3::SatStatsHelper
	SatStatsHelper (Ptr< const SatHelper > satHelper)
	Creates a new helper instance. More...

virtual	~SatStatsHelper ()
	/ Destructor. More...

IdentifierType_t	GetIdentifierType () const

std::string	GetName () const

OutputType_t	GetOutputType () const

Ptr< const SatHelper >	GetSatHelper () const

void	Install ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

bool	IsInstalled () const

void	SetIdentifierType (IdentifierType_t identifierType)

void	SetName (std::string name)

void	SetOutputType (OutputType_t outputType)

virtual void	UpdateAddressAndIdentifier (Ptr< Node > utNode)
	Update the address and the proper identifier from the given UT node. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Static Public Member Functions inherited from ns3::SatStatsJitterHelper
static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Static Public Member Functions inherited from ns3::SatStatsHelper
static std::string	GetIdentifierTypeName (IdentifierType_t identifierType)

static std::string	GetOutputTypeName (OutputType_t outputType)

static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Protected Member Functions

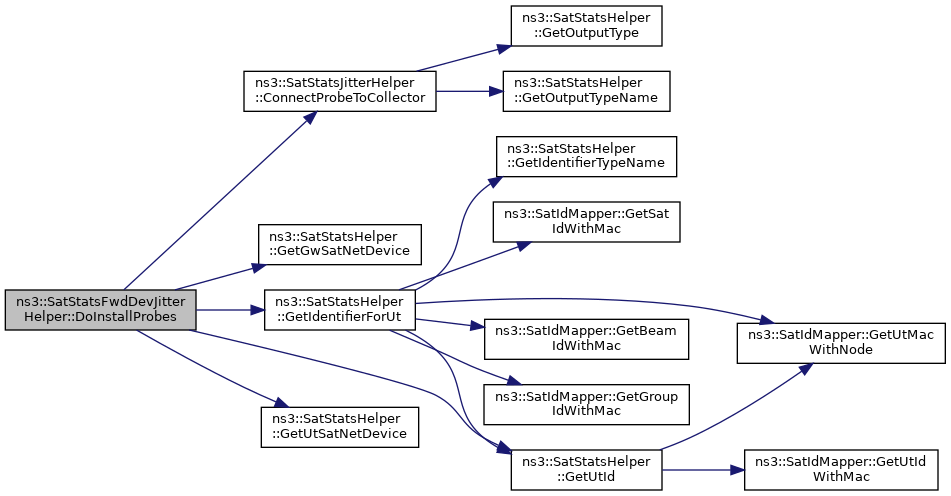

void	DoInstallProbes ()

Protected Member Functions inherited from ns3::SatStatsJitterHelper
bool	ConnectProbeToCollector (Ptr< Probe > probe, uint32_t identifier)
	Connect the probe to the right collector. More...

bool	DisconnectProbeFromCollector (Ptr< Probe > probe, uint32_t identifier)
	Disconnect the probe from the right collector. More...

void	DoInstall ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

void	PassSampleToCollector (const Time &jitter, uint32_t identifier)
	Find a collector with the right identifier and pass a sample data to it. More...

Protected Member Functions inherited from ns3::SatStatsHelper
Ptr< DataCollectionObject >	CreateAggregator (std::string aggregatorTypeId, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue())
	Create the aggregator according to the output type. More...

uint32_t	CreateCollectorPerIdentifier (CollectorMap &collectorMap) const
	Create one collector instance for each identifier in the simulation. More...

virtual std::string	GetDistributionHeading (std::string dataLabel) const

uint32_t	GetGwId (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForBeam (uint32_t satId, uint32_t beamId) const

uint32_t	GetIdentifierForGroup (uint32_t groupId) const

uint32_t	GetIdentifierForGw (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForIsl (Ptr< Node > satNodeSrc, Ptr< Node > satNodeDst) const

uint32_t	GetIdentifierForSat (Ptr< Node > satNode) const

uint32_t	GetIdentifierForUt (Ptr< Node > utNode) const

uint32_t	GetIdentifierForUtUser (Ptr< Node > utUserNode) const

virtual std::string	GetIdentifierHeading (std::string dataLabel) const

virtual std::string	GetOutputFileName () const
	Compute the path and file name where statistics output should be written to. More...

virtual std::string	GetOutputPath () const

uint32_t	GetSatId (Ptr< Node > satNode) const

virtual std::string	GetTimeHeading (std::string dataLabel) const

uint32_t	GetUtId (Ptr< Node > utNode) const

uint32_t	GetUtUserId (Ptr< Node > utUserNode) const

virtual void	SaveAddressAndIdentifier (Ptr< Node > utNode)
	Save the address and the proper identifier from the given UT node. More...

Private Attributes
std::map< Ptr< Probe >, std::pair< Ptr< Node >, uint32_t > >	m_probes
	Maintains a list of probes created by this helper. More...

Additional Inherited Members
Public Types inherited from ns3::SatStatsHelper
enum	IdentifierType_t { IDENTIFIER_GLOBAL = 0 , IDENTIFIER_GW , IDENTIFIER_BEAM , IDENTIFIER_UT , IDENTIFIER_UT_USER , IDENTIFIER_SLICE , IDENTIFIER_GROUP , IDENTIFIER_SAT , IDENTIFIER_ISL }
	Possible categorization of statistics output. More...

enum	OutputType_t { OUTPUT_NONE = 0 , OUTPUT_SCALAR_FILE , OUTPUT_SCATTER_FILE , OUTPUT_HISTOGRAM_FILE , OUTPUT_PDF_FILE , OUTPUT_CDF_FILE , OUTPUT_SCALAR_PLOT , OUTPUT_SCATTER_PLOT , OUTPUT_HISTOGRAM_PLOT , OUTPUT_PDF_PLOT , OUTPUT_CDF_PLOT }
	Possible types and formats of statistics output. More...

Static Protected Member Functions inherited from ns3::SatStatsHelper
static NetDeviceContainer	GetGwSatNetDevice (Ptr< Node > gwNode)

static Ptr< NetDevice >	GetSatSatOrbiterNetDevice (Ptr< Node > satNode)

static Ptr< NetDevice >	GetUtSatNetDevice (Ptr< Node > utNode)

Protected Attributes inherited from ns3::SatStatsJitterHelper
Ptr< DataCollectionObject >	m_aggregator
	The aggregator created by this helper. More...

Ptr< DistributionCollector >	m_averagingCollector
	The final collector utilized in averaged output (histogram, PDF, and CDF). More...

CollectorMap	m_terminalCollectors
	Maintains a list of collectors created by this helper. More...

Protected Attributes inherited from ns3::SatStatsHelper
std::map< const Address, uint32_t >	m_identifierMap
	Map of address and the identifier associated with it. More...
