#include "satellite-stats-frame-type-usage-helper.h"

Inheritance diagram for ns3::SatStatsFrameTypeUsageHelper:

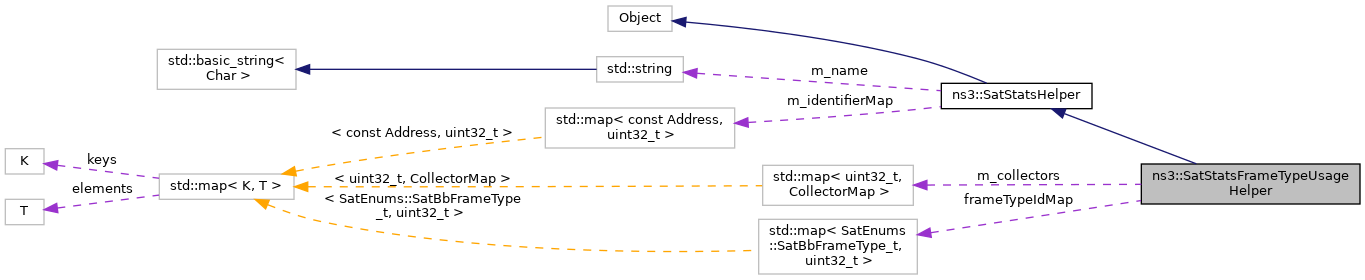

Collaboration diagram for ns3::SatStatsFrameTypeUsageHelper:

Public Member Functions
	SatStatsFrameTypeUsageHelper (Ptr< const SatHelper > satHelper)
	Constructor. More...

virtual	~SatStatsFrameTypeUsageHelper ()
	/ Destructor. More...

Public Member Functions inherited from ns3::SatStatsHelper
	SatStatsHelper (Ptr< const SatHelper > satHelper)
	Creates a new helper instance. More...

virtual	~SatStatsHelper ()
	/ Destructor. More...

IdentifierType_t	GetIdentifierType () const

std::string	GetName () const

OutputType_t	GetOutputType () const

Ptr< const SatHelper >	GetSatHelper () const

void	Install ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

bool	IsInstalled () const

void	SetIdentifierType (IdentifierType_t identifierType)

void	SetName (std::string name)

void	SetOutputType (OutputType_t outputType)

virtual void	UpdateAddressAndIdentifier (Ptr< Node > utNode)
	Update the address and the proper identifier from the given UT node. More...

virtual void	UpdateIdentifierOnProbes ()
	Change identifier used on probes, when handovers occur. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Static Public Member Functions inherited from ns3::SatStatsHelper
static std::string	GetIdentifierTypeName (IdentifierType_t identifierType)

static std::string	GetOutputTypeName (OutputType_t outputType)

static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Static Public Attributes
static const std::map< SatEnums::SatBbFrameType_t, uint32_t >	frameTypeIdMap
	Mapping for frame type IDs to integers, in case that SatBbFrameType_t enums are assigned. More...

Protected Member Functions
void	DoInstall ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

std::string	GetIdentifierHeading (std::string dataLabel) const
	Get identifier header for file. More...

Protected Member Functions inherited from ns3::SatStatsHelper
Ptr< DataCollectionObject >	CreateAggregator (std::string aggregatorTypeId, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue())
	Create the aggregator according to the output type. More...

uint32_t	CreateCollectorPerIdentifier (CollectorMap &collectorMap) const
	Create one collector instance for each identifier in the simulation. More...

virtual std::string	GetDistributionHeading (std::string dataLabel) const

uint32_t	GetGwId (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForBeam (uint32_t satId, uint32_t beamId) const

uint32_t	GetIdentifierForGroup (uint32_t groupId) const

uint32_t	GetIdentifierForGw (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForIsl (Ptr< Node > satNodeSrc, Ptr< Node > satNodeDst) const

uint32_t	GetIdentifierForSat (Ptr< Node > satNode) const

uint32_t	GetIdentifierForUt (Ptr< Node > utNode) const

uint32_t	GetIdentifierForUtUser (Ptr< Node > utUserNode) const

virtual std::string	GetOutputFileName () const
	Compute the path and file name where statistics output should be written to. More...

virtual std::string	GetOutputPath () const

uint32_t	GetSatId (Ptr< Node > satNode) const

virtual std::string	GetTimeHeading (std::string dataLabel) const

uint32_t	GetUtId (Ptr< Node > utNode) const

uint32_t	GetUtUserId (Ptr< Node > utUserNode) const

virtual void	SaveAddressAndIdentifier (Ptr< Node > utNode)
	Save the address and the proper identifier from the given UT node. More...

Private Member Functions
void	FrameTypeUsageCallback (std::string context, Ptr< SatBbFrame > bbFrame)

Static Private Member Functions
static uint32_t	GetFrameTypeId (SatEnums::SatBbFrameType_t frameType)
	Get frame type ID. More...

Private Attributes
Ptr< DataCollectionObject >	m_aggregator
	The aggregator created by this helper. More...

std::map< uint32_t, CollectorMap >	m_collectors
	Two-dimensional map of collectors, indexed first by the the frame type identifier and second by the global/gw/beam identifier. More...

bool	m_usePercentage
	Flag for using percentage of the frame types in beam/in gw/globally instead of sum by type. More...

Additional Inherited Members
Public Types inherited from ns3::SatStatsHelper
enum	IdentifierType_t { IDENTIFIER_GLOBAL = 0 , IDENTIFIER_GW , IDENTIFIER_BEAM , IDENTIFIER_UT , IDENTIFIER_UT_USER , IDENTIFIER_SLICE , IDENTIFIER_GROUP , IDENTIFIER_SAT , IDENTIFIER_ISL }
	Possible categorization of statistics output. More...

enum	OutputType_t { OUTPUT_NONE = 0 , OUTPUT_SCALAR_FILE , OUTPUT_SCATTER_FILE , OUTPUT_HISTOGRAM_FILE , OUTPUT_PDF_FILE , OUTPUT_CDF_FILE , OUTPUT_SCALAR_PLOT , OUTPUT_SCATTER_PLOT , OUTPUT_HISTOGRAM_PLOT , OUTPUT_PDF_PLOT , OUTPUT_CDF_PLOT }
	Possible types and formats of statistics output. More...

Static Protected Member Functions inherited from ns3::SatStatsHelper
static NetDeviceContainer	GetGwSatNetDevice (Ptr< Node > gwNode)

static Ptr< NetDevice >	GetSatSatOrbiterNetDevice (Ptr< Node > satNode)

static Ptr< NetDevice >	GetUtSatNetDevice (Ptr< Node > utNode)

Protected Attributes inherited from ns3::SatStatsHelper
std::map< const Address, uint32_t >	m_identifierMap
	Map of address and the identifier associated with it. More...

Detailed Description

Definition at line 44 of file satellite-stats-frame-type-usage-helper.h.

Constructor & Destructor Documentation

◆ SatStatsFrameTypeUsageHelper()

ns3::SatStatsFrameTypeUsageHelper::SatStatsFrameTypeUsageHelper ( Ptr< const SatHelper > satHelper )

Constructor.

Parameters

satHelper Satellite helper instance

Definition at line 62 of file satellite-stats-frame-type-usage-helper.cc.

◆ ~SatStatsFrameTypeUsageHelper()

ns3::SatStatsFrameTypeUsageHelper::~SatStatsFrameTypeUsageHelper ( )

virtual

/ Destructor.

Definition at line 69 of file satellite-stats-frame-type-usage-helper.cc.

Member Function Documentation

◆ DoInstall()

void ns3::SatStatsFrameTypeUsageHelper::DoInstall ( )

protectedvirtual

Install the probes, collectors, and aggregators necessary to produce the statistics output.

An abstract method of SatStatsHelper which must be implemented by child classes. It will be invoked by Install().

Implements ns3::SatStatsHelper.

Definition at line 89 of file satellite-stats-frame-type-usage-helper.cc.

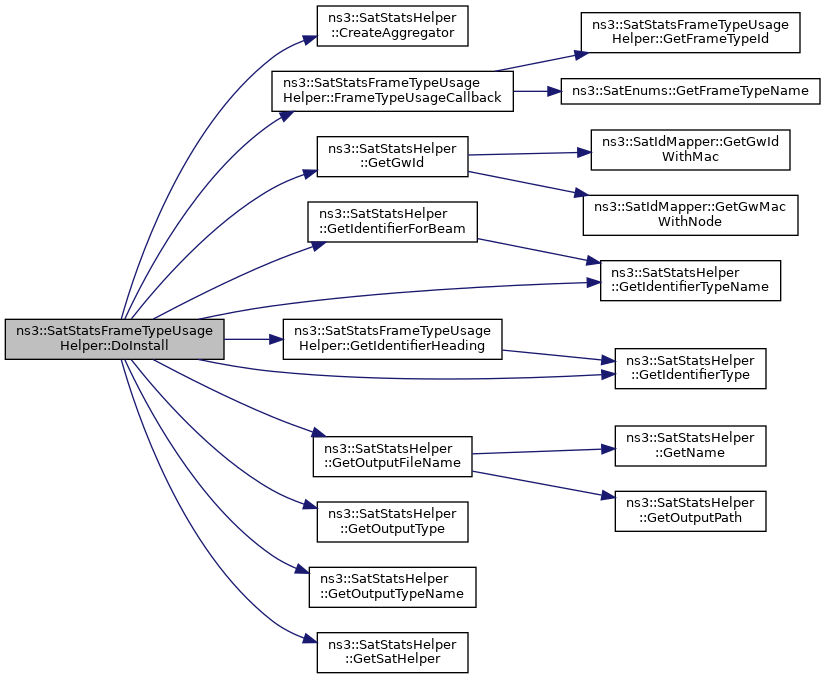

Here is the call graph for this function:

◆ FrameTypeUsageCallback()

void ns3::SatStatsFrameTypeUsageHelper::FrameTypeUsageCallback	(	std::string	context,
		Ptr< SatBbFrame >	bbFrame
	)

private

Parameters

context	Beam ID, GW ID or global ID (0) as string
frameType	Type of the frame

Definition at line 271 of file satellite-stats-frame-type-usage-helper.cc.

References ns3::SatEnums::DUMMY_FRAME, GetFrameTypeId(), ns3::SatEnums::GetFrameTypeName(), m_collectors, and m_usePercentage.

Referenced by DoInstall().

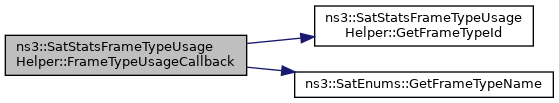

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetFrameTypeId()

uint32_t ns3::SatStatsFrameTypeUsageHelper::GetFrameTypeId ( SatEnums::SatBbFrameType_t frameType )

staticprivate

Get frame type ID.

Parameters

frameType Frame type enum

Returns: ID as integer

Definition at line 263 of file satellite-stats-frame-type-usage-helper.cc.

References frameTypeIdMap.

Referenced by FrameTypeUsageCallback().

Here is the caller graph for this function:

◆ GetIdentifierHeading()

std::string ns3::SatStatsFrameTypeUsageHelper::GetIdentifierHeading ( std::string dataLabel ) const

protectedvirtual

Get identifier header for file.

Parameters

dataLabel Label for data column

Returns: String containing identifier type (global, gw_id, beam_id), frame_type and data label.

Reimplemented from ns3::SatStatsHelper.

Definition at line 241 of file satellite-stats-frame-type-usage-helper.cc.

References ns3::SatStatsHelper::GetIdentifierType(), ns3::SatStatsHelper::IDENTIFIER_BEAM, ns3::SatStatsHelper::IDENTIFIER_GLOBAL, and ns3::SatStatsHelper::IDENTIFIER_GW.

Referenced by DoInstall().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatStatsFrameTypeUsageHelper::GetTypeId ( void )

static

inherited from ObjectBase base class

Returns: Type ID of the helper

Definition at line 75 of file satellite-stats-frame-type-usage-helper.cc.

References m_usePercentage.

Member Data Documentation

◆ frameTypeIdMap

const std::map< SatEnums::SatBbFrameType_t, uint32_t > ns3::SatStatsFrameTypeUsageHelper::frameTypeIdMap

static

Initial value:

=
    {{SatEnums::UNDEFINED_FRAME, 0},
     {SatEnums::SHORT_FRAME, 1},
     {SatEnums::NORMAL_FRAME, 2},
     {SatEnums::DUMMY_FRAME, 3}}

Mapping for frame type IDs to integers, in case that SatBbFrameType_t enums are assigned.

Definition at line 68 of file satellite-stats-frame-type-usage-helper.h.

Referenced by DoInstall(), and GetFrameTypeId().

◆ m_aggregator

Ptr<DataCollectionObject> ns3::SatStatsFrameTypeUsageHelper::m_aggregator

private

The aggregator created by this helper.

Definition at line 109 of file satellite-stats-frame-type-usage-helper.h.

Referenced by DoInstall().

◆ m_collectors

std::map<uint32_t, CollectorMap> ns3::SatStatsFrameTypeUsageHelper::m_collectors

private

Two-dimensional map of collectors, indexed first by the the frame type identifier and second by the global/gw/beam identifier.

Definition at line 106 of file satellite-stats-frame-type-usage-helper.h.

Referenced by DoInstall(), and FrameTypeUsageCallback().

◆ m_usePercentage

bool ns3::SatStatsFrameTypeUsageHelper::m_usePercentage

private

Flag for using percentage of the frame types in beam/in gw/globally instead of sum by type.

Definition at line 100 of file satellite-stats-frame-type-usage-helper.h.

Referenced by DoInstall(), FrameTypeUsageCallback(), and GetTypeId().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/stats/satellite-stats-frame-type-usage-helper.h
/builds/sns3/satellite/satellite/stats/satellite-stats-frame-type-usage-helper.cc
