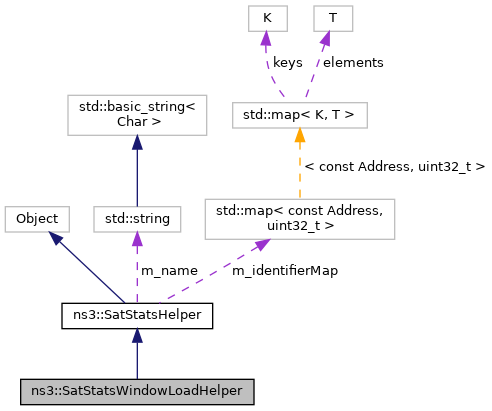

Abstract class inherited by SatStatsRtnFeederWindowLoadHelper. More...
#include "satellite-stats-window-load-helper.h"
Public Member Functions | |
SatStatsWindowLoadHelper (Ptr< const SatHelper > satHelper) | |
virtual | ~SatStatsWindowLoadHelper () |
/ Destructor. More... | |
Callback< void, double > | GetTraceSinkCallback () const |
void | InstallProbes () |
Set up several probes or other means of listeners and connect them to the collectors. More... | |
void | WindowLoadCallback (double windowLoad) |
Receive inputs from trace sources and forward them to the collector. More... | |
Public Member Functions inherited from ns3::SatStatsHelper | |
SatStatsHelper (Ptr< const SatHelper > satHelper) | |
Creates a new helper instance. More... | |
virtual | ~SatStatsHelper () |
/ Destructor. More... | |
IdentifierType_t | GetIdentifierType () const |
std::string | GetName () const |
OutputType_t | GetOutputType () const |
Ptr< const SatHelper > | GetSatHelper () const |
void | Install () |
Install the probes, collectors, and aggregators necessary to produce the statistics output. More... | |
bool | IsInstalled () const |
void | SetIdentifierType (IdentifierType_t identifierType) |
void | SetName (std::string name) |
void | SetOutputType (OutputType_t outputType) |
Static Public Member Functions | |
static TypeId | GetTypeId () |
inherited from ObjectBase base class More... | |
Static Public Member Functions inherited from ns3::SatStatsHelper | |
static std::string | GetIdentifierTypeName (IdentifierType_t identifierType) |
static std::string | GetOutputTypeName (OutputType_t outputType) |
static TypeId | GetTypeId () |
inherited from ObjectBase base class More... | |
Protected Member Functions | |
void | DoInstall () |
Install the probes, collectors, and aggregators necessary to produce the statistics output. More... | |
virtual void | DoInstallProbes ()=0 |
Protected Member Functions inherited from ns3::SatStatsHelper | |
Ptr< DataCollectionObject > | CreateAggregator (std::string aggregatorTypeId, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue()) |
Create the aggregator according to the output type. More... | |
uint32_t | CreateCollectorPerIdentifier (CollectorMap &collectorMap) const |
Create one collector instance for each identifier in the simulation. More... | |
virtual std::string | GetDistributionHeading (std::string dataLabel) const |
uint32_t | GetGwId (Ptr< Node > gwNode) const |
uint32_t | GetIdentifierForBeam (uint32_t satId, uint32_t beamId) const |
uint32_t | GetIdentifierForGroup (uint32_t groupId) const |
uint32_t | GetIdentifierForGw (Ptr< Node > gwNode) const |
uint32_t | GetIdentifierForIsl (Ptr< Node > satNodeSrc, Ptr< Node > satNodeDst) const |
uint32_t | GetIdentifierForSat (Ptr< Node > satNode) const |
uint32_t | GetIdentifierForUt (Ptr< Node > utNode) const |
uint32_t | GetIdentifierForUtUser (Ptr< Node > utUserNode) const |
virtual std::string | GetIdentifierHeading (std::string dataLabel) const |
virtual std::string | GetOutputFileName () const |
Compute the path and file name where statistics output should be written to. More... | |
virtual std::string | GetOutputPath () const |
uint32_t | GetSatId (Ptr< Node > satNode) const |
virtual std::string | GetTimeHeading (std::string dataLabel) const |
uint32_t | GetUtId (Ptr< Node > utNode) const |
uint32_t | GetUtUserId (Ptr< Node > utUserNode) const |
Protected Attributes | |
Ptr< DataCollectionObject > | m_aggregator |
The aggregator created by this helper. More... | |
Ptr< DataCollectionObject > | m_collector |
The collector created by this helper. More... | |
Private Attributes | |
Callback< void, double > | m_traceSinkCallback |
Additional Inherited Members | |
Public Types inherited from ns3::SatStatsHelper | |
enum | IdentifierType_t { IDENTIFIER_GLOBAL = 0 , IDENTIFIER_GW , IDENTIFIER_BEAM , IDENTIFIER_UT , IDENTIFIER_UT_USER , IDENTIFIER_SLICE , IDENTIFIER_GROUP , IDENTIFIER_SAT , IDENTIFIER_ISL } |
Possible categorization of statistics output. More... | |
enum | OutputType_t { OUTPUT_NONE = 0 , OUTPUT_SCALAR_FILE , OUTPUT_SCATTER_FILE , OUTPUT_HISTOGRAM_FILE , OUTPUT_PDF_FILE , OUTPUT_CDF_FILE , OUTPUT_SCALAR_PLOT , OUTPUT_SCATTER_PLOT , OUTPUT_HISTOGRAM_PLOT , OUTPUT_PDF_PLOT , OUTPUT_CDF_PLOT } |
Possible types and formats of statistics output. More... | |
Static Protected Member Functions inherited from ns3::SatStatsHelper | |
static NetDeviceContainer | GetGwSatNetDevice (Ptr< Node > gwNode) |
static Ptr< NetDevice > | GetSatSatGeoNetDevice (Ptr< Node > satNode) |
static Ptr< NetDevice > | GetUtSatNetDevice (Ptr< Node > utNode) |
Abstract class inherited by SatStatsRtnFeederWindowLoadHelper.
Definition at line 42 of file satellite-stats-window-load-helper.h.

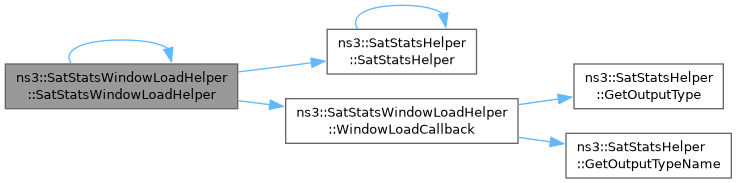

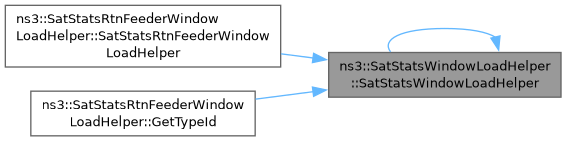

ns3::SatStatsWindowLoadHelper::SatStatsWindowLoadHelper | ( | Ptr< const SatHelper > | satHelper | ) |
Definition at line 52 of file satellite-stats-window-load-helper.cc.
|
virtual |
/ Destructor.
Definition at line 59 of file satellite-stats-window-load-helper.cc.
|

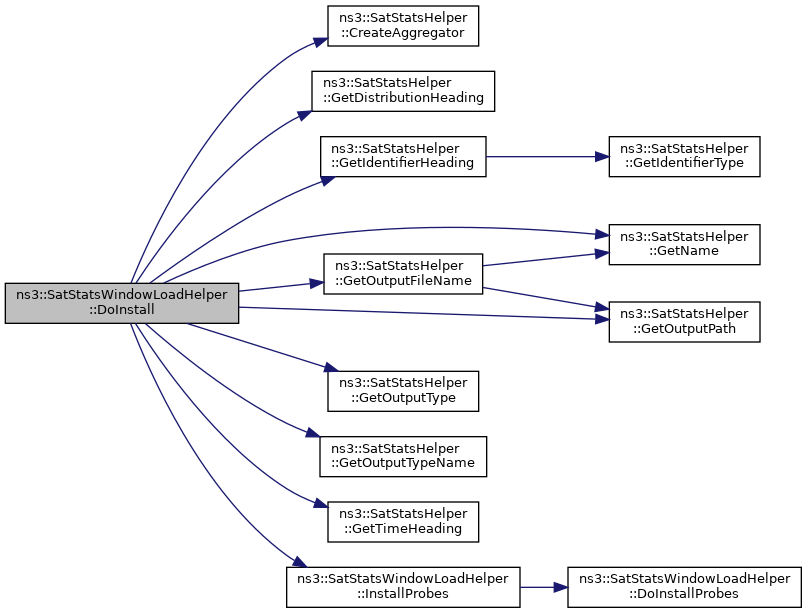

protectedvirtual |
Install the probes, collectors, and aggregators necessary to produce the statistics output.
An abstract method of SatStatsHelper which must be implemented by child classes. It will be invoked by Install().
Implements ns3::SatStatsHelper.
Definition at line 122 of file satellite-stats-window-load-helper.cc.
References ns3::SatStatsHelper::CreateAggregator(), ns3::SatStatsHelper::GetDistributionHeading(), ns3::SatStatsHelper::GetIdentifierHeading(), ns3::SatStatsHelper::GetName(), ns3::SatStatsHelper::GetOutputFileName(), ns3::SatStatsHelper::GetOutputPath(), ns3::SatStatsHelper::GetOutputType(), ns3::SatStatsHelper::GetOutputTypeName(), ns3::SatStatsHelper::GetTimeHeading(), InstallProbes(), m_aggregator, m_collector, ns3::SatStatsHelper::OUTPUT_CDF_FILE, ns3::SatStatsHelper::OUTPUT_CDF_PLOT, ns3::SatStatsHelper::OUTPUT_HISTOGRAM_FILE, ns3::SatStatsHelper::OUTPUT_HISTOGRAM_PLOT, ns3::SatStatsHelper::OUTPUT_NONE, ns3::SatStatsHelper::OUTPUT_PDF_FILE, ns3::SatStatsHelper::OUTPUT_PDF_PLOT, ns3::SatStatsHelper::OUTPUT_SCALAR_FILE, ns3::SatStatsHelper::OUTPUT_SCALAR_PLOT, ns3::SatStatsHelper::OUTPUT_SCATTER_FILE, and ns3::SatStatsHelper::OUTPUT_SCATTER_PLOT.
|
protectedpure virtual |
Implemented in ns3::SatStatsRtnFeederWindowLoadHelper.
Referenced by InstallProbes().
Callback< void, double > ns3::SatStatsWindowLoadHelper::GetTraceSinkCallback | ( | ) | const |
Definition at line 116 of file satellite-stats-window-load-helper.cc.
References m_traceSinkCallback.
Referenced by ns3::SatStatsRtnFeederWindowLoadHelper::DoInstallProbes().
|
static |
inherited from ObjectBase base class
Definition at line 65 of file satellite-stats-window-load-helper.cc.
void ns3::SatStatsWindowLoadHelper::InstallProbes | ( | ) |
Set up several probes or other means of listeners and connect them to the collectors.
Definition at line 305 of file satellite-stats-window-load-helper.cc.
References DoInstallProbes().
Referenced by DoInstall().

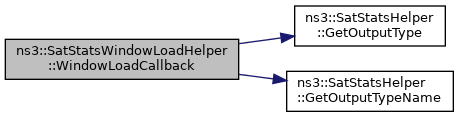

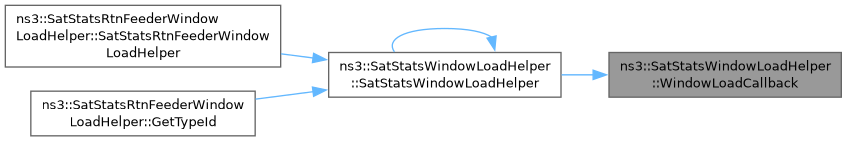

void ns3::SatStatsWindowLoadHelper::WindowLoadCallback | ( | double | windowLoad | ) |
Receive inputs from trace sources and forward them to the collector.
windowLoad | the normalized window load in bps/Hz. |
Definition at line 72 of file satellite-stats-window-load-helper.cc.
References ns3::SatStatsHelper::GetOutputType(), ns3::SatStatsHelper::GetOutputTypeName(), m_collector, ns3::SatStatsHelper::OUTPUT_CDF_FILE, ns3::SatStatsHelper::OUTPUT_CDF_PLOT, ns3::SatStatsHelper::OUTPUT_HISTOGRAM_FILE, ns3::SatStatsHelper::OUTPUT_HISTOGRAM_PLOT, ns3::SatStatsHelper::OUTPUT_PDF_FILE, ns3::SatStatsHelper::OUTPUT_PDF_PLOT, ns3::SatStatsHelper::OUTPUT_SCALAR_FILE, ns3::SatStatsHelper::OUTPUT_SCALAR_PLOT, ns3::SatStatsHelper::OUTPUT_SCATTER_FILE, and ns3::SatStatsHelper::OUTPUT_SCATTER_PLOT.
|
protected |
The aggregator created by this helper.
Definition at line 88 of file satellite-stats-window-load-helper.h.
Referenced by DoInstall().
|
protected |
The collector created by this helper.
Definition at line 85 of file satellite-stats-window-load-helper.h.
Referenced by DoInstall(), and WindowLoadCallback().
|
private |
Definition at line 92 of file satellite-stats-window-load-helper.h.
Referenced by GetTraceSinkCallback().
