Base class for link SINR statistics helpers. More...

#include "satellite-stats-link-sinr-helper.h"

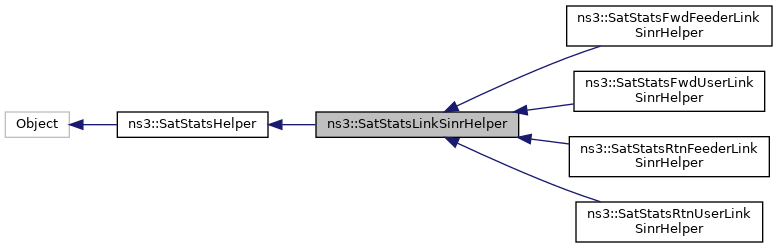

Inheritance diagram for ns3::SatStatsLinkSinrHelper:

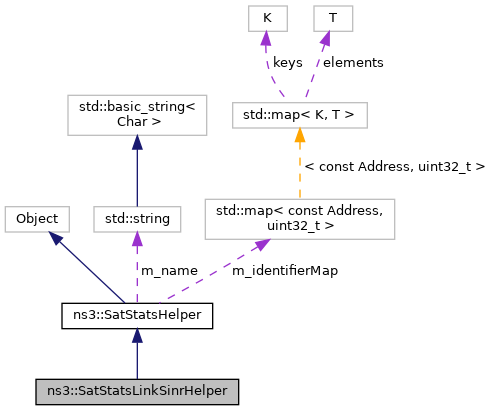

Collaboration diagram for ns3::SatStatsLinkSinrHelper:

Public Member Functions
	SatStatsLinkSinrHelper (Ptr< const SatHelper > satHelper)

virtual	~SatStatsLinkSinrHelper ()
	/ Destructor. More...

Callback< void, double, const Address & >	GetTraceSinkCallback () const

void	InstallProbes ()
	Set up several probes or other means of listeners and connect them to the collectors. More...

void	SetAveragingMode (bool averagingMode)

void	SinrCallback (double sinrDb, const Address &addr)
	Receive inputs from trace sources and forward them to the collector. More...

Public Member Functions inherited from ns3::SatStatsHelper
	SatStatsHelper (Ptr< const SatHelper > satHelper)
	Creates a new helper instance. More...

virtual	~SatStatsHelper ()
	/ Destructor. More...

IdentifierType_t	GetIdentifierType () const

std::string	GetName () const

OutputType_t	GetOutputType () const

Ptr< const SatHelper >	GetSatHelper () const

void	Install ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

bool	IsInstalled () const

void	SetIdentifierType (IdentifierType_t identifierType)

void	SetName (std::string name)

void	SetOutputType (OutputType_t outputType)

virtual void	UpdateAddressAndIdentifier (Ptr< Node > utNode)
	Update the address and the proper identifier from the given UT node. More...

virtual void	UpdateIdentifierOnProbes ()
	Change identifier used on probes, when handovers occur. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Static Public Member Functions inherited from ns3::SatStatsHelper
static std::string	GetIdentifierTypeName (IdentifierType_t identifierType)

static std::string	GetOutputTypeName (OutputType_t outputType)

static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Protected Member Functions
bool	ConnectProbeToCollector (Ptr< Probe > probe, uint32_t identifier)
	Connect the probe to the right collector. More...

void	DoInstall ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

virtual void	DoInstallProbes ()=0

void	PassSampleToCollector (double sinrDb, uint32_t identifier)
	Find a collector with the right identifier and pass a sample data to it. More...

Protected Member Functions inherited from ns3::SatStatsHelper
Ptr< DataCollectionObject >	CreateAggregator (std::string aggregatorTypeId, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue())
	Create the aggregator according to the output type. More...

uint32_t	CreateCollectorPerIdentifier (CollectorMap &collectorMap) const
	Create one collector instance for each identifier in the simulation. More...

virtual std::string	GetDistributionHeading (std::string dataLabel) const

uint32_t	GetGwId (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForBeam (uint32_t satId, uint32_t beamId) const

uint32_t	GetIdentifierForGroup (uint32_t groupId) const

uint32_t	GetIdentifierForGw (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForIsl (Ptr< Node > satNodeSrc, Ptr< Node > satNodeDst) const

uint32_t	GetIdentifierForSat (Ptr< Node > satNode) const

uint32_t	GetIdentifierForUt (Ptr< Node > utNode) const

uint32_t	GetIdentifierForUtUser (Ptr< Node > utUserNode) const

virtual std::string	GetIdentifierHeading (std::string dataLabel) const

virtual std::string	GetOutputFileName () const
	Compute the path and file name where statistics output should be written to. More...

virtual std::string	GetOutputPath () const

uint32_t	GetSatId (Ptr< Node > satNode) const

virtual std::string	GetTimeHeading (std::string dataLabel) const

uint32_t	GetUtId (Ptr< Node > utNode) const

uint32_t	GetUtUserId (Ptr< Node > utUserNode) const

virtual void	SaveAddressAndIdentifier (Ptr< Node > utNode)
	Save the address and the proper identifier from the given UT node. More...

Protected Attributes
Ptr< DataCollectionObject >	m_aggregator
	The aggregator created by this helper. More...

Ptr< DistributionCollector >	m_averagingCollector
	The final collector utilized in averaged output (histogram, PDF, and CDF). More...

Ptr< DataCollectionObject >	m_collector
	The collector created by this helper. More...

CollectorMap	m_terminalCollectors
	Maintains a list of collectors created by this helper. More...

Protected Attributes inherited from ns3::SatStatsHelper
std::map< const Address, uint32_t >	m_identifierMap
	Map of address and the identifier associated with it. More...

Private Attributes
bool	m_averagingMode
	`AveragingMode` attribute. More...

Callback< void, double, const Address & >	m_traceSinkCallback

Additional Inherited Members
Public Types inherited from ns3::SatStatsHelper
enum	IdentifierType_t { IDENTIFIER_GLOBAL = 0 , IDENTIFIER_GW , IDENTIFIER_BEAM , IDENTIFIER_UT , IDENTIFIER_UT_USER , IDENTIFIER_SLICE , IDENTIFIER_GROUP , IDENTIFIER_SAT , IDENTIFIER_ISL }
	Possible categorization of statistics output. More...

enum	OutputType_t { OUTPUT_NONE = 0 , OUTPUT_SCALAR_FILE , OUTPUT_SCATTER_FILE , OUTPUT_HISTOGRAM_FILE , OUTPUT_PDF_FILE , OUTPUT_CDF_FILE , OUTPUT_SCALAR_PLOT , OUTPUT_SCATTER_PLOT , OUTPUT_HISTOGRAM_PLOT , OUTPUT_PDF_PLOT , OUTPUT_CDF_PLOT }
	Possible types and formats of statistics output. More...

Static Protected Member Functions inherited from ns3::SatStatsHelper
static NetDeviceContainer	GetGwSatNetDevice (Ptr< Node > gwNode)

static Ptr< NetDevice >	GetSatSatOrbiterNetDevice (Ptr< Node > satNode)

static Ptr< NetDevice >	GetUtSatNetDevice (Ptr< Node > utNode)

Detailed Description

Base class for link SINR statistics helpers.

Definition at line 45 of file satellite-stats-link-sinr-helper.h.

Constructor & Destructor Documentation

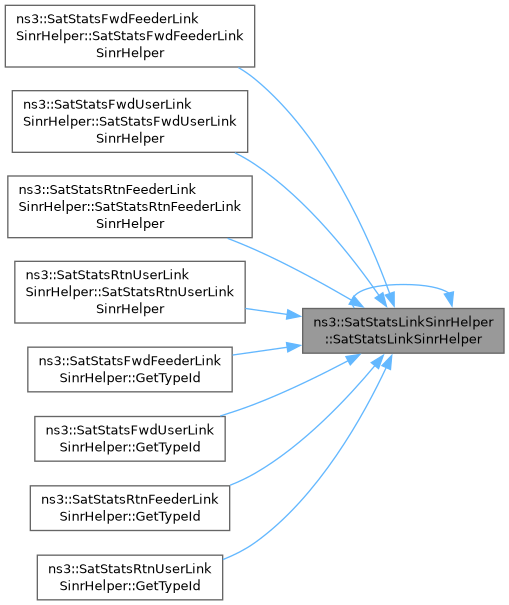

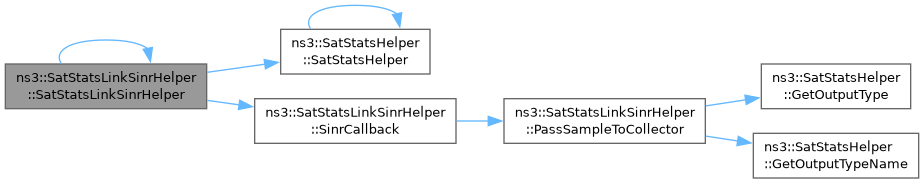

◆ SatStatsLinkSinrHelper()

ns3::SatStatsLinkSinrHelper::SatStatsLinkSinrHelper ( Ptr< const SatHelper > satHelper )

Definition at line 63 of file satellite-stats-link-sinr-helper.cc.

◆ ~SatStatsLinkSinrHelper()

ns3::SatStatsLinkSinrHelper::~SatStatsLinkSinrHelper ( )

virtual

/ Destructor.

Definition at line 70 of file satellite-stats-link-sinr-helper.cc.

Member Function Documentation

◆ ConnectProbeToCollector()

bool ns3::SatStatsLinkSinrHelper::ConnectProbeToCollector	(	Ptr< Probe >	probe,
		uint32_t	identifier
	)

protected

Connect the probe to the right collector.

Parameters

probe
identifier

Definition at line 438 of file satellite-stats-link-sinr-helper.cc.

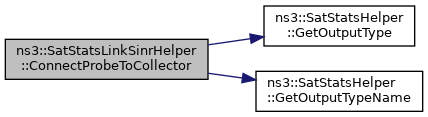

Here is the call graph for this function:

◆ DoInstall()

void ns3::SatStatsLinkSinrHelper::DoInstall ( )

protectedvirtual

Install the probes, collectors, and aggregators necessary to produce the statistics output.

An abstract method of SatStatsHelper which must be implemented by child classes. It will be invoked by Install().

Todo:: Add support for boxes in Gnuplot.

Todo:: Find a better dataset name.

Todo:: Find a better dataset name.

Implements ns3::SatStatsHelper.

Definition at line 96 of file satellite-stats-link-sinr-helper.cc.

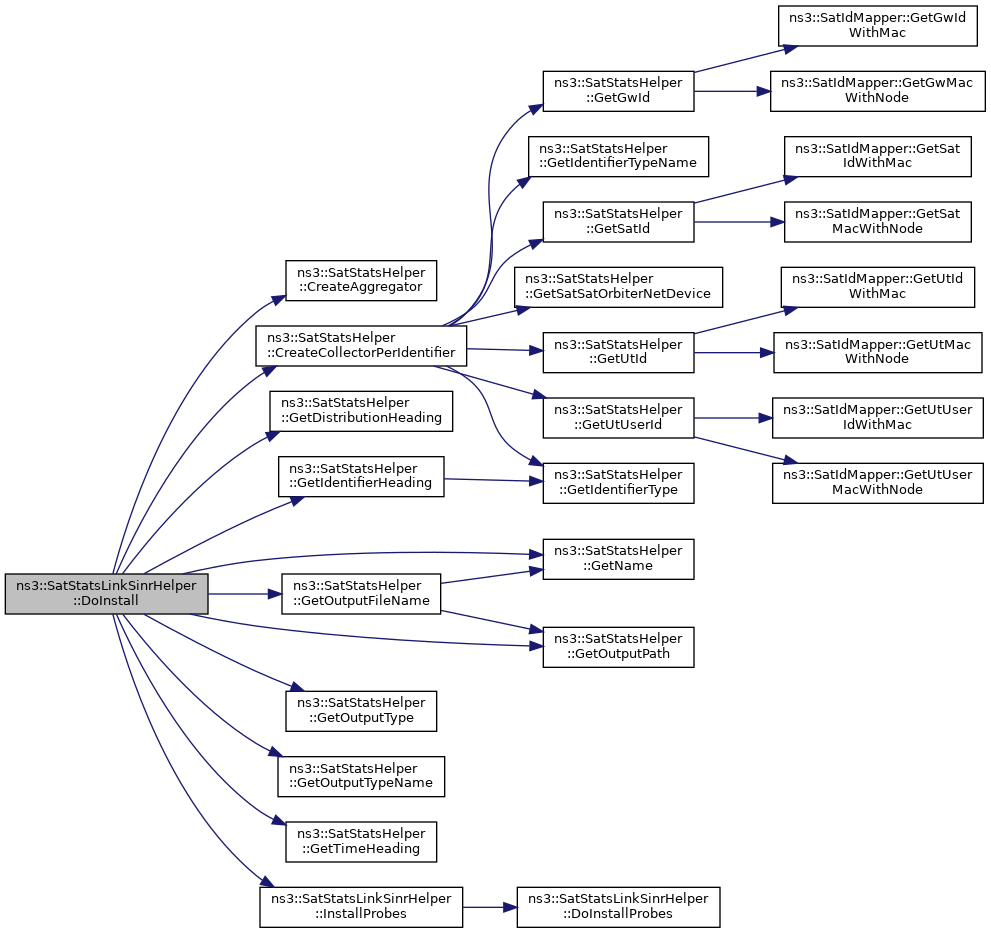

Here is the call graph for this function:

◆ DoInstallProbes()

virtual void ns3::SatStatsLinkSinrHelper::DoInstallProbes ( )

protectedpure virtual

Implemented in ns3::SatStatsRtnUserLinkSinrHelper, ns3::SatStatsRtnFeederLinkSinrHelper, ns3::SatStatsFwdUserLinkSinrHelper, and ns3::SatStatsFwdFeederLinkSinrHelper.

Referenced by InstallProbes().

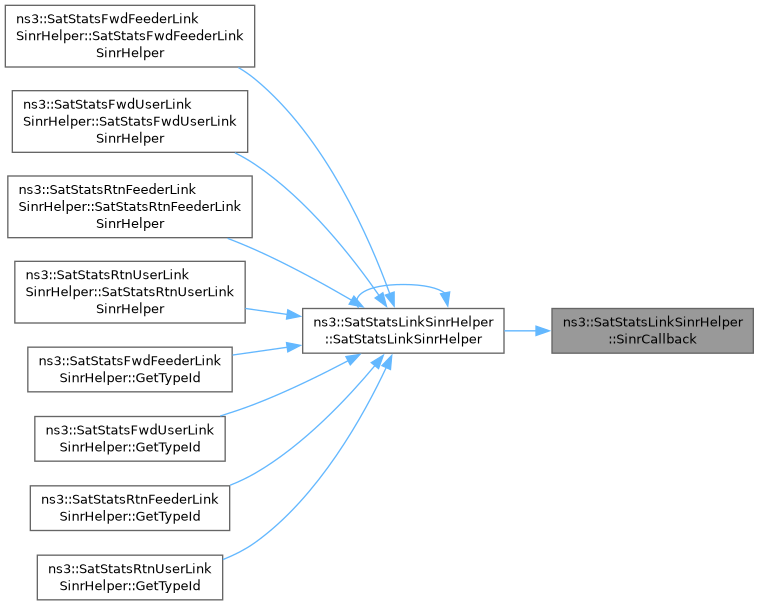

Here is the caller graph for this function:

◆ GetTraceSinkCallback()

Callback< void, double, const Address & > ns3::SatStatsLinkSinrHelper::GetTraceSinkCallback ( ) const

Returns

Definition at line 90 of file satellite-stats-link-sinr-helper.cc.

References m_traceSinkCallback.

Referenced by ns3::SatStatsFwdFeederLinkSinrHelper::DoInstallProbes(), ns3::SatStatsFwdUserLinkSinrHelper::DoInstallProbes(), ns3::SatStatsRtnFeederLinkSinrHelper::DoInstallProbes(), and ns3::SatStatsRtnUserLinkSinrHelper::DoInstallProbes().

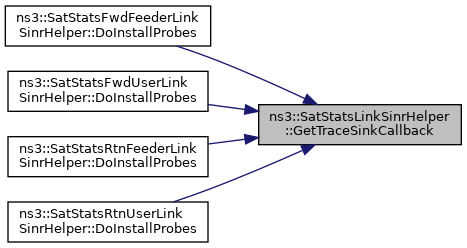

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatStatsLinkSinrHelper::GetTypeId ( void )

static

inherited from ObjectBase base class

Definition at line 76 of file satellite-stats-link-sinr-helper.cc.

◆ InstallProbes()

void ns3::SatStatsLinkSinrHelper::InstallProbes ( )

Set up several probes or other means of listeners and connect them to the collectors.

Definition at line 559 of file satellite-stats-link-sinr-helper.cc.

References DoInstallProbes().

Referenced by DoInstall().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PassSampleToCollector()

void ns3::SatStatsLinkSinrHelper::PassSampleToCollector	(	double	sinrDb,
		uint32_t	identifier
	)

protected

Find a collector with the right identifier and pass a sample data to it.

Parameters

sinrDb
identifier

Definition at line 504 of file satellite-stats-link-sinr-helper.cc.

Referenced by SinrCallback().

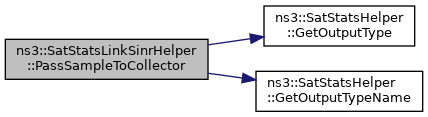

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetAveragingMode()

void ns3::SatStatsLinkSinrHelper::SetAveragingMode ( bool averagingMode )

Parameters

averagingMode average all samples before passing them to aggregator.

Definition at line 83 of file satellite-stats-link-sinr-helper.cc.

References m_averagingMode.

◆ SinrCallback()

void ns3::SatStatsLinkSinrHelper::SinrCallback	(	double	sinrDb,
		const Address &	addr
	)

Receive inputs from trace sources and forward them to the collector.

Parameters

sinrDb	SINR value in dB.
addr	Address of UT

Definition at line 402 of file satellite-stats-link-sinr-helper.cc.

References ns3::SatStatsHelper::m_identifierMap, and PassSampleToCollector().

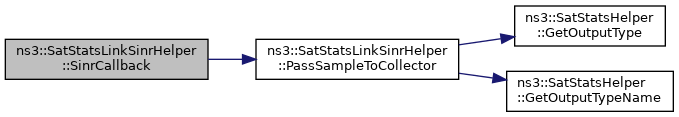

Here is the call graph for this function:

Member Data Documentation

◆ m_aggregator

Ptr<DataCollectionObject> ns3::SatStatsLinkSinrHelper::m_aggregator

protected

The aggregator created by this helper.

Definition at line 115 of file satellite-stats-link-sinr-helper.h.

Referenced by DoInstall().

◆ m_averagingCollector

Ptr<DistributionCollector> ns3::SatStatsLinkSinrHelper::m_averagingCollector

protected

The final collector utilized in averaged output (histogram, PDF, and CDF).

Definition at line 118 of file satellite-stats-link-sinr-helper.h.

Referenced by DoInstall().

◆ m_averagingMode

bool ns3::SatStatsLinkSinrHelper::m_averagingMode

private

AveragingMode attribute.

Definition at line 124 of file satellite-stats-link-sinr-helper.h.

Referenced by ConnectProbeToCollector(), DoInstall(), PassSampleToCollector(), and SetAveragingMode().

◆ m_collector

Ptr<DataCollectionObject> ns3::SatStatsLinkSinrHelper::m_collector

protected

The collector created by this helper.

Definition at line 112 of file satellite-stats-link-sinr-helper.h.

◆ m_terminalCollectors

CollectorMap ns3::SatStatsLinkSinrHelper::m_terminalCollectors

protected

Maintains a list of collectors created by this helper.

Definition at line 109 of file satellite-stats-link-sinr-helper.h.

Referenced by ConnectProbeToCollector(), DoInstall(), and PassSampleToCollector().

◆ m_traceSinkCallback

Callback<void, double, const Address&> ns3::SatStatsLinkSinrHelper::m_traceSinkCallback

private

Definition at line 122 of file satellite-stats-link-sinr-helper.h.

Referenced by GetTraceSinkCallback().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/stats/satellite-stats-link-sinr-helper.h
/builds/sns3/satellite/satellite/stats/satellite-stats-link-sinr-helper.cc
