ns3::SatStatsFwdAppThroughputHelper Class Reference

Produce forward link application-level throughput statistics from a satellite module simulation. More...

#include "satellite-stats-throughput-helper.h"

+ Inheritance diagram for ns3::SatStatsFwdAppThroughputHelper:

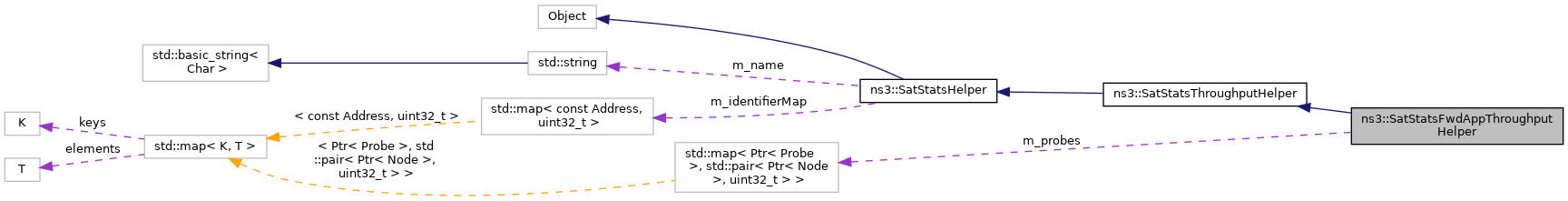

+ Collaboration diagram for ns3::SatStatsFwdAppThroughputHelper:

Public Member Functions

 SatStatsFwdAppThroughputHelper (Ptr< const SatHelper > satHelper)

virtual ~SatStatsFwdAppThroughputHelper ()
 / Destructor. More...

virtual void UpdateIdentifierOnProbes ()
 Change identifier used on probes, when handovers occur. More...

- Public Member Functions inherited from ns3::SatStatsThroughputHelper
 SatStatsThroughputHelper (Ptr< const SatHelper > satHelper)

virtual ~SatStatsThroughputHelper ()
 / Destructor. More...

bool GetAveragingMode () const

void InstallProbes ()
 Set up several probes or other means of listeners and connect them to the first-level collectors. More...

void RxCallback (Ptr< const Packet > packet, const Address &from)
 Receive inputs from trace sources and determine the right collector to forward the inputs to. More...

void SetAveragingMode (bool averagingMode)

- Public Member Functions inherited from ns3::SatStatsHelper
 SatStatsHelper (Ptr< const SatHelper > satHelper)
 Creates a new helper instance. More...

virtual ~SatStatsHelper ()
 / Destructor. More...

IdentifierType_t GetIdentifierType () const

std::string GetName () const

OutputType_t GetOutputType () const

Ptr< const SatHelperGetSatHelper () const

void Install ()
 Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

bool IsInstalled () const

void SetIdentifierType (IdentifierType_t identifierType)

void SetName (std::string name)

void SetOutputType (OutputType_t outputType)

virtual void UpdateAddressAndIdentifier (Ptr< Node > utNode)
 Update the address and the proper identifier from the given UT node. More...


Static Public Member Functions

static TypeId GetTypeId ()
 inherited from ObjectBase base class More...

- Static Public Member Functions inherited from ns3::SatStatsThroughputHelper
static TypeId GetTypeId ()
 inherited from ObjectBase base class More...

- Static Public Member Functions inherited from ns3::SatStatsHelper
static std::string GetIdentifierTypeName (IdentifierType_t identifierType)

static std::string GetOutputTypeName (OutputType_t outputType)

static TypeId GetTypeId ()
 inherited from ObjectBase base class More...


Protected Member Functions

void DoInstallProbes ()

- Protected Member Functions inherited from ns3::SatStatsThroughputHelper
void DoInstall ()
 Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

- Protected Member Functions inherited from ns3::SatStatsHelper
Ptr< DataCollectionObject > CreateAggregator (std::string aggregatorTypeId, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue())
 Create the aggregator according to the output type. More...

uint32_t CreateCollectorPerIdentifier (CollectorMap &collectorMap) const
 Create one collector instance for each identifier in the simulation. More...

virtual std::string GetDistributionHeading (std::string dataLabel) const

uint32_t GetGwId (Ptr< Node > gwNode) const

uint32_t GetIdentifierForBeam (uint32_t satId, uint32_t beamId) const

uint32_t GetIdentifierForGroup (uint32_t groupId) const

uint32_t GetIdentifierForGw (Ptr< Node > gwNode) const

uint32_t GetIdentifierForIsl (Ptr< Node > satNodeSrc, Ptr< Node > satNodeDst) const

uint32_t GetIdentifierForSat (Ptr< Node > satNode) const

uint32_t GetIdentifierForUt (Ptr< Node > utNode) const

uint32_t GetIdentifierForUtUser (Ptr< Node > utUserNode) const

virtual std::string GetIdentifierHeading (std::string dataLabel) const

virtual std::string GetOutputFileName () const
 Compute the path and file name where statistics output should be written to. More...

virtual std::string GetOutputPath () const

uint32_t GetSatId (Ptr< Node > satNode) const

virtual std::string GetTimeHeading (std::string dataLabel) const

uint32_t GetUtId (Ptr< Node > utNode) const

uint32_t GetUtUserId (Ptr< Node > utUserNode) const

virtual void SaveAddressAndIdentifier (Ptr< Node > utNode)
 Save the address and the proper identifier from the given UT node. More...


Private Attributes

std::map< Ptr< Probe >, std::pair< Ptr< Node >, uint32_t > > m_probes
 Maintains a list of probes created by this helper. More...


Additional Inherited Members

- Public Types inherited from ns3::SatStatsHelper
enum  IdentifierType_t {
  IDENTIFIER_GLOBAL = 0 , IDENTIFIER_GW , IDENTIFIER_BEAM , IDENTIFIER_UT ,
  IDENTIFIER_UT_USER , IDENTIFIER_SLICE , IDENTIFIER_GROUP , IDENTIFIER_SAT ,
  IDENTIFIER_ISL
}
 Possible categorization of statistics output. More...

enum  OutputType_t {
  OUTPUT_NONE = 0 , OUTPUT_SCALAR_FILE , OUTPUT_SCATTER_FILE , OUTPUT_HISTOGRAM_FILE ,
  OUTPUT_PDF_FILE , OUTPUT_CDF_FILE , OUTPUT_SCALAR_PLOT , OUTPUT_SCATTER_PLOT ,
  OUTPUT_HISTOGRAM_PLOT , OUTPUT_PDF_PLOT , OUTPUT_CDF_PLOT
}
 Possible types and formats of statistics output. More...

- Static Protected Member Functions inherited from ns3::SatStatsHelper
static NetDeviceContainer GetGwSatNetDevice (Ptr< Node > gwNode)

static Ptr< NetDevice > GetSatSatOrbiterNetDevice (Ptr< Node > satNode)

static Ptr< NetDevice > GetUtSatNetDevice (Ptr< Node > utNode)

- Protected Attributes inherited from ns3::SatStatsThroughputHelper
Ptr< DataCollectionObject > m_aggregator
 The aggregator created by this helper. More...

Ptr< DistributionCollector > m_averagingCollector
 The final collector utilized in averaged output (histogram, PDF, and CDF). More...

CollectorMap m_conversionCollectors
 Maintains a list of first-level collectors created by this helper. More...

CollectorMap m_terminalCollectors
 Maintains a list of second-level collectors created by this helper. More...

- Protected Attributes inherited from ns3::SatStatsHelper
std::map< const Address, uint32_t > m_identifierMap
 Map of address and the identifier associated with it. More...


Detailed Description

Produce forward link application-level throughput statistics from a satellite module simulation.

For a more convenient usage in simulation script, it is recommended to use the corresponding methods in SatStatsHelperContainer class.

Otherwise, the following example can be used:

Ptr<SatStatsFwdAppThroughputHelper> s = Create<SatStatsFwdAppThroughputHelper> (satHelper);
s->SetName ("name");
s->SetIdentifierType (SatStatsHelper::IDENTIFIER_GLOBAL);
s->Install ();

Definition at line 140 of file satellite-stats-throughput-helper.h.

Constructor & Destructor Documentation

◆ SatStatsFwdAppThroughputHelper()

ns3::SatStatsFwdAppThroughputHelper::SatStatsFwdAppThroughputHelper ( Ptr< const SatHelper satHelper)

Definition at line 443 of file satellite-stats-throughput-helper.cc.

◆ ~SatStatsFwdAppThroughputHelper()

ns3::SatStatsFwdAppThroughputHelper::~SatStatsFwdAppThroughputHelper ( )
virtual

/ Destructor.

Definition at line 449 of file satellite-stats-throughput-helper.cc.

Member Function Documentation

◆ DoInstallProbes()

void ns3::SatStatsFwdAppThroughputHelper::DoInstallProbes ( )
protectedvirtual

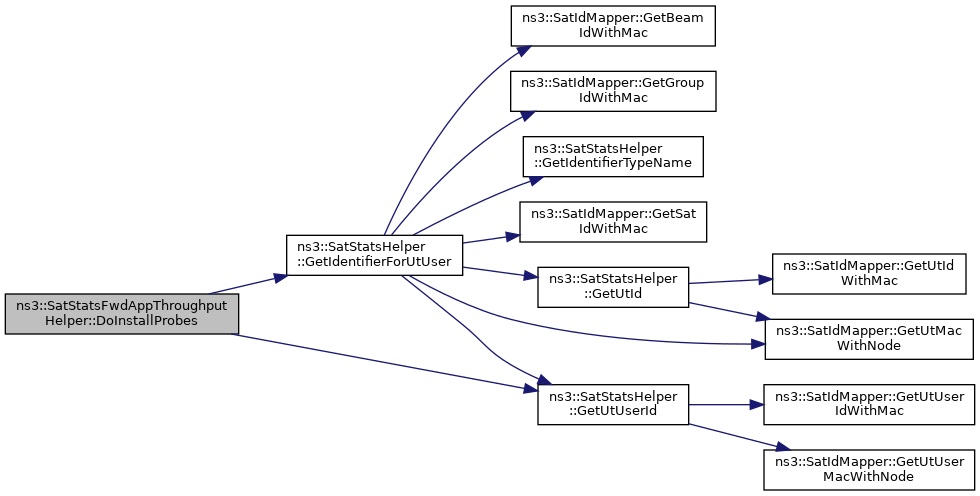

◆ GetTypeId()

TypeId ns3::SatStatsFwdAppThroughputHelper::GetTypeId ( void  )
static

inherited from ObjectBase base class

Definition at line 455 of file satellite-stats-throughput-helper.cc.

◆ UpdateIdentifierOnProbes()

void ns3::SatStatsFwdAppThroughputHelper::UpdateIdentifierOnProbes ( )
virtual

Change identifier used on probes, when handovers occur.

Reimplemented from ns3::SatStatsHelper.

Definition at line 521 of file satellite-stats-throughput-helper.cc.

References ns3::SatStatsHelper::GetIdentifierForUtUser(), ns3::SatStatsThroughputHelper::m_conversionCollectors, and m_probes.

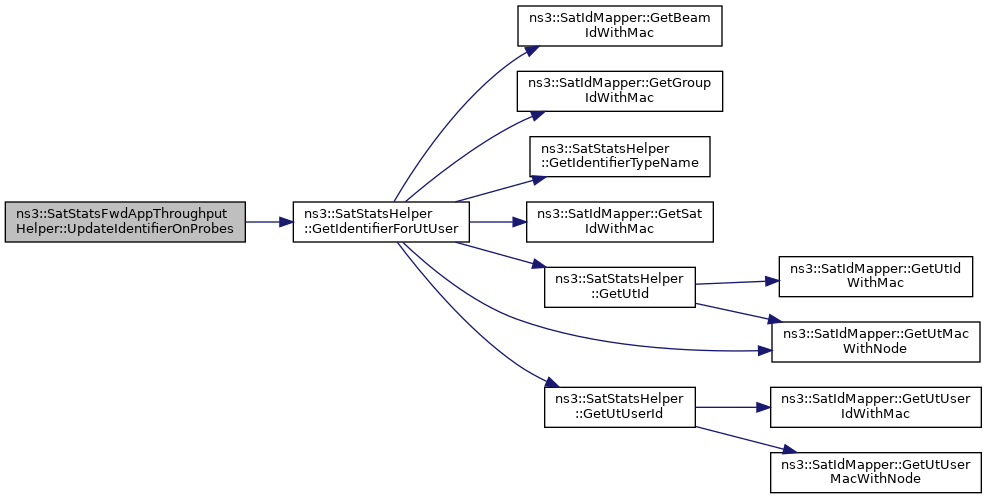

+ Here is the call graph for this function:

Member Data Documentation

◆ m_probes

std::map<Ptr<Probe>, std::pair<Ptr<Node>, uint32_t> > ns3::SatStatsFwdAppThroughputHelper::m_probes
private

Maintains a list of probes created by this helper.

Definition at line 167 of file satellite-stats-throughput-helper.h.

Referenced by DoInstallProbes(), and UpdateIdentifierOnProbes().


The documentation for this class was generated from the following files:
