Produce forward link application-level delay statistics from a satellite module simulation. More...

#include "satellite-stats-delay-helper.h"

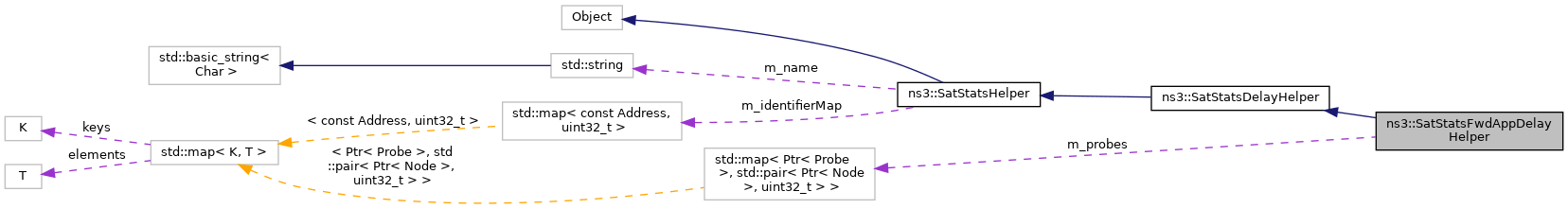

Inheritance diagram for ns3::SatStatsFwdAppDelayHelper:

Collaboration diagram for ns3::SatStatsFwdAppDelayHelper:

Public Member Functions
	SatStatsFwdAppDelayHelper (Ptr< const SatHelper > satHelper)

virtual	~SatStatsFwdAppDelayHelper ()
	Destructor for SatStatsFwdAppDelayHelper. More...

Public Member Functions inherited from ns3::SatStatsDelayHelper
	SatStatsDelayHelper (Ptr< const SatHelper > satHelper)

virtual	~SatStatsDelayHelper ()
	/ Destructor. More...

bool	GetAveragingMode () const

void	InstallProbes ()
	Set up several probes or other means of listeners and connect them to the collectors. More...

void	RxDelayCallback (const Time &delay, const Address &from)
	Receive inputs from trace sources and determine the right collector to forward the inputs to. More...

void	SetAveragingMode (bool averagingMode)

Public Member Functions inherited from ns3::SatStatsHelper
	SatStatsHelper (Ptr< const SatHelper > satHelper)
	Creates a new helper instance. More...

virtual	~SatStatsHelper ()
	/ Destructor. More...

IdentifierType_t	GetIdentifierType () const

std::string	GetName () const

OutputType_t	GetOutputType () const

Ptr< const SatHelper >	GetSatHelper () const

void	Install ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

bool	IsInstalled () const

void	SetIdentifierType (IdentifierType_t identifierType)

void	SetName (std::string name)

void	SetOutputType (OutputType_t outputType)

Static Public Member Functions
static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

static void	RxCallback (Ptr< SatStatsFwdAppDelayHelper > helper, uint32_t identifier, Ptr< const Packet > packet, const Address &from)
	Receive inputs from trace sources and determine the right collector to forward the inputs to. More...

Static Public Member Functions inherited from ns3::SatStatsDelayHelper
static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Static Public Member Functions inherited from ns3::SatStatsHelper
static std::string	GetIdentifierTypeName (IdentifierType_t identifierType)

static std::string	GetOutputTypeName (OutputType_t outputType)

static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Protected Member Functions
void	DoInstallProbes ()

Protected Member Functions inherited from ns3::SatStatsDelayHelper
bool	ConnectProbeToCollector (Ptr< Probe > probe, uint32_t identifier)
	Connect the probe to the right collector. More...

void	DoInstall ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

void	PassSampleToCollector (const Time &delay, uint32_t identifier)
	Find a collector with the right identifier and pass a sample data to it. More...

void	SaveAddressAndIdentifier (Ptr< Node > utNode)
	Save the address and the proper identifier from the given UT node. More...

Protected Member Functions inherited from ns3::SatStatsHelper
Ptr< DataCollectionObject >	CreateAggregator (std::string aggregatorTypeId, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue())
	Create the aggregator according to the output type. More...

uint32_t	CreateCollectorPerIdentifier (CollectorMap &collectorMap) const
	Create one collector instance for each identifier in the simulation. More...

virtual std::string	GetDistributionHeading (std::string dataLabel) const

uint32_t	GetGwId (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForBeam (uint32_t satId, uint32_t beamId) const

uint32_t	GetIdentifierForGroup (uint32_t groupId) const

uint32_t	GetIdentifierForGw (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForIsl (Ptr< Node > satNodeSrc, Ptr< Node > satNodeDst) const

uint32_t	GetIdentifierForSat (Ptr< Node > satNode) const

uint32_t	GetIdentifierForUt (Ptr< Node > utNode) const

uint32_t	GetIdentifierForUtUser (Ptr< Node > utUserNode) const

virtual std::string	GetIdentifierHeading (std::string dataLabel) const

virtual std::string	GetOutputFileName () const
	Compute the path and file name where statistics output should be written to. More...

virtual std::string	GetOutputPath () const

uint32_t	GetSatId (Ptr< Node > satNode) const

virtual std::string	GetTimeHeading (std::string dataLabel) const

uint32_t	GetUtId (Ptr< Node > utNode) const

uint32_t	GetUtUserId (Ptr< Node > utUserNode) const

Private Attributes
std::list< Ptr< Probe > >	m_probes
	Maintains a list of probes created by this helper. More...

Additional Inherited Members
Public Types inherited from ns3::SatStatsHelper
enum	IdentifierType_t { IDENTIFIER_GLOBAL = 0 , IDENTIFIER_GW , IDENTIFIER_BEAM , IDENTIFIER_UT , IDENTIFIER_UT_USER , IDENTIFIER_SLICE , IDENTIFIER_GROUP , IDENTIFIER_SAT , IDENTIFIER_ISL }
	Possible categorization of statistics output. More...

enum	OutputType_t { OUTPUT_NONE = 0 , OUTPUT_SCALAR_FILE , OUTPUT_SCATTER_FILE , OUTPUT_HISTOGRAM_FILE , OUTPUT_PDF_FILE , OUTPUT_CDF_FILE , OUTPUT_SCALAR_PLOT , OUTPUT_SCATTER_PLOT , OUTPUT_HISTOGRAM_PLOT , OUTPUT_PDF_PLOT , OUTPUT_CDF_PLOT }
	Possible types and formats of statistics output. More...

Static Protected Member Functions inherited from ns3::SatStatsHelper
static NetDeviceContainer	GetGwSatNetDevice (Ptr< Node > gwNode)

static Ptr< NetDevice >	GetSatSatGeoNetDevice (Ptr< Node > satNode)

static Ptr< NetDevice >	GetUtSatNetDevice (Ptr< Node > utNode)

Protected Attributes inherited from ns3::SatStatsDelayHelper
Ptr< DataCollectionObject >	m_aggregator
	The aggregator created by this helper. More...

Ptr< DistributionCollector >	m_averagingCollector
	The final collector utilized in averaged output (histogram, PDF, and CDF). More...

std::map< const Address, uint32_t >	m_identifierMap
	Map of address and the identifier associated with it (for return link). More...

CollectorMap	m_terminalCollectors
	Maintains a list of collectors created by this helper. More...

Detailed Description

Produce forward link application-level delay statistics from a satellite module simulation.

For a more convenient usage in simulation script, it is recommended to use the corresponding methods in SatStatsHelperContainer class.

Otherwise, the following example can be used:

Ptr<SatStatsFwdAppDelayHelper> s = Create<SatStatsFwdAppDelayHelper> (satHelper);
s->SetName ("name");
s->SetIdentifierType (SatStatsHelper::IDENTIFIER_GLOBAL);
s->SetOutputType (SatStatsHelper::OUTPUT_SCATTER_FILE);
s->Install ();

Definition at line 165 of file satellite-stats-delay-helper.h.

Constructor & Destructor Documentation

◆ SatStatsFwdAppDelayHelper()

ns3::SatStatsFwdAppDelayHelper::SatStatsFwdAppDelayHelper ( Ptr< const SatHelper > satHelper )

Definition at line 591 of file satellite-stats-delay-helper.cc.

◆ ~SatStatsFwdAppDelayHelper()

ns3::SatStatsFwdAppDelayHelper::~SatStatsFwdAppDelayHelper ( )

virtual

Destructor for SatStatsFwdAppDelayHelper.

Definition at line 597 of file satellite-stats-delay-helper.cc.

Member Function Documentation

◆ DoInstallProbes()

void ns3::SatStatsFwdAppDelayHelper::DoInstallProbes ( )

protectedvirtual

Implements ns3::SatStatsDelayHelper.

Definition at line 610 of file satellite-stats-delay-helper.cc.

References ns3::SatStatsDelayHelper::ConnectProbeToCollector(), ns3::SatStatsHelper::GetIdentifierForUtUser(), ns3::SatStatsHelper::GetSatHelper(), ns3::SatStatsHelper::GetUtUserId(), m_probes, and RxCallback().

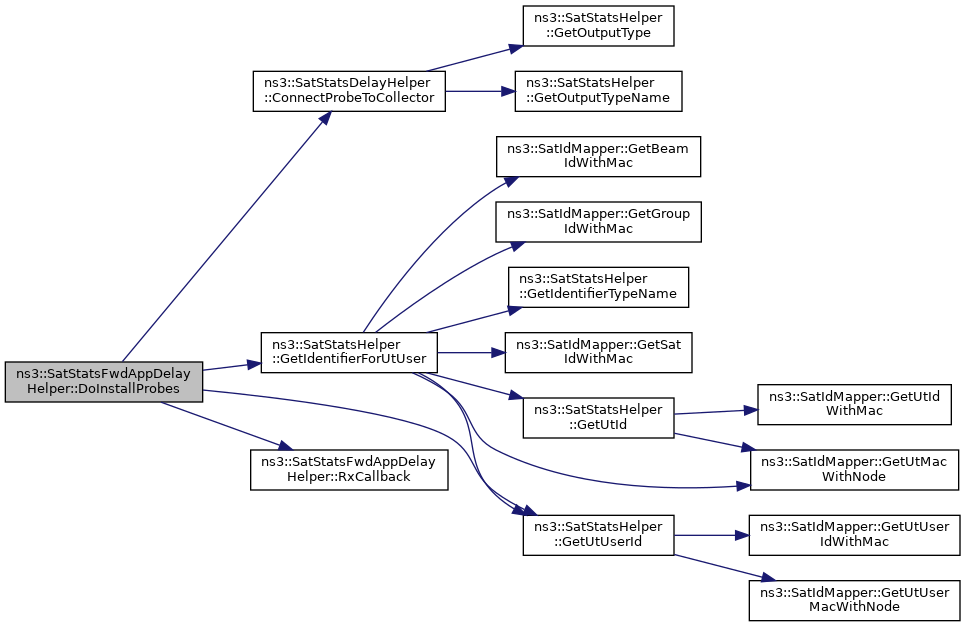

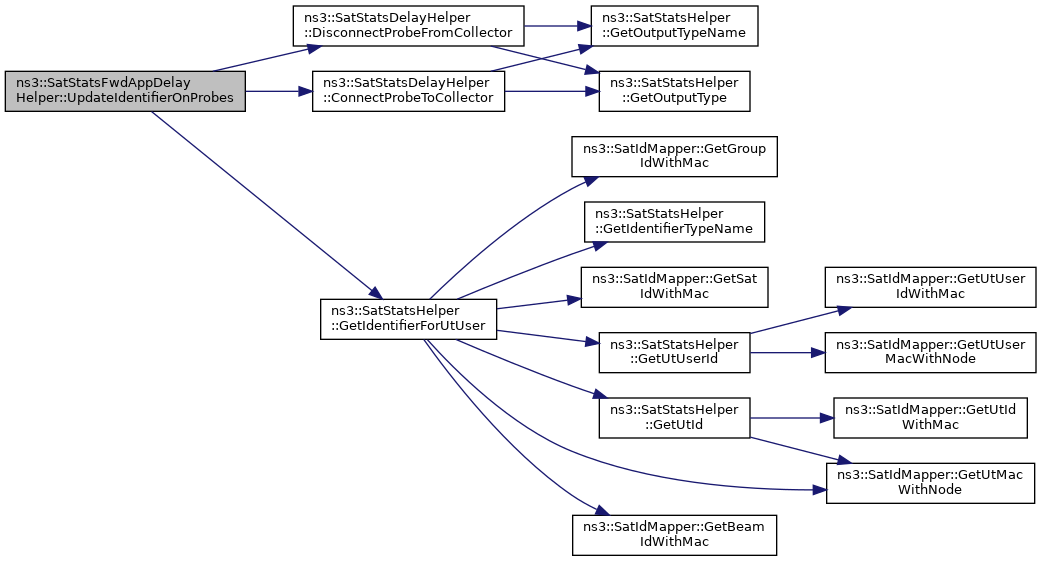

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::SatStatsFwdAppDelayHelper::GetTypeId ( void )

static

inherited from ObjectBase base class

Definition at line 603 of file satellite-stats-delay-helper.cc.

◆ RxCallback()

void ns3::SatStatsFwdAppDelayHelper::RxCallback	(	Ptr< SatStatsFwdAppDelayHelper >	helper,
		uint32_t	identifier,
		Ptr< const Packet >	packet,
		const Address &	from
	)

static

Receive inputs from trace sources and determine the right collector to forward the inputs to.

Parameters

helper	Pointer to the delay statistics collector helper
identifier	Identifier used to group statistics.
packet	the received packet, expected to have been tagged with TrafficTimeTag.
from	the InetSocketAddress of the sender of the packet.

Definition at line 702 of file satellite-stats-delay-helper.cc.

Referenced by DoInstallProbes().

Here is the caller graph for this function:
