This class implements a tag that carries the satellite MAC of GW and UT. More...

#include "satellite-mac-tag.h"

Inheritance diagram for ns3::SatAddressE2ETag:

Collaboration diagram for ns3::SatAddressE2ETag:

Public Member Functions
	SatAddressE2ETag ()
	Default constructor. More...

	~SatAddressE2ETag ()
	Destructor for SatMacTag. More...

virtual void	Deserialize (TagBuffer i)
	Deserializes information from buffer to this instance of SatMacTag. More...

Mac48Address	GetE2EDestAddress (void) const
	Get E2E destination MAC address. More...

Mac48Address	GetE2ESourceAddress (void) const
	Get E2E source MAC address. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the type ID of instance. More...

virtual uint32_t	GetSerializedSize (void) const
	Get serialized size of SatMacTag. More...

virtual void	Print (std::ostream &os) const
	Print time stamp of this instance of SatMacTag. More...

virtual void	Serialize (TagBuffer i) const
	Serializes information to buffer from this instance of SatMacTag. More...

void	SetE2EDestAddress (Mac48Address e2eDestAddress)
	Set E2E destination MAC address. More...

void	SetE2ESourceAddress (Mac48Address e2eSourceAddress)
	Set E2E source MAC address. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Attributes
static const uint32_t	SIZE = 12

Private Attributes
Mac48Address	m_e2eDestAddress

Mac48Address	m_e2eSourceAddress

Static Private Attributes
static const uint32_t	ADDRESS_LENGHT = 6

Detailed Description

This class implements a tag that carries the satellite MAC of GW and UT.

It is used for regenerative cases to update MAC address on satellite when packet is forwarded between uplink and downlink.

Definition at line 125 of file satellite-mac-tag.h.

Constructor & Destructor Documentation

◆ SatAddressE2ETag()

ns3::SatAddressE2ETag::SatAddressE2ETag ( )

Default constructor.

Definition at line 133 of file satellite-mac-tag.cc.

◆ ~SatAddressE2ETag()

ns3::SatAddressE2ETag::~SatAddressE2ETag ( )

Destructor for SatMacTag.

Definition at line 138 of file satellite-mac-tag.cc.

Member Function Documentation

◆ Deserialize()

void ns3::SatAddressE2ETag::Deserialize ( TagBuffer i )

virtual

Deserializes information from buffer to this instance of SatMacTag.

Parameters

i	Buffer from which the information is deserialized

Definition at line 210 of file satellite-mac-tag.cc.

References ADDRESS_LENGHT, m_e2eDestAddress, and m_e2eSourceAddress.

◆ GetE2EDestAddress()

Mac48Address ns3::SatAddressE2ETag::GetE2EDestAddress ( void ) const

Get E2E destination MAC address.

Returns: E2E destination MAC address

Definition at line 167 of file satellite-mac-tag.cc.

References m_e2eDestAddress.

Referenced by ns3::SatOrbiterFeederMac::EnquePacket(), ns3::SatOrbiterUserMac::EnquePacket(), ns3::SatOrbiterUserPhy::GetE2EDestinationAddress(), ns3::SatPhyRxCarrier::GetReceiveParams(), ns3::SatOrbiterFeederMac::GetRxUtAddress(), ns3::SatOrbiterNetDevice::GetRxUtAddress(), ns3::SatPhy::ModcodTrace(), ns3::SatOrbiterFeederMac::Receive(), ns3::SatOrbiterUserMac::Receive(), ns3::SatGwMac::Receive(), ns3::SatUtMac::Receive(), ns3::SatPhyRxCarrierPerSlot::ReceiveSlot(), and ns3::SatOrbiterFeederPhy::RxTraces().

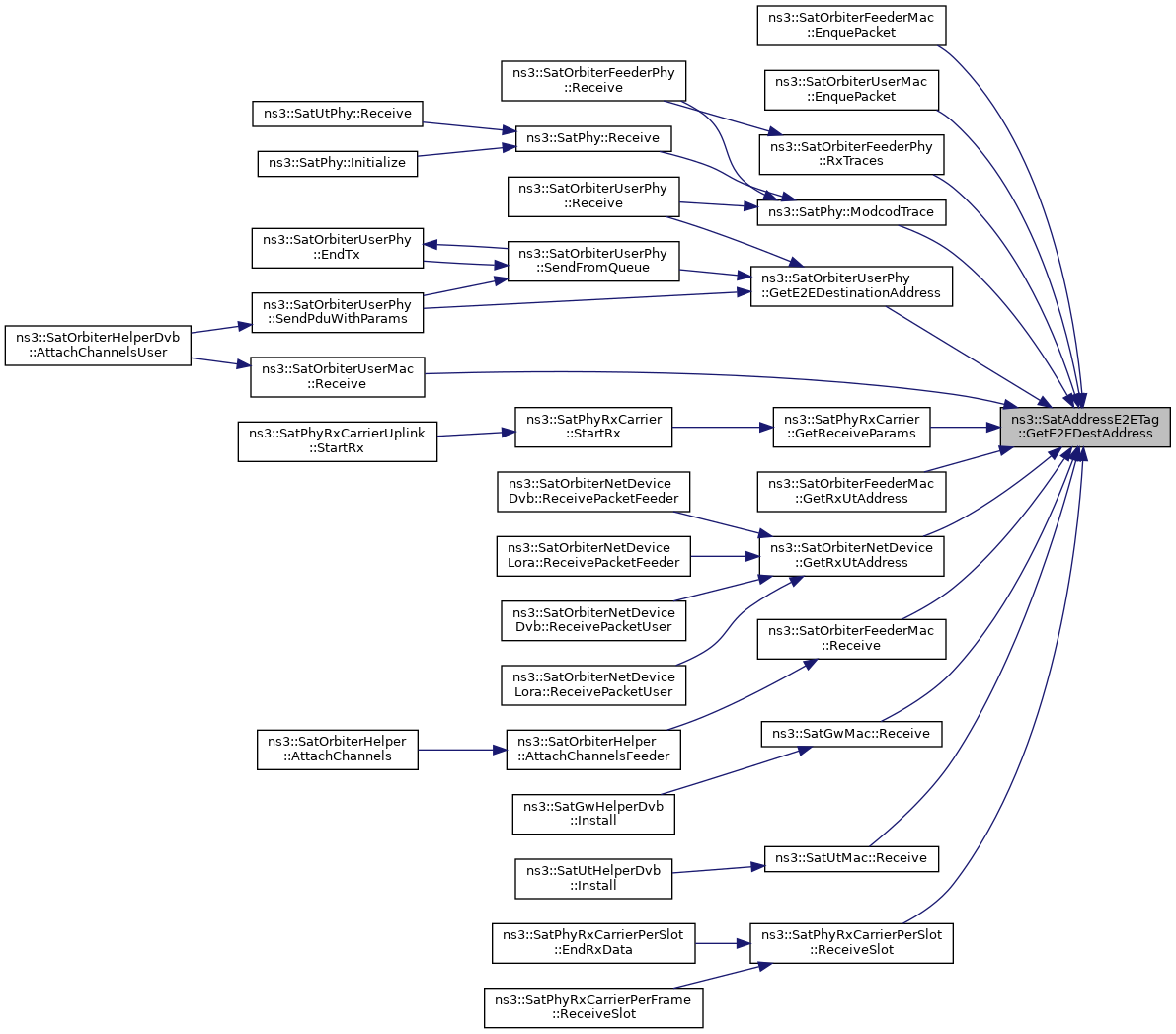

Here is the caller graph for this function:

◆ GetE2ESourceAddress()

Mac48Address ns3::SatAddressE2ETag::GetE2ESourceAddress ( void ) const

Get E2E source MAC address.

Returns: E2E source MAC address

Definition at line 181 of file satellite-mac-tag.cc.

References m_e2eSourceAddress.

Referenced by ns3::SatPhyRxCarrier::GetReceiveParams(), ns3::SatOrbiterUserMac::GetRxUtAddress(), ns3::SatOrbiterNetDevice::GetRxUtAddress(), ns3::SatPhy::ModcodTrace(), ns3::SatGwMac::Receive(), ns3::SatUtMac::Receive(), ns3::SatUtMac::ReceiveSignalingPacket(), ns3::SatGwMac::ReceiveSignalingPacket(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

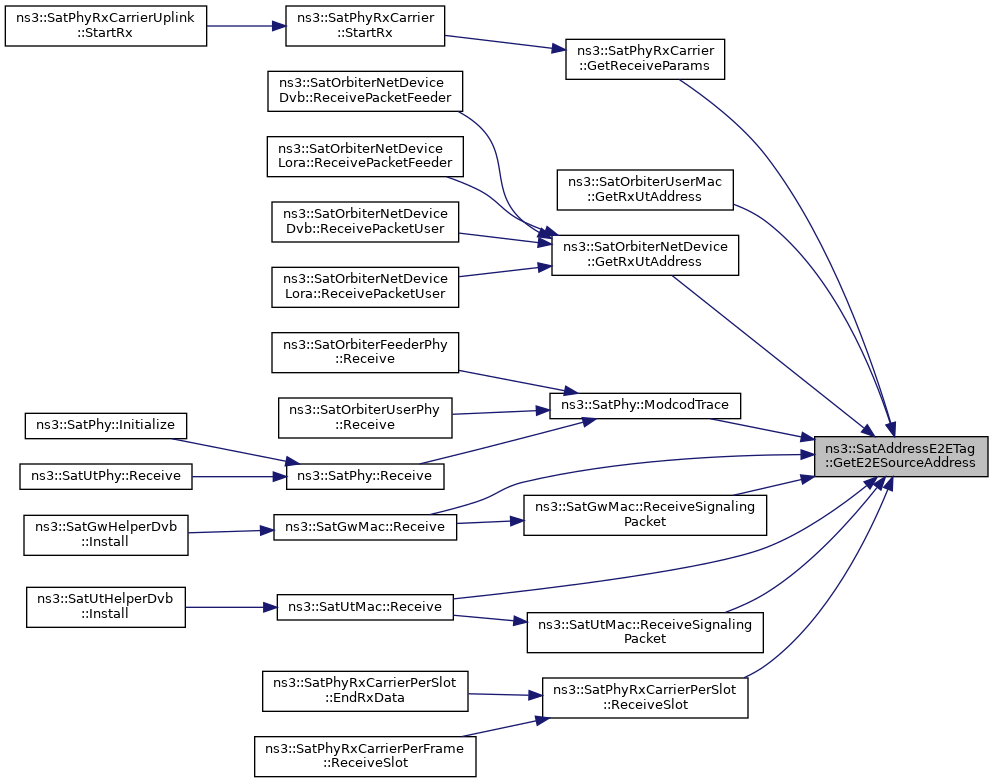

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SatAddressE2ETag::GetInstanceTypeId ( void ) const

virtual

Get the type ID of instance.

Returns: the object TypeId

Definition at line 152 of file satellite-mac-tag.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::SatAddressE2ETag::GetSerializedSize ( void ) const

virtual

Get serialized size of SatMacTag.

Returns: Serialized size in bytes

Definition at line 188 of file satellite-mac-tag.cc.

References ADDRESS_LENGHT.

◆ GetTypeId()

TypeId ns3::SatAddressE2ETag::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 144 of file satellite-mac-tag.cc.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

◆ Print()

void ns3::SatAddressE2ETag::Print ( std::ostream & os ) const

virtual

Print time stamp of this instance of SatMacTag.

Parameters

&os	Output stream to which tag timestamp is printed.

Definition at line 224 of file satellite-mac-tag.cc.

References m_e2eDestAddress, and m_e2eSourceAddress.

◆ Serialize()

void ns3::SatAddressE2ETag::Serialize ( TagBuffer i ) const

virtual

Serializes information to buffer from this instance of SatMacTag.

Parameters

i	Buffer in which the information is serialized

Definition at line 196 of file satellite-mac-tag.cc.

References ADDRESS_LENGHT, m_e2eDestAddress, and m_e2eSourceAddress.

◆ SetE2EDestAddress()

void ns3::SatAddressE2ETag::SetE2EDestAddress ( Mac48Address e2eDestAddress )

Set E2E destination MAC address.

Parameters

e2eDestAddress E2E destination MAC address

Definition at line 160 of file satellite-mac-tag.cc.

References m_e2eDestAddress.

Referenced by ns3::SatUtMac::DoTransmit(), ns3::SatGwLlc::Enque(), ns3::SatLlc::Enque(), ns3::SatUtLlc::Enque(), ns3::SatFwdLinkSchedulerDefault::GetNextFrame(), ns3::SatFwdLinkSchedulerTimeSlicing::GetNextFrame(), ns3::SatScpcScheduler::GetNextFrame(), ns3::SatGenericStreamEncapsulatorArq::NotifyTxOpportunity(), ns3::SatGenericStreamEncapsulator::NotifyTxOpportunity(), ns3::SatReturnLinkEncapsulatorArq::NotifyTxOpportunity(), ns3::SatReturnLinkEncapsulator::NotifyTxOpportunity(), ns3::LorawanMacEndDeviceClassA::Receive(), ns3::LorawanGroundMacGateway::Send(), ns3::LorawanMacGateway::Send(), ns3::SatOrbiterNetDeviceDvb::SendControlMsgToFeeder(), and ns3::LorawanMacEndDeviceClassA::SendToPhy().

Here is the caller graph for this function:

◆ SetE2ESourceAddress()

void ns3::SatAddressE2ETag::SetE2ESourceAddress ( Mac48Address e2eSourceAddress )

Set E2E source MAC address.

Parameters

e2eSourceAddress E2E source MAC address

Definition at line 174 of file satellite-mac-tag.cc.

References m_e2eSourceAddress.

Referenced by ns3::SatUtMac::DoTransmit(), ns3::SatGwLlc::Enque(), ns3::SatLlc::Enque(), ns3::SatUtLlc::Enque(), ns3::SatFwdLinkSchedulerDefault::GetNextFrame(), ns3::SatFwdLinkSchedulerTimeSlicing::GetNextFrame(), ns3::SatScpcScheduler::GetNextFrame(), ns3::SatGenericStreamEncapsulatorArq::NotifyTxOpportunity(), ns3::SatGenericStreamEncapsulator::NotifyTxOpportunity(), ns3::SatReturnLinkEncapsulatorArq::NotifyTxOpportunity(), ns3::SatReturnLinkEncapsulator::NotifyTxOpportunity(), ns3::LorawanGroundMacGateway::Send(), ns3::LorawanMacGateway::Send(), ns3::SatOrbiterNetDeviceDvb::SendControlMsgToFeeder(), and ns3::LorawanMacEndDeviceClassA::SendToPhy().

Here is the caller graph for this function:

Member Data Documentation

◆ ADDRESS_LENGHT

const uint32_t ns3::SatAddressE2ETag::ADDRESS_LENGHT = 6

staticprivate

Definition at line 201 of file satellite-mac-tag.h.

Referenced by Deserialize(), GetSerializedSize(), and Serialize().

◆ m_e2eDestAddress

Mac48Address ns3::SatAddressE2ETag::m_e2eDestAddress

private

Definition at line 203 of file satellite-mac-tag.h.

Referenced by Deserialize(), GetE2EDestAddress(), Print(), Serialize(), and SetE2EDestAddress().

◆ m_e2eSourceAddress

Mac48Address ns3::SatAddressE2ETag::m_e2eSourceAddress

private

Definition at line 204 of file satellite-mac-tag.h.

Referenced by Deserialize(), GetE2ESourceAddress(), Print(), Serialize(), and SetE2ESourceAddress().

◆ SIZE

const uint32_t ns3::SatAddressE2ETag::SIZE = 12

static

Definition at line 128 of file satellite-mac-tag.h.

Referenced by ns3::SatGwHelperDvb::Install(), and ns3::SatUtHelperDvb::Install().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-mac-tag.h
/builds/sns3/satellite/satellite/model/satellite-mac-tag.cc
