The packet for the Terminal Burst Time Plan (TBTP) messages. More...

#include "satellite-control-message.h"

Inheritance diagram for ns3::SatTbtpMessage:

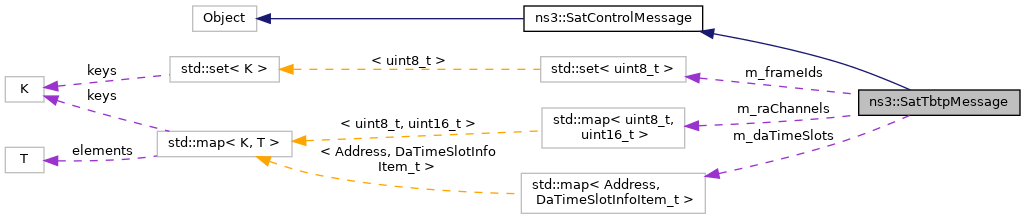

Collaboration diagram for ns3::SatTbtpMessage:

Public Types
typedef std::vector< Ptr< SatTimeSlotConf > >	DaTimeSlotConfContainer_t
	Container for time slot configurations in time slot map item DaTimeSlotMapItem_t. More...

typedef std::pair< uint8_t, DaTimeSlotConfContainer_t >	DaTimeSlotInfoItem_t
	Item for DA time slot information. More...

typedef std::set< uint8_t >	RaChannelInfoContainer_t
	Container for RA channel information. More...

Public Member Functions
	SatTbtpMessage ()
	Default constructor for SatTbtpHeader. More...

	SatTbtpMessage (uint8_t seqId)
	Constructor for SatTbtpHeader to construct TBTP with given sequence id. More...

	~SatTbtpMessage ()
	Destructor for SatTbtpHeader. More...

void	Dump () const
	Dump all the contents of the TBTP. More...

const DaTimeSlotInfoItem_t &	GetDaTimeslots (Address utId)
	Get the information of the DA time slots. More...

uint32_t	GetFrameInfoSize () const
	Get size of frame info size in this TBTP message. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the type ID of instance. More...

SatControlMsgTag::SatControlMsgType_t	GetMsgType () const
	Get type of the message. More...

const RaChannelInfoContainer_t	GetRaChannels () const
	Get the information of the RA channels. More...

virtual uint32_t	GetSizeInBytes () const
	Get real size of the TBTP message, which can be used to e.g. More...

uint32_t	GetSuperframeCounter ()
	Get counter of the super frame in this TBTP message. More...

uint8_t	GetSuperframeSeqId ()
	Get sequence id of the super frame in this TBTP message. More...

uint32_t	GetTimeSlotInfoSizeInBytes () const
	Get size of the time slot in bytes. More...

void	SetDaTimeslot (Mac48Address utId, uint8_t frameId, Ptr< SatTimeSlotConf > conf)
	Set a DA time slot information. More...

void	SetRaChannel (uint32_t raChannel, uint8_t frameId, uint16_t timeSlotCount)
	Set a RA time slot information. More...

void	SetSuperframeCounter (uint32_t counter)
	Set counter of the super frame in this TBTP message. More...

Public Member Functions inherited from ns3::SatControlMessage
	SatControlMessage ()
	Default constructor for SatControlMessage. More...

	~SatControlMessage ()
	Destructor. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	methods derived from base classes More...

Static Public Member Functions inherited from ns3::SatControlMessage
static TypeId	GetTypeId (void)
	methods derived from base classes More...

Static Public Attributes
static const uint32_t	m_tbtpBodySizeInBytes = 6
	Size of message body without frame info and slot assignment info. More...

static const uint32_t	m_tbtpFrameBodySizeInBytes = 5
	Size of the frame body. More...

Private Types
typedef std::map< Address, DaTimeSlotInfoItem_t >	DaTimeSlotMap_t

typedef std::map< uint8_t, uint16_t >	RaChannelMap_t

Private Attributes
uint8_t	m_assignmentFormat

DaTimeSlotMap_t	m_daTimeSlots

const DaTimeSlotInfoItem_t	m_emptyDaSlotContainer
	Empty DA slot container to be returned if there are not DA time slots. More...

std::set< uint8_t >	m_frameIds

RaChannelMap_t	m_raChannels

uint32_t	m_superframeCounter

uint8_t	m_superframeSeqId

Detailed Description

The packet for the Terminal Burst Time Plan (TBTP) messages.

(Tagged by SatControlMsgTag with type value SAT_TBTP_CTRL_MSG) NOTE! Message implementation doesn't follow specification (ETSI EN 301 542-2). However it implements method GetSizeInBytes, which can be used to simulate real TBTP message size.

Definition at line 205 of file satellite-control-message.h.

Member Typedef Documentation

◆ DaTimeSlotConfContainer_t

typedef std::vector<Ptr<SatTimeSlotConf> > ns3::SatTbtpMessage::DaTimeSlotConfContainer_t

Container for time slot configurations in time slot map item DaTimeSlotMapItem_t.

Definition at line 211 of file satellite-control-message.h.

◆ DaTimeSlotInfoItem_t

typedef std::pair<uint8_t, DaTimeSlotConfContainer_t> ns3::SatTbtpMessage::DaTimeSlotInfoItem_t

Item for DA time slot information.

Stored information is pair, which member first holds frame id of the time slots and member second holds container of time slot configurations.

Definition at line 219 of file satellite-control-message.h.

◆ DaTimeSlotMap_t

typedef std::map<Address, DaTimeSlotInfoItem_t> ns3::SatTbtpMessage::DaTimeSlotMap_t

private

Definition at line 384 of file satellite-control-message.h.

◆ RaChannelInfoContainer_t

typedef std::set<uint8_t> ns3::SatTbtpMessage::RaChannelInfoContainer_t

Container for RA channel information.

Stored information is index of the RA channel.

Definition at line 226 of file satellite-control-message.h.

◆ RaChannelMap_t

typedef std::map<uint8_t, uint16_t> ns3::SatTbtpMessage::RaChannelMap_t

private

Definition at line 383 of file satellite-control-message.h.

Constructor & Destructor Documentation

◆ SatTbtpMessage() [1/2]

ns3::SatTbtpMessage::SatTbtpMessage ( )

Default constructor for SatTbtpHeader.

Set sequence id to 0.

Definition at line 147 of file satellite-control-message.cc.

◆ SatTbtpMessage() [2/2]

ns3::SatTbtpMessage::SatTbtpMessage ( uint8_t seqId )

Constructor for SatTbtpHeader to construct TBTP with given sequence id.

Parameters

seqId sequence id

Definition at line 155 of file satellite-control-message.cc.

◆ ~SatTbtpMessage()

ns3::SatTbtpMessage::~SatTbtpMessage ( )

Destructor for SatTbtpHeader.

Definition at line 163 of file satellite-control-message.cc.

References m_daTimeSlots, and m_frameIds.

Member Function Documentation

◆ Dump()

void ns3::SatTbtpMessage::Dump ( ) const

Dump all the contents of the TBTP.

Definition at line 363 of file satellite-control-message.cc.

References m_assignmentFormat, m_daTimeSlots, m_superframeCounter, and m_superframeSeqId.

◆ GetDaTimeslots()

const SatTbtpMessage::DaTimeSlotInfoItem_t & ns3::SatTbtpMessage::GetDaTimeslots ( Address utId )

Get the information of the DA time slots.

Parameters

utId	id of the UT which time slot information is requested

Returns: vector containing DA time slot info

Definition at line 194 of file satellite-control-message.cc.

References m_daTimeSlots, and m_emptyDaSlotContainer.

◆ GetFrameInfoSize()

uint32_t ns3::SatTbtpMessage::GetFrameInfoSize ( ) const

inline

Get size of frame info size in this TBTP message.

Returns: Frame info size.

Definition at line 325 of file satellite-control-message.h.

References m_tbtpFrameBodySizeInBytes.

◆ GetInstanceTypeId()

TypeId ns3::SatTbtpMessage::GetInstanceTypeId ( void ) const

virtual

Get the type ID of instance.

Returns: the object TypeId

Definition at line 186 of file satellite-control-message.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetMsgType()

SatControlMsgTag::SatControlMsgType_t ns3::SatTbtpMessage::GetMsgType ( void ) const

inlinevirtual

Get type of the message.

Returns: SatControlMsgTag::SAT_TBTP_CTRL_MSG

Implements ns3::SatControlMessage.

Definition at line 285 of file satellite-control-message.h.

References ns3::SatControlMsgTag::SAT_TBTP_CTRL_MSG.

◆ GetRaChannels()

const SatTbtpMessage::RaChannelInfoContainer_t ns3::SatTbtpMessage::GetRaChannels ( ) const

Get the information of the RA channels.

Returns: vector containing RA channels.

Definition at line 243 of file satellite-control-message.cc.

References m_raChannels.

◆ GetSizeInBytes()

uint32_t ns3::SatTbtpMessage::GetSizeInBytes ( ) const

virtual

Get real size of the TBTP message, which can be used to e.g.

simulate real size.

Returns: Real size of the TBTP message.

Implements ns3::SatControlMessage.

Definition at line 337 of file satellite-control-message.cc.

References GetTimeSlotInfoSizeInBytes(), m_daTimeSlots, m_frameIds, m_raChannels, m_tbtpBodySizeInBytes, and m_tbtpFrameBodySizeInBytes.

Here is the call graph for this function:

◆ GetSuperframeCounter()

uint32_t ns3::SatTbtpMessage::GetSuperframeCounter ( )

inline

Get counter of the super frame in this TBTP message.

Returns: The super frame counter.

Definition at line 315 of file satellite-control-message.h.

References m_superframeCounter.

◆ GetSuperframeSeqId()

uint8_t ns3::SatTbtpMessage::GetSuperframeSeqId ( )

inline

Get sequence id of the super frame in this TBTP message.

Returns: The super frame sequence id.

Definition at line 305 of file satellite-control-message.h.

References m_superframeSeqId.

◆ GetTimeSlotInfoSizeInBytes()

uint32_t ns3::SatTbtpMessage::GetTimeSlotInfoSizeInBytes ( ) const

Get size of the time slot in bytes.

Returns: Size of the time slot in bytes.

Definition at line 287 of file satellite-control-message.cc.

References m_assignmentFormat.

Referenced by GetSizeInBytes().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatTbtpMessage::GetTypeId ( void )

static

methods derived from base classes

Definition at line 172 of file satellite-control-message.cc.

References m_assignmentFormat.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

◆ SetDaTimeslot()

void ns3::SatTbtpMessage::SetDaTimeslot	(	Mac48Address	utId,
		uint8_t	frameId,
		Ptr< SatTimeSlotConf >	conf
	)

Set a DA time slot information.

Parameters

utId	id of the UT which time slot information is set
frameId	Frame ID of the time slot
conf	Pointer to time slot configuration

Definition at line 209 of file satellite-control-message.cc.

References m_daTimeSlots, and m_frameIds.

◆ SetRaChannel()

void ns3::SatTbtpMessage::SetRaChannel	(	uint32_t	raChannel,
		uint8_t	frameId,
		uint16_t	timeSlotCount
	)

Set a RA time slot information.

Parameters

raChannel	raChannel index
frameId	Frame ID of RA channel
timeSlotCount	Timeslots in channel

Definition at line 258 of file satellite-control-message.cc.

References m_frameIds, and m_raChannels.

◆ SetSuperframeCounter()

void ns3::SatTbtpMessage::SetSuperframeCounter ( uint32_t counter )

inline

Set counter of the super frame in this TBTP message.

Parameters

counter The super frame counter.

Definition at line 295 of file satellite-control-message.h.

References m_superframeCounter.

Member Data Documentation

◆ m_assignmentFormat

uint8_t ns3::SatTbtpMessage::m_assignmentFormat

private

Definition at line 390 of file satellite-control-message.h.

Referenced by Dump(), GetTimeSlotInfoSizeInBytes(), and GetTypeId().

◆ m_daTimeSlots

DaTimeSlotMap_t ns3::SatTbtpMessage::m_daTimeSlots

private

Definition at line 386 of file satellite-control-message.h.

Referenced by ~SatTbtpMessage(), Dump(), GetDaTimeslots(), GetSizeInBytes(), and SetDaTimeslot().

◆ m_emptyDaSlotContainer

const DaTimeSlotInfoItem_t ns3::SatTbtpMessage::m_emptyDaSlotContainer

private

Empty DA slot container to be returned if there are not DA time slots.

Definition at line 396 of file satellite-control-message.h.

Referenced by GetDaTimeslots().

◆ m_frameIds

std::set<uint8_t> ns3::SatTbtpMessage::m_frameIds

private

Definition at line 391 of file satellite-control-message.h.

Referenced by ~SatTbtpMessage(), GetSizeInBytes(), SetDaTimeslot(), and SetRaChannel().

◆ m_raChannels

RaChannelMap_t ns3::SatTbtpMessage::m_raChannels

private

Definition at line 387 of file satellite-control-message.h.

Referenced by GetRaChannels(), GetSizeInBytes(), and SetRaChannel().

◆ m_superframeCounter

uint32_t ns3::SatTbtpMessage::m_superframeCounter

private

Definition at line 388 of file satellite-control-message.h.

Referenced by Dump(), GetSuperframeCounter(), and SetSuperframeCounter().

◆ m_superframeSeqId

uint8_t ns3::SatTbtpMessage::m_superframeSeqId

private

Definition at line 389 of file satellite-control-message.h.

Referenced by Dump(), and GetSuperframeSeqId().

◆ m_tbtpBodySizeInBytes

const uint32_t ns3::SatTbtpMessage::m_tbtpBodySizeInBytes = 6

static

Size of message body without frame info and slot assignment info.

field bits

group id 8 superframe sequence 8 assignment context 8 superframe count 8 assignment format (AF) 8 frame loop count 8

Definition at line 240 of file satellite-control-message.h.

Referenced by GetSizeInBytes().

◆ m_tbtpFrameBodySizeInBytes

const uint32_t ns3::SatTbtpMessage::m_tbtpFrameBodySizeInBytes = 5

static

Size of the frame body.

field bits

frame number 8 assignment offset 16 assignment loop count 16

Definition at line 251 of file satellite-control-message.h.

Referenced by GetFrameInfoSize(), and GetSizeInBytes().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-control-message.h
/builds/sns3/satellite/satellite/model/satellite-control-message.cc

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Types

Private Attributes

Detailed Description

Member Typedef Documentation

◆ DaTimeSlotConfContainer_t

◆ DaTimeSlotInfoItem_t

◆ DaTimeSlotMap_t

◆ RaChannelInfoContainer_t

◆ RaChannelMap_t

Constructor & Destructor Documentation

◆ SatTbtpMessage() [1/2]

◆ SatTbtpMessage() [2/2]

◆ ~SatTbtpMessage()

Member Function Documentation

◆ Dump()

◆ GetDaTimeslots()

◆ GetFrameInfoSize()

◆ GetInstanceTypeId()

◆ GetMsgType()

◆ GetRaChannels()

◆ GetSizeInBytes()

◆ GetSuperframeCounter()

◆ GetSuperframeSeqId()

◆ GetTimeSlotInfoSizeInBytes()

◆ GetTypeId()

◆ SetDaTimeslot()

◆ SetRaChannel()

◆ SetSuperframeCounter()

Member Data Documentation

◆ m_assignmentFormat

◆ m_daTimeSlots

◆ m_emptyDaSlotContainer

◆ m_frameIds

◆ m_raChannels

◆ m_superframeCounter

◆ m_superframeSeqId

◆ m_tbtpBodySizeInBytes

field bits

◆ m_tbtpFrameBodySizeInBytes

field bits
