Multicast example application to test multicasting in satellite network. More...

#include "ns3/applications-module.h"
#include "ns3/core-module.h"
#include "ns3/internet-module.h"
#include "ns3/network-module.h"
#include "ns3/satellite-module.h"
#include "ns3/traffic-module.h"

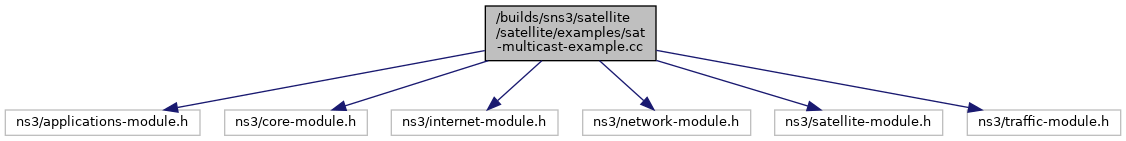

Include dependency graph for sat-multicast-example.cc:

Go to the source code of this file.

Functions
static Time	EstablishMulticastGroup (Ptr< SatHelper > helper, Ptr< Node > source, NodeContainer groupReceivers, Ipv4Address groupAddress, uint16_t port, Time startTime, bool sinkToAll)
	Establish multicast group and generate traffic in that group. More...

static std::string	GetUserInfo (Ptr< SatHelper > helper, Ptr< Node > node)
	Construct information of the given user node. More...

static void	LogEmptyLine ()
	Log empty line. More...

static void	SinkReceive (std::string context, Ptr< const Packet >, const Address &)
	Receive RX traces from packet sinks. More...

Detailed Description

Multicast example application to test multicasting in satellite network.

Test scenario (larger of full), pre-defined multicast for larger scenario can be given in command line as user argument.

To see help and more info for user arguments: execute command -> ./waf –run "sat-multicast-example --PrintHelp"

Definition in file sat-multicast-example.cc.

Function Documentation

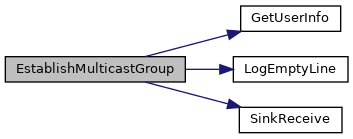

◆ EstablishMulticastGroup()

static Time EstablishMulticastGroup	(	Ptr< SatHelper >	helper,
		Ptr< Node >	source,
		NodeContainer	groupReceivers,
		Ipv4Address	groupAddress,
		uint16_t	port,
		Time	startTime,
		bool	sinkToAll
	)

static

Establish multicast group and generate traffic in that group.

Parameters

helper	Pointer to satellite helper
source	Pointer to source node of the multicast group
groupReceivers	Container of the receiver node pointers of the multicast group
groupAddress	Address of the multicast group
port	Port of the multicast group
startTime	Time to start group traffic (sending start with some delay).
sinkToAll	Add packet sink to all users for multicast group.
