A container of received TBTPs. More...

#include "satellite-tbtp-container.h"

Inheritance diagram for ns3::SatTbtpContainer:

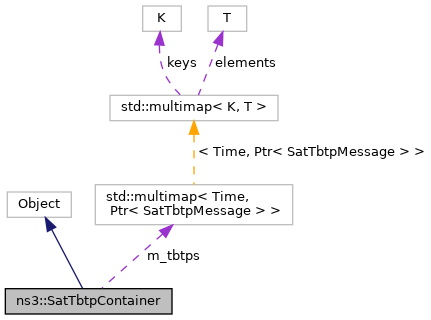

Collaboration diagram for ns3::SatTbtpContainer:

Public Member Functions
	SatTbtpContainer ()
	Default constructor. More...

	SatTbtpContainer (Ptr< SatSuperframeSeq > seq)
	Constructor with initialization parameters. More...

	~SatTbtpContainer ()
	Destructor for SatTbtpContainer. More...

void	Add (Time startTime, Ptr< SatTbtpMessage > tbtp)
	Add a TBTP message to the container. More...

void	Clear ()

virtual void	DoDispose ()
	Dispose of this class instance. More...

bool	HasScheduledTimeSlots ()
	Method of checking whether the UT has been scheduled time slots into the future. More...

void	SetMacAddress (Mac48Address address)
	Set the MAC address of this node. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::multimap< Time, Ptr< SatTbtpMessage > >	TbtpMap_t

Private Member Functions
void	RemovePastTbtps ()
	Function for removing the TBTPs which are in the past. More...

Private Attributes
Mac48Address	m_address
	Address of this UT. More...

uint32_t	m_maxStoredTbtps
	Maximum stored TBTPs in the container. More...

uint32_t	m_rcvdTbtps
	Number of received TBTPs. More...

Time	m_superFrameDuration
	Superframe duration. More...

Ptr< SatSuperframeSeq >	m_superframeSeq
	Superframe sequence. More...

TbtpMap_t	m_tbtps

Detailed Description

A container of received TBTPs.

All the received TBTPs with the calculated transmit time are stored here. The container may be used to check whether the UT has known scheduled time slots in the future.

Definition at line 67 of file satellite-tbtp-container.h.

Member Typedef Documentation

◆ TbtpMap_t

typedef std::multimap<Time, Ptr<SatTbtpMessage> > ns3::SatTbtpContainer::TbtpMap_t

private

Definition at line 126 of file satellite-tbtp-container.h.

Constructor & Destructor Documentation

◆ SatTbtpContainer() [1/2]

ns3::SatTbtpContainer::SatTbtpContainer ( )

Default constructor.

Definition at line 57 of file satellite-tbtp-container.cc.

◆ SatTbtpContainer() [2/2]

ns3::SatTbtpContainer::SatTbtpContainer ( Ptr< SatSuperframeSeq > seq )

Constructor with initialization parameters.

Parameters

seq

Definition at line 66 of file satellite-tbtp-container.cc.

◆ ~SatTbtpContainer()

ns3::SatTbtpContainer::~SatTbtpContainer ( )

Destructor for SatTbtpContainer.

Definition at line 76 of file satellite-tbtp-container.cc.

Member Function Documentation

◆ Add()

void ns3::SatTbtpContainer::Add	(	Time	startTime,
		Ptr< SatTbtpMessage >	tbtp
	)

Add a TBTP message to the container.

Parameters

startTime	TBTP superframe transmit start time
tbtp	TBTP message

Definition at line 95 of file satellite-tbtp-container.cc.

References m_maxStoredTbtps, m_rcvdTbtps, and m_tbtps.

◆ Clear()

void ns3::SatTbtpContainer::Clear ( )

Definition at line 111 of file satellite-tbtp-container.cc.

References m_tbtps.

◆ DoDispose()

void ns3::SatTbtpContainer::DoDispose ( void )

virtual

Dispose of this class instance.

Definition at line 81 of file satellite-tbtp-container.cc.

References m_tbtps.

◆ GetTypeId()

TypeId ns3::SatTbtpContainer::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 44 of file satellite-tbtp-container.cc.

References m_maxStoredTbtps.

◆ HasScheduledTimeSlots()

bool ns3::SatTbtpContainer::HasScheduledTimeSlots ( )

Method of checking whether the UT has been scheduled time slots into the future.

Returns: bool Boolean indicating whether UT has been scheduled time slots into the future.

The time slots are not necessarily in increasing order in the TBTP. Sort the time slots into increasing order based on time.

Calculate the duration of the last slot. To be able to do that we need the superframe conf, frame conf, time slot conf and symbol rate.

Check that the TBTP has a time slot which is in the future. It does not matter how long to the future the time slot is, since the same method may be used for both CRDSA and SA, and we do not have any idea of what are their randomization intervals etc.

Definition at line 137 of file satellite-tbtp-container.cc.

References m_address, m_superframeSeq, m_tbtps, RemovePastTbtps(), and ns3::SatConstVariables::SUPERFRAME_SEQUENCE.

Referenced by ns3::SatUtMac::SetRandomAccess().

Here is the call graph for this function:
