#include "satellite-stats-plt-helper.h"

Inheritance diagram for ns3::SatStatsRtnAppPltHelper:

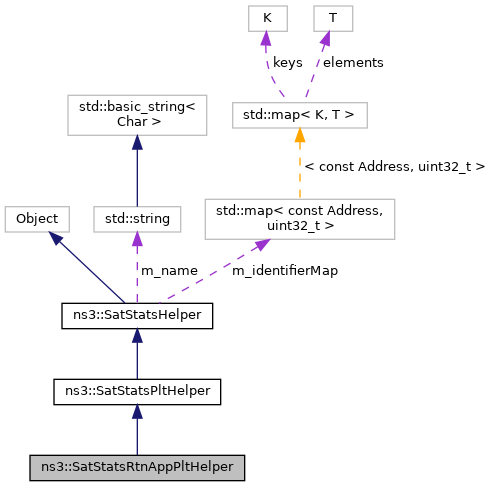

Collaboration diagram for ns3::SatStatsRtnAppPltHelper:

Public Member Functions
	SatStatsRtnAppPltHelper (Ptr< const SatHelper > satHelper)

virtual	~SatStatsRtnAppPltHelper ()
	/ Destructor. More...

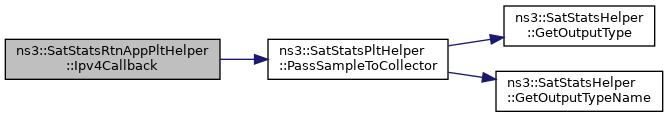

void	Ipv4Callback (const Time &plt, const Address &from)
	Receive inputs from trace sources and determine the right collector to forward the inputs to. More...

Public Member Functions inherited from ns3::SatStatsPltHelper
	SatStatsPltHelper (Ptr< const SatHelper > satHelper)

virtual	~SatStatsPltHelper ()
	/ Destructor. More...

bool	GetAveragingMode () const

void	InstallProbes ()
	Set up several probes or other means of listeners and connect them to the collectors. More...

void	RxPltCallback (const Time &plt, const Address &from)
	Receive inputs from trace sources and determine the right collector to forward the inputs to. More...

void	SetAveragingMode (bool averagingMode)

Public Member Functions inherited from ns3::SatStatsHelper
	SatStatsHelper (Ptr< const SatHelper > satHelper)
	Creates a new helper instance. More...

virtual	~SatStatsHelper ()
	/ Destructor. More...

IdentifierType_t	GetIdentifierType () const

std::string	GetName () const

OutputType_t	GetOutputType () const

Ptr< const SatHelper >	GetSatHelper () const

void	Install ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

bool	IsInstalled () const

void	SetIdentifierType (IdentifierType_t identifierType)

void	SetName (std::string name)

void	SetOutputType (OutputType_t outputType)

Static Public Member Functions
static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Static Public Member Functions inherited from ns3::SatStatsPltHelper
static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Static Public Member Functions inherited from ns3::SatStatsHelper
static std::string	GetIdentifierTypeName (IdentifierType_t identifierType)

static std::string	GetOutputTypeName (OutputType_t outputType)

static TypeId	GetTypeId ()
	inherited from ObjectBase base class More...

Protected Member Functions

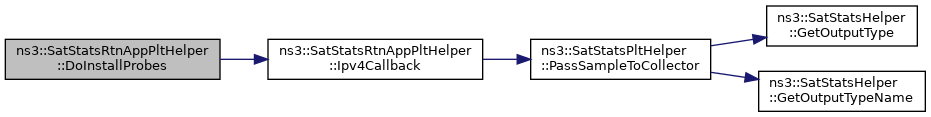

void	DoInstallProbes ()

Protected Member Functions inherited from ns3::SatStatsPltHelper
bool	ConnectProbeToCollector (Ptr< Probe > probe, uint32_t identifier)
	Connect the probe to the right collector. More...

void	DoInstall ()
	Install the probes, collectors, and aggregators necessary to produce the statistics output. More...

void	PassSampleToCollector (const Time &plt, uint32_t identifier)
	Find a collector with the right identifier and pass a sample data to it. More...

void	SaveAddressAndIdentifier (Ptr< Node > utNode)
	Save the address and the proper identifier from the given UT node. More...

Protected Member Functions inherited from ns3::SatStatsHelper
Ptr< DataCollectionObject >	CreateAggregator (std::string aggregatorTypeId, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue())
	Create the aggregator according to the output type. More...

uint32_t	CreateCollectorPerIdentifier (CollectorMap &collectorMap) const
	Create one collector instance for each identifier in the simulation. More...

virtual std::string	GetDistributionHeading (std::string dataLabel) const

uint32_t	GetGwId (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForBeam (uint32_t satId, uint32_t beamId) const

uint32_t	GetIdentifierForGroup (uint32_t groupId) const

uint32_t	GetIdentifierForGw (Ptr< Node > gwNode) const

uint32_t	GetIdentifierForIsl (Ptr< Node > satNodeSrc, Ptr< Node > satNodeDst) const

uint32_t	GetIdentifierForSat (Ptr< Node > satNode) const

uint32_t	GetIdentifierForUt (Ptr< Node > utNode) const

uint32_t	GetIdentifierForUtUser (Ptr< Node > utUserNode) const

virtual std::string	GetIdentifierHeading (std::string dataLabel) const

virtual std::string	GetOutputFileName () const
	Compute the path and file name where statistics output should be written to. More...

virtual std::string	GetOutputPath () const

uint32_t	GetSatId (Ptr< Node > satNode) const

virtual std::string	GetTimeHeading (std::string dataLabel) const

uint32_t	GetUtId (Ptr< Node > utNode) const

uint32_t	GetUtUserId (Ptr< Node > utUserNode) const

Private Member Functions

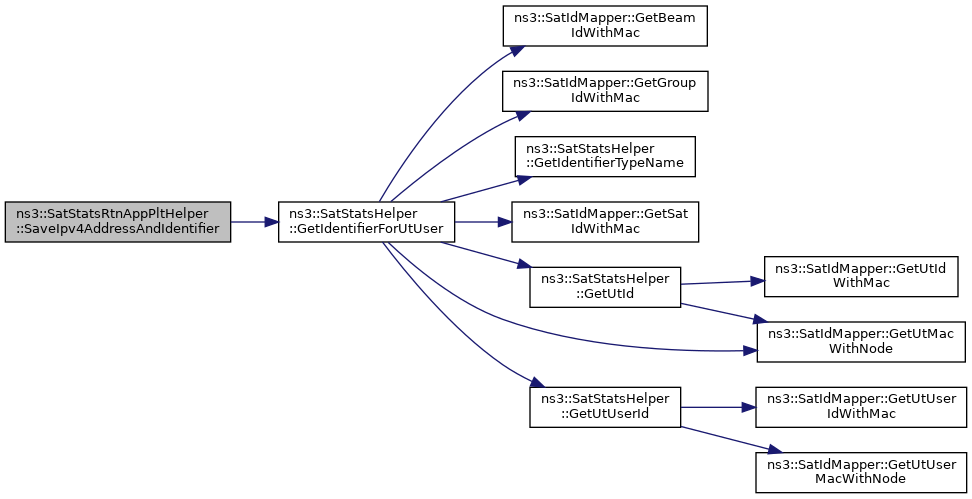

void	SaveIpv4AddressAndIdentifier (Ptr< Node > utUserNode)
	Save the IPv4 address and the proper identifier from the given UT user node. More...

Additional Inherited Members
Public Types inherited from ns3::SatStatsHelper
enum	IdentifierType_t { IDENTIFIER_GLOBAL = 0 , IDENTIFIER_GW , IDENTIFIER_BEAM , IDENTIFIER_UT , IDENTIFIER_UT_USER , IDENTIFIER_SLICE , IDENTIFIER_GROUP , IDENTIFIER_SAT , IDENTIFIER_ISL }
	Possible categorization of statistics output. More...

enum	OutputType_t { OUTPUT_NONE = 0 , OUTPUT_SCALAR_FILE , OUTPUT_SCATTER_FILE , OUTPUT_HISTOGRAM_FILE , OUTPUT_PDF_FILE , OUTPUT_CDF_FILE , OUTPUT_SCALAR_PLOT , OUTPUT_SCATTER_PLOT , OUTPUT_HISTOGRAM_PLOT , OUTPUT_PDF_PLOT , OUTPUT_CDF_PLOT }
	Possible types and formats of statistics output. More...

Static Protected Member Functions inherited from ns3::SatStatsHelper
static NetDeviceContainer	GetGwSatNetDevice (Ptr< Node > gwNode)

static Ptr< NetDevice >	GetSatSatGeoNetDevice (Ptr< Node > satNode)

static Ptr< NetDevice >	GetUtSatNetDevice (Ptr< Node > utNode)

Protected Attributes inherited from ns3::SatStatsPltHelper
Ptr< DataCollectionObject >	m_aggregator
	The aggregator created by this helper. More...

Ptr< DistributionCollector >	m_averagingCollector
	The final collector utilized in averaged output (histogram, PDF, and CDF). More...

std::map< const Address, uint32_t >	m_identifierMap
	Map of address and the identifier associated with it (for return link). More...

CollectorMap	m_terminalCollectors
	Maintains a list of collectors created by this helper. More...
