#include "satellite-channel-estimation-error-container.h"
Inheritance diagram for ns3::SatRtnLinkChannelEstimationErrorContainer:

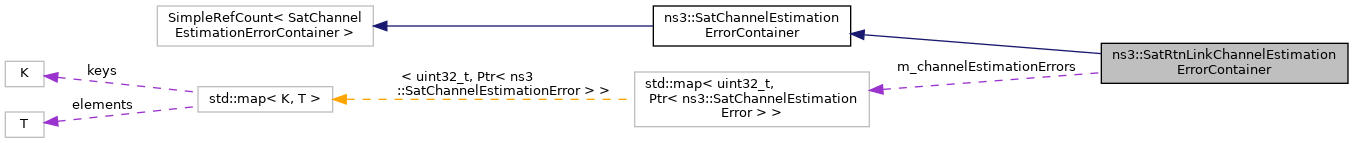

Collaboration diagram for ns3::SatRtnLinkChannelEstimationErrorContainer:
Public Member Functions | |
| SatRtnLinkChannelEstimationErrorContainer (uint32_t minWfId, uint32_t maxWfId) | |
| Constructor with initialization parameters. More... | |
| virtual | ~SatRtnLinkChannelEstimationErrorContainer () |
| Destructor for SatRtnLinkChannelEstimationErrorContainer. More... | |
| Public Member Functions inherited from ns3::SatChannelEstimationErrorContainer | |
| SatChannelEstimationErrorContainer () | |
| Default constructor. More... | |
| virtual | ~SatChannelEstimationErrorContainer () |
| Destructor for SatChannelEstimationErrorContainer. More... | |
| double | AddError (double sinrInDb, uint32_t wfId=0) const |
| Add channel estimation error to SINR. More... | |
Protected Member Functions | |
| virtual double | DoAddError (double sinrInDb, uint32_t wfId) const |
| Add channel estimation error to SINR in RTN link. More... | |
Private Attributes | |
| std::map< uint32_t, Ptr< SatChannelEstimationError > > | m_channelEstimationErrors |
| Map of channel estimation errors for each waveform id. More... | |
Detailed Description
Definition at line 135 of file satellite-channel-estimation-error-container.h.
Constructor & Destructor Documentation
◆ SatRtnLinkChannelEstimationErrorContainer()
| ns3::SatRtnLinkChannelEstimationErrorContainer::SatRtnLinkChannelEstimationErrorContainer | ( | uint32_t | minWfId, |
| uint32_t | maxWfId | ||
| ) |
Constructor with initialization parameters.
SatFwdLinkChannelEstimationErrorContainer.
- Parameters
-
minWfId maxWfId
Short burst waveforms 3-12 are using different set of channel estimation error parameters than longer burst waveforms 13-22.
Definition at line 111 of file satellite-channel-estimation-error-container.cc.
References m_channelEstimationErrors.
◆ ~SatRtnLinkChannelEstimationErrorContainer()
|
virtual |
Destructor for SatRtnLinkChannelEstimationErrorContainer.
Definition at line 136 of file satellite-channel-estimation-error-container.cc.
Member Function Documentation
◆ DoAddError()
|
protectedvirtual |
Add channel estimation error to SINR in RTN link.
- Parameters
-
sinrInDb Measured SINR in dB wfId Waveform id
- Returns
- SINR including channel estimation error in dB
Implements ns3::SatChannelEstimationErrorContainer.
Definition at line 141 of file satellite-channel-estimation-error-container.cc.
References m_channelEstimationErrors.
Member Data Documentation
◆ m_channelEstimationErrors
|
private |
Map of channel estimation errors for each waveform id.
Definition at line 163 of file satellite-channel-estimation-error-container.h.
Referenced by SatRtnLinkChannelEstimationErrorContainer(), and DoAddError().
The documentation for this class was generated from the following files:
- /builds/sns3/satellite/satellite/model/satellite-channel-estimation-error-container.h
- /builds/sns3/satellite/satellite/model/satellite-channel-estimation-error-container.cc
