SNS3

Allocate random positions within a 3D box according to a set of three random variables (longitude, latitude, altitude). More...

#include "satellite-position-allocator.h"

Inheritance diagram for ns3::SatRandomBoxPositionAllocator:

Collaboration diagram for ns3::SatRandomBoxPositionAllocator:

Public Member Functions
	SatRandomBoxPositionAllocator ()
	Default constructor. More...

virtual	~SatRandomBoxPositionAllocator ()
	Destructor for SatRandomBoxPositionAllocator. More...

virtual int64_t	AssignStreams (int64_t stream)

virtual GeoCoordinate	GetNextGeoPosition (uint32_t satId=0) const
	Get next position. More...

void	SetAltitude (Ptr< RandomVariableStream > altitude)

void	SetLatitude (Ptr< RandomVariableStream > latitude)

void	SetLongitude (Ptr< RandomVariableStream > longitude)

Public Member Functions inherited from ns3::SatPositionAllocator
	SatPositionAllocator ()
	Default constructor. More...

virtual	~SatPositionAllocator ()
	Destructor for SatPositionAllocator. More...

virtual Vector	GetNext (void) const

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::SatPositionAllocator
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ptr< RandomVariableStream >	m_altitude

Ptr< RandomVariableStream >	m_latitude

Ptr< RandomVariableStream >	m_longitude

Detailed Description

Allocate random positions within a 3D box according to a set of three random variables (longitude, latitude, altitude).

Definition at line 135 of file satellite-position-allocator.h.

Constructor & Destructor Documentation

◆ SatRandomBoxPositionAllocator()

ns3::SatRandomBoxPositionAllocator::SatRandomBoxPositionAllocator ( )

Default constructor.

Definition at line 165 of file satellite-position-allocator.cc.

◆ ~SatRandomBoxPositionAllocator()

ns3::SatRandomBoxPositionAllocator::~SatRandomBoxPositionAllocator ( )

virtual

Destructor for SatRandomBoxPositionAllocator.

Definition at line 169 of file satellite-position-allocator.cc.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::SatRandomBoxPositionAllocator::AssignStreams ( int64_t stream )

virtual

Reimplemented from ns3::SatPositionAllocator.

Definition at line 209 of file satellite-position-allocator.cc.

References m_altitude, m_latitude, and m_longitude.

◆ GetNextGeoPosition()

GeoCoordinate ns3::SatRandomBoxPositionAllocator::GetNextGeoPosition ( uint32_t satId = 0 ) const

virtual

Get next position.

Returns: The next chosen position.

Implements ns3::SatPositionAllocator.

Definition at line 198 of file satellite-position-allocator.cc.

References m_altitude, m_latitude, and m_longitude.

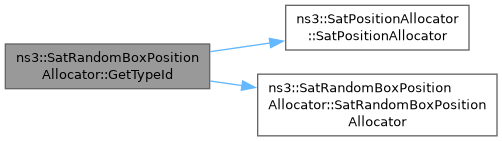

◆ GetTypeId()

TypeId ns3::SatRandomBoxPositionAllocator::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 137 of file satellite-position-allocator.cc.

References m_altitude, m_latitude, and m_longitude.

◆ SetAltitude()

void ns3::SatRandomBoxPositionAllocator::SetAltitude ( Ptr< RandomVariableStream > altitude )

Definition at line 190 of file satellite-position-allocator.cc.

References m_altitude.

◆ SetLatitude()

void ns3::SatRandomBoxPositionAllocator::SetLatitude ( Ptr< RandomVariableStream > latitude )

Definition at line 182 of file satellite-position-allocator.cc.

References m_latitude.

◆ SetLongitude()

void ns3::SatRandomBoxPositionAllocator::SetLongitude ( Ptr< RandomVariableStream > longitude )

Definition at line 174 of file satellite-position-allocator.cc.

References m_longitude.

Member Data Documentation

◆ m_altitude

Ptr<RandomVariableStream> ns3::SatRandomBoxPositionAllocator::m_altitude

private

Definition at line 168 of file satellite-position-allocator.h.

Referenced by AssignStreams(), GetNextGeoPosition(), GetTypeId(), and SetAltitude().

◆ m_latitude

Ptr<RandomVariableStream> ns3::SatRandomBoxPositionAllocator::m_latitude

private

Definition at line 166 of file satellite-position-allocator.h.

Referenced by AssignStreams(), GetNextGeoPosition(), GetTypeId(), and SetLatitude().

◆ m_longitude

Ptr<RandomVariableStream> ns3::SatRandomBoxPositionAllocator::m_longitude

private

Definition at line 167 of file satellite-position-allocator.h.

Referenced by AssignStreams(), GetNextGeoPosition(), GetTypeId(), and SetLongitude().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-position-allocator.h
/builds/sns3/satellite/satellite/model/satellite-position-allocator.cc
